Lung ultrasound as a diagnostic tool for pulmonary consolidation and atelectasis after cardiac surgery

Introduction

Pulmonary consolidation and atelectasis (PCA) are common complications following cardiac surgery, particularly in procedures involving cardiopulmonary bypass (1). These conditions impair gas exchange and alter respiratory mechanics, potentially progressing to severe postoperative complications such as pneumonia, respiratory failure, and adverse clinical outcomes (2,3). Early detection of PCA is therefore critical for timely intervention and effective management.

While chest computed tomography (CT) remains the gold standard for PCA diagnosis, its inability to be performed at the bedside limits its utility in the early postoperative period (4). About one-third of patients given narcotics in the first five minutes after entering the post-anesthesia care unit develop PCA (5). Bedside chest X-ray (CXR), despite its simplicity and cost-effectiveness, is the most commonly used diagnostic tool in the intensive care unit (ICU). However, its diagnostic accuracy for lung pathologies is notably limited (6-8). Delayed identification and treatment of PCA contribute to disease progression and increased healthcare costs, underscoring the need for a reliable, accessible, and reproducible point-of-care diagnostic method.

Lung ultrasound (LUS) has emerged as a promising bedside tool for detecting lung and pleural abnormalities, including pleural effusion, pneumothorax, and pulmonary edema (9-11). It is radiation-free, widely applicable, and can be performed in virtually any clinical setting (12). Despite its growing use, there is limited research on its diagnostic and prognostic value for PCA. This study aimed to evaluate the diagnostic accuracy of LUS for PCA, explore the relationship between the lung ultrasound score (LUSS) and quantitative respiratory function parameters, and assess its association with short-term clinical outcomes. We present this article in accordance with the STARD reporting checklist (available at https://jtd.amegroups.com/article/view/10.21037/jtd-2025-370/rc).

Methods

Study design

This prospective, observational, single-center study was conducted at the First Affiliated Hospital of Zhejiang University School of Medicine from February 1 to June 1, 2024. The study was conducted in accordance with the Declaration of Helsinki and its subsequent amendments. The study was approved by the Review Board of the First Affiliated Hospital, Zhejiang University School of Medicine (No. IIT20240376B) and informed consent was obtained from all individual participants. The single-center design ensured consistency in clinical management and diagnostic procedures, while the study period was selected based on anticipated case volumes and institutional resource availability.

Inclusion and exclusion criteria

Inclusion criteria

• Age ≥18 years;
• Anticipated ICU stay ≥48 hours;
• Confirmed diagnosis of PCA via CT scan within 24 hours post-surgery;
• Written informed consent obtained from the patient or a legally authorized representative.

Exclusion criteria

• Pre-existing or suspected pulmonary infection prior to surgery;
• Conditions preventing successful LUS examination, such as extensive dressing coverage, pneumothorax, or significant subcutaneous emphysema;
• Severe clinical conditions preventing safe transport for imaging or ultrasound examinations;
• Pregnancy or other contraindications to ultrasound.

Data collection

Data were extracted from electronic medical records, including demographic information [age, gender, body mass index (BMI)] and clinical details (surgical procedure, comorbidities, mechanical ventilation duration, ICU length of stay, and total hospital stay). All patients underwent postoperative CXR, LUS, and CT scans within 24 hours of surgery. CT served as the gold standard for PCA diagnosis, and diagnostic accuracy was assessed by comparing LUS and CXR results.

Ultrasound examination

LUS was performed using a convex array 2–5 MHz transducer (Philips CX50) by two trained physicians following a standardized protocol. The thoracic area was divided into 12 quadrants based on the anterior and posterior axillary lines, with further subdivision using the nipple line as a reference for upper and lower segments (13). Each quadrant was independently scored on a scale of 0 to 3, where 0 indicated normal aeration and 3 indicated complete loss of lung aeration (Figure 1). The LUSS was calculated by summing the scores of all quadrants, with higher scores indicating greater lung aeration impairment. Discrepancies in scoring were resolved through discussion, with final interpretation provided by a senior physician with over ten years of clinical ultrasound experience.

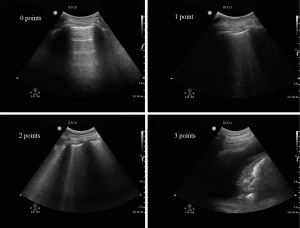

Figure 1 Images corresponding to LUSS scores of 0 to 3. 0: normal ventilation (lung sliding, A-lines, with no or only a few B-lines); 1: moderate aeration loss (<3 well-defined, regularly spaced B-lines, >7 mm apart); 2: severe aeration loss [multiple coalescent B-lines (typically more than 3) with narrow spacing (≤7 mm)]; 3: atelectasis/consolidation (tissue-like patterns, fragmented B-lines, bronchial inflation signs). LUSS, lung ultrasound score.

Three-dimensional (3D) Slicer lung CT analysis

Chest CT images were analyzed using the 3D Slicer platform (version 4.10.2, https://www.slicer.org) with the “Lung CT Segmenter” and “Lung CT Analyzer” modules (14,15). The “Lung CT Segmenter” module was employed to delineate lung boundaries, ensuring precise segmentation of lung tissue. The volumes of lung regions were classified into four categories based on their radiological appearance: emphysema, inflated, infiltration, and collapse. These categories were subsequently analyzed using the “Lung CT Analyzer” module. The total CT score was calculated by multiplying the percentage of each volume category by its respective weight and summing the results. This scoring system provided an objective assessment of the severity and distribution of PCA the lung parenchyma.

Statistical analysis

Statistical analyses were conducted using SPSS software (version 20.0) and R software (version 3.3.2). The normality of continuous variables was evaluated using the Kolmogorov-Smirnov test. Variables following a normal distribution were expressed as mean ± standard deviation (SD), while non-normally distributed variables were reported as median values with interquartile range (IQR). Categorical variables were summarized as frequencies and percentages. The diagnostic performance of LUS was assessed by calculating the area under the receiver operating characteristic (ROC) curve, along with 95% confidence interval (CI), to estimate the test’s accuracy. Spearman’s rank correlation analysis was employed to examine the relationships between variables, with results interpreted based on the following scale: 0.0<r<0.2 (no correlation), 0.2≤r<0.4 (weak correlation), 0.4 ≤r<0.7 (moderate to good correlation), and 0.7≤r<1.0 (good to very good correlation). Statistical significance was defined as P<0.05.

Results

This study included 66 patients who underwent cardiac surgery with cardiopulmonary bypass. All patients were transferred to the ICU for postoperative care. Table 1 summarizes the patients’ baseline characteristics, surgical types, LUSS, mechanical ventilation time, ICU stay, and other relevant parameters.

Postoperative chest CT scans identified PCA in 60 out of 66 patients. LUS detected PCA in 59 patients, with 2 false positives and 3 false negatives, yielding a diagnostic sensitivity of 95% and specificity of 66.7%. In contrast, CXR identified PCA in 46 cases, with 3 false positives and 17 false negatives, resulting in a sensitivity of 71.6% and specificity of 50%. The diagnostic performance of LUS was superior to that of CXR, as evidenced by an area under the curve (AUC) of 0.808 (95% CI: 0.576–1.040), significantly higher than the AUC for CXR (0.608, 95% CI: 0.360–0.855; P=0.01) (Figure 2).

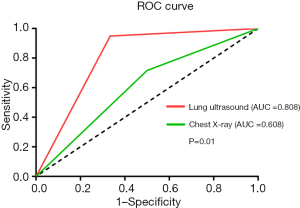

Figure 2 The ROC curves for PCA diagnosis using lung ultrasound and chest X-ray. AUC, area under the curve; PCA, pulmonary consolidation and atelectasis; ROC, receiver operating characteristic.

Chest CT scans were analyzed using the 3D Slicer software, which segmented the lungs into regions categorized as emphysema, inflated, infiltration, and collapse. A weighted CT score was calculated based on the volume of each category. These detailed segmentations were manually delineated and reconstructed in 3D, providing comprehensive visualizations of PCA (Figure 3).

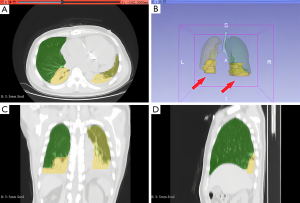

Figure 3 3D Slicer analysis of chest CT scans in a patient undergoing mitral valve replacement. (A,C,D) The cross-sectional, coronal, and sagittal views of the patient’s chest CT, respectively, with the PCA marked in yellow. (B) 3D imaging, with the yellow section representing the PCA volume (red arrows). 3D, three-dimensional; CT, computed tomography; PCA, pulmonary consolidation and atelectasis.

LUSS showed a positive correlation with PCA (r=0.606, P<0.001). While LUSS also correlated with several other pulmonary parameters, these correlations were weaker. Specifically, LUSS demonstrated positive correlations with lung infiltration (r=0.398, P<0.001) and lung collapse (r=0.328, P=0.007). Conversely, LUSS was negatively correlated with lung inflated (r=−0.481, P<0.001), as illustrated in Figures 4A-4D. LUSS also showed a weak positive correlation with ICU stay (r=0.347, P=0.004), but no significant correlation with ventilation duration (r=0.159, P=0.20) or total hospital stay (r=0.144, P=0.25), additionally, we found that LUSS showed a positive correlation with CT score (r=0.401, P<0.001) (Figure 4E-4H).

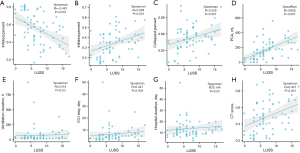

Figure 4 Correlations between LUSS and pulmonary ventilation parameters (A-D), patient outcomes (E-G), and CT scores (H). CT, computed tomography; LUSS, lung ultrasound score; PCA, pulmonary consolidation and atelectasis.

The CT scores derived from the 3D Slicer analysis exhibited a moderate positive correlation with ICU stay (r=0.540, P<0.001). Weaker correlations were observed between CT scores and ventilation duration (r=0.383, P=0.001) and total hospital stay (r=0.326, P=0.008) (Figure 5A-5C).

Figure 5 The influence of CT score on ventilation duration (A), ICU stay (B) and hospital duration (C). CT, computed tomography; ICU, intensive care unit.

Discussion

Our study evaluates the diagnostic efficacy of LUS and CXR in diagnosing PCA following cardiac surgery. The results demonstrated that LUS exhibited significantly superior diagnostic performance compared to CXR. These findings align with previously published studies (16-18), which indicate that LUS has higher sensitivity and specificity in detecting pulmonary complications, particularly in diagnosing pneumonia and atelectasis. For instance, in a recent study, LUS was performed on 120 patients with pulmonary consolidation identified by CXR within 24 hours, revealing pneumonia in 51 cases (42.5%). The sensitivity and specificity of color Doppler imaging were 90% and 68%, respectively (19). Further research supports the use of LUS as a viable alternative to bedside CXR. The meta-analysis revealed that LUS had an overall sensitivity of 92% and 91% for diagnosing consolidation and pleural effusion, respectively, with a pooled specificity of 92%. In contrast, CXR demonstrated pooled sensitivities of 53% and 42% for consolidation and pleural effusion, respectively, with specificities of 78% and 81% (20).

Compared to CT, LUS has demonstrated significant potential in diagnosing pulmonary complications. In a study comparing the diagnostic value of LUS and chest CT for peribronchial lesions in hemorrhagic fever with renal syndrome, LUS exhibited high sensitivity (92.19–100%) and negative predictive value (95.9–100%) for five pathological types, including lung consolidation and pleural effusion (21). LUS shows a high sensitivity for diagnosing PCA, but its specificity is relatively low (22,23). Our study also presents the same issue. This could be attributed to the limitations of ultrasound imaging, such as weaker signals in certain patients or difficulties in fully assessing all regions of the lung. Additionally, the results of LUS may be influenced by the patient’s body type, and the clinical condition. Therefore, future research should focus on strategies to improve the specificity of LUS, particularly in specific patient populations.

There is currently no quantitative evidence to support the accuracy of LUS in evaluating lung ventilation parameters, despite the fact that its involvement in doing so has been validated in a number of qualitative investigations (9,24,25). 3D Slicer provides powerful image processing, three-dimensional visualization, and quantitative analysis capabilities in the analysis of lung ventilation characteristics, enabling precise measurement of the volume of different lung regions and assessment of the extent of lesions (26,27). To our knowledge, this study is the first article to quantitatively assess pulmonary ventilation distribution using 3D Slicer and compare its correlation with LUS.

In this study, LUSS demonstrated a strong positive correlation with PCA, and weaker but significant positive correlations with lung infiltration and collapse, while showing a negative correlation with lung inflation. Our quantitative analysis indicates that LUSS serves as an effective tool for assessing both the severity and patterns of lung injury, particularly in diagnosing atelectasis and consolidation. The suboptimal performance of LUSS in evaluating overall pulmonary status may be attributed to operator variability, which shows some discrepancy with previous findings (28). We propose that implementing standardized ultrasound training protocols in future studies could potentially improve assessment accuracy.

Correlation analyses between LUSS and CT scores further validate the utility of LUS in evaluating PCA. LUSS has proven to be a valuable metric for monitoring and assessing the risk of pulmonary complications during hospitalization. Elevated LUSS values have been associated with increased requirements for ventilatory support and prolonged ICU stays (29,30). In our study, LUSS showed a positive correlation with ICU duration but no significant relationship with the duration of mechanical ventilation or total hospital stay. While this may initially appear contradictory, further analysis using 3D Slicer-enhanced CT imaging supported these findings. The proposed CT scoring system, which quantifies pulmonary complications, demonstrated moderate correlations with both LUSS and ICU duration but only weak correlations with ventilation duration and hospital stay. Given the superior resolution and diagnostic accuracy of CT compared to LUSS, the weaker correlation between LUSS and ICU duration is not unexpected.

Additionally, we believe several factors may further explain the limited impact of LUSS on patient outcomes in this study. First, LUSS was measured only within the first 24 hours post-surgery, without capturing dynamic changes over time. Previous studies have demonstrated that repeated LUS examinations are valuable for predicting ICU stay duration (31,32). Second, for PCA treatment, we implemented individualized interventions (e.g., bronchoscopy, vibration expectoration, lung recruitment) without a standardized protocol, which may account for the neutral outcomes. Additionally, unmeasured factors such as cardiac function may also significantly influence outcomes in cardiac surgery patients. Third, as an exploratory study, this research implemented stringent inclusion and exclusion criteria. However, the lack of prospective sample size calculation based on the estimated effect size may limit the generalizability of the findings.

Despite these limitations, our study confirms that LUS is an effective tool for detecting PCA and provides valuable insights into the overall lung condition of patients. We recommend repeated LUS examinations to better capture dynamic changes in lung status, which could enhance postoperative management and outcomes for cardiac surgery patients.

Conclusions

LUS can serve as a routine diagnostic method for PCA following cardiac surgery. LUSS is indicative of the severity of PCA in patients, and dynamic postoperative assessment of LUSS holds certain predictive value for short-term prognosis.
