Apneic oxygenation during robotic-assisted bronchoscopy: a retrospective study on safety and diagnostic yield

Introduction

Background

Patients with peripheral pulmonary lesions (PPLs) often undergo non-surgical lung biopsies to obtain a diagnosis and guide management. These biopsies can be performed via a percutaneous or bronchoscopic approach. Bronchoscopic approaches can include pre-procedural planning with virtual bronchoscopy, ultrathin bronchoscopy, and manual or robotic navigational bronchoscopy (1,2). These modalities are combined with intraprocedural imaging such as radial endobronchial ultrasound (r-EBUS), 2-dimensional (2D) fluoroscopy, or 3-dimensional (3D) imaging such as digital tomosynthesis (DT), mobile or fixed cone beam computed tomography (CBCT) (3,4). A bronchoscopic approach may be preferred over a percutaneous approach given a similar diagnostic yield, with an improved safety profile, and the ability to perform mediastinal staging in a single procedure (5,6). The diagnostic yield and morbidity of lung biopsy procedures may be dependent on procedural conditions such as the development of CT to body divergence. CT-to-body divergence is the difference between the nodule location in a pre-procedure CT scan and the actual location of the lesion during the procedure (7). Procedure specific factors such motion, relationship of the lesion to airways, and the development of atelectasis can lead to CT-to-body divergence (8-10).

The goal of anesthesia protocols during bronchoscopic PPL biopsy is to reduce atelectasis and motion, thus minimizing CT-to-body divergence (11,12). Anesthesia protocols described for navigational bronchoscopy include the Lung Navigation Ventilation Protocol (LNVP) (13,14) and the Ventilatory Strategy to Prevent Atelectasis (VESPA) (15). While both protocols describe airway management with placement of an endotracheal tube, performing recruitment maneuvers post-intubation, and minimizing the fraction of inspired oxygen (FiO₂), the protocols differ on tidal volume (V_T) and positive end-expiratory pressure (PEEP) recommendations. VESPA recommends V_T of 6–8 cc/kg ideal body weight (IBW) and PEEP 8–10 cmH₂O (13,14). LNVP recommends V_T 10–12 cc/kg of IBW, with PEEP 10–15 cmH₂O in upper or middle lobe targets, and 15–20 cmH₂O in lower lobe targets. An additional strategy for LNVP is the implementation of inspiratory breath-holds at V_T with the adjustable pressure limiting (APL) valve set to the same pressure as PEEP during periods of apnea, while allowing for ventilation at least 30 seconds for every 4 to 6 minutes of apnea. VESPA addresses atelectasis and LNVP addresses both atelectasis and respiratory motion (13,14).

Rationale and knowledge gap

To further address motion during bronchoscopic procedures, prolonged apneic oxygenation presents a potential strategy. Apneic oxygenation refers to the passive movement of oxygen into the alveoli without active ventilation, relying on a pressure gradient created by oxygen uptake and reduced nitrogen in the lungs. Patients are pre-oxygenated to de-nitrogenate the lung. During apnea, the diffusion of oxygen from the alveolus into the bloodstream causes the alveolar pressure to become sub-atmospheric. This pressure gradient allows administered oxygen to move into the alveolus, referred to as “aventilatory mass flow”. The sub-atmospheric pressure allows carbon dioxide (CO₂) to transfer from blood to the alveolus. The presence of nitrogen and accumulating CO₂ reduces the pressure gradient. Cardiac movement can cause airflow changes secondary to intrathoracic pressure alterations, in addition to direct compression and expansion of lung parenchyma adjacent to the heart or blood vessels. Thus, cardiac movement may assist with gas exchange during apnea. During apneic oxygenation, limitations in CO₂ removal can lead to hypercapnia and acidosis, which may result in hemodynamic instability and hypoxia (16,17).

Breath holds or apneic oxygenation are used in various medical specialties (16,17). Spontaneous short breath holds are used to stabilize motion during imaging or radiation therapy treatment (16). Longer periods of apneic oxygenation are used in patients being managed peri-intubation in difficult airways (18), and to reduce motion or allow airway access during rigid bronchoscopy (19,20) laryngeal surgeries (21,22), and cardiac surgeries (23). Studies have demonstrated different rates of end-tidal carbon dioxide (ETCO₂) rise depending on technique (1.1–3.4 mmHg/min, following an initial increase in the first minute) (18,24-26). Prolonged apneic oxygenation has been successfully used via endotracheal tube with continuous positive pressure support during percutaneous CT guided lung biopsy (27,28). Multiple studies in various settings demonstrate the safety of apneic oxygenation in patients monitored during anesthesia (16,17,27,28).

During navigational bronchoscopy, patients may be placed under short apneic periods or “breath holds” while obtaining 3D imaging or during biopsies, but there are limited reports describing the use of longer breath holds (11,14). Prolonged apneic oxygenation during robotic-assisted bronchoscopy (RAB) may improve outcomes by reducing PPL motion and allowing the catheter to remain optimally positioned to the target.

Objective

The primary objective of this study is to assess the safety and diagnostic outcomes of RAB PPL biopsy procedures using an anesthesia protocol with prolonged apneic oxygenation. Secondary objectives include describing patient demographics, lesion characteristics, and procedural specifics. We present this article in accordance with the STROBE reporting checklist (available at https://jtd.amegroups.com/article/view/10.21037/jtd-2025-1217/rc).

Methods

Study design

This is a retrospective single center study of patients who underwent RAB PPL biopsy procedures by interventional pulmonologists using the Ion endoluminal system by Intuitive Surgical, Inc. (Sunnyvale, CA, USA) between 9/1/2023 and 12/31/2023 in the endoscopy unit at Orlando Regional Medical Center (ORMC), Orlando, FL, USA. The patient’s clinical and demographic data, lesion characteristics, procedure details, and biopsy results were collected via review of the electronic medical record (EMR). This study was conducted in accordance with the Declaration of Helsinki and its subsequent amendments, and received approval from the Orlando Health Institutional Review Board (IRB) (protocol #1, IRB No. 25.097.05). All patients provided informed consent for the standard of care procedure. The Orlando Health IRB approved a waiver of informed consent under 45 CFR 46.116 (f) for this project.

Patient population

Patients were referred for evaluation of PPL and scheduled for RAB biopsy procedure. The procedure schedule was reviewed in the EMR during the period to identify patients who underwent RAB with anesthesia protocol with apneic oxygenation. Patients were excluded if apneic oxygenation was not performed per the protocol.

Procedure

The patient had a same day pre-procedure CT chest performed on arrival at the hospital (Figure 1). This scan was uploaded to PlanPoint planning software (Intuitive Surgical, Inc.). The CT scan was reviewed by the proceduralist, nodule(s) were marked, and pathways were created. The plan was then exported to the RAB system. The patient was intubated by anesthesiology via rapid sequence intubation (RSI) with placement of an endotracheal tube. The patient was paralyzed with non-depolarizing neuromuscular blocking agents and maintained with total intravenous anesthesia (TIVA). The ventilator (Dräger Apollo, Lübeck, Germany) V_T was set at 10 cc/kg non-ideal body weight with a target between 500–850 cc, PEEP at 10 cmH₂O (12 if morbidly obese), with FiO₂ at 100%. The patient’s vital signs, including heart rate, blood pressure, pulse oximetry, electrocardiogram, were monitored non-invasively per institution guidelines for patients undergoing general anesthesia. There was no routine use of arterial blood gas monitoring or transcutaneous CO₂ monitoring. Anesthesiology staff treated the patient’s hemodynamic changes during the procedure, as necessary.

Figure 1 CT chest in axial view with 7 mm lower lobe nodule. CT, computed tomography.

The proceduralist performed an airway examination using a diagnostic or therapeutic bronchoscope (Olympus Corporation of the Americas, Redmond, Washington, USA) and secured the endotracheal tube at the appropriate location. The RAB arm was then docked to the endotracheal tube, and registration was performed. Navigation was performed to the target lesion.

When requested by the proceduralist, the patient was placed in apneic oxygenation. The APL valve was set to 20 cmH₂O (25 cmH₂O if morbidly obese) with inspiratory pause. The pressure curve was observed to ensure a plateau was reached (Figure 2). The FiO₂ was placed at 4 liters per minute (LPM). Apneic oxygenation was performed during portions of the procedure, including navigation, mCBCT spin, catheter adjustments, and biopsy. The use of apneic oxygenation was at the discretion of the proceduralist with no preset patient or lesion specific criteria. Figure 3 details intraprocedural hemodynamic monitoring.

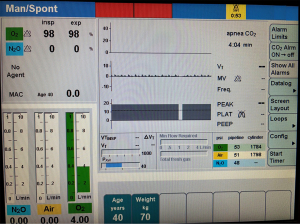

Figure 2 Anesthesia ventilator showing plateau of airway pressure during apneic oxygenation. CO₂, carbon dioxide; insp, inspiratory; exp, expiratory; Freq., frequency; MAC, minimum alveolar concentration; MV, minute ventilation; N₂O, nitrous oxide; PEAK/PLAT, peak/plateau pressures in cmH₂O; PEEP, positive end expiratory pressure in cmH₂O; VT, tidal volume.

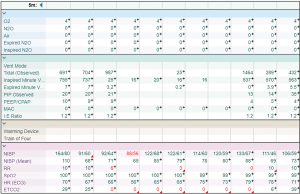

Figure 3 Anesthesia records with intraprocedural vitals in 5-minute intervals during RAB with period of apneic oxygenation. The units of the parameters are as follows: air in liters per minute; tidal volume in mL; inspired minute ventilation in L/min; expired minute ventilation in L/min. ETCO₂, end-tidal carbon dioxide in mmHg; HR (ECG), heart rate (electrocardiogram); I:E ratio, inspiratory to expiratory ratio; MAC, minimum alveolar concentration; N₂O, nitrous oxide in liters per minute; NIBP, non-invasive blood pressure in mmHg; O₂, oxygen in liters per minute; PEEP/CPAP, positive end expiratory pressure/continuous positive airway pressure in cmH₂O; PIP observed, peak inspiratory pressure observed in cmH₂O; RAB, robotic-assisted bronchoscopy; RR, respiratory rate; SpO₂, peripheral oxygen saturation.

The proceduralist performed intraprocedural imaging to localize the PPL, which potentially included r-EBUS (Olympus Corporation of the Americas), 2D fluoroscopy or mCBCT using the Cios-Spin™ Mobile 3D C-Arm (Siemens Healthineers Inc., Erlangen, Germany). After ensuring proper catheter to lesion positioning via confirmation with intraprocedural imaging, the proceduralist performed the biopsy using a multimodality approach that included transbronchial needle aspiration (TBNA, Flexision needle, Intuitive Surgical) and transbronchial lung biopsy (TBBX, Captura mini biopsy forceps without spike, Cook Medical, Winston-Salem, NC, USA) with possible transbronchial lung cryobiopsy (TBLC, 1.1 mm cryoprobe, Erbe USA, Marietta, GA, USA). Figure 4 shows mCBCT with the tool in lesion. Rapid on-site pathology was available via cytotechnician and cytopathologist for immediate evaluation of samples. Apneic oxygenation was stopped after completion of PPL biopsy. If multiple PPLs were evaluated during the procedure, apneic oxygenation was either continuous or with a period of ventilation per the protocol settings in between PPLs. After the final target PPL, the ventilator was set according to the anesthesia provider’s preference.

Figure 4 Intraprocedural mobile cone beam CT imaging with tool in lesion (3-dimensional reconstruction). Pathology with metastatic carcinoma. The colored reference lines/arrows mark alignment with the catheter and nodule to confirm tool-in-lesion positioning on mobile CBCT. A, anterior; CT, computed tomography; F, foot; L, left.

The patient was then extubated, transferred to the post anesthesia care unit, where a chest radiograph was performed. The patient was dispositioned per institution guidelines.

Complications and safety profile

Immediate peri-procedural complications were recorded: pneumothorax, pneumothorax requiring chest tube, bleeding according to the Nashville Bleeding Scale (29), and other escalation of care such as admission to hospital or intensive care unit (ICU).

Histopathologic analysis

Results from the RAB biopsy were categorized according to the American Thoracic Society/American College of Chest Physicians Guidelines at the index procedure for strict diagnostic yield: specific malignant diagnosis, specific benign diagnosis, non-diagnostic (30). For non-diagnostic results, 12-month follow-up data was obtained to calculate intermediate diagnostic yield (31).

Statistical analysis

All analyses were conducted in R (32) and tables were generated with the gtsummary package (33). Data were presented using summary statistics. If the data were continuous, then the median and interquartile range (IQR; 25% and 75%) were reported. If the data were categorical, then the frequencies of each factor level were reported accompanied by the percentage. The demographics, RAB procedure, and ventilation procedure were abstracted from the electronic medical records and reported at the patient level. Lesion characteristics were reported for each lesion, where each patient could have multiple lesions. pH was calculated in the pre and post period based on the Hendeson-Hasselbalch equation and categorized according to acid-based physiology (34,35). To determine the potential relationship between pH and blood pressure, a Fisher’s exact test was used. To identify any associations in the frequencies between blood pressure states and heart rate categories during the ventilation procedure, a Fischer’s exact test was used. To illustrate the distribution of apneic period times, we plotted the empirical distribution function by lesion number and by first versus 2^nd/3^rd breath holds. To determine if there were potential risks associated with prolonged apneic oxygenation, we included a reference group to determine any differences in diagnostic yield, pneumothorax, and Nashville bleeding. The reference group were patients within the same period of the study who underwent RAB biopsy procedures in ORMC endoscopy with the same anesthesia protocol without the use of prolonged apneic periods.

Results

During the period, 204 RAB procedures were performed by interventional pulmonologists in ORMC endoscopy, and 108 procedures met the inclusion criteria. Table 1 details patient demographics. The median patient age was 67 years, with a male predominance (58%) and a median body mass index of 26 kg/m². Most patients were ever smokers (70%) and over half had a prior history of cancer. According to American Anesthesiology Association (ASA) physical status classification, most patients had severe systemic disease (ASA 3 with 69%).

Table 2 details anesthesia metrics. The median apneic oxygenation time per procedure was 23 minutes. Most procedures (86%) had a single apneic period. However, 14 procedures had two periods and one procedure had three periods. The shortest apneic period was 6 minutes and the longest was 45 minutes. The median apneic oxygenation times ranged from 19–23 minutes depending on number of lesions biopsied during the procedure and across one period versus multiple periods. Therefore, lesion number or number of holds has negligible impact on the duration of apneic periods (Figure 5). The median ETCO₂ immediately prior to apnea was 32 mmHg and upon resumption of ventilation was 59 mmHg. For patients with multiple periods, the initial pre-ETCO₂ and final post ETCO₂ after apnea were used for analysis. Given the retrospective nature of this study, the time to measure post-apnea ETCO₂ after resuming ventilation and delays in transfer of anesthesia metrics to the EMR may have impacted the results. In addition, prior studies have reported the ETCO₂ measurements upon resumption of ventilation can underestimate hypercapnia (16). The estimated calculated median pre-apnea pH was 7.47 (IQR: 7.43, 7.51) and post-apnea pH was 7.23 (IQR: 7.17, 7.28), based on ETCO₂ corrected values and the Henderson-Hasselbalch equation.

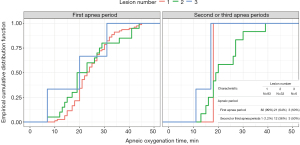

Figure 5 Empirical cumulative distribution function of apneic oxygenation times across apneic periods by lesion number.

Three patients experienced hypoxia during apnea (nadir range from 82–87%). Two patient’s hypoxia were associated with hypotension that resolved following vasopressor administration. The third patient’s hypoxia resolved after resuming ventilation and was not associated with hypotension (Table 2).

Patients in 69 procedures required intraprocedural vasopressors via intravenous push as needed to manage hypotension, with 27 (39%) during apnea only and 33 (48%) during both apnea and ventilation periods. If needed, the median doses of medications per procedure were phenylephrine 300 (IQR: 200, 600) mcg, ephedrine 10 (IQR: 5, 24) mg and epinephrine 0.01 (IQR: 0.01, 0.02) mg; some patients were treated with multiple agents. One patient required a continuous epinephrine infusion, and as needed phenylephrine. The infusion was started after intubation and maintained throughout both apneic and ventilation periods. Overall, the median net volume received for patients during the procedure was 481 mL (Table 2).

Table 3 further details patient blood pressure and heart rate during apneic oxygenation. Of note, of 15 patients who were both hypotensive and hypertensive during the apneic period, 11 had initial hypotension treated with as needed vasopressors that later developed hypertension. No associations between abnormal blood pressure and heart rate were noted. We did not observe any association between calculated pH and blood pressure; however, interpretation is limited by the retrospective design and estimation of pH from end-tidal CO₂ monitoring.

Tables 4,5 detail the procedure and lesion details. The median nodule size was 15 mm. Most procedures targeted one lesion (75.9%). Of the 26 multiple lesion procedures, 69% involved bilateral targets. Most PPLs were solid (81%), located in the upper lobes (63%), and in the outer 1/3 of the lung (62%); 47.8% of lesions were adjacent to the pleura or a fissure. TBNA and TBBX were performed for all PPLs, with TBLC in 9%. CBCT was used in 97% of procedures. EBUS lymph node sampling was performed in 95% of procedures, with a median of 4 lymph nodes biopsied (IQR: 3, 5). The median procedure time was 44 minutes.

In the immediate periprocedural period, 95.4% of patients had no adverse events. No pneumothorax occurred. Intraprocedural bleeding was noted in 5 patients, with 2 patients classified as grade 4. One patient required balloon occlusion to achieve hemostasis, but was extubated and transfused 1 unit of packed red blood cells prior to discharge home. A second patient required placement of a balloon blocker for hemostasis, and was admitted to ICU intubated. The patient underwent a repeat bronchoscopy the following day where the blocker was removed, and the patient later extubated.

Based on cytology, pathology and culture results from the index RAB with no additional follow-up data included, the strict diagnostic yield was 88.2% for the 136 PPLs. Specifically, 93 (68.4%) specific malignant, 27 (20.6%) specific benign and 16 (11.8%) non-diagnostic. Follow-up for non-diagnostic results revealed: 9 PPLs decreased in size or showed stability at 1 year on follow-up imaging, 3 PPLs in patients treated for metastatic cancer with no available repeat imaging, and 4 PPLs in patients without available repeat imaging. Diagnostic yield with follow-up data included was 94.9%.

Discussion

Key findings

This study evaluated the safety and efficacy of an anesthesia protocol with prolonged apneic oxygenation during RAB with mCBCT for PPLs. During 108 procedures in the evaluation and biopsy of 136 PPLs with a median size of 15 mm, apneic oxygenation was used for a median of 23 minutes per procedure with an overall median procedure time of 44 minutes. The anesthesia team managed hemodynamics intraoperatively, and 65% of patients required vasopressors during the procedure; however, there were no persistent effects afterward. The immediate occurrence of overall adverse events was 4.6%, all attributed to bleeding, with 1.9% grade 4. No pneumothorax occurred. The strict diagnostic yield based at index RAB was 88%.

Strengths and limitations

This is a retrospective cohort analysis in a single center with a high procedural volume with experienced proceduralists. There is a potential bias in patient selection, as this study was not prospective, not randomized and had no delineated pre-procedure malignancy risk calculations for the PPLs. The period selected was after staff familiarization with RAB and anesthesia protocols with over 1,000 RAB procedures performed prior to the study period. Apneic oxygenation was used per proceduralists’ discretion during the procedure with no delineated criteria regarding when to use or not to use prolonged apneic oxygenation. Our patient population was relatively healthy (88% of patients either ASA 2 or 3), with a median body mass index (BMI) of 26 kg/m², which may limit generalizability to patients with more severe comorbidities. There are limitations in data available via retrospective chart review, particularly regarding intraprocedural metrics that are transferred to the EMR, or if any periods of apnea were prematurely terminated during the procedure. Generalizability may be limited based on staff, familiarity with workflow, procedural volume, and patient population.

Comparison with similar research

Recent meta-analyses have been published to evaluate procedural outcomes in peripheral bronchoscopy. One large meta-analysis on guided bronchoscopy included 95 studies for the evaluation of PPLs with a variety of navigational and advanced imaging technologies that reported an overall diagnostic yield of 70.9%, with an overall adverse event rate of 5.6% (pneumothorax 2.5%, pneumothorax requiring intervention 1.2%, bleeding 2.1%). A subgroup analysis of studies using 3D imaging and newer navigational techniques, including robotics, yielded a statistically significant higher diagnostic yield (77.5%) (36). A second meta-analysis of 25 early published RAB studies yielded a pooled diagnostic yield of 84.3% with pneumothorax rate of 2.3% (37).

There is limited data on outcomes about bronchoscopy for PPL with dedicated anesthesia ventilator protocols. The VESPA trial was not designed to assess the impact of a prescribed anesthesia protocol on diagnostic yield. Transient hypotension requiring vasopressors was reported in 26.3% of conventional anesthesia and 31.6% in the VESPA group (15). Bhadra et al. reported a retrospective single center study of 50 patients (25 on LNVP protocol versus 25 conventional anesthesia) undergoing PPL biopsy procedure with CBCT. LNVP reduced atelectasis and improved lesion visualization with a higher diagnostic yield (92%) compared to conventional anesthesia (70%), although the sample size limited statistical significance (13). A subsequent retrospective study of 100 patients undergoing bronchoscopic biopsy of PPL with CBCT utilizing LNVP protocol with breath hold technique of 4–6 minutes during 3D imaging acquisition, navigation and biopsy of PPLs reported a diagnostic yield of 85.9% and pneumothorax rate of 1%. In this cohort, 67% of patients required vasopressor support, and an average of 687 mL of crystalloid fluids (13).

There are few reports of prolonged apneic oxygenation in patients undergoing lung biopsy. Kjaergaard et al. presented a case series of 6 patients with previously non-diagnostic biopsies undergoing percutaneous CT lung biopsies using apneic oxygenation. The patients were intubated and paralyzed with continuous positive pressure of 8–17 cmH₂O. The median apneic time was 10 minutes. The authors reported that no patients had significant hemodynamic changes or hypoxia, and all biopsies were diagnostic (27). Deb et al. reported percutaneous CT lung biopsy under general anesthesia with apnea in 18 patients but without procedural specifics (28).

Explanations of findings

To our knowledge, this is the first manuscript describing the use of prolonged apneic oxygenation during navigational bronchoscopic lung biopsy with RAB and mCBCT. Our institutional protocol incorporates an APL valve set to 20–25 cmH₂O during apnea to optimize airway pressure and reduce atelectasis. This setting was empirically found to improve lesion visualization during CBCT imaging. We also utilized 100% FiO₂ to achieve lung denitrogenation during apneic oxygenation. However, we acknowledge that this approach could theoretically contribute to resorption atelectasis, which can reduce lesion visibility (11).

The primary benefit of prolonged apnea is the reduction of motion during CBCT imaging and nodule stability throughout the procedure. This stability allows maintenance of catheter-to-lesion orientation and removes the need to synchronize biopsies with short breath-holds or employ respiratory gating. These factors may improve procedural efficiency, safety, and diagnostic yield.

To contextualize our findings, we compared outcomes with a cohort of excluded cases (96 RAB procedures to biopsy 111 PPLs) at our institution performed during the study period using the same anesthesia protocol without the use of prolonged apneic oxygenation. Compared to patients who had prolonged apneic oxygenation, the excluded procedures biopsied lesions that were larger (median 26 vs. 15 mm), more centrally located (59% vs. 38%), and less adjacent to fissures or pleura (52% vs. 40%). Additionally, this excluded cohort had a higher rate of concentric r-EBUS views (81% vs. 45%) and less frequent use of mCBCT (39% vs. 97%). Despite these differences, there was no statistically significant difference in strict diagnostic yield for the excluded vs. prolonged apneic oxygenation cohorts (84% vs. 88%). In addition to small sample size, this may also be related to the use of the anesthesia protocol in both groups to minimize atelectasis, as well as differences in advanced imaging use. Adverse events were similar in both groups with 5.2% in excluded vs. 4.6% in prolonged apneic oxygenation. Notably, complications in the excluded cohort included four pneumothorax (three requiring chest tube), and one case of grade 2 bleeding, while the prolonged apneic oxygenation cohort were all related to bleeding. These outcomes are comparable to published meta-analyses of navigational bronchoscopy (37). Additionally, the proportion of patients requiring vasopressors was comparable between the excluded cohort (62%), prolonged apnea cohort (65%), as well as in Bhadra’s cohort (67%) (14).

Implications and actions needed

Appropriate patient selection is paramount to ensuring apneic oxygenation is used for patients who can benefit and tolerate prolonged apnea during the procedure. Historically, challenging lesions are those that are smaller, located in the lower lobes, or adjacent to critical structures such as fissures or pleura (37-39). In our prolonged apneic oxygenation cohort, 99 (72.8%) PPLs met at least one of these criteria: (I) size <10 mm; (II) lower lobe location; (III) adjacent to pleura or fissure. Although this is a retrospective, single center study, and the use of prolonged apneic oxygenation was at the proceduralists’ discretion with no set criteria, this technique may be safe and effective in selected patients, particularly those with small or peripheral lesions that require CBCT. Patients with underlying severe respiratory disease, such as those with pulmonary hypertension, interstitial lung disease, advanced chronic obstructive lung disease, anemia, or other states with poor underlying oxygen reserve may not be able to tolerate periods of apnea (12,21,27,40). Multiple studies in various procedural settings demonstrate the safety of prolonged apneic oxygenation (16,17,27,28), however, there is limited data in the bronchoscopy literature (14).

Given the increasing prevalence of lung lesions and the need for advanced diagnostic procedures, procedural standardization may decrease variability in outcomes (30,41). Adoption of new protocols should be undertaken with understanding of principles, appropriate patient selection, and adequate training to ensure safety with continual analysis of outcomes. Large volume, prospective, and multi-center studies are ideal to aid in generalizability and further assessment of protocols and workflow improvements. This will be helpful to determine optimal anesthesia or ventilator settings (oxygenation requirements, ventilation strategies, airway pressures, apnea techniques) and assist in patient selection.

Conclusions

This study describes that RAB with mCBCT for the evaluation of PPLs with the use of an anesthesia protocol with prolonged apneic oxygenation to minimize atelectasis and motion may be a safe and effective diagnostic approach. Patient selection should be individualized, with procedures performed at centers with expertise in advanced bronchoscopy and management of peri-procedural complications, multi-disciplinary collaboration, and adherence to protocols.

Acknowledgments

The authors would like to express their sincere gratitude to the thoracic surgery, endoscopy, and anesthesia teams at Orlando Health for their support and collaboration.

Footnote

Reporting Checklist: The authors have completed the STROBE reporting checklist. Available at https://jtd.amegroups.com/article/view/10.21037/jtd-2025-1217/rc

Data Sharing Statement: Available at https://jtd.amegroups.com/article/view/10.21037/jtd-2025-1217/dss

Peer Review File: Available at https://jtd.amegroups.com/article/view/10.21037/jtd-2025-1217/prf

Funding: None.

Conflicts of Interest: All authors have completed the ICMJE uniform disclosure form (available at https://jtd.amegroups.com/article/view/10.21037/jtd-2025-1217/coif). K.S. has received compensation from Intuitive Surgical, Inc. (education, travel and lodging, and food and beverage). A.Z.J. has received compensation from Intuitive Surgical, Inc. (education, travel and lodging, and food and beverage) and Siemens Medical Solutions USA, Inc. (travel and lodging, and food and beverage). The other authors have no conflicts of interest to declare.

Ethical Statement: The authors are accountable for all aspects of the work in ensuring that questions related to the accuracy or integrity of any part of the work are appropriately investigated and resolved. This study was conducted in accordance with the Declaration of Helsinki and its subsequent amendments, and received approval from the Orlando Health Institutional Review Board (IRB) (protocol #1, IRB No. 25.097.05). The Orlando Health IRB approved a waiver of informed consent under 45 CFR 46.116 (f) for this project.

Open Access Statement: This is an Open Access article distributed in accordance with the Creative Commons Attribution-NonCommercial-NoDerivs 4.0 International License (CC BY-NC-ND 4.0), which permits the non-commercial replication and distribution of the article with the strict proviso that no changes or edits are made and the original work is properly cited (including links to both the formal publication through the relevant DOI and the license). See: https://creativecommons.org/licenses/by-nc-nd/4.0/.
