Interstitial lung disease: the diagnostic role of bronchoscopy
Review Article

Interstitial lung disease: the diagnostic role of bronchoscopy

Jad Kebbe, Tony Abdo

Department of Medicine, Section of Pulmonary, Critical Care and Sleep Medicine, University of Oklahoma Health Sciences Center and Oklahoma City VA Medical Center, Oklahoma, USA

Contributions: (I) Conception and design: All authors; (II) Administrative support: None; (III) Provision of study materials or patients: None; (IV) Collection and assembly of data: All authors; (V) Data analysis and interpretation: None; (VI) Manuscript writing: All authors; (VII) Final approval of manuscript: All authors.

Correspondence to: Jad Kebbe, MD. Department of Medicine, Division of Pulmonary, Critical Care and Sleep Medicine, University of Oklahoma Health Sciences Center, 800 Stanton L Young Blvd, Suite 8400, Oklahoma City, Oklahoma 73104, USA. Email:

Abstract: Interstitial lung diseases (ILDs) form one of the most fascinating fields in pulmonary medicine. They also pose one of the greatest challenges for accurate diagnosis and proper treatment. Even within the recommended and warranted multidisciplinary approach, differentiating between one disease and another may lead to frustration, especially when proper lung tissue is not available for adequate pathological review. A surgical lung biopsy (SLB) might render enough tissue for histopathology, but this could come at the expense of high morbidity and even mortality, as in the case of usual interstitial pneumonia (UIP). Could bronchoscopy and its various techniques offer a safer and higher yield alternative? Since the very late 19th century, efforts have been made to better examine the airways, obtain tissue and treat various conditions. This resulted in the successive emergence of bronchoalveolar lavage (BAL), endobronchial and transbronchial forceps biopsies, until recently when transbronchial cryobiopsy surfaced as a nascent technique with much promise. The use of endobronchial ultrasound revolutionized the diagnosis and staging of lung cancer, while adding to the yield of other conditions such as sarcoidosis. Ongoing research, efforts and studies have continuously scrutinized the roles of various techniques in the approach to ILDs. For example, BAL seems to serve mostly to eliminate infection as an etiology or a complicating factor in the acute worsening of a fibrotic lung disease, while a predominant cellular component might be diagnostic, such as eosinophilia in eosinophilic lung disease, or lymphocytosis in hypersensitivity pneumonitis (HP). On the other hand, endobronchial biopsy’s (EBB) role appears limited to sarcoidosis. As for transbronchial biopsy by forceps, the small sample size and related artifact appear to be limiting factors in making an accurate diagnosis. Recently, however, the use of cryotherapy via employing a cryoprobe in obtaining transbronchial lung biopsies is unfolding into a refined interventional method which might transform indefinitely our approach to the pathological diagnosis of the various ILDs.

Keywords: Interstitial lung disease (ILDs); bronchoscopy; bronchoalveolar lavage (BAL); cryobiopsy; interventional pulmonology

Submitted Mar 10, 2017. Accepted for publication May 18, 2017.

doi: 10.21037/jtd.2017.06.39


Interstitial lung diseases (ILDs), also known as diffuse parenchymal lung diseases (DPLDs), encompass a wide and diverse group of disorders affecting not only the interstitium, but also peripheral airways, alveoli, and small blood vessels to a varying degree. They combine diseases of known (environmental, drug related, and collagen vascular diseases) and unknown etiologies [idiopathic interstitial pneumonia (IIPs), sarcoidosis, and others] (Figure 1) (1-5).

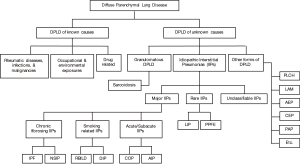

Figure 1 Diffuse parenchymal lung disease. Diffuse parenchymal lung diseases constitute an entity that encompasses more than 200 diseases of known and unknown etiologies. Hence, a thorough history, and a detailed physical exam are essential to rule out an underlying cause. Chronic hypersensitivity pneumonitis, rheumatoid arthritis, and IPF for example may all have a UIP pattern on pathology, but management and prognosis are certainly different. NSIP can be idiopathic as well as connective tissue disease related. LIP is mostly associated with other diseases (rheumatic, infectious, immunodeficiency), but can be idiopathic in rare cases. . Family history may be helpful since several familial associations have been described. Unclassifiable IIPs should be managed based on the most probable diagnosis after a multidisciplinary discussion. AEP, acute eosinophilic pneumonia; AIP, acute interstitial pneumonia; CEP, chronic eosinophilic pneumonia; COP, cryptogenic organizing pneumonia; DIP, desquamative interstitial pneumonia; DPLD, diffuse parenchymal lung disease; IIP, idiopathic interstitial pneumonia; IPF, idiopathic pulmonary fibrosis; LAM, lymphangioleiomyomatosis; LIP, lymphocytic interstitial pneumonia; NSIP, nonspecific interstitial pneumonia; PAP, pulmonary alveolar proteinosis; PLCH, pulmonary Langerhans cell histiocytosis; PPFE, pleuroparenchymal fibroelastosis; RBILD, respiratory bronchiolitis interstitial lung disease.

These entities share clinical, radiographic, physiologic, and pathologic manifestations, thus raising a challenge to making the correct diagnosis. A detailed history (with focus on exposure and systemic manifestations), and a complete physical exam are crucial, especially prior to making a diagnosis of IIPs. In clinical practice, patients can be easily misclassified as having an IIP when a medical history is not optimally taken. A surgical or transbronchial biopsy alone can be misleading, if not dangerous, since different ILDs, with distinct prognoses and treatment options, may have a similar pathological pattern (1,3,4).

Therefore, since the beginning of the 21st century, multidisciplinary discussion has become the “gold standard” approach for the diagnosis of ILDs, mainly IIPs. Robust communication and close collaboration amongst clinicians (primary care physicians, pulmonologists, and rheumatologists), radiologists, and pathologists is essential to reach the correct and final diagnosis. While in some cases, clinical and radiological information (from a high resolution chest computed tomogram) alone may lead to the diagnosis, cytological or histological information is warranted in others (Figure 2) (1-4,6).

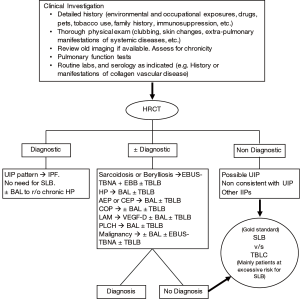

Figure 2 Interstitial lung disease workup algorithm. The diagnostic process for ILD, and mainly IIPs, is a dynamic one. A multidisciplinary discussion is the key to making the correct diagnosis with the least invasive approach. At times, the diagnosis may need to be revised, as more details of history are revealed, or when results of BAL and/or lung biopsy (TBLB, TBLC, SLB, etc.) become available. AEP, acute eosinophilic pneumonia; BAL, bronchoalveolar lavage; CEP, chronic eosinophilic pneumonia; COP, cryptogenic organizing pneumonia; EBB, endobronchial biopsy; EBUS-TBNA, endobronchial ultrasound with transbronchial needle aspiration; HRCT, high resolution computed tomography; HP, hypersensitivity pneumonitis; IPF, idiopathic pulmonary fibrosis; LAM, lymphangioleiomyomatosis; PLCH, pulmonary Langerhans cell histiocytosis; SLB, surgical lung biopsy; TBLB, transbronchial lung biopsy; TBLC, transbronchial lung cryobiopsy; UIP, Usual Interstitial Pneumonia; VEGF-D, vascular endothelial growth factor D.

This article will review both the role as well as the limitations of bronchoscopy in the diagnosis of various ILDs. Since ILDs span a wide array of diseases, we shall limit our treatise to the more common ILDs, particularly the disorders where bronchoscopy plays a role in the diagnosis.

Bronchoscopy: a brief historical narrative

Bronchoscopy evolved continuously within the last century in order to offer a less invasive diagnostic and therapeutic approach to many lung diseases. This review is a brief report on the historical advancement of different bronchoscopic techniques used in diagnosing various ILDs.

The year 1897 witnessed the birth of bronchoscopy by the German otolaryngologist Gustav Killian, known today as the “father of bronchoscopy”. Killian performed a direct endoscopy on a volunteer, and examined the proximal airways for the first time in history. Later the same year, he proceeded to endoscopically remove the first foreign body (pork bone) from the main bronchus (7). He presented his new method “direct bronchoscopy” the following year at the Society of South German Laryngologists meeting, later publishing it (8). A few years later, in 1904, Chevalier Jackson, the “father of American bronchoesophagology”, introduced the first American illuminated “rigid bronchoscope” (9,10).

In 1962, Shigeto Ikeda, a Japanese thoracic surgeon, approached the Machida Corporation with the idea of developing a flexible bronchoscope with a diameter of less than 6 mm. After a few prototypes and revisions, the first functional flexible bronchoscope was unveiled at a meeting in Copenhagen in 1966. A few improvements later, including the adoption of a working channel, the Machida flexible bronchoscope became commercially available in 1968 (9-11). In 1970, the first Olympus model with better imaging and easy handling capabilities became commercially available (9).

After the introduction of flexible bronchoscopy, the usage of rigid scopes experienced a transient decline, until the early 1980’s when therapeutic uses (laser, stenting, etc.) gave it headway once again (10).In terms of interventions, bronchoalveolar lavage (BAL) began to be performed through the rigid bronchoscope in the early 20th century, mainly for the purpose of removing purulent secretions from the airways of patients with bronchiectasis. Cantrell et al. were the first to perform BALs in normal volunteers using the flexible scope in 1972 (12). Several studies followed, with further analysis of BAL cells and protein content, leading to an increase in the use of BAL in multiple lung diseases including some ILDs (13,14).

Transbronchial (transbronchoscopic) lung biopsy was first reported by Anderson et al. in 1965. He described this technique using a rigid bronchoscope in a small series of 13 patients (15). Subsequently, in 1972, Anderson published a larger case series of 450 patients undergoing transbronchial lung biopsy (TBLB) for DPLD (16). Shortly thereafter, TBLB was successfully performed through a flexible bronchoscope (17), leading to its widespread use until this day. The year 1978 saw the description of transbronchial needle aspiration by Wang et al., wherewith appropriate diagnostic tissue was obtained in 3 out of 5 patients (18).

Radial endobronchial ultrasound (EBUS) was introduced in the early 1990’s, and its usefulness was first reported by Hürter and Hanrath in a series of 100 patients (19). One major limitation for the radial probe was obtaining the biopsy blindly after localizing the lesion. In 2004, linear EBUS use was highlighted after Yasufuku and colleagues demonstrated the high diagnostic yield of the convex ultrasound probe in sampling mediastinal lesions, and distinguishing between malignant and benign lymph nodes (20). EBUS became the best first diagnostic tool to obtain tissue for non-small cell lung cancer diagnosis and staging (21). Furthermore, when compared to endobronchial and transbronchial biopsies, EBUS had a higher yield for the diagnosis of sarcoidosis (22).

As for cryotherapy, it has been in use since the 1970’s through rigid scopes, but it was not until 1996 when Mathur et al. described endobronchial cryotherapy with a flexible bronchoscope (23). Since about 2009, transbronchial cryobiopsy emerged as a new diagnostic tool for ILDs and mainly IIPs. As more data continue to emerge, transbronchial cryobiopsy may largely replace surgical lung biopsy (SLB) in becoming the first diagnostic modality to obtain tissue for IIPs diagnosis. We will review the advances to-date in cryobiopsy in a later paragraph.

The role of bronchoalveolar lavage

BAL is a relatively low risk technique performed during flexible bronchoscopy, allowing the recovery of cellular and non-cellular components from the epithelial surface of the alveoli and terminal bronchioles (14,24). Analysis of BAL cell counts, culture, and cytology provides valuable information that may lead to making a diagnosis or ruling out another (14,25). Standardization of BAL collection techniques and sample processing is critical especially when ILD is suspected (26,27). For many decades, BAL has been part of the workup of ILD, during which its role was mainly studied in patients with sarcoidosis, hypersensitivity pneumonitis (HP), and idiopathic pulmonary fibrosis (IPF) (14). Today, however, this role seems to be diminishing with the advancement of high resolution computed tomogram (HRCT) imaging of the chest. In the right clinical setting, HRCT findings may be diagnostic and a BAL might not be required (27). When a BAL is indicated in a patient with suspected ILD, it is preferable for it to be guided by a pre-procedural chest HRCT. A differential cell count should be performed in all patients, with cultures and cytology if clinically indicated. A lymphocyte subset analysis should not be routinely ordered (27).

In healthy volunteers, macrophages predominate as they represent at least 80% of nucleated white blood cells. Lymphocytes constitute 5–15%, neutrophils 2–3%, and eosinophils <1%. Any insult to the lungs leads to a perturbation of the epithelial layer at the level of the distal airways, and to a change in the cellular and non-cellular content of the BAL. By way of example, smoking increases the absolute number of BAL macrophages and neutrophils (27,28). A BAL cell differential count with >15% lymphocytes, >3% neutrophils, >1% eosinophils, or >0.5% mastocytes represents a BAL with lymphocytic, neutrophilic, eosinophilic, or mastocytic pattern respectively. An increase in more than one type of cells in the BAL represents a mixed cellular pattern. The presence of >5% epithelial cells in the sample suggests a suboptimal BAL, and cellular patterns should be interpreted with caution (27).

Various patterns, including lymphocytic, eosinophilic, neutrophilic, and mixed, can be found in patients with ILD, and the significance of each one varies significantly from one disease to another (Tables 1,2). The usefulness of such patterns is the subject of ongoing discussions, since, on one hand, most of these findings have low specificity and sensitivity, while on the other hand, studies that looked into the predictive value of BAL cell differentials in the diagnosis of ILD predate the era of wide use of HRCT (27,29,30).

Table 1

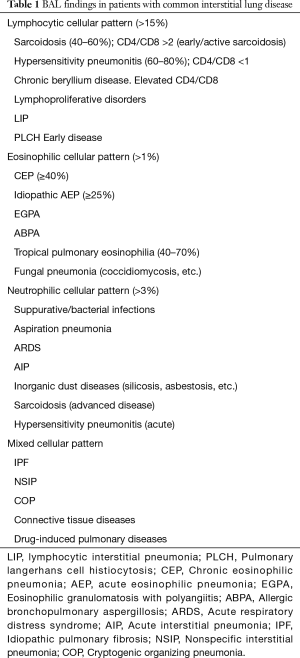

Table 1 BAL findings in patients with common interstitial lung disease
Full table
Table 2

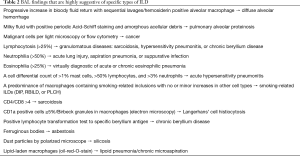

Table 2 BAL findings that are highly suggestive of specific types of ILD
Full table

In most ILDs, BAL findings are classified as either nonspecific, consistent with or suggestive of a certain diagnosis. While BAL may not be diagnostic in and of itself, when combined with clinical and radiographic data, it might assist in reaching a diagnosis. It is only in a few situations that BAL findings could be highly diagnostic, even pathognomonic (27,31,32). BAL findings can be diagnostic in idiopathic acute eosinophilic pneumonias (33,34), chronic eosinophilic pneumonia (35), primary pulmonary lymphoma and lymphangitic carcinomatosis (36), pulmonary alveolar proteinosis (37), lipoid pneumonia (38,39), pulmonary Langerhans cell histiocytosis (PLCH) (40-42), and diffuse alveolar hemorrhage (43,44) (Tables 1,2).

BAL lymphocytosis is a sensitive, but nonspecific finding in sarcoidosis and HP (30,45). In fact, in the setting of an atypical HRCT, absence of BAL lymphocytosis may help in excluding HP and sarcoidosis (29). The CD4/CD8 ratio is usually decreased in HP (ratio <1), but increased in sarcoidosis (ratio >2). However, low and high ratios can be seen in sarcoidosis and HP respectively (45-48).

BAL has a limited role in the diagnosis of IPF. When performed, it serves mainly to exclude other processes in the setting of a non-diagnostic HRCT (27,29). In a study by Ohshimo et al., BAL lymphocytosis (>30%) was found in 6 out of 74 patients with a clinical and radiological diagnosis of IPF, and a different diagnosis was eventually made in all six cases (49). In almost a third of patients with HP, the responsible antigen may not be identifiable despite a thorough history (50). Hence, in patients with usual interstitial pneumonia (UIP) pattern on HRCT, a lymphocytic BAL (>40%) may suggest HP, and lead to further investigate possible environmental exposures or even perform a lung biopsy (2). In patients with IPF exacerbation, BAL has a disputed role, and is not always required to exclude infections (51).

BAL has no defined role in patients with non-specific interstitial pneumonia (NSIP), where it is reported to be lymphocytic in most, but not all studies. In one study comparing BAL cell counts among patients with IPF and patients with fibrotic NSIP, no difference was seen, and both groups had a non-lymphocytic BAL (52). In patients with cryptogenic organizing pneumonia (COP), BAL has a nonspecific mixed cellular pattern, and is helpful only to exclude other diagnoses (53,54). In patients with respiratory bronchiolitis interstitial lung disease (RBILD) or desquamative interstitial pneumonia (DIP), BAL has an excess of pigmented macrophages without other abnormalities, similarly to a healthy smoker (55). Absence of BAL lymphocytosis may be occasionally diagnostic of RBILD when combined with a HRCT suggestive of either HP or RBILD (29).

BAL cell counts are highly variable in connective tissue disease related ILDs, and have no diagnostic value (56). Since drugs have been linked to various types of lung injuries or ILDs (i.e., HP, eosinophilic pneumonia, organizing pneumonia, diffuse alveolar hemorrhage, etc.), BAL findings are usually heterogeneous, but may have some correlation with the type of lung injury caused by the culprit drug (57). In the right clinical setting, BAL may have some value in suggesting a drug related lung injury, but it is mainly performed to exclude infection or malignancy (36,57).

Many researchers looked into the benefit of BAL in monitoring disease activity in patients with ILD, but so far no clinical applicability exists. Some studies found that in the same disease, different BAL patterns correlated with different disease stages, likelihood of progression, and prognosis (i.e., in patients with presumed IPF, a lymphocytic BAL correlated with better prognosis) (58-61). The major caveat however is that most of these studies are dated, thus increasing the likelihood of the included patients having other IIPs. UIP and NSIP for example may coexist in the same patient, and prognosis is usually driven by the disease with the worst prognosis (59). Although BAL might not have a role in monitoring disease activity, it might serve to rule out infections and complications related to ILD treatment (drug toxicities, etc.).

The role of endobronchial biopsy (EBB)

The role of EBB in the workup of patients with ILDs has so far been relatively small. It mainly serves to diagnose sarcoidosis and chronic beryllium disease (CBD). Four to six endobronchial biopsies are usually obtained, preferably from a site where the mucosa is abnormal or from the first and second carina if the mucosa appears normal: 30% of patients with normal mucosa may have positive EBB (62). One study revealed that positive EBB correlates with a more aggressive disease (63). When supplementing transbronchial biopsy, EBB was found to increase the diagnostic yield of sarcoidosis by 10–20% (62,64). Nearly 6% of all patients diagnosed with sarcoidosis actually have CBD. A history of Beryllium exposure should prompt a diagnostic evaluation for CBD (65).

The role of transbronchial biopsy

Nowadays, TBLB is mostly performed using the flexible bronchoscope, and with some form of guidance (fluoroscopy, ultrasound, or electromagnetic navigation). Although the introduction of guidance improved the diagnostic yield of TBLB, it is unclear whether it added to its safety. TBLB related mortality is rare (<0.05%), while bleeding (1–4%) and pneumothorax (1–6%) constitute the main complications (3,64,66-69). Bilateral TBLBs should not be performed during the same procedure under any circumstance, because of the risk of bilateral iatrogenic pneumothoraces. The optimal number of TBLB is unknown, but in general, four to six biopsy specimens should suffice for most patients with diffuse lung diseases (3,70-73). It is unlikely that the alligator forceps has a better diagnostic yield compared to the cup forceps. Nonetheless, specimens obtained are larger and complication rates are lower with the former (64,70,74).

The overall diagnostic yield of TBLB is around 25–75%, but it varies largely depending on the underlying ILD (3,73,75,76). It can be as low as 20–30% for IPF (77,78), and as high as 80–90% for non-fibrotic ILDs (69,73,78,79). The small size of the biopsy specimen (median size 5mm), and the high probability of crush artifacts, limit the role of TBLB in the workup of several ILDs (3,80).However, TBLB continues to be the procedure of choice when the suspected disease has a peribronchovascular or centrilobular involvement, and when small samples are enough to establish a certain diagnosis (3,81,82).

TBLB can be diagnostic in sarcoidosis, CBD, HP, eosinophilic pneumonia, PLCH, COP, lymphangitic carcinomatosis, diffuse alveolar damage, amyloidosis, PAP, alveolar microlithiasis, and multiple infections (3,53,76,82-89).

The diagnostic yield of TBLB for sarcoidosis varies from one stage to another., with a higher yield observed in patients with stage II and III disease (66–95% in comparison to 12–55% in stage I disease) (64,73,90-92). EBB and TBNA (conventional or ultrasound guided), when added to TBLB, increase the overall diagnostic yield of the procedure (62,64,92,93). Oftentimes, a TBLB is not needed to diagnose HP since the diagnosis may be made with confidence based on clinical and radiological information (94-96). However, in few cases, histological diagnosis may be needed, and TBLB should be considered first (3,73). Yet, in chronic HP, TBLB is unlikely to be diagnostic and SLB may be preferred (97).

While clinical features and HRCT findings may be suggestive of PLCH in some patients, confirmation of the diagnosis by BAL or biopsy is generally recommended (86). In a recent case series of patients with PLCH, TBLB specimens were diagnostic in 50% (19/38) of the patients (41). TBLB has a yield of approximately 60% in patients with lymphangioleiomyomatosis (87). However, per the 2016 American Thoracic Society/Japanese Respiratory Society guidelines, the diagnosis of LAM can be usually reached based on clinical features and HRCT findings. Even when typical clinical features are absent, testing for vascular endothelial growth factor-D (VEGF-D) is recommended first, since a high level (>800 pg/mL) may obviate the need for biopsy in almost 70% of patients (98). A confident diagnosis of PAP can usually be made based on history, radiological findings (HRCT), BAL appearance and cytology, and compatible biomarkers (85). In a large cohort of patients with PAP, TBLB was done only in a third of patients (99).

In patients with suspected COP, TBLB should be considered first (prior to more invasive procedures like video-assisted thoracoscopic surgery), since, in many instances, it may be sufficient to make a confident diagnosis (3,54,100). In a prospective analysis of patients with clinical and radiological features of COP, the sensitivity and specificity of TBLB were 64% and 86% respectively (101).

The diagnosis of IPF requires exclusion of other known causes of ILD, and the presence of either a UIP pattern on HRCT (subpleural and predominantly basal distribution of reticular abnormalities and honeycombing, with absence of features listed as inconsistent with UIP), or specific combinations of HRCT and SLB. The latest guidelines pertinent to the diagnosis and management of IPF included a weak recommendation with low-quality evidence against using TBLB in the evaluation of IPF in the majority of patients (2). In a retrospective analysis of patients with proven UIP, TBLB specimens were diagnostic of UIP (honeycombing, patchy fibrosis, and fibroblastic foci) in 7 out of 22 patients (79). In another series by Tomassetti et al., TBLB was found to detect UIP in 30% of the cases, with high specificity and positive predictive value, but low negative predictive value (78). Sheth et al. recently noted that TBLB combined with clinical and HRCT data, provided enough information to make a confident and accurate diagnosis in 20–30% of patients with fibrotic ILD (77). Despite its poor sensitivity, TBLB might be a reasonable option for patients with suspected fibrotic ILD, who cannot tolerate SLB (or transbronchial cryobiopsy). Prospective studies investigating the definite role of TBLB in IIPs are yet to come.

The role of cryobiopsy

Surgical lung biopsies (SLB) have for years been the gold standard for diagnosis of IIPs, in particular when a non-invasive diagnosis cannot be made with confidence (2,4). Owing mainly to a significantly larger size of tissue sample, SLB was favored over traditional transbronchial forceps biopsy, with less crush artifact and sampling error. The limiting factor had always been the health status of the patient, alongside the high risk of morbidity and mortality associated with the surgical approach. IPF stands out as the prototype of such complications, ever since early data placed the mortality risk as high as 21.7% (102). A safe, high-yield, less-invasive and more effective alternative was thus desired. While cryotherapy dates back to the 19th century when it was used in a limited manner for control of local pain, the use of liquefied gases helped propel it forward. In 1961, Cooper and Lee introduced cryostatic congelation in treating certain neurological conditions (103). Since that time, many advances occurred, eventually resulting in the use of cryotherapy in pulmonary medicine, through the application of rapid freeze-thaw cycles. For several years, cryotherapy was employed for the purpose of treating central airway obstruction (of benign or malignant etiology) (23), early superficial tumors (104), removal of foreign bodies (105), control of bleeding, or removal of granulation tissue (which might form inside an endobronchial stent or at sites of anastomoses) (106).

In 2009, Babiak introduced the use of a cryoprobe for the purpose of obtaining lung biopsies during flexible bronchoscopy (80). In comparing traditional forceps transbronchial biopsies to cryobiopsy performed successively in 41 patients with DPLDs, he found that the mean specimen area in the latter was nearly three times larger than that in the former (15.11 vs. 5.82 mm2; P<0.01). Only two patients developed a pneumothorax, while bleeding did not require any intervention. Since then, there has been a surge of data on the use of this technique for the diagnosis of parenchymal lung disease. From a technical standpoint, the procedure requires the use of a cryoprobe (rigid, semi-rigid or flexible), bronchoscope, and a cryogen (cooling agent). Flexible cryoprobes exist in three diameter sizes (2.4, 1.9 and 1.1 mm), and various lengths ranging from 780 to 1,050 mm. The most commonly used is the Erbe 1.9 mm diameter flexible cryoprobe (Erbe Elektromedizin GmBH, Germany). Nitrous oxide (lowest temperature −89 °C), liquid nitrogen (−196 °C) or carbon dioxide (−79.3 °C) may be used as cryogens. The use of liquid nitrogen in the USA is limited by lack of availability, difficulty in handling and greater tissue damage. On the other hand, CO2 may cause snow during bronchoscopy. Therefore nitrous oxides the most commonly used gas. The cryotherapy system uses a Joule-Thompson effect where the pressurized gas is released at high flow from the tip of the probe, and rapidly expands at atmospheric pressure, causing a large decrease in temperature, which leads the two most distal centimeters of the probe to freeze the surrounding tissue and adhere to it, easily detaching it. The probes are reusable, and the technology is relatively inexpensive (107).

In a recent systematic review of 11 studies (731 patients), the diagnostic yield ranged from 51% to 98% (pooled estimate 83%; 95% CI, 73–94) when the biopsy was reviewed in a multidisciplinary setting (108). Furthermore, prospective data revealed that the diagnostic yield for DPLD increased from 69% to96% when biopsies were obtained from two—rather than one—segments of the same lobe (109). Moreover, retrospective data indicates that transbronchial lung cryobiopsy (TBLC) improves the yield of transbronchial biopsy when performed sequentially and reviewed using a multidisciplinary approach (110).

Early reports of TBLC were concerning for a high risk of both bleeding and pneumothorax. In one of the largest systematic reviews to-date, the frequency of moderate to severe bleeding ranged from 0% to 78% (pooled estimate 39%; 95% CI, 3–76), while that of pneumothorax ranged from 0% to 24.9% (pooled estimate 12%; 95% CI, 3–21) (107,111). In a retrospective analysis of 447 cases with ILD that could not be diagnosed noninvasively (possible UIP or inconsistent with UIP), 150 patients underwent SLB and 297 underwent TBLC (111). Pneumothorax was the most common complication in TBLC (20.2%). Median time of hospitalization was significantly less in TBLC (2.6 vs. 6.1 days; P<0.0001), and so was mortality due to adverse events (0.3% vs. 2.7%; P=0.045). No severe bleeding was observed. TBLC was diagnostic for 82.8% of patients and SLB for 98.7% (P=0.013). The same group performed a meta-analysis of 15 investigations (781 patients) which revealed a diagnostic yield of 0.81 (0.75–0.87). In the same article, the pooled probability of developing a pneumothorax (994 patients) was 0.06 (95% CI, 0.02–0.11), while that of bleeding (383 patients) was 0.12 (95% CI, 0.02–0.25).

In a recent report, DiBardino et al. described a series of 25 consecutive TBLC marred with a high rate of complications: 6 patients (24%), including 3 (12%) who suffered severe bleeding, 2 (8%) an iatrogenic pneumothorax and 1 (4%) hypercapnic respiratory failure (112). However, the authors performed TBLC admittedly without a strict protocol. Twenty-one patients underwent the procedure via a laryngeal mask airway which could limit bleeding control, while fluoroscopy was used in only 10 cases which could limit visualization of the probe in respect to the pleura. This report rather indicates the need for adequate planning prior to performing TBLC and anticipation of complications, thus highlighting the need to be proactive in implementing an adequate protocol and the caution to employ proper safeguards.

In an interim analysis of an ongoing prospective trial, SLB was deemed unnecessary following TBLC (113). Bleeding rate was 78%, pneumothorax 22%, while 30-day mortality was 0.7% when compared to SLB (3.3%). The prophylactic deployment of a Fogarty balloon (or a bronchial blocker) after retracting the cryobiopsy sample may prevent severe hemorrhage, a technical approach growing in popularity.

In most reports, and on average, cryobiopsy sample size varies in diameter from 9.2 mm (range, 2–20 mm; SD 3.9) (114) to 14.7 (°¿11 mm) (115). The median number of samples varies by reports (typically from two to six), but is usually less than that of traditional forceps biopsies, with larger sample size and higher yield (109). In a perspectives pathology article, a review of various studies showed that TBLC offers a mean specimen diameter between 4 and 9 mm, and an area between 9 and 64.2 mm2. The same study reported yields ranging from 70% to 95%, with a risk of pneumothorax ranging from 2.6% to 33%, and that of significant bleeding from 1.4% to 56%. Although they found the emerging data encouraging, the pathologists concluded that further study is needed before determining whether TBLC is en route to replace SLB (116).

Cryobiopsy has been shown to be sufficient for the diagnosis of UIP (117), NSIP (110), constrictive bronchiolitis (118), desquamative interstitial pneumonia (119), HP (111), RBILD (110), organizing pneumonia (108), diffuse alveolar damage (108), sarcoidosis (109), drug toxicity (109) and others (eosinophilic pneumonia, PAP, amyloidosis, follicular bronchiolitis, PLCH) (108,111). The individual yield for each entity remains to be determined.

Therefore, when compared to traditional SLB, transbronchial cryobiopsy offers a comparable—and at times higher—yield (particularly in the setting of a multidisciplinary discussion), with a shorter hospitalization duration, a lesser risk of adverse events and mortality from such events, at a lower cost (120). When compared to forceps biopsy, it offers larger specimens, a higher diagnostic yield and less artifact (109,121). The most likely benefit appears to be a decreased need for SLB to diagnose IPF, and the added assurance to a multidisciplinary approach to diagnosis (122). There cent development of a novel sheath cryobiopsy may prevent the need to remove the bronchoscope in its entirety after each specimen retrieval (123), a technique that remains to be vindicated in-vivo (124). Since most of the currently available data is retrospective in nature, and the standardization process is still underway, the role of TBLC in the diagnosis of ILD remains subject to expansion and significant future development, even as technical advances might limit the frequency of complications, mainly hemorrhage and pneumothorax. For the time being, given lack of standardization of cryobiopsy technique, the variable rate of complications and yield, it seems prudent that TBLC be performed by experienced bronchoscopists at a high volume center with a clear protocol, competent staff and advanced preparedness for possible complications and the remedy thereof.

The role of endobronchial ultrasound

Endobronchial ultrasound-guided transbronchial needle aspiration (EBUS-TBNA) typically serves to evaluate enlarged mediastinal and hilar lymph nodes (20). It is mainly used in the diagnosis, staging, and restaging of patients with suspected or known non-small cell lung cancer (21). The clinical utility of EBUS-TBNA in the diagnosis of lymphoma remains controversial despite recent data suggesting high sensitivity (89%) and specificity (97%) (125). In sarcoidosis, conventional or EBUS-guided TBNA has a great diagnostic value, especially when combined with endobronchial and transbronchial biopsies (22,92,126-128). When compared to standard TBNA, EBUS-TBNA had a better yield in the diagnosis of sarcoidosis (129). Moreover, EBUS-TBNA with rapid on site evaluation may obviate the need to perform unnecessary TBB, while maintaining a high diagnostic yield for sarcoidosis (130). EBUS-TBNA may play a minor role as well in the diagnosis of fungal and mycobacterial infections (129,131). Endobronchial ultrasound using the radial probe has no defined role yet in the workup of ILD. Only recently, a small case series suggested that the use of radial ultrasound to guide transbronchial cryobiopsy may lead to a decrease in the risk of major bleeding (132).


ILDs remain some of the most challenging medical conditions, both to diagnose and to treat. A multidisciplinary approach carries the highest promise, particularly when coupled with proper pathology. Without a correct diagnosis, prognosis may be quite inaccurate, and curative therapy might not be administered. Therefore, differentiating between the various ILDs is paramount and ever warranted. And bronchoscopy remains one of the less invasive and more prime approaches for such an end.

As we have seen, bronchoscopic techniques emerged and progressed in the span of a few decades. Their growth has been exponential, their safety has been improving, and their use has been expanding. While their role in diagnosing ILDs varies from one technique to another, and one disease to the next, the latest advances in cryobiopsy appear to carry great promise. With early reports raising concerns for high rates of pneumothorax and bleeding, the improving performance and increasing yield compared to transbronchial and SLB in the span of a few years, might herald a safe, less costly and higher yield alternative for the diagnosis of ILDs—even fibrosing types—in our own lifetime. If the recent past has carried such excitement, the future can only hold promises.




Conflicts of Interest: The authors have no conflicts of interest to declare.
