Robot-assisted surgery for posterior mediastinal mass

In the last decade, robotic surgery is increasingly becoming an essential instrument in the hands of thoracic surgeons. Indeed, the Robotic Surgical Systems (da Vinci, Intuitive Surgical, Inc., Sunnyvale, CA, USA), particularly the latest models, the SI system and the latest XI system, are used to perform lung resection and exeresis of mediastinal lesions (1-3). Thanks to their features it is possible to work in a comfortable and secure manner in narrow spaces, such as the anterior mediastinum, or in remote areas, such as the posterior mediastinum or the costal-phrenic areas. Robotic surgery allows a mini-invasive approach overcoming the limits that characterize video-assisted thoracic surgery (e.g., complex maneuverability of the instruments in close or deep spaces, 2-dimensional and limited vision). As a matter of fact, surgical procedures are easier thanks to the 3D magnified vision, the surgeon’s direct control of the camera, the possibility to have instruments with a large range of articulation and movements, the filtration of the physiological tremor of the hands (4,5).

Currently, the use of robotic surgery to remove mediastinal lesions has become a routine choice, guaranteeing excellent results. Several Authors have described the robotic surgical technique and its results for the treatment of anterior mediastinal lesions, in particular of the thymic gland disease (6-8). However, only few authors have reported their experience on the application of robotic system for posterior mediastinal tumors (9,10).

Neurogenic tumors are the most common type of posterior mediastinal lesions. In most cases, the patients are asymptomatic and the diagnosis is accidental. Usually the neoplasm is benign, well defined, localized in a paravertebral area, arising from peripheral nerves, as intercostal nerve, or sympathetic nerves (Figure 1). Other lesions located in the posterior mediastinum can be cysts, esophageal tumors, lymphadenopathy, infectious or inflammatory lesions (11).

Figure 1 Posterior mediastinal mass (schwannoma).

Despite the uncomfortable site, the removal of the masses localized in the posterior mediastinum using robotic technique is usually described as a simple and safe procedure. For these characteristics this kind of procedure could therefore represent the first step of the learning curve for the surgeon starting a thoracic robotic program (12).

The authors described different port mapping (9,12-15). The exeresis of posterior mediastinal lesions consists of three or four centimetric surgical ports. Guo et al. illustrated an approach with three surgical accesses: camera port at 5^th intercostal space at mid-axillary line, the posterior port in 8^th intercostal space, at the midpoint between posterior axillary line and subscapular line, and the anterior port at 3^th intercostal space between anterior axillary line and midclavicular line (16).

To obtain a standardization of technique, a useful port mapping could be the port mapping used also for lung resection. After the intubation, the patient must be positioned in lateral decubitus, with operating table flexed at the level of the inferior border of the scapula. The positioning is mandatory in order to obtain the alignment of the scapula and the hip, preventing potential injuries to the hip and the camera port.

The camera port is positioned in the 7^th or 8^th intercostal space on the posterior axillary line using a 30° camera. When possible, given the variability the chest wall, the posterior ports are positioned in the same intercostal space, each of them 6 cm from the camera port with a second optional port positioned in the auscultatory triangle. The anterior port is positioned over the diaphragm, in the 5^th–6^th intercostal space on the anterior axillary line (Figure 2). It is always highly recommended to verify the internal position of each surgical port with the camera, in order to ensure an adequate distance between the arms. The CO₂ insufflation (5–8 mmHg), can be useful to increase the space available for maneuverability thanks to the collapsing of the lung and the flection diaphragm (17).

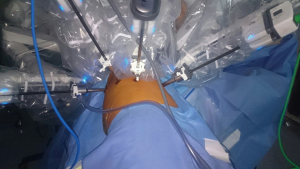

Figure 2 Standardized port mapping.

The fourth arms already reported, is not strictly indispensable, although t it can be applied to use a grasper to retract the lung achieving a better vision. From a technical point of view, the use of all four arms of the robotic system is recommended as it represent a good exercise for the surgeon at the beginning of the robotic experience.

The used instruments can be the monopolar (e.g., Hook or Spatula, Intuitive Surgical) or the bipolar instruments (e.g., Maryland or Fenestrated Bipolar, Intuitive Surgical), as reported by Guo et al., and if used in the fourth arm a grasper (e.g., Cadiere, Prograsp, Intuitive Surgical) (16).

Few authors reported their experience, usually concerning a small series about the removal of masses located in posterior mediastinum using robotic surgical system.

The robotic system allows the execution of the surgical procedure with exceptional precision and safety, guaranteeing minimization of surgical trauma and surgical manipulation of the mass. Therefore, robotic surgery, is characterized by less pain, less hospital-stay, fewer complications, good cosmetic results and quick return to daily activities (18).

The use of robotic surgical system for surgery of posterior mediastinal masses to be a safe and comfortable mini-invasive technique, representing a useful instrument for the treatment of lesions located in narrow spaces, generally barely reachable.

Acknowledgements

The Authors thank Teresa Hung Key for assistance with this article.

Footnote

Conflicts of Interest: The authors have no conflicts of interest to declare.
