Retrospective review of the diagnosis and treatment of pulmonary sequestration in 28 patients: surgery or endovascular techniques?

Introduction

Pulmonary sequestration (PS), which accounts for less than 6.4% of all congenital pulmonary malformations, exhibits three major features: an aberrant blood supply of a large caliber artery, a bronchial anomaly and dysgenesis of the parenchyma (1-3). There are two types of PS: intralobar pulmonary sequestration (ILS) and extralobar pulmonary sequestration (ELS). Contrary to ILS, which is located within normal lung parenchyma, ELS is separated with its own visceral pleura (3). A systemic artery provides blood supply to both ILS and ELS. For ILS, the blood is drained into pulmonary veins. However, for ELS, the blood is drained into systemic vein (4).

Currently, people choose surgical resection to treat symptomatic PS and prevent possible infection (5,6). Recent studies have suggested transcatheter endovascular embolization to be a less-invasive alternative technique to surgery, especially for neonates and children (7-9). Therefore, questions arise as which method should we select to primarily treat such patients: surgery or endovascular techniques? Nowadays, no treatment guidelines have been established.

In this retrospective study, we analyzed the diagnoses and treatments of PS, which consists of 28 patients (21 patients underwent surgery, 7 patients underwent interventional therapy) from a single hospital, to evaluate the presentation and outcomes of PS. Our study will provide valuable information for better understanding of pulmonary malformations.

Methods

Patient enrollment

We retrospectively reviewed the medical records of 28 patients with PS who underwent surgery or interventional therapy at Southwest Hospital from May 2005 to June 2016. Age, sex, clinical symptoms, chest computed tomography (CT) results, type and localization of sequestration; diagnostic methods, operative techniques, postoperative complications, and outcomes were collected and analyzed in all patients. The study was approved by the Ethical Committee of Southwest Hospital. Informed consent of the operation was obtained from all patients before surgery or intervention.

Surgical technique

All patients were conducted under single lung ventilation in a lateral decubitus position. A standard lateral thoracotomy was performed in thoracotomy cases, and conventional 3 ports were placed in VATS cases. Anatomic lobectomy was performed for patients with ILS, and mass excision was carried out for patients with ELS. In all surgeries, one chest tube was placed for continuous drainage, but this tube was removed if drainage was less than 100 mL/day and no air leak was recognized.

Intervention technique

Embolization was performed under local anesthesia. We embolized the feeding artery through the right common femoral artery. Digital subtraction angiography (DSA) further verified the presence of the feeding artery, which was earlier detected by the enhanced CT scans. Endovascular embolization was achieved through 5 Fr left coronary catheter (RS*A50K10SQ, TERUMO, Tokyo, Japan) with 500 micron-PVA particles (PVA-500, COOK, Bloomington, IN, USA) soaked in microcoils (MWCE-35-5-5, COOK, Bloomington, IN, USA) under fluoroscopic guidance.

Endovascular stent-graft exclusion was carried out under general anesthesia, systemic heparinization (intravenous, 5,000 IU), and a percutaneous right femoral artery approach. Participants and their family signed informed consent for the procedure. Thoracic aortic stent-grafts (COOK, Bloomington, IN, USA) were used to completely exclude the feeding arteries. The dimensions of device were chosen according to the aortic diameter in the landing zone with additional 20% oversize.

Statistics analysis

Data were analyzed by software SPSS v.18.0 (SPSS, Inc., Chicago, IL, USA) and Microsoft Excel 2010 (Microsoft Corp., Redmond, WA, USA). All statistical tests were two-sided. Results were expressed as means ± S.D. or percentage. Age and average diameter of pulmonary lesions were analyzed and compared using nonparametric test (the Mann-Whitney test). Difference with a P value of less than 0.05 was considered significant.

Results

Demographic data

There were 28 patients who underwent operative intervention for PS, of whom 21 (20 adults, 1 child) cases were in surgery group and 7 cases (6 adults, 1 child) were in intervention group (3 cases were treated with transcatheter endovascular embolization and 4 cases were treated with thoracic aortic endovascular stent-graft exclusion). Among these patients, 15 were male (surgery group: 9 cases; intervention group: 6 cases) and 13 were female (surgery group: 12 cases; intervention group: 1 case). The median age was 42.5 years old, ranging from 7 to 62 years old, including two pediatrics (a 7-year-old boy and a 15-year-old girl) and 26 adults. The age of surgery group and intervention group were 40.6±14.9 and 30.7±13.3 respectively, it was no significant difference between the two groups in terms of age (P=0.746).

Clinical symptoms

We observed that 21 patients (75%) had one or more symptoms preoperatively, the major symptoms among the patients were cough (surgery group: 12 cases; intervention group: 4 cases), expectoration (surgery group: 8 cases; intervention group: 3 cases), hemoptysis (surgery group: 3 cases; intervention group: 4 cases), chest and/or back pain (surgery group: 7 cases; intervention group: 2 cases). However, 7 patients (25%) were incidentally diagnosed without experiencing any distinct symptoms. More details are shown in Table 1.

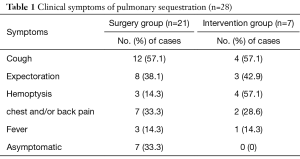

Table 1 Clinical symptoms of pulmonary sequestration (n=28)
Full table

Types and localization of PS

Twenty-four (85.7%; 1 children, 23 adults) patients had ILS (surgery group: 17 cases; intervention group: 7 cases) and four (14.3%; 1 children, 3 adults) had ELS (surgery group: 4 cases). ILSs were located in the left lower lobe in 18 patients (surgery group: 12 cases; intervention group: 6 cases), the right lower lobe in 5 patients (surgery group: 4 cases; intervention group: 1 case) and the right upper lobe in 1 patient (surgery group: 1 case). ELSs were located in the left lower lobe in 3 patients and the right upper lobe in 1 patient (Table 2).

Table 2 Types and localization of pulmonary sequestration (n=28)
Full table

Chest CT of PS

General chest CT scans were performed for all involved-patients in this study. Mass lesion was the most common CT finding (13 cases). Cystic lesion was found in 10 patients including one 7-year-old boy accompanied with bronchiectasis and 2 adults with air-containing cyst. Pneumonic lesions were discerned in 5 of them including 1 adult accompanied with bronchiectasis and another patient with secondary pulmonary hemorrhage.

Percutaneous needle biopsy and bronchoscopy

Percutaneous needle biopsy was performed in 10 cases for pathological diagnosis of pulmonary lesions, due to general chest CT scans cannot lead to a define diagnosis. One of them had massive thoracic hemorrhage of about 1,000 mL after the puncture. Biopsy pathology showed chronic inflammation of the lung tissue. Seven of the patients underwent bronchoscopy, which detected secretions or collected the tissue for further test. Secretions arising from the left lower lobe bronchus were found in 2 patients with expectoration. Bleeding from the left lower lobe bronchus was discerned in 1 patient with hemoptysis. Bronchial mucosa hyperemia from the left lower lobe bronchus was found in 1 patient. No filling was found in the tracheal lumen in all patients. Mucosal biopsies by bronchoscopy were performed in four patients, biopsy pathology showed chronic inflammation of the bronchial mucosa.

Methods of diagnosing PS

Twenty-one (75%) patients were diagnosed preoperatively (surgery group: 14 cases; intervention group: 7 cases) with an obvious aberrant artery arising from the systemic artery by enhanced CT scanning and CT angiography (CTA) (Figure 1). Seven (25%) patients who were not correctly diagnosed in pre-operation were confirmed by surgery (surgery group: 7 cases). The blood supply of the sequestration originated from the thoracic aorta in 23 patients, from the abdominal aorta in 1 patient, from the thoracic and abdominal aorta in 2 patients, from the subclavian artery in 2 patients. Twenty (71.4%) patients were confirmed to have 1 supplying arterial branch, 6 (21.4%) patients were confirmed to have 2 supplying arterial branches, and 2 (7.1%) patients were confirmed to have 3 supplying arterial branches.

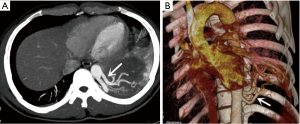

Figure 1 Enhanced CT scanning (A) and 3-dimensional reconstruction (B) demonstrates aberrant artery (white arrow) originating from the thoracic aorta. CT, computed tomography.

Lesion diameter

The average diameter of pulmonary lesions was 6.1±3.3 cm in surgery group, and 2.6±0.6 cm in intervention group. Intervention group showed much smaller pulmonary lesions than patients in surgery group (P=0.028).

Treatment and outcomes of surgery group

Twenty-one patients underwent surgery. Among them, 17 ILS patients were subjected to lobectomy (13 cases via thoracotomy and 4 cases via VATS). Other 4 ELS patients were subjected to mass excision of the sequestered lung tissue (2 cases via thoracotomy and 2 cases via VATS). Two patients without definite diagnosis preoperatively had over 1,000 mL of blood loss during operation via thoracotomy. Patients in surgery group underwent postoperative histopathologic examinations, all of whom showed negative bronchial communications. The examination results also excluded any other alternative diagnosis. One adult patient had a postoperative complication 2 weeks after discharge in surgery group: hydropneumothorax. The resulting hydropneumothorax was treated with tube drainage.

Treatment and outcomes of intervention group

Interventional therapy was performed in 7 ILS patients, of which 3 patients were treated with endovascular embolization and 4 patients were treated with thoracic aortic endovascular stent-graft exclusion.

Three cases of PS (2 cases in left lower lung and 1 case in right lower lung) performed endovascular embolization. Mid-embolization DSA revealed marked reduction of the abnormal vascular blush and occlusion of the feeding artery (Figure 2). Post-embolization syndrome with fever and pain at embolism site from 1 to 3 days were observed in 2 patients. Body temperature in both patients subsided with administration of a simple anti-inflammatory and analgesic treatment.

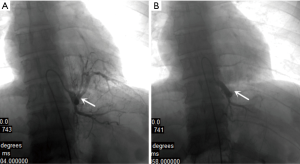

Figure 2 DSA shows the changes of feeding artery before and after embolization. (A) Pre-embolization DSA shows single large feeding artery later dividing into multiple branches to supply the sequestered LLL (white arrow); (B) mid-embolization DSA reveals marked reduction of the abnormal vascular blush and occlusion of the feeding artery (white arrow). LLL, left lower lobe; DSA, digital subtraction angiography.

Four cases of PS located in left lower lung underwent endovascular stent-graft exclusion. They had aneurysmal dilation (3 cases) and aortic dissection (1 case) on the initial part of feeding artery. An immediately aortogram after the procedure showed that the initial placement of feeding artery was excluded successfully. CT images revealed no complications including endoleaks, migration, or access vessels injuries during the perioperative period. Significant regression of sequestered lung tissue on the size was observed 3 months after operations (Figure 3).

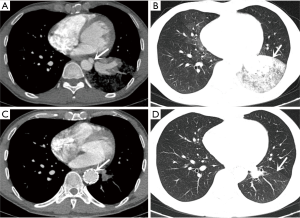

Figure 3 Enhanced CT scanning shows aortic dissection on the initial part of feeding artery (A) combined extensive effusion of LLL (B) (white arrow). At 3th month of follow up, the aortic dissection and feeding artery are isolated (C) and LLL effusion has been absorbed (D) (white arrow). CT, computed tomography; LLL, left lower lobe.

Postoperative hospital stay

The duration of postoperative hospital stay was 9.6±2.3 days in surgery group and 4.7±1.5 days in intervention group, respectively.

Follow-up

Follow-up for a postoperative period of between 6 and 84 months was achieved in all 28 patients, with a median follow-up of 36 months in surgery group and 30 months in intervention group, respectively. In the surgery group, 3 patients had slight wound pain and 1 patient felt a little numbness of skin near the incision site. In the intervention group, complete regression of the sequestrated pulmonary tissue was observed in 2 patients who were treated with endovascular embolization, partial regression (>60%) was observed in 5 patients, of whom 1 patient was treated with endovascular embolization and 4 patients were treated with thoracic aortic endovascular stent-graft exclusion, but without clinical problems. No recurrences or further complications such as respiratory distress, infection, intrathoracic bleeding, or hemoptysis were observed in all patients.

Discussion

ILS is the most common form, accounting for approximately 75–84% of PS cases in the literature (1,10) and 85.7% in our operation group. ELS is more frequently associated with other congenital malformations such as hypoplasia, congenital cystic adenomatoid malformation, congenital lobar emphysema, or bronchogenic cyst (2,11). Four of our patients were diagnosed with ELS combined with bronchogenic cyst. Lesions in posterior basal segment of left lower lobe andposterior basal segment of right lower lobe accounted for 80–90% of all PS (1,10). Our results showed the sequestration was located in the left lower lobe in 22 (78.6%) patients and in the right lower lobe in 4 (14.3%) patients.The most common symptom of PS was cough or expectoration, fever, hemoptysis, and chest pain (2,3). Our results showed consistent observations. Some studies reported higher percentage of asymptomatic patients with up to 31.8% (12,13) and 25.0% in our study. The discrepancy is probably due to lack of regular checkups and chest radiographs examination, which would only be taken until obvious symptoms were observed.

Traditionally, chest radiography or general chest CT scan is firstly applied to determine PS. However, these approaches cannot detect aberrant bleeding artery. On the chest CT film, mass lesion, cystic lesion, and pneumonic lesion are the most common imaging findings suggesting a PS, but cannot lead to a define diagnosis. To obtain a definite diagnosis of lung lesions, 10 of the patients underwent percutaneous needle biopsy and 7 of the patients underwent bronchoscopy in our study. Unfortunately, lung space-occupying lesions were not diagnosed by such invasive examination. In our cases, 21 patients were diagnosed preoperatively by enhanced CT scanning and CTA. Another 7 patients who could not be diagnosed preoperatively were the patients without performing enhanced CT scan. With the development of diagnostic approaches and increase of experience, chest radiography suggested PS-suspected patients can be definitively diagnosed through noninvasive procedures, such as enhanced CT or CTA.

The most consensus treatment for PS currently is surgical resection, which can prevent possible infection (5,6). Preoperative imaging evaluation should identify the location of the arterial supply and pattern of venous drainage to avoid surgical transection of an unsuspected artery and prevent fetal outcomes. In our studies, 2 patients had over 1,000 mL of blood loss during operation. Blood loss was due to lack of preoperative identification of the aberrant vessels and the severe adhesion. Although preoperative localization of the aberrant blood vessels is not required in literature (6), we still strongly recommend preoperative identification of the aberrant vessels to prevent major hemorrhage during operation. Both conventional thoracotomy and VATS can be used during a segmental resection or a lobectomy in PS (14-16). In this study, 15 patients received thoracotomy surgery, and 6 patients received thoracoscopic surgery within the last 2 years, suggesting VATS as a better approach than thoracotomy for PS resection with the continuous improvement of thoracoscopic techniques.

As a treatment of arterial bleedings, transcatheter endovascular embolization has been reported to successfully treat PS since 1998 (7). Embolization reduces the risk of blood loss during operation. Recently, this method has emerged as a less-invasive alternative to surgery, especially for neonates and children (8,9). At our institution, we used PVA particle soaked in microcoils (MWCE-35-5-5, COOK) as the embolic materials, 2 patients showed fever and pain at embolism site post-embolization for 1 to 3 days. We speculated that it was probably due to extensive and rapid necrosis of the sequestration. Treated patients were completely asymptomatic in long-term follow up including partial regression of the sequestrated pulmonary tissue.

Fragile blood vessels were observed in PS patients, possibly due to inflammation, atherosclerosis, and even aneurysms. Very few reports have been published describing aortic aneurysmal dilatation at the origin of the aberrant systemic artery (17,18). Surgical resection is applied to patients under urgent or semi-urgent circumstances like a possible rupture during the treatment of PS. In our study, 3 cases of PS have aneurysmal dilation and 1 case of PS has aortic dissection at the initial part of feeding artery. Although the etiology of the aneurysmal dilation and aortic dissection is uncertain, we and others suspect it may be due to systemic arterial high-pressure flow in the sequestered lung (17,18). Low wall shear stress occurs at arterial bifurcations, branch ostia, and curvatures, with aneurysm growth occurring at these low shear stress regions (19). In this case, the origin of an aberrant artery was located on the thoracic aortic with systemic arterial hypertension, the hemodynamics of which may have driven progressive dilatation and aortic dissection. We took endovascular stent-graft exclusion to completely exclude the feeding arteries to avoid the risk of hemorrhage and rupture of the aneurysm or dissection. Significant regression of sequestered lung tissue on the size was observed 3 months after operations. None of the patients had a problem during follow-up period.

Because of the significant improvement of symptoms, there was no need to patients of intervention group for surgery. But they were informed that surgical treatment could be considered in case of clinical symptoms recurrence or lesions enlarged. Long term follow-up was required to determine whether surgical resection of PS was needed. Initial follow-up was performed 3 months after endovascular embolization or endovascular exclusion by CT-scan and, thereafter, follow-up was performed after 6 months and then annually.

However, some strongly suggested performing surgical resection on all PS patients, including asymptomatic ones, to exclude the risk of infection, complication after embolization, and any other pathology (20). Given this contradictory result, questions raised as which method should we select as the primary treatment: surgery or endovascular techniques? Nowadays no treatment guidelines have been established. In our study, endovascular techniques were considered for patients when pulmonary lesions were small-sized (<3 cm), which partially explained the reason that there were 2 cases with complete regression and 5 cases with partial regression (>60%) during the follow-up period. Due to a retrospective study and a limited number of cases, we cannot conclude the specific size of the sequestrations as a basis for treatment options in our study. Prospective studies and large sample are needed to clearly establish criteria for treatment options based on lesion size, type, symptoms, and age.

Conclusions

Clinical presentation of PS is non-specific and hard to diagnose. Noninvasive procedure, such as enhanced CT or CTA, may be an economical and effective mean for the diagnosis of PS. Surgical resection for PS is the major treatment approach with VATS and posterolateral thoracotomy as feasible alternatives. Arterial embolization of PS could be considered when pulmonary lesion is small-sized. Endovascular stent-graft exclusion could be used to treat combined arterial aneurysm and dissection of PS.

Acknowledgements

The authors thank Ke-Long Liao, MD, Wei Zhang, MD, Gang Xiong, MD, Wen-Feng Tan, MD, Department of Cardiothoracic Surgery, Southwest Hospital, Third Military Medical University, for participating in the surgical procedures.

Footnote

Conflicts of Interest: The authors have no conflicts of interest to declare.

Ethical Statement: The study was approved by the Ethical Committee of Southwest Hospital. Informed consent of the operation was obtained from all patients before surgery or intervention.
