Medication regularity of pulmonary fibrosis treatment by contemporary traditional Chinese medicine experts based on data mining

Introduction

Pulmonary fibrosis is a progressive and fatal lung disease characterized by excessive accumulation of extracellular matrix (ECM) and remodelling of the lung architecture. It is frequently associated with idiopathic interstitial pneumonia, collagen diseases and so on (1-4). To date, the prognosis of patients with diffuse pulmonary fibrosis is poor because of lack of effective treatments (1,3,5). In the past ten years, traditional Chinese medicine (TCM) respiratory scholars have attempted to use Chinese medicine therapy to treat this disease, achieving certain curative effects by developing Chinese medicine compounds as well as studying various well-known Chinese medical cases. At present, scholars have studied the compatibility of Chinese traditional herbal formulae for pulmonary fibrosis (6,7), but data mining research on real-world clinical records in the treatment of pulmonary fibrosis has not been reported. This study intends to use data mining to discover and extract knowledge and explore the experience and medication regularity in the treatment of pulmonary fibrosis from clinical records provided by contemporary Chinese medical specialists so as to provide ideas and TCM methods for treatment of pulmonary fibrosis.

Methods

Diagnostic criteria

Referring to the relevant literature, the selected patient medical records meet at least one of the following conditions (1,5):

• Have typical clinical features: mainly for exertional dyspnoea, shortness of breath, cough, and other symptoms; Velcro rale, clubbing, cyanosis, and other signs; radiographic/computed tomographic findings such as diffuse wellability shadow, ground-glass opacity, reticular changes, restricted pulmonary ventilation disorder, and hypoxemia;
• Have a clear diagnosis via pathological examination.

Inclusion criteria

• In line with the diagnostic criteria, and the cause is unknown (idiopathic pulmonary fibrosis) or connective tissue diseases with pulmonary fibrosis;
• Prescription physician (deputy) director of Chinese medicine practitioners;
• Medical records that have complete descriptions of clinical symptoms, signs, auxiliary examination data, and other data, as well as a clear drug composition and dose, and that provide a clear evaluation of efficacy.

Exclusion criteria

• Occupational disease, drug-induced, infection (including tuberculosis), radiation and other specific causes of clear pulmonary fibrosis, chronic obstructive pulmonary disease/bronchiectasis associated with local fibrosis;
• Prescription physicians do not have senior titles;
• Incomplete data.

Database establishment

Data sources

Without language restrictions, we searched PubMed, EMBASE, SinoMed, Wanfang, CNKI, and VIP from inception to 10 March 2017, using a combination of keywords and MeSH terms for pulmonary fibrosis, interstitial lung fibrosis, interstitial lung disease, interstitial pneumonia, pharmacotherapy, TCM, traditional Chinese herbal, and alternative medicine. Additional searches included manual retrieval from various core Chinese medicine journals. The pulmonary fibrosis medical records in line with the inclusion criteria were selected from the literature.

Data exacting and inputting

Medical records that were in line with the inclusion criteria were extracted and divided into four parts, including Chinese medicine experts, patients with demographic characteristics, symptoms and information, and Chinese medicinal herbs. After indexing in the original text of the medical records, the relevant data were extracted and then input into a Microsoft Excel sheet, setting up a corresponding database. The database forms an association between the different data through data encoding.

Data cleaning

This study mainly analysed the Chinese medicinals database and cleaned the database, mainly to standardize herb names. For example, the “Shanyurou (Corin Fructus)” is unified as “Shanzhuyu (Corni Fructus)”, “Dabei (Fritillariae Thunbergii Bulbus)” and “Zhebei (Fritillariae Thunbergii Bulbus)” are unified as “Zhebeimu (Fritillariae Thunbergii Bulbus)”. The concept of splitting characteristics involved various schemes: firstly splitting the drug name “peach almond” into “Taoren (Persicae Semen)” and “Xingren (Armeniacae Semen Amarum)” and so on, secondly the drug taste “sweetness pungency” is split into “sweetness” and “pungency”, thirdly “belongs to the lung and spleen “ is split into “lung”, “spleen”, and finally the effect of “clearing and resolving heat-phlegm” is split into “clearing heat” and “resolving phlegm” and so on.

In the new database of Chinese medicinal herbs, according to the “Pharmacopoeia of the People’s Republic of China” (8) (2015 edition), the nature and flavor, meridian tropism and efficacy of each drug are input and digitized. Among them, coldness, hotness, warmth and coolness and other medicinal properties are valued according to Jiang’s method (9); for sourness, bitterness, sweetness, pungency, saltiness, and other drug tastes, meridian tropism and efficacy, if a description of a drug is associated with a certain other drug, it is recorded as 1, otherwise as 0.

Two independent authors gathered and classified the data and crosschecked results after the data had been completed. Any disagreement was resolved by discussion and consensus.

Data mining

• Descriptive analysis: the frequency method was used to calculate the type and frequency of each Chinese medicinal;
• Cluster analysis: for Chinese medicinals used more than 30 times, cluster analysis was carried out by a hierarchical clustering algorithm using Ward’s linkage method according to the nature, flavor, meridian tropism and main efficacy of medicinals (6,8);
• Association analysis: the compatibility rules of the couplet medicinal/ group medicinal were extracted according to the association rules analysis (6,10). We specified that the minimum level of support indicating that items are associated was 10%, the minimum confidence for rule generation was 50%, and the minimum lift was 1;
• Link analysis: we used link analysis and other complex network analyses to establish a group of core medicinals (11,12), and found a new prescription;
• Data mining tools: descriptive analysis and cluster analysis were completed with Stata13.1, and association rules analysis and link analysis were completed by SAS^® Enterprise Miner 4.3.

Interpretation of the results

The results of data mining must be interpreted and evaluated under the guidance of experts in the appropriate field of expertise to determine whether the knowledge discovery is valuable. Two Chinese medical experts used the Delphi method to interpret the results in this study.

Results

Search results

According to the method of retrieval, 38,364 articles were initially retrieved. By reviewing the literature titles, abstracts, and keywords, we obtained 346 pertinent articles. By reading their full text, 112 articles were identified according to the inclusion and exclusion criteria, which were all Chinese articles and were finally confirmed to include 124 medical cases involving 60 doctors, with a total of 328 records of treatment times.

Cluster analysis results

In the 124 medical records, 263 types of herbs were used for 5,455 counts of frequency; Chinese medicinals appearing more than 30 times could be grouped into 53 species, with 3,681 counts of frequency in total. According to the nature, flavor, meridian tropism, and main efficacy of medicinals, it was reasonable to group these into ten categories and nineteen sub-categories in line with the principles of TCM, as shown in Figure 1 and Table 1.

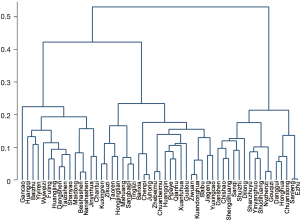

Figure 1 Cluster analysis results.

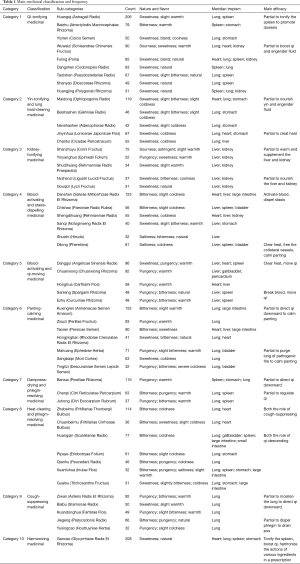

Table 1 Main medicinal classification and frequency
Full table

Association rule analysis results

According to the set of principles for drug association analysis, a total of 62 rules, of which a total of 29 rules involve couplet medicinals and a total of 33 rules involve group medicinals resulted. By these principles, 17 rules contain Gancao (Glycyrrhizae Radix Et Rhizoma), which is considered a “Harmonizing medicinal” rather than a specific treatment medicinal, so these rules were deemed “uninteresting” and were also ignored. So, the interesting rules in couplet medicinals were 21 and in group medicinals were 24. Thus, Table 2 shows the 45 association rules that were considered significant.

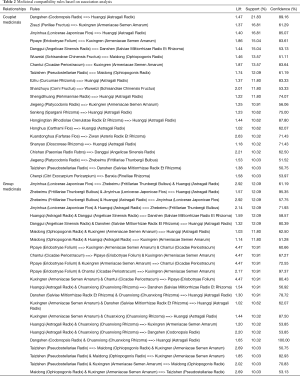

Table 2 Medicinal compatibility rules based on association analysis
Full table

Link analysis results

The data contains 179 nodes and 2,542 links. We only show the results of links among all the main medicinals that were used in the cluster analysis in order to determine the core medicinals, as shown in Figure 2. It is found that a new prescription for the treatment of pulmonary fibrosis is composed of Huangqi (Astragali Radix), Dangshen (Codonopsis Radix), Maidong (Ophiopogonis Radix), Wuweizi (Schisandrae Chinensis Fructus), Dilong (Pheretima), Danshen (Salviae Miltiorrhizae Radix Et Rhizoma), Danggui (Angelicae Sinensis Radix), Zhebeimu (Fritillariae Thunbergii Bulbus), Banxia (Pinelliae Rhizoma), Taoren (Persicae Semen), Kuxingren (Armeniacae Semen Amarum), Ziwan (Asteris Radix Et Rhizoma), Gancao (Glycyrrhizae Radix Et Rhizoma), and other components.

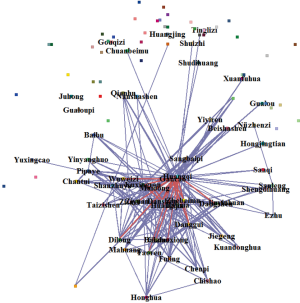

Figure 2 Schematic diagram of the core medicinals.

Discussion

As for the model of diagnosis and treatment based on diagnosis individuality and integration of diagnosis, medical records of TCM provide good evidence of Chinese evidence-based practice (13), which reflect the comprehensive use of TCM principles, methods, formulas and medicinal and not only are the real records of medical activities, but also reflect the clinical experience and thought processes of physicians (14). The recent sage Zhang Taiyan said “the achievement of TCM is noticeable in medical records; in order to get the previous experience, medical records are the best approach to learn; dig into this and do more with less”. However, the schools of TCM are various and influence different physicians to use different medicinals. From the perspective of informatics, medical record data is complicated and intricate experiential data, where valuable information cannot be easily determined individually and should be studied with the assistance of new technology and methods. Data mining (15) is an effective tool to distil knowledge from a mass of incomplete and noisy data, as data mining is the most advanced data processing technology in the era of big data. So, applying data mining technology should bring improvement and further development of TCM academic technology (16). Therefore, we have explored data mining of pulmonary fibrosis medical records of qualified TCM doctors to evaluate the new technology, which plays a positive role in enriching critical thinking systems involving TCM treatments for pulmonary fibrosis.

Cluster analysis

Cluster analysis is the method of grouping a set of objects in a manner in which objects in the same group are more similar to each other than to those in other groups. As a common technique for statistical data analysis and a main unsupervised method of exploratory data mining, cluster analysis can automatically divide a data set into many types to discover the classification regularity implied in TCM clinical data (17).

After the cluster analysis of 53 main medicinals according to nature, flavor, meridian tropism and efficacy, we find that the acquired classification is consistent with clinical practice generally, but there are also some apparent errors. (I) Fuling (Poria) is grouped into the medicinals of boosting qi to engender fluid in the qi-tonifying medicinal category; (II) Yuxingcao (Houttuyniae Herba) is grouped as a cough-suppressing medicinal. By reviewing medical literature from past dynasties and modern pharmacological research, we find that the above classifications are actually reasonable: (I) although in the textbook “Chinese materia medica”, Fuling (Poria) is grouped into inducing diuresis with bland drugs, it is also used as a tonic for its function of tonifying qi and fortifying the spleen in practice. Since the Ming and Qing dynasty, doctors have regarded it as a tonifying spleen-yin drug. As said in Yaopinhuayi, “Sweetness bland belong to earth which are used to tonifying spleen Yin; strong earth can engender metal and boost the lung qi”, and in New Compilation of Materia Medica, “engendering fluid and humor…boosting the lung”, which proves it has the function of boosting qi to engender fluid; (II) although Yuxingcao (Houttuyniae Herba) is grouped as a heat-clearing and detoxicating medicinal, modern research proves that it indeed plays a role in cough-suppression (18).

According to the principle of “syndrome differentiation by effects of medicinals” of TCM, the pathogenesis of pulmonary fibrosis can be roughly inferred. This study found that of 263 Chinese medicinals used in the treatment of pulmonary fibrosis, qi-tonifying, blood-activating, lung fire-clearing, phlegm-resolving, cough-suppressing and panting-calming medicinals are used at a higher frequency, where tonic medicine is mainly qi-tonifying and yin-tonifying while meridian tropism mostly belongs to lung, spleen and kidney, reflecting that the majority of doctors are aware of their effect on the pathogenesis of pulmonary fibrosis (6,19): (I) the location of the disease is in the lungs, and is closely related with the spleen and kidneys; (II) the nature of the disease is a deficiency in origin and excess in superficiality, where insufficiency of the qi(yin) of lung, spleen and kidney belongs to deficiency in origin, and phlegm turbidity, static blood and heat toxin belong to excess in superficiality. The two influence each other and have reciprocal causation. Therefore, the TCM treatment is mainly to tonify the lung, fortify the spleen and boost the kidney to reinforce a healthy qi, and to activate blood and dispel stasis, resolve phlegm and clear heat in order to cure its superficiality. Regarding the lung governing qi and controlling respiration and other dispersing and descending physiological functions, the use of lung-qi dispersing and descending medicine to regulate qi is in line with clinical practice.

Couplet medicinal/group medicinal rule analysis

Association rules have been widely used to identify interesting relationships between item sets in large databases (20). Uncovered relationships can be represented in the form of association rules that will predict the occurrence of an item based on the occurrences of other items in the transaction.

When exploring couplet medicinals or group medicinals, we should combine the support, confidence, and lift to consider the association rules. Furthermore, the association rules for satisfying the user-defined minimum cut-off values of confidence and support are interesting. The lift reflects the closeness rating of the elements in the association rules, based on which >1 is meaningful. In the obtained medicinals association rules, all are interesting; but because the role of Gancao (Glycyrrhizae Radix Et Rhizoma), which is a “Harmonizing medicinal”, has a large possibility of conjunction with other medicinals, we should regard the association rules between Gancao (Glycyrrhizae Radix Et Rhizoma) and other medicinals as uninteresting.

There are some interesting association rules that are commonly used by ancient and modern physicians for combinations of couplet medicinals. For example, qi-tonifying medicinal Dangshen (Codonopsis Radix)-Huangqi (Astragali Radix), yin-tonifying medicinal Taizishen(Pseudostellariae Radix)-Maidong (Ophiopogonis Radix) and blood-activating medicinal Chishao (Paeoniae Radix Rubra)-Danggui (Angelicae Sinensis Radix). Others include phlegm-resolving and cough-suppression medicinal Chenpi (Citri Exocarpium Pericarpium)-Banxia (Pinelliae Rhizoma), Zisuzi (Perillae Fructus)-Kuxingren (Armeniacae Semen Amarum), Jiegeng (Platycodonis Radix)-Kuxingren (Armeniacae Semen Amarum) and Ziwan (Asteris Radix Et Rhizoma)-Kuandonghua (Farfarae Flos). These medicinals are Shengyu decoction, Shashen and Maidong decoction, Siwu decoction, Ezhu powder, Erchen decoction, Dingchuan decoction, Xingsu powder and Xiaochaihu decoction and other commonly used combination drugs.

On the other hand are the newly discovered drug couplet medicinals and group medicinals, for example, the qi-tonifying medicinal Huangqi (Astragali Radix)-Hongjingtian (Rhodiolae Crenulatae Radix Et Rhizoma) and Huangqi (Astragali Radix)-Shanyao (Dioscoreae Rhizoma), qi-yin-tonifying medicinal Huangqi (Astragali Radix)-Shengdihuang (Rehmanniae Radix), the qi-tonifying and blood-activating medicinals Huangqi (Astragali Radix)-Sanleng (Sparganii Rhizoma), Huangqi (Astragali Radix)-Ezhu (Curcumae Rhizoma), Huangqi (Astragali Radix)-Honghua (Carthami Flos), Huangqi (Astragali Radix)-Chuanxiong (Chuanxiong Rhizoma)-Dangshen (Codonopsis Radix), Huangqi (Astragali Radix)-Chuanxiong (Chuanxiong Rhizoma)-Danshen (Salviae Miltiorrhizae Radix Et Rhizoma) and Huangqi (Astragali Radix)-Danggui (Angelicae Sinensis Radix)-Danshen (Salviae Miltiorrhizae Radix Et Rhizoma), the qi-yin-tonifying and blood-activating medicinal of Taizishen (Pseudostellariae Radix)-Dangshen (Codonopsis Radix), the qi-yin-tonifying and cough-suppressing medicinal Huangqi (Astragali Radix)-Maidong (Ophiopogonis Radix)-Kuxingren (Armeniacae Semen Amarum), the qi-tonifying and blood-activating and cough-suppressing medicinal Huangqi (Astragali Radix)-Chuanxiong (Chuanxiong Rhizoma)-Kuxingren (Armeniacae Semen Amarum), the qi-tonifying and heat-clearing and phlegm-resolving medicinal Huangqi (Astragali Radix)-Zhebeimu (Fritillariae Thunbergii Bulbus)-Jinyinhua (Lonicerae Japonicae Flos) the heat-clearing and phlegm-resolving medicinals Zhebeimu (Fritillariae Thunbergii Bulbus)-Jiegeng (Platycodonis Radix) and Kuxingren (Armeniacae Semen Amarum)-Chantui (Cicadae Periostracum), the blood-activating medicinal Chuanxiong (Chuanxiong Rhizoma)-Danshen (Salviae Miltiorrhizae Radix Et Rhizoma), and so on. Modern pharmacological studies have confirmed that Huangqi (Astragali Radix), Danshen (Salviae Miltiorrhizae Radix Et Rhizoma), Danggui (Angelicae Sinensis Radix), Chuanxiong (Chuanxiong Rhizoma), Huangqin (Scutellariae Radix) and extracts of these medicinals have certain anti-fibrosis functions (21-27). We find that the obtained association rules reflect boosting qi, tonifying yin, activating blood, clearing heat, resolving phlegm and other pulmonary fibrosis basic treatments have an independent use or concomitant uses.

Link analysis

In Figure 2, the thickness of a line reflects the correlation between two medicinals. The thicker the line is, the higher the correlation. It can be found that a new prescription for the treatment of pulmonary fibrosis consists of Huangqi (Astragali Radix), Dangshen (Codonopsis Radix), Maidong (Ophiopogonis Radix), Wuweizi (Schisandrae Chinensis Fructus), Dilong (Pheretima), Danshen (Salviae Miltiorrhizae Radix Et Rhizoma), Danggui (Angelicae Sinensis Radix), Zhebeimu (Fritillariae Thunbergii Bulbus), Banxia (Pinelliae Rhizoma), Taoren (Persicae Semen), Kuxingren (Armeniacae Semen Amarum), Ziwan (Asteris Radix Et Rhizoma), Gancao (Glycyrrhizae Radix Et Rhizoma). Huangqi (Astragali Radix) and Dangshen (Codonopsis Radix). These medicinals mutually reinforce each other to invigorate spleen and lung qi. Maidong (Ophiopogonis Radix) and Wuweizi (Schisandrae Chinensis Fructus) reinforce each other to nourish lung and kidney yin. Dilong (Pheretima), Danshen (Salviae Miltiorrhizae Radix Et Rhizoma) and Danggui (Angelicae are matched to activate blood and calm panting. Zhebeimu (Fritillariae Thunbergii Bulbus) and Banxia (Pinelliae Rhizoma) are matched to resolve phlegm. Taoren (Persicae Semen), Kuxingren (Armeniacae Semen Amarum) and Ziwan (Asteris Radix Et Rhizoma) are matched to suppress coughing and to calm panting. Gancao (Glycyrrhizae Radix Et Rhizoma) harmonizes the actions of various ingredients in a prescription. All the drugs in this prescription reflect tonifying of qi and yin, activating blood and resolving phlegm, as well as descending qi to provide panting-calming, which involve a basic method for the treatment of pulmonary fibrosis. This prescription can be regarded as a new finding by data mining and its effectiveness can be further tested by clinical or animal experiments.

Limitations of study

Firstly, the chosen cases are all published and have been successful, but may contain some bias; secondly, although having collected 124 cases, the number chosen is relatively low. This means that we may not have acquired complete findings.

Currently, the summary and inheritance of TCM professors’ experiences lies in two directions. One relies on professors’ oral or mental instructions and text summarization; the other is to make the most of information technology and data mining as well as extracting the experience and academic thoughts of qualified doctors. It is believed that these two methods should be combined to reasonably analyse and apply the mined knowledge.

Acknowledgements

Funding: This study was supported by the Health and Family Planning Commission Project of Shanghai (No. 20114354), and the Traditional Chinese Medicine Clinical Key Specialist Construction Project of Shanghai Jing’an District (No. JA2016-Z005)

Footnote

Conflicts of Interest: The authors have no conflicts of interest to declare.
