Endobronchial coil therapy in severe emphysema: 6-month outcomes from a Swiss National Registry

Introduction

The emphysematous phenotype of Chronic obstructive pulmonary disease (COPD), with smoking as the main etiology has an estimated global prevalence of 1.8% (1).

The pathogenic mechanism of emphysema is destruction of alveolar walls, irreversible airway obstruction, loss of elastic recoil, air trapping, and thus a reduced gas exchange area. Clinical prognosis and quality of life in end-stage emphysema is very poor, with concomitant diseases increasing the risk of potentially life-threatening complications. Symptoms in emphysema-dominant patients are associated with dyspnea driven by lung hyperinflation (static and dynamic), and reduction of hyperinflation by reducing lung volume in the most diseased area of the lung is the objective of therapeutic intervention (2).

Optimal medical management of emphysema includes smoking cessation, pulmonary rehabilitation and physical activity training, supplemental oxygen as required, and pharmacotherapy. Nevertheless, symptoms such as dyspnea and impaired quality of life may become overwhelming and, thus, invasive treatment strategies, such as lung transplantation and lung volume reduction (LVR) are indicated. Only a minority of patients are suitable for lung transplantation due to shortage of donor organs, comorbidities and advanced age (in Switzerland 54 COPD patients underwent lung transplantation between 1993 and 2007) (3). Therefore, LVR is a promising treatment option in emphysema patients with hyperinflation. Lung volume reduction by surgery (LVRS) has been shown to improve lung function, 6MWD and quality of life in a subset of patients (2). However, postoperative morbidity and mortality remain concerns for this frail population, and LVRS has not been shown to benefit patients with homogenous disease. Several bronchoscopic lung volume reduction (BLVR) procedures have been intensively investigated in randomized trials. BLVR using endobronchial coils and valves are included in the GOLD2017 guidelines and are routinely applied throughout Europe (4).

The PneumRx^® Endobronchial Coils have been demonstrated in three randomized, controlled trials to improve quality of life, exercise tolerance, and lung function in bilaterally treated patients (5-7). The coils are shape-memory nitinol implants bronchoscopically deployed into the areas of lung parenchyma most damaged by emphysema (8,9). Coils improve lung function by reducing lung volume and tethering airways, restoring airway patency and reducing airway collapse during exhalation and exercise (5,10). Because the coil acts by a simple mechanical action and is not a blocking device, these effects are achieved immediately irrespective of collateral ventilation. This device is deployed via a simple catheter-based delivery system through a fiber-optic bronchoscope and requires no incision.

Methods

The PneumRx European registry (NCT01806636) is a prospective post market multi-center registry of patients treated in routine clinical practice throughout Europe. Inclusion and exclusion criteria are in accordance with the company’s Instructions for Use (IFU) and indications for coil therapy. Registry participants are patients scheduled to undergo coil treatment who consent to have their clinical data collected in the Registry. All patients had provided informed consent before undergoing treatment. Protocols and consent forms were approved by the local Ethics committees (Lead EC: Commission cantonale d’éthique de la recherche CCER, Geneva, ID: GE 14–017) prior to study enrollment. Data were de-identified and captured on web-based electronic Case Report Forms (eCRFs). The study is conducted under EEC MDD, EN ISO 14155:2011 and all applicable local regulations.

In Switzerland, coil therapy is used in 6 expert centers (Inselspital Bern, L’hôpital Neuchâtelois-Pourtalès, Hôpitaux Universitaires de Genève, Lungenzentrum Hirslanden, University Hospital Zurich, Centre Hospitalier Universitaire Vaudois). All treating physicians are board-certified pulmonologists with interventional experience, and all received procedural training from the company. Participating sites have facilities that support the practice of interventional bronchoscopy and are able to perform comprehensive patient screening and selection as well as postoperative patient management. Patients had severe emphysema, were on optimal medical therapy, and ideally had completed pulmonary rehabilitation and smoking cessation prior to consenting to treatment. Patients underwent high resolution CT scanning to assess emphysema distribution and exclude suspicious findings, such as nodules suspicious for lung cancer, bronchiectasis, and severe bullous disease.

Study population

Adult patients diagnosed with homogeneous or heterogeneous emphysema who were appropriate for coil treatment based on the CE-Mark Approved IFU and who have been scheduled for coil treatment were considered candidates for the registry. Patients had residual volume (RV) of at least 175% predicted, post bronchodilator forced expiratory volume in 1 second (FEV1) of ≤45% predicted and a normal international normalized ratio (INR) in the absence of anticoagulation therapy. Patients were not eligible for the coil treatment if they had known uncontrolled pulmonary hypertension defined by systolic RV pressure >50 mmHg, giant bullae >1/3 lung volume, and were on antithrombotic treatment (except for aspirin) which could not be stopped 7 days prior to treatment. All patients who were treated with coils since October 2013 were enrolled in the Swiss registry.

Devices and procedures

Endobronchial coils are available in 3 lengths: 100, 125, and 150 mm. The coil delivery system consists of a cartridge to house the straightened coil for deployment, a catheter for deployment, a guidewire and a specialized forcep for release or retrieval of the coil. The deployment procedure has been previously described (10). The peri-procedural patient management (e.g., prophylactic treatment, control chest X-ray(s) or CT(s), or post procedural control bronchoscopies) is left to the discretion of the treating physician to adhere to local standards for patient management following bronchoscopic interventions, and was not captured in the registry.

Follow-up

Per the Registry protocol, post-procedure patient follow-up was based on the individual institution’s standard of care. Registry specific follow-up visits were recommended at 6 months and 12 months, and then annually up to 3 years counted from the date of the first procedure. The baseline visit included medical examination, pulmonary function tests (body plethysmography, spirometry), 6-minute walk test (6MWT) on room air or carrying oxygen when needed, and medication history. Quality of life (QOL) was assessed by the St. George`s Respiratory Questionnaire (SGRQ) and dyspnea by the modified Medical Research Council (mMRC) 5-level dyspnoea scale. All baseline, procedure, and follow-up data were collected via eCRFs and entered into the electronic data capture (EDC) database. Adverse events were recorded at each study visit.

Study endpoints

The primary endpoint of this study was the change in quality of life from baseline to post treatment follow-up as assessed by the SGRQ (total points). Secondary endpoints included changes in lung function measurements [(RV) (L), RV/total lung capacity (TLC) (%), FEV1 (L), FEV1/forced vital capacity (FVC) (%)] and changes in exercise capacity assessed by the 6MWT between baseline and post treatment follow-up.

Responder rates were evaluated using the minimal clinical important differences (MCIDs) that have been reported for FEV1, L +10% (11), RV −0.35 L (12), 6MWD +26 m (13), and SGRQ −4 points total score (14).

Safety endpoints included occurrence of serious adverse events (SAE) including any device malfunction or failures.

Statistical analyses

Patient demographics, baseline characteristics, procedure characteristics, device usage and hospital stay are summarized using descriptive statistics. Serious Adverse events (SAEs) are summarized by number and percent of subjects as well as number of events for the Treatment Recovery Period (30 Days following either procedure), 31–91, 92–182, and through 6 months of follow-up. Effectiveness data is summarized using descriptive statistics. Results at 6-month follow-up were compared to baseline values and analyzed using paired t-test for continuous variables (alpha level 0.05). No adjustments were made for multiple comparisons.

Results

Twenty-nine patients had completed bilateral treatment and had completed a 6-month follow-up visit between October 2013 and November 2016 (Figure 1). Of these, an additional two patients died (both prior to the 6-month follow-up visit).

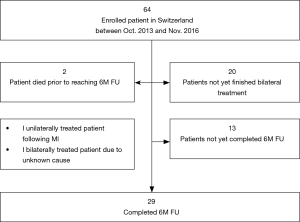

Figure 1 Patient accountability. FU, follow-up.

Baseline and treatment characteristics of the patients in this analysis are shown in Table 1. Sixty-nine percent of patients had heterogeneous emphysema as determined by investigators and 31% had homogeneous emphysema. These patients had very advanced emphysema with severe hyperinflation, with mean FEV1 30% pred., and RV 247% pred. They were functionally limited with very poor quality of life, with mean 6MWD of 272 m, and mean SGRQ score of 57 points. Pulmonary rehabilitation status was documented in 14/29 (48%) patients, of whom 9 (64%) had completed pulmonary rehabilitation. Patients received mean 23 coils in two separate procedures and completed the 6-month post treatment follow-up visit at median 204 days (range, 124 to 272 days). The median hospital stay after each coil procedure was 1.0 day; mean procedure time was 47 minutes which included 15 minutes under fluoroscopy.

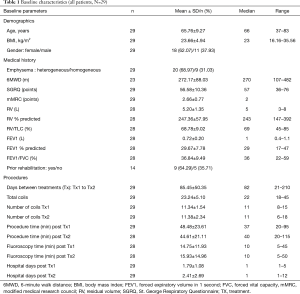

Table 1 Baseline characteristics (all patients, N=29)
Full table

At 6 months, patients reported considerable improvement in their quality of life following bilateral coil treatment. SGRQ decreased by −13.9±11.9 points compared to baseline (P<0.0001) (Table 2), with an 87% SGRQ responder rate. 61% of patients achieved twice the MCID in SGRQ response (≥8 points decrease) (Table 3).

Table 2 Efficacy results: change from baseline at 6-month FU (all patients, N=29)
Full table

Table 3 Efficacy results: responder rates (MCID) at 6-month FU for bilaterally treated patients (all patients)
Full table

Patients demonstrated significant increases in 6MWD, with mean increase of 53.4±66.9 m (P=0.0021) (Table 2). A 6MWD responder rate of 60% was observed at 6-month follow-up (Table 3).

FEV₁ increased by 0.14±0.22 L at 6 months (P=0.0021), with 57% of patients achieving MID level response at 10% threshold. RV decreased by −0.91±1.04 L at 6 months compared to baseline (P=0.0002); 76% of patients achieved the MID of −0.35 L. The RV/TLC [%] also showed a statistically significant decrease at 6 months after treatment (mean change −7.72±11.19; P=0.0021).

A total of 7 SAEs were reported in 6 of 29 bilaterally treated patients (Table 4) through 6 months; 5 SAEs occurred within the first 30 days of either treatment [1 pneumonia, 2 pneumothorax, 1 acute myocardial infarction (MI), 1 chest pain]. Two patients developed pneumonia after 30 days but within the 6-month follow-up period. All SAEs were resolved. Among the total Swiss registry population of 64 patients, two deaths were reported within the 6-month follow-up (1 myocardial infraction, one unconfirmed cause of death); neither was deemed procedure or device related. No device removals were necessary.

Table 4 SAEs of interest (all patients N=29)
Full table

Discussion

We present our experience with endobronchial coil treatment as part of routine clinical practice in Switzerland. The key limitation of this analysis is the small population of patients with completed 6-month follow-up; however, real-world effectiveness as well as real-world challenges of patient follow-up are important to integration of novel therapeutic approaches, and should be described. Because there was no control arm, a placebo effect cannot be ruled out, nor can responder bias. However, the RENEW trial reported outcomes in coil treated patients vs. a control arm, with statistically significant between-group differences in 6MWD, FEV1, SGRQ, and RV/TLC favoring the coil treatment group at one-year post treatment, and a highly clinically significant between-group difference in SGRQ of −8.9 points (P<0.001) at 1-year post treatment (7). Because not all centers offered alternate endoscopic lung volume reduction treatment options, a strength of this study is avoidance of selection bias, whereby patients with severe hyperinflation and highly heterogenous disease (presumably the optimal “responder profile”) might be directed toward other therapies while patients with homogenous disease, who typically demonstrate lower magnitude of benefit, might preferentially be directed toward coils. Our physiologic outcomes in patients treated with endobronchial coils are in fact comparable to 6-month published outcomes in the post-market setting for a larger cohort treated with endobronchial valves (15).

A strength of this analysis is that all patients treated with coils in Switzerland were included in the registry and were thus considered in this analysis. Another strength is that patients in this multi-center registry achieved a high response rate across all 4 endpoints of interest in COPD, despite a very broad range of baseline characteristics of our patients compared to previously published trials. Our median age was 66 but the range is 37 to 83 years, our median 6MWD is 270 m with a range of 107 to 482 m, our median RV% pred. is 247% with a range of 147% to 392%, and our FEV1% pred. is 29% with a range of 17–47%. We believe our data suggest that careful and holistic patient selection, taking into account the patient’s medical (including psychosocial) history, exacerbation history, stability of other comorbidities, and commitment to self-care may be a stronger predictor of good outcomes than any particular baseline factor. Due to the complexity and variability of the severe emphysema patient profile, we also deemed notable that 72% of our patients achieved at least 2 MCID level responses among the 4 outcomes of interest (SGRQ, 6MWD, FEV1 and RV) (Table 3). Since endobronchial trials tend to demonstrate high SGRQ improvements, we consider a “2 or more MCID” threshold as potentially indicative of overall “responsiveness”, where either a functional or physiologic endpoint supports the patient’s reported improvement in quality of life.

Our data represents the first analysis of coil therapy implemented in centers of excellence throughout Switzerland. We believe that some learnings can be derived from these data. As previously described, a factor influencing responsiveness to lung volume reduction is heterogeneity of emphysema (2,16). Patients with homogenous disease are generally not candidates for lung volume reduction surgery, endobronchial valves, or other non-implant therapies under clinical investigation (i.e., steam or glue). However, in the RENEW randomized coil trial, 77% of patients had homogeneous emphysema based on visual assessment (7). In our registry, 67% of patients have heterogeneous emphysema, supporting the notion that heterogeneity may predict larger magnitudes of improvement from any intervention, and that therapeutic success must be considered from the perspective of the patient (i.e., quality of life improvement) and the limitations of the disease profile (i.e., other comorbidities or degree of heterogeneity).

In Switzerland, single photon emission computed tomography (SPECT) perfusion is part of the standard diagnostic work up for patients who are evaluated for lung volume reduction procedures. Because LVRS and lobar blocking therapies “disconnect” the treated/resected area from ventilation, perfusion status plays a critical role in determining optimal lobe targets. The situation is less clear for coil treatment, which is not a blocking therapy, and hence treated lobes remain ventilated. In Switzerland, patients were treated based on visual assessment of the emphysema, combined with semi-quantitative SPECT perfusion analysis. Patients usually received treatment in the lobes with the lowest perfusion, which is typically associated with areas of higher emphysematous destruction; however, this was left to the discretion of the treating physician. SPECT data were not captured in the registry and quantitative CT (qCT) analyses were not performed. Thus, it remains speculative if SPECT and qCT to determine lobe targeting for coils might have contributed to the very good effectiveness data in this study.

Conclusions

Endobronchial coil therapy in Switzerland is safe and yields very high 6-month responder rates across all relevant outcome measures. Our findings suggest that endobronchial coil therapy is an excellent therapeutic option for carefully selected patients when offered in experienced interventional centers.

Acknowledgements

PneumRx provided statistical support and writing support for the development of this manuscript.

Footnote

Conflicts of Interest: The authors have no conflicts of interest to declare.

Ethical Statement: All patients had provided informed consent before undergoing treatment. Protocols and consent forms were approved by the local Ethics committees (Lead EC: Commission cantonale d’éthique de la recherche CCER, Geneva, ID: GE 14–017) prior to study enrollment.
