A predictor for mitral valve repair in patient with rheumatic heart disease: the bending angle of anterior mitral leaflet

Introduction

Rheumatic mitral valve (MV) disease is the largest constituent of valvular heart disease in developing countries, meanwhile it is one of the major health concerns universally (1,2). It is resulted from the acute rheumatic fever and the entire MV complex can be affected adversely (3). MV repair is an optimal surgical strategy for such patients when it is compared with MV replacement (4,5), however, MV repairing surgery is not always successful due to the severity of affected MV. Chronic inflammation and fibrosis can result in thickening and restrictive mobility of mitral leaflet. Mobility, length of anterior mitral leaflet (AML) (6), subvalvular apparatus lesion, and calcification may play a crucial role for the decision of rheumatic MV repair or replacement. In our previous experience, the bending angel of AML during systolic and diastolic period can be the symbol of flexibility and mobility of AML. Transthoracic echocardiography (TTE) should be obtained firstly when valvular heart disease is suspected (7) and measurement of the bending angle of AML can be acquired preoperatively. Although Wilkins score (WS) (8) is classic and predominantly utilized scoring system to select appropriate patients for the percutaneous mitral balloon valvuloplasty (PMBV) in patients with mitral stenosis (MS), it is also an effective evaluative method for leaflet mobility, subvalvular thickening, leaflet thickening and calcification. In the current study, we tried to utilize bending angle of AML to quantify the mobility and flexibility of AML, also investigated if the bending angle of AML is a predictive factor for immediate successful MV repair in patients with rheumatic heart disease (RHD), and can WS predict the feasibility of rheumatic MV repair? Is it appropriate evaluation method for percutaneous balloon dilatation in MS or not?

Methods

Patients’ demographic characteristics and clinical features

Total 78 consecutive patients with RHD underwent MV surgeries from August, 2017 to November, 2017 based on 2014 AHA/ACC and 2017 AHA/ACC Guidelines (9,10) for the Management of Patients With Valvular Heart Disease, individual features and clinical indicators. The MV structure of all the patients were carefully evaluated by TTE preoperatively, patients that underwent simultaneous cardiac surgery for coronary artery disease and had history of myocardial infarction were excluded. Eventually, 54 patients which had mild lesions of subvalvular apparatus were enrolled in this study. We defined directly MV replacement and repair attempt but failed repairing transfer to replacement intraoperatively and counted as a replacement surgery, the enrolled patients were placed into repair and replacement groups. The patients’ demographic characteristics are listed in Table 1.

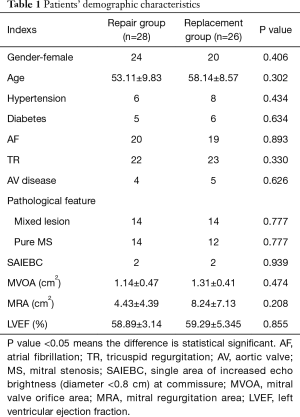

Table 1 Patients’ demographic characteristics
Full table

Echocardiographic evaluation

Patients’ MV structure was carefully evaluated on TTE and scored by the WS preoperatively. The bending angles of AML was measured during systole and diastole at different level before the surgery. All data was measured and analyzed twice by two independent echocardiography specialists (YQ Jiao and W Han) blinded to each other’s results. The angles between a line connecting the two leaflet origin at the annulus to the bending- and tip-point of AML in end-diastole were defined as B-angle and T-angle, both of them are maximum motion in diastole, the measurement of AML angle in diastole is illustrated in Figure 1. The angles between a line connecting the two leaflet origin at the annulus to the bending- and coaptation-point of AML in end-systole were defined as Bs-angle and C-angle, The measurement of AML angle in systole is illustrated in Figure 2. The angle between a line connecting the leaflet origin at the annulus to the bending-point and a line connecting the leaflet origin at the annulus to tip-point of AML in end-diastole is defined BT-angle (Figure 3)

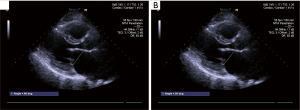

Figure 1 The angles between a line connecting the two leaflet origin at the annulus to the bending- and tip-point of AML in end-diastole were defined as B-angle (A) and T-angle (B). AML, anterior mitral leaflet.

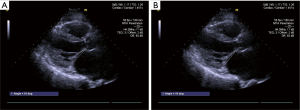

Figure 2 The angles between a line connecting the two leaflet origin at the annulus to the bending- and coaptation-point of AML in end-systole were defined as Bs-angle (A) and C-angle (B). AML, anterior mitral leaflet.

Figure 3 BT-angle: the angle between a line connecting the leaflet origin at the annulus to the bending-point and a line connecting the leaflet origin at the annulus to tip-point of AML in end-diastole (A). (A) and (B) illustrating the 5 different angles of AML. AML, anterior mitral leaflet.

Angles of AML were measured on TTE preoperatively and evaluated by each scoring component of WS, the angles and WS were compared in both group which were listed in Table 2.

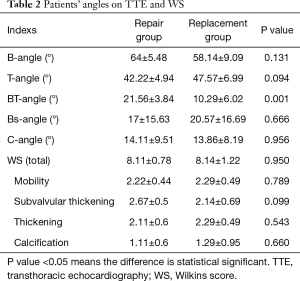

Table 2 Patients’ angles on TTE and WS
Full table

Surgical strategies

All the patients underwent rheumatic MV repair or replacement with median sternotomy access. All procedures were carried out by the same experienced chief surgeon (X Meng). Several repair techniques were performed related to the pathological features and severity of the cases, these techniques included: leaflet thinning, commissurotomy, decalcification, papillary muscle splitting, chordal transfer, ring annuloplasty. We used water test and transesophageal echocardiography to examine the immediately effect of MV repair, patients who had more than a moderate residual mitral regurgitation (MR) after repair were intervened with MV replacement intraoperatively, and the patients who were not suitable candidates for MV repair after the assessment underwent MV replacement respectively. The detailed repair techniques and the intraoperative result after rheumatic MV repair on transesophagus echocardiography (TEE) are listed in Table 3.

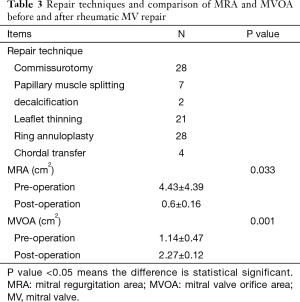

Table 3 Repair techniques and comparison of MRA and MVOA before and after rheumatic MV repair
Full table

Statistical analysis

Continuous or interval-related variables were expressed as mean ± standard deviation (SD). For comparison of variables between the two groups Student’s t-test was utilized. Univariate analysis of variables was performed with the χ² or Fisher’s exact tests. Receiver operating characteristic (ROC) curves was utilized to define the best cutoff value that was associated with outcomes. Logistic regression was used to determine the predictors associated with the outcomes of rheumatic MV repair. P value <0.05 was considered statistically significant. All statistical analysis was performed via the SPSS 21.

Results

Patients’ demographic characteristics in repair group have been compared with replacement group, the differences of clinical and echocardiography features between repair group and replacement group were not statistically significant (all the P value >0.05), there were 4 patients with small single area of increased echo brightness (diameter <0.8 cm) at commissure on preoperative TTE in the two groups (each group has 2 patients, diameter range from 0.4 to 0.8 cm), those are revealed in Table 1. Postoperative MRA was significantly less than before the repair surgery (0.6±0.16 cm², 4.43±4.39 cm², respectively, P<0.001), MV orifice area after repair surgery was significantly larger than preoperative orifice area (2.27±0.12 cm², 1.14±0.47 cm², respectively, P<0.05).

Different angles of AML in both groups have been measured before the surgery. The differences of B-angle, T-angle, Bs-angle, C-angle between repair group and replacement group were not statistically significant (P value >0.05). Only BT-angle in repair group was significantly larger than that of replacement group (21.56°±3.84°, 10.29°±6.02°, respectively, P<0.001) (Table 2), therefore the BT-angle was tracked as a predictor of reparability by observing the ROC curve (Figure 4) (ROC area: 0.944, standard error: 0.06, 95% CI: 0.826–1), BT-angle on TTE preoperatively of 15.5° or more predicts feasibility of rheumatic MV repair with 100% sensitivity and 85.7% specificity in patients with mild lesions of subvalvular apparatus. Logistic regression for a single area of increased echo brightness (diameter <0.8 cm) at commissure was expressed as: β: 0.08, Exp (β): 1.083, P: 0.777>0.05, the single area of increased echo brightness (diameter <0.8 cm) at commissure had no effect on reparability of rheumatic MV disease.

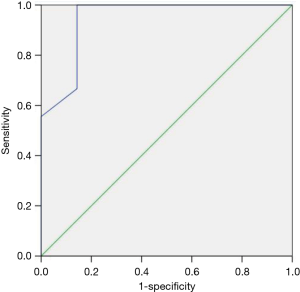

Figure 4 Receiver operating characteristic (ROC) curve for BT-angle of anterior mitral leaflet (AML).

The differences of total WS score and each component score between repair group and replacement group were not statistically significant (P>0.05) (Table 2). By viewing the ROC curve for total WS score (ROC area: 0.508), the WS cannot be a predictor for feasibility of rheumatic MV repair.

Discussion

Rheumatic disease is still one of the main causes of MV dysfunction globally. RHD progresses more rapidly and it is a common phenomenon in developing countries (1,2), the entire MV apparatus which is constituted of leaflets, chordae tendineae, papillary muscle and annulus can be adversely affected. Characteristic of rheumatic pathology includes (3): commissural fusion, leaflet thickening, especially at the free edges, shortening and fusion of chordae, “fish mouth” the appearance of the MV orifice. When severe pathological MV influences the hemodynamic circulation and causes patients’ clinical symptom, surgical strategies are essential to treat the disease, both MV repair and MV replacement are surgical treatment for RHD patients. The outcome of MV repair for patients with RHD is outstanding and comparative with the result of repair for the degenerative MV disease (11), which is much better than rheumatic MV replacement regarding survival rate and adverse events (4,12). Nevertheless, the overall rate of rheumatic MV repair is extremely low in China while the proportion of MV repair in the other countries is higher (13,14). Absence of indications and predictors that help surgeons select proper patients for MV repair and technique factor may be the major reasons, MV repair is a promising approach for rheumatic MV disease in the proper lesions which can be reconstructed, the assessment of length and mobility and flexibility of AML is one of the crucial procedures in selecting appropriate patients. Gupta et al. (6) suggested that AML length is a predictor for MV repair in rheumatic population, their study reported that an intraoperatively measured AML length of 26 mm or more predicts reparability and indexed AML length which means intraoperatively measured AML length indexed to body surface area is a much stronger predictor for rheumatic MV repair, with a value of 18 mm/m² or more, repair surgery can be accomplished in all cases. In the current study, we used bending angle of AML to quantify the mobility and flexibility of AML, BT-angle in repair group was significantly larger than that of replacement group (21.56°±3.84°, 10.29°±6.02°, respectively, P<0.001), therefore the BT-angle was tested as a predictor of reparability via observing the ROC curve (ROC area: 0.944, standard error: 0.06, 95% CI: 0.826–1), BT-angle on TTE preoperatively of 15.5° or more predicts feasibility of rheumatic MV repair with 100% sensitivity and 85.7% specificity . Commissural calcification is a very common pathological change for rheumatic MV patients, shall we directly convert rheumatic MV repair into replacement without attempt when commissural calcification is detected? The answer is we still can try to repair MV with outstanding result in patient with small single area (diameter <0.8 cm) of calcification at commissure and it may have no effect on reparability of rheumatic MV disease (β: 0.08, Exp (β): 1.083, P: 0.777>0.05)

Wilkins scoring system (8) was established in 1988 to predict the outcome of percutaneous balloon dilatation in patient with MS. Four echocardiographic characteristics of MV were scored on predilation echocardiography: leaflet mobility, leaflet thickness, subvalvular thickening and calcification. Each variable was scored 0 to 4 which the higher score represents more severe involvement, on a scale of 0 to 16, higher score (>11) was the predictor of suboptimal outcomes (15). Although Wilkins scoring system is classic and frequently used to predict the outcome of percutaneous balloon dilatation for MS, it is also an excellent assessment method of MV structure, previously there were very few studies that statistically discussed about the applicability of WS in predicting the outcome and feasibility of MV repair surgery in patients with rheumatic MS and/or MR. Our study revealed that the differences of total WS score and each component score between repair group and replacement group were not statistically significant (P>0.05). Through the ROC curve for total WS score (ROC area: 0.508), the WS cannot be a suitable method for pre-judging the outcome of MV repair in RHD patients. We consider the following probable reasons: (I) WS can assess the calcified leaflet, nonetheless, it cannot evaluate the commissural calcification and subvalvular apparatus calcification. Lesions of the commissure and subvalvular apparatus are more common pathological features in Chinese patients with rheumatic MV disease (16), WS which cannot detect the calcification of commissure and subvalvular apparatus may seriously influence the predicting accuracy if we use it to forecast the outcome of rheumatic MV repair surgery; (II) MR is considered to be associated with inadequate coaptation length which contracted AML is resulted from chronic rheumatic inflammatory, the “short AML” can lead to MV repair improbable, meanwhile, severe contracted subvalvular apparatus may diminish the feasibility of rheumatic MV repair as well. Nevertheless, the WS doesn’t involve to scoring the length of AML and subvalvular apparatus. It is only applicable to isolated MS for PMBV, it is not applicable to pure MR and mixed lesions. To sum up, WS is unable to predict the feasibility of MV repair in RHD patients.

PMBV is an effective therapeutic modality for rheumatic MS and recommended for symptomatic patients with severe MS and favorable valve morphology in the absence of atrial fibrillation (AF) (9), however, trends of overall utilization were decreasing, while cost and procedural complication rates were increasing over period of 13 years (17). How to choose procedural strategy when result of PMBV is uncertain? Shall we persist to conduct PMBV or alternate to rheumatic MV repair? We think the answer may be more likely to rheumatic MV repair. The reasons are: (I) unfavorable valve anatomy is the most important risk factor of long-term outcomes (18), patients who undergo PMBV must be properly selected for valve structure. WS is the most effective and extensively used evaluation system for PMBV, patients which scored >11 point tend to be suboptimal outcome of PMBV (8) and undergoing open valve surgery is more reasonable. However, outcomes of PMBV in Patients which scored 9–11 cannot be guaranteed (8), in-patient mortality occurred in patients in the WS gray zone (9–11) was 8.3% (19), which was significantly higher than the 30-day mortality after rheumatic MV repair that we have reported was only 1.9% (20). Valve tear and acute severe MR following PMBV are not uncommon complications for PMBV, in-patient mortality of emergency surgery for these complications can achieve 12% (21) if we insist to carry out the intervention therapy when result of PMBV is uncertain, in these cases rheumatic MV repair may be the preferred surgical option. Jae-Kwan Song and his colleagues’ study (22) directly compared the results of PMBV with open heart surgery and concluded that MV surgery was associated with a higher adjusted rate of long-term event-free survival than PMBV. Patients with high WS scores or AF revealed better outcomes after MV surgery. Even in the patients scored <8 and normal sinus rhythm which are traditionally considered to have optimal outcome for PMBV, the outcome of rheumatic MV surgery is outstanding as well as that of PMBV. Actually rheumatic MV repair is a better procedural strategy than replacement in patients with feasible repair structure, outcome of MV repair is widely verified better than MV replacement and successful durable repairs have been performed in high-volume, expert centers (23). Severe diseased subvalvular apparatus and AF (24) can adversely affected the result of the intervention procedure, MV repair is an optimal strategy for these patients even if the WS <8.

Limitation

The number of patients enrolled for this study was relatively small, which may adversely affect our findings for the predictive factors and success of rheumatic MV repair. Rheumatic MV disease is complex apparatus involvement of MV structure, study of mobility and angle of AML and commissural calcification is only one part of them, the other rheumatic MV pathological changes which may influence the outcome of rheumatic MV repair was not reflected in the study, such as subvalvular apparatus contracture, calcification, fusion, and even mitral annulus calcification and so on.

Conclusions

The bending angle of AML which was considered as quantification of mobility and flexibility of AML can be a predictor for MV repair in patient with RHD. The small single area of commissural calcification had no effect on reparability of rheumatic MV disease. WS cannot be an appropriate predictor for the outcome of rheumatic MV repair.
