The role of indocyanine green fluorescence for intersegmental plane identification during video-assisted thoracoscopic surgery segmentectomies

Introduction

The growing interest in reducing surgical trauma and preserving lung function has resulted in an increasing need for thoracoscopic segmentectomy in recent years (1). According to recent studies, thoracoscopic segmentectomy is an acceptable alternative to lobectomy for treating different lung diseases. This approach appears to have equivalent rates of postoperative morbidity with potentially similar long-term results (2) even in selected cases of lung cancer (3). At the same time, surgical success is highly dependent on an intraoperative interpretation of segmental anatomy, especially for thoracoscopic procedures. Furthermore, precise identification of the intersegmental plane is one of the essential steps in segmentectomy. The commonly used air inflation techniques (4) may shift the border and also obstruct the view during video-assisted thoracoscopic surgery (VATS). Minimally-invasive surgery needed a novel method of augmented reality, which became possible by using near-infrared (NIR) fluorescence imaging with indocyanine green (ICG). This method is currently used in thoracic surgery for conduit vascular evaluation during esophagectomy (5), sentinel lymph nodes (LNs) mapping (6,7), pulmonary nodule detection (8) and bullous lesion detection (9). However, publications describing the technique of identifying the lung intersegmental planes by NIR-ICG are still infrequent (10-14). We aimed to analyse our lung segmentectomy experience and identify the role of ICG-fluorescence for intersegmental plane detection.

Methods

The database from the Thoracic Surgery Department of Clinical Hospital #122 in Saint Petersburg was used for the retrospective cohort study. The study was approved by ethics committee of Clinical Hospital Nº122 (No. 2015-27) and written informed consent was obtained from all patients. A total of 86 consecutive patients who underwent 90 thoracoscopic segmentectomies with NIR-ICG method between September 2015 and December 2017 were investigated. The mean age of patients was 55.2±18.1 years (range, 21–78 years), and 60% (n=52) were female. None of the patients had allergic reactions to iodine-containing drugs. Written informed consent was obtained from all patients.

The preoperative workup included chest and abdominal computed tomography (CT) and/or integrated positron emission tomographic (PET) CT scanning, pulmonary function tests and cardiovascular examination. Forced expiratory volume in 1 second (FEV₁) used as a universal chronic obstructive pulmonary disease (COPD) marker, ranged from 32% to 95% of predicted value. The prevalence of severe COPD was higher in the heavy smoker group that included 16 patients (18%). CT scans were also reconstructed in all patients as 3D images in order to define the location of the nodule and its relation to adjacent structures, pulmonary vessels, and bronchi. For this purpose, OsiriX MD software for Mac operating system, as well as Radiant DICOM Viewer for Windows were used.

Inclusion criteria for treating lung cancer were based on recent research data (1); patients with semisolid ground-glass opacity (GGO) nodules less than 2 cm in diameter without mediastinal lymphadenopathy were included. Five patients who had tumors going beyond the criteria were scheduled to have a segmentectomy due to compromised pulmonary function. Candidates for metastasectomies were selected if the primary site of the disease was controlled and the lesion was located deep in lung parenchyma. Other indications for segmentectomies were small unspecified tumors and infectious lung diseases. One patient underwent two consecutive segmentectomies for bilateral arteriovenous malformations. Surgical treatment of three other patients required re-operation from the opposite side because of a new solitary lung metastasis. Four patients underwent segmentectomy after the previous lobectomy, in one case ipsilaterally.

A VATS approach was used to perform all segmentectomies, according to a previously reported technique (15), under general anaesthesia with single-lung ventilation and using double-ports access. The utility incision up to 3 cm was placed in the fourth or fifth intercostal space in the anterior axillary line and the trocar site was located in the seventh intercostal space in the mid-axillary line for 30° thoracoscope (NIR ICG-system, Karl Storz, Tuttlingen, Germany).

According to the preoperative 3D lung hilar model (Figure 1), vascular and bronchial branches of the target segment were isolated separately. The station 11 and station 12 LNs were dissected precisely with ultrasound scalpel (Figure 2). If the intraoperative examination of the LN by frozen section showed metastasis, the procedure was converted to lobectomy. Those patients were not included in the study.

Figure 1 Preoperative 3D right lung hilar model (planned S3 segmentectomy). S, segment.

Figure 2 Intraoperative view before (top picture) and after (bottom picture) interlobar LN dissection (planned right S2 segmentectomy). S, segment; LN, lymph node.

After the division of segmental blood vessels and bronchi by endostapler or clips, ICG was injected into the central or peripheral vein. The initial dose of bolus administration was 0.15 mg per kg body weight. Fluorescence immediately covered all structures except the isolated target segment, which appeared dark (Figure 3). If the segmental anatomy or revealed fluorescence seemed doubtful, an additional ICG dose was administered.

Figure 3 ICG fluorescence during right S3 segmentectomy in visible spectrum (on the left picture) and NIR spectrum (on the right picture). S3 appeared dark. S, segment; NIR, near-infrared; ICG, indocyanine green.

The boundary line between the areas with and without fluorescence was marked on the visceral pleura by electrocautery. The intersegmental plane was then divided by endostaplers placed along the electrocautery line with the tips oriented toward the intersegmental veins. As a result, the stapling lines surrounded the peripheral stumps of pulmonary arteries, veins, and bronchi (Figure 4). In the surgical treatment of malignant diseases, segmentectomies were followed by lobe-specific lymphadenectomy of at least three LN stations, obligatorily including station 7 (Figure 5).

Figure 4 Right S2 segmentectomy—lung specimen (peripheral stumps of pulmonary arteries, vein, and bronchus are surrounded by stapling lines). S, segment.

Figure 5 Lobe-specific lymphadenectomy of station 7 (on the left picture) and stations 2–4 (on the right picture).

Results

Between September 2015 and December 2017, 86 patients (52 female) underwent planned thoracoscopic segmentectomy using ICG fluorescence with the following indications: 34 patients (40%) for primary lung cancer, 30 patients (35%) for single pulmonary metastasis (21 patients with colon carcinoma, 4 patients with papillary thyroid carcinoma, 3 patients with breast cancer, 1 patient with uterine leiomyoma and 1 patient with follicular lymphoma. Sixteen patients (19%) received surgical treatment of infectious lesions (7 cases of tuberculoma, 4 cases of localized bronchiectasis, 2 cases of chronic lung abscess, and 1 case of pulmonary ascariasis. Six patients (7%) had segmentectomies due to benign lesions: centrally-located hamartochondroma in 3 patients, IgG 4-related inflammatory pseudotumor in 2 patients and bilateral arteriovenous malformations in 1 patient. The patients’ characteristics are listed in Table 1.

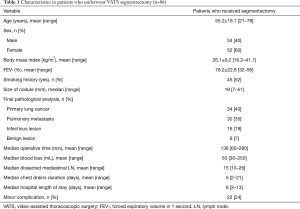

Table 1 Characteristics in patients who underwent VATS segmentectomy (n=86)
Full table

All procedures were successfully completed by VATS with no conversion to open procedure or to lobectomy. The types of segmentectomies that were performed are illustrated in Table 2. There were 54 procedures performed in the left lung and 36 performed in the right lung. Anatomical resections in the upper lobes were the most commonly employed segmentectomies. Median operative time was 136 minutes (range, 60–280 minutes) and the mean blood loss was 50 mL (range, 30–250 mL). Thirty-two procedures (36%) required less than 2 hours. The histological examination of dissected mediastinal LN (mean, 16.3±5.8) showed no metastasis in all cases.

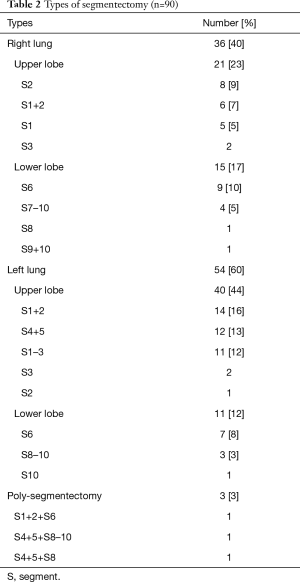

Table 2 Types of segmentectomy (n=90)
Full table

The fluorescence was detected immediately after bolus ICG injection in the central vein in all patients but had a time delay of 10–25 seconds in cases of peripheral vein administration. The median duration of intensive ICG staining was 90 seconds, regardless of the injection method. The maximum contrasting fluorescence was observed in 20–30 seconds with gradual decrease during 2 minutes. That time was enough to mark intersegmental planes. The further spreading of low-grade fluorescence into the target segment made it difficult to determine the boundary line.

Well-defined fluorescent borders were observed in 86 of 90 (95.6%) segmentectomies. During the learning curve period, four patients had unconvincing results due to technical reasons in three cases and severe emphysema in one. The technical problems included: incomplete cessation of segmental circulation by bulldog artery clamp, mis-dividing the recurrent artery of the second segment, and the presence of multiple collateral vessels for segment three from the left. Weak fluorescence in the patient with severe emphysema and lung anthracosis required more time for marking the intersegmental planes. The additional ICG injection after identifying and dealing with the cause of failure allowed achievement of precise fluorescence. Advanced COPD in other patients did not impair the boundary line formation, but reduced the duration of intensive ICG staining. No ICG-related complications were observed in the perioperative and postoperative period. The mean chest drain duration was 5.2±3.3 days. Chest tubes were removed within 3 days in 32 (36%) patients. Hospital length of stay ranged from 3 to 13 days. Minor complications occurred in 22 patients (24%) and were mainly prolonged air leaks—19 patients. These patients were discharged with chest tubes attached to a Heimlich valve within 8 days. Two cases of atrial fibrillation and 1 case of pneumonia were identified in the remaining three patients with complications. No perioperative deaths were reported.

Discussion

Increased identification of small peripheral lesions as a result of implementation of low-dose CT screening programs in recent years would require novel approaches to surgical treatment. Published data suggest that thoracoscopic segmentectomy is not only a reasonable option in lung cancer patients with severe comorbidities but also the curative surgery for T1a and carefully selected T1b tumors (1,2,16). According to a randomized trial of Nakamura et al., segmentectomy was performed in an even broader group of lung cancer patients (17). The use of segmentectomy for pulmonary oligometastases appears to be increasing over the time (18). In addition, segmentectomies for localized infectious diseases could achieve complete lesion removal while preserving as much functional lung tissue as possible. However, this procedure is considered technically challenging, especially for VATS (3), which prevents widespread use of this method.

One of the most difficult steps of segmentectomy, besides interlobar LN dissection, is the identification of intersegmental planes, which is essential both for oncological and lung-sparing reasons. The wrong interpretation of the invisible border between adjacent segments could potentially lead to unnecessary lung resection, positive surgical margins and even loss the target in the remaining lung parenchyma. In this regard, technical assistance for intersegmental plane formation during thoracoscopic segmentectomy is crucial.

In recent decades, various methods that can be used to identify intersegmental planes have been published (4,13,19-21). The commonly used test involves inflation the lung after clamping the target bronchus in order to create a boundary line between the inflated lung and deflated target segment. However, excessive lung inflation may spread the air through interalveolar pores, shift the intersegmental border and also obstruct the view during the VATS. Other methods keep the target segment inflated by ligating the bronchus before whole lung deflation (4), or by selective bronchial jet ventilation (19), or by air injection into the bronchus through a butterfly needle. These are effective in securing a clear operative field, but all share the same limitations as previously described methods.

Other experts developed a methylene blue staining technique through the bronchial path following the feasibility of the method in vivo (20). The same administration method was described by Oh et al. (13) using another dye—ICG. In these clinical trials, the accuracy of revealing borders is clearly shown, but intrabronchial dyes have other limitations. First of all, the additional need for hilar structure manipulation strongly affects the dye spreading. Furthermore, careful selection of the dose of dye is necessary, since using an excessive amount of dye leads to unclear borders and difficult resection. In addition, this method requires meticulous sputum suction before the bronchial injection to prevent incomplete target segment staining caused by sputum blockage.

Sugimoto et al. in animal studies (21) demonstrated that intersegmental lines can be clearly detected by direct injection of indigo carmine into the target segmental artery. The idea is good but attention must be drawn to a number of limitations. This method seems to be very challenging in real clinical practice due to excessive manipulation of small pulmonary arteries. Additionally, some segments had blood supply from several artery branches, so one needs to inject the dye into all these stumps.

The use of perfusion-based methods for delineating lung segment borders has become an innovative solution. ICG-fluorescence has become possible in the last few years (10-14). This method doesn’t require intraoperative lung ventilation which significantly improves visualization during VATS especially in cases of advanced emphysema. After confirming reproducibility of ICG fluorescence in experimental animal models (22), a group of Japanese scientists described successful visualization of an intersegmental plane in 8 patients (12). With increased experience the frequency of inconclusive results decreased from 15.4% (14) to 1.6% (10). In our study clear identification of the intersegmental plane was reported in 86 out of 90 cases (95.6%). However, only one was associated with poor fluorescence quality, while the remaining three cases were due to technical mistakes. As described in prior studies, advanced emphysema was the cause of poor fluorescence. Other investigators (13) showed that longer smoking history, lower FEV₁, and lower parenchymal density on CT scan impair the quality of glow. On the other hand, perfusion-based methods were widely used in cases of severe bullous emphysema previously (23) and still investigated now (9). So, it seems to us quite strange to blame emphysema, if one has some perfusion issues due to this. In our experience, advanced emphysema that decreases ICG-fluorescence intensity requires a higher dose of ICG, rather than use of a different method.

The intensity and duration of fluorescence depend on the method of injection (13,24), and on the optical device used for detection of fluorescence (11). Sugimoto et al. (21) suggest that using both peripheral vein and segmental bronchus ICG injection allows identification of the intersegmental plane. However, transbronchial staining requires a higher dose of ICG.

In current work, we used intravenous ICG administration given technical simplicity and a lower required dose of the agent. In prior studies, it was shown that the frequency of allergic reactions with ICG doses below 0.5 mg/kg was reported at 0.003%, but significantly increases if the dose exceeds 5 mg/kg (25). We used a dose of 0.15 mg/kg in all cases but 11 (in which the total dose was 0.3 mg/kg). No adverse reactions were observed. It is worth noting that some investigators use higher doses of ICG with intravenous methods. For instance, Misaki et al. administered ICG at a dose of 3 mg/kg as described in their earlier work (12). In another study, the same group of authors describes inadequate results with the lower dose of 0.5 mg/kg (14). Kasai et al. (11) compared optical devices, which differed in the spectrum of light recognition and the method of image production. When using two wave spectrum analysis, the optical device is able to recognize the difference between a 940-nm wave and an 805-nm wave. A single wave device emits a 780-nm wave, while detecting an 830-nm wave, producing a fluorescent image in perfused tissue. Kasai et al. speculated that using single wave optical devices allows use of a reduced dose of ICG to 0.5 mg/kg and increased fluorescence length from 220 to 370 seconds. Because of that, we used a single-wave optical device for producing the image. The length of maximal fluorescence in our study did not go above 130 seconds. Using the dose of ICG lower than described in previous works did not interfere with clear intersegmental plane detection.

Looking at our experience we would suggest ICG-perfusion method as the best option for VATS segmentectomy in terms of identification of intersegmental planes, evaluation of pulmonary vasculature, avoiding the need of ventilation tests. The fluorescence creates an augmented reality that might also be used for LN mapping and detection of pulmonary lesions.

Conclusions

The ICG-fluorescence technology is safe and effective for verification of anatomic segment borders for VATS. The perfusion-based ICG fluorescence technique has advantages for thoracoscopic surgeries compared to other methods. Doubling the dose of ICG allows clear detection of the intersegmental plane, even in certain suboptimal conditions.

Acknowledgements

The authors thank Aleksandr Obornev and Eugeniy Zinchenko for their assistance in the research.

Footnote

Conflicts of Interest: The authors have no conflicts of interest to declare.

Ethical Statement: The study was approved by the Institutional Review Board (No. 2015-27) and written informed consent was obtained from all patients.
