Advanced radiation techniques for locally advanced non-small cell lung cancer: intensity-modulated radiation therapy and proton therapy

Introduction

Lung cancer is the leading cause of cancer deaths in the United States. In 2018, it is estimated that 234,030 new cases will be diagnosed (1), of which about 85% will represent non-small cell lung cancer (NSCLC). Radiation therapy (RT) remains an integral part of a multimodality treatment plan in the definitive, preoperative and postoperative management of NSCLC. For early stage NSCLC (stage I and selected node negative stage IIA), stereotactic body RT plays an important role, particularly for inoperable cases (2,3). For locally advanced NSCLC (node positive stage II and stage III), current treatment for poor surgical candidates consists of conventionally fractionated RT to 60–70 Gy, delivered concurrently with platinum-based chemotherapy, with consideration for consolidation durvalumab for stage III patients (4-7).

RT first arose as a curative treatment for lung cancer in the 1950’s, when treatment fields were designed using two-dimensional (2D) radiographs (8). In the 1980’s, computed tomography (CT)-based treatment planning became more widely used and multileaf collimators (MLCs) began replacing Cerrobend blocking, allowing for the automation of radiation field shaping. Both CT and MLCs enabled the advent of three-dimensional conformal radiotherapy (3DCRT), which uses planning CT to outline a target volume and permits treatment planning that shapes fields to the tumor volume. By the late 1990’s, 3DCRT gained widespread acceptance; it is the current minimum technological standard for treating NSCLC in the United States. Using the Surveillance, Epidemiology and End Results (SEER) database, Chen et al. found that, for patients diagnosed with stage III NSCLC between 2000 and 2005 who received primary RT, CT simulation was associated with a lower risk of death compared with conventional 2D simulation [adjusted hazard ratio (HR), 0.77, P<0.01] (9).

Survival benefits observed with modern use of 3DCRT are likely multifactorial in etiology, and not solely due to the inherent advantages of CT over 2D radiographs. The parallel transition from sequential to concurrent chemoradiation regimens, along with the introduction of third-generation chemotherapy agents, has synergized to improve outcomes (5,10). Endobronchial ultrasound and positron emission tomography (PET) scans have refined the ability to clarify involved nodal basins and identify micrometastatic disease, more accurately delineating distant disease burden and permitting appropriate assignment of stage grouping to determine optimal treatment paradigms (11,12). The ability to use involved nodal volumes rather than elective nodal volumes has allowed for higher doses of RT to be delivered to the tumor site (13,14). Image guidance during the course of RT and methods to account for tumor motion have led to more precise tumor targeting and decreased planning target volume (PTV) margins, and may also improve outcomes (15-18).

Despite advancements in treatment modalities for NSCLC, toxicity of thoracic RT remains a significant concern. Tumoricidal doses may be higher than the tolerance of adjacent critical structures including healthy lung parenchyma, esophagus, heart, spinal cord, brachial plexus, and bone marrow. For example, in RTOG 0617, a randomized phase III trial comparing 60 to 74 Gy with concurrent chemotherapy in the treatment of inoperable stage III NSCLC, inferior overall survival (OS) in the 74 Gy arm was partially attributed to higher heart doses and severe esophagitis (4).

Intensity-modulated RT (IMRT) and proton therapy represent advancements over 3DCRT that aim to provide more conformal dose to the tumor site while minimizing dose to surrounding organs at risk (OARs). By increasing selectivity for the tumor over OARs, IMRT and proton therapy offer theoretical advantages over traditional techniques. Potential advantages include decreased treatment-related toxicities, the opportunity for safer dose escalation to achieve superior local control, and the ability to re-irradiate in recurrent cases. Nevertheless, both techniques face a variety of challenges, such as limited evidence establishing superiority and the need for additional resources. This article reviews the pertinent studies evaluating the use of IMRT and proton therapy in locally advanced NSCLC, and outlines challenges, indications for use, and areas for future research.

IMRT

Background

IMRT is an advancement over 3DCRT whereby the fluence of radiation across each beam is modified, allowing for more targeted and conformal delivery to the disease site while sparing adjacent OARs. Traditional 3DCRT planning involves forward planning, in which the user manually tests different combinations of beam shapes, weights, and gantry angles to achieve a satisfactory dose distribution. IMRT uses computerized inverse planning, in which the user inputs the desired dose distribution, and the computer uses a cost function to optimize the fluence map of the beams. IMRT fields are segmented into a number of subfields, and beam intensities are varied across different subfields. To achieve an optimal dose distribution, IMRT typically requires 4–12 optimized modulated fields, whereas 3DCRT requires 3–4 unmodulated or less modulated fields (19,20).

Planning studies comparing IMRT to 3DCRT for NSCLC have consistently demonstrated that IMRT allows for superior coverage of the PTV and greater avoidance of healthy lung parenchyma, heart, esophagus and spinal cord (21-29). When designing IMRT plans, beam angle optimization determines which OARs will be preferentially spared. Anterior or posterior beam angles ±45° allow for more optimal sparing of normal lung, whereas lateral beams prioritize sparing the heart (30). In contrast to 3DCRT, IMRT provides more integral dose and may increase the low-doses delivered to OARs (24,25). Given the more targeted delivery, IMRT provides the theoretical ability to more safely dose escalate to achieve higher biologically effective doses and better local tumor control.

Modalities

IMRT delivery using conventional MLCs can be classified as step-and-shoot, sliding window or rotational, based on the number of gantry angles and the relationship between leaf movement and radiation dose delivery. Step-and-shoot and sliding window IMRT are both delivered from a number of fixed gantry angles, but the former only delivers radiation when MLC leaves are stationary while the latter delivers radiation while MLC leaves are in motion. The result is that step-and-shoot IMRT delivers discrete intensity levels and sliding window IMRT delivers continuous intensity levels. Rotational IMRT, including tomotherapy and volumetric-modulated arc therapy (VMAT), delivers radiation with MLCs and gantry both in motion. The radiation source rotates around the patient during radiation delivery, allowing the patient to be treated from the full 360-degree beam angle. Continuous leaf motion and a rotating gantry are theoretically advantageous as they provide more modulation of the beam fluence within the entire arc. However, apart from a reduction in treatment time with VMAT, planning studies in NSCLC indicate no clear advantage of one particular IMRT technique over another (27,31-36). VMAT plans may place greater pressures on the planning team, as they take longer to optimize.

Retrospective clinical studies

Most studies examining outcomes of IMRT in locally advanced NSCLC are retrospective in nature. Historically, IMRT was typically chosen over 3DCRT for anatomically complex cases (e.g., paraspinal tumors, apical tumors adjacent to the brachial plexus, tumors adjacent to other critical organs, tumors with bilateral mediastinal involvement, or tumors with larger PTVs). Patient selection biases thus might be expected to militate against IMRT, showing more favorable outcomes for 3DCRT. Additionally, the increasing use of simulation with four-dimensional CT (4DCT) and image guidance with cone-beam CT (CBCT) for IMRT patients may affect clinical outcomes data (17,18).

Investigators from MD Anderson Cancer Center (MDACC) conducted the first few retrospective studies. Comparing a cohort of 68 patients treated with IMRT between 2002–2005 to a historical cohort of 222 patients treated with 3DCRT, both to a median dose of 63 Gy and with concurrent chemotherapy, Yom et al. found a lower rate of grade ≥3 treatment-related pneumonitis (TRP) with IMRT (12-month rate, 8% vs. 32%, P=0.002) (37). The results were particularly noteworthy in light of the differences between the IMRT and 3DCRT groups: patients who received IMRT had larger gross tumor volumes (GTVs), more advanced disease stage, and worse performance status. The decrease in TRP in the IMRT group was partially attributed to a lower lung volume receiving at least 20 Gy (lung V20), as prior studies had demonstrated a correlation between TRP and lung V20 in NSCLC (38-42). However, the IMRT group also had a higher median lung V5, consistent with planning studies, and a lung V5 >70% was associated with an increased risk of TRP. These findings reignited concerns that the increased number of beam angles of IMRT exposes a larger volume of lung to low doses of radiation, creating a “low-dose bath” that may contribute to pulmonary toxicity and an increase in the risk of secondary malignancies (43,44).

Notwithstanding concerns about the “low-dose bath” due to IMRT, a 2012 follow-up study at MDACC including 165 patients (89% stage III–IV) treated with IMRT with or without chemotherapy provided further support for the reduced pulmonary toxicity of IMRT (45). Esophageal toxicity and survival (median OS, 1.8 years) compared favorably with historical data from conventional external-beam radiation therapy. Additionally, in an expanded cohort comparing IMRT/4DCT (N=91) to 3DCRT/CT (N=318), again to a median dose of 63 Gy and with concurrent chemotherapy in both groups, Liao et al. also found a reduction in grade ≥3 TRP and lung V20 with IMRT/4DCT, along with improved OS (median OS, 1.4 vs. 0.85 years, P=0.039) (46). Because more patients in the IMRT group were staged with PET/CT, part of this improvement in OS was thought to be a result of stage migration. Other single-center retrospective studies found similarly encouraging results with respect to pulmonary toxicity (47-50).

Although single-center retrospective studies found promising results with IMRT despite its use for more advanced disease, population-based retrospective studies showed mixed results. Studies using the SEER database did not show a clear benefit in OS or reduction in pulmonary or esophageal toxicity for IMRT compared to 3DCRT (51-54). Importantly, toxicity data was based on Medicare claims, which does not provide information on toxicity grade. On the other hand, studies using the National Cancer Database (NCDB) showed an improved OS for T3 and T4 locally advanced NSCLC treated with IMRT versus 3DCRT (55), as well as a reduction in RT interruptions (56). Because the NCDB does not collect information on toxicity or treatment planning, it is not possible to understand the underlying factors driving the survival benefit.

Hu et al. conducted a meta-analysis of retrospective studies through April 2015 that compared clinical outcomes between IMRT and 3DCRT (57). On univariate analysis, OS was significantly improved in the IMRT group, but on multivariate analysis there was no survival benefit (HR, 0.96, P=0.477). Furthermore, IMRT was associated with a reduced incidence of grade 2 TRP [relative risk (RR), 0.74, P=0.009] and an increased incidence of grade 3 radiation esophagitis (RR, 2.47, P=0.000). The latter result should be interpreted with caution as analyses of esophagitis were based only on four single-center retrospective studies. Also, it is not clear how OARs were prioritized with respect to dose optimization.

RTOG 0617 and secondary analyses

A potential advantage of IMRT over 3DCRT is the ability to more safely and effectively escalate radiation dose to possibly improve locoregional control and OS. The transition toward involved field radiation therapy, based on the low rates of elective and involved nodal failures with this strategy (13,14,58), provided a need for highly conformal techniques that can realize the benefits of targeted dose escalation.

Promising results from phase I/II dose escalation trials led to the design of RTOG 0617, a randomized phase III trial comparing 60 Gy/30 daily fractions to 74 Gy/37 daily fractions (concurrently with weekly paclitaxel/carboplatin, followed by consolidation chemotherapy), with or without cetuximab, in 544 patients with unresectable stage III NSCLC (4,59-62). Forty-seven percent received IMRT, while the rest received 3DCRT. This was expected to be the first phase III trial to confirm the benefit of dose escalation beyond 60 Gy in stage III NSCLC; instead, high-dose (74 Gy) RT resulted in lower OS compared with conventional-dose (60 Gy) RT (median OS, 20.3 vs. 28.7 months; HR, 1.38, P=0.004). Heart and esophageal doses were significantly higher in the high-dose group, and on multivariate analysis heart V5 and V30, as well as maximum esophagitis grade, predicted for poorer OS.

Two secondary analyses of RTOG 0617 were conducted to compare IMRT and 3DCRT (63,64). Because the choice of RT was not randomized but rather left to the physician’s discretion, baseline characteristics between the two groups were uneven. The IMRT group had more stage IIIB/N3 disease, a larger median PTV, and lower education level, yet was more likely to be staged with PET and treated at a high-volume center (63,65). Chun et al. found that 2-year OS (53.2% vs. 49.4%, P=0.597), progression-free survival (25.2% vs. 27%, P=0.595), local failure (30.8% vs. 37.1%, P=0.498), and distant metastases (45.9% vs. 49.6%, P=0.661) were not different between IMRT and 3DCRT (63). However, those who received IMRT experienced less grade ≥3 TRP [3.5% vs. 7.9%, P=0.039; adjusted odds ratio (OR), 0.41, P=0.046], which may have been due to the marginally lower lung V20 for a given PTV (66). Of note, lung V5 was higher with IMRT but did not predict for grade ≥3 TRP. IMRT also produced lower heart doses (V20, V40, V60; P<0.05), with higher heart V40 associated with inferior OS on adjusted analyses (HR, 1.012, P<0.001). Moreover, patients treated with IMRT were more likely to receive full doses of consolidation chemotherapy (37% vs. 29%, P=0.05). The authors contend that long-term follow-up could help to ascertain whether the reduction in TRP and improved heart dose leads to a survival benefit.

In another secondary analysis of RTOG 0617, Movsas et al. examined the effect of radiation dose and use of IMRT on quality of life (QoL) changes (64). QoL was collected prospectively via the validated FACT-Trial Outcome Index. Significantly more patients on the 74 Gy arm than the 60 Gy arm had a clinically meaningful decline (CMD) in QoL at 3 months (45% vs. 30%, P=0.02). Moreover, fewer IMRT versus 3DCRT patients had a CMD on the Lung Cancer Subscale (21.2% vs. 46.4%, P=0.003). Heart V5 was associated with both OS and CMD in QoL at 12 months.

The secondary analyses of RTOG 0617 suggest that lower heart doses correlate with improved OS and QoL, and that IMRT can better spare the heart than 3DCRT, consistent with the majority of planning studies (21-24,26,29,63). In a pooled analysis of dose escalation trials using 3DCRT to treat stage III NSCLC in the setting of induction/concurrent chemotherapy, Wang et al. found that 23% of patients experienced a symptomatic cardiac event at a median of 26 months to first event post-treatment, and that higher heart doses and baseline cardiac morbidity predicted for these events (67). Other studies showed a similar relationship between heart doses and post-treatment cardiac (68-71) or pulmonary toxicities (72). Because patients with inoperable NSCLC often have pre-existing cardiac disease and/or multiple cardiac risk factors, the reduced heart doses conferred by IMRT treatment plans stand especially clinically relevant.

Implementation challenges

The proportion of stage III NSCLC patients treated with IMRT increased from 2% in 2002 to 25% in 2009, while the proportion treated with 2D radiotherapy (2DRT) decreased from 32% to 3% over the same timeframe (53). Although IMRT is used routinely for locally advanced NSCLC, widespread use is limited because of a lack of high-quality evidence establishing superiority and the requirement for more advanced delivery systems and dose calculation algorithms. Using data from the SEER registry linked to Medicare claims, Kale et al. estimated that RT-related costs were $6,850 higher per patient for IMRT versus 3DCRT (54).

First of all, there is no randomized data comparing IMRT to 3DCRT; all comparative studies are retrospective, with the exception of secondary analyses of RTOG 0617. Even in RTOG 0617, choice of RT was not randomized, introducing the same biases present in retrospective studies. MDACC is sponsoring a randomized phase II trial comparing time to treatment failure (development of TRP or locoregional recurrence) in locally advanced NSCLC treated with either IMRT or 3DCRT, both with concurrent chemotherapy (NCT00520702). It is ongoing but not recruiting participants.

An additional barrier is that equipment capable of facilitating on-treatment image guided radiotherapy (IGRT) is preferred for IMRT delivery. The increased conformity of IMRT creates a steeper decline in dose outside the PTV. A steeper dose fall-off, especially in the setting of dose escalation, necessitates the use of IGRT, preferably daily, to control for geometric uncertainties such as set-up errors and organ motion (73,74). Daily imaging before each fraction reevaluates patient geometry throughout the course of treatment to ensure patient positioning remains identical to that at the initial treatment planning session. Because interfractional changes in tumor volume, mobility and patient setup can lead to significant dosimetric consequences, patients may need to undergo resimulation during the course of RT to modify the GTV (75,76).

Tumor movement due to respiration introduces another level of complexity to IMRT, requiring methods to account for such motion. Using 4DCT, Liu et al. found that 39.2% of stage III or IV NSCLC tumors move >5 mm in the craniocaudal direction during treatment, and 10.8% move >1 cm (77). Although tumors located in the lower lobes generally exhibit greater motion, presumably driven by diaphragmatic movement, the magnitude of motion is variable (78). Variation in tumor location with respiration creates two effects: the gradient/blurring effect, and the interplay effect. The gradient effect, described as the blurring in location of the tumor as it moves, occurs regardless of radiation technique but may be more relevant with IMRT because of the tendency to reduce PTV margins (79). The interplay effect refers to the asynchrony between inherent tumor motion and MLC leaf motion during radiation delivery. Because IMRT treatment fields may only cover a portion of the target volume at any particular time, the interplay effect has the potential to produce inhomogeneity within the target volume (80,81). Although planning studies have demonstrated that this effect is unlikely to alter the dose distribution with the use of multiple fields and over the course of treatment, concerns still arise regarding potentially unexpected hot or cold spots in or around the target (79,82,83).

With IMRT, motion management and mitigation techniques should be utilized to minimize these effects. Abdominal compression and breath holding can reduce tumor motion, and 4DCT simulation can integrate respiratory movements into treatment planning by creation of an internal target volume (ITV) to account for motion of the tumor (84-87). Respiratory gating and tumor tracking may enable more accurate treatment delivery as well (88).

Since IMRT delivers numerous beamlets that form steep fluence gradients, it also poses the challenge of accurate calculation of dose distribution. The inclusion of correction factors for the heterogeneous density of the lung has been a significant advancement in dose calculation for IMRT (89). Heterogeneity corrections result in more accurate dose evaluation and better conformity (90,91). Currently, there are three main dose calculation algorithms, which, in increasing order of accuracy/sophistication are: type A (pencil beam), type B (convolution/superposition) and type C (Monte Carlo) (89,92). Even with the inclusion of heterogeneity corrections, type A algorithms are unsuitable for NSCLC, particularly when IMRT is used (90,91,93).

Indications/summary

In the absence of randomized data comparing IMRT to 3DCRT and studies showing a clear benefit in survival or local control with IMRT, along with the increased cost associated with IMRT, 3DCRT may continue to serve as a practical option for certain ipsilateral NSCLC tumors. Nevertheless, studies suggest that IMRT reduces lung V20, pulmonary toxicity, and heart doses, and may improve QoL, despite its use for more unfavorable tumors. Thus, IMRT could be especially valuable for treatment of large tumors, tumors with bilateral mediastinal involvement, or tumors in complex anatomic positions abutting OARs such as the heart. Patients with extensive comorbidity, including pre-existing cardiovascular disease, may benefit significantly from IMRT. Finally, the role of IMRT in dose escalation remains to be defined.

Proton therapy

Background

Unlike photons, protons have mass and a positive elementary charge. These characteristics give protons certain theoretical advantages over photons. Accelerated protons enter the body with a high momentum, carrying them to a specific depth that depends both on the initial speed of the protons as well as the density of the tissue through which they pass. At that specific depth, protons rapidly decelerate, losing energy to surrounding tissues by colliding with electrons of neighboring atoms. The rapid deceleration deposits the dose with a steep falloff, a phenomenon known as the Bragg peak. In contrast, photons deposit dose maximum near the surface and continue along with a decreasing curve throughout the body, resulting in a significant exit dose. The Bragg peak specific to protons improves the conformity of proton therapy, better sparing tissue distal to the tumor depth compared with photons. Additionally, the relative biological effectiveness for proton therapy is estimated as 1.1× that for photon therapy. Many of the theoretical advantages of IMRT also apply to proton therapy, namely the ability to treat anatomically complex tumors near critical structures as well as to escalate dose to the GTV (94,95).

Modalities

Proton therapy is currently delivered either as passive scatter proton therapy (PS-PT) or through a pencil-beam scanning (PBS) approach, the latter of which can deliver intensity-modulated proton therapy (IMPT). PS-PT uses a forward planning technique to design a conformal dose distribution. PBS proton therapy, on the other hand, uses an objective function that accounts for targets as well as constraints on normal tissues to modulate the intensities and energies of the pencil beams. The planning process may utilize either single-field optimization or multiple-field optimization, the latter of which allows for IMPT (96). Unlike photon-based IMRT that typically requires 4–12 beams or VMAT which utilizes constantly changing fields with arc rotation, IMPT typically needs only 2–4 fields (97). The differences between PS-PT and IMPT are analogous to those between 3DCRT and IMRT for photon irradiation. Generally, PS-PT is simpler to plan and less sensitive to motion than IMPT. However, it cannot adjust its modulation width for an irregularly shaped tumor with varying thickness. This may lead to unplanned doses to normal tissue and OARs located proximal to the tumor along the beam path. Thus, IMPT may be best suited for anatomically complex tumors with minimal motion.

Dosimetric studies

Dosimetric comparisons have consistently demonstrated that proton therapy provides similar, if not superior tumor coverage than photon therapy, while further reducing doses to normal organs (98-102). Giaddui et al. generated PS-PT and IMRT plans for 26 patients from RTOG 1308 (NCT01993810), a phase III randomized trial comparing OS after photon versus proton chemoradiotherapy for inoperable locally advanced NSCLC (102). Based on the findings from RTOG 0617 that heart dose correlated with OS, RTOG 1308 was designed with more stringent dosimetric compliance criteria. While dose parameters for the target volume were similar for both plans, PS-PT led to significantly lower lung V5, maximum spinal cord dose, heart V5, heart V30, heart V45, heart V50, and mean heart dose. There was no significant difference in lung V20.

Two planning studies found that, in the setting of dose escalation, PS-PT significantly reduced doses to normal lung, spinal cord, heart and esophagus compared to IMRT and 3DCRT (103,104). The better sparing of OARs persisted even when comparing dose-escalated PS-PT to standard-dose IMRT and 3DCRT (104).

Comparisons between PS-PT and IMPT have shown that IMPT provides greater sparing of critical structures but may be more sensitive to changes in position or anatomy (96,105,106). Zhang et al. observed that compared to IMPT, PS-PT, with its limited number of treatment fields, may be relatively ill-suited for treatment of tumors in select locations such as the contralateral hilum or supraclavicular lymph node region (106).

Clinical studies

Several studies, published after 2010, have evaluated clinical outcomes after proton therapy for locally advanced NSCLC. A retrospective study from MDACC found that the rates of grade ≥3 TRP and esophagitis were 2% and 5%, respectively, among NSCLC patients (mostly stage III) receiving PS-PT [N=62, median dose 74 cobalt gray equivalent (CGE)], significantly lower than for case-matched controls who received IMRT (N=66, median dose 63 Gy, rates of 9% and 44%) and 3DCRT (N=74, median dose 63 Gy, rates of 30% and 18%) (107). Consistent with these findings, a prospective longitudinal observational study at MDACC found that patient-reported esophagitis-related pain and systemic symptoms were less severe with proton therapy compared with 3DCRT and IMRT (108). All patients in these two studies received concurrent chemotherapy. For patients unsuitable for concurrent chemotherapy, retrospective data from the University of Tsukuba suggests that proton therapy alone (median equivalent dose in 2 Gy/fraction, 78.3 CGE) may be a reasonable option (109,110).

A series of phase II trials showed that high-dose proton therapy concurrent with chemotherapy for stage III NSCLC affords promising clinical outcomes and rates of toxicity compared with historical photon therapy data (Table 1) (111-114). In a final report of their phase II study of proton therapy to a total dose of 74 CGE, Chang et al. found a median OS of 26.5 months, with a crude local recurrence rate of 16% (113). Rates of grade ≥3 TRP and esophagitis, acute and late, were low. This median OS compares favorably with the median OS of 20.3 months in the high-dose arm of RTOG 0617 (4).

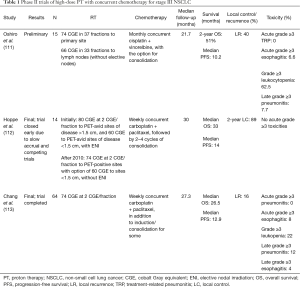

Table 1 Phase II trials of high-dose PT with concurrent chemotherapy for stage III NSCLC
Full table

Using the NCDB, Higgins et al. found that proton therapy was administered to only 348 out of 243,822 patients with stage I–IV NSCLC treated with thoracic RT from 2004 to 2012, and more frequently to those from a ZIP code with a median income ≥$46,000 per year. Stage II–III patients treated with non-proton therapy versus proton therapy experienced inferior OS on multivariate analysis (HR, 1.35, P<0.01). On propensity-matched analysis, the survival benefit with proton therapy did not reach significance among stage II–III patients (5-year OS, 17% for non-proton therapy vs. 22% for proton therapy, P=0.41), but did among stage I–IV patients (5-year OS, 16% vs. 22%, P=0.025) (115). Despite propensity-matching, patient selection biases in larger databases such as this one may limit interpretation of the findings.

Liao et al. recently published results from the first randomized trial to compare PS-PT (N=57) to IMRT (N=92), both delivered concurrently with chemotherapy, for stage IIB–IIIB, stage IV (with a single brain metastasis), or recurrent NSCLC (116). In this trial, investigators created PS-PT and IMRT plans for each patient, randomizing patients only if both plans met normal tissue constraints at the same prescription dose (74 CGE if achievable, otherwise 66 CGE). The cumulative incidence of grade ≥3 TRP or local failure, the primary endpoint, did not differ between groups (12-month rate, 21.1% for PS-PT vs. 17.4% for IMRT, P=0.175). Notably, PS-PT reduced heart doses by all measures and lung volume receiving 5–10 CGE, but exposed more lung to ≥20 CGE. These findings lead to the question of the possible improvements with IMPT with respect to dosimetric and clinical outcomes.

Re-irradiation

Studies have also investigated proton therapy’s possible role in re-irradiation for intrathoracic recurrences, which were historically managed with palliative chemotherapy or palliative photon therapy. Proton therapy is an appealing option in this setting because the rapid dose falloff beyond the Bragg peak has the potential to spare previously irradiated normal tissue.

A report from MDACC of 33 patients with NSCLC who were re-irradiated to a median dose of 66 CGE found 1-year OS and locoregional control rates of 47% and 54%, respectively, with grade ≥3 pulmonary and esophageal toxicity occurring in 21% and 9%, respectively (117). A more recent retrospective study from MDACC of 27 patients (22 of whom had NSCLC) who were re-irradiated with IMPT to a median dose of 66 CGE found 1-year OS and locoregional control rates of 54% and 61%, respectively, with only 7% experiencing late grade ≥3 pulmonary toxicity and no patient experiencing grade ≥3 esophagitis (118). Of note, patients who received ≥66 CGE versus <66 CGE experienced superior 1-year locoregional control and PFS rates, suggesting that delivery of definitive doses may confer a measurable benefit. Lastly, a multi-institutional prospective trial reported outcomes among 57 patients who were re-irradiated for recurrent NSCLC to a median dose of 66.6 CGE (119). At a median follow-up of 7.8 months, 1-year OS was 59%, 25% experienced locoregional recurrence, and 42% developed grade ≥3 acute or late toxicities. Greater target volume overlap with the central airway, higher mean esophagus and heart doses, and concurrent chemotherapy were associated with higher toxicity rates, suggesting that careful patient selection for re-irradiation is crucial.

Implementation challenges

Proton therapy faces many of the same challenges as IMRT, including early and limited evidence establishing superiority over traditional radiation techniques, and the need for additional resources and quality assurance. Limited availability, increased cost, and added technical considerations raise further challenges.

A significant source of concern is the added cost; proton therapy is estimated to be 1.6–2.4 times as expensive as photon therapy (120). However, proton therapy may increase quality-adjusted life years (QALYs) in patients with locally advanced NSCLC compared to both 3DCRT and IMRT, and therefore is potentially more cost-effective for locally advanced than for early stage NSCLC (121,122). These conclusions are based on Markov analysis, with limited clinical data. RTOG 1308 aims to more definitively address the question of cost-effectiveness on secondary analysis. Additionally, proton therapy may allow for safer hypofractionation, a paradigm with demonstrated cost-effectiveness for photon therapy (123). Moreover, by increasing the therapeutic index, proton therapy could more effectively and selectively treat the initial tumor, decreasing recurrences, toxicity to normal tissue, and long-term morbidity. Each of these factors may decrease long-term hospitalizations and cost of care (124).

From a technical standpoint, characteristics of the Bragg peak make protons more sensitive than photons to uncertainties in respiratory and tumor motion, tissue density changes, changes in patient positioning, and tumor shrinkage (125,126). Compared to IMRT and PS-PT, IMPT is even more affected by these uncertainties as a result of the highly modulated fields with steep dose gradients (127-131). The inhomogeneous beam of IMPT, combined with the interplay effect between motion of the scanning beam and respiratory motion, can result in regions of under- or over-treatment. Proton therapy therefore requires the use of many of the same advanced technologies as IMRT: 4DCT-based simulation to evaluate tumor motion, motion management and mitigation procedures, robust optimization and quality assurance measures, on-treatment image guidance, and adaptive-replanning to account for tumor shrinkage and anatomy changes (96). Specific guidelines for the clinical implementation of PBS proton therapy were recently published by the Particle Therapy Co-Operative Group (PTCOG) Thoracic Subcommittee (132).

Indications/summary

Proton therapy is not considered the standard of care for locally advanced NSCLC, likely because of the limited comparative data to IMRT and 3DCRT, increased cost, and added technical considerations. Nevertheless, dosimetric data suggests both PS-PT and IMPT can better spare certain OARs than IMRT, with IMPT providing the greatest dosimetric benefit but potentially requiring additional adjustments for uncertainties associated with beam range and organ motion. Given the increasing recognition of the importance of heart dose for NSCLC (133,134), proton therapy may provide a benefit over IMRT for certain anatomically challenging tumors on a case-by-case basis (Figures 1,2). Additionally, phase II results suggest proton therapy may help achieve safer dose escalation; however, we await additional comparative data to IMRT and 3DCRT. Finally, re-irradiation with proton therapy appears feasible for carefully selected patients.

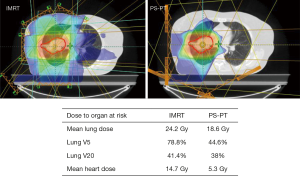

Figure 1 Five-field intensity-modulated radiation therapy (IMRT) plan vs. three-field passive scatter proton therapy (PS-PT) plan for a large stage IIIA non-small cell lung cancer treated with definitive chemoradiation therapy to 60 Gy in 2 Gy per fraction. Unlike PS-PT, IMRT distributes significant exit dose to the left lung and heart. As a result, PS-PT leads to decreased mean lung dose, lung volume receiving at least 5 Gy (V5), and mean heart dose. Both plans depict the 10 Gy colorwash on lung windows on the average scan of the 4-dimensional computed tomography simulation. The red contour outlines the gross tumor volume.

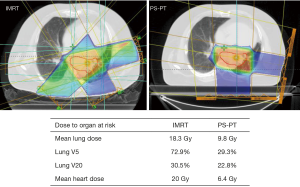

Figure 2 Three-field intensity-modulated radiation therapy (IMRT) plan vs. two-field passive scatter proton therapy (PS-PT) plan for a posterior mediastinal stage IIIA non-small cell lung cancer treated with definitive chemoradiation therapy to 60 Gy in 2 Gy per fraction. Similar to Figure 1, PS-PT demonstrates reduced dose to the heart and lungs compared to IMRT, with decreased mean lung dose, lung volume receiving at least 5 Gy (V5), lung V20, and mean heart dose. Both plans depict the 20 Gy colorwash on lung windows on the average scan of the 4-dimensional computed tomography simulation. The red contour outlines the gross tumor volume.

Future directions

Current research is aiming to advance technologies needed to safely and feasibly implement IMRT and proton therapy, and clearly define which subgroups of patients may benefit the most. Results from RTOG 0617 indicate that dose escalation may not be the appropriate option for all locally advanced NSCLC patients. To this end, several clinical trials are providing selective dose intensification with IMRT, using either functional imaging to identify patients at high risk of local failure or isotoxic radiotherapy to ascertain the maximum achievable biologically effective dose for each patient based on dose constraints to OARs (Table 2). Parallel refinements in treatment planning systems are underway, particularly the novel highly non-coplanar 4π system that has yielded improvements in plan quality over VMAT for large and centrally located tumors in the setting of dose escalation (135). Ongoing clinical trials aim to further define proton therapy’s role in dose escalation and re-irradiation, and provide comparisons to IMRT (Table 3). With the increasing use of motion-control procedures and volumetric image guidance, along with the recently published guidelines by the PTCOG (132), future studies should establish the safety and clinical efficacy of the more advanced IMPT.

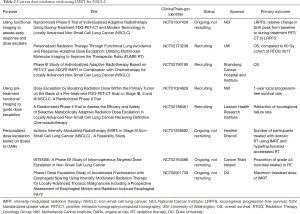

Table 2 Current dose escalation trials using IMRT for NSCLC
Full table

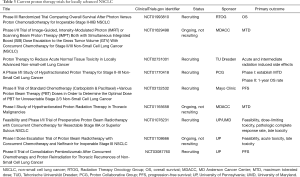

Table 3 Current proton therapy trials for locally advanced NSCLC
Full table

Conclusions

From 2DRT to 3DCRT, IMRT and proton therapy, technological advances in radiation modalities have revolutionized the treatment of locally advanced NSCLC, enabling for more conformal RT delivery. IMRT can improve the therapeutic ratio compared to 3DCRT, decreasing dose to OARs and reducing pulmonary toxicity. Proton therapy can further reduce dose to OARs, particularly the heart, and is starting to define its role in dose escalation and re-irradiation. The increased cost and additional resources needed to safely deliver both techniques should not serve as a barrier to use, but rather as motivation to more clearly define which subset of patients benefit most from each modality. Results from ongoing clinical trials should help to guide future research and further push the boundaries of radiation techniques for years to come.
