Total aortic arch replacement using elephant trunk or frozen elephant trunk technique: a case-control matching study

Introduction

The treatment of complex aortic pathologies, including the aortic arch and the thoracic descending aorta remains a surgical challenge. Up to the early 2000s, multistage repair was often necessary for completion of the treatment (1). Borst et al. introduced the elephant trunk (ET) technique in 1983 and its aim was to facilitate the second-stage intervention of the descending aorta via lateral thoracic or thoracoabdominal approaches (2). The most important change was the introduction of a stent attached distally to the Dacron graft, which seals the aneurysm of the descending aorta. This modified technique was named “frozen elephant trunk” (FET) and found its way rapidly into clinical use (3).

After repair of the aortic arch and proximal descending aorta with the FET technique, the second-stage can be performed through a thoracic endovascular aortic repair (TEVAR) or open aortic surgery with similar complications and mortality rates (4). Various prostheses have been developed in Europa for FET technique. The E-Vita Open Plus (Jotec GmbH, Hechingen, Germany) was the first commercially available hybrid prosthesis (1). The most widely used Thoraflex hybrid device (Vasutek Terumo, Inchinnan, Scotland, UK) was introduced in 2012 (1). Several studies reported comparable in-hospital mortality and postoperative complications after both techniques (4-7). The aim of this study was to compare the outcomes and short- and mid-term survival in patients who had undergone the conventional ET or the FET procedures.

Methods

Study population

During the period from 2001 to 2017, a total of 266 total aortic arch and descending aorta procedures were performed, of which 45 as conventional ET and 25 as FET procedures.

Postoperative outcomes and major complications such as in-hospital mortality, stroke, exploration for bleeding, re-intubation, blood product use, acute renal failure, atrial fibrillation were analyzed.

Definitions

We divided the complications into primary and secondary complications. The primary complication was in-hospital mortality. Secondary complications included for example, neurological deficits and respiratory failure.

In-hospital mortality was defined as death within 30 days after surgery or death during the original hospitalization. Postoperative temporary dialysis was defined as a new necessity for dialysis during the hospital stay. The dialysis was described as permanent if it was still necessary at the time of discharge. Postoperative stroke, delirium, paraparesis, and paraplegia were defined as a new and permanent or temporary neurological disability or deficit. Postoperative respiratory failure was defined as re-intubation or tracheotomy. Gastrointestinal complications included gastrointestinal bleeding and visceral ischemia. Redo-operation was defined as surgery on a previously operated aorta.

Follow-up data were obtained during clinical visits and via telephone correspondence.

Statistical analysis

For comparison, the case-control matched groups were created basing on the following variables: sex, age, presence of acute aortic dissection and need for concomitant procedures. The patients were divided into two groups: those who received conventional ET or FET; 25 pairs were generated. The statistical analyses were done using IBM SPSS, version 24 (IBM Corp.). Categorical data are described as percentages. Continuous variables are presented as mean ± standard deviation for normal distribution or the median with quartiles for non-normal distribution. Statistical significance was defined as P<0.05. The mean values were compared using Student t-test for normally distributed variables and the Mann-Whitney U-test for variables that were not normally distributed. Predictors of in-hospital mortality were analyzed using logistic regression and the results are presented as odds ratios (ORs) with 95% confidence intervals (CIs). We searched for predictors of mid-term mortality using proportional hazard regression and the results are showed as hazard ratios (HRs) with 95% CI. Cumulative survival was described using the Kaplan-Meier-method. Breslow and log-rank tests were used for survival comparison.

Surgical technique

Our surgical approaches have been previously described in detail (1,6,8). All patients were operated on through median sternotomy. All operations were performed using cardiopulmonary bypass (CPB). We used in all cases cold crystalloid cardioplegic solution and selective antegrade cerebral perfusion. The first stage of the conventional ET technique is similar to standard surgery of the ascending aorta and aortic arch. The second stage is like standard descending thoracic or thoracoabdominal aortic aneurysm repair. In the case of the FET technique, after median sternotomy, antegrade selective cerebral perfusion and systemic heparinization, a guide-wire is inserted through the femoral artery in the true lumen of the descending aorta. The arterial cannulation sites were differently, the right axillary artery or the innominate artery. The venous drainage was achieved mostly by cannulation of femoral vein in cases of redo surgery or the right atrium. The desired temperature in the convention ET cohort was 20 °C. In the FET cohort, the circulatory arrest was performed at a median temperature of 25 °C.

Results

Baseline characteristic

The median age of the patients was 69 years in the FET group versus 66 years in the conventional ET group (P=0.712). The male gender was predominant in both groups. In 8% of patients in each group, the procedure was a redo operation. Sixty percent of the FET cohort versus 52% of the ET cohort were operated because of aortic dissection (acute and chronic), (P=0.776). The etiology of the aortic disease was atherosclerotic aneurysm. More demographic characteristics of the case-control matched cohorts are outlined in detail in Table 1.

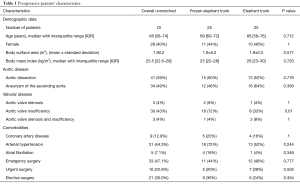

Table 1 Preoperative patients’ characteristics
Full table

Operative characteristics

In both cohorts, the median operation times as well as the CPB times were similar. Additionally, the cross-clamp times were not significantly longer in the FET than in the conventional ET group (P=0.16). The time of deep hypothermic circulatory arrest differ significantly between the cohorts, 42±33 minutes for the FET versus 36±29 minutes in the conventional cohort, P<0.001. The surgical data were presented in Table 2.

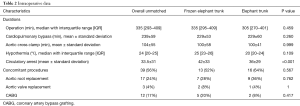

Table 2 Intraoperative data
Full table

Clinical results

The in-hospital outcomes and complications are summarized in Table 3. In terms of in-hospital mortality, there was no significant difference between the investigated groups (conventional ET: n=8; 32% versus n=5; 20% in FET; P=0.520). The majority of early death cases suffered from acute aortic dissection. In the FET group, stroke occurred in 24% (n=6) versus 8% (n=2) of patients in the conventional ET group (P=0.123). Symptomatic transitory psychotic syndrome was observed in 5 patients (20%) in the FET group, whereas its incidence in the conventional ET group was not significantly lower (n=3; 12%; P=0.702). Moreover, there were 3 cases (12%) of pericardial tamponade in each group (P=1). Exploration rate due to mediastinal bleeding did not differ significantly between the matched groups (P=1). The transfusion requirements were significantly lower in the FET patients (P=0.001). The incidence of postoperative respiratory failure requiring re-intubation (P=0.417) or tracheotomy (P=1) were comparable. The median time of ventilation of the FET cohort was 143 hours versus 71 hours in the conventional ET patients, although the difference was not statistically relevant (P=0.507). The rate of acute renal failure requiring dialysis was very similar in both groups. The median intensive care length of stay (ICU-LOS) was 8.5 days after FET and 8 days after conventional ET. This difference was not statistically significant, as well (P=0.258).

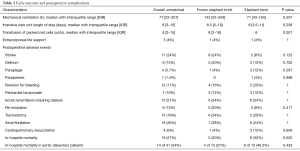

Table 3 Early outcome and postoperative complications
Full table

The logistic regression analysis for both techniques could not identify, age, gender, acute aortic dissection, CPB and cross-clamp times, concomitant procedures, re-intubation, stroke, and ICU-LOS as predictors of in-hospital mortality. Only acute renal failure requiring dialysis, mediastinal bleeding and length of the procedure were identified as predictors of in-hospital mortality. In the proportional hazard regression, only acute renal failure requiring dialysis seems to be a predictor of overall mortality (P=0.004). The procedures per se did not influence neither the in-hospital nor the overall mortality. More details on predictors of in-hospital and overall mortality are presented in Table 4.

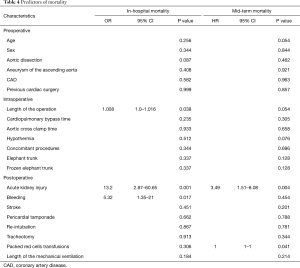

Table 4 Predictors of mortality
Full table

Follow-up data

The survival rates are illustrated on Figure 1. The mean follow-up time was 791 days. One-year survival rates were 38% after conventional procedure versus 60% after the FET procedure, respectively (Log rank P=0.118, Breslow P=0.039).

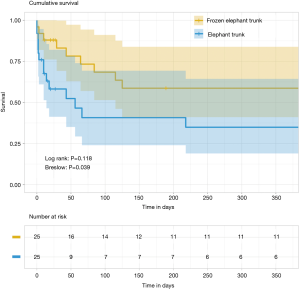

Figure 1 Cumulative survival of both patient cohorts. Kaplan-Meier curve.

Discussion

The development of the ET procedure (conventional and frozen) is claimed to be the greatest improvement in the treatment of complex aortic surgery (9). The FET technique offers the option of definitive treatment of combined and extensive lesions in a single-stage procedure (3). The FET technique indications include several conditions such as Type A and B, acute and chronic aortic dissections as well as atherosclerotic aneurysms involving the aortic arch and the descending thoracic aorta (1,10). Due to the encouraging short- and mid-term results of the FET, this technique has become increasingly common (11-13). The overall in-hospital mortality rates after FET procedures were reported between 1.8% and 17.2% (4,5,10,11,14-16). On the other hand, the 30-day mortality after conventional ET, stage I, ranged between 5.1% to 12%, and for stage II between 4% and 9.7% (5-7,17). During the time awaiting the stage II of conventional ET, mortality rates between 2% and 11.7% were observed, with frequent death on rupture of the descending thoracic aorta (6,7,18,19).

Di Eusanio et al. reported a 4.8% in-hospital mortality in the cohort of FET versus 13.9% in the conventional technique in a comparative study. However, these differences were not statistically significant (20). In our cohort, we reported remarkably higher mortality rates than above mentioned, 20% in conventional cohort versus 32% in FET cohort, without statistically significant difference. The reason of these high mortality rates could be explained with the high rates (>50%) of emergency and urgent surgery in our cohort. Schepens et al. reported 7.3% in-hospital mortality in elective setting versus 25% in-hospital mortality in emergent cases after conventional ET (17).

The most feared complications after aortic surgery are stroke and spinal cord injury. In our case-control matched analysis, we observed higher stroke rates in the cohort of FET, however, without statistically significant differences between the techniques. Compared with our results, Leontyev et al. showed higher stroke rates after conventional ET (16% versus 13%), likewise without significantly difference (15). In contrast to these facts regarding the incidence of strokes, Leontyev et al. could show in the same study, that the occurrence of new-onset paraplegia was significantly higher in the FET group (21.7% vs. 4.0%, P<0.001), and aortic repair with the FET technique was an independent predictor for paraplegia (15). These findings could not be supported by our case series.

In several studies, the incidence of paraplegia was often lower after the conventional ET technique than after the FET technique. Incidences between 1% to 21.7% for the FET were reported versus 2.9% to 4.8% for the conventional ET technique (5,14,15,20).

In regard to other postoperative complications such as reopening due to mediastinal bleeding, prolonged ventilation support or acute renal failure requiring dialysis, we presented similar outcomes after both techniques, which is comparable with results reported in the recent literature (11,14-16). According to a multicenter study with 240 patients from the E-Vita registry, there exists a significant association between in-hospital mortality and a serum creatinine concertation above 2 mg/dL, a need for permanent or temporary dialysis and prolonged intubation time >72 hours (11). Martens et al. confirmed in their analysis that postoperative dialysis and reopening for bleeding are also risk factors of mortality after total aortic arch repair (90% of included patients received conventional or FET) (21). Furthermore, Leontyev et al. showed, that type A aortic dissection was an independent predictor of in-hospital mortality (15). In our case-control matched cohorts, acute renal failure requiring permanent or temporary dialysis and bleeding complications were associated with significantly higher in-hospital mortality rates. Among our patients, type A aortic dissection was overrepresented and a high rate of patients with aortic dissection died in hospital, although, it could not be identified as predictor of in-hospital mortality.

In seven patients in our collective, coronary artery bypass grafting (CABG) was performed as a concomitant procedure. There was no significant influence on the outcome after both surgical techniques. LeMaire et al. reported that concomitant coronary artery bypass grafting increased the early mortality as well as the incidence of stroke after conventional ET (5). Another study showed that concomitant CABG was a risk factor of overall mortality in surgical repair of aortic arch, including conventional and frozen ET procedures (22). In our small sample, we could not confirm this statement. In our collective, we could not identify hypothermia as predictor of in-hospital mortality as well as mid-term mortality in ET techniques. Janczyk et al. reported that hypothermia is a strong independent contributor to mortality in patients with ruptured abdominal aortic aneurysms (23). In the treatment of acute and chronic thoracic aortic pathology, hypothermia did not directly affect mortality; rather, the duration of hypothermia was the relevant factor (24). Czerny et al. investigated the influence of age on mortality and incidence of neurological injury in patients undergoing surgical repair with hypothermic circulatory arrest in acute and chronic thoracic aortic pathology in a collective of 523 patients. This study revealed that hypothermic circulatory arrest ≥40 minutes was an independent predictor of mortality (25). In another study with 490 patients, Ziganshin et al. showed in their multivariate analysis that deep hypothermic circulatory arrest time >50 minutes and aortic dissection were strong predictors of composite adverse outcomes. The stroke rate was 1.3% for patients with a deep hypothermic circulatory arrest time <50 minutes, significantly different from the 16.7% stroke rate for whose with a deep hypothermic circulatory arrest time longer than 50 minutes (24).

A great number of patients need a second-stage procedure for repair completion. After FET, more less-invasive endovascular interventions are possible, because of more secure landing zone, which is offered through the FET prostheses (4). This fact could explain the lower mid-term mortality rates after the FET procedures. In regard to conventional technique, there is a relevant mortality risk within the interval between the therapy stages, which is almost between 2% and 11.7% (6,7). Additionally, after completed second stage repair, the reported operative mortality within 30-day was between 4% and 9.7% (5,6,26). The waiting time and the second stage of the repair increase the cumulative mortality risk. So, the main advantage of FET remains the possibility of single-stage treatment in many cases and risk reduction of additional distal aortic surgery. This aspect makes remarkable differences in early mortality in several studies, however, the mid-term survival did not differ significantly (4).

Another interesting aspect is that in one meta-analysis, the FET technique was followed by partial or complete thrombosis of a persistent false lumen in 88.9% cases of acute type A aortic dissection. The FET technique promotes restoring the flow in the true lumen and covering proximal entry tears because of antegrade stenting of the distal thoracic aorta, and these aspects can possibly slow down the aortic remodeling (27).

Limitation

Our study had various limitations. It was a single-center retrospective study with a small sample. Furthermore, we did not have long-term data about survival and the need of re-operations and endovascular interventions.

Conclusions

In patients with complicated aortic diseases, both conventional ET and FET seem to be comparable techniques with satisfactory early outcomes. We were able to present a rare case-control matching analysis that compares the conventional ET and FET procedures.

Acknowledgements

None.

Footnote

Conflicts of Interest: The authors have no conflicts of interest to declare.

Ethical Statement: The European Medical School Oldenburg-Groningen, Carl von Ossietzky University Oldenburg had approved this study on 22 May 2017. Number of IRB approval: 2017-040.
