Novel technique to prevent central airway blood flooding during transbronchial cryobiopsy
Letter to the Editor of Interventional Pulmonology Corner

Novel technique to prevent central airway blood flooding during transbronchial cryobiopsy

Masahide Oki, Hideo Saka

Department of Respiratory Medicine, Nagoya Medical Center, Nagoya, Japan

Correspondence to: Masahide Oki, MD. Department of Respiratory Medicine, Nagoya Medical Center, 4-1-1 Sannomaru, Naka-ku, Nagoya 460-0001, Japan. Email:

Submitted Feb 01, 2019. Accepted for publication Apr 11, 2019.

doi: 10.21037/jtd.2019.04.59

Transbronchial cryobiopsy is useful for diagnosing diffuse parenchymal lung diseases, as well as localized lung lesions (1-5). It provides larger and higher quality specimens without crush artifacts compared to those obtained by conventional biopsy forceps (6). As transbronchial cryobiopsy samples tend to be larger, the risk of bleeding from the biopsy site is higher than that associated with forceps biopsy. This occasionally causes moderate or severe bleeding, so a bronchial balloon blocker has been prophylactically used to prevent flooding of blood into the central airway (7,8). Although the balloon occlusion method is effective to avoid severe bleeding (8-11), guiding the balloon blocker to the occlusion site is sometimes challenging and complicates the cryobiopsy procedure. To facilitate the cryobiopsy procedure for parenchymal lung lesions, we developed a simpler technique to prevent bleeding by wedging the tip of a long, small-diameter silicone endobronchial tube into the target bronchus transnasally under bronchoscopic control. We herein report this technique.

Case 1

An 86-year-old man with a history of prostate carcinoma and myelodysplastic syndrome was referred to our hospital due to a chest X-ray abnormality. His chest X-ray and computed tomography scan revealed a localized lesion measuring 37 mm in the longest diameter in the right upper lobe lung. Bronchoscopy was performed under local anesthesia and conscious sedation with midazolam and fentanyl. A sterilized, customized 5 mm inner diameter silicone tube (Phycon tube, SH No.5; Fuji Systems, Tokyo, Japan; Figure 1A,B) was used. The silicone tube was cut to a length of 40 cm, and the distal tip was cut diagonally. A standard connector from a 5 mm endotracheal tube was attached to the proximal end of the tube to facilitate grasping. The tube was advanced through the nose into the trachea under bronchoscopic control using a 4.0 mm thin bronchoscope (BF-P260F; Olympus, Tokyo, Japan; Figure 1B). After locally anesthetizing the bronchus with lidocaine, the tube was further advanced and firmly wedged into the posterior segment of the right upper lobe (right B2) (Figure 2A,B,C). Then, a thin bronchoscope was advanced into the right B2b, and a radial endobronchial ultrasound probe was advanced toward the target lesion under fluoroscopy. After localizing the target lesion by endobronchial ultrasound, a forceps biopsy was performed to obtain eight specimens. Then the location of the tube was bronchoscopically reconfirmed, and a transbronchial cryobiopsy was performed using a 1.9 mm cryoprobe (ERBE, Tubingen, Germany). Bleeding was minimal (Figure 2D) and there were no other complications. The specimens obtained by forceps biopsy and cryobiopsy contained adenocarcinomas.

Figure 1 Instruments for the tube-wedging method. (A) A customized 5.0-mm silicone endobronchial tube with a connecter; (B) the tube attached to a 4.0 mm bronchoscope.

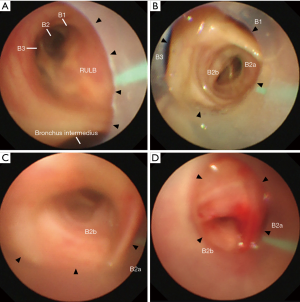

Figure 2 A silicone tube (arrowheads) was advanced through the right upper lobe bronchus (RULB) (A), and then through the right B2 (B); finally, it was wedged into the right B2 facing the bifurcation of B2a and B2b (C) under bronchoscopic control. Bronchoscopic view after the forceps biopsy and cryobiopsy shows no bleeding and no dislodgement of the silicone tube (D).

Case 2

A 58-year-old man without a medical history underwent a medical examination. A chest X-ray revealed diffuse reticular opacities, mainly in the bilateral middle and lower lung lobes. He was referred to our hospital for an examination during which he underwent bronchoscopy under conscious sedation. First, we attempted nasobronchial intubation with insertion of the 40 cm tube into the anterior basal segmental bronchus in the right lower lobe (right B8), but the tube was not long enough. Thus, after four specimens were obtained in the right B8 using biopsy forceps, we replaced the 40 cm tube with a 48 cm tube. The tube was advanced and wedged into the subsubsegmental bronchus (right B8bi) under bronchoscopy, and two biopsies were taken with a 1.9 mm cryoprobe from the lung parenchyma, followed by the right B8ai (Figure 3A,B,C,D) and right B4a; thus, a total of six cryobiopsy specimens were obtained. During the cryobiopsy, fluoroscopy showed an expanded opaque shadow, suggesting bleeding around the biopsy site, and blood flooded into the tube (Figure 3E). However, we were able to control the bleeding easily with bronchoscopic suctioning (Figure 3F). No blood flooded from the wedged tube into the central airway. The forceps biopsy specimen findings were non-diagnostic, while the cryobiopsy specimens showed pathological findings of suspected nonspecific interstitial pneumonia as well as silicosis. Subsequently, he was diagnosed with Sjögren’s syndrome and received steroid therapy.

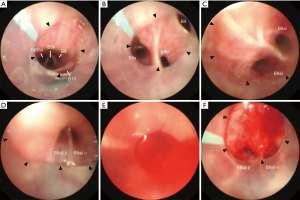

Figure 3 A silicone tube (arrowheads) was advanced under bronchoscopic control through the right basal bronchus (A), then through the right B8 (B), and then through the B8a (C); finally, it was wedged into the right B8aii, in which the next bronchi (B8aiiα, B8aiiβ) was seen (D). Bleeding occurred within the tube (E). Bleeding was readily controlled by bronchoscopic suctioning (F).

The results of our initial 10 cases with transbronchial cryobiopsy using the “tube-wedging method” under conscious sedation are shown in Table S1. Where bleeding occurred, it was limited to within the tube in all patients. Bleeding was graded as “no bleeding” or “mild bleeding” in all cases [“mild bleeding” requires suction to clear but no other bronchoscopic procedure, as classified by Hetzel et al. (10)]. This study was approved by the Institutional Review Board of Nagoya Medical Center (identifier: 2018–068).

Table S1
Table S1 Procedural details of the initial 10 cases with cryobiopsy using the tube-wedging method
Full table

Bleeding and pneumothorax are major complications associated with transbronchial cryobiopsy of parenchymal lung lesions (10,11). The reported frequency of bleeding complications varies widely in the literature, even in meta-analyses, ranging from 4.9% to 39% (1-3). Most cases involve mild or moderate bleeding, although severe bleeding causing a life-threatening condition has been reported occasionally (12). In cases with blood flooding into the central airway, coughing is induced; this causes further bleeding, which makes bronchoscopic control difficult. Thus, a prophylactic technique for protecting the non-bleeding lung area is necessary. Although several techniques, such as balloon blockers (7,13,14) and sequential use of two scopes (15), have been proposed, the prophylactic placement of a balloon blocker, which reduces the frequency of moderate or severe bleeding (8-11), seems to be the most effective; thus, its use during transbronchial cryobiopsy has been recommended (2,10,11). However, the balloon occlusion technique is complex. Although several balloon occlusion techniques [e.g., use of a Fogarty balloon through the side channel of a double lumen tracheal tube (7,11), an angioplasty balloon through a large tracheal tube (13), and an endobronchial blocker (14)] have been proposed, none of them seem to be optimal.

Our “tube-wedging method” has several advantages. By directly bridging into the leading bronchus, the established airway facilitates repeated insertion and removal of a thin bronchoscope. The wedging tube prevents central airway blood leakage by draining blood within the tube. In all our cases, bleeding was readily controlled bronchoscopically. Selective intubation into the segmental or deeper bronchus under bronchoscopic control is easily accomplished, except that into the apical segmental bronchus of the upper lung lobe. Displacement of the wedged tube occurred in one case, but holding the tube firmly prevents this from occurring. Another advantage of the tube-wedging method is the use of a small-diameter silicone tube, which allows a transnasal approach, and seems to be more comfortable for patients than the orotracheal approach using a larger tracheal tube. In fact, all patients tolerated the cryobiopsy procedures well under moderate conscious sedation with midazolam and fentanyl. The small-diameter tube allows the use of 4.0 or 4.2 mm thin bronchoscopes, which are particularly useful for peripheral localized pulmonary lesions (16,17). By contrast, the lack of availability of therapeutic bronchoscopes with a large working channel and a 2.4 mm cryoprobe, the lack of availability of deep sedation or general anesthesia, and the inaccessibility of the apical segmental bronchus are limitations of the present technique.

In our early experience, the bleeding could easily be controlled in all cases by bronchoscopic suctioning alone. If the bleeding cannot be controlled by simple suction, airway blocking by wedging the bronchoscope or using a balloon blocker through the bronchoscope working channel would be the technique of choice. We have yet to encounter patients with moderate/severe bleeding; however, we are always prepared to manage unexpected massive bleedings. At our institution, we are always able to use therapeutic bronchoscopes with a large working channel, large endotracheal tubes, balloon blockers, and adrenaline for endobronchial administration.

In conclusion, our early experience suggests that the tube-wedging method is simple and safe, and may be a promising alternative to the balloon occlusion method for transbronchial cryobiopsies. Further studies are needed to confirm the usefulness of this technique.




Conflicts of Interest: The authors have no conflicts of interest to declare.

Ethical Statement: This study, including our initial 10 cases, was approved by the Institutional Review Board of Nagoya Medical Center (identifier: 2018–068). Informed consent for publication was obtained in writing from Cases 1 and 2.
