The Cancer Genome Atlas dataset-based analysis of aberrantly expressed genes by GeneAnalytics in thymoma associated myasthenia gravis: focusing on T cells

Jianying Xi1#, Liang Wang1#, Chong Yan1, Jie Song1, Yang Song2, Ji Chen2, Yongjun Zhu2, Zhiming Chen2, Chun Jin3, Jianyong Ding3, Chongbo Zhao1,4

1Department of Neurology, 2Department of Thoracic Surgery, Huashan Hospital, Fudan University, Shanghai 200040, China;3Department of Thoracic Surgery, Zhongshan Hospital, Fudan University, Shanghai 200030, China;4Department of Neurology, Jing’an District Centre Hospital of Shanghai, Fudan University, Shanghai 200040, China

Contributions: (I) Conception and design: J Xi, L Wang, C Zhao; (II) Administrative support: J Xi, L Wang, C Zhao; (III) Provision of study materials or patients: Y Song, Y Zhu, J Chen, Z Chen, C Jin, J Ding; (IV) Collection and assembly of data: C Jin, J Ding; (V) Data analysis and interpretation: C Yan, J Song; (VI) Manuscript writing: All authors; (VII) Final approval of manuscript: All authors.

#These authors contributed equally to this work.

Correspondence to: Chongbo Zhao. Department of Neurology, Huashan Hospital, Fudan University, Shanghai 200040, China. Email:

Background: Myasthenia gravis (MG) is a group of autoimmune disease which could be accompanied by thymoma. Many differences have been observed between thymoma-associated MG (TAMG) and non-MG thymoma (NMG). However, the molecular difference between them remained unknown. This study aimed to explore the differentially expressed genes (DEGs) between the two categories and to elucidate the possible pathogenesis of TAMG further.

Methods: DEGs were calculated using the RNA-Sequencing data from 11 TAMG and 10 NMG in The Cancer Genome Atlas (TCGA) database. GeneAnalytics was performed to characterize the associations between DEGs and tissues and cells, diseases, gene ontology (GO) terms, pathways, phenotypes, and drug/compounds, respectively. Genes related to T cells were sorted out using LifeMapDiscovery Cells and Tissues Database. Genes directly related to the phenotype of autoimmune diseases that were identified by VarElect were validated by reverse transcription-quantitative polymerase chain reaction (RT-qPCR).

Results: The expression level of 169 genes showed a significant difference between the two groups, with 94 up-regulated and 75 down-regulated. Overexpression of six genes (ATM, SFTPB, ANKRD55, BTLA, CCR7, TNFRSF25), which are expressed in T cells and directly related to autoimmune disease through VarElect, was identified. The overexpression of soluble BTLA (sBTLA) (P=0.027), CCR7 (P=0.0018), TNFRSF25 (P=0.0013) and ANKRD55 (P=0.0026) was validated by RT-qPCR in thymoma tissues from our center.

Conclusions: Overexpression of sBTLA, CCR7, TNFRSF25 and ANKRD55 was identified and validated by RT-qPCR, which could partly explain the underlying pathogenesis in TAMG.

Keywords: Thymoma; myasthenia gravis (MG); differentially expressed genes (DEGs); soluble BTLA; CCR7; TNFRSF25; ANKRD55

Submitted Jan 05, 2019. Accepted for publication May 16, 2019.

doi: 10.21037/jtd.2019.06.01


Myasthenia gravis (MG), characterized by T cell involvement and complement dependence, is a group of autoimmune disease with antibodies targeting neuromuscular junctions (1). It presents as fluctuating muscular weakness, mainly affecting extraocular muscles, bulbar muscles and proximal limb muscles. Based on the clinical features and serum antibodies, MG can be classified as early/late-onset, thymoma/nonthymoma, acetylcholine receptor (AChR) antibody/muscle-specific tyrosine kinase (MuSK)/low density lipoprotein receptor related protein 4 (LRP4) antibody positive/antibody-negative and generalized/ocular subgroups (1). In 75–90% cases, MG is combined with abnormalities of thymus, including thymus hyperplasia with germinal centers (85%) and thymoma (15%) (2). Interestingly, thymoma is not the exclusive risk factor of MG, only 15–33% of thymoma patients may develop MG (3,4). With reference to WHO histological classification, type B thymoma is shown to be more frequently associated with MG than type A and AB. Among type B thymoma, type B2 is the most frequently associated with the disease (5).

Compared with early-onset and late-onset MG without thymoma, TAMG usually occurs after 50 years old and a small proportion are diagnosed in their adolescence. The symptoms are usually more severe and with bulbar muscles involved. The gender bias was not significant and its correlation with human leukocyte antigen (HLA) was not strong. Besides anti-AChR antibody, TAMG can also be accompanied by anti-Titin, anti-ryanodine antibodies and other autoimmune diseases (6). Some recent studies indicated that T cells may play a potentially key role in TAMG pathogenesis. Compared with non-MG thymoma (NMG), thymoma in TAMG can generate more mature CD4+CD45RA+T cells exporting to the peripheral while the peripheral AChR-reactive T lymphocytes can be recirculated to the thymus to be activated (2). A higher frequency of circulating IL-17 producing CD4+ T-cell subsets (Th17) and a lower proportion of CD4+CD25highFoxp3+ regulatory T (Treg) cells were also observed (7,8). Besides, our study group verified a higher percentage of T follicular helper (Tfh) cells in MG patients with thymoma (9), which may also demonstrate a difference in pathogenesis between TAMG and NMG. However, the molecular mechanisms behind TAMG still need further investigations.

On a genome-wide scale, gene expression profiling is increasingly used to explore pathogenesis and to find out possible biomarkers in various human disorders. Technological advances in DNA microarrays and subsequent RNA-sequencing (RNA-Seq) are employed to analyze gene expression in a comprehensive and unbiased method (10). Previously, the overexpression of Interferon type I (IFN-I) with abnormal regulation of double-stranded RNA (dsRNA) signaling molecules was demonstrated in TAMG but not in NMG using microarrays (11).

To further explore the pathogenesis of TAMG, we calculated the differentially expressed genes (DEGs) using RNA-seq data from 11 TAMG and 10 NMG patients in The Cancer Genome Atlas (TCGA) database. Based on these genes, we performed gene ontology (GO) classification and functional enrichment analysis using GeneAnalytics (12). We further screened out genes related to T cells and verified these DEGs by reverse transcription-quantitative polymerase chain reaction (RT-qPCR).


TCGA dataset of thymoma

High throughput RNA-Seq data of the thymoma tissues, including B2 thymoma tissues from 11 TAMG and 10 NMG were downloaded from TCGA database on December 31st, 2017. The summary of the clinical information of these patients from TCGA was shown in Table S1. Considering TCGA data a community resource project, additional approval from the Medical Ethics Committee in our hospital was not necessary. TCGA data access policies and publication guidelines were also obeyed in the present study.

Table S1

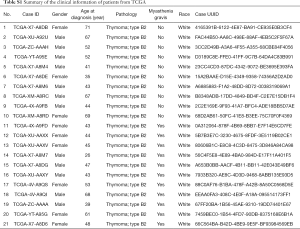

Table S1 Summary of the clinical information of patients from TCGA
Full table

Exploration of DEGs and GeneAnalytics

A simple set of transcript quantification was obtained from the RNA-Seq data of patients with B2 thymoma. RNA-seq relative read counts were measured by counts per million (CPM) to calculate DEGs using edgeR package (13). The value of fold change (FC) was log2 transformed while false discovery rate (FDR) was −log10 transformed for downstream analysis. We further performed differential analysis (|log2FC| >1, log2CPM >1, P value <0.05 and FDR <0.05) with Limma package (14).

Next, we used GeneAnalytics (, a tool empowered by the GeneCards suite, including GeneCards human gene database, MalaCards human disease database, PathCards human biological pathways database and LifeMapDiscovery Cells and Tissues Database to analyze the associations between DEGs and tissues and cells, diseases, GO terms, pathways, phenotypes, and drug/compounds, respectively. Tissues and cells were scored with a matching algorithm that weighs tissue specificity, gene abundance and function. Disease matching scores were originated from the degree of gene-disease relations. Superpathways included the related pathways with high matched genes to reduce redundancy, strengthen inferences and pathway enrichment. Genes related to the T cells were sorted out according to LifeMapDiscovery Cells and Tissues Database (12). Among them, genes directly related to the phenotype of autoimmune diseases were identified by Varlect (15).

Human thymic samples

Eighteen thymoma samples were obtained from patients who underwent thymectomy at the Department of Thoracic Surgery, Huashan and Zhongshan Hospital, Fudan University in 2016–2018. Of them, 9 was with MG and 9 was not. The study was approved by Fudan University Institutional Review Board and written informed consents were granted.

The TAMG group was defined using following criteria: (I) age ≥18 years; (II) definitive diagnosis of generalized MG according to clinical, electrophysiological and antibody status; (III) histopathologic diagnosis of thymoma. The patients were classified by the Myasthenia Gravis Foundation of America (MGFA) Classification (16). Patients who had received corticosteroid or immunosuppressant treatment were excluded.

Validation of RT-qPCR

Total RNA was extracted from the thymoma tissues using Trizol® (Invitrogen, USA) reagent based on the manufacturer’s instructions. The reverse transcription (RT) reactions were conducted with a cDNA synthesis kit (Takara, China). Quantitative polymerase chain reaction (qPCR) was performed with QuantStudio (Applied Biosystems, USA). The results were quantified with the 2−ΔΔCT method against GAPDH for normalization. The data represents the mean value of three experiments. Real-time PCR primers were listed in Table S2.

Table S2
Table S2 Primers used in RT-PCR
Full table

Statistical analysis

For DEGs analysis, the values of log2CPM were calculated and normalized by quantile normalization. Then the values of FC were calculated with the mean values of log2CPM between the two groups. All data analysis of DEGs was conducted and related figures were generated with R 3.5.1 ( The results of qPCR were analyzed by Student’s t-test or Mann-Whitney U test using GraphPad software. A P value <0.05 was regarded as statistically significant.



DEGs and GeneAnalytics

A total of 24,991 transcripts were included and transcripts with CPM value of 0 were excluded. Finally, we screened 16,477 transcripts for analysis. The expression level of 169 genes showed significant difference between the two groups (|log2FC| >1, log2CPM >1, P value <0.05 and FDR <0.05), with 94 up-regulated and 75 down-regulated. The final data was listed as the matrix in Table S3. DEGs calculated by edgeR were shown with volcano plot (Figure S1) and heat map (Figure S2).

Table S3
Table S3 List of differentially expressed genes derived from edgeR
Full table

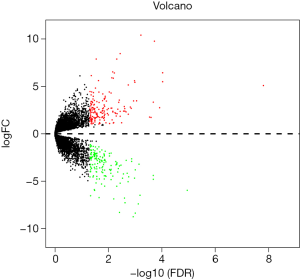

Figure S1 Differentially expressed genes by edgeR. Volcano plot illustrating the differential expression levels of genes of TAMG and NMG group. Genes that are significantly up- and down-regulated in the TAMG group compared to the NMG group are shown in red and green dots, respectively. TAMG, thymoma-associated myasthenia gravis; NMG, non-myasthenia gravis.

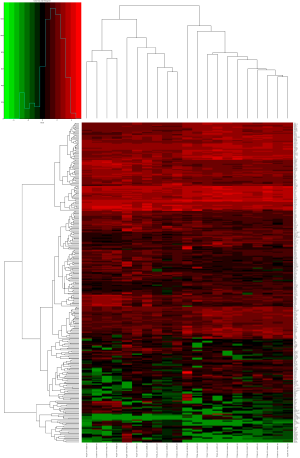

Figure S2 Heat map of the hierarchical clustering based on DEGs (fold change =1, P value <0.05). DEG, differentially expressed gene.

Analysis of tissues and organs (Table S4), diseases (Table S5), biological superpathways (Table S6), GO pathways (Table S7), phenotypes (Table S8) and compounds (Table S9) using GeneAnalytics were listed in Tables S4-S9, respectively. However, we did not see a clearly biological meaning from these results.

Table S4

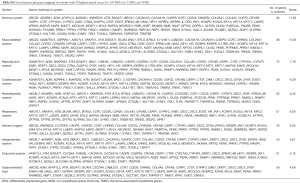

Table S4 GeneAnalytics program mapping of systems with 10 highest match scores for 169 DEGs in TAMG and NMG
Full table
Table S5

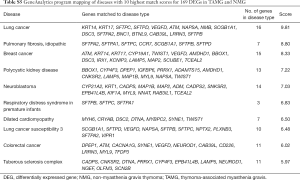

Table S5 GeneAnalytics program mapping of diseases with 10 highest match scores for 169 DEGs in TAMG and NMG
Full table
Table S6

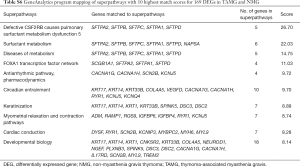

Table S6 GeneAnalytics program mapping of superpathways with 10 highest match scores for 169 DEGs in TAMG and NMG
Full table
Table S7

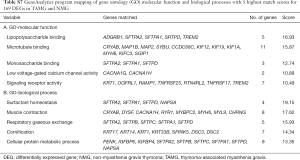

Table S7 GeneAnalytics program mapping of gene ontology (GO) molecular function and biological processes with 5 highest match scores for 169 DEGs in TAMG and NMG
Full table
Table S8

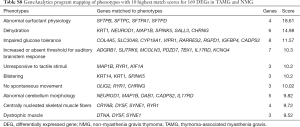

Table S8 GeneAnalytics program mapping of phenotypes with 10 highest match scores for 169 DEGs in TAMG and NMG
Full table
Table S9

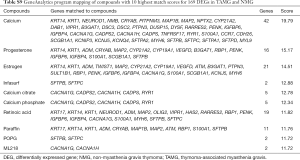

Table S9 GeneAnalytics program mapping of compounds with 10 highest match scores for 169 DEGs in TAMG and NMG
Full table

DEGs related to T cells

Since thymus is the place where T cells develop, we further selected DEGs in T cells between thymoma tissues of TAMG and NMG by LifeMapDiscovery Cells and Tissues Database. Among 169 DEGs, there were 6 genes mainly expressing in T helper cells (ANKRD55, BTLA, CCR7, LRRN3, TNFRSF25, VSIG1), 3 in T cytotoxic cells (CCR7, LRRN3, TNFRSF25) and 4 in double positive (DP) thymocytes (ATM, CCR7, SFTPB, TNFRSF25) with all 8 genes up-regulated. The genes were exhibited with their log2FC, log2CPM, P value and FDR in Table 1. Further screened by VarElect, 6 genes (ATM, SFTPB, ANKRD55, BTLA, CCR7, TNFRSF25) were directly related while 2 genes (LRRN3, VSIG1) were indirectly related to the phenotype of autoimmune diseases.

Table 1

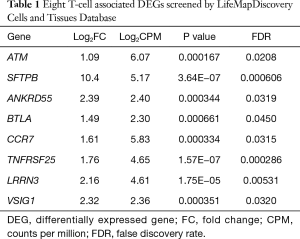

Table 1 Eight T-cell associated DEGs screened by LifeMapDiscovery Cells and Tissues Database
Full table

Validation by RT-qPCR

Patients and samples

Demographic and clinical characteristics were summarized in Table 2. Disease severity was evaluated using the MGFA Clinical Classification (16). There was no statistical difference in sex, age, WHO histologic classification of thymoma and MGFA classification between TAMG and NMG group.

Table 2

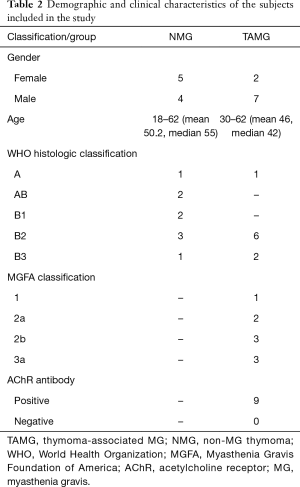

Table 2 Demographic and clinical characteristics of the subjects included in the study
Full table


The relative expression level of mRNA in 6 genes (ATM, SFTPB, ANKRD55, BTLA, CCR7, TNFRSF25) that are direct related to autoimmune disease were compared between the thymoma tissues of the TAMG and NMG group. Compared with NMG, significantly higher expression of BTLA (P=0.022), CCR7 (P=0.0018), TNFRSF25 (P=0.013) and ANKRD55 (P=0.0026) were observed in the TAMG group (Figure 1A,B,C,D). However, we did not observe a difference in expression of ATM (P=0.082) and SFTPB (P=0.11) between the two groups (Figure 1E,F). These results may suggest a specific association between the overexpression of BTLA, TNFRSF25, CCR7 or ANKRD55 and the mechanism of TAMG. Since BTLA negatively regulated the immune response, the elevated expression of BTLA could not be explained in the TAMG group. However, soluble BTLA (sBTLA), the isoform of BTLA from alternative splicing, could exhibit a counteracted function from BTLA (17). We further performed RT-qPCR of sBTLA using its specific primers and it was revealed that there was a significant difference (P=0.027) between the two groups (Figure 2).

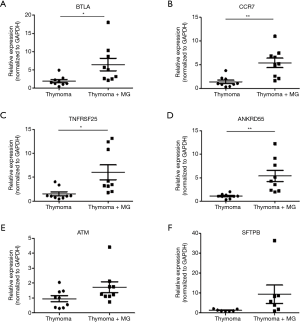

Figure 1 Validation of the differences of six directly immune-related DEGs using RT-qPCR. (A-D) Compared with NMG, significantly higher expression of BTLA (P=0.022), CCR7 (P=0.0018), TNFRSF25 (P=0.013) and ANKRD55 (P=0.0026) was observed in TAMG. (E,F) The difference in expression of ATM (P=0.082) and SFTPB (P=0.11) was not significant between the two groups. *, P<0.05; **, P<0.01. DEG, differentially expressed gene; RT-qPCR, reverse transcription-quantitative polymerase chain reaction; NMG, non-myasthenia gravis thymoma; TAMG, thymoma-associated myasthenia gravis.

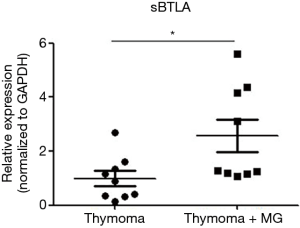

Figure 2 Validation of the difference of soluble BTLA using RT-qPCR. A significant difference (P=0.027) was observed between the two groups. *, P<0.05. RT-qPCR, reverse transcription-quantitative polymerase chain reaction.


In the present study, with high throughput data from 11 TAMG and 10 NMG from TCGA database, we tried to find the possible molecular changes in the pathogenesis of TAMG. With the edgeR analysis tool, we found that among 24,991 transcripts, 169 genes showed a significant difference between the TAMG and NMG group. Further screening using LifeMapDiscovery Cells and Tissues Database and VarElect, overexpression of six genes (ATM, SFTPB, ANKRD55, BTLA, CCR7, TNFRSF25) directly related to autoimmune diseases expressed on T cells was found and four (ANKRD55, BTLA, CCR7, TNFRSF25) of them were validated in thymoma tissues in our center by RT-qPCR.

C-C chemokine receptor-7 (CCR7), a member of the C-C chemokine receptor subfamily, can combine with its ligand (CCL19 or CCL21). Mainly expressed on naïve and central memory CD4+ T cells, naïve B cells and mature dendritic cells (DCs), this receptor activates them to travel to their target tissues selectively and initiates the autoimmune response (18,19). It also mediates the settling of T-cell precursors in the thymus to initiate thymopoiesis (20). CCR7-deficient mice and mice lacking the expression of CCL19 and CCL21 exhibited defective migration of DCs and lymphocytes toward the T-cell zones (21). When under antigenic stimulation, some activated T cells lost their CCR7 expression and upregulated CXCR5, the receptor for CXCL13 expressed on B cells. CXCR5+ T cells then migrated towards the B cell-rich follicles to interact with B cells (22). Moschovakis et al. demonstrated that CCR7-deficient mice showed complete resistance to collagen-induced arthritis, and the antibody response to collagen II was severely impaired (23). Belikan et al. demonstrated that the induction of experimental autoimmune encephalomyelitis (EAE) was halted with the specific constitutive deletion of CCR7 on CD4+ T cells (24). When compared with normal subjects, the frequency of CD4+CCR7+ and CD8+CCR7+ T cells increased significantly in patients with primary Sjögren’s syndrome. The expression level of CCR7 on CD4+ T cells was associated with disease activity (25). In MG thymus, Li Qi et al. showed overexpression of CCR7 may block the differentiation of CD4+CD8+ DP thymocytes from the CD4-CD8- double negative (DN) stage, leading to the production of AChR autoreactive T cells (26). Our results also showed a significant higher expression of CCR7 in TAMG (P=0.0018), which further validated the positive correlation between CCR7 and TAMG.

B and T lymphocyte attenuator (BTLA), the ligand of herpesvirus entry mediator (HVEM), is expressed on DCs, natural killer (NK) cells, T and B lymphocytes (27). It was detected on double positive (DP) thymocytes, CD4+ or CD8+ single positive but not DN thymocytes (28). Belonging to the immunoglobulin superfamily and with similarities to cytotoxic T lymphocyte antigen 4 (CTLA-4) and programmed death 1 (PD-1), BTLA is another coinhibitory receptor that negatively regulate the immune response. It was demonstrated that BTLA-deficient mice have enhanced specific antibody reactions and improved sensitivity to EAE, with earlier disease onset, prolonged disease duration and increased clinical score (29). DCs require the functions of BTLA to actively adjust tolerizing T cell responses in CD5 dependent mechanisms (30). BTLA could also inhibit γδ T cell-dependent dermatitis through negatively regulating the production of IL-17 and tumor necrosis factor (TNF) (31). In multiple sclerosis, CD19+BTLA+ cells were significantly reduced compared with health controls while the disease remission was related to the increase in CD19+BTLA+ cells, suggesting a potentially pathogenic role (32). In our study, we first found the relationship between the higher expression of BTLA and TAMG. It could be explained by the possibility of reactive responses following antigen specific activation of T cells. Since we did not see such responses in other autoimmune diseases in literature, we further quantified and confirmed the elevation of sBTLA by RT-qPCR. In collagen-induced arthritis, soluble PD-1 aggravates the disease progression through Th1 and Th17 pathway (33). Like PD-1, the production of soluble form of BTLA may also interfere the normal regulatory function of HVEM/BTLA pathway and lead to the phenotype we observed.

Tumor necrosis factor receptor superfamily member 25 (TNFRSF25), also called death receptor 3 (DR3), is expressed on T cells and combines with the ligand of TNF-like protein 1A (TL1A) (34). In addition to mediating necroptotic cell death, this receptor has been shown to stimulate NF-κB activity through promoting the activation of phosphoinositide 3-kinase (PI3K) and Akt (protein kinase B, PKB), leading to the increased production of pro-inflammatory cytokines, enhanced differentiation and clonal expansion of T cells (35,36). It was demonstrated that the contact of TNFRSF25 and TL1A is required for the immunopathological process in EAE with IL-9 producing Th9 cells (37,38). This may explain the effect of elevated expression of TNFRSF25 in TAMG samples.

Although the precise function of ankyrin repeat domain containing protein 55 (ANKRD55) is still unknown, it functions almost exclusively to mediate protein-protein interactions (39). Single-nucleotide polymorphism (SNP) of this gene was reported to be related to several autoimmune diseases, such as rheumatoid arthritis (40) and multiple sclerosis (41). ANKRD55 is also overexpressed in EAE with neuroinflammation (42). These demonstrations in autoimmune diseases were in accordance with our results. However, the detailed mechanisms underlying TAMG need to be further clarified.

ATM, the ataxia telangiectasia-mutated gene, is required for DNA damage response and genome stability (43). The mutations in ATM have been reported in patients with brain and breast tumor (44). Surfactant Protein B (SFTPB) could influence lung function and innate immunity (45). Altered SFTPB is associated with several lung diseases including acute respiratory distress syndrome (46) and chronic obstructive pulmonary disease (47). In this study two genes mentioned above did not show significant difference between the two groups, and this may partly be due to the lower number of thymoma samples.

Combined with the findings above, the overexpression of 4 T-cell associated genes could be a characteristic of MG-associated thymoma with potential pathogenic importance. The induction and maintenance of MG may be related with the overexpression of some functional genes from T cells and other immune cells in the thymoma microenvironment. In other words, whether or not thymoma develops MG may depend on the heterogeneity of the thymoma microenvironment. As for how this heterogeneity was formed, further research should be conducted.

Of course, there are some limitations in this study. First, the conclusion may be limited by the small sample size. Second, the heterogeneity of individual patients including disease severity and WHO thymoma classification would also influence the reliability of the study. Third, tissue validation could not limit its results to T cells like bioinformatics analysis. Although aberrantly expressed genes were validated using RT-qPCR, they may originate in various cells from thymic tissues, so the results should be interpreted with caution. This was the first study to use TCGA database for investigating the possible molecular changes and pathogenesis in TAMG and in the study we find the correlation of TAMG with higher expression of CCR7, BTLA, TNFRSF25 as well as ANKRD55. The expression and SNPs of these genes may be promising biomarkers in TAMG and need to be further investigated.


In this study, we first identified 6 genes that were directly related to autoimmune diseases through GeneAnalytics from 169 DEGs calculated in TCGA. Then, overexpression of sBTLA, CCR7, TNFRSF25 and ANKRD55 was validated in thymoma tissues from TAMG in our center, which could partly explain the underlying pathogenesis of TAMG.


Funding: This work was supported by The National Key Research and Development Program of China (No. 2016YFC0901504), the National Natural Science Foundation of China (No. 81870988) and Shanghai Municipal Commission of Health and Family Planning (No. 201540044).


Conflicts of Interest: The authors have no conflicts of interest to declare.

Ethical Statement: The study was approved by Fudan University Institutional Review Board and written informed consents were granted.
