Role of imaging in lung transplantation evaluation

Alexander D. Calvert, Todd R. Hazelton

Department of Radiology, University of South Florida Morsani College of Medicine, Tampa, FL, USA

Contributions: (I) Conception and design: TR Hazelton; (II) Administrative support: None; (III) Provision of study materials or patients: TR Hazelton; (IV) Collection and assembly of data: All authors; (V) Data analysis and interpretation: All authors; (VI) Manuscript writing: All authors; (VII) Final approval of manuscript: All authors.

Correspondence to: Todd R. Hazelton, MD, MS. Department of Radiology, University of South Florida Morsani College of Medicine, South Tampa Center for Advanced Healthcare, 2 Tampa General Circle, STC 6102, Tampa, FL 33606-3571, USA. Email:

Abstract: Lung transplantation is an effective treatment for patients with end-stage pulmonary disease. Due to the myriad of complications that can occur in the post-operative period and long-term after discharge, imaging plays a crucial role in the diagnosis and management of these patients. On imaging, the time of onset is most helpful in differentiating reimplantation response from acute rejection during the post-operative period. Bacterial and fungal infections may occur at any time after transplant, although viral infections tend to present after the post-operative period. Imaging is also helpful in evaluating post-operative pleural as well as short and long term airway anastomotic pathologies. Imaging is also useful in evaluating longer term pulmonary complications such as bronchiolitis obliterans, recurrent disease, and restrictive allograft syndrome. The imaging features of these various important thoracic complications of lung transplantation will be reviewed.

Keywords: Lung transplantation; complications; computed tomography; chest radiography

Submitted Jul 30, 2019. Accepted for publication Aug 20, 2019.

doi: 10.21037/jtd.2019.08.35


The first attempted human lung transplant was performed by Dr. James Hardy in 1963, with the patient succumbing to kidney failure 18 days after the procedure (1). Nearly two decades later, in 1981, Drs. Norman Shumway and Bruce Reitz from Stanford University performed three heart-lung transplants, two of which were successful (2). In 1983, under the direction of Dr. Joel Cooper, the Toronto Lung Transplant Group performed the first successful lung transplant for pulmonary fibrosis (3). Since the early days of this procedure, lung transplants have continued to improve and have become an effective treatment for patients with end-stage pulmonary disease. Today, common indications for lung transplantation include emphysema, idiopathic pulmonary fibrosis, cystic fibrosis, and primary pulmonary hypertension (PPH) (4,5).

Single lung transplants are generally reserved for patients with idiopathic pulmonary fibrosis, PPH, and selected patients with emphysema, specifically those of shorter stature and older age. Single lung transplants are performed using a generous posterolateral thoracotomy through the fifth intercostal space with anastomoses from posterior to anterior (bronchus, artery, and left atrium). Bilateral lung transplantation is mandatory for patients with cystic fibrosis and bronchiectasis from other causes, is generally performed on patients with emphysema, and occasionally in PPH. Surgical techniques for bilateral lung transplantation include transsternal bilateral thoracotomy “clamshell” incision, which provides excellent exposure to the hilar structures, mediastinum and both pleural spaces, and bilateral anterolateral thoracotomy, which prevents complication of sternal healing often associated with the clamshell incision. Although less common, median sternotomy can be used for bilateral lung transplantation as well (6). Heart-lung transplantation is usually reserved for the rare patient with combined end-stage cardiac and pulmonary disease such as those with Eisenmenger’s syndrome with PPH and significant left ventricular dysfunction (7).

Long-term survival following a lung transplant is lower than that of other types of solid organ transplantations due to a myriad of post-operative complications, which can be divided based on the temporal relationship to the operation. Imaging plays a crucial role in detecting such complications, and understanding certain radiographic features can help in identifying and addressing the complications promptly. In this report, we discuss the role of imaging in the lung transplant patient and describe the radiographic features of the most commonly encountered complications (Figure 1) in an effort to increase awareness for those physicians responsible for the imaging interpretation of these individuals.

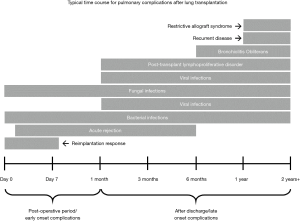

Figure 1 The typical time course for commonly encountered complications that occur after lung transplantation.

Pre-operative imaging for lung transplantation

For lung transplant candidates, programs carefully evaluate donor lung size to optimize matching to a prospective recipient. Since there is generally no consensus on the definition of best ‘‘size” fit, some programs will use donor and recipient height values while taking into account recipient disease diagnosis. Other centers calculate donor and recipient total lung capacity (TLC) values and attempt to achieve as close a size match as possible (8). With regard to determining size compatibility, some sites will also incorporate radiographic measurements performed at set points on donor and recipient chest radiographs (Figure 2). Potential donors and recipients are ideally matched to within 10% of one another on each measurement (9).

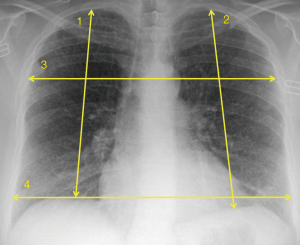

Figure 2 Example of lung measurements performed on donor and recipient chest radiographs to optimize matching using the technique reported by Bachus et al. (9). The lungs are measured from the dome of the right hemidiaphragm to the apex of the right lung [1], the dome of the left hemidiaphragm to the dome of the left lung [2], the width of both lungs together at the level of the aortic knob [3], and the width of both lungs together at the level of the higher hemidiaphragm [4].

In addition to size matching, imaging plays a role as one component in the overall assessment of a donor’s lungs for transplantation. In a study by Alvarez et al., 12% of potential donors were deemed unsuitable for transplantation due to abnormal chest radiograph findings (10). The presence of consolidation or contusion on radiography may exclude the use of a potential donor’s lungs (9). However, given the lack of available donor lungs and the subjectivity of chest radiograph interpretations, more objective clinical criteria related to age, smoking history, and pre-retrieval PaO2/FiO2 have been favored to expand the selection of donor lungs from outside the standard acceptability criteria (11).

Imaging of early complications

Post-operative pulmonary complications

Immediate post-operative complications of lung transplantation include reimplantation response, acute rejection, and infection. Reimplantation response, also known as reperfusion edema or primary graft dysfunction, is the most common postoperative complication (up to 95% of all patients) and is a form of noncardiogenic pulmonary edema. The transplanted lung undergoes an ischemic vascular injury resulting in increased capillary permeability and alveolar damage causing interstitial and alveolar edema. Usually occurring within several hours up to 48 hours following the procedure, reperfusion edema is treated with diuresis and mechanical support. The edema generally improves over 24 to 48 hours and resolves in 7 to 10 days (Figure 3). If there is persistence beyond the first week, infection or acute rejection should be considered. On imaging, there are perihilar and basilar airspace consolidations in the mid and lower lung zones with interstitial opacities and small pleural effusions (12).

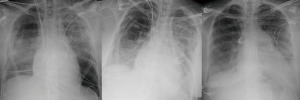

Figure 3 A series of AP chest radiographs obtained after bilateral lung transplantation demonstrate mild bilateral airspace consolidations on post-operative day 1 (A), worsening bilateral airspace consolidations on post-operative day 3 (B), and resolving airspace consolidations by post-operative day 8 (C) consistent with reimplantation response, also known are reperfusion pulmonary edema or primary graft dysfunction. AP, anteroposterior.

In comparison to reimplantation response, acute rejection does not typically develop until 5 to 10 days following the procedure (Figure 4), and is very common as most patients have two to three significant rejection episodes in the first 3 months. Radiographs can be normal or appear similar to reimplantation response with possible reticular and/or ground glass opacities, consolidations, and indistinct 2–3 mm nodules visible on CT (Figure 5) (13). Distinguishing reimplantation response from acute rejection on imaging is best accomplished by the temporal relationship to the transplant procedure, but definitive diagnosis of acute rejection requires a transbronchial biopsy demonstrating a predominantly lymphocytic perivascular infiltrate (14). The rare exception is a hyperacute rejection, which is a rapidly fulminating syndrome that occurs within hours following the transplant and is likely due to the interaction of preformed recipient antibodies against major donor allograft antigens (15).

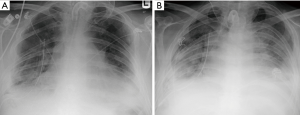

Figure 4 AP chest radiograph series in a patient who has undergone bilateral lung transplantation shows bibasilar atelectasis on post-operative day 15 (A) and increased bilateral lung airspace consolidations by post-operative day 30 (B) consistent with acute rejection. AP, anteroposterior.

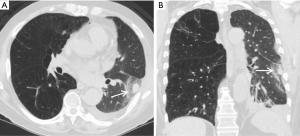

Figure 5 Axial (A) and coronal (B) CT images of a 48-year-old male 2 years post bilateral lung transplant with antibody-mediated rejection shows bilateral lung peribronchovascular consolidations and ground glass opacifications.

Early onset infection is the most common complication after transplantation and is a major cause of morbidity and mortality. Bacterial infections (Figure 6) predominate in the immediate post-operative period and represent at least half of all infections with the highest incidence in the first four weeks after transplantation (16,17). Viral infections are generally not seen until after four weeks whereas fungal infections can occur at any period. Radiographic and CT findings are similar to those of non-transplant patients and are unable to reliably distinguish between bacterial, viral and fungal etiologies (18).

Figure 6 Axial (A) and sagittal (B) images of a patient post bilateral lung transplant with Staphylococcus aureus pneumonia shows lower lung predominant tree-in-bud nodules as well as a small thin-walled cavity (white arrow) in the right lower lobe.

Lung torsion is a rare early complication (Figure 7) that is predisposed to by differences in caliber between the recipient thoracic cavity and an overly small transplanted lung, which rapidly progresses to parenchymal necrosis if untreated (19,20). Torsion is diagnosed on CT angiography with torsion of the pulmonary artery and adjacent bronchi with distal obliteration and displacement of the hilum and fissures (19).

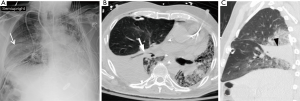

Figure 7 Post-operative AP chest radiograph (A) in a patient who underwent right lung transplantation for idiopathic pulmonary fibrosis. Due to hemodynamic instability in the operating room, left lung transplantation was abandoned. The radiograph shows an abnormal triangular shaped opacification in the right lower lung (white arrow). Axial (B) and sagittal (C) CT images in this patient show abnormal position of the right middle lobe posteriorly within the right hemithorax (black arrowhead) as well as abnormal posterior displacement and narrowing of the right middle lobe bronchus (closed white arrow) consistent with right middle lobe torsion.

Post-operative pleural complications

Pleural complications are seen in 22–34% of patients after transplantation. Since bilateral lung and heart-lung transplantations frequently result in a single communicating pleural space, fluid and gas collections are often bilateral (Figure 8). Pleural effusions develop in almost all patients because of increased capillary permeability and impaired lymphatic clearance, and typically resolve within 2 weeks. Persistent or delayed effusions suggest complicated effusions such as empyema (Figure 9), organized hematoma (Figure 10), rejection, and post-transplantation lymphoproliferative disorder. A pneumothorax is the most common pleural complication that typically resolves with the insertion of a thoracostomy tube. If there are new, persistent, or enlarging pneumothoraces, there should be further evaluation to determine the cause of the air leak. Empyemas occur in approximately 4% of patients and are the only pleural complication associated with an increased mortality rate. Empyemas may affect both hemithoraces and should be excluded in the presence of a new or enlarging pleural effusion (21).

Figure 8 Axial CT images of the chest in a patient post bilateral lung transplant done using transverse sternotomy and clamshell incision show bilateral pneumothoraces due to continuity between the right and left pleural spaces (A). After insertion of a single pleural catheter on the right (white arrow), both pneumothoraces have significantly decreased in size (B).

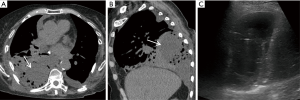

Figure 9 Axial (A) and sagittal (B) CT images of the chest in a patient with right upper quadrant pain post bilateral lung transplantation 5 weeks ago shows a loculated gas and fluid collection within the posteroinferior right pleural space (white arrows) consistent with empyema. Ultrasound image of the chest done before insertion of a pleural catheter demonstrates areas of loculation within the empyema (C).
Figure 10 AP chest radiograph (A) of a 48-year-old female post-operative day 1 from bilateral lung transplantation shows right apical pleural based opacity (white arrow) which appears heterogeneous and high attenuation in the posterosuperior right pleural space on axial (B) and sagittal (C) CT images (white arrowheads), consistent with a post-operative hemothorax.

Post-operative airway complications

Dehiscence is an early airway anastomotic complication (<1 month) that is difficult to treat and has a high mortality. Partial dehiscence is more common than complete dehiscence and presents as an enlarging ipsilateral pneumothorax or pneumomediastinum. On CT, dehiscence appears as a mucosal irregularity or soft tissue debris at the anastomosis with extraluminal air directly connected to the airway and irregular pockets of air posterior to the anastomosis. These findings are important to distinguish from normal postoperative findings, which can include a small amount of extraluminal air without a focal wall defect. Additionally, a telescoping bronchus may mimic dehiscence if the telescoped segment appears as a bronchial wall defect with a soft tissue irregularity or small tubular extraluminal gas collection (22).

Imaging of long term complications


Whereas bacterial infections predominate in the first month, viral infections are more frequent between 1–6 months after transplantation with cytomegalovirus (CMV) being the most common cause (almost 50%). Additional viral organisms include influenza, parainfluenza, respiratory syncytial virus (RSV), and adenovirus. About half of all cases appear essentially normal on radiographs with the remainder demonstrating nonspecific heterogeneous opacities. On CT, viral pneumonia will appear as ground glass opacities, diffuse micronodules (tree-in-bud), bronchiectasis and diffuse consolidation (Figure 11) (23). Fungal infections can occur at any time and can commonly be involved with either a tracheobronchitis or an anastomotic infection. Aspergillus infections, in particular, can include both anastomotic dehiscence and stenosis. Invasive pulmonary infections and disseminated disease are less frequent with an overall mortality of approximately 50%. The primary manifestations of fungal pneumonia include nodules and focal consolidations (Figures 12,13). Cavitation may also occur with fungal pneumonias (Figure 14). On CT, invasive aspergillosis can demonstrate focal parenchymal opacification surrounded by a ground glass halo, which represents alveolar hemorrhage at the periphery (19,23).

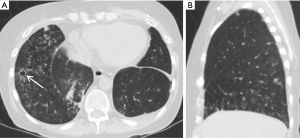

Figure 11 Axial (A) and coronal (B) CT images of a bilateral lung transplant patient with respiratory syncytial virus (RSV) pneumonia shows right upper and middle lobe peribronchiolar nodular consolidations and ground glass opacifications.

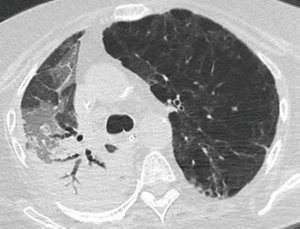

Figure 12 Axial CT image in a patient post right lung transplant with aspergillus pneumonia shows confluent consolidation and ground glass opacification in the transplanted lung.
Figure 13 Axial (A) and coronal (B) CT images of a patient post left lung transplant with aspergillus infection manifesting as a left lower lobe nodule surrounded by a ground glass “halo” (white arrow).
Figure 14 Axial CT image of the lungs in a patient with Nocardia pneumonia post bilateral lung transplantation. This bacterial infection can masquerade as a fungal pneumonia and shows clustered small right upper lobe nodules and an irregularly marginated cavity (white arrow).

Post-transplant lymphoproliferative disorder (PTLD)

PTLD is a spectrum of diseases that vary from histologically benign polyclonal lymphoid proliferation to an aggressive high-grade lymphoma. Major risk factors include immunosuppression with cyclosporine and a history of Epstein-Barr virus (EBV) (24,25). The underlying etiology is thought to be from a B-cell lymphocyte proliferation in response to an EBV infection, typically an EBV-seronegative recipient who receives a seropositive donor lung (26,27). The disorder may manifest from 1 month to several years after transplantation and typically peaks around 3–4 months with an overall prevalence of 1% to 10% (13). Compared to other solid organ transplants, PTLD occurs most frequently in lung transplantations. On imaging, pulmonary involvement is demonstrated by solitary or multiple pulmonary nodules or masses with parenchymal consolidation (28,29). Extrapulmonary involvement can manifest as hilar or mediastinal lymphadenopathy, thymic enlargement, pleural effusions, or pericardial masses (26,27).

Bronchiolitis obliterans syndrome

Chronic rejection is rare before 6 months following transplant but can affect up to 60% of recipients after 5 years and is the leading cause of long-term death (30,31). There is a higher risk of chronic rejection if the patient has a history of an acute rejection (32). Bronchiolitis obliterans syndrome is manifestation of chronic rejection, with a mean onset of 6 to 12 months, which presents with a combination of increased dyspnea, productive cough, and progressive fall in FEV1. Patients are at a higher risk if they have 3 or more acute rejection episodes in the first 6 months or develop CMV pneumonia (33,34). Radiographs often appear normal but hyperinflation, reduction in peripheral vascularity, and bronchiectasis may be seen. On CT, a mosaic attenuation pattern is seen on inspiration and air trapping on expiration (Figure 15). Additional findings may include bronchiectasis, bronchial wall thickening, and small nodular and linear branching opacities in a bronchiolar distribution (17,35).

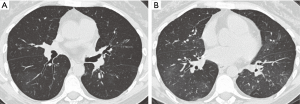

Figure 15 Axial inspiratory high resolution CT of the chest (A) in a patient with bronchiolitis obliterans syndrome after bilateral lung transplantation shows mild mosaic attenuation pattern with geographic areas of normal and decreased lung attenuation. On expiratory high resolution CT, geographic areas of air trapping are present in both lungs (B).

Restrictive allograft syndrome

Restrictive allograft syndrome is a rare form of chronic lung allograft dysfunction consisting of restrictive functional changes involving peripheral lung pathology, which develops 1 to 4 years after transplant. CT findings include interlobar septal thickening, honeycombing, intralobular interstitial thickening, traction bronchiectasis, architectural distortion and volume loss (Figure 16). There also may be progressive upper lobe fibrosis, diffuse fibrosis across multiple lobes, or fibrosis limited to lower lobes (36,37).

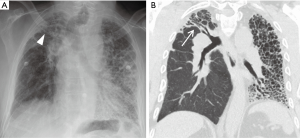

Figure 16 PA chest radiograph (A) in a patient post right lung transplantation 11 years ago for idiopathic pulmonary fibrosis demonstrates right upper lobe volume loss and reticulation (white arrowhead). On coronal CT (B), there is right upper lobe volume loss, reticulation, and traction bronchiectasis (white arrow) consistent with restrictive allograft syndrome. A small volume native left lung demonstrates extensive honeycombing consistent with clinical diagnosis of idiopathic pulmonary fibrosis. PA, posteroanterior.

Airway anastomotic strictures

Bronchial stenosis is the most frequently reported long-term airway complication, which may result in recurrent lobar collapse and post-obstructive pneumonia. Bronchial stenosis often develops as a sequela of early complications such as ischemia, granulation tissue, fistula, and infection. Diagnosis of significant stenosis is made on CT with focal airway narrowing >70% that does not change with inspiration or expiration. Virtual bronchoscopy, multiplanar images, and minimum projection images are often helpful to localize and diagnose airway strictures (Figure 17) (22).

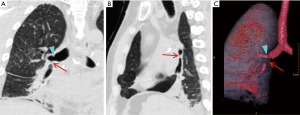

Figure 17 Coronal (A) and sagittal (B) CT images as well as 3D reconstruction image (C) of the right lung show focal narrowing of the anastomosis of the transplanted right lung to the native right main bronchus (cyan arrowhead) with segmental stenosis also involving proximal bronchus intermedius (red arrow).

Recurrent lung disease

Recurrent disease in a lung allograft is also a long-term concern with radiologic features similar to those of the original disease although findings can mimic other post-transplantation complications. The most common disease to reoccur is sarcoidosis followed by Langerhans cell histiocytosis and lymphangioleiomyomatosis (LAM) (33).


In summary, imaging plays a critical role in the diagnosis of early (post-operative) and late (after discharge) complications of lung transplantation. Providers should be familiar with basic surgical techniques and the imaging appearance of common complications. Since the radiologic pattern of disease can be nonspecific, it is important to appreciate the time course from lung transplantation as well as any relevant postoperative history.
