Role of precision imaging in esophageal cancer

Introduction

Esophageal cancer is the eighth most common cancer and the sixth most common cause of cancer-related deaths worldwide (1) with approximately 17,000 new cases diagnosed every year in the United States (2-4). The two major histologic subgroups diagnosed in esophageal cancer are squamous cell carcinoma and adenocarcinoma. Esophageal squamous cell carcinoma (ESCC) typically arises in the middle and lower thirds of the esophagus, with only 10–15% occurring in the upper one-third segment, whereas esophageal adenocarcinoma (EAC) typically develops from the metaplastic columnar epithelium in the lower third of the esophagus (5).

The survival rate of patients with esophageal cancer is inversely related to tumor invasiveness and the presence of nodal and distant disease (6). The 5-year overall survival (OS) for patients with early-stage disease after treatment exceeds 90%, whereas the 5-year OS is less than 40% for advanced-stage disease (6). Therefore, earlier detection allows for a better prognosis (6). However, because approximately 60–70% of patients who receive neoadjuvant chemoradiotherapy (nCRT) do not respond optimally, risk stratification and imaging biomarkers are used to dramatically improve the outcomes of treatment (6).

In the paradigm of precision medicine, diagnostic testing and targeted therapies are based on whole genome sequencing, as well as other clinical assessments and can have a significant clinical impact on the disease prognosis (7). In this review, we aim to assess the role of precision imaging in esophageal cancer, in terms of staging, restaging, biomarkers and radiomics, and its implications on disease prognosis.

Pathogenesis and clinical picture

The major risk factors of ESCC include tobacco and alcohol abuse, N-Nitrosamines, alkali burn, history of aerodigestive cancers, caustic ingestion and achalasia. The risk factors for EAC include chronic gastroesophageal reflux disease (GERD), smoking (2.18-fold increase), male sex (6-fold increase), obesity (2.39-increase), advancing age and Caucasian race (4,8,9). Weekly GERD symptoms increase the risk of EAC by about 5-fold with the risk increasing further in patients with chronic, nocturnal or more frequent symptoms (9). EAC can develop from progressive dysplastic changes within Barrett’s esophagus. Barrett’s esophagus develops secondary to reflux-induced metaplasia of the native squamous epithelium into intestinal epithelium (8). About 0.5% of patients with non-dysplastic Barrett’s esophagus and 7% of patients with high-grade dysplasia will eventually progress to EAC (4).

Esophageal cancer is commonly diagnosed at an early stage incidentally during routine endoscopy or by surveillance of known Barrett’s esophagus (15% of EAC). However, most esophageal cancers are discovered when they have become locally advanced and are due to a non-specific initial presentation like heartburn or abdominal bloating. Therefore, as few as one out of eight esophageal cancers are detected at an early stage (T1) (8,9). Esophageal cancer can present with dysphagia, vomiting, loss of body weight, fatigue and gastrointestinal bleeding (8,9). Less commonly, it presents with oropharyngeal dysphagia or iron-deficiency anemia (9). Supra-clavicular lymph node (SCLN) metastasis can be diagnosed on clinical examination in approximately 8–20% of esophageal cancer cases (10).

Genetics

Esophageal cancer is associated with genetic mutations of the following genes: TP53, NOTCH, and MTOR; and amplification of the following genes: AKT2, EGFR, ERBB2 (HER2), FGFR1, KRAS, MDM2, and PIK3CA (11,12). EAC is more commonly associated with HER2-neu gene amplification and overexpression compared to ESCC (5). VEGFR expression is observed in 54% of EAC patients and is correlated with poor survival (13). The wild-type p53 is a tumor suppressor in normal tissues that inhibits cell proliferation, whereas p53 overexpression is considered a potential tumor prognosticator (14,15). Overexpression of p53 is seen in esophageal precancerous lesions and is involved in the stepwise progression of these lesions into esophageal cancer (14).

Screening and diagnosis

Upper endoscopy with biopsy and histopathological confirmation is the benchmark for diagnosis. Esophageal cancer can appear on endoscopy as a stricture, mass, raised nodule, ulceration, or a subtle irregularity in the mucosa (9).

Most observational studies have shown a survival benefit in the detection of EAC through Barrett’s esophagus surveillance because increasing the possibility of identifying the disease in its early stages allows for the utilization of curative therapies. Multiple societies currently recommend regular endoscopic surveillance in Barrett’s esophagus (16). Zhang and colleagues (14) found an increasing trend of the expression of carcinoembryonic antigen (CEA) and cancer antigen 19-9 (CA19-9) proteins with the progression from basal cell hyperplasia and esophageal dysplasia to invasive ESCC. A screening program to detect p53, CEA and CA19-9 proteins can help identify high-risk individuals with ESCC as they have a combined 84% specificity and 73% sensitivity for the diagnosis of ESCC (14).

Radiological staging of esophageal cancer

The 8th edition of the American Joint Committee on Cancer (AJCC) staging of epithelial cancers of the esophagus and esophagogastric junction (EGJ) is widely used today for initial staging (Table 1) (17). In order to ensure the best outcome and to determine the most suitable therapy, accurate radiologic staging between T1 and T2−4 is necessary. In addition, the large submucosal lymphatic network of the esophageal wall permits early regional nodal spread in esophageal cancer (18). A pilot study comparing the performance of different imaging modalities showed that for T staging, EUS had the best sensitivity and NPV (100%), compared to magnetic resonance imaging (MRI) and MDCT (19). In addition, MRI also had the highest overall accuracy for T stage (83%) (19). For nodal (N) staging, MRI and EUS had the highest sensitivity and NPV (100%), however, MRI, EUS and MDCT did not show acceptable results for specificity and PPV (19) (Figure 1). For distant metastases (M) staging, Computed tomography (CT) and positron emission tomography/computed tomography (PET/CT) are the modalities of choice (4).

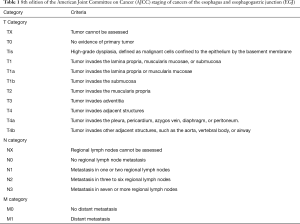

Table 1 8th edition of the American Joint Committee on Cancer (AJCC) staging of cancers of the esophagus and esophagogastric junction (EGJ)
Full table

Figure 1 A 63-year-old male with squamous cell carcinoma of distal esophageal mass. (A) Axial contrast CT, (B) axial FDG PET/CT images show large necrotic FDG avid tumor at the lower esophagus (black arrow) invading the stomach, pancreas and liver. (C) EGD shows a circumferential partial obstructive ulcerative esophageal mass (black arrow). (D,F) Axial contrast CT and (E,G) axial FDG PET/CT images show FDG avid enlarged necrotic cervical (thick white arrows) (D,F) and retroperitoneal metastatic lymphadenopathy (black arrowheads) (E,G). (H) Coronal MIP image shows cervical (white arrow), mediastinal (white arrowhead) and retroperitoneal (black arrowhead) metastatic lymphadenopathy and distal esophageal carcinoma with metastatic lymphadenopathy (black arrow). PET, positron emission tomography; CT, computed tomography; EGD, esophagogastroduodenoscopy; MIP, Maximum Intensity Projection.

Endoscopic ultrasonography

EUS can provide an accurate treatment assignment based on TNM staging in 75% of cases as compared to 65% with CT and 70% with PET/CT (20). EUS can help to determine the T stage by assessing the depth of invasion of the esophageal wall with 60-97% reported accuracy (3,5). EUS also has better diagnostic performance in T4 disease (92% sensitivity and 97% specificity) than T1 disease (82% sensitivity and 99% specificity) (21). The addition of EUS-guided fine needle aspiration biopsy to CT increases the sensitivity of N-staging to 85–97% (5). EUS rarely identifies M in remote sites because of its small field of view (9,22), however, EUS combined with fine needle aspiration biopsy are very reliable in detecting M in non-regional nodes with 53%-98% sensitivity and 77–100% specificity (9). The limitations of EUS include invasiveness, operator dependency, difficulty with stenotic tumors, and risk of post-therapeutic inflammation and perforation (3,5) (Figures 2,3).

Figure 2 A 76-year-old female with adenocarcinoma of the gastroesophageal junction (GEJ). (A) Axial non-contrast CT and (B) axial FDG PET/CT images show asymmetrical irregular thickening FDG avid tumor (white arrow) at the GEJ invading the stomach, pancreas and liver. (C) EGD shows a single 2 cm mucosal nodule (yellow arrows) at GEJ. (D) EUS shows 2.0 cm × 10 cm poorly defined one-third circumferential hypoechoic nodule/mass (white arrow) at the GEJ with likely invasion of muscularis propria. PET, positron emission tomography; CT, computed tomography; EGD, esophagogastroduodenoscopy; EUS, endoscopic ultrasound.

Figure 3 A 76-year-old female with squamous cell carcinoma at the mid esophagus. (A) Axial non-contrast CT and (B) axial FDG PET/CT images show an FDG avid thickening at the mid esophagus (white arrow) abutting the posterior wall of the left mainstem bronchus. (C) EGD shows a friable exophytic mass in the mid esophagus (white arrow) with significant stenosis. (D,E) EUS shows near circumferential hypoechoic nodule/mass (white arrow) at the mid esophagus level with significant stenosis and penetration into the adventitia. A 0.7 cm × 0.5 cm hypoechoic peritumoral node (yellow arrowhead) consistent with metastatic invasion. PET, positron emission tomography; CT, computed tomography; EGD, esophagogastroduodenoscopy; EUS, endoscopic ultrasound.

Multidetector CT

MDCT plays an important role in the staging of esophageal cancer (22) with a reported accuracy of 43–92% in T-staging (23-26). MDCT cannot differentiate between the different layers of the esophageal wall and therefore, cannot readily distinguish between T1 and T2 tumors (22). T3 stage is detected on MDCT as periesophageal fat infiltration with 75% sensitivity and 78% specificity. T4 stage is identified with loss of fat planes between the tumor and adjacent mediastinal structure with 75% sensitivity and 86% specificity (5,27). The diagnosis of T4 stage can be challenging in patients who received surgery or radiotherapy and in cachectic patients secondary to the loss of fat planes (22). CT helps to detect aortic and tracheobronchial invasion with almost 100% sensitivity, albeit the specificity ranges from 52–97% (22).

The diagnostic role of CT in preoperative N-staging in esophageal cancer is limited (18), with a reported 30–60% sensitivity, 60–80% specificity and 27–86% accuracy for nodes >10 mm (5,23-26). It is difficult to establish a specific size threshold value to differentiate benign from malignant lymph nodes with high sensitivity and specificity at the same time. For example, Lie and colleagues (18) reported that lymph nodes >10 mm could predict metastatic lymph nodes with a high PPV of 79%, but only 28% sensitivity. By lowering the size diagnostic criterion the sensitivity improved to 37%, but 63% of the metastatic nodes went undetected. In addition, normal-sized lymph nodes (<10 mm) could have microscopic metastatic foci that are usually undetected in CT resulting in understaging of the tumor (18,28). Using criteria including size, shape and location of regional lymph nodes in esophageal cancer on CT could improve the staging sensitivity to 67% and the PPV of 64% compared with only short axis measurement in cT1 esophageal cancer (18,28).

Contrast-enhanced CT (CECT) is the most commonly used modality for detecting M in distant sites, particularly hepatic (Figure 4) and lung (Figure 5) metastases (29).

Figure 4 A 70-year-old female with squamous cell carcinoma at the proximal esophagus. (A,C,E) Axial non-contrast CT and (B,D,F) axial FDG PET/CT images shows FDG avid proximal esophageal mass (thin white arrows) (A,B) and right side displacement of the trachea (C,D) (white arrowheads) with FDG avid metastatic subcarinal lymph node and FDG avid liver metastasis (thick white arrows) (E,F). PET, positron emission tomography; CT, computed tomography.

Figure 5 A 71-year-old male with squamous cell carcinoma at the mid esophagus. (A) Axial non-contrast CT soft tissue window, (C) axial FDG PET/CT and (E) axial non-contrast CT lung window shows mid esophageal mass (thick white arrow) and lung metastases (thin white arrows) and all are FDG avid in the FDG PET/CT image (C). (B,D) EGD shows nodular irregular mass at the mid esophagus (black arrow). (F) EUS shows an irregular hypoechoic ill thickening at the site of esophageal mass (white arrowhead) and it extends into submucosa with focal disruption of muscularis layer. PET, positron emission tomography; CT, computed tomography; EGD, esophagogastroduodenoscopy; EUS, endoscopic ultrasound.

PET/CT

The PET/CT has a limited role in T staging of esophageal cancer other than affirming mediastinal organ invasion. However, it can help identify an occult primary neoplasm in patients presenting with metastatic disease (5). Fluorine-18 fluorodeoxyglucose PET/CT (¹⁸F-FDG PET/CT) can assess the length and the volume of tumor in esophageal cancer patients who either cannot tolerate EUS or have impassable strictures (20–30% of cases) (30).

The ¹⁸F-FDG PET/CT cannot accurately reflect the N status since the nodes are often obscured by the metabolic activity of the primary tumor or background activity (5,31). A meta-analysis by Shi and colleagues (32) reported a pooled sensitivity and specificity of 62% and 96%, per-station analysis, for ¹⁸F-FDG PET/CT in the detection of nodal involvement (32). The high specificity of PET/CT allows nodal disease to be ruled out, preventing unnecessary surgeries (31). However, ¹⁸F-FDG PET/CT is unable to detect microscopic metastasis and distinguish nodal metastatic disease from other benign conditions like reactive hyperplasia or granulomatous inflammation (28).

PET/CT is the modality of choice for detection of metastasis (M) with 71% sensitivity and 93% specificity (33). PET/CT has higher accuracy than either PET or CT alone in the diagnosis of M (9). In a prospective trial of 129 patients, PET identified 41% additional metastatic sites, 38% had a shift in management and 8% detected synchronous malignancy (34).

MRI

In MRI, high-resolution T2-weighted imaging (T2WI) provides meticulous imaging of the anatomical layers of the esophageal wall and surrounding tissues with an 81% accuracy for T-staging, but with a 16% understaging and 3% overstaging shortfall (35) (Figure 6). EAC appears isointense or slightly hyperintense on fat-suppression T2WI (FS-T2WI) and significantly hyperintense on diffusion-weighted-MRI (DW-MRI) (36). T2WI combined with DW-MRI can diagnose esophageal cancer with the detection rate of 33% for T1 stage, 58% for T2 stage, 96% for T3 stage and 100% for T4 stage (35). MRI showed comparable accuracy (75–87%) to CT in assessing operability of esophageal cancer (35). The combination of DW-MRI and ¹⁸F-FDG PET/CT provide complementary diagnostic and prognostic information in esophageal cancer since both increased metabolic activity and restricted water diffusion are independent parameters that reflect different aspects of tumor pathophysiology (37).

Figure 6 A 60-year-old male with adenocarcinoma of the GEJ. (A) Axial contrast CT, (B) axial FDG PET/CT, (C) axial T2WI and (D) coronal T2WI images show T2 isointense FDG avid irregular thickening (white arrows) at the GEJ. GEJ, gastroesophageal junction; PET, positron emission tomography; CT, computed tomography; T2WI, T2-weighted imaging.

Conventional MRI shows moderately poor diagnostic performance for N-staging in esophageal cancer with 25–62% sensitivity and 67-88% specificity (38). However, the use of a gadolinium contrast agent can improve the sensitivity and specificity of 1.5T MRI scan up to 100% and 78%, respectively, in the diagnosis of N-staging (39). Also, Alper and colleagues (40) reported that MR imaging with STIR turbo spin-echo sequence predicted malignant lymph nodes in esophageal cancer with 81% sensitivity and 98% specificity. The increase in gross tumor volume of EAC acquired on FS-T2WI and DW-MRI with b-values of 500 and 800 s/mm² sequences is associated with a significant increase in the tumor N-stage (36). FS-T2WI is the best sequence for gross tumor volume measurement to differentiate stage N0 from stage N1-3 [0.806 area under the receiver operating curve (AUC), 74% sensitivity and 92% specificity] (36)

The investigation of whole-body MRI (WBMRI) in esophageal cancer is still limited, however, WBMRI has an equivalent accuracy to ¹⁸F-FDG-PET/CT in T-, N- and M-staging of esophageal cancer (39,41). WBMRI also has the advantage of being used for serial follow-ups without the risk of overradiation that is encountered in PET/CT. In addition, SUV and ADC are entirely different tumor metrics that can complement each other (41).

Positron emission tomography/magnetic resonance imaging (PET/MRI) shows acceptable accuracy for T staging (67%) compared with EUS (87%) in esophageal cancer (42). In regards to N-staging, A higher sensitivity was noted in PET/MRI (83%) compared to EUS (75%), PET/CT (67%), and CT (50%) (42). PET-MRI is also able to detect M disease (29). PET/MRI has the advantage of superior soft tissue resolution and time-saving with the acquisition of both PET and MRI images simultaneously (29).

Treatment

The standard treatment for superficial T1 tumors is esophagectomy with endoscopic mucosal resection or ablation for mucosal tumors (5,22). Concurrent chemoradiotherapy (CRT) should be considered for cervical and upper thoracic esophageal cancer (5). Locally advanced esophageal cancer is managed with nCRT, definitive chemoradiotherapy (dCRT), perioperative chemotherapy (for EAC), or esophagectomy (5,43). The use of nCRT in locally advanced esophageal cancer is associated with improved OS and pathological complete response (pCR) (44). The most commonly used two-drug chemotherapy is 5-FU and cisplatin with the addition of docetaxel or epirubicin reserved for good responders (5). The decision as what which adjuvant treatment to use following nCRT or dCRT is based on response assessment on imaging, usually PET/CT, or endoscopy; esophagectomy or observation for patients with complete response (CR); salvage esophagectomy or palliative therapy for non-responders (5) (Figure 7).

Figure 7 A 59-year-old female with squamous cell carcinoma at the proximal esophagus. (A) Axial contrast CT and (B) axial FDG PET/CT images show an FDG avid 3.7 cm thickening in the proximal esophagus (thin white arrows) and tracheoesophageal fistula. (C) Axial and (D) coronal non-contrast CT shows an esophageal stent (white arrowheads) extending from thoracic inlet up to the subcarinal level. PET, positron emission tomography; CT, computed tomography; T, trachea; E, esophagus.

Stage IV disease is treated with palliative radiotherapy and chemotherapy (22). Anti-HER2 monoclonal antibodies (Trastuzumab) are recommended in advanced or metastatic EAC overexpressing HER2-neu receptors (5). Multiple targeted therapies including VEGF/VEGFR inhibitors (such as Bevacizumab and Ramucirumab) and EGFR tyrosine kinase inhibitors (such as erlotinib and gefitinib) are under research for advanced and metastatic esophageal cancer (5,12,13). The genetic profile of ESCC provides a foundation for potential novel targeted therapies and precision medicine (11).

Restaging and the role of imaging in the assessment of treatment response

The local recurrence in ESCC patients is the primary reason for failure after CRT and is associated with poor prognosis. Hence, the accurate assessment of the tumor response to CRT is crucial for predicting survival and guiding the management (43) (Figure 8). Currently, there is no optimum guideline available to inform practice (45). The National Comprehensive Cancer Network (NCCN) advises restaging for all patients who receive nCRT (46), whereas the European Society for Medical Oncology (ESMO) recommends restaging of patients with cT3-4 or cN1-3 tumors (47).

Figure 8 A 57-year-old male with squamous cell carcinoma at the proximal esophagus. (A) Axial contrast CT and (B) axial FDG PET/CT images show an FDG avid proximal esophageal mass (thin white arrow); (C) EGD shows a large ulcerative partially obstructive non-circumferential mass (thick white arrow) in the upper one-third of the esophagus; (D,E) EUS shows a 3 cm thickness of the wall of the esophagus (white arrowhead) and a 1 cm oval hypoechoic well defined right paraesophageal lymph node (thick yellow arrow). He underwent 3 months of chemoradiation. (F) Axial contrast CT and (G) axial FDG PET/CT images show interval decrease in the size and FDG activity of the proximal esophageal mass (thick black arrow). (H) EGD shows mild residual thickening in the upper one-third of the esophagus (thick black arrow) with surrounding normal esophageal mucosa (thin yellow arrows). (I,J) EUS shows a mild residual thickening thickness of the wall of the esophagus (black arrowhead) and reduction in 0.5 cm oval hypoechoic right paraesophageal lymph node (thin yellow arrows). PET, positron emission tomography; CT, computed tomography; EGD, esophagogastroduodenoscopy; EUS, endoscopic ultrasound.

CT

CT has 33–55% sensitivity and 50–71% specificity in the assessment of tumor response after nCRT (43,48). The change in tumor volume calculated on CT scans has a limited role in predicting pathological response to nCRT in esophageal cancer patients (0.742 AUC, 56% sensitivity, 93% specificity, P=0.005) (49). The CT number of a tumor may be useful to assess treatment response in advanced esophageal cancer. A threshold value for tumor CT number of >40 Hounsfield Units can predict encouraging response to chemotherapy with 0.73 AUC (50).

CT perfusion parameters in the esophageal wall affected by the tumor display a strong positive correlation with the histopathologic tumor regression grade according to Mandard’s criteria (51). The median blood flow and blood volume are gradually increased, while the mean transit time is decreased as tumor regression grade is increased secondary to an increase in the neovascularization with higher tumor grades (51). Also, CT perfusion values can detect the hypervascularized residual viable tumor in the esophageal wall in incomplete or non-responders to nCRT (51).

Using dual-source dual-energy CT (DECT) iodine map, the changes of normalized iodine concentration (NIC) before and after CRT in esophageal cancer patients can monitor the response to CRT. The responders have significantly lower NIC in both hepatic arterial and portal venous phases compared to the non-responders (52). The reduced tumor iodine intake is due to the reduced vascular proliferation and supply of esophageal cancer secondary to CRT treatment (52).

PET/CT

A recent meta-analysis that included 13 studies (697 patients) to determine the role of ¹⁸F-FDG-PET/CT (PET_per) in the assessment of the response to CRT in esophageal cancer concluded that the role of PET_per in esophageal cancer patients is controversial and its predictive and prognostic value cannot be definitively established (53). In particular, 8 studies supported the predictivity of PET_per, whereas 5 did not find any correlation between PET_per parameters, the pCR and/or the clinical outcome. PET_per predicted pCR with 63–100% sensitivity, 50–76% specificity and 51–89% AUC; OS with 49–94% sensitivity, 36–82% specificity and 61–93% AUC and the DMFS/progression-free survival (PFS) with 77–94% sensitivity, 79–82% specificity and 57–93% AUC (53).

One study reported that pCR in primary tumors was associated with post-treatment maximum standard uptake value (SUVmax) values (P=0.016) and percent change in intratumoral SUVmax (P=0.006) (44). Post-treatment SUVmax cutoff value of ≤3.25 predicted pCR with 0.752 AUC, 67% sensitivity and 67% specificity; and post-treatment percent change in SUVmax cut-off value of >72.32% predicted pCR with 0.705 AUC, 71% sensitivity and 67% specificity (44). Another study by Zschaeck and colleagues (54) in locally advanced esophageal cancer reported an increase in SUVmax and SUVmean in the non-tumor-affected esophagus on restaging PET was significantly associated with improved OS, better local control, and a lower rate of treatment failure or the development of distant metastases (54). Findlay and colleagues (55) found that the composite measurement of FDG-avidity and volume metrics can improve the prediction of treatment response, as ΔSUVmax and Δlength of the tumor are independent predictors of pCR (55). In addition, metabolic nodal response, which is often discordant with the primary tumor response, can specifically assess metastatic deposits that are likely responsible for recurrence (55). Distant interval metastases have been reported to be detected on 0–26% of esophageal cancer patients on presurgical restaging after nCRT. It is crucial to identify these patients prior to surgery because esophagectomy carries a high morbidity rate; additional systemic therapy could be considered in these patients (56) However, ¹⁸F-FDG PET/CT can result in false positive results in 5% of patients, indicating the necessity for the histopathological confirmation of suspected lesions (56).

Tamandl and colleagues (3) proposed an algorithm of combined CECT and ¹⁸F-FDG PET/CT for locoregional restaging of esophageal cancer after nCRT and it was able to determine post-therapeutic T stage with a sensitivity, PPV, and accuracy of 83%, 91%, and 76% compared to 79%, 70%, and 59% in CECT, and 81%, 81%, and 68% in visual ¹⁸F-FDG PET/CT, respectively. The combined CECT and MTV had the highest diagnostic accuracy to predict CR (0.82 AUC, P<0.001).

MRI

In regards to DW-MRI in esophageal cancer, responders to nCRT have a lower baseline and higher post-treatment ADC values compared to non-responders (19,57). One could speculate that the non-responders have necrotic areas within the tumor accounting for the higher pre-treatment ADC values and decreasing the response to nCRT (19). Conversely, an alternate study reported that high baseline ADC values correlated well with better response to CRT and higher survival rates in esophageal cancer patients (58). A low percent change in tumor ADC during the first 2–3 weeks of nCRT (ΔADC_per) indicates a low rate of cell membrane integrity loss during treatment and ΔADC_per of <29% was predictive of residual cancer with 100% sensitivity, 75% specificity, 94% PPV, and 100% NPV (59). Also, a low ΔADC_per of <21% was predictive of no-pCR with 82% sensitivity, 100% specificity, 100% PPV, and 80% NPV and these findings can guide the early management (59). One of the drawbacks of DW-MRI is being insensitive to inflammation early during treatment, however, this might be overcome by the addition of ¹⁸F-FDG-PET/CT (59).

The DCE-MRI parameters can also help predict and monitor response to concurrent CRT for advanced esophageal cancer since the K^trans and K_ep values are closely correlated with the degree of tumor microcirculation and angiogenesis (60). The CR is associated with higher baseline K^trans and K_ep values; lower posttreatment K^trans and K_ep values; and higher absolute change and ratio of change of both K^trans and K_ep. Among the pre-CRT parameters, high pre-K^trans value is the best parameter because it is associated with excellent treatment response, due to better blood perfusion, delivery of chemotherapy and higher radiosensitivity. For post-CRT measurements, post-K_ep is the best parameter to assess treatment response with a threshold value of <1.031 predicts CR with 95% sensitivity, 57% specificity and 0.817 AUC (60). In terms of change of the DCE-MRI parameters, the ΔK^trans is the best parameter to assess treatment response with an optimal threshold of >−0.206 predicts CR with 53% sensitivity, 95% specificity and 0.816 AUC (60). The best parameter to assess the ratio of change of DCE-MRI is the ratio of ΔK^trans with an optimal threshold of >−0.144 predicts CR with 90% sensitivity, 62% specificity and 0.840 AUC (60).

Heethuis and colleagues reported that the combination of both DW-MRI and DCE-MRI can provide complementary information in predicting the response to nCRT in esophageal cancer, resulting in a high predictive value, that is higher than ¹⁸F-FDG PET(/CT) (c-index =0.89) (61).

Radiogenomics and radiomics

The differences in genetic drivers between tumors can be assessed by their FDG avidity. FDG uptake is a surrogate for glucose metabolism in the tumor. Elevated FDG-uptake in operable EAC correlates with multiple oncogenic processes with potential therapeutic targets (62). For instance, Heiden and colleagues (62) reported that FDG-avid tumors were associated with increased expression of multiple matrix metalloproteinases, extracellular matrix components, members of oncogenic signaling pathways, and PD-L1 proteins (fold change >2.0, P<0.05). In addition, FDG-avid tumors had significant upregulation of specific gene sets associated with extracellular matrix organization (metastasis) and vascular development (angiogenesis) (P<0.005) (62). FDG-avid tumors are associated with the signaling pathways of hypoxia, angiogenesis, KRAS signaling, and epithelial-to-mesenchymal transition; and tumors with low FDG uptake were associated with increased gene sets of oxidative phosphorylation and MYC signaling (62).

KRAS plays an important role in the PI3K and Raf/MEK/ERK signaling pathways regulating cell metabolism and subsequently esophageal cancer tumorigenesis. These aforementioned oncogenic pathways represent aggressive tumor phenotypes, and thus esophageal cancer might benefit from neoadjuvant treatments targeting these pathways (62). Surprisingly, KRAS expression was not associated with a worse prognosis overall (P=0.64) (62). Development of a predictive imaging model based on these molecular factors may establish a relationship between KRAS and the other molecular alterations of esophageal cancer, allowing for enhanced precision management of esophageal cancer.

Tan and colleagues found that a CT-based radiomic model can predict LN metastasis in ESCC patients and outperforms size criteria with 0.758 AUC in a training set, and 0.773 AUC in the validation set (63). CT radiomic signature extracted from baseline CT scans might aid in distinguishing CR from partial response in liver metastases from esophageal cancer (64-68). Hou and colleagues (65) found that a radiomic prediction model including histogram skewness, histogram kurtosis, gray-level size-zone matrix (GLSZM) long-zone emphasis, and 2 Gabor transformed parameters MSA-54 and MSE-54, differentiated non-responders from responders to nCRT in esophageal cancer (65). A retrospective study of 18 patients reported that a CT based radiomic model can predict a significant decrease in volume of liver metastases to chemotherapy with 0.64 AUC for partial response lesions and 0.79 AUC for CR lesions (64). Larue and colleagues (69) proposed a pretreatment CT-based radiomic model that was able to stratify patients into statistically significant risk groups and also predicted a 3-year OS in esophageal cancer patients with better prognostic performance compared to the clinical model (69). In addition, lower baseline histogram uniformity on unenhanced CT images and higher post-therapeutic entropy on CECT were associated with poor OS (66,67).

Multiple ¹⁸F-FDG PET studies found that various first, second and high-order features differentiated responders and non-responders to nCRT and also predicted pCR in esophageal cancer (68,70-77). Tixier and colleagues (70) showed that, in 41 patients, gray-level co-occurrence matrix (GLCM) homogeneity, GLCM entropy, GLSZM size-zone variability, and run length matrix intensity variability differentiated non-responders, partial response, and CR with 76–92% sensitivity (70). Another study reported that the ¹⁸F-FDG PET-derived textural feature ‘long run low gray level emphasis’ and CT-derived textural feature ‘run percentage’ were more accurate in assessing the response of esophageal cancer to nCRT than SUVmax (71). Foley and colleagues (74) proposed a prognostic model of three PET texture metrics, log(TLG), log(histogram energy) and histogram kurtosis, which are significantly and independently associated with OS (P<0.001) (74). According to the model, tumors with increased log(TLG) and histogram kurtosis, and reduced log(histogram energy) have an increased likelihood of mortality (74).

In addition, MRI radiomic features might be able to predict metastatic nodal disease in esophageal cancer patients. One study identified a radiomic MR model of nine radiomic features extracted from MR images (T2-TSE-BLADE and contrast-enhanced StarVIBE) and this model was significantly associated with LN metastasis (P<0.001) and differentiated metastatic and non-metastatic lymph nodes with 0.821 AUC in the primary cohort and 0.762 AUC in the validation cohort (78).

Recurrent disease

There is a high incidence of post-therapeutic recurrence of 45–53% in esophageal cancer and most recurrences occur within the first two years after surgery with a median time to recurrence of 10–12 months (79,80). Routine imaging with CT and PET/CT has been effective in the systematic follow-up of asymptomatic patients and early detection of recurrence (81-84) (Figure 9). However, there has been no established protocol for a follow-up yet (84).

Figure 9 A 63-year-old male with adenocarcinoma of a distal esophageal mass. (A) Axial non-contrast CT and (B) axial FDG PET/CT images show an FDG avid thickening of the distal esophagus (white arrow). (C) EGD shows a ulcerative distal esophageal mass (thick white arrow). After chemoradiation, (D) axial contrast CT and (E) axial FDG PET/CT images show interval decrease in FDG avidity and thickening at the distal esophagus (black arrows). (F) Axial CT image with oral contrast shows the gastric conduit (thick short white arrow) after the patient underwent Ivor-Lewis esophagectomy. A follow-up CT after 1 year (G) axial non-contrast CT and (H) axial FDG PET/CT images show focal FDG uptake with a circumferential thickening at the anastomosis the native esophagus and interposed conduit (white arrowheads). (I) EGD shows a non-obstructing non-circumferential fungating mass in the upper esophagus (thin yellow arrow). (J) EUS shows a 1.3 cm localized wall thickening in the upper esophagus (thick yellow arrow) with focal disruption of muscularis propria without lymphadenopathy. PET, positron emission tomography; CT, computed tomography.

A meta-analysis by Goense and colleagues (81) showed that ¹⁸F-FDG PET and PET/CT have pooled estimates of sensitivity and specificity of 89–100% and 55–94%, respectively, in the diagnosis of recurrent esophageal cancer after treatment with curative intent. There was no significant difference in diagnostic accuracy between PET and integrated PET/CT (P=0.213) (81). In the diagnosis of recurrent esophageal cancer, compared to ¹⁸F-FDG PET and PET/CT, CT has a lower sensitivity (65–89%) secondary to the misdiagnosis of postoperative changes and scarring; and higher specificity (79–91%) because of the false-positive FDG avidity in the gastric tube and thoracic lymph nodes (35,82,83). Therefore, integrated PET/CT seems to be the most accurate modality for the detection of recurrent esophageal cancer (35). PET/CT has the advantage of scanning the whole body and the ability to detect small lymph node metastases up to 0.9 mm diameter as well as recurrent tumors outside the body (84,85).

The available literature on the role of MRI for the detection of recurrent esophageal cancer is scarce. However, Kantarci and colleagues (86) reported that T2WI MRI has higher diagnostic accuracy than CT in the evaluation of wall thickening and the diagnosis of osseous metastases. Another study reported that recurrent nodal disease shows evident diffusion restriction with 81% accuracy and that a cut-off apparent diffusion coefficient (ADC) value of <1.5 diagnoses recurrent nodal disease with 100% overall accuracy (87).

Prognosis

The overall 5-year survival rates of patients with esophageal cancer who are treated with curative intent are relatively poor (34–47%) (81). EAC has a better overall 5-year survival rate (47%) than ESCC (37%) (22). Esophageal cancer with NOTCH1 mutation and EGFR genetic mutations are associated with larger tumor size (P=0.019) and lesser invasion depth (P=0.005) (11) and EGFR gene may be used as a clinically valuable biomarker to predict the prognosis of ESCC patients (12). Okumura and colleagues (88) reported statistically significant correlations between p53 expression and a favorable response to CRT.

Sequential ¹⁸F-FDG PET/CT metabolic parameters of the primary tumor can monitor the response to CRT and reflect the OS and recurrence-free survival of esophageal cancer patients and thus guide clinical decisions in patient management (89,90). Lymph node involvement bears an important prognostic value for survival in esophageal cancer (31,91). Xu and colleagues (10) reported that patients with SCLN metastasis had a worse OS, DMFS and PFS (P<0.001) than those without SCLN metastasis (10). Baseline TLG (P=0.002) and SUVmax (P=0.003) of nodal metastasis at PET/CT can independently predict OS and recurrence-free survival (89). Increased recurrence in ESCC was independently associated with the presence of extracapsular extension (24% vs. 69%, P<0.001), lymphovascular invasion (18% vs. 69%, P=0.006) and nodal positivity (41% vs. 71%, P=0.041) (44).

Conclusions

Imaging plays a pivotal role in staging, risk stratification and selection of therapeutic strategies. The imaging modalities- CT, EUS, PET/CT and MRI, are usually complementary in the staging of esophageal cancer. EUS is the modality of choice for T staging, while CT and PET/CT are most effective at detecting metastasis. For N staging, MRI and EUS have the highest sensitivity, while all the other imaging modalities have comparable specificity. The assessment of treatment response with different imaging modalities in esophageal cancer provides significant prognostic information necessary to construct a treatment plan consisting of effective and efficient therapeutic measures.
