Robotic assisted minimally invasive thymectomy with simultaneous bilateral thoracoscopy and contralateral phrenic nerve visualization

Introduction

Thymectomy is most commonly performed for thymoma and other anterior mediastinal masses, and in cases of medication-refractory myasthenia gravis with or without associated thymoma (1-6). While median sternotomy has been the longstanding approach to thymectomy and anterior mediastinal resections, numerous minimally invasive approaches have emerged in the last several decades (7-9). These minimally invasive approaches appear to reduce operative blood loss, pleural drainage time, and hospitalization times, and have equivalent long-term outcomes to the standard open approaches (10,11). In more recent years, robotic assisted approaches have also been added to the minimally invasive armamentarium (12-24). Potential advantages with this technology include three-dimensional view, a high degree of instrument and camera control, and articulated instrumentation.

Regardless of approach, visualization of the phrenic nerves and complete phrenic to phrenic resection remain a central technical principal of the operation. During unilateral thoracoscopic approaches, however, contralateral phrenic nerve visualization is often challenging to clearly achieve. This may limit the ability of the surgeon to safely perform a complete phrenic-to-phrenic thymic resection without significant potential risk of unintended iatrogenic nerve injury. In order to potentially minimize this risk, we incorporated a method of simultaneous and direct imaging of the bilateral phrenic nerves utilizing independent and synchronous video thoracoscopy of the right and left pleural cavities with concurrent visualization of the video images by the surgeon. This study presents our early experience using this technique during robotic-assisted minimally invasive thymectomy (RAMIT).

Methods

Patients

This was a retrospective review of all patients undergoing RAMIT with simultaneous bilateral thoracoscopy at the University of Pittsburgh Medical Center from January 2015 to May 2016. All patient information was collected in accordance with the tenets of the Declaration of Helsinki and the Health Insurance Portability Act. This study was approved by the institutional review board at the University of Pittsburgh (PRO15080367).

Operative technique (Figure 1)

Figure 1 Surgical technique video of robotic assisted minimally invasive thymectomy (25). 0:10, positioning and port placement; 0:39, mobilization of left phrenic nerve; 1:26, pericardial mobilization; 2:56, division of thymic horns; 5:27, contralateral dissection with bilateral thoracoscopy. Available online: http://www.asvide.com/watch/33092

The authors typically perform RAMIT from a left-sided approach, but may elect for a right-sided approach depending on laterality of the tumor, history of previous operations, or other concurrent pathology. The patient is induced under general anesthesia and a double lumen endotracheal tube is placed. The operation may be performed without lung isolation, although overall exposure may be difficult depending on the individual patient. Insufflation with carbon dioxide to a pressure of 8 mmHg is routinely used to enhance visualization as well. The patient is placed in a semi right lateral decubitus position. The right hemithorax is also exposed and prepped for later contralateral thoracoscopy.

An 8-mm camera port is placed in the 5^th intercostal space at approximately the anterior axillary line. Two 8-mm ports are then placed, one in the 5^th intercostal space at the mid-clavicular line, and the other in the 3^rd intercostal space approximately in the anterior axillary line. A 12-mm assistant port is placed between and caudal to the left hand robotic working port and the camera port, and is also used for removal of the specimen (Figure 2).

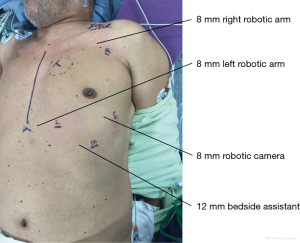

Figure 2 Patient positioning and robotic port placement. Patient is placed in semi right decubitus position. The right chest is also prepped for later installation of contralateral port.

In general, the mediastinal pleura anterior to the phrenic nerve is incised and the nerve mobilized away from the operative field, establishing the lateral margin of resection (Figure 3). This dissection plane is carried medially, sweeping all thymic tissue and fat en bloc from the pericardium (Figure 4). The pleural incision line is continued along the mediastinal pleura medial to the left internal mammary artery. This dissection plane is continued caudally, as well as medially towards the contralateral internal mammary artery with care to remove all soft tissue and attachments from the posterior sternal table, thus establishing the anterior margin and also removing any potential thymus containing tissue. Dissection is carried to the contralateral pleura, which is opened medial to the contralateral internal mammary artery. Superiorly, the innominate vein is identified and all tissue dissected free and all thymic tributary veins ligated. The left and right thymic horns are distracted caudally with constant, gentle retraction and resected en bloc with the specimen (Figure 5).

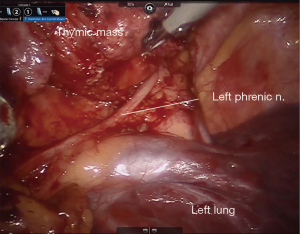

Figure 3 Mobilization of left phrenic nerve. The mediastinal pleura is incised along the length of the phrenic nerve and the nerve is mobilized from the thymus and/or associated thymic mass. n., nerve.

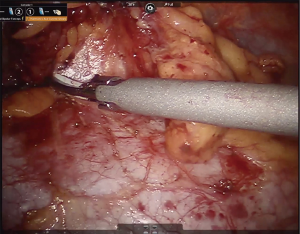

Figure 4 Pericardial dissection. All thymus, pericardial fat, and mediastinal soft tissues are mobilized en bloc from the pericardium.

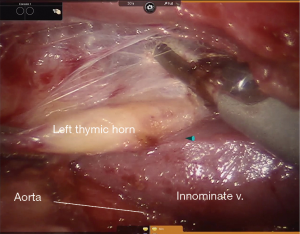

Figure 5 Superior horn division. The left and right superior horns are retracted caudally and divided with the ultrasonic shears. v., vein.

In preparation for contralateral (usually right sided) mediastinal dissection and phrenic nerve mobilization, a standard 5-mm port is placed in the right hemithorax in the inframammary fold in the midclavicular line. A thoracoscope is inserted, and video output from this is linked to the robotic imaging console via dedicated software. Thus, both the right and left thoracoscopic images from the standard and robotic scopes are displayed and viewed concurrently on the robotic surgeon’s console display, allowing the surgeon to simultaneously visualize both sides of the anterior mediastinum (Figure 6). This technique utilized the pre-existing software that is standard on available robotic operating systems, and does not require downloading of additional software. The bedside assistant controls the contralateral thoracoscope, maintaining synchronous visualization of the right phrenic nerve as the thymectomy is completed via the left sided robotic instruments. Thus, a complete phrenic-to-phrenic en bloc resection is ensured while minimizing risk of contralateral nerve injury.

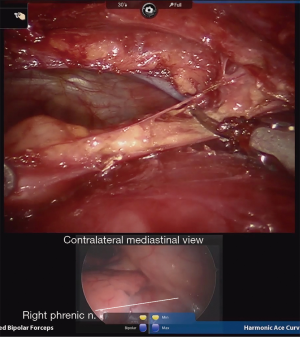

Figure 6 Bilateral thoracoscopy. Video output from contralateral thoracoscope is connected to robotic console, allowing the primary surgeon to maintain simultaneous bilateral visualization of the mediastinum.

Results

Patient demographics

Twenty-six consecutive patients undergoing RAMIT with simultaneous bilateral thoracoscopy were included in this study. The majority of patients were female (61.5%) with median age of 58 years (range, 29–76 years). Seven operations (26.9%) were performed for non-thymomatous myasthenia gravis, 3 (11.5%) for myasthenia gravis with thymoma, and 10 (38.5%) with thymoma only.

Operative characteristics and outcomes

Twenty-two (84.6%) patients received RAMIT from a left-sided approach, and 4 (15.4%) from a right-sided approach. In 4 cases, a second 5 mm contralateral port was placed for lung retraction and adequate visualization of the contralateral mediastinum and phrenic nerve. Median operative time and estimated blood loss were 188 minutes (range, 140–312 minutes) and 25 mL (range, 3–150 mL), respectively (Table 1). In most cases, a single transmediastinal chest tube was placed. In one case, a planned en bloc resection of a phrenic nerve was performed due to direct invasion from a thymic squamous cell carcinoma (stage T2N0). In this case, a wedge resection of both the left upper and lower lobes was performed. One patient had a patent left internal mammary to left anterior descending coronary artery bypass graft which was mobilized away from the operative field. There were no conversions to non-robotic thoracoscopic or open procedures.

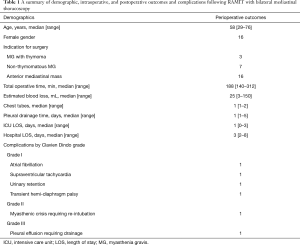

Table 1 A summary of demographic, intraoperative, and postoperative outcomes and complications following RAMIT with bilateral mediastinal thoracoscopy
Full table

Pathological assessment

Thymoma [10 (38.5%)] and thymic hyperplasia [6 (23.1%)] were the two most common histological diagnoses (Table 2). Thymomas were predominantly Masaoka stage IIa [9 (90.0%)] and WHO histological type AB [6 (60.0%)]. In two cases, microscopic positive margins were identified on final pathology assessment at the anterior (substernal) margins. In both of these cases, initial frozen section margin evaluation was negative at the time of surgery. Both patients underwent subsequent adjuvant radiotherapy.

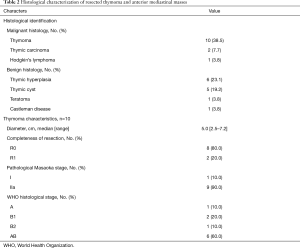

Table 2 Histological characterization of resected thymoma and anterior mediastinal masses
Full table

Postoperative complications and outcomes

Median intensive care unit and hospital length of stay were 1 day (range, 0–3 days) and 3 days (range, 2–8 days), respectively (Table 1). Twenty-one (80.8%) patients had a postoperative course free from complications. The highest Clavien-Dindo graded complication was a pleural effusion that developed in a patient with previous sternotomy and coronary artery bypass grafting. For this patient, a pigtail catheter was placed and was able to be removed within two days. One patient underwent re-intubation and plasmapheresis for myasthenia gravis. This patient had concurrent myasthenia gravis and thymoma. One patient with MG and concurrent hemangioma, initially thought to be thymoma, required significant and tedious neurolysis to release the phrenic nerve from dense pleural scarring associated with the mass. Although the nerve was clearly intact at the conclusion of the dissection, the patient did develop an asymptomatic ipsilateral hemidiaphragmatic palsy. This palsy was transient, and patient had full recovery. Median follow up time for patients with either thymoma or thymic carcinoma in this series was 7.3 months (range, 13 days–12.7 months). There was one death at 5.8 months postoperatively due to complications of idiopathic pulmonary fibrosis. There were no cancer recurrences.

Discussion

In this series, we present the feasibility of simultaneous bilateral thoracoscopy during RAMIT. This technique offers additional and concurrent visualization of the contralateral phrenic nerve and vascular structures while maintaining operative times, blood loss, and ICU and hospital stays comparable to other robotic experiences (Table 3) (12-24,26).

While minimally invasive approaches to thymectomy appear to reduce bleeding, intensive care and hospitalization times when compared to traditional median sternotomy, long-term outcomes data is lacking (11). Currently, it is not well understood whether the quality and completeness of thymic resection is maintained though minimally invasive approaches, especially in the setting of myasthenia gravis where resection of small amounts of residual thymus have demonstrated therapeutic results (27-29). Such findings may be in part why more limited approaches just as the transcervical approach have not been widely adopted.

Thoracoscopic approaches provide excellent visualization to the anterior mediastinum. A unilateral approach, however, does not necessarily provide adequate visualization of the contralateral side nerve and extent of thymic tissue. This may potentially compromise completeness of resection and/or increase the risk of contralateral phrenic nerve or vascular injury. The reported rates of phrenic injury in the existing literature, however, are exceedingly low, with only one robotic series documenting a long-term phrenic injury (Table 3). To restore bilateral mediastinal visualization, bilateral thoracoscopy has been described (30,31). Arguably, these approaches allow the surgeon to improve the extent of thymic resection with greater confidence to avoid injury to the contralateral nerve. A potential limitation of this approach is the ability to provide only unilateral visualization at any given moment. Also, a full complement of working ports is required to work on the contralateral side. Patient repositioning may be also be required. While the impact is likely small compared to the benefit gained, it is not known how such approaches may differentially affect operative time, and post-operative pain and morbidity. Bilateral simultaneous thoracoscopy during RAMIT may be an approach to moderate some of the putative limitations of standard bilateral thoracoscopy. The procedure maintains the high degree of instrument control offered by robotic surgical platforms, allows for efficient and concurrent bilateral mediastinal visualization, and obviates the need for additional contralateral working ports and patient repositioning. While this technique may not be required for all cases of mediastinal resection, this study has shown its feasibility and may serve as a surgical adjunct for cases where visualization is compromised due to either large degree of mediastinal fat and obstructing soft tissues or difficult patient habitus and/or anatomy. Future studies will be required to identify and elucidate the presence and magnitude of potential benefits.

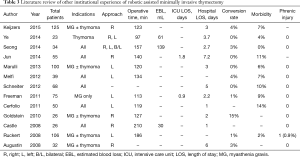

Table 3 Literature review of other institutional experience of robotic assisted minimally invasive thymectomy
Full table

This study has several limitations. This was a retrospective review of a small single center experience using bilateral thoracoscopy during RAMIT. The patient cohort is heterogeneous in terms of pathology and indication for operation. Also, this study represents a non-controlled case series with no direct comparison to other operative approaches. While the authors have made inferences regarding benefits of this approach, longer-term prospective data and patient follow up is needed to fully evaluate the outcomes of this technique in comparison to other operative approaches.

Conclusions

RAMIT with simultaneous bilateral thoracoscopy is a feasible approach that may provide a higher degree of safety and allow for a more complete phrenic-to-phrenic thymic resection in comparison to comparable unilateral minimally invasive operations. Comparative studies and long-term follow up are needed to adequately assess the potential benefits of RAMIT.
