Is the result of modified Allen’s test still accurate after endoscopic thoracic sympathectomy?

Introduction

The radial artery (RA) has been used for coronary artery bypass grafting (CABG) since the 1970s (1). However, the use of the RA as a coronary artery graft was soon abandoned because of poor patency rates, which could have resulted from arterial spasm. In the meantime, most patients who underwent CABG, received saphenous vein (SV) grafts in addition to internal thoracic artery (ITA) grafts for replacing the left anterior descending coronary artery (2). With the intervention of drugs and the improvement in surgical skills, revival of RA grafts ensued two decades later, because it had been found that the long-term patency rates of RA grafts were significantly higher than previously reported (1). Nowadays, it has been reported that the patency rate has reached nearly 90% in patients who accepted RA grafts (3).

With increasing use of endoscopes and ultrasonic knifes, especially in endoscopic RA harvesting, the harvest of the RA conduit has become more convenient than that of the internal mammary artery (4). Moreover, the RA conduit is associated with a lower postoperative complication rate, which reveals its superiority over SV as a graft (5). In addition to paresthesia at the operated side (6) and arteriosclerosis of the RA (7), the major problem is that the harvested RA is much easier to twitch than the SV and the ITA.

Palmar hyperhidrosis is characterized by abnormal hypersecretion of sweat glands in the hands, which is associated with hyperexcitability of ipsilateral sympathetic nerves. Endoscopic thoracic sympathectomy (ETS) can block the sympathetic innervation of the sweat glands of the upper limbs by cutting off the sympathetic nerve chain and its lateral branches, leading to dilation of blood vessels and improved hemodynamics eventually.

The modified Allen’s test (MAT) is the commonest method of assessing collateral arm flow prior to RA harvest, though it has limitations (8). Winkler et al. (9) reported that surgeons were least keen to proceed to RA harvest if the Allen’s test was positive (>10 seconds). Incomplete surgical sympathectomy, reinnervation of the sympathetic pathways, or hypersensitivity of the noradrenergic receptors regulating the precapillary sphincters reacting to very small amounts of circulating catecholamines have all been implicated as factors leading to recurrence of forearm vasospasm (10,11). We assumed that the changes in forearm arteries after ETS may lead to a false negative MAT result. Thus, the MAT result is of significance before the harvest of RA.

To study the effects of ETS on the hemodynamics of forearm arteries and MAT results, we performed ultrasonic tests to monitor the preoperative and postoperative hemodynamic changes, which could provide clinical evidence and theoretical analysis for the harvest of RAs for patients in need of CABG.

Methods

We consecutively reviewed the medical records of 164 Chinese patients with palmar hyperhidrosis from January 2016 to January 2019 in this retrospective cohort study. We performed ultrasound measurement and MAT of their RAs and ulnar arteries (UAs) in both forearms before and after ETS. This study was approved by the Institutional Review Board of the Second Affiliated Hospital of Soochow University. Due to the retrospective nature of this study, informed consent of patients was waived.

Study population

All included patients met the diagnostic criteria established by Hornberger et al. (12) in 2004, which were as follows: the local hypersecretion of sweat glands visible to the naked eye without obvious inducement lasting for more than 6 months, excluding secondary factors (such as drugs, endocrine diseases, neurological diseases, etc.). Meanwhile, at least two of the following criteria should be met: (I) symmetrical sweating area bilaterally; (II) affects daily work and life; (III) attacks at least once a week; (IV) the age of onset is less than 25 years; (V) a positive family history; and (VI) local sweating stops during sleep.

Surgical approach: ETS

We have been performing this surgery for over a decade and all of these cases were performed by the same experienced team. During the operation, T3 and T4 sympathectomy was performed along the sympathetic chain using a coagulation hook at the caput costae bilaterally. A 2-cm extension around the sympathetic chain was isolated and cauterized to ensure that the trunk and lateral branches of the nerve could be cut off completely. Hand temperature monitoring was done routinely.

After a successful operation, the incision was sutured intermittently, and a tube was placed into the chest cavity with its distal end placed under water. A positive pressure ventilation was conducted for a few seconds after lung re-expansion, then the tube was removed after the exhaustion of remnant air in the chest cavity. The incision was subsequently closed and covered without placing an intrathoracic drainage tube.

Ultrasonography study of forearm arteries

The ultrasonography studies were performed 1 day before ETS, and subsequently 1 day, 1 month, and 6 months after ETS. All of these ultrasonography studies were performed by the same sonographer. Two-dimensional vascular images and color Doppler ultrasonography of both the right and left forearm arteries were performed by an experienced ultrasonologist using a SonoSite TITAN portable ultrasound system (SonoSite Inc., Bothell, WA, USA). The transducer was placed perpendicular to the arterial wall to acquire an optimal image of the vessel. Once in position, the site was marked so that the same segment of the vessel was imaged throughout the examinations. The image was recorded in Audio Video Interleaved (AVI) format that was transferred to an external computer for subsequent analysis.

Patients lay in a supine position with both arms comfortably abducted and the wrist supported in a temperature-controlled operation room. The preoperative inner diameters of lumina of RA and UA on both sides were measured immediately after the respective styloid processes in each arm. Postoperative measurement of the bilateral RA and UA diameters was repeated after performing ETS. The mean inner diameter was defined as an average value of three perpendicular readings.

MAT

The same physician performed MATs synchronously with the ultrasonography at four corresponding time points. The MAT was performed by simultaneous compression of both the RA and UA. A cutoff point of 10 seconds was used (13). The patient was asked to make a fist and open his/her hand several times until the palm turned pale. The compression on the UA was then released. The MAT was defined as negative if full blushing of the palm occurred within 10 seconds, otherwise the MAT was defined as positive. For patients with a positive MAT result, the test was repeated after performance of ETS.

Data collection

In addition to bilateral arterial diameters, patients’ characteristics and wrist circumference, MAT results and blood pressure (BP) were recorded before and after ETS. Wrist circumference was measured 2-cm above the tip of the radial styloid process.

Statistical analysis

Statistical analysis was performed using IBM SPSS Statistics 19.0 (IBM Corp., Armonk, New York, USA). Categorical data were presented as absolute values and percentages, whereas continuous data were presented as mean ± standard deviation. The nature of distribution of the data was determined using the one-sample Kolmogorov-Smirnov test. Student’s t-test and Mann-Whitney U test were used to compare continuous data, as appropriate. Categorical data were compared using the chi-square test with the appropriate degrees of freedom. Statistical significance was set at P<0.05.

Results

Clinical characteristics of patients

A total of 164 patients with palmar hyperhidrosis were included: 74 (45.1%) were male and 90 (54.9%) were female. Baseline characteristics categorized by gender are detailed in Table 1. The male patients were significantly taller (P<0.0001) and heavier (P<0.0001) and had a greater wrist circumference (P<0.0001) than the female patients. Moreover, the RA was significantly smaller in women than men (P<0.0001) and the right RA was the largest. Several factors, such as smaller RA diameter, female sex, younger age, lower body mass index, diabetes, and active smoking have been identified as predisposing factors that increase the risk of developing RA spasm.

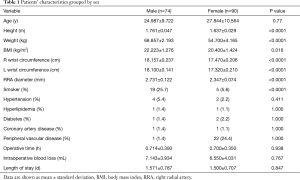

Table 1 Patients’ characteristics grouped by sex
Full table

Effects of ETS on the MAT result

Figure 1 shows the percentage of patients with a negative MAT result, both preoperatively and postoperatively. The MAT was observed as negative in a large proportion of patients before ETS, and the negative rate of the MAT was observed as different on both sides. The negative rate of the left hand was higher in male patients than that in female patients, whereas that of the right hand was just the reverse. After accepting ETS, all patients with a positive MAT result altered to show a negative result within 6 months.

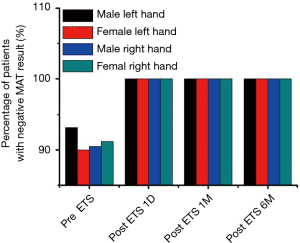

Figure 1 The percentage of patients with a negative MAT result preoperatively and postoperatively. MAT, modified Allen’s test; ETS, endoscopic thoracic sympathectomy.

Effect of ETS on diameters and maximal blood velocity (V_max) of forearm arteries

The diameters of the RA and UA on both sides are listed in Figures 2 and 3. The male patients had significantly larger wrist arteries than the female patients (P<0.05). For both sexes, the RA at the wrist was thicker than the ipsilateral UA, and the right RA had the largest mean diameter. ETS significantly increased the diameters of the RA and UA of the patient cohort (P<0.05). The maximal blood velocity (V_max) of the forearm arteries are shown in Figures 4 and 5. ETS significantly increased the V_max of the RA and UA in both genders.

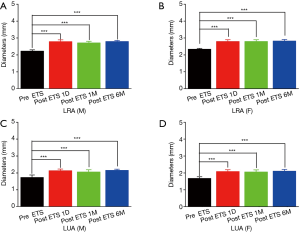

Figure 2 The changes in diameters of the left radial artery (LRA) and the left ulnar artery (LUA) in males and females. (A) The changes in diameters of the LRA in males; (B) the changes in diameters of the LRA in females; (C) the changes in diameters of the LUA in males; (D) the changes in diameters of the LUA in females. ***, P<0.0001.

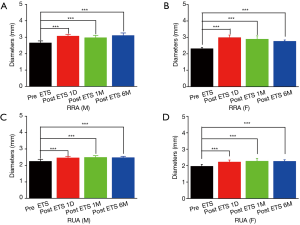

Figure 3 The changes in diameters of the right radial artery (RRA) and the right ulnar artery (RUA) in males and females. (A) The changes in diameters of the RRA in males; (B) the changes in diameters of the RRA in females; (C) the changes in diameters of the RUA in males; (D) the changes in diameters of the RUA in females. ***, P<0.0001.

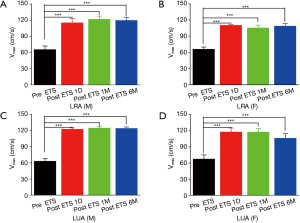

Figure 4 The changes in the maximal blood velocity of the left radial artery (LRA) and the left ulnar artery (LUA) in males and females. (A) The changes in the maximal blood velocity of the LRA in males; (B) the changes in the maximal blood velocity of the LRA in females; (C) the changes in the maximal blood velocity of the LUA in males; (D) the changes in the maximal blood velocity of the LUA in females. ***, P<0.0001.

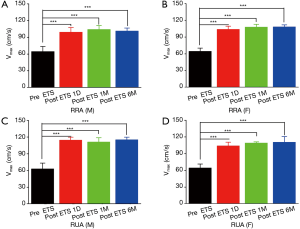

Figure 5 The changes in the maximal blood velocity of the right radial artery (RRA) and the right ulnar artery (RUA) in males and females. (A) The changes in the maximal blood velocity of the RRA in males; (B) the changes in the maximal blood velocity of the RRA in females; (C) the changes in the maximal blood velocity of the RUA in males; (D) the changes in the maximal blood velocity of the RUA in females. ***, P<0.0001.

Effect of ETS on systolic BP and heart rate (HR)

The BP and HR of both sexes changed little within 6 months after ETS (Figure 6). Therefore, ETS was well-tolerated and exhibited no significant impact on BP and HR of our patient cohort.

Figure 6 The changes in blood pressure and heart rate in males and females. (A) The changes in blood pressure in males and females; (B) the changes in heart rate in males and females.

Discussion

A recent study has reported that the reliability of MAT is limited (14). However, most physicians still consider MAT as an essential pre-operative procedure. The mean diameter of RA varies among countries, such as 2.4±0.4 mm in Japan (15), 2.6±0.4 mm in Korea (16), and 2.38±0.56 mm in China (17). Our study examined forearm arterial diameters and the effect of ETS on RA using high resolution ultrasound; the results were refined and categorized mainly by gender and laterality.

The incidence of coronary heart disease is increasing with each passing year, and the death rate has far exceeded that due to cancer; hence coronary heart disease poses a great threat to human health. According to the American College of Cardiology (ACC)/American Heart Association (AHA) guidelines, patients with coronary heart disease may be suitable for surgical treatment when drug treatment and internal interventional therapy are ineffective or of great risk. In addition, patients whose vessels are bent, completely occluded, or bifurcated with narrow left main coronary artery, are not suitable candidates for interventional therapy, either for balloon dilation or for the use of coated stents. Surgical revascularization has been considered the best solution because the bridging materials used in CABG are autogenous vessels. The long-term patency rate of coronary artery and vein was higher than that of most advanced coronary stents. Even ten years after the operation, more than 90% of the bridging vessels remain open. According to mid- and long-term follow-up results, the patency rate of RA is significantly better than SV (18-20). Regardless of age, sex, diabetes status, and left ventricular function, the use of RA is associated with a significant reduction in mortality during follow-up without an increase in perioperative mortality or morbidity (21). The easy accessibility, convenience in simultaneous harvest with other arterial conduits, and the potentially optimal caliber and length make the RA an almost ideal conduit for CABG (21).

To serve as a bridging vessel, the RA needs to be examined by MAT before CABG. The safety assessment of the harvest includes the following algorithm of tests: ultrasound, the Allen’s test, and pulse oximetry (22). The quality criteria that are used to exclude a RA from harvesting are small size of the artery, diffuse atherosclerosis, calcifications, and severe neointimal hyperplasia (22). However, there may be more false results, either positive or negative, than expected, which depend on the subjectivity of different examiners. If the Allen’s test is negative, it is safe to harvest the RA (8,13). If it is positive, further examinations are needed to ensure adequate blood supply in the ipsilateral UA after harvest of the RA (8,13).

ETS may treat primary hyperhidrosis by cutting off the corresponding thoracic sympathetic nerve chain and lateral branches, so that the sympathetic innervation in the sweat glands of the upper limbs is no longer effective. Notably, it is speculated that hemodynamics of upper limbs may also be affected. Schick et al. (23) found that the blood flow in the RA and UA in patients with primary hyperhidrosis increased significantly 2 days after ETS. In this study, the diameter and blood flow velocity of the RA and UA increased significantly after ETS, which was maintained for at least 6 months. We speculate that this was due to the loss of sympathetic dominance. Meanwhile, no abnormal changes in BP and HR were observed in post-ETS patients, which revealed that ETS had little impact on cardiac functions or hemodynamics.

RA spasm is one of the most common complications encountered during transradial procedures. Spasmogens in arterial grafts are well studied and include endothelium-derived contracting factors (e.g., endothelin-1), prostaglandins (e.g., thromboxane A2 or its mimetic PGF2α), α-adrenoceptor agonists (e.g., norepinephrine, methoxamine, and phenylephrine), platelet-derived substances (e.g., 5-hydroxytryptamine), and the cellular membrane-depolarizing agent potassium, as well as mast cells and histamine (24). Thus, the changes we observed in the RA were not sufficient to assess the safety of RA as a graft. Choudhary et al. have reported that diabetes mellitus, which causes generalized endothelial dysfunction, increased the risk of RA spasm or the vasomotor responses of RA grafts to physiological vasoconstrictors such as adrenalin, PGF2α, and angiotensin II (25). Moreover, smoking habit is also a pre-procedurally known factor that can predict the occurrence of RA spasm (26). To the best of our knowledge, there is no evidence available concerning the surgical treatment for RA spasm.

Removal of the RA has the potential to reduce forearm blood supply, leaving it completely dependent on the collateral circulation from the UA and can theoretically expose the patient to the risk of forearm ischemia. Therefore, it is worth taking the MAT result into account. In our cohort, 29 patients with a positive MAT result showed a negative result after ETS, which indicated that ETS increased the inner diameter and blood flow of both the RA and the UA.

Our study had several limitations. Due to the retrospective nature of our single-center study, selection and performance biases were inevitable. Although we have demonstrated that ETS had a significant impact on the diameter of the RA in patients with palmar hyperhidrosis, we were unable to monitor the long-term changes in the diameter of the RA in these patients due to a limited follow-up period. In addition, there is no denying the fact that other factors (mood, temperature, pain) associated with the RA might have been omitted in our study, which could have affected the patency rate of the RA. Notably, it is our speculation that long-term loss of epinephrine stimulation on the RA after ETS would decrease the activity of epinephrine receptors on the surface of the blood vessel, which might lower the likelihood of RA spasm. More studies and long-term follow-up are needed to address these limitations.

Conclusions

In patients with palmar hyperhidrosis, ETS was effective in dilating the RA in both men and women, which can lead to a false negative MAT result. Patients should be inquired about history of ETS if their RAs are supposed to be harvested for CABG. More studies are warranted to evaluate the safety of using the RA as a coronary artery graft after ETS.
