Practical conduct of open heart procedures for congenital heart lesions

Surgical procedures for congenital heart lesions can often be challenging not only in terms of the actual procedure itself but also for setting up the right cardiopulmonary bypass (CPB) conditions for the safe conduct of the procedure. The institution, conduct and termination of CPB have been compared to piloting of an airplane, both requiring constant attention and monitoring (1). The airline industry has inculcated check lists for all key stages of operation making air travel one of the safest modes of modern travel. Similar protocols and checklists for the surgeons, perfusionists and other members of the team could go a long way in making CPB safe for patients especially in the pediatric age group suffering from congenital heart lesions. Safe conduct of CPB is crucial to successful outcome in this subgroup of patients who often have a very narrow margin of safety. The following is a broad overview of the various steps of open heart surgery without going into the details of every step. The intention is to help the operator frame a plan for the safe conduct of open heart procedures for congenital heart lesions. Check lists have been added for keys steps of CPB.

History

The concept of CPB and open heart surgery underwent a revolution when Dr. John H. Gibbon Jr did the first successful intracardiac repair of an atrial septal defect using a heart lung machine in May, 1953 (2). Over the next couple of decades improvements in the practice of cardiac surgery, myocardial protection, technology and understanding of pathophysiology associated with CPB significantly improved the safety and outcome of open heart procedures on CPB. Although there were sporadic reports of accidents on CPB it was not until Stoney et al published their report in 1980 that the frequency of adverse events occurring during CPB came to light (3). This led to the adoption of safer techniques and practices. However, the rate of adverse events still continues to be significant both in the adult and pediatric population (4,5).

Stages of an open heart procedure

An open heart operation with intracardiac procedure typically comprises of 5 essential stages. This is true no matter how complicated the operation is:

• connection of patient to the external CPB machine via arterial and venous cannulation;
• functional separation of the heart from the circulatory system achieved by application of aortic cross clamp and safe and effective cardiac arrest;
• performance of intracardiac procedure;
• reconnection of the heart to the circulatory system achieved by removal of aortic cross clamp following deairing of heart chambers;
• separation of the patient from external CPB machine via arterial and venous decannulation;

Not every open heart procedure requires cessation of heart activity for some duration (i.e., stage 2 and stage 4) as for example pulmonary valve replacement can be entirely done on beating heart. Each stage consists of important steps that should be performed sequentially for a successful outcome (see Figure 1 and Table 1).

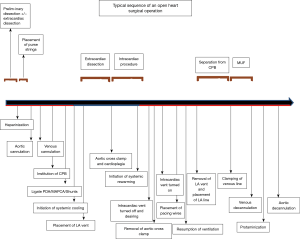

Figure 1 The typical sequence of an open heart operation.

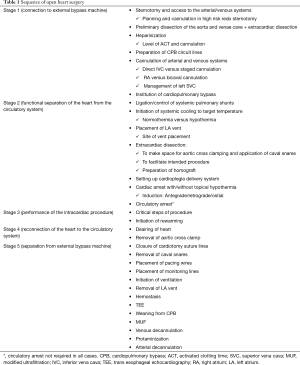

Table 1 Sequence of open heart surgery
Full table

The conduct of safe CPB involves personnel from different disciplines. The importance of functioning together as a team during conduction of CPB cannot be overstressed. There are extensive checklists and practice guidelines for perfusionists operating the pump (6). Similarly every surgeon should have mental check lists during the performance of critical stages of the operation. It is important to realize that although there is more than one way of performing a particular step, consistency of practice is paramount for improving safety in the operating room. This also makes communication easier between the various members of the team.

Brief review of CPB strategies

A brief mention of the different strategies of venting and myocardial management on CPB is made before enumerating the various steps and check lists of open heart procedure.

Venting of heart

Following institution of CPB, the right and left heart chambers continue to receive blood.

The various sources of blood flow to the heart on CPB are as follows.

Right heart

• Systemic venous return around the cannulae;
• coronary sinus drainage. This is blood without the aorta cross clamped and cardioplegia intermittently when the clamp is on;
• left superior vena cava (SVC);
• pulmonary collateral return retrograde across the pulmonary valve especially if the valve is incompetent.

Left heart

• Bronchial/Thebesian veins. This return is influenced by mean arterial pressure and presence of chronic lung infections/ cyanotic congenital heart disease (7);
• blood from the right heart across the pulmonary circuit;
• unusual sources:
• Systemic pulmonary connections like patent ductus arteriosus (PDA) and Blalock Taussig Thomas shunt;
• Septal defects like atrial septal defect (ASD) and ventricular septal defect (VSD);
• Anomalous systemic venous drainage like left SVC;
• Aortic regurgitation (AR) (preexisting/surgical manipulation).

Venting of the heart on CPB is essential to prevent distension that could result in myocardial stretch damage and pulmonary edema. Improper venting of the left heart results in:

• distension of the heart. There is a general consensus that the immature myocardium of neonates and infants is more vulnerable to stretch injury resulting from over distension of the heart (8);
• pulmonary edema. It is important to realize that pulmonary edema can happen without cardiac distension as for example following ligation of vertical vein without opening the common venous chamber in infradiaphragmatic total anomalous pulmonary venous connection (TAPVR). This can manifest as pump lung postoperatively.

Left ventricle (LV) distension occurs when it is unable to handle the load that is delivered to it. It happens most commonly at the following points during open heart surgery (9).

• At institution of CPB (cooling and hypocalcaemia);
• Ventricular fibrillation;
• Cross clamping of aorta;
• Administration of cardioplegia.

LV distension is most easily detected by inspection and palpation (9). The left atrial (LA) vent serves the following purposes:

• prevents distension and mechanical damage from excessive stretching;
• prevents pulmonary venous hypertension and pulmonary edema;
• facilitates surgical exposure by decreasing blood in field for example during VSD closure;
• improves myocardial preservation;
• reduces myocardial rewarming and washout of cardioplegia;
• decreases myocardial oxygen demand (decreases wall tension by reducing diameter of ventricle);
• facilitates subendocardial perfusion (by decreasing LV pressure).

Various methods of venting right heart include the following:

• Venous cannulae (SVC and IVC cannula);
• Separate right atrial (RA) cannula;
• Opening RA into pericardial sac;
• LA vent via septal defect (ASD/VSD).

Methods of venting of the left heart are described in the Table 2.

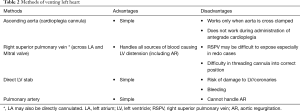

Table 2 Methods of venting left heart
Full table

Purpose of aortic cross clamp

Although cross clamp is mainly employed to enable an intracardiac procedure, it also serves other purposes:

• to prevent air embolism while the intracardiac procedure is being performed. E.g. Valve operation or closure of VSD;
• to provide a still field as for example coronary artery bypass grafting or RV outflow patch procedure when the incision is close to left anterior descending artery;
• to enable dissection as for example in infradiaphragmatic TAPVR lifting the heart to dissect out common chamber can cause AR and distend an already sick heart (10).

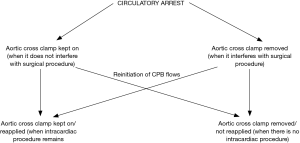

Purpose of circulatory arrest

Although employed chiefly for aortic arch operations, circulatory arrest is used in other situations.

• to provide a blood less field for example in repair of TAPVR;
• aortic surgery i.e., when working on the aorta beyond the cannulation site;
• intervention on IVC i.e., when working on the IVC below the cannulation site.

Safe duration of circulatory arrest and temperature

Presently there is not enough information to formulate an equation relating safe period of circulatory arrest to temperature. However almost all studies indicate that a period of less than 30 minutes is essentially safe and up to 45 minutes is acceptable at 18 degree C (11). At higher temperatures, the safe duration is unlikely to be beyond just a few minutes. Hence whenever circulatory arrest needs to be undertaken it is wise to cool all the way to deep hypothermia. Whenever short periods of circulatory arrest are required to enable dissection as for example in patients with excessive collateral flow, it is useful to cool at least to moderate hypothermia. This will allow short periods of safe circulatory arrest.

Methods of myocardial management during CPB

Multiple dose cold cardioplegic arrest

A number of cardioplegia solutions and techniques have been described (12). Both asanguinous and sanguineous solutions have been used with good results. A safe and effective cardiac arrest is essential for good outcome. The choice of cardioplegia depends on the anatomy, the operation and the operator. When the cardioplegia needle is placed it is a good practice to confirm brisk bleeding from the cannula indicating full entry into the lumen of aorta. Topical hypothermia may be used when myocardial protection is critical and a long clamp time is anticipated although there is no clear data supporting its routine use at the moment (13).

The different techniques of cardioplegia administration are summarized in Table 3.

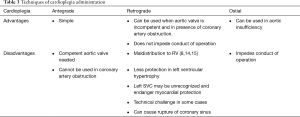

Table 3 Techniques of cardioplegia administration
Full table

‘Hot shot’ (warm, hyperkalemic, enriched blood cardioplegia) just before removal of aortic cross clamp and warm cardioplegia induction may be useful in the very sick hearts (16). Warm blood induction is felt to be beneficial in dysfunctional hearts because arrest at 37 degree C without ischemia enhances metabolic repair by channeling the ATP production towards reparative processes. This technique is worth considering in those with energy depleted hearts such as patients with hemodynamic instability, severe cyanosis or heart failure (8,17).

Fibrillating heart

Ventricular fibrillation with continuous coronary perfusion is a useful alternative to cardioplegic arrest for achieving a quiet field. Fibrillation can be induced and maintained by an electric current at normothermia. At moderate hypothermia, fibrillation can both be induced spontaneously or by electric current and can usually be maintained without continuous electric stimulation. Although there are some concerns about perfusion to the subendocardium especially in those with hypertrophy excellent results have been reported in adults (18). It is important to make sure that the heart is vented well during fibrillation. It is also a good idea to place an air vent in the ascending aorta.

Ventricular fibrillation reduces myocardial oxygen demand when compared to a working heart (19). This can be used to reduce the ischemic damage during the time interval between application of aortic cross clamp and initiation of retrograde cardioplegia (in retrograde cardioplegic induction).

Empty beating heart

This is another useful strategy that can be employed for certain operations like pulmonary valve replacement. Despite the evidence that the myocardial edema and altered pattern of coronary blood flow in an empty heart can cause myocardial ischemia, the method serves well under certain circumstances (20). Although traditionally used for operations on right heart, this technique is being increasingly used in adults for left heart operations like mitral valve replacement (21). The aorta is not cross clamped and the left side of heart is kept empty by continuous venting. Blood or air cannot pass the aortic valve as the pressure in the aortic root is higher. In patients with aortic insufficiency, the aorta is clamped and coronary sinus is perfused retrograde to keep the heart beating. This technique of beating left heart surgery has not yet been reported on a large scale in the pediatric population.

Either of the above mentioned strategies can be used for certain operations like pulmonary valve replacement.

A comparison of the different myocardial management techniques is presented on Table 4.

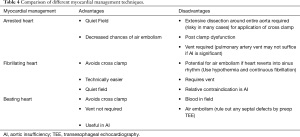

Table 4 Comparison of different myocardial management techniques.
Full table

Profoundly hypothermic cardiac ischemia

A number of studies have shown that deep hypothermia alone (15 degree C or less) provides better or equivalent myocardial protection in infants compared to the use of hypothermia with addition of cardioplegia (22,23). The heart is profoundly cooled by systemic hypothermia and topical cooling and the aorta is cross clamped. This provides 45 to 60 minutes of safe cardiac arrest (24). This method may be useful in infants when there is a doubt about the cardioplegia delivery and the heart function is already poor as for example in case of anomalous left coronary artery from the pulmonary artery where the cardioplegia delivery has not been satisfactory for some reason. A single dose of cardioplegia is considered adequate for myocardial protection at deep hypothermia in neonatal age group by many surgeons (25).

Manipulation of CPB flows

Varying the arterial flow and venous return may be advantageous to the surgeon in certain situations. Knowledge of this may prove handy in difficult situations. At full flow CPB the arterial flow into the patient is equal to the venous return into the reservoir. At normothermia a flow index of 2.4 L/min/m² is considered full flow CPB although lower indices can be used at lower temperatures. In certain situations the CPB flow rate may have to be increased above what is considered an appropriate index for the temperature.

• Low venous saturations. This is usually correctable by raising the hematocrit on pump;
• coronary air embolism. This is done to achieve a higher pressure head to drive out the air from the coronaries;
• compensation for steal from systemic circulation e.g., tetralogy of Fallot with pulmonary atresia situation, where one is not able to control the flow from collaterals;
• carotid or renal artery stenosis. This is again to achieve a higher pressure head and can be used in addition to vasopressors;
• persistently low perfusion pressure. This is in addition to vasopressors;
• expedite rewarming or cooling.

Unequal flows are not sustainable as it would result in either emptying of the patient or the reservoir of the CPB machine. However, one can use transient unequal flows in certain situations to one’s advantage (Figure 2). The blood volume of the patient can be shifted to either the reservoir of the CPB machine (e.g., in circulatory arrest) or vice versa by altering the relative flows in the arterial and venous limbs of the cardiopulmonary machine.

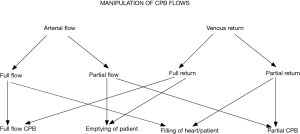

Figure 2 The possible manipulation of flows on CPB and its effects. CPB, cardiopulmonary bypass.

Patient volume can be either wholly or partially shifted to the reservoir by decreasing arterial flow while keeping venous drainage the same. This ultimately results in exsanguination of the patient. Transient decrease in arterial flows is useful in the following situations.

• To decrease blood in the field. This is especially useful when collateral flow is overwhelming and visualization of the operative field becomes difficult. However continuous monitoring of venous saturations is necessary to avoid tissue ischemia. Systemic cooling is useful when such a situation is anticipated;
• unexpected ventricular distension e.g., undetected patent ductus arteriosus;
• aortic dissection or tear to avoid progression of tear;
• ligation of a large patent ductus arteriosus to avoid rupture of ductus.

Unexpected or expected decrease in arterial flows should be matched by decreasing venous returns to prevent patient exsanguination e.g., arterial cannula obstruction or small arterial cannula. This is essentially a situation of partial CPB and may be experienced when peripheral cannulation permits less than ideal size arterial cannula in a redo situation. Similarly reservoir volume can be deliberately shifted to the patient by maintaining the arterial flow while decreasing the venous return. This ultimately results in emptying of the reservoir. Decreasing venous return is useful in the following situations:

• to fill up the heart just before placing the left atrial vent;
• to distend the SVC for cannulation;
• to deair the heart;
• to impart ejection (when heart is beating).

Unexpected or expected decrease in venous return should be matched by decrease in arterial flow to prevent emptying of reservoir e.g.,

• sudden airlock;
• manipulation of venous cannula.

Sternotomy and access to the arterial and venous systems

Gaining access to the systemic arterial and venous systems is the first step in establishing CPB. The approach is usually straightforward in the first operation when aorta and both the cavae or the right atrium are easily accessed. This can however be a challenge in a redo situation when the heart, aorta or the pulmonary conduit are closely adherent to the sternum. In such cases, alternate sites of arterial and venous cannulation may have to be sought. The neck vessels (in patients weighing less than 15 kgs) or femoral vessels (in patients weighing more than 15 to 20 kgs) can be used for establishment of safe CPB. This also leads to decompression of the heart enabling safer dissection. Even partial CPB and the resulting decompression of the heart when the peripheral vessels are small can provide safe conditions for dissection. Once the heart is exposed, additional venous cannula can be placed for a bicaval cannulation as the need may be. Decision to use peripheral cannulation or expose the vessels in a redo case is based on degree of adhesion of the heart to the sternum as judged by imaging investigations and operator experience. Even when the peripheral vessels are small, one can use partial flows, cool the patient and decompress the heart. Some tips concerning redo sternotomy are presented on Tables 5-7.

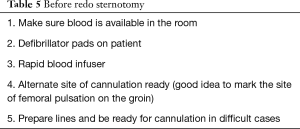

Table 5 Before redo sternotomy
Full table

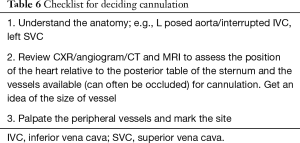

Table 6 Checklist for deciding cannulation
Full table

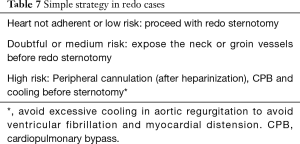

Table 7 Simple strategy in redo cases
Full table

Preliminary dissection of the aorta and cavae—extracardiac dissection

Preliminary dissection of the aorta and right atrium or both cavae is necessary to facilitate cannulation. Dissection should provide enough room for purse string and cannulation at a minimum and application of aortic cross clamp or caval snares when necessary. In difficult situations, the vessels can be dissected safely once they are cannulated and CPB is established or alternative strategies can be employed (ventricular fibrillation for difficult aorta and advancement of right atrial cannula into vena cava). In some situations, the great vessels may be scarred so badly that it may become difficult to differentiate the aorta from the pulmonary artery or RV to PA conduit. In such cases one can use a needle to record the pressure tracing to differentiate between them.

The extracardiac dissection at this stage (preCPB) is limited by hemodynamic instability and bleeding in high risk cases (e.g., scarred conduit). Blood is lost to external suction if patient is not heparinized or a cell-saver is not in use. If patient is heparinized, it can be suctioned into the reservoir. If the arterial cannula is already in place and the patient is hemodynamically unstable, one can go on suction CPB and gain venous access to commence CPB.

Heparinization

Heparin is most often administered by the anesthesiologist into a central line. If there is a doubt of the venous access, it is a good idea for the surgeon to administer the heparin directly into the RA. A high ACT is a must to prevent clot formation in the circuit. It is a good idea to request for heparin administration early in the course of an easy dissection to give 4 to 5 minutes for the heparin to distribute and act. Aortic and bicaval or RA purse strings should be placed now for cannulation.

An accepted protocol of action based on ACT level (institutional practices vary) is presented in Table 8.

Table 8 ACT based protocol for cardiopulmonary bypass
Full table

Preparation of CPB circuit lines

Once the purse strings are in place, the surgeon should get the CPB lines ready ahead of cannulation. Institutional practices vary with regards to the position of the CPB machine with respect to the surgeon (front or behind). Sufficient length and occlusion should be checked on both arterial and venous sides. The venous side should be tailored for single RA venous cannulation, double venous cannulation (by adding a Y connector to the venous limb) or additional left SVC cannulation (double Y connectors on the venous limb). The lines should lie in a comfortable loop without kinks or redundancy and the lines should be firmly secured to the operative field.

Cannulation of arterial and venous systems

Perhaps the single most important step in establishing CPB is a safe arterial cannulation. Following this the right atrium or cavae are cannulated. Suction bypass can be instituted if venous cannulation becomes difficult. The arterial and venous cannula are the lifelines and perhaps the weakest links in the connection between the external pump and the patient. Extra precaution should be exercised to secure these cannula. Some useful tips for cannulation are presented in Table 9.

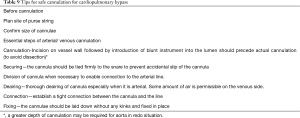

Table 9 Tips for safe cannulation for cardiopulmonary bypass
Full table

The perfusionist must be able to record a good pulsation from the arterial line at the end of aortic cannulation. Alternate sites of cannulation are the base of the innominate artery, carotid and femoral arteries.

Venous cannulation can be achieved in different ways as shown in Table 10.

Table 10 Strategies for venous cannulation
Full table

The indications for RA and bicaval cannulation are shown in Table 11.

Table 11 Indications for venous cannulation
Full table

Innominate vein cannulation may be used where the SVC needs to be worked upon .e.g. in Warden operation. Alternate site is the internal jugular vein. Similarly femoral venous cannulation may be used when one needs to work low on the IVC e.g. in extracardiac Fontan operation or inferior type of sinus venosus ASD.

Management of left SVC

Persistent left SVC is present in 2% to 10% of population with congenital heart disease. This incidence increases to 40% in patients with abnormal situs (9). In most cases it drains into RA. In 10% it drains into LA. Occasionally there are defects in the wall of the coronary sinus leading to a type of atrial septal defect.

The following issues may arise in presence of a left SVC during open heart operation.

• Retrograde cardioplegia.There could be a problem with balloon occlusion and dilution of cardioplegia by blood (28);
• Right heart entry/decompression. The operative field may be flooded with blood making any procedure on the right side of the heart difficult. The management options are:
• Occlusion of left SVC. When innominate vein is present, one can safely occlude left SVC except in the following situations:
• Rare possibility of atresia of coronary sinus. Occlusion of left SVC can cause myocardial injury (29);
• Absence of right SVC. When innominate vein is absent, occlusion may cause cerebral injury. This should only be done for a short duration while documenting venous pressure cephalad to site of occlusion;
• Selective cannulation of left SVC;
• Cardiotomy suction in the LSVC with caval occlusion.

Suction CPB

In some cases, it may be advantageous to use suction CPB for a brief duration to avoid dissection and snaring of badly adherent cavae. Suction CPB causes increased hemolysis and is not as efficient as closed venous bypass (30,31). The advantages and disadvantages of this technique are presented on Table 12.

Table 12 Comparison of suction and conventional closed cardiopulmonary bypass
Full table

Performance of IVC cannula

It is critical to note the performance of the IVC cannula on CPB. The IVC cannula being the larger cannula not only drains the IVC but also the coronary sinus return. This can be noted as good collapse of the RA on CPB. Occasionally the cannula may not be very effective and blood can flow around the cannula into the RA. The knowledge of this is important towards end of operation when the IVC is desnared. If the cannula was effective in draining the coronary sinus return earlier, then de-snaring the IVC may be helpful in decompressing the right heart. If, however the cannula had not draining well, then de-snaring may result in more distension of the right side. In such cases, it is worthwhile to delay de-snaring until the contractility has improved (see Figures 3,4).

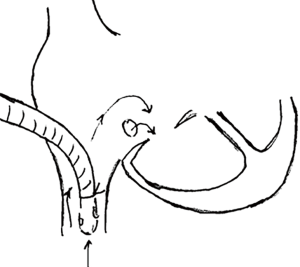

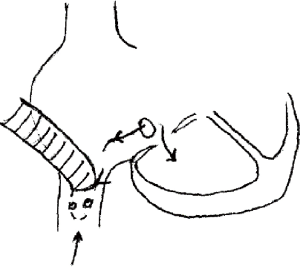

Figure 3 Optimal drainage of IVC cannula. IVC cannula drains entire IVC return and some of the CS return. A beating RV handles the rest of the CS return but distends during cardiac arrest. IVC, inferior vena cava; CS, XX; RV, right ventricle.

Figure 4 Poor drainage of IVC cannula. IVC cannula barely drains entire venous return. Snugging of IVC often improves return. IVC, inferior vena cava.

If RA is not opened for the majority of operation, then it is a good idea to leave the larger venous cannula in RA and shift to IVC only when RA needs to be opened. The cannula drains better in RA position than when positioned in IVC. An alternate strategy is to turn the cannula upwards until RA needs to be opened. The cannula can be turned down into the IVC and snared just before RA incision.

Institution of CPB

When transitioning the work of the heart to an external machine, precaution must be exercised. It is a good practice to keep looking at the heart as CPB commences. One must look at the ascending aorta for any signs of dissection and the RA for decompression indicating good venous return. Some useful tips while instituting CPB are listed in Table 13.

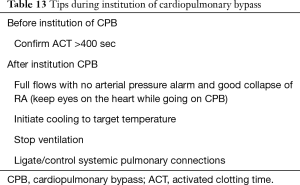

Table 13 Tips during institution of cardiopulmonary bypass
Full table

Ideally there should be minimal or no ejection with a well collapsed RA. When ejection is significant one should think of:

• aortopulmonary shunt. e.g., TOF.PA with aortopulmonary collaterals;
• aortic insufficiency.

Improper venous drainage can result in ejection. However, this can be detected by a poorly collapsed RA or a CVP greater than zero. Causes of decreased venous return and arterial flow are listed in Table 14.

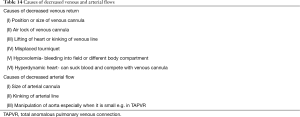

Table 14 Causes of decreased venous and arterial flows
Full table

It is important to understand that anything that causes significant ejection while the heart is beating on CPB can result in distension if the heart loses contractility or is arrested.

Concept of left heart bypass

In an emergency or abnormal situs, one can cannulate the left atrium if that is more readily accessible (33). The lungs can be kept ventilated or deflated. The perfusionist should be warned of red color of the venous return when lungs are kept ventilated. The cannula can be shifted once access is gained to the RA.

Ligation or control of systemic pulmonary shunts

The presence of systemic pulmonary shunts can lead to hypotension due to runoff into the pulmonary vascular bed. Hence it is important to control these as soon as bypass is initiated. When these cannot be controlled as for example MAPCAs in TOF.PA, one should either keep the heart beating (using normothermic normocalcemic CPB strategy) or use higher flows (to compensate for the steal of blood from the systemic circulation) and adequate venting for the increased left heart return. Examples of systemic pulmonary shunts include:

• PDA;
• BT shunt;
• MAPCAs.

An undiagnosed PDA or shunt manifests as persistent poor systemic pressure and can sometimes lead to sudden LV distension. Diagnostic pointers are decreased perfusion pressure, dilated main pulmonary artery, distended LV and right heart distension in presence of a VSD or pulmonary insufficiency. Emergent interventions in such cases include:

• decrease CPB flows immediately;
• vent the heart;
• dissect and ligate PDA;
• restore normal flows.

Initiation of systemic cooling to target temperature

The plan to use a certain degree of hypothermia should be made in advance. Practices vary widely and the operator has to choose the strategy he or she is most comfortable with. At the moment there is no good evidence supporting one strategy over the other in the pediatric population although there is some data emerging in the adult population (34). Table 15 shows the potential advantages and disadvantages of the two strategies. Some useful tips during cooling are listed in Table 16.

Table 15 Comparison of normothermia and hypothermia during cardiopulmonary bypass
Full table

Table 16 Tips for cooling on cardiopulmonary bypass
Full table

Placement of LA vent

The left side can be vented via different routes such as right superior pulmonary vein, left ventricular apex, left atrial appendage or pulmonary artery. In difficult redo situations the left side can be vented by opening the right atrium and creation of a defect in the atrial septum. When there is significant collateral return, the vent in the right superior pulmonary vein is more advantageous compared to a vent across the atrial septum as it provides continuous decompression of the LV immediately after application and removal of the aortic cross clamp when the LV contractility is poor. The LA vent can be placed before or after application of cross clamp. The advantages and disadvantages of either approach are listed in Table 17.

Table 17 Comparison of timing of LA vent placement
Full table

Special situations of left side venting:

• Single ventricle situation. Left side is vented across the atrial septal defect (ASD) through the venous cannula. When the heart is arrested and cannula are snared, it is important to either place an additional vent or open one of the atrial chambers.
• Repair of ostium secundum ASD. Usually no vent is placed. The right atrium is opened as soon as the heart arrests and the left side vents across the ASD. Earlier rewarming restores cardiac activity as soon as clamp is released. Cardiac massage may be rarely needed to prevent distension.
• Supracardiac TAPVR. Vertical vein acts as vent both during cooling and rewarming and should not be ligated till LV has regained contractility.
• Infracardiac TAPVR. Vertical vein is incised open (open vent) during cooling and should not be ligated earlier to opening. Earlier rewarming or massage may be necessary to prevent distension during rewarming.

Following placement of the LA vent, one can snare the IVC and SVC if there is an atrial communication. If there is no atrial communication and the right side has lost contractility, the IVC cannula should be allowed to drain the coronary sinus return. It is extremely important to be cognizant of the coronary sinus return (blood before aortic cross clamp and cardioplegia after aortic cross clamp application) to avoid right heart distension.

Extracardiac dissection

This has three components

• Dissection around ascending aorta for application of cross clamp and around vena cavae for snares;
• essential extracardiac dissection for the particular operation.
The branch PAs need to be mobilized well for an arterial switch operation while the azygous vein needs to be ligated for a bidirectional Glenn. Such extracardiac dissection or mobilization is different for every operation. Much of the extracardiac dissection should be done on CPB to decrease cross clamp time just as dissection done prior to going on CPB decreases CPB time. Simple parts of repair can also be completed e.g., marking sutures should be placed on RVOT or ascending aorta. Although hemodynamic instability is no longer an issue, factors limiting the extent of this dissection on CPB are:
• coronary ischemia: it is important to realize that significant potential for myocardial ischemia exists when the aorta is pushed or pulled around while on CPB as these maneuvers result in kinking of coronary arteries (dramatically seen when the diminutive aorta in HLHS is pulled or pushed around);
• aortic regurgitation: the same maneuvers can result in aortic insufficiency and distension (especially when heart has lost contractility).
• Tailoring of the homograft. Myocardial arrest time can be reduced by proper sizing and tailoring of the homograft before application of cross clamp e.g., aortic cross clamp time can be significantly reduced if bicuspidization of pulmonary homograft is performed before the heart is arrested.

Setting up cardioplegia delivery system

The cardioplegia system should be planned for each patient. It is a good idea to have both a retrograde and direct ostial cannula on the table when an aortotomy is performed. A pressure monitoring system and small syringe are necessary for retrograde cardioplegia delivery. It is good to zero the pressure line for retrograde cardioplegia delivery prior to aortic cross clamp.

Cardiac arrest

In cases where myocardial protection is in doubt, it is a useful strategy to employ systemic cooling to provide additional protection to the heart. Cooling not only decreases the temperature of the myocardium and hence the oxygen requirements but also allows decrease in CPB flows and hence the left heart return that tends to wash out the cardioplegia.

Venting of cardioplegia return

It is essential to formulate a plan for venting the cardioplegia. When the IVC cannula has been draining the coronary sinus return well, one can use it to vent the cardioplegia return before snaring it. If, however the cannula has not been draining well, then the right heart could distend with the coronary return unless the RA is opened or it is drained across an atrial septal defect by a cannula in left atrium. Table 18 presents a check list before and after application of aortic cross clamp.

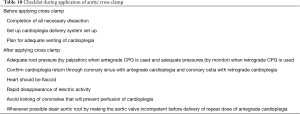

Table 18 Checklist during application of aortic cross clamp
Full table

Circulatory arrest

When one needs to work on the aorta (beyond site of arterial cannulation) or IVC (below site of venous cannulation), blood flow will have to be essentially stopped to enable surgical work. Hypothermia provides protection during these stages of reduced flow.

• It is important to realize that circulatory arrest also shuts off coronary blood flow and is physiologically equivalent to a cross clamp. Therefore, one must always use cardioplegia to protect the heart during this period. In other words, cross clamping and cardioplegic arrest must always precede circulatory arrest. The cross clamp can be either be kept on during the arrest or removed to facilitate operation. If the cross clamp is removed, one must remember to reapply it when flows are reinitiated for continued arrest of the heart (if intracardiac operation still remains). It is also important to deair the ascending aorta to prevent coronary and cerebral air embolism when the cross clamp is taken off. The two approaches are summarized in Table 19 (also see Figure 5).
• During cooling to deep hypothermia, cardioplegic arrest of the heart can be done at any point. Intracardiac procedure can be done during the mandatory cooling period (often 20 minutes). If the heart fibrillates earlier to clamping, it is important to keep it vented to prevent distension.
• Similarly, the aortic cross clamp can be removed at any time point during rewarming so far as the heart is vented well enough until it regains its contractility.
• Single dose of cardioplegia is sufficient during myocardial arrest at deep hypothermia in up to 2 to 3 months of age (25). Multiple doses are required in older age group.
• Intermittent perfusion to interrupt circulatory arrest when time constraints are anticipated is useful (11). Some authors believe that if the brain is perfused between periods of circulatory arrest, the durations of circulatory arrest are not additive (39,40).
• An inaccurate repair of the heart (especially possible when there is increased collateral flow and blood in the field) can produce significant damage in the long term. This risk should always be weighed in when deciding the necessity of circulatory arrest and its duration. Circulatory arrest can also be used in neonates or small single ventricle infants where one wishes to avoid cannulation of the SVC and potential narrowing of it.

Table 19 Comparison of strategies for aortic cross clamp following initiation of circulatory arrest
Full table

Figure 5 Comparison of strategies for aortic cross clamp following circulatory arrest. CPB, cardiopulmonary bypass.

A check list before and after circulatory arrest is presented in Table 20.

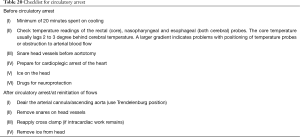

Table 20 Checklist for circulatory arrest
Full table

It is important to deair the arterial cannula and ascending aorta by using trickle flows before establishing full flows. The surgeon or the perfusionist should clamp the venous cannula before removing it from the atrium.

Intracardiac procedure

Whenever the right atrium needs to be opened, it is important to snare the cavae to prevent air entrainment. Therefore in a case with no atrial communication following aortic cross clamping one can either wait for the IVC cannula to drain the cardioplegia or snare the IVC and quickly open the RA.

Snaring cavae is necessary whenever the right side has to be opened. Exceptions are:

• opening RA during circulatory arrest;
• opening RV when TV is competent and tricuspid chordae are not in area of work.

Snaring cavae is also essential when LA is opened in presence of an ASD.

Myocardial protection is maintained by intermittent administration of cardioplegia with a continuous watch on electrical activity. Intermittent cardioplegia is often used at intervals of 20 to 30 minutes either as full or half doses for St. Thomas cardioplegia. This 20-minute rule can be violated in some circumstances. Del Nido cardioplegia is often repeated every 45 to 60 minutes.

• When only a little more time is needed to complete the repair;
• questionable activity of the heart. When in doubt, run additional doses of cardioplegia;
• bursts of cardioplegia can be used to distend the aortic root and observe leaflets either to define the annulus or rule out injury to the aortic valve;
• when an alternate/easier route of cardioplegia delivery may not be available for a while, e.g., during arterial switch operation, one may use cardioplegia ahead of the due time to buy full 20 minutes to reimplant the coronaries.
• a single dose of cardioplegia is generally sufficient for neonates at deep hypothermia.

Whenever possible, it is important to deair the aortic root and cardioplegia line ahead of cardioplegia delivery e.g., one can deair the aortic root by making the aortic valve incompetent during closure of a VSD.

Initiation of rewarming

The initiation of rewarming (if hypothermia has been used) usually marks the first step towards weaning the patient from the CPB machine. Usually rewarming precedes removal of the cross clamp to allow the warm blood to restore heart activity and contractility faster. However, if the intention is to keep the heart quiet, hypothermia can be continued while the cross clamp is removed to decrease the myocardial ischemia time. In such cases venting of the left heart is usually required. Examples of both approaches are listed in Table 21. Rewarming can either be done all the way up to normothermia or in stages as the operation progresses. Table 22 presents a check list for initiating rewarming.

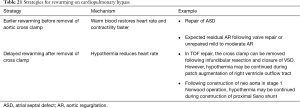

Table 21 Strategies for rewarming on cardiopulmonary bypass
Full table

Table 22 Checklist for rewarming on cardiopulmonary bypass
Full table

Deairing of heart

This is a key step of open heart surgery. The price for inadequate deairing can be high in the form of cerebral or coronary air embolism. Sites for deairing the heart are gaps in suture line of septal patches or LA incision and cardioplegia needle site.

Deairing is often easier in cyanotic patients when there is increased left heart collateral return than in left to right shunts. To initiate the process of deairing, the LA vent has to be shut off and the heart allowed to fill (with blood or normal saline) before closing to minimize air entrapment. This is based on the amount of left heart return observed during operation. The lesser the return, the earlier the process of filling the left heart should be initiated. In addition saline can be used to deair the heart in such cases. It is important to deair the right side as much as possible before closure of the chambers. In the presence of AV fistulae, air from the right side can enter the systemic circulation. Intermittent or continuous carbon dioxide insufflation into the operative field is an effective method to decrease air trapping within the chambers of the heart and the great vessels.

Deairing continues after removal of cross clamp. Either the aortic vent site is allowed to bleed or an active root vent is used. It has become a standard practice now to use TEE to rule out air in the heart following removal of the root vent (41). The steps of deairing are listed in Table 23.

Table 23 Steps of deairing heart
Full table

Removal of cross clamp

In general the aortic cross clamp is removed as soon as the left heart is completely closed (purpose of the clamp here is to prevent air embolism). Exceptions are made when delicate suturing has to be done e.g. outflow tract patch close to LAD (purpose of clamp here is to keep the field still). In a single ventricle situation, the clamp is removed following deairing of the single ventricle. Table 24 presents a checklist for removal of aortic cross clamp. Sometimes profound hypotension can be experienced on release of aortic cross clamp especially when the clamp times have been long. This is related to release of cytokines from reperfusion of the myocardium.

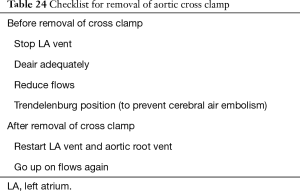

Table 24 Checklist for removal of aortic cross clamp
Full table

When heart activity takes longer than usual to return following removal of cross clamp, think of:

• recent cardioplegia admiinstration;
• high potassium level in blood;
• coronary air embolism.

Separation from CPB

Following removal of cross clamp, any incision on the right heart is closed. The snares over the cavae are removed. Preparations should be now made to come off CPB. Pacing wires should be placed over both the atrial and ventricular chambers. Intracardiac lines should be placed for access or monitoring of pressures if necessary. Ventilation is resumed and airway secretions are cleared. The LA vent is removed when contractility of heart has recovered (i.e., the heart is capable of handling the pulmonary venous return). It’s always important to remove the vent under a fluid level of blood/saline to prevent air embolism. Ejection is imparted to the heart to encourage deairing. The aortic root vent is removed when transesophageal echocardiogram (TEE) has confirmed absence of air and no more air is seen coming out of the cannula. Table 25 presents a checklist for removal of LA vent.

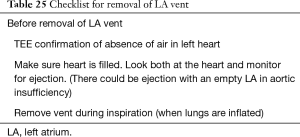

Table 25 Checklist for removal of LA vent
Full table

Separation from CPB is a challenging part of open heart surgery requiring careful monitoring of multiple parameters and is well described in detail in other texts (42). Epicardial echocardiography and TEE have proved to be immensely useful in evaluating the adequacy of repair of complex congenital heart defects and guiding the surgeon (43,44). Modified ultrafiltration appears to be beneficial in neonates and infants and results in elevation of hematocrit and generalized improvement in pulmonary and cardiac function (45,46). Most pediatric centers today practice conventional or modified ultrafiltration. Table 26 presents a list of key hemodynamic parameters monitored during termination of CPB.

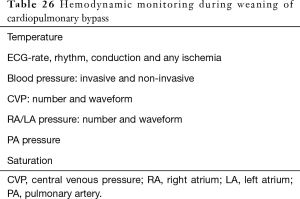

Table 26 Hemodynamic monitoring during weaning of cardiopulmonary bypass
Full table

Venous decannulation

The venous cannula can be removed from the right atrium or cavae following confirmation of satisfactory hemodynamics after separation from CPB and in the absence of major bleeding. When there is a single venous cannula in the RA, the patient has to be weaned completely off CPB before venous decannulation. When there are two cannula in both the vena cavae, one of the venous cannula can be removed as a part of weaning. A check list for venous decannulation is presented in Table 27.

Table 27 Checklist for removal of venous cannulae
Full table

Arterial decannulation

Following venous decannulation, protamine should be administered. Following administration of 1/3 to 1/2 dose of protamine and in the absence of a reaction to protamine, the arterial cannula can be removed. In cases of brisk bleeding, the arterial cannula can continue to be kept in place and used to resuscitate. The cannula can also be shifted to the right atrium and used for resuscitation in case there is bleeding at the cannulation site. In some situations, the aortic cannula can be relatively large compared to the size of the ascending aorta e.g., following TAPVR repair. In such a situation, the cannula can cause significant obstruction of the aorta and cause systemic hypotension. This should be taken into account before comparing the right and left sided pressures.

Following arterial decannulation the aortic purse string and the remaining venous purse string are tied (except when one expects to go back on CPB or ECMO). Hemostasis is once again confirmed. The chest tubes are placed. The sternum is closed while continuously monitoring the hemodynamics. A brief check list for sternal closure is shown in Table 28.

Table 28 Checklist before sternal closure
Full table

CPB emergencies and management

In spite of the tremendous advances in techniques and perfusion education, there continue to be accidents on CPB (5,47,48). Human error can never be completely eliminated and when such errors happen the surgeon more than anyone else should not panic. Calm and deliberate movement is more effective than frenetic movement. Table 29 summarizes some possible CPB disasters, their management and prevention.

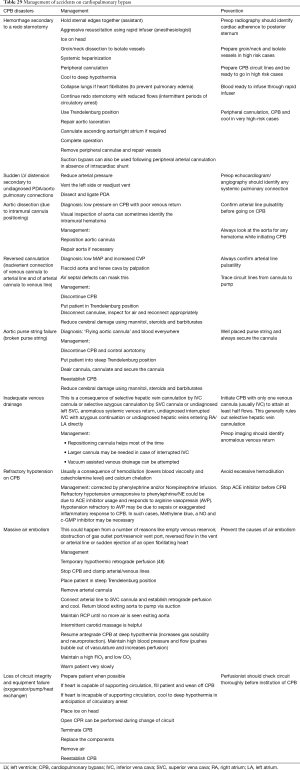

Table 29 Management of accidents on cardiopulmonary bypass
Full table

One of the most common reasons for disasters in the operating room is lack of proper communication between the members of the team. Studies have shown that effective communication contributes highly to cardiac team success (49,50).

In addition to the above mentioned accidents, there can be other unusual problems in CPB (51).

There are also specific situations with unique challenges to CPB which the surgeon should be aware of. They are:

• Increased collateral return: usually in preexisting cyanosis of long duration.
• Large or more than one left heart vent may be required;
• Hypothermia: operating in dependent regions difficult because of the flooding of blood. So one may be forced to use lower flows. Hypothermia permits lower flows. Continuous monitoring of venous saturations imperative;
• Deairing easier but quicker. Beware of heart distension;
• Hypothermia also provides myocardial protection in face of increased return to heart and wash out of cardioplegia.
• In Jehovah’s witness, consider the following:
• A lower threshold for elective groin dissection/ cannulation in redo cases;
• Cell saver;
• Hemodilution;
• Venous autologous perfusion (VAP)/retrograde aortic perfusion (RAP).

Conclusions

There is no doubt that there will continue to be progress to make CPB easier and safer for children in the future. However, the principles for conducting a safe CPB will continue to be the same. A firm hold over these principles of CPB is imperative for good surgical outcomes.

Acknowledgments

Funding: None.

Footnote

Provenance and Peer Review: This article was commissioned by the Guest Editor (Raghav A. Murthy) for the series “Management of Congenital Heart Disease” published in Journal of Thoracic Disease. The article was sent for external peer review organized by the Guest Editor and the editorial office.

Conflicts of Interest: The series “Management of Congenital Heart Disease” was commissioned by the editorial office without any funding or sponsorship. The author has no other conflicts of interest to declare.

Ethical Statement: The author is accountable for all aspects of the work in ensuring that questions related to the accuracy or integrity of any part of the work are appropriately investigated and resolved.

Open Access Statement: This is an Open Access article distributed in accordance with the Creative Commons Attribution-NonCommercial-NoDerivs 4.0 International License (CC BY-NC-ND 4.0), which permits the non-commercial replication and distribution of the article with the strict proviso that no changes or edits are made and the original work is properly cited (including links to both the formal publication through the relevant DOI and the license). See: https://creativecommons.org/licenses/by-nc-nd/4.0/.

References

1. Wahr JA, Prager RL, Abernathy JH 3rd, et al. Patient safety in the cardiac operating room: human factors and teamwork: a scientific statement from the American Heart Association. Circulation 2013;128:1139-69. [Crossref] [PubMed]
2. Gibbon JH Jr. Application of a mechanical heart and lung apparatus to cardiac surgery. Minn Med 1954;37:171-85. passim. [PubMed]
3. Stoney WS, Alford WC Jr, Burrus GR, et al. Air embolism and other accidents using pump oxygenators. Ann Thorac Surg 1980;29:336-40. [Crossref] [PubMed]
4. Limperopoulos C, Majnemer A, Shevell MI, et al. Predictors of developmental disabilities after open heart surgery in young children with congenital heart defects. J Pediatr 2002;141:51-8. [Crossref] [PubMed]
5. Mejak BL, Stammerss A, Rauch E, et al. A retrospective study on perfusion incidents and safety devices. Perfusion 2000;15:51-61. [Crossref] [PubMed]
6. American Society of Extracorporeal technology. Guidelines for perfusion practice. Perfusion Life 1995;12:20-2.
7. Baile EM, Ling H, Heyworth JR, et al. Bronchopulmonary anastomotic and noncoronary collateral blood flow in humans during cardiopulmonary bypass. Chest 1985;87:749-54. [Crossref] [PubMed]
8. Chai PJ. Myocardial protection and preservation for neonates and infants. In: Gravlee GP, Davis RF, Stammers AH, et al. editor. Cardiopulmonary Bypass: Principles and Practice. 3rd edition. Philadelphia: Lippincott Williams and Wilkins, 2008:700-9.
9. Hessel EA. Circuitry and cannulation Techniques. In: Gravlee GP, Davis RF, Stammers AH, et al. editor. Cardiopulmonary Bypass: Principles and Practice. 3rd edition. Philadelphia: Lippincott Williams and Wilkins, 2008:63-113.
10. Jonas RA. Anomalies of pulmonary veins. In: Jonas RA, Dodson R, DiNardo J, et al. editor. Comprehensive Surgical Management of Congenital Heart Disease. 1st edition. London: Hodder Arnold Publication, 2004:402-12.
11. Kouchoukos NT, Doty DB, Hanley FL, et al. Hypothermia, circulatory arrest and cardiopulmonary bypass. In: Kouchoukos N, Blackstone E, Hanley F, et al. editor. Kirklin/Barratt-Boyes Cardiac surgery. 4th edition. Philadelphia: Elsivier, 2003:66-130.
12. Demmy TL, Biddle JS, Bennett LE, et al. Organ preservation solutions in heart transplantation--patterns of usage and related survival. Transplantation 1997;63:262-9. [Crossref] [PubMed]
13. McLean TR, Jones JW, Svensson LG, et al. Selective topical cooling for myocardial protection. Cardiovasc Surg 1993;1:176-81. [PubMed]
14. Allen BS, Winkelmann JW, Hanafy H, et al. Retrograde cardioplegia does not adequately perfuse the right ventricle. J Thorac Cardiovasc Surg 1995;109:1116-24; discussion 1124-6. [Crossref] [PubMed]
15. Winkelmann J, Aronson S, Young CJ, et al. Retrograde-delivered cardioplegia is not distributed equally to the right ventricular free wall and septum. J Cardiothorac Vasc Anesth 1995;9:135-9. [Crossref] [PubMed]
16. Rosenkranz ER, Okamoto F, Buckberg GD, et al. Safety of prolonged aortic clamping with blood cardioplegia. II. Glutamate enrichment in energy-depleted hearts. J Thorac Cardiovasc Surg 1984;88:402-10. [Crossref] [PubMed]
17. Tixier D, Matheis G, Buckberg GD, et al. Donor hearts with impaired hemodynamics. Benefit of warm substrate-enriched blood cardioplegic solution for induction of cardioplegia during cardiac harvesting. J Thorac Cardiovasc Surg 1991;102:207-13; discussion 213-4. [Crossref] [PubMed]
18. Akins CW, Carroll DL. Event-free survival following nonemergency myocardial revascularization during hypothermic fibrillatory arrest. Ann Thorac Surg 1987;43:628-33. [Crossref] [PubMed]
19. Jessen ME, Abd-Elfattah AS, Wechsler AS. Neonatal myocardial oxygen consumption during ventricular fibrillation, hypothermia, and potassium arrest. Ann Thorac Surg 1996;61:82-7. [Crossref] [PubMed]
20. Archie JP Jr. Intramyocardial pressure: effect of preload on transmural distribution of systolic coronary blood flow. Am J Cardiol 1975;35:904-11. [Crossref] [PubMed]
21. Babaroglu S, Yay K, Parlar AI, et al. Beating heart versus conventional mitral valve surgery. Interact Cardiovasc Thorac Surg 2011;12:441-7. [Crossref] [PubMed]
22. Magovern JA, Pae WE Jr, Waldhausen JA. Protection of the immature myocardium. An experimental evaluation of topical cooling, single-dose, and multiple-dose administration of St. Thomas' Hospital cardioplegic solution. J Thorac Cardiovasc Surg 1988;96:408-13. [Crossref] [PubMed]
23. Baker JE, Boerboom LE, Olinger GN. Cardioplegia-induced damage to ischemic immature myocardium is independent of oxygen availability. Ann Thorac Surg 1990;50:934-9. [Crossref] [PubMed]
24. Kouchoukos NT, Doty DB, Hanley FL, et al. Myocardial Management during cardiac surgery with cardiopulmonary bypass. In: Kouchoukos N, Blackstone E, Hanley F, et al. editor. Kirklin/Barratt-Boyes Cardiac surgery. 4th edition. Philadelphia: Elsivier, 2003:131-62.
25. Jonas RA. Myocardial protection. In: Jonas RA, Dodson R, DiNardo J, et al. editor. Comprehensive Surgical Management of Congenital Heart Disease. 1st edition. London: Hodder Arnold Publication, 2004:175-84.
26. Bennett EV Jr, Fewel JG, Grover FL, et al. Myocardial preservation: effect of venous drainage. Ann Thorac Surg 1983;36:132-42. [Crossref] [PubMed]
27. Rosenfeldt FL, Watson DA. Interference with local myocardial cooling by heat gain during aortic cross-clamping. Ann Thorac Surg 1979;27:13-6. [Crossref] [PubMed]
28. Shahian DM. Retrograde coronary sinus cardioplegia in the presence of persistent left superior vena cava. Ann Thorac Surg 1992;54:1214-5. [Crossref] [PubMed]
29. Santoscoy R, Walters HL, Ross RD, et al. Coronary sinus ostial atresia with persistent left superior vena cava. Ann Thorac Surg 1996;61:879-82. [Crossref] [PubMed]
30. Gregoretti S. Suction-induced hemolysis at various vacuum pressures: implications for intraoperative blood salvage. Transfusion 1996;36:57-60. [Crossref] [PubMed]
31. Wright G, Sanderson JM. Cellular aggregation and trauma in cardiotomy suction systems. Thorax 1979;34:621-8. [Crossref] [PubMed]
32. Brooker RF, Brown WR, Moody DM, et al. Cardiotomy suction: a major source of brain lipid emboli during cardiopulmonary bypass. Ann Thorac Surg 1998;65:1651-5. [Crossref] [PubMed]
33. Hessel EA. Bypass techniques for descending thoracic aortic surgery. Semin Cardiothorac Vasc Anesth 2001;5:293-320. [Crossref]
34. Ho KM, Tan JA. Benefits and risks of maintaining normothermia during cardiopulmonary bypass in adult cardiac surgery: a systematic review. Cardiovasc Ther 2011;29:260-79. [Crossref] [PubMed]
35. Cook DJ. Changing temperature management for cardiopulmonary bypass. Anesth Analg 1999;88:1254-71. [Crossref] [PubMed]
36. Tönz M, Mihaljevic T, von Segesser LK, et al. Normothermia versus hypothermia during cardiopulmonary bypass: a randomized, controlled trial. Ann Thorac Surg 1995;59:137-43. [Crossref] [PubMed]
37. Mills GH, Khan ZP, Moxham J, et al. Effects of temperature on phrenic nerve and diaphragmatic function during cardiac surgery. Br J Anaesth 1997;79:726-32. [Crossref] [PubMed]
38. Insler SR, Sessler DI. Perioperative thermoregulation and temperature monitoring. Anesthesiol Clin 2006;24:823-37. [Crossref] [PubMed]
39. Robbins RC, Balaban RS, Swain JA. Intermittent hypothermic asanguineous cerebral perfusion (cerebroplegia) protects the brain during prolonged circulatory arrest. A phosphorus 31 nuclear magnetic resonance study. J Thorac Cardiovasc Surg 1990;99:878-84. [Crossref] [PubMed]
40. Langley SM, Chai PJ, Miller SE, et al. Intermittent perfusion protects the brain during deep hypothermic circulatory arrest. Ann Thorac Surg 1999;68:4-12; discussion 12-3. [Crossref] [PubMed]
41. Furuya H, Suzuki T, Okumura F, et al. Detection of air embolism by transesophageal echocardiography. Anesthesiology 1983;58:124-9. [Crossref] [PubMed]
42. Roger L, Royster SJT, Davis RF. Termination of cardiopulmonary bypass. In: Gravlee GP, Davis RF, Stammers AH, et al. editor. Cardiopulmonary Bypass: Principles and Practice. 3rd edition. Philadelphia: Lippincott Williams and Wilkins, 2008:614-31.
43. Ungerleider RM. The use of intraoperative echocardiography with Doppler color flow imaging in the repair of congenital heart defects. Echocardiography 1990;7:289-304. [Crossref] [PubMed]
44. Ungerleider RM, Kisslo JA, Greeley WJ, et al. Intraoperative echocardiography during congenital heart operations: experience from 1,000 cases. Ann Thorac Surg 1995;60:S539-42. [Crossref] [PubMed]
45. Elliott MJ. Ultrafiltration and modified ultrafiltration in pediatric open heart operations. Ann Thorac Surg 1993;56:1518-22. [Crossref] [PubMed]
46. Bando K, Vijay P, Turrentine MW, et al. Dilutional and modified ultrafiltration reduces pulmonary hypertension after operations for congenital heart disease: a prospective randomized study. J Thorac Cardiovasc Surg 1998;115:517-25; discussion 525-7. [Crossref] [PubMed]
47. Jenkins OF, Morris R, Simpson JM. Australasian perfusion incident survey. Perfusion 1997;12:279-88. [Crossref] [PubMed]
48. Mills NL, Ochsner JL. Massive air embolism during cardiopulmonary bypass. Causes, prevention, and management. J Thorac Cardiovasc Surg 1980;80:708-17. [Crossref] [PubMed]
49. Edmondson AC, Bohmer RMJ, Pisano GP. Speeding up team learning. Harv Bus Rev 2001.125-32.
50. Awad SS, Fagan SP, Bellows C, et al. Bridging the communication gap in the operating room with medical team training. Am J Surg 2005;190:770-4. [Crossref] [PubMed]
51. Segesser LK. Unusual problems in cardiopulmonary bypass. In: Gravlee GP, Davis RF, Stammers AH, et al. editor. Cardiopulmonary Bypass: Principles and Practice. 3rd edition. Philadelphia: Lippincott Williams and Wilkins, 2008:608-13.
