Comparison of PD-L1 immunohistochemical assays and the significance of PD-L1 expression in thymoma

Introduction

Thymoma is an uncommon malignant neoplasm that arises in the anterior mediastinum. It is widely known to originate from thymic epithelial cells, with a unique ability to partly promote T cell maturation from immature progenitors (1). On the basis of a number of retrospective studies, surgical complete resection is currently the mainstay for the treatment of localized thymoma with a high cure rate (2,3). In contrast, the optimal treatment for advanced thymoma has long been debated, and it remains to be clearly defined. For locally advanced thymoma, the National Comprehensive Cancer Network guidelines recommend multimodality therapy including induction chemotherapy followed by surgery in unresectable cases, those with solitary metastasis, or those with ipsilateral pleural metastasis (4). Evidence of extrathoracic metastases oblige thymoma patients to opt for chemotherapy. It seems that cisplatin-doxorubicin based regimens yield better outcomes; however, the results are by no means satisfactory (5). The clinical activity of molecular targeted drugs for thymomas has still not been demonstrated, whereas an oral tyrosine kinase inhibitor, sunitinib, seems to be active in thymic carcinoma (6). Therefore, clinicians urgently require an innovative breakthrough to treat thymoma patients with distant metastases based on underlying solid molecular oncogenic mechanisms.

Programmed death ligand 1 (PD-L1) is a transmembrane glycoprotein expressed on antigen-presenting cells and inhibits cytokine production and cell cycle progression in T cells by binding to its receptor of programmed death 1 (PD-1), which is a member of the B7 receptor family expressed on the surface of T cells (7,8). Notably, PD-1/PD-L1 pathway is essential not only in normal immune system regulation but also facilitates tumor progression by inhibiting anti-tumor T cell responses to evade host immune surveillances (9,10). The discovery of this mechanism inspired researchers to access expression levels of PD-L1 or PD-1 and estimate their potential as novel hallmarks to be used as prognostic markers for malignant tumors. In fact, expressions of PD-L1 in tumor cells and of PD-1 in tumor infiltrating immune cells have been reported to predict survival in various malignancies (11-14). PD-L1 expression in thymic epithelial tumors (TETs) has also gradually been characterized by several researchers, whereas obtained findings were slightly different. The authors deem that significance of PD-L1 expression should be carefully argued particularly in thymoma, since it occurs in thymus that is a unique organ to promote T cell maturation. Indeed, thymoma, in contrast to other malignant tumors, is universally recognized to be infiltrated by immature T cells positive for terminal deoxynucleotidyl transferase, cluster of differentiation (CD) 1a and CD99 with varied distribution depending on tumor subtypes (15). Consequently, PD-L1 in thymoma may potentially play a role, which is different from the other malignancies.

In 2018, the authors published a review article regarding the condition of PD-L1/PD-1 expression and discussed the perspective of immunotherapy in TETs (16). Some studies subsequently appended observations of labeling against PD-L1 antibodies in TETs, including application of currently administered agents to predict efficacy of PD-1/PD-L1 blockade therapy. These data let us intrinsically understand PD-L1 functions in tumor microenvironment of TETs and argue whether its expression can be a valuable prognostic predictor. Furthermore, analyses of thymomas distinctively from thymic carcinomas in respect of these novel findings could refine the knowledge of PD-L1 specific roles served in thymomas. Taking together, comprehensive PD-L1 analyses in thymomas are reviewed in this article focused on the comparison among various PD-L1 antibodies. Along with the expression patterns, their associations with clinicopathological features and prognostic impact in the tumors are rendered.

Expression patterns, associated properties, and prognostic value of PD-L1 expression in thymoma based on each PD-L1 antibody

As far as we explored, 15 studies mentioned PD-L1 expression in thymoma. Table 1 summarizes PD-L1 condition and incidence in each study, which include approaches to evaluate PD-L1 abundance and cutoff value determinants. Furthermore, identified factors and prognostic value associated with high PD-L1 expression are also listed in Table 2. The major findings of each study are noted in the following descriptions according to respective PD-L1 antibodies.

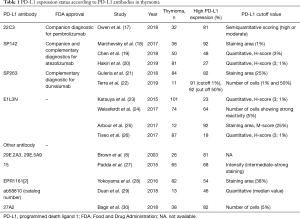

Table 1 PD-L1 expression status according to PD-L1 antibodies in thymoma
Full table

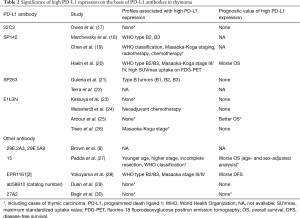

Table 2 Significance of high PD-L1 expression on the basis of PD-L1 antibodies in thymoma
Full table

Clone 22C3

PD-L1 expression in 32 thymomas was investigated by Owen et al. via a clone of 22C3 (Merck Research Laboratories, Palo Alto, CA, USA), used for companion diagnostics for pembrolizumab with approval by the US Food and Drug Administration (FDA) in cervical cancer, gastric carcinoma, non-small cell lung cancer, and urothelial carcinoma (17). PD-L1 investigation in thymoma using 22C3 has been described only in this report. The authors identified high rate as much as 81% of tumors demonstrating high PD-L1 expression by semiquantitative scoring method. PD-L1 staining seemed to be mainly observed in tumor epithelial cells, whereas staining on immune cells was not clearly described. In addition, apparent intratumoral heterogeneity of PD-L1 expression in some cases was remarkable, similarly to the study in non-small cell lung cancer (31). This is the only report that decidedly identified intratumoral heterogeneity of PD-L1 in thymoma, which was observed in AB thymoma as well as B3 thymoma with minor B2 component. As thymomas sometimes contain heterogeneous histologic components, this appraisal can be rational. Any further association between high PD-L1 expression and clinicopathological features, including World Health Organization (WHO) histological subtype and tumor stage, was not found. As for prognosis, PD-L1 positivity did not demonstrate statistical significance both in overall or event-free survival even when 3 thymic carcinoma samples were excluded, although PD-L1 positive thymomas tended to reveal worse survival rather than negative.

Clone SP142

A PD-L1 antibody of SP142 (Spring Bioscience, Pleasanton, CA, USA and Ventana Medical Systems, Tucson, AZ, USA) was employed by 3 authors (18-20). This antibody has been approved by FDA for companion diagnostic for atezolizumab in triple negative breast carcinoma, as well as complementary diagnostic in non-small cell lung cancer and urothelial carcinoma. It seems that all authors are accordant that PD-L1 was profusely expressed in tumor epithelial cells; nevertheless, the population of PD-L1 positive cases varied among studies ranged between 27% to 92%. This is may be due to distinct cutoff values and evaluation methods, meaning whether both or either staining intensity and propensity are taken into consideration. In addition, altered tumor profiles such as histological subtypes, tumor staging, or prior treatments may be the influencing factors. Moreover, two authors using this clone notably alluded that PD-L1 was also expressed in tumor infiltrating lymphocytes and macrophages. In fact, PD-L1 expression on tumor infiltrating immune cells has been reported in some malignant tumors to be a favorable prognostic predictor, although detailed mechanisms still remain uncertain (32,33). For the further assessment of PD-L1 within tumor microenvironment, it is pivotal to clarify whether tumor infiltrating immune cells indeed express PD-L1 in thymoma. All authors found PD-L1 to be higher expressed in type B2/B3 thymoma compared with the other subtypes. Clinical staging also influenced PD-L1 abundance, demonstrating that high expression was confirmed in advanced tumors. Chen et al. (19) reported that radiotherapy and chemotherapy as received treatments were associated with high PD-L1 expression, although this analysis was performed using a cohort including thymic carcinomas. Hakiri et al. (20) found that high PD-L1 expression was significantly correlated with tumors showing high standardized uptake value on fluorine-18 fluorodeoxyglucose positron emission tomography, which can be utilized in clinical settings. Among studies, prognostic implications were examined only by Hakiri et al., demonstrating that cases expressing high levels of PD-L1 were significantly associated with worse overall survival. In contrast to the other studies which include patients who underwent only diagnostic biopsy, the patient group of Hakiri et al. included high proportion of patients following surgical complete resection, which can elicit substantial survival relevance of PD-L1 expression in thymoma.

Clone SP263

SP263 (Ventana Medical Systems) is an antibody approved by FDA for complementary diagnostic for durvalumab in urothelial carcinoma. Guleria et al. used this clone and detected 82% of thymoma, classified as high-level PD-L1 expression using cutoff of staining area more than 25% (21). This observation was supported by Terra et al. finding that 91% of thymoma to be categorized as having high PD-L1 expression when 1% of number of cells was employed for the cutoff value (22). The latter also determined as much as 82% of thymomas were still classified as positive even when the number of cells stained more than 50% was used as the cutoff value. Despite higher PD-L1 cutoff value definition compared with other studies, both of them found considerably high rate of PD-L1 expression. This suggests that SP263 may indicate strong positivity as compared with other PD-L1 antibodies, although potential false-positive cases still remain unknown. Both studies did not find PD-L1 expression on tumor infiltrating immune cells. Guleria et al. identified type B tumors associated with high PD-L1 expression, which is in accordance with earlier descriptions of SP142 finding that type B2/B3 thymoma showed high PD-L1 expression. Prognostic values were also analyzed by them, concluding that any impact could not be determined.

Clone E1L3N

A clone of E1L3N (Cell Signaling Technology, Danvers, MA, USA) is recognized as a qualified PD-L1 antibody, which was confirmed by a comparative study in non-small cell lung cancer (34). This antibody was adopted in thymoma by 4 different groups (23-26). Katsuya et al. and Tiseo et al. employed the same evaluation method (H-score) and cutoff value for PD-L1 definition. As a result, they showed similarity in the proportion of high-level PD-L1 expression cases as 20%. By contrast, the other two authors revealed higher population of PD-L1 positive cases. All studies are in concordance that PD-L1 expression was observed only in epithelial cells in thymoma but not in infiltrating immune cells.

Of note, Weissferdt et al. reported an important observation that PD-L1 was overexpressed in cases with neoadjuvant chemotherapy, as shown above by Chen et al. using SP142. The result was similarly demonstrated by Katsuya et al. with sequential surveillance (35). They compared PD-L1 expression positivity of thymoma tissue specimens obtained before and after chemotherapy, and discovered that PD-L1 expression after chemotherapy was increased in all cases. This agreement could be explained by immunogenic cell death of tumor cells after chemotherapy. The immunogenic cell death is obviously known to be occurred through the use of some chemotherapeutic agents (36). The activation of dendritic cells was enhanced by immunogenic cell death, following activated T cells to produce interferon-gamma which induces PD-L1 expression on the tumor cells (37). Further clarifications with respect to molecular mechanisms of PD-L1 should enhance understanding the interactions within immunological microenvironment in thymoma, being beneficial as a hint for development of effective managements in the treatment of this rare malignancy.

On the other hand, prognostic value of PD-L1 appeared not to be significant in the studies using this antibody. One study determined its significance as a better prognostic factor; however, this may be potentially biased due to collective analysis including thymoma and thymic carcinoma.

Other PD-L1 antibodies

PD-L1 expression on thymic gland was primarily presented by Brown et al. using normal fetal thymus (8). This group claimed that PD-L1 expression pattern stained with the self-generated clones (29E.2A3 and 29E.5A9) in thymic tissue coincided with the staining pattern of anti-cytokeratin monoclonal antibody specific for epithelial cell markers, suggesting that PD-L1 was expressed on thymic epithelial cells. After a certain period, Padda et al. reported diffuse high intensity of PD-L1 expression in TETs (27). They found that 68% of thymomas showed high PD-L1 expression using a clone of 15 (Sino Biological, Beijing, China). PD-L1 positivity was defined based on the intensity of intermediate-strong staining in epithelial cells as criteria for high expression. It was found that PD-L1 is also expressed in tumor-associated lymphocytes of thymomas, although the expression was mainly confirmed on cell membrane and cytoplasm of tumor epithelial cells. High PD-L1 expression was associated with younger age, higher stage, incomplete resection, and WHO histological classification. When adjusted for age and sex, high PD-L1 was correlated with poor overall survival. In our study, 54% of thymomas demonstrated high PD-L1 expression using a clone of EPR1161[2] (Abcam, Cambridge, UK), with determination of optimal cutoff value using Youden’s index (28). Apparent PD-L1 expression identical to that of cytokeratin was determined in our study. High PD-L1 expression was associated with WHO type B2/B3 and Masaoka stage III/IV disease as found in studies using SP142. In cases underwent complete resection, patients with high PD-L1 expression experienced significantly worse disease-free survival rather than those with low expression. Duan et al. found 46% of thymomas positive for PD-L1 using antibody of ab58810 (catalog number, rabbit polyclonal, Abcam) (29). They stated that nuclear PD-L1 staining was observed in 4 cases, whereas mainly expressed on the membrane and in cytoplasm of tumor epithelial cells. However, we should be careful that the release of PD-L1 antibodies adopted by us and Duan et al. is currently cancelled due to improperness for quality criteria of supplier, which has to be confirmed by other reliable antibodies. Bagir et al. reported that 82% of thymomas revealed high PD-L1 expression when they used a clone of 27A2 (Acris Antibodies GmbH, Herford, Germany) and cutoff value of 5% in number of cells (30). Notably, they also identified that 37% of thymoma induced PD-L1 expression in tumor infiltrating lymphocytes, macrophages, and histiocytes. However, they did not find any correlation between PD-L1 expression and tumor characteristics or survival.

Conclusions

Versatile analyses of PD-L1 expression in thymomas involving qualified antibodies clearly demonstrated that they highly express PD-L1 on the cell membrane and cytoplasm of tumor epithelial cells, although the results slightly differed among studies. We should decisively recognize that PD-L1 expression on tumor infiltrating immune cells in thymoma has not been sufficiently defined so far, which requires to be done in future studies to finally verify its role in tumor microenvironment. High PD-L1 expression appears to be found in high grade malignancies such as type B2/B3 thymomas or those with advanced stage, predominantly identified using SP142. PD-L1 is potentially increased by chemotherapy, which is probably induced by immunogenic cell death. Survival impact of PD-L1 expression in thymoma may be determined only in the studies which excluded thymic carcinoma patients. Furthermore, PD-L1 prognostic value also could be identified when we analyzed thymomas which were completely resected, distinct from biopsy and incompletely resected cases; however, it is often hard because of the rareness of this tumor.

Acknowledgments

Funding: None.

Footnote

Provenance and Peer Review: This article was commissioned by the Guest Editors (Dragana Jovanovic and Semra Bilaceroglu) for the series “Thymoma” published in Journal of Thoracic Disease. The article was sent for external peer review organized by the Guest Editors and the editorial office.

Conflicts of Interest: Both authors have completed the ICMJE uniform disclosure form (available at http://dx.doi.org/10.21037/jtd-19-3703). The series “Thymoma” was commissioned by the editorial office without any funding or sponsorship. The authors have no other conflicts of interest to declare.

Ethical Statement: The authors are accountable for all aspects of the work in ensuring that questions related to the accuracy or integrity of any part of the work are appropriately investigated and resolved.

Open Access Statement: This is an Open Access article distributed in accordance with the Creative Commons Attribution-NonCommercial-NoDerivs 4.0 International License (CC BY-NC-ND 4.0), which permits the non-commercial replication and distribution of the article with the strict proviso that no changes or edits are made and the original work is properly cited (including links to both the formal publication through the relevant DOI and the license). See: https://creativecommons.org/licenses/by-nc-nd/4.0/.
