NEWS technique: easy and reliable thoracoscopic wedge resections of lung tumors

Introduction

The current standard surgical treatment for primary lung cancer is a lobectomy; however, a wedge resection is used for patients showing a reduced pulmonary reserve, the elderly, or those with other serious comorbidities (1). Meanwhile, for lung metastasis, a wedge resection is the most common procedure for treatment (2). Given that a thoracoscopic lobectomy for early-stage lung cancer will soon be a prerequisite for a new generation of thoracic surgeons, trainee physicians need to have adequate experience in minor procedures such as wedge resections, bullectomies, and biopsies (3). Thoracoscopic wedge resections for lung malignancies are normally straightforward for expert surgeons but may be more difficult for trainees. Notably, wedge resections may increase the likelihood of the recurrence of local cancer from the surgical margin compared with anatomical segmentectomy and lobectomy (4).

We herein propose a simple and reliable method for the surgical treatment for lung malignancy based on traditional three-port thoracoscopic surgery, which aims for the successful tactile localization and curative wedge resection of pulmonary tumors. This technique will enable residents and trainee physicians alike to master basic surgical skills before becoming competent in thoracoscopic lobectomies.

The NEWS method

The acronym, “NEWS”, is based on surgical treatment for lung malignancy and is created from initial capital letters of the following words: nodule or North; endoscopy or East; wedge resection or West; and stapler or South. Most such patients showed small nodules diagnosed as probable malignancies based on preoperative computed tomography (CT) images and clinical observation.

NEWS requires three skin incisions to place two trocars (11.5 mm, Thoracoport; Covidien, Dublin, Ireland), and a wound protector/retractor (3 cm, XXS, Alexis; Applied Medical, Rancho Santa Margarita, CA, USA). A 10-mm, 45-degree endoscope (thoracoscope) is introduced through one trocar. A pair of long forceps (Forester lung grasping clamp; Scanlan, ST Paul, MN, USA) and stapler (Endo GIA reloaded with Tri-staple; Medtronic, Minneapolis, MN, USA or Echelon Flex Endopath; Ethicon, Bridgewater, NJ, USA) are inserted through another trocar. Ring-shaped forceps (3.5 cm, M; P.N.CATCH, Takasago, Japan) are inserted through a wound protector/retractor (Figure 1). The two trocars and wound protector/retractor are so-called thoracic ports. We herein define each as a nodule- or North-port (N-port), stapler- or South-port (S-port), and endoscope- or East-port (E-port; Figure 2).

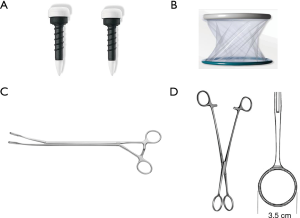

Figure 1 Representative surgical instruments for the NEWS method. (A) Two trocars, (B) a wound protector/retractor, (C) a pair of long forceps, and (D) a pair of ring-shaped forceps (3.5 cm in diameter) are shown.

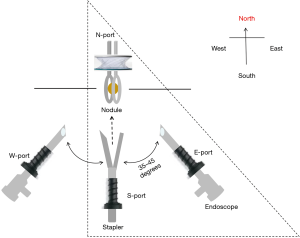

Figure 2 Illustration of technical concepts and approach strategies using four virtual points of the compass. A triangle (dashed line) composed of three ports, with a nodule north (N-port), a stapler south (S-port), and an endoscope east (right side; E-port), is shown. An endoscope is often used in the east port because the primary surgeon usually stands to the right of the patient, with the assistant surgeon handling an endoscope on the left. If the primary surgeon stands to the left of the patient, the endoscope would be used in the west port (left side; W-port).

Placement of the three ports is as follows: under general anesthesia, the patient is placed in a lateral decubitus position after the insertion of a double-lumen endotracheal tube. Three positions for skin incisions are pre-planned using preoperative CT images and the following body landmarks: body surface projections, such as a scapula, nipple, and ribs; and longitudinal information, such as imaginary anterior, middle, and posterior axillary lines. The first trocar is inserted as an S-port through a skin incision, through which an endoscope is then introduced to scan the surgical field for the presence or absence of pleural adhesions, or deflated lung. A second trocar as an E-port is inserted while looking into the thoracic cavity using the endoscope in the S-port; the endoscope is subsequently extracted from the S-port and introduced through the E-port. The E-port is then used as an endoscope (thoracoscope) and is usually placed on the right at less than 45 degrees from a virtual N–S port line. Finally, a third wound protector/retractor as an N-port is placed leading to the completion of a port triangle.

The N-port is placed on the chest wall nearest the nodule after examining preoperative CT images. A pair of long forceps inserted through the S-port is used to move lung tissue closer to the N-port to allow finger palpation (Figure 3A). When the nodule is grasped with a pair of ring-shaped forceps through the N-port, the flat plane of the ring should be in the same direction as an ideal resection line in the lung parenchyma (Figure 3B). For this reason, the S-port is positioned in the chest wall at a distance along this ideal resection line, which is defined as an N–S port line (Figure 2).

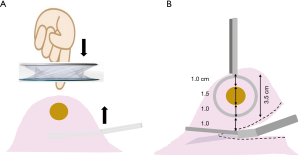

Figure 3 Illustration depicting finger palpation and wedge resection. (A) Lung tissue harboring a nodule is lifted close to a wound protector (N-port) using a pair of long forceps, allowing finger palpation. (B) An approximately 2.0-cm margin distance can be resected if the grasped lung tissue, in which a 1.5-cm nodule is positioned in the center of the ring plane, is removed 1.0 cm from the ring edge using a stapler.

Typical examples of the NEWS method are shown in an illustration (Figure 4). Tactile localization of firm nodules located in a shallow position from the pleural surface is relatively easily made. In this case, a wedge resection had been applied because the patient was elderly and had a reduced pulmonary reserve; however, neither local recurrence nor distant metastasis occurred by 36 months after surgery.

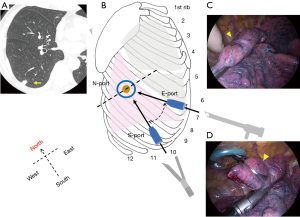

Figure 4 A tumor located near the pleural surface is easily palpated. (A) An 82-year-old man with a reduced pulmonary reserve had a solid lung nodule, 1.0 cm in diameter (arrow), at the lateral basal segment (S9) of the right lower lobe on CT imaging. (B) S-, E-, and N-ports were placed in the 9th and 6th ICS of an anterior axillary line, and the 7th ICS of a posterior axillary line, respectively. (C) Intraoperative view of tactile localization. The tumor (arrowhead) was easily felt as a protrusion with a finger and then grasped with ring-shaped forceps through the N-port. (D) Intraoperative view during a stapling procedure. The lung tissue, including the tumor, was grasped and lifted with a pair of ring-shaped forceps and then resected, with an adequate surgical margin, using a stapler. Note that the ring plane is in the same direction as a virtual N–S port line, and that the ring-shaped forceps grasping the tumor (arrowhead) should be locked until the lung wedge is all or mostly removed. The tumor was pathologically a primary lung squamous cell carcinoma. CT, computed tomography; ICS, intercostal space.

In the case of nodules in the posterior basal segment (S10) of the right or left lower lobe, dissection of the pulmonary ligament enables deflated lung tissue close to the N-port to be lifted using a pair of long forceps, allowing for subsequent tactile localization (Figure 5). The patient shown had undergone a standard wedge resection for lung metastasis, and showed no local recurrence 24 months after surgery.

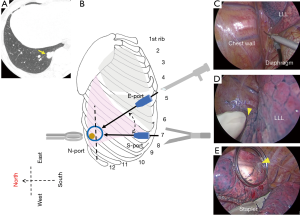

Figure 5 A tumor located in the basal lung, requiring the resection of a pulmonary ligament. (A) A 73-year-old man, who had undergone surgery for rectal cancer two years prior, had a solid lung nodule (probably a metastasis), 1.5 cm in diameter (arrow), in the posterior basal segment (S10) of the right lower lobe on CT imaging. (B) S-, E-, and N-ports were placed in the 7th and 5th ICS of an anterior axillary line, and the 9th ICS of a posterior axillary line, respectively. (C,D) Intraoperative view. The basal lung close to the N-port was lifted by the resection of a pulmonary ligament (asterisk) with an ultrasonic scalpel, which allowed a finger to touch the tumor (arrowhead). (E) Intraoperative view of stapling. A wedge resection, with an approximately 2-cm surgical margin, was performed. Pathology revealed a pulmonary metastasis from the rectal cancer. CT, computed tomography; ICS, intercostal space; LLL, left lower lobe.

When nodules are located in the apex of the lung, that is, in the apical segment (S1) of the right upper lobe (Figure 6) or the apical posterior segment (S1+2) of the left upper lobe, an N-port would only be placed in the 3rd or 4th intercostal space to avoid potential interference from chest wall structures such as the scapula or thick muscular layers (Figure 6B). However, apical portions can be pulled closer to the actual N-port with a pair of long forceps due to good mobility of the apex (Figure 6C). The patient shown underwent a wedge resection with 3.0-cm resection margin because of a diagnosis and treatment for a 0.5-cm subsolid nodule, found after chemotherapy for a malignant lymphoma. Given this was a primary lung adenocarcinoma, but probably of a minimally invasive type in intraoperative pathology and with a comorbidity of malignant lymphoma, a lobectomy was not performed. This patient showed no local recurrence or distant metastasis 33 months after surgery.

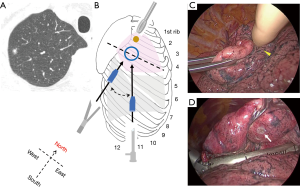

Figure 6 A tumor located near the apex of the lung. (A) A 72-year-old man had a subsolid nodule, presenting as a 0.5 cm ground-glass opacity with a 0.3-cm solid component, at S1 (apical segment) in the right upper lobe on CT imaging. (B) Illustration of port positions. S-, E-, and N-ports were placed in the 6th ICS of a posterior axillary line, and the 7th and 4th ICS of a middle axillary line, respectively. Note that the placement of the N-port in the case of an apical nodule is regarded as an exception to the principle that an N-port should be placed on the chest wall nearest the nodule. (C) Intraoperative view. Pulling the nodule close to the N-port with a pair of long forceps allowed for tactile localization. Note that tracing the pleural surface while pushing it lightly and slowly brushing the pleura with a finger (arrowhead) are helpful for a ground-glass nodule. (D) Intraoperative view of stapling. The arrow indicates a pleural mark over the nodule, which was made by electrocautery immediately after finger palpation. Pathologically, the nodule was a minimally invasive adenocarcinoma. CT, computed tomography; ICS, intercostal space.

Results

Between 2016 and 2019, 37 patients (25 males; 69 years, median age, 49–85) with 40 lesions underwent wedge resections using the NEWS method performed either by trainee physicians or residents with advising surgeons. CT revealed target lesions to be 11 ground-glass (size, 0.7–2.0 cm; median 1.2) and 29 solid (size, 0.4–3.0 cm; median 1.2) nodules. Resection margins of a 2.0-cm median length (range, 1.5–4.0 cm) were maintained. No complications, such as intraoperative injury to blood vessels, or postoperative atelectasis or pneumonia of surgical sites, occurred.

Pathologically, a total of 40 lesions revealed 18 lung metastases, 14 primary adenocarcinomas, four primary squamous cell carcinomas, two lymphomas, and two benign intrapulmonary lymph nodes. Subsequently, patients have not experienced local recurrences between 3 and 40 months (median, 20) after surgery.

Comments

“NEWS” is a simple and reliable method, based on traditional three-port thoracoscopic surgery, that allows the successful tactile localization and curative wedge resection of lung tumors. The principles of this method consist of four steps: (I) appropriate port-positioning for a target, (II) tactile localization, (III) grasping with ring-shaped forceps, and (IV) safe stapling and resection.

Regarding steps 1 and 2, the positioning of three ports in line with a target allows physicians to easily confirm the presence of a nodule with a finger. Notably, lung tissue containing a nodule, especially in the middle, lower lobes, and lingular segments, often moves cranially due to deflation of the relevant lung during one-lung ventilation. Therefore, in order to allow touching in such cases, an actual N-port should be moved toward the head for one intercostal space from a virtual N-port place as estimated from preoperative CT images.

However, tactile localization for smaller and/or deeply located nodules is challenging during thoracoscopic surgery. In this regard, a modified technique for the tactile localization of deep pulmonary nodules as well as the development of a newly designed tactile mechanoreceptor during thoracoscopic surgery have been described (5,6). Recently, many other techniques identifying such nodules have been developed. They include placement of a hook-wire or microcoil, and injection of lipiodol or dye as preoperative CT-guided percutaneous marking; and the instillation of a barium mixture, dye, or microcoil as a preoperative bronchoscopic marking. In addition, the intraoperative use of an electromagnetic navigation bronchoscope and cone-beam CT has been reported (7). However, these methods have their own pros and cons. The most common method, the CT-guided placement of a hook-wire, is associated with several complications such as pneumothorax, hemorrhage, dislocation, and even rare but critical air embolisms. Although our classical finger-touch method does not take the place of the above methods, if feasible, it can be a complementary technique to save time and effort (5).

As advantages to steps 3 and 4, this technique can adjust the resection margin to an intended distance using a ring width measuring 3.5 cm of the ring-shaped forceps during surgery. In wedge resections of non-small cell lung cancers, an insufficient surgical margin distance affected local recurrence and patient survival (4,8). This can be caused by remnant cancer cells beyond the surgical margin. Hence, prior studies have indicated successful wedge resections due to surgical margin distances greater than the nodule diameter or 1.5–2.0 cm (9-11). Similar to wedge resections for colorectal lung metastases, local recurrence can contribute to satellite tumor cells and the aerogenous spread of floating cancer cell clusters surrounding the metastatic nodule (12,13). Accordingly, a safety margin distance of more than 0.5–2.0 cm has been indicated (2).

Careful manipulations in steps 1–4 can result in reduced deformity of the remaining lung and avoid damage to central blood vessels. When a nodule is located near the interlobar area, the direction of the resection line (a flat plane of the ring) should be oriented toward the angle of the involved interlobar fissure.

Regarding the outcomes of this method, no local recurrence associated with resection lines has occurred in 37 patients operated on by trainee physicians and residents. However, the further accumulation of cases and long-term follow-up are needed to determine the usefulness of this method in an educational setting and clinical practice.

In conclusion, the NEWS method is a simple and reliable technique, useful when tactile localization is feasible, which, as a complementary method, can save time and effort. In addition, this easy and safe procedure, suitable for residents and trainee physicians alike, may act as a gateway to mastering thoracoscopic lobectomies and reduced-portal surgery.
