Pectus excavatum requiring temporary pacemaker implantation before Nuss procedure: a case report

Pectus excavatum (PE) is the most common chest wall deformity (1). Patients may complain of exercise intolerance, dyspnea, chest pain, or palpitations (2), severe symptoms like syncope are rare (3). Preoperative examinations could reveal distinct types of cardiac arrhythmia. However, there were no reports of combining with second-degree atrial-ventricular (AV) block (Mobitz II). Furthermore, pectus excavatum requiring temporary pacemaker implantation for the sake of a combination of the AV block before the operation was infrequent.

We here presented a case of pectus excavatum combined with a second-degree AV block (Mobitz II), which also required a temporary pacemaker implantation before the Nuss procedure.

We present the following case in accordance with the CARE reporting checklist (available at http://dx.doi.org/10.21037/jtd-20-2312).

Case presentation

A 17-year-old adolescent boy was admitted to our department with a severe asymmetric pectus excavatum, Haller index, 4.21 (Figure 1). His parents found the chest wall deformity six years ago, and the deformity got worse and symptoms developed with his growth. After routine physical examinations, we considered that he should receive the Nuss procedure.

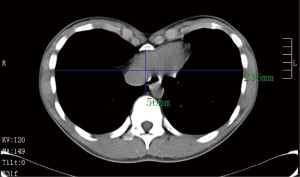

Figure 1 The chest CT showed the heart was compressed by the sternum with the Haller index 4.21.

The results of the preoperative examinations were within normal limits except for electrocardiogram, which showed first-degree AV block. Another Holter monitor was performed, showed that first-degree AV block, second-degree AV block (Mobitz II, Figure 2). The patient had no cardiac-related symptoms. A consultation with the anesthesiologist and cardiologist was promoted, and finally we decided that a temporary pacemaker implantation should be performed under local anesthesia before the minimally invasive (Nuss) operation and removed when the patient recovered from general anesthesia.

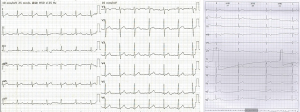

Figure 2 The electrocardiogram (ECG) and 24-hour Holter showed that the patient had first-degree AV block, second-degree atrial-ventricular block (AV block) (Mobitz II).

The operation went ahead as planned. The temporary pacemaker was placed from his right femoral vein to the cardiac apex under local anesthesia, and the Nuss procedure under video-assisted thoracoscope (VATS) was performed after. An incision about 4 cm between the anterior and midaxillary line in each side of chest wall was made at the most severe compression level based on the length of the bar. One bar and a stabilizer on the right chest wall were implanted from the highest points of the “funnel” deformity, immobilized on the ribs exactly with satisfactory deformity correction (Figure 3). During the operation, the atrial pacemaker was activated due to transient heart rate decline. The patient recovered well with no postoperative perioperative complications. The Holter monitor on postoperative day 5 showed that there was no first- or second-degree AV block, and he was discharged from our department on the 6th postoperative day. He was followed-up after 24 months, the correction of the deformity was perfect, but it was a pity that the second-degree AV block (Mobitz II) was still existed without any cardiac-related symptoms, which indicated that the arrhythmia was cardiac originated.

Figure 3 The surgical correction of the chest wall deformity was successful through Nuss procedure.

All procedures performed in studies involving human participants were in accordance with the ethical standards of the institutional and/or national research committee(s) and with the Helsinki Declaration (as revised in 2013). Written informed consent was obtained from the patient.

iMDT discussion

Discussion among physicians from local hospitals

As the most common chest wall abnormality, pectus excavatum accounts for more than 90% of all congenital chest wall abnormalities (1). Most patients are healthy and the most common symptoms include exercise intolerance, dyspnea, chest pain, or palpitations (2). The only physiologic explanation for these complaints is the compression of chest wall malformation to the lung and the heart, since the pulmonary parenchyma and airways of the lung are not generally diseased (4).

Some patients could be found distinct types of cardiac arrhythmia through electrocardiogram examination. Literature has reported that cardiac arrhythmias including first-degree heart block, right bundle branch block, Wolff-Parkinson-White syndrome, ventricular tachycardia, Brugada phenocopies, atrial fibrillation, incomplete left bundle branch block, are life-threatening (5-10). Also, electrocardiography of patients with PE was differed from patients to patients (11). Most arrhythmias relieved after the correction of the deformity without recurrence during follow-up. Our operation team has treated more than 150 pectus excavatum cases with the Nuss procedure, and it was the first time that we encountered severe cardiac arrhythmia.

Department of Anesthesiology

The patient was asymptomatic with severe cardiac arrhythmia. A temporary pacemaker could be a protective measure used for noncardiac surgery under general anesthesia during the perioperative period for patients with severe conduction defects. According to ACC/AHA Guidelines on Perioperative Cardiovascular Evaluation and Care for Noncardiac Surgery (12), temporary pacemaker implantation during the perioperative period for protective or preventative pace-making could improve the security of anesthesia and operation.

Department of Cardiology

For this patient, he suffered from severe cardiac arrhythmia. It is an indication that second-degree AV block (Mobitz II) patient should receive pacemaker implantation, even for permanent, except for asymptomatic patients. It is proper to have the pacemaker to protect the patient from cardiac arrest during operation. The temporary pacemaker stopped when using the electrocoagulation for mobilization or hemostasis. His abnormal dysrhythmia persisted after deformity correction, which represents that the dysrhythmia derived from the cardiac conduction system. For patients who had second-degree AV block with no clinical symptoms, it is recommended that the patient should consult cardiologists for a further and detailed examination to determine whether he should undergo temporary or permanent cardiac pacemaker implantation.

Several issues regarding the diagnosis and treatment of this patient were further discussed as follows

For patients of pectus excavatum with cardiac arrhythmias, how to distinguish the originations of the heart diseases?

Expert opinion 1: Dr. Hans K. Pilegaard

Most patients with pectus excavatum are treated when they are young (less than 20 years) so the risk of a cardiac arrhythmia caused by the pectus is minimal and exceptional and the evidence that a pectus causes arrhythmias or blocks the cardiac conduction system is weak. This means that finding these symptoms might be caused by a heart disease.

In this case, a 17-year-old with a moderate pectus excavatum without any cardiac symptoms, we do not agree in the conclusion concerning the block. We find that the ECG is normal. The discretely prolonged PR-interval is normal in healthy young individuals, and may represent increased vagal tone. We find that the rhythm strip more likely shows Wenckeback block (AV block type I) and not type II as proposed. Before the first QRS complex there is a significant prolonged PR-interval followed by a P-wave that is not transmitted causing a drop out of one QRS-complex. After that every second P-wave is blocked. This finding is not sufficient for making a diagnosis of type II grade II AV-block. That at minimum requires that two consecutive waves are blocked. So the findings are not necessarily pathological and do not require pacing neither temporary or permanently. The findings are common in healthy (often well-trained) young people.

Expert opinion 2: Dr. Jin Yong Jeong

There are cases of patients of pectus excavatum accompanying cardiac arrhythmia. The cardiac arrhythmia, caused by pectus excavatum, has been known it would be attributable to the dilatation of right atrium induced by the increase of right ventricular pressure resulted from right ventricle depressed by sunken sternum. There are representative symptoms of arrhythmia such as atrial flutter and atrial fibrillation. In cases of finding such symptoms of arrhythmia from patients of pectus excavatum in the age of predilection (less than 55 years of age), the arrhythmia could possibly be attributed to the presence of pectus excavatum more frequently.

There are also cases of pectus excavatum which were reported with the occurrence of WPW, first-degree AV block, and RBBB, or accompanying ventricular tachycardia. However, the attribution of all arrhythmia to pectus excavatum seems unreasonable.

In this case, the second-degree AV block (Mobitz type 2), found before the operation of pectus excavatum, remained postoperatively after completion of the operation. On the contrary, the cases of the relief from supraventricular arrhythmia or ventricular tachycardia, that accompanied the pectus excavatum, are occasionally reported with the completion of the operation of pectus excavatum. Therefore, in the cases of finding favorable turns of symptoms of arrhythmia upon completion of operation of pectus excavatum, the causes of arrhythmia could be discriminated as findings suggesting pectus excavatum rather than cardiac disorders.

Expert opinion 3: Dr. Lorenzo Monti

Conduction disorders in childhood are rare and their cause should always be sought by excluding a family history, rheumatologic diseases (SLE or scleroderma), infiltrative processes (amyloidosis, sarcoidosis) or neurodegenerative processes.

Although some level of association between pectus excavatum and cardiac arrhythmias has been reported in literature (3,9,13), there is no clear cause-effect relationship between chest wall abnormalities and advanced AV-block, neither evidence-based guidelines to help the interpretation of cardiac arrhythmias in PE patients.

In PE patients with arrhythmias, an echocardiographic study is warranted. A tricuspid regurgitation with right atrial enlargement eventually leading to atrial fibrillation (10) is likely to be solved with a Nuss operation.

In PE patients with frequent premature ventricular contractions and negative precordial T waves (possibly related to the clockwise rotation of the heart) the differential diagnosis with Arrhythmogenic Right Ventricular Cardiomyopathy may be tricky and a Cardiac Magnetic Resonance will help.

Expert opinion 4: Dr. Ralph A. Schmid

It depends of the type of the arrhythmia. If you find for example symptomatic ventricular tachycardia, I would be careful and extend monitoring during the perioperative period. Extended cardiac evaluation with mapping would be feasible to exclude other reasons than PE. And echocardiography or cardiac MRI to exclude valvular disorders or other anatomical abnormalities. It also depends on the frequency of the episodes of the arrhythmia. It is a different story, if they occur several times a day or only once in a few weeks.

What kinds of cardiac diseases for the patients combined with should have the pacemaker implantation, and what’s the time of removal the pacemaker, and what are the indications for permanent pacemaker implantation?

Expert opinion 1: Dr. Hans K. Pilegaard

Patients should receive pacemaker treatment according to the normal guidelines for pacemaker implantation.

Expert opinion 2: Dr. Jin Yong Jeong

The chances of pacemaker implantation due to AV block or sick sinus syndrome associated with pectus excavatum are low. However, implantation of temporary pacemaker seems plausible because the anesthesia may aggravate the symptoms of arrhythmia. The duration of implantation would be dependent upon causative factors, however, we presume it would extend at best a week since the temporary pacemaker is difficult to fix thereby discomforts patients seriously. In general, the permanent pacemaker would be efficacious to patients of the symptoms without reversible cause. Thus, it would be applicable to cases of type 2 second-degree AV block, high grade AV block, and complete AV block occurred without reversible cause.

Expert opinion 3: Dr. Lorenzo Monti

In a recently published 20-years national registry, Mobitz II AV block account for 19% of permanent pacing in young patients (14), but pectus excavatum is not listed as a possible cause of permanent pacing.

In asymptomatic patients with advanced AV block without specific risk conditions, permanent pacing is not indicated. In this case, however, it was reasonable to ensure a temporary pacing during the surgical time.

There is no current evidence that arrhythmias in patients with pectus excavatum may benefit from a specific management. Therefore, both implantation and follow-up timing need to adhere to the current guidelines (15).

Expert opinion 4: Dr. Ralph A. Schmid

In most cases, I guess, not a pacemaker is necessary, but a defibrillator, as ventricular arrhythmia is the most common arrhythmia associated with PE. In most cases a permanent pacemaker is not necessary. If there would be no arrhythmia over a time span of 2 to 3 weeks, I would remove the device (defibrillator or pacemaker).

A temporary device (pacemaker or defibrillator) would have to be installed preoperatively to allow therapy or support if the arrhythmia occurs intraoperatively. Close collaboration with the anesthesiologist is mandatory.

What are the advices for the patient during follow-up period?

Expert opinion 1: Dr. Hans K. Pilegaard

This patient who is healthy without any cardiac symptoms do not need any follow-up after the correction of the pectus excavatum but should of course be referred to a cardiologist if he later gets symptoms from the heart.

Expert opinion 2: Dr. Jin Yong Jeong

The second-degree AV block (Mobitz type 2) frequently turns into complete AV block thereby it would be necessary to take follow-up evaluation in the department of cardiology. In cases of the occurrence of symptoms such as chest pain or syncope, the patients are advised to visit hospitals to get pertinent treatments including ‘reversible cause treatment’ and ‘permanent pacemaker implantation’.

Expert opinion 3: Dr. Lorenzo Monti

A strict cardiologic follow-up including ECG monitoring—possibly with implantable or external loop recorders—should be prescribed: a permanent pacing will be necessary in case of bradycardia-related symptoms.

Expert opinion 4: Dr. Ralph A. Schmid

One feasible possibility is long term ECG (e.g., 1 week) in the follow up period to confirm, that the arrhythmia has resolved after the correction of PE. In the immediate postoperative period, I would extent the monitoring in the intermediate care, in order to have rapid treatment, if the arrhythmia recurs.

Conclusions

As the most common type of chest wall deformities, pectus excavatum might combine with several different types of cardiac arrhythmias. Some could be relieved by the correction of the deformity, while some are originated from the heart itself. The preoperative examinations concerning the pulmonary and cardiac functions are essential for PE patients, and if any abnormal findings observed through the preoperative examinations, consultations with the related departments are recommended, and any necessary protective methods such as temporary pacemaker for patients with severe cardiac arrhythmia should be employed based on the guidelines during the correction. Patients should be referred to the specialists to follow-up in order to evaluate the condition of cardiac arrhythmias, and patients with cardiac related symptoms should be followed-up strictly and treated properly.
