Minimally invasive and robotic coronary artery bypass grafting—a 25-year review

Introduction

Based on the successes of general surgery, gynecology, urology, and thoracic surgery in the creation of video assisted, laparoscopic or thoracoscopic procedures heart surgery approached minimally invasive versions of its procedures in the mid-1990s. At that time a definition of what less invasive surgery would mean for cardiac surgery was searched. Two main questions were part of this discussion: how to limit the thoracic incision and how to limit the use of cardiopulmonary bypass. For coronary artery bypass grafting (CABG) versions of beating heart surgery without the heart lung machine had already been developed and off-pump CABG through sternotomy had been carried out primarily in South America (1). Benetti from Buenos Aires in 1994 was the first to perform a left internal mammary artery (LIMA) bypass graft to the left anterior descending (LAD) artery on the beating heart through a left sided mini-thoracotomy and with the use of thoracoscopy (2). This can be regarded as the advent of minimally invasive CABG. Since then different versions of minimally invasive approaches have been developed and heart surgery looks back to 25 years of valuable development.

Aim

In this review we present these methods, describe the surgical techniques, report on results as available in the literature, and provide opinions about the general applicability in clinical practice. Lastly, we present an overall picture of what minimally invasive CABG can offer for patients and the community of cardiac surgeons and cardiologists.

Methods

We analyzed literature as available from the study group’s own papers and literature collections. We also queried PubMed for the search-terms “minimally invasive coronary bypass”, “minimal invasive coronary bypass”, “coronary bypass through mini-thoracotomy”, “less invasive coronary bypass”, “robotic coronary bypass”, “total endoscopic coronary bypass”, totally endoscopic coronary bypass”, “robotically assisted coronary bypass”, and “port-access coronary bypass”. Also, the terms minimally invasive direct coronary artery bypass (MIDCAB), minimally invasive cardiac surgery-CABG (MICS-CABG), port-access coronary bypass grafting (PA-CABG), robotically assisted coronary artery bypass (RACAB), and totally endoscopic coronary artery bypass (TECAB) were searched. Data are presented in tables according to the most commonly used surgical methods. Only the most recent series was taken from groups publishing multiple articles on the topic. Multicenter studies and comparative studies were included in the review. For intermediate term survival the percentage of patients surviving at a given time-point was plotted against the years postoperatively. Categorical data are displayed as absolute values and percentages, continuous variables are shown as means and standard deviation as well as minimum and maximum values. For grand total means, the means out of all available studies reporting on a variable were taken.

Global distribution of publications on minimally invasive coronary bypass surgery

From 1996 to 2019, 74 articles containing series of CABG carried out minimally invasively were published. These articles contain a cumulative number of 11,135 procedures. Figure 1 shows the global distribution of these publications (Figure 1). The activities were specifically concentrated in Central Europe and the US East Coast and South, and there were also very active centers in East Asia. Six main surgical approaches were taken which will be explained and analyzed in detail. Figure 2 depicts the numerical distribution of these methods (Figure 2).

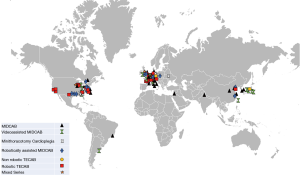

Figure 1 The global distribution of the publications reviewed in the is article is shown. The various methods are marked with different symbols. MIDCAB, minimally invasive direct coronary artery bypass; TECAB, totally endoscopic coronary artery bypass.

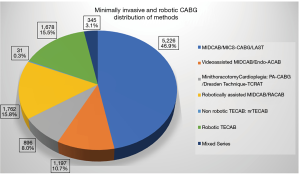

Figure 2 Numerical distribution and percentages of patients treated with the different minimally invasive surgical methods. CABG, coronary artery bypass grafting; MIDCAB, minimally invasive direct coronary artery bypass; MICS-CABG, minimally invasive cardiac surgery-CABG; LAST, left anterior small thoracotomy; endo-ACAB, endoscopic atraumatic coronary artery bypass; TCRAT, total coronary revascularization via anterior thoracotomy; RACAB, robotically assisted coronary artery bypass; TECAB, totally endoscopic coronary artery bypass; nrTECAB, non-robotic TECAB.

Versions of minimally invasive coronary bypass surgery

Coronary bypass surgery through mini-thoracotomy on the beating heart [MIDCAB, MICS-CABG, left anterior small thoracotomy (LAST)]

Definition

Through a mini-thoracotomy on the patient’s left chest the left and/or right internal mammary arteries are harvested. Additional vein or radial artery grafts may be taken. The graft to coronary artery anastomoses are performed directly through this mini-thoracotomy on the beating heart and under direct vision using conventional surgical instrumentation. The target vessels are immobilized using suction or pressure stabilizers and the anastomoses are carried out with local coronary artery occlusion. Single or multiple grafts can be constructed.

Terminology

Most commonly the terms MIDCAB and MICS-CABG are used. Another term used is LAST.

Surgical technique

The patient is positioned supine with the left chest slightly elevated. The skin incision is usually placed below the areolar area in men and in the breast fold in women. The 4^th intercostal space is then opened. Both medial and more lateral approaches have been described. Using special metal elevators the anterior chest wall is lifted up to create space. The LIMA is harvested under direct vision using headlight and loupes. Classic coronary bypass surgery instrumentation is taken. Recent developments even allow harvesting of the right internal mammary artery (RIMA) and special retractors were developed for this part of the procedure. The pericardium is then opened and using specifically designed positioners and stabilizers the target vessels are accessed. They are after heparinization occluded using silastic tapes and incised. The anastomoses are carried out on the beating heart using standard instrumentation and standard anastomotic techniques. Intraluminal shunts may be used additionally. The internal mammary arteries are placed as in situ grafts or as Y-constructs. If vein grafts are placed the proximal anastomosis is carried out by elevating the ascending aorta using sponges. Partial occluding clamps are applied in surgical practice and the use of anastomotic connectors has been described as well.

Results

This version of minimally invasive CABG is the most commonly performed. Table 1 demonstrates that a total of 5,226 cases are part of 25 international publications written around the world (3-27) (Table 1). The table also shows that the number of grafts placed with this method has significantly increased during the last years, 76.9% of cases, however, were still single bypass grafting procedures. The total average of grafts reaches 1.2±0.6. There is only little data on graft harvesting times. A recent paper on multivessel MICS-CABG reports 22.2 min for LIMA harvesting and 28.5 min for RIMA harvesting (27), probably demonstrating that work on the RIMA through a left mini-thoracotomy is feasible but more challenging than work on the LIMA. Total operative times are reported in the range from 1.1 to 5 h. The conversion rate to larger thoracic incisions was 1.6%. The overall revision rate for bleeding was 2.7% and the following rates for hard postoperative endpoints were achieved: mortality 1.0%, stroke 0.5%, renal failure 0.8%, very acceptable rates given the innovative nature of the procedure.

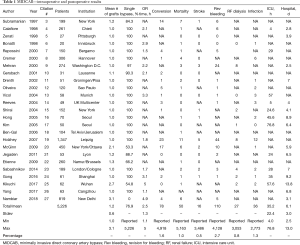

Table 1 MIDCAB—intraoperative and postoperative results
Full table

Comment

Even though the MIDCAB procedure appears to be relatively simple it is technically challenging. It is a known fact that several early programs were stopped because of inferior patency rates. Leipzig Heartcenter in Germany as a high-volume center managed to get the procedure into routine application and reported 1,347 cases already in 2007 (19). The same group also evaluated learning curves and stated that a triple digit number of cases for any individual surgeon may be necessary to overcome the learning phase (28). Sophisticated simulation models are probably the only solution to dampen this problem and to guarantee adequate patient safety. The overall conversion rate to larger thoracic incisions of 1.6% reported in this cumulative literature review is very acceptable. So are the hard endpoints mortality, stroke, and renal failure given the fact that many centers reported results during their learning curves. The 1.3% wound infection rate deserves some discussion. During this procedure a mini-thoracotomy is spread for several hours and tissue malperfusion and bacterial contamination may occur. Even though the spreaders and retractors have become more refined there is still room for technological and methodological improvement in order to keep the tissue trauma at a minimum. It was a goal of the heart surgery community to reduce hospital stay by reducing invasiveness of CABG. Our review demonstrates that despite some centers sending patients home as early as 3 days postoperatively, 6 days of postoperative hospital stay are probably realistic. A cumulative 5-year survival rate of 91% (data not shown in table) appears to be in line with survival after open CABG (29).

One point of criticism for this procedure is the fact that the internal mammary arteries cannot be viewed in their whole length and sometimes grafts are placed under tension. This needs to be avoided by all means. Early papers report extension of the internal mammary artery (IMA) by a piece of saphenous vein or inferior epigastric artery in cases where tension was an issue (4). This, however, does not appear to be an ideal compromise. Another topic of discussion is the placement of a partial occluding clamp to the fully pressurized ascending aorta through a mini-thoracotomy. The partial occluding clamp is a risk factor of stroke in coronary bypass surgery and is in the ideal world completely avoided, and at least intraoperative imaging is a reasonable ask. Another option is the application of anastomotic connectors for the proximal anastomosis. In the authors’ experience the MIDCAB procedure is ergonomically challenging with a tangential view on the IMA in single vessel MIDCAB and probably even harder access and view in bilateral IMA harvesting. Anastomotic suturing is specifically challenging in obese patients. Despite the claim of being an off-pump procedure a certain level of heart-lung machine use is probably inevitable and may even be recommended for complex cases that involve the back wall of the heart and the right coronary artery system. McGinn reported a 7.9% supportive use of the heart lung machine in his 2009 paper on the method (20).

Since the introduction of this procedure there was very justified hope that it could compete with percutaneous intervention (PCI) to the LAD. There is good evidence from several prospective randomized trials demonstrating that the MIDCAB LIMA to LAD procedure has significant advantages over percutaneous coronary intervention on the LAD concerning freedom from reintervention and overall major adverse cardiac event (MACE) or major adverse cardiac and cerebrovascular event (MACCE) (30-32). Midterm survival, however in these studies was not significantly different.

MIDCAB is the technologically least complex of all minimally invasive CABG procedures and therefore attractive if cost for sophisticated devices is an issue. The technical challenges and learning curve should on the other hand not be underestimated. The following part of the review may highlight what the addition of videoscopic adjuncts offers.

Video assisted coronary bypass on the beating heart through mini-thoracotomy [video assisted MIDCAB, endoscopic atraumatic coronary artery bypass (endo-ACAB)]

Definition

In this version of minimally invasive CABG parts of the procedure are performed under thoracoscopic video guidance. Mostly the video assistance is only used for IMA harvesting and location of the target vessel.

Terminology

For this procedure the most commonly used abbreviations are video-assisted MIDCAB and endo-ACAB.

Surgical technique

The patient is placed in supine position even though early papers also describe a right lateral decubitus position. Left lung collapse is usually applied and a thoracoscope as well as two instrument ports are inserted on the patient’s left chest. The IMA is harvested under thoracoscopic view. The harvesting is reported both in pedicled and skeletonized fashion. The literature commonly describes a version with 2D view and only one more recent paper reports on the use of 3D endoscopy (33). In one very early report a flexible gastroscope was taken for IMA harvesting (34). The graft to coronary anastomosis is usually performed through a mini-thoracotomy under direct vision on the beating heart with local target vessel stabilization and temporary coronary artery occlusion.

Results

As shown in Table 2, 1,197 cases are reported in the literature (23,33-44), 87.6% of them were single LIMA to LAD grafts. The LIMA harvesting time averaged 47.5±7.8 min, and in the paper describing bilateral IMA harvesting the RIMA harvesting time was 54 minutes. Total operative time was 3 hours and 30 min roughly 1 hour longer than in MIDCAB. The conversion rate to larger incisions was 4.5% and the revision rate for bleeding was 1.4%. Concerning hard postoperative endpoints a 0.8% mortality rate, a 0.4% stroke rate, and a 1.3% postoperative dialysis rate was noted. Concerning the 1.7% wound infection rate it needs to be mentioned that port infections are included in this calculation and it cannot be assessed how many deep wound infections at the mini-thoracotomy site occurred.

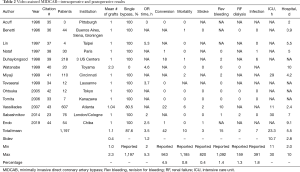

Table 2 Video assisted MIDCAB—intraoperative and postoperative results
Full table

Comment

This procedure was popular in the very early phase of minimally invasive coronary bypass grafting, probably because surgeons tried to imitate techniques of laparoscopic and VATS surgery. Videoscopy allows harvesting of the IMA in its full length and enables a direct lateral view on the graft rather than the tangential view that the surgeon faces in MIDCAB. In addition, close ups are possible which enable a detailed view of the graft harvesting process and magnification of IMA side branches. Still the harvesting in the published series took close to 50 min (data not shown in tables). Vassiliades described a significant dependence of the harvesting time on the patient’s body mass index (43). Another advantage of endoscopic support is the fact that the pericardium can be opened under scope vision and so the target vessel can be identified and marked easily. This way placement of the mini-thoracotomy is more precise than in MIDCAB. Probably due to the involvement of video technology and corresponding logistics of installation by the team total operative times are 1 hour longer than described for the latter procedures.

The Emory-Group acquired the largest experience but according to a paper in 2009 has switched from thoracoscopic harvesting to robotic harvesting of the internal mammary arteries in their endo-ACAB operations (45). One challenge might be the 2D videoscopic vision for the delicate process of IMA harvesting as we know from various other procedures. The hand-eye coordination might be limited initially and requires an individual learning curve to get adapted. It remains to be seen whether the offering of commercially available 3D videoscopy by industry can lead to revival of this version of minimally invasive CABG.

Revision for bleeding, stroke rates, renal failure rates, and perioperative mortality were very acceptable in the published series. Hospital stay with an average of 5.5 days was similar to the one reported for MIDCAB. Only two papers report intermediate term results (23,43). According to those a 92% 5-year survival rate was achieved.

In our view the video-assisted MIDCAB procedure was an important and necessary step in the evolution of minimally invasive CABG as it significantly enhanced visualization during graft harvesting and better localization of the target vessels. IMA harvesting is also ergonomically more attractive than under direct vision through a mini-thoracotomy. One drawback is dependence on an assistant for guidance of the camera. This can be overcome by camera-holding arms but as harvesting affects the whole cranio-caudal length of the chest frequent repositioning is still necessary.

We continue with a view on the role of the heart-lung machine and cardioplegia in minimally invasive CABG.

Coronary bypass grafting on pump with cardioplegia through mini-thoracotomy [PA-CABG, Dresden technique, total coronary revascularization via anterior thoracotomy (TCRAT)]

Definition

Surgeons who want to perform coronary bypass grafting through a limited incision but maintain the safety net of the heart lung machine and work on a completely still heart utilize this method. Cardiopulmonary bypass is usually installed in the groin, the ascending aorta is occluded by and endoballoon or via aortic crossclamping. Anastomotic suturing is carried out through the mini-thoracotomy.

Terminology

The following abbreviations are used and published in the literature: PA-CABG, Dresden technique and TCRAT.

Surgical technique

The IMA is harvested through the mini-thoracotomy. The groin vessels are usually exposed and remote access cardiopulmonary bypass is installed. In the PA-CABG method a balloon catheter is brought into the side arm of the femoral arterial perfusion cannula and advanced into the aortic root under transesophageal echocardiography (TEE) guidance. Availabity of an anesthesiologist well experienced in TEE is of utmost importance. After going on pump, the endoballoon is inflated and cardioplegia is delivered through the balloon catheter into the aortic root. Ruling out aortoiliac atherosclerosis and ascending aortic pathology preoperatively is extremely important and mandatory when applying the endoballoon together with femoral access perfusion. Surgeons use regular non-thoracoscopic instrumentation for the anastomoses.

The Dresden technique used direct aortic arterial cannulation and direct aortic crossclamping through the mini-thoracotomy (46). Babliak and coworkers from Kiew recently published their method in which a transthoracic Chitwood clamp is inserted instead. All anastomoses are carried out under direct vision through the mini-thoracotomy (47). As shown by the Kiew group special slings can be placed around the pulmonary veins and also around the inferior vena cava for exposure of the lateral and back wall of the heart.

Results

Table 3 lists the results of the on pump and cardioplegia versions of minimally invasive CABG (46-51). Eight hundred and ninety-six cases are published in the current literature. An average of two grafts was placed, the rate of single coronary bypass grafting is only 40%. Direct vision LIMA harvesting took an average of 46±4.2 min (data not shown in table) and an OR time of 4 hours and 12 min is reported. The cumulative conversion rate to a larger thoracic incision in a limited number of papers was 0.7% and the revision rate for bleeding was 2.3%. Mortality in the published series was 0.7% and the stroke rate reached 1.4%. Average intensive care unit (ICU) stay and hospital stay are reported as 36.4 h and 5.8 days respectively. Only one paper reports on intermediate term results: Farhat and coworkers noted a 92% 5-year survival (51).

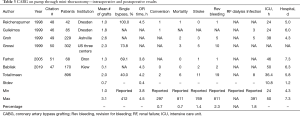

Table 3 CABG on pump through mini-thoracotomy—intraoperative and postoperative results
Full table

Comment

On pump coronary bypass grafting through mini-thoracotomy was popular during the early stages of less invasive heart surgery in the mid to late 1990s. As compared to beating heart versions more grafts could be placed and overall mortality was slightly lower than in MIDCAB series published during that time. The stroke rate, however, was always higher. This and the fact that retrograde aortic dissections have occurred when the endoballoon technology was introduced (48) have led to criticism about this method. Also cost for the Heartport^TM system was an issue. In addition, enabling technology for beating heart coronary bypass surgery through mini-thoracotomy developed well and MIDCAB or MICS-CABG became the preferred method by many less invasive surgeons. The activities of Babliak and co-workers (47) have caught recent attention and it can be expected that due to his excellent results some groups will take over the method. The endoballoon technology has also undergone several improvement steps and has become routine at a considerable number of centers. It is, however, used more frequently in the field of minimally invasive mitral valve surgery. For all on pump methods it cannot be overemphasized enough that preoperative imaging of the aortoiliac tree by CT angiography is of utmost importance so as to avoid the catastrophic complication of a retrograde aortic dissection. In the experience of the first author of this review approximately 70% to 80% of the CABG population has only mild aortoiliac atherosclerosis and is therefore probably well suited for this procedure. The most striking advantage of on pump minimally invasive CABG is unloading of the heart and therefore a better exposure of the lateral and back wall of the heart as well as a completely still operating field in a limited surgical environment. This makes placement of multiple grafts easier than on the beating heart.

The 4 h + operative time in the on pump/cardioplegia methods can probably be explained by the more time-consuming delicate maneuvers of peripheral arterial cannulation and use of the heart lung machine overall. In addition, more bypasses were placed than in MIDCAB and in video assisted MIDCAB.

The next part in this review will deal with the introduction of robotic technology into the field of minimally invasive coronary bypass surgery.

Robotically assisted coronary bypass grafting through mini-thoracotomy [RACAB, robotically assisted direct coronary artery bypass (RADCAB), robotically assisted MIDCAB]

Definition

In this version of less invasive coronary bypass surgery the internal mammary arteries are harvested using robotic technology. The graft to coronary anastomoses are performed through a left sided mini-thoracotomy as described for MIDCAB.

Terminology

Most commonly the terms RACAB, and robotically assisted MIDCAB or robotically assisted endo ACAB are used. One surgeon created the term “precision incision” for this procedure (52).

Surgical technique

The patient is placed in supine position with the left chest slightly elevated. A double lumen endotracheal tube is introduced and the left lung is deflated. Under left lung collapse a camera port is placed into the 4^th intercostal space on the anterior axillary line. Instrument ports are placed in the second and 6^th intercostal spaces close to the midclavicular line. Insertion of these ports should always be carried out under camera vision. The ports are docked to the arms of a surgical robot. For IMA harvesting a camera view 30 degrees up is taken. A robotic electrocautery spatula is inserted into the right and a robotic forceps is inserted into the left instrument port. The surgeon controls these instruments from a console using joy sticks, so called “masters”. He or she looks into a 3D/HD binocular, steers the camera remotely, and activates the electrocautery from the console using a foot pedal. The internal mammary arteries can be harvested in pedicled or skeletonized fashion. Care needs to be taken to use low cautery power, specifically if skeletonized harvesting is chosen. After graft harvesting the pericardial fatpad is taken down and the pericardium is opened using the surgical robot. With the robotic camera the landing zone on the target vessels can be identified and the corresponding appropriate incision site for the mini-thoracotomy can be chosen. The latter three maneuvers are carried out with a camera view 30 degrees down. The mini-thoracotomy incision is placed and the rest of the procedure is similar to what has been described above for MIDCAB.

Results

One thousand seven hundred and sixty-two cases in 12 papers are available in the published literature (23,24,53-62) (Table 4). Mostly single LIMA to LAD bypasses were performed (85.5% single vessel revascularization). LIMA harvesting times were 57.0±35.4 on average (data not shown in the table). Total operative time was 4 h and the conversion rate to a larger thoracic incision was 6.6%. Revision for bleeding, Mortality and stroke rate are reported as 0.4% each. Hospital stay was 5.4±1.6 days. Five-year survival was calculated in one paper and reached 94% (44).

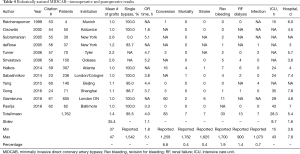

Table 4 Robotically assisted MIDCAB—intraoperative and postoperative results
Full table

Comment

Robotic assistance has added better visualization, better camera control, 3D vision, magnification, and better surgical dexterity to the field of minimally invasive CABG. This enables a much more comfortable IMA harvesting process. More comfortable bilateral IMA harvesting may also be underlined by the fact that two studies (56,59) found exactly the same harvesting times for the LIMA and the RIMA. The group of Bob Kiaii from London, Ontario recently reported on a series of more than 600 patients with a mortality rate of only 0.3% (61). In the robotic heart surgery community this procedure has gained more acceptance than the totally endoscopic version most likely because the anastomotic process through a mini-thoracotomy is more straight forward and can be carried out using classic surgical instrumentation.

Next, we give insights why completely endoscopic coronary bypass grafting using conventional, long-shafted thoracoscopic instrumentation is extremely difficult and explain why technological support by robotic devices is necessary.

Video assisted (non-robotic) totally endoscopic CABG (nrTECAB)

Definition

In this procedure IMA harvesting, pericardiotomy, and the anastomoses are all carried out with long shafted minimally invasive instrumentation under videoscopic guidance.

Terminology

The operation is called as nrTECAB in the literature.

Technique

Any totally endoscopic surgery is performed through ports only without auxiliary incisions. Therefore, surgeons who developed this procedure placed ports in approximately the same locations as described for robotically assisted MIDCAB and inserted regular thoracoscopic instruments. All procedure steps—IMA takedown, pericardial fatpad removal, opening of the pericardium, and anastomotic suturing were carried out this way.

Results

Two very small series (31 patients total) are published in the literature (63,64) (Table 5), one from Ulm/Germany another form Kanazwa/Japan (33,65). Both groups managed to perform this extremely difficult operation. The technical challenges are reflected by a 45.1% conversion rate to larger incisions. There were, however, no mortality events and no strokes occurred. Unfortunately, except for LIMA harvesting (mean 77±33.9 min) no operative times and no detailed further postoperative morbidity are reported in these papers. Longterm data are also unavailable.

Table 5 Non-robotic TECAB—intraoperative and postoperative results
Full table

Comment

A nrTECAB approach has been attempted immediately after the advent of remote access heart lung machine perfusion and the endoballoon for endoaortic occlusion and cardioplegia. The Stanford group carried out animal experiments (63). Clinical application by this group was mentioned in talks and discussions but to our knowledge the experience has not been published. Probably due to the extreme technical challenges robotic support was then used to further develop a totally endoscopic version of coronary bypass grafting. Given the technical difficulties it has to be appreciated that two groups attempted the approach clinically. As reflected in the numbers of patients reported and as seen in clinical practice broader application can probably not be expected.

The attempts to perform TECAB using video-assisted thoracoscopic surgery (VATS) instrumentation can almost be regarded as heroic. It is obvious that major technological support is necessary for completely endoscopic suturing of a coronary bypass graft anastomosis. Surgical robots serve this purpose.

Robotically assisted TECAB

Definition

In the robotically assisted totally endoscopic method the whole bypass grafting procedure including IMA harvesting, pericardiotomy, and anastomotic suturing is carried out using a surgical robot.

Terminology

This procedure carries the abbreviation robotic TECAB.

Technique

Robot docking, IMA harvesting and pericardial opening is performed as described for robotically assisted MIDCAB. Then the target vessel is either immobilized using a robotic suction endostabilizer or the heart is arrested using remote access perfusion and endoballoon cardioplegia (see also PA-CABG). The graft is sutured to the anastomosis with a double armed 7 cm short 7/0 synthetic suture or anastomosed with an automated anastomotic connector (64). Figure 3 shows the intraoperative setup in a robotic TECAB procedure.

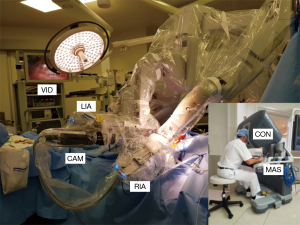

Figure 3 Intraoperative setup in a robotic TECAB procedure. A camera arm (CAM) and a left instrument arm (LIA) and a right instrument arm (RIA) are docked to the patient’s left chest. The surgeon controls these arms from a console (CON) using joysticks, so called “masters” (MAS). The surgical team can follow the procedure on a video screen (VID). TECAB, totally endoscopic coronary artery bypass.

Results

Since the first robotic TECAB procedure carried out by Loulmet and coworkers in Paris in 1998 (66), 1,678 cases have been published in larger series in the cardiac surgery literature (21,60,64,66-76) (Table 6). The mean graft number is currently 1.2±0.3 and multivessel procedures have been increasingly carried out since the mid-2000s. Twenty-seven point eight percent of these procedures were multivessel coronary bypass grafting. Detailed literature on this multivessel approach is available (77). Conduit harvesting times amount to 55±19 min for LIMA harvesting and 32 min for RIMA harvesting (one single paper reporting on the RIMA) (74). Total operative times reached 5.3±0.8 hours and the cumulative conversion rate to a larger thoracic incision for all published TECABs was 10.3%. Revision for bleeding was 3.4%, the stroke rate was 1.0%, and the perioperative mortality reached 1.3%. A 5.2±1.6 days hospital stay was reported. Three-year survival is reported by two papers (21,76) at 96% and 95.5%.

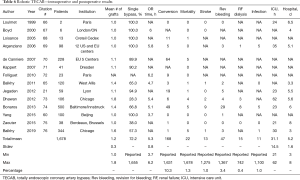

Table 6 Robotic TECAB—intraoperative and postoperative results
Full table

Comment

Given the more or less complete failure of conventional videoscopic surgery in the attempt to carry out a TECAB procedure robotics proved to be an essential enabling technology. Until now no other technology has provided enough support for a TECAB operation. After an initial phase where only single grafts were carried out bilateral IMA grafting was increasingly performed. Triple and quadruple bypass grafting has been reported (78). Both beating heart and arrested heart versions of robotic TECAB were executed in routine clinical practice by active groups. Despite adequate clinical results overall acceptance in the cardiac surgery community has been slow, most probably due to significant learning curves, long procedure times, significant team commitment, and cost. Concerning learning curves similar to the MIDCAB procedure a triple digit number of repetitions is necessary for the individual surgeon and the team to achieve a good comfort level (79,80). For conversion a learning curve for the whole community of robotic heart surgeons has been described recently (81). Conversion rates affected almost one out of two patients in the early 2000s but nicely fell below 5% over the last years. Of all minimally invasive coronary bypass grafting procedures robotic TECAB is the most complex with the highest technological demands. From a pure surgical invasiveness perspective, however, it is the coronary surgery procedure with the least tissue trauma. The significant investment in robot hardware, the long training of surgeons and their teams, and also the strong dependence on complex technology and interdependence of all members of the surgical team remains a point of lively discussion. Proper device handling and team training as well as aspects of new surgical robots coming into the field have been described by our group recently (82).

Mixed series

Two papers in our review did not describe one of the above methods specifically but a mix of different methods (83,84). Results of 345 cases are shown in Table 7. They are in line with what was shown for the individual procedures with a low mortality of 0.6%, a zero percent stroke rate, and hospital stay of only 4.4 days. A 5-year cumulative survival rate of 95% is reported by both papers.

Table 7 Mixed series—intraoperative and postoperative results
Full table

Grand total view on minimally invasive and robotic coronary bypass surgery—what can the different approaches offer?

The first classic coronary bypass grafting procedures through median sternotomy were introduced by Favaloro in 1968 (85) and soon became a worldwide spread and frequently applied procedure (86). It took a little more than 25 years until the idea of reducing the surgical trauma came up. Surgeons in South America had in the early 1980s tried to take out the factor heart lung machine and thereby were successful in reducing blood transfusions and other perioperative adverse events (1). After video assisted thoracic surgery was established Benetti was the first to approach the placement of a LIMA bypass to the LAD through a mini-thoracotomy (2). The chronological development of minimally invasive CABG since then is outlined in Figure 4. The main steps were the availability of videoscopic tools and instruments which allowed working through small incisions and ports, the introduction of suction and pressure stabilizers for beating heart coronary surgery, the invention of surgical robots with multiwristed endeffectors, the availability of anastomotic connector devices, and 3D endoscopy.

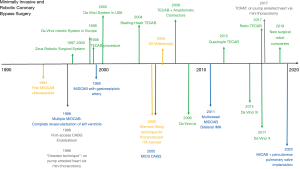

Figure 4 Historical development of minimally invasive coronary bypass surgery. MIDCAB, minimally invasive direct coronary artery bypass; MICS-CABG, minimally invasive cardiac surgery-coronary artery bypass grafting; TECAB, totally endoscopic coronary artery bypass; IMA, internal mammary artery; MICAB, minimally invasive coronary artery bypass.

Demographics

Demographics were very inconsistently reported in the literature that we reviewed. The mean age was 61.9 years and 76.5% of the patients were male (data not shown in tables).

Intraoperative outcome in minimally invasive CABG

Extent of surgical revascularization

Table 8 shows the intraoperative and postoperative performance of all methods described in this review. The approaches with the highest degree of surgical revascularization appear to be those which use the heart lung machine. The mean number of grafts placed in these operations was 2.0 and 60% of the patients received multiple bypass grafts. Complete unloading of the heart allows access to all coronary territories including the right coronary artery system and distal branches of the circumflex coronary artery.

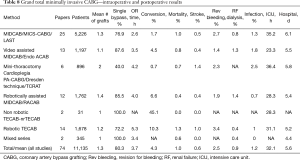

Table 8 Grand total minimally invasive CABG—intraoperative and postoperative results
Full table

Operative times

LIMA takedown during the 25 years of development was performed in 52.1 min whereas RIMA harvesting was carried out within 39.7 min (results not shown in Table 8). Little data is available on harvesting times for the IMA in CABG through median sternotomy. Kieser and coworkers achieved a reduction of harvesting times from 36 to 15 min using the harmonic scalpel (87). The fact that RIMA harvesting in our cumulative analysis was shorter than LIMA harvesting may be explained by the fact that more experienced surgeons harvested the RIMA in multivessel bypass grafting. These surgeons had probably passed the learning curve for LIMA harvesting and managed to take the RIMA down approximately 10 min faster. Taggart in the ART trial found that adding the RIMA as a second arterial graft added 23 min of operative time (88).

Total operative times for minimally invasive CABG procedures in our review averaged 3 h and 42 min. Mohr and coworkers in a publication on the SYNTAX trial reported an operative time of 3 hours and 30 min for patients with an average of 3.4 grafts placed through sternotomy (89). The operative time in the minimally invasively treated patients in our current review was 3 hours 43 min, about a quarter of an hour longer. The mean number of grafts, however was only 1.3 and only 18.5% of treated patients received two or more bypass grafts. Three hours 50 min is also a significant prolongation of operative time as compared to the 2 hours 17 min operative time for CABG ×1 through sternotomy described by Halkos in 2012 (45). The question remains whether investing longer surgical time for less grafts and reduced surgical trauma is worthwhile. The authors feel that given the overall very promising results it is absolutely justified to further promote CABG through limited incisions. What our review also shows is that the more technology is brought in (videoscopy, heart lung machine, surgical robot) and the more grafts are placed the more extensive operative times get. The limits how long one can allow a minimally invasive coronary bypass grafting procedure to take is not quite clear. An analysis on operative times in robotic TECAB by Wiedemann demonstrated a time frame of approximately 8 h before morbidity and mortality increase significantly (90). Again, it needs to be kept in mind that operative time in less invasive CABG means increased surgical time with reduced trauma and a burden to the thoracic tissue lower than in median sternotomy approaches. We suggest that this delicate balance deserves more investigation.

Conversion to larger thoracic incisions

Conversion to larger incisions in case of technical difficulties has been a known fact in less invasive surgery practiced in other disciplines and also was part of less invasive coronary bypass grafting from the very beginning. Our review revealed an overall conversion rate of 4.3%. Conversion should never be seen as failure but as a necessary step and should be carried out liberally if technical problems occur.

Postoperative outcome

Mortality

Perioperative mortality rates in pooled large prospective randomized trials are 1.5% for off-pump coronary bypass grafting and exactly the same (1.5%) for on pump coronary bypass surgery (91). In 2011 a review of the STS database looking at 101,188 patients undergoing CABG revealed a 30-day mortality rate of 1.6% to 5.3% depending on the use of one, two, or no internal mammary arteries (92). A similar study investigating 144,526 patients in the STS database found a perioperative mortality in the range of 1.7% to 2.6% depending on procedural volume (93). From this perspective the 1.0% total mortality rate in minimally invasive CABG shown in this article appears very satisfactory but needs to be seen with caution as, again, the mean number of grafts placed was 1.3. The mean number of grafts in the SYNTAX trial was 3.5 and Mohr and coworkers report a 0.9% mortality rate for the selected patients in this large randomized trial (89). Literature on CABG mortality depending on the grade of surgical revascularization (45,94-100) shows a clear trend that rates increase with the number of vessels diseased and the number of grafts placed. The cumulative mortality for conventional single and double coronary bypass and CABG for single and double vessel disease is published in the range of 0% to 2% with a mean of 0.9% for single vessel disease/single bypass and 1.6% for double vessel disease/double bypass. The corresponding rate for triple vessel disease/triple bypass is 2.9%. It can therefore be stated that minimally invasive procedures clearly maintained the level of perioperative survival which is expected for low complexity conventional CABG through sternotomy and many series of mini-CABG were reported with 0% mortality despite the presence of innovation and learning curves.

Stroke

The recent large CABG trial FREEDOM reported a perioperative stroke rate of 1.8% (101). In the ISMICS consensus statement on sternotomy off-pump versus on-pump CABG perioperative stroke rates were 1.4% and 2.1% respectively (91). Halkos found a 1.3% stroke rate in a series of 234 patients undergoing sternotomy CABG for single vessel disease (45). Papers on low complexity CABG show a stroke rate between 0% and 1.3% for conventional CABG in single vessel disease or single bypass grafting (45,98,99). A cumulative 0.6% stroke rate in 25 years of minimally invasive CABG appears therefore very satisfactory and may indicate that less invasive procedures lead to relatively low stroke rates. Attempts to further reduce stroke rates in coronary surgery are extremely important in the competition with catheter-based intervention which is superior to coronary surgery from this aspect in most studies.

Revision for bleeding

Puskas in the large ISMICS meta-analysis and consensus statement on off-pump versus on-pump CABG which investigated 19,101 patients in 102 randomized trials reported a revision rate for bleeding of 2.3% and 2.6% respectively (91). We found a cumulative rate of revision for bleeding of 2.5% in minimally invasive CABG. The highest rates were noted for MIDCAB and robotic TECAB. Why minimally invasive approaches failed to reduce bleeding rates needs further evaluation. Factors that may have played a role are innovation and learning curves, surgical technical difficulties and extensive operative times.

Renal failure, dialysis

Our literature review revealed a renal failure rate exactly in the range of what the Emory group reported for patients who underwent sternotomy single CABG (0.9%) (45). Definitions of renal failure, however, were not standardized in the papers we reviewed and the hard endpoints mortality, stroke, and revision for bleeding were much more consequently reported. Renal failure is also very dependent on postoperative treatment on the ICU.

Wound infection

In larger CABG series we see rates of sternal wound infection in the range of 2.4% to 4.4% (91). The wound infection rate of 1.2% in our analysis from this perspective appears more than acceptable. On the other hand, Halkos and coworkers described a 0.4% deep wound infection rate for patients undergoing conventional single CABG procedures (45). We have to keep in mind that wound infections in minimally invasive surgery are many times confined to the mini-thoracotomy area or may be in relation with infected ports in TECAB, a pattern completely different from deep sternal wound infection and mediastinitis. The variable sternal osteomyelitis is largely taken out of the equation. Potential risk factors that are not seen in sternotomy CABG are long periods of spreading a small incision and long periods of ports moving in an intercostal space for hours. Both mechanisms can lead to local tissue necrosis and bacterial contamination with subsequent local infection that may spread into the chest. The likelihood of reaching deep compartments is probably lower. If bilateral IMAs are used a sternal sparing approach appears specifically attractive. Taggart noted a 1.9% sternal wound complication rate if single IMA is used in sternotomy CABG in the ART trial. The rate was 3.5% for double IMA (88). Minimally invasive, sternal sparing methods can probably help to overcome this risk associated with bilateral IMA use, an advantage that should be specifically attractive for insulin dependent diabetics, obese patients, and those with COPD.

Hospital stay

Despite the fact that some perioperative adverse events seen in minimally invasive CABG are not reduced as compared with sternotomy CABG an average hospital stay of 5.6 days is encouraging but does not quite fulfill the promises of less invasive heart surgery to reduce length of stay dramatically. The large SYNTAX trial reported a postoperative stay of 9.0 days after multivessel sternotomy CABG (89), in the ISMICS off-pump versus on-pump CABG consensus statement hospital stay was 7.6 days and 8.4 days respectively (91). Halkos found a 5.8-day postoperative length of stay in 234 patients undergoing sternotomy CABG for single vessel disease and showed a gain of 0.6 days if non-sternotomy methods were applied (45). A mean hospital stay of 5.4 days for patients with low complexity single vessel disease/single coronary bypass through sternotomy is reported in the literature (45,99). It needs to be considered that factors related to different health care systems may to some extent influence the length of hospital stay. The effects of a less traumatic version of CABG are probably more visible during the first few weeks postoperatively and more comparative studies looking into the speed of recovery during this phase are warranted.

Conclusions

From this review looking into 25 years of development in minimally invasive CABG it can be concluded that the vast majority of patients receives single LIMA to LAD bypass grafts and the number of multivessel CABG cases performed through mini-thoracotomy or through ports has increased only recently. Six major groups of surgical approaches can be defined depending on extent of the incision, use of videoscopy, use of the heart lung machine, and application of robotic technology.

The most important and appealing aspect of the method is that the incision length and the overall surgical trauma are significantly reduced. But procedures require longer operative times than reported for open CABG through sternotomy. In more than 95% of patients the procedures are technically successful with full sternal preservation. The awareness of a potential larger opening of the chest due to technical issues in the rest of patients is important.

The hard-postoperative outcome variables mortality, stroke, and renal failure lie clearly in the 1% to below 1% range indicating that procedure development has not compromised basic safety standards of surgical coronary revascularization. For stroke there is a signal that minimally invasive procedures may even result in a rate lower than in open procedures. Revision for bleeding lies in the range of rates reported for sternotomy CABG. The occurrence of renal failure rates is also similar. Wound infection rates seem to be acceptable but wound infection follows a different pattern than in sternotomy. Complete sternal preservation when bilateral IMAs are used is one of the main advantages of minimally invasive CABG. There are reports of patients being sent home as early as 2 or 3 days postoperatively but the average hospital stay after minimally invasive coronary surgery is essentially in line with what is seen after sternotomy for low complexity CABG. Benefits in the early rehabilitation phase are usually not reported in larger series but would deserve deeper evaluation. Five-year survival matches results of open CABG.

Minimally invasive and robotically assisted techniques are in any case important components to make surgical coronary revascularization fit for the 21^st century and competitive in the spectrum of treatment methods for coronary artery disease.
