Changes in aortic arch geometry and the risk for Stanford B dissection

Introduction

Aortic dissection is the most common fatal aortic disease. Despite the development of diagnostic strategies, endograft design, and surgical treatment for aortic dissection in the last 20 years, the in-hospital mortality rate of patients presenting with Type B aortic dissection (TBAD) has remained at 13% (1). For this fatal aortic disease, the benefits of treatment for stable and asymptomatic but high-risk conditions are far better than treatment after the presentation of acute and catastrophic symptoms (2). Therefore, identification of the risk factors for TBAD and prevention before an occurrence of acute and catastrophic symptoms are the best ways to reduce the mortality and treatment costs of TBAD (3). Hypertension, increasing age, atherosclerosis, and genetic predisposition are well-established risk factors for TBAD, but it is difficult to improve cost-effectiveness in screening programs by focusing on high-risk patients using these common risk factors. Numerical and experimental evidence has illustrated that morphological changes in the aorta can affect the mechanical stresses (4,5), which are closely related to the morphological features of endothelial cells (6). Current guidelines recommend that patients with an ascending aortic transverse diameter exceeding 5.5 cm undergo prophylactic treatment to prevent type A aortic dissection, but for TBAD, there are no such appropriate morphological risk factors (2). Therefore, the identification of morphological risk factors may help to better identify patients at risk for TBAD.

Our study considered the following points to identify the potential morphological risk factors for TBAD. First, the aortic dilation is occurring not only transversally but also longitudinally. Although there was no correlation between aortic diameter and TBAD, aortic elongation has been shown to be associated with TBAD. Second, in addition to the length of the aorta, other morphological indicators, such as the geometry of the aortic arch, may indicate the pre-disease aortic morphology, which has not been previously studied in TBAD. Third, considering the difficulty of acquiring imaging prior to dissection onset, we intended to identify some morphological indicators that remained relatively stable before and after the onset of TBAD to describe the pre-disease aortic morphology. Therefore, we retrospectively collected computed tomography (CT) angiography data from TBAD patients and healthy control subjects and compared the morphology parameters (the length of each segment of the aorta and the geometry of the aortic arch) between the two groups. Fourth, it is widely accepted that advancing age, gender, body surface area (BSA), and comorbidities might have an effect on the aortic morphologies (7-9), but most previous studies failed to compare well-matched patient groups, allowing selection bias to influence the results (10-12). In this study, aiming to determine the association between the occurrence of TBAD and aortic morphology, we intended to use propensity score matching (PSM) to control for selection bias. We present the following article in accordance with the STROBE reporting checklist (available at http://dx.doi.org/10.21037/jtd-20-1643).

Methods

Study population

This study was a retrospective, multicenter, cross-sectional study. Patients in the TBAD group were diagnosed with acute Stanford TBAD at two institutions (Shanghai Ninth People's Hospital Affiliated to Shanghai Jiao Tong University School of Medicine and Department of Vascular and The First Affiliated Hospital of Anhui Medical University). We retrospectively evaluated CT scans of consecutive TBAD patients who underwent thin-cut (0.6-mm) contrast-enhanced CT angiography between January 2017 and December 2018. The exclusion criteria for the TBAD group were as follows: (I) patients with connective tissue disease (Marfan’s disease, Loeys-Dietz syndrome or Ehlers-Danlos syndrome); (II) iatrogenic dissection; (III) patients with other aortic diseases such as aneurysms; (IV) patients with previous aortic surgery; (V) patients with previous cardiothoracic disease or cardiothoracic surgery; (VI) patients with diseases that might cause distortion of the thoracic aortic morphology (pulmonary nodules with a diameter >3 cm, mediastinal masses or lymph nodes with a diameter >1 cm, pneumothorax, pulmonary bullae with a diameter >3 cm, history of thoracic and mediastinal surgery, etc.); and (VII) patients with diseases that might cause distortion of the shape of the thoracic wall (scoliosis, barrel chest, pectus carinatum, history of spinal surgery, etc.). Missing data in the database has been excluded.

We retrospectively evaluated CT scans of consecutive patients with healthy aortas who underwent thin-cut (0.6-mm) contrast-enhanced CT angiography or contrast-enhanced chest CT at one institution (Shanghai Ninth People’s Hospital Affiliated to Shanghai Jiao Tong University School of Medicine) between April 2018 and December 2018 as a healthy control group. The exclusion criteria for the healthy control group were as follows: (I) patients with suspected or known aortic disease; (II) patients with previous cardiothoracic disease or cardiothoracic surgery; (III) patients with diseases that might cause distortion of the thoracic aortic morphology; and (IV) patients with diseases that might cause distortion of the shape of the thoracic wall. Missing data in the database has been excluded.

The procedures followed were in accordance with the Declaration of Helsinki (as revised in 2013), and the study protocol was reviewed and approved by the local ethics committee (SH9H-2019-T144-2). The need for written patient consent was waived because of the observational nature of this study. This retrospective factorial study was registered with the Chinese Clinical Trial Registry, and its registration number is ChiCTR2000029219.

Image analysis

Digital Imaging and Communications in Medicine (DICOM) standard data from eligible patients were transferred for further analysis in an anonymized fashion. Three-dimensional multiplanar reconstruction was performed with EndoSize software version 3.1 (Rennes, France).

A center line was created from the sinotubular junction to the diaphragmatic level of the descending thoracic aorta. In the presence of AD, we manually place the seed points of the centerline at the center of the total artery lumen (i.e., both the true and false lumens) to obtain the adjusted pre-dissected aortic centerline (Figure 1). According to previous study (7,12), the thoracic aorta was divided into 4 segments by appropriate planes perpendicular to the center line (Figure 2): 1. ascending aorta (from the sinotubular junction to the origin of the brachiocephalic artery); 2. aortic arch (from the origin of the brachiocephalic artery to the origin of the left subclavian artery); 3. proximal descending thoracic aorta (from the origin of the left subclavian artery to the level of the pulmonary trunk bifurcation); and 4. distal descending thoracic aorta (from the level of the pulmonary trunk bifurcation to the diaphragm). The length of each segment was measured as the center line distance between the previously defined points.

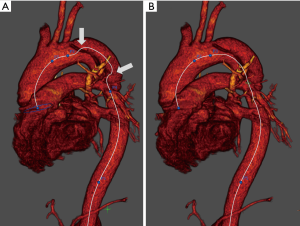

Figure 1 A center line was placed manually from the center of false lumen (A) to the center of total artery lumen (B), the arrows indicate the position of the center line was manually replaced.

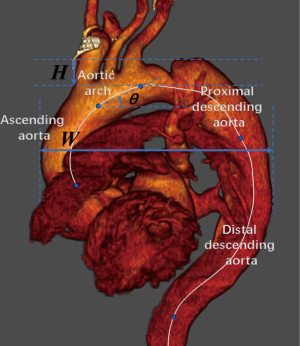

Figure 2 Aortic view of thoracic aorta illustrating aortic measurements. The thoracic aorta was divided into 4 segments: ascending aorta, aortic arch, proximal descending thoracic aorta, and distal descending thoracic aorta. The arch width (W) was defined as the maximum distance between the outer curvature of the ascending aorta and the descending aorta. The arch height (H) was defined as the vertical distance between the origin of the brachiocephalic artery and the arch vertex. The arch angle (θ) was measured as the angle between the line between the origin of the brachiocephalic artery and the origin of the left subclavian artery and the horizontal line.

Aortic arch parameters were measured in the aortic view. The arch width was defined as the maximum distance between the outer curvature of the ascending aorta and the descending aorta. The arch height was defined as the vertical distance between the origin of the brachiocephalic artery and the arch vertex. The arch angle was measured as the angle between the line between the origin of the brachiocephalic artery and the origin of the left subclavian artery and the horizontal line.

According to the data of previous studies, the length of healthy aortic arch was estimated to be 30±10 mm, and the length of dissected aortic arch to be 35 mm. We accepted a P<0.05 as acceptable and a study with 80% power. With the enrollment ratio of 1, the sample size of the experimental group and the control group was estimated to be 63:63, respectively. We estimated that only 80% of the patients in the TBAD group were included in the final comparison after PSM. Therefore, we finally estimated that the TBAD group needed at least 78 cases, and the healthy control group needed more than 78 cases, and the more cases, the better.

We used Heuts’s retrospective modeling method to obtain the adjusted predissection dimension (12-14). Rylski et al. revealed that the length of the descending aorta increased by 3% on average after the occurrence of dissection, while the lengths of the ascending aorta and the aortic arch did not increase (14). As in their study, we modeled the aortas of TBAD patients to pre-dissection length by deducting 3% of the measured length of the descending aorta.

Statistical analysis

The distribution of continuous variables was assessed for normality by the Shapiro-Wilk test and was assessed visually by inspection of histograms and standardized normal probability (P-P) plots. Continuous variables, expressed as the mean ± standard deviation, were compared using the independent t-test. Categorical variables, expressed as frequencies and percentages, were compared using Pearson’s χ² test. PSM was used to reduce the potential for confounding by baseline factors (15). Patients in the healthy control group were matched 1-to-1 with patients in the TBAD group, with nearest-neighbor matching without replacement and a matching tolerance (caliper) of 0.2. During matching, maximization of execution performance and randomization of case order were performed. Standardized differences for each variable and for each treatment group were calculated to assess the balance, with values <0.10 indicating a good balance. All data were analyzed using SPSS statistical software version 24.0 (Chicago, IL). P<0.05 was considered to be statistically significant.

Results

Patient characteristics

A total of 94 patients were included in the TBAD group, and 534 subjects were included in the healthy control group. Participation at each stage is shown in a flow diagram (Figure 3). Patients in the TBAD group were younger than patients in the healthy control group (57.46±12.00 vs. 65.24±12.21 years, P<0.001). There were more men in the TBAD group than in the healthy control group (80.9% vs. 58.4%, P<0.001). Patients in the TBAD group weighed more (70.24±9.36 vs. 63.27±11.00 kg, P<0.001), had a higher BSA (1.75±0.14 vs. 1.66±0.17 m², P<0.001), and more frequently had hypertension (86.2% vs. 37.1%, P<0.001) and diabetes mellites (28.7% vs. 15.7%, P=0.002). The comparison of baseline characteristics between the two groups before PSM is summarized in Table 1. Missing data in the database has been excluded.

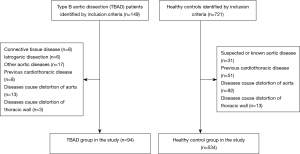

Figure 3 Flow diagram of participation.

Table 1 The comparison of baseline characteristics between the TBAD group and Healthy controls group
Full table

Propensity score matching

We performed PSM to reduce the potential for confounding by baseline factors (gender, age, BSA, rate of hypertension, rate of diabetes mellites, and rate of smoking). Scoring performed well for balancing confounders. Before matching, there were 6 statistically significant differences between the TBAD group and the healthy control group. In the course of PSM, we successfully matched 75 TBAD patients to 75 healthy control subjects. The matched pairs did not differ with regard to any baseline characteristics (Table 1).

Aortic geometry

We observed 12 geometric indicators of the aorta. In the PSM cohort, we observed longer lengths of the aortic arch (28.00±7.42 vs. 25.14±7.11 mm, P=0.017) in patients with TBAD than in healthy controls (Table 2). The diameters of the sinotubular junction level (3.88±0.50 vs. 3.22±0.60 cm, P<0.001), ascending aorta (3.33±0.44 vs. 3.69±0.38 cm, P<0.001), aortic arch (3.25±0.74 vs. 2.61±0.36 cm, P<0.001), and descending aorta (3.57±0.82 vs. 2.44±0.39 cm, P<0.001) were larger in TBAD patients than in healthy controls (Table 3). The width (80.04±17.27 vs. 71.73±15.55 cm, P=0.005) and height (24.92±11.39 vs. 19.37±10.10 cm, P<0.001) of the aortic arch in patients with TBAD were both larger than those of healthy controls (Table 4). There were no significant differences in the length of the ascending aorta (P=0.813), the lengths of the proximal (P=0.395) and distal descending aorta (P=0.066), and the length of the total thoracic aorta (P=0.720) between the two matched groups. There were no significant differences in arch angle (P=0.977) between the two matched groups.

Table 2 The comparison of aortic length between the TBAD group and Healthy controls group
Full table

Table 3 The comparison of aortic diameter between the TBAD group and Healthy controls group
Full table

Table 4 The comparison of aortic arch geometry between the TBAD group and Healthy controls group
Full table

Discussion

It is difficult to diagnose TBAD until its acute and catastrophic symptoms occur. Because of the difficulty of treating this fatal aortic disease, identification of potential risk factors before the occurrence of typical symptoms may be the most effective way to reduce the mortality associated with TBAD (2). Structural and functional changes play important roles in the process of aortic disease (10,16), and one of the important changes is in the geometry of the aorta. The current guidelines recommend that the only morphological risk factor is aortic dilation, i.e., a descending aortic diameter greater than 5.5 cm, which requires surgical treatment (2), but this recommendation is controversial: 60% of TBAD patients have maximum aortic diameters <5.5 cm, and 40% of TBAD patients had aortic diameters <5.0 cm in the IRAD Registry (17). Therefore, identifying possible morphological factors other than aortic diameter may better predict the occurrence of TBAD.

Our results are similar to those of previous studies. Several previous studies have demonstrated an association between Stanford A aortic dissection and ascending aortic elongation (7-9,12,13,16). Besides, other previous study has confirmed that the aortic arch tortuosity is significantly increased in patients who are at increased risk for thoracic aortic aneurysms or aortic dissections (18). As for TBAD, a study confirmed that the aortic arch elongation is associated with the development of was highly effective in predicting Stanford B dissection, exceeding the indexes such as diameter (8).

The most common site for a proximal intimal tear in TBAD is just distal to the origin of the left subclavian artery, which is the junction of the aortic arch and the proximal descending aorta (3). According to previous studies, aortic elongation with advancing age was also most pronounced in this segment (5,7). Furthermore, TBAD is associated with elongation of the aortic arc (10). All of the above evidence suggests that the morphology of the aortic arch and surrounding aortic segments may be a positive marker of aortic dissection. However, previous studies have mostly focused on the diameter and length of the aorta and have not systematically explored the correlation between TBAD and the geometry of the aortic arch, such as the aortic arch width, the aortic arch height, and the inclination of the aortic arch (i.e., arch angle) (10,19). In addition, the morphology of the aorta is associated with factors such as age, gender, BSA, and some comorbidities, especially hypertension, but these confounding factors were not excluded in previous studies (10-12). In this study, after analyzing 94 patients with TBAD and 543 healthy control subjects and using PSM analysis to reduce the potential for confounding by baseline factors, we revealed that TBAD was associated with longer lengths of aortic arch and with larger arch height and width.

Previous studies have confirmed that aortic arch elongation is associated with the development of TBAD (10). At the same time, elongation of the aorta with aging is most pronounced in the aortic arch (5,7). The reason may be attributed to the following: Compared with the fixed parts of the thoracic aorta, including segments connected to the pericardium and diaphragm (i.e., ascending aorta and distal descending thoracic aorta), the mobile proximal descending aorta and aortic arch can move relatively freely in the longitudinal direction (19). The proximal aorta has the greatest elastin content, which makes it the release point of the twisting thoracic aorta (17,20). This age-related aortic looseness may lead to changes in the geometry of the aortic arch. The abovementioned series of aortic arch morphological changes were related to TBAD in our study. The reason may be that changes in the morphology of the aortic arch may affect the hemodynamics of the descending aorta, resulting in increased mechanical stresses (4,5). Experiments have shown that this increase in wall shear stress leads to changes in endothelial cells (6), which in turn exacerbate the process of degeneration of the aorta, thereby accelerating the dilation, elongation, and tortuosity of the aortic arch and descending aorta, ultimately leading to descending aortic pathology.

Of course, the most direct method to identify the morphological risk factor of aortic dissection is to compare the geometry of the nondissected aorta with the same dissected aorta, but it is obviously difficult to obtain imaging prior to dissection onset. We used Heuts’s retrospective modeling method to obtain the adjusted pre-dissection dimension (12,14). They revealed that the lengths and diameters of the ascending aorta and the aortic arch did not change after the occurrence of TBAD. However, in TBAD, the proximal aorta of left subclavian artery is not dissected, which is why its geometric changes cannot be a direct consequence of dissection. Therefore, it is meaningful to compare the arch morphology of the TBAD group and the Healthy control group.

The results of this study and those of previous studies support the hypothesis that aortic dissection is associated with age-related aortic morphological changes (5-14). The results of this study provide a direction for future research. In future studies, we expect to find an optimal predictor to predict the incidence of TBAD, which ideally should be a simple repeatable parameter to describe the shape of the aortic arch. If we can screen the high-risk population based on this indicator, we might prevent patients from developing TBAD at an early age, as morphological deterioration would not have been occurring long enough to cause aortic dissection. For patients with adverse aortic arch morphology, it may be necessary to increase the number of outpatient follow-up visits. For these patients, blood pressure should be strictly controlled with antihypertensive drugs, and other risk factors must be eliminated. However, we need more evidence to verify these results. In future studies, we also need to identify hemodynamic and histological risk factors with numerical and experimental evidence.

This study revealed the morphological factors related to TBAD after controlling for confounding factors, but several limitations should be considered. First, this study was a retrospective cross-sectional study, and the study was not without biases. Even though PSM was used to control for confounding factors, the bias of reverse causality could not be eliminated. Second, the population of healthy patients included in this study was from a group of patients evaluated in the radiology department due to other diseases rather than from a population of healthy volunteers. A prospective life-long cohort study involving a healthy volunteer population may provide more convincing evidence. However, due to the low incidence of aortic dissection, it should be considered that such an ideal study would actually be difficult to perform. Third, due to the limitations of the retrospective study, some risk factors, such as family history of dissection in the control group, could not be collected; therefore, these confounding factors could not be excluded from the two groups. Fourth, we measured aortic morphology in the healthy controls using non-ECG-gated CT, as differences over the cardiac cycle might affect the measurements. Fifth, the results of this study can only provide a correlation between Stanford B aortic dissection and the morphological changes of the aortic arch. Whether there is a causal relationship between these morphological risk factors and aortic dissection needs to be provided by prospective studies that can provide a causal link.

Conclusions

This study demonstrates that TBAD was associated with longer lengths of aortic arch and with larger arch height and width. TBAD is associated with morphological factors other than aortic diameter, especially the geometry of the aortic arch.
