Cone beam CT imaging for bronchoscopy: a technical review

Introduction

A wide variety of bronchoscopic techniques for sampling of peripheral pulmonary lesions (PPLS) have been developed in the past two decades. Although peripheral bronchoscopy has been established as a safe procedure, its diagnostic yield seems to have plateaued around 70% (1-5). Furthermore, technologies such as ultrathin-bronchoscopes, radial-probe endobronchial ultrasound (RP-EBUS), virtual navigation, and more recently robotic bronchoscopy, have so far failed to deliver a consistently higher diagnostic yield. Multiple explanations have been postulated for this phenomenon: inadequacy of sampling tools, CT-body divergence misleading navigational bronchoscopy, and the lack of an accurate real-time confirmatory technique. The most commonly utilized confirmatory technique, RP-EBUS, has been shown to have false positive results given by the development of atelectasis or hemorrhage during bronchoscopy (6).

Given the need to enhance the diagnostic accuracy of peripheral bronchoscopy and the willingness of bronchoscopists to venture into the therapeutic field (i.e., bronchoscopic ablation of peripheral tumors, intra-tumor drug injection), a keen interest in the use of intra-procedural cone beam computed tomography (CBCT) imaging has recently emerged in the bronchoscopy community (6-11). CBCT provides an intra-procedural three-dimensional (3D) image dataset and can potentially impact all phases of diagnostic bronchoscopy: navigation, confirmation and tissue acquisition (12). CBCT is not here to replace our bronchoscopic navigation tools, but to provide additional guidance and accurate real time confirmation that the target has, or has not been reached. Further, bronchoscopic ablation demands accurate knowledge of the position of the ablative probe with regards to the target and vital structures, and CBCT imaging may become the standard technique to play this invaluable role (13).

The purpose of this report is to familiarize the reader with basic concepts of CBCT—including system functionality, radiation dose, and image quality—and with the technical aspects that are key for physicians who want to introduce this technology into their bronchoscopy practice.

We present the following article/case in accordance with the Narrative Review reporting checklist (available at http://dx.doi.org/10.21037/jtd-20-2382).

General principles

Intraprocedural 3D imaging with C-arm based CBCT was introduced in the early 2000s and quickly gained prominence with a wide variety of accepted clinical applications, including multiple lung interventions (14-17). Advances in CBCT technology followed closely the proliferation of modern angiographic imaging systems equipped with flat panel detectors, which produce higher quality 2D images, and enable better patient access, than comparable image intensifier equipped systems (14).

CBCT images are obtained by rotating the C-arm approximately 200 degrees around the patient in a circular trajectory and acquiring a series of 2D X-ray projection images at specific angular intervals. Acquisition times range from 3–20 seconds and include up to 600 projection images, depending on the system type and imaging protocol, e.g., a 3–8 second acquisition duration is typical for body and cardiac applications. Projection images are then reconstructed, often on a separate workstation, using standard Feldkamp-based reconstruction algorithms, resulting in a 3D stack of axial images, analogous to conventional multi-slice CT (MSCT) (Figure 1) (14). With current detectors of 30 cm × 40 cm, CBCT acquisition covers a volume of 24×24×18.5 cm³ resulting in an isotropic volumetric dataset of 0.5 mm voxels in a 512×512 matrix. These reconstructed images can be reformatted into coronal, sagittal, and axial views of arbitrary thickness for reviewing.

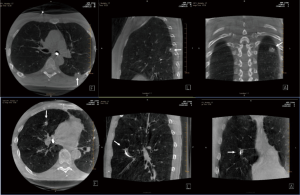

Figure 1 Cone beam computed tomography (CBCT) images providing real time 3D confirmation of biopsy tool in contact with lung lesion. Top row shows a left lower lobe 1.4 cm lung nodule abutting the posterior pleural surface, which was positive for squamous cell carcinoma. Bottom row shows a right middle lobe 1.3 cm speculated lung nodule abutting the major fissure, positive for adenocarcinoma.

Common trade names for CBCT include DynaCT (Siemens Healthineers, Germany), Innova CT (GE Healthcare, USA), and XperCT (Philips Healthcare, Netherlands). Although the underlying CBCT technology is similar across vendors, with comparable image quality for visualizing PPLS, multiple protocols are available. These protocols have been optimized for different clinical applications and vary based on the system type and specific implementation. In general, the angular spacing between projection images, and the total number of images acquired, largely determines both the radiation dose and the degree of soft tissue contrast in reconstructed images. Both image quality and dose increase as the angular spacing between images is decreased.

System considerations

Fixed CBCT systems come in several configurations: floor, biplane, ceiling and robotic (Figure 2); and all can be used during bronchoscopy. However, floor and biplane systems seem less desirable because the system base is attached to the floor at the head end of the patient table, where the bronchoscope operator stands. Furthermore, floor and biplane systems perform CBCT only as a propeller acquisition, with the point of rotation directly above the patient’s head. Thus, depending on the C-arm depth, this could limit the system’s reach and PPLS near the base of the lung might be unreachable during CBCT, especially in taller patients. In contrast, ceiling and robotic systems adapt more easily to standard bronchoscopy workflows, with better patient access and less need of equipment re-arrangement when transitioning between fluoroscopy and CBCT. These systems are also more easily moved away from both the operator and patient’s chest if desired, e.g., during electromagnetic navigation (EMN) navigation, when presence of the X-ray detector can disrupt the electromagnetic field used for navigation. Robotic systems have an advantage in this regard, as they can be moved away from the patient completely without disturbing either the operator or surrounding equipment. Lastly, ceiling and robotic systems are more commonly found in Interventional Radiology and hybrid operating room settings compared to floor or biplane systems.

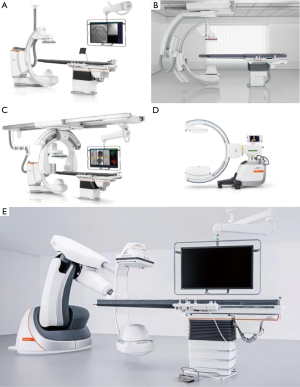

Figure 2 Types of fixed angiographic systems: floor mounted (A); ceiling (B); biplane (C); CBCT-enabled mobile (D); robotic (E). Images courtesy of Siemens Healthineers (Forchheim, Germany). CBCT, cone beam computed tomography.

Some mobile C-arm systems such as Cios Spin (Siemens Healthineers) and Vision RFD 3D (Ziehm Imaging, Florida, USA) are also capable of performing CBCT (Figure 2D). Compared to fixed systems, mobile c-arms have a smaller field-of-view for CBCT and take longer (30–60 seconds) for image acquisition. However, they do have several advantages such as their mobility (can be utilized in multiple procedure rooms), smaller footprint (similar to a standard 2D C-arm fluoroscope), and lower cost.

A radiolucent, typically carbon fiber, patient table is a requirement for CBCT imaging for either fixed or mobile C-arms. Although this is standard equipment for fixed CBCT systems, mobile c-arm users must ensure they have access to a carbon fiber table for all X-ray imaging. If a radio-opaque, metallic patient table is used during CBCT, a significant portion of the X-ray photons will be absorbed as the C-arm moves around the patient, resulting in significant artifacts in the reconstructed 3D images. Although this is an additional requirement imposed by the CBCT, these tables are motorized and can be operated in a manner equivalent to existing surgical tables in interventional pulmonology suites.

Comparison of CBCT and MSCT

There are fundamental differences between CBCT and MSCT acquisitions, as described in Figure 3. During CBCT, a cone of X-rays is emitted from the X-ray source and collected using a 2D detector array, resulting in a series of 2D images as the C-arm moves around the patient, who is stationary. Thus, the Z-dimension (head-foot) in a cone beam acquisition is dictated by detector size, and a volumetric image is created during one C-arm rotation. With MSCT, X-rays are emitted in a thin fan-beam geometry and collected in a helical fashion using a 1D detector array as the patient table moves. Thus, the Z-dimension in MSCT imaging is defined by the amount of table movement during acquisition. A full lung scan can be acquired using MSCT in a few seconds, as the CT gantry completes a full rotation in less than 0.4 seconds.

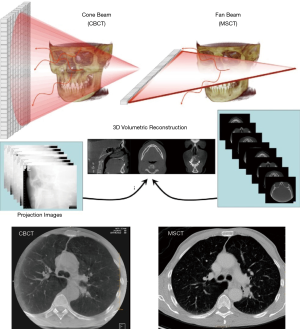

Figure 3 Comparison of cone beam (CBCT) and fan beam (or Multi Slice CT) acquisitions. On the left, in cone beam, 2D projection images are generated as the C-arm rotates around a stationary patient, which are then reconstructed into a 3D image volume. On the right, in fan beam, X-rays are emitted in a thin fan-beam geometry and detected by a 1D array in a helical pattern as the patient table moves through the scanner. Axial slices are reconstructed, which can be reviewed as a 3D image volume. Bottom figures depict matched CBCT and MSCT chest images from the same patient. Figure adapted from reference (18), with permission. CBCT, cone beam computed tomography; MSCT, multi slice computed tomography.

In general, CBCT is commercially available as an interventional imaging modality which is not intended for diagnostic use. CBCT and MSCT images have similar spatial resolution, but CBCT has reduced contrast resolution, making it more difficult to discriminate among soft tissues. In addition, image intensity with CBCT is non-calibrated gray scale values, as opposed to the calibrated Hounsfield Units (HU) used in MSCT. Thus, a standardized lung window, as is used with MSCT, is not possible with CBCT. Despite these differences in image appearance, the ability to use CBCT for intraprocedural guidance is an important advantage for bronchoscopic procedures.

From the practical standpoint, the main disadvantages of MSCT when compared with CBCT are that the head of the patient is typically inside the gantry (making bronchoscopy technically challenging) and the fact that the patient moves during the scan, and this movement can dislodge our bronchoscopy tools losing contact with the target.

Image quality

CBCT image appearance depends strongly on the number of acquired projection images, as well as the dose per projection image. In general, acquisitions with a greater number of projection images provide more data for reconstruction, which results in images with improved signal-to-noise ratio (SNR) and better soft tissue differentiation (18). However, with any increase in projection images there is a concomitant increase in radiation dose, and potentially a longer scan duration, which can lead to worsened motion artifacts.

CBCT is inherently more susceptible to several types of image artifacts relative to MSCT, primarily resulting from increased scatter radiation with flat panel detectors (14). However, there are methods to mitigate the effects of some CBCT artifacts. For example, streak artifacts from biopsy tools can appear prominently in CBCT datasets but can be reduced by increasing the dose per projection image or the total number of acquired projection images. Also, viewing the reconstructed images as either a multi-planar reconstruction (MPR, 3–5 mm) or thin maximum intensity projection (MIP-thin, 2–3 mm) can reduce the appearance of noise and will often result in a more visually pleasing image.

Because of its relatively long acquisition time, CBCT is susceptible to motion artifacts, which manifest as image blurring. These artifacts primarily result from breathing and cardiac motion. For example, lesions near the heart and great vessels can be influenced by motion artifacts due to cardiac motion, which is higher frequency but lower in magnitude than respiration. Current reconstruction algorithms primarily rely on imaging the area of interest in all projection images and triangulating the corresponding 2D pixels from each projection to create a 3D voxel. Any kind of motion will result in inaccurate mapping of these 2D pixels, resulting in blurred 3D image. Algorithms to capture inherent behavior of motion due to breathing or cardiac and to compensate for motion are currently under development.

Lastly, the presence of metal objects within the field-of-view can create artifacts and, if possible, it is recommended to remove them before image acquisition. If complete removal is not possible, they should be positioned as far from the area of interest as possible in order to minimize their effects. This includes inserted devices (e.g., bronchoscope) as well as external devices, such as ECG leads which could impact image quality of anterior lesions. As mentioned above, when utilizing mobile CBCT systems, removing metal objects from the field-of-view will also entail utilizing a dedicated carbon table that has no metal parts in the half of the bed where the torso and head are located.

Radiation dose

Radiation dose is an important consideration when incorporating intraprocedural CBCT, and the most significant determinant of total dose is the number of CBCT acquisitions that are performed. Repeated CBCT acquisitions add linearly to the total radiation dose, and recent studies of CBCT-guided bronchoscopy have reported from 1 to 3 CBCT acquisitions per patient (6,11). Similar to image quality, the radiation dose for a single CBCT is directly related to the number of projection images acquired as well as the dose per projection image. Thus, it is important to consider these factors when comparing dose values among studies.

Care must be taken when comparing radiation dose values between CBCT and MSCT as well, as the methods for reporting dose differ between these modalities. As described by Casal et al. (6), the most appropriate metrics for CBCT radiation dose are the air Kerma (K_ar – Kinetic energy released in matter as a metric for entrance skin dose) and dose area product (DAP), both of which are reported by commercial C-arm systems following each acquisition. However, many previous studies have reported estimates of effective dose (E) for CBCT, using a range of generalized conversion factors from 0.16 to 0.45 to create their estimates, which makes dose comparisons among studies difficult. The true conversion factor is system-specific and varies with anatomic location but can be measured using a calibrated phantom representative of patient population (19). The effective dose associated with CBCT has been measured using phantoms in several studies, with values of 0.98 mSv, 1.33 mSv and 3.32 mSv per acquisition, using 3 system types (20-22). These effective dose values correspond to acquisitions with 248, 312 and 419 projection images, respectively. These values are similar to those of a low-dose CT of the chest as performed during the National Lung Screening Trial (23).

Dose reduction techniques such as cranio-caudal collimation can result in significant dose savings and allow repeated CBCT imaging, if needed. Radiation dose will be reduced by an amount proportional to the collimated field-of-view, and image quality can also increase as a result of reduced scatter radiation (24). To date, few studies have reported systematic use of collimation as a dose savings measure during CBCT-guided bronchoscopic procedures (25,26). However, in some cases it may be challenging to ensure the lesion is within the reduced field-of-view due to device-related deformation or atelectasis; thus, collimation might be most suitable for repeat CBCTs acquired after repositioning of devices.

Practical aspects

CBCT-guided bronchoscopy is most successful and safest when a consistent protocol is followed. It is key to ensure adequate image quality without having to repeat the acquisition, thus preventing unnecessary radiation exposure to both patient and staff (Table 1).

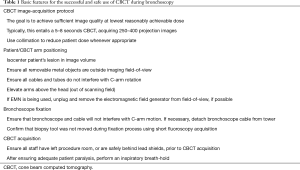

Table 1 Basic features for the successful and safe use of CBCT during bronchoscopy
Full table

Room set-up

The placement of personnel and ancillary equipment is an important consideration during CBCT-guided bronchoscopy. Protective equipment such as wrap-around lead aprons, thyroid shields and eye protection is particularly helpful for those who may be near the imaging system during the case. During CBCT acquisition, anesthesia, bronchoscopists and staff can relocate to the control room protected by lead glass, or stand behind an in-room radiation protection shield, to further reduce radiation exposure.

A typical room set-up is shown in Figure 4. Anesthesia staff and equipment are most commonly set up at the patient’s head side, behind or beside the bronchoscope operator, although this will depend on the room configuration. Tubes and wires to the ventilator should be routed so they don’t interfere with rotation of the C-arm during CBCT. Additional equipment, including bronchoscope tower and navigation systems, are positioned near the head for ease of viewing by the bronchoscopist but pushed back far enough not to interfere with C-arm movement. However, if room configuration does not allow placement of bronchoscopy cart near enough for easy viewing, signals can be routed to separate in-room monitors.

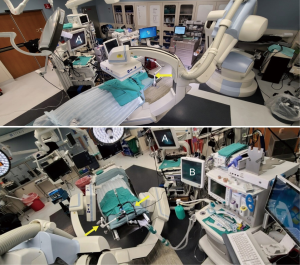

Figure 4 Representative room setup with a robotic CBCT system showing standard equipment for bronchoscopy. Bronchoscope tower (A) is located at patient’s right shoulder, with sufficient clearance for C-arm movement. Anesthesia (B) is located behind the bronchoscope operator, with tubes and cables positioned to avoid the C-arm as well. Two separate bronchoscope holders are shown to maintain tool positioning during CBCT (Arrows). Note that C-arm controls are placed at the foot of the bed for use by radiologic technologist. CBCT, cone beam computed tomography.

Another important consideration is the need of a method for bronchoscope fixation during CBCT (Figure 4). This can be accomplished using existing materials, e.g., by taping the bronchoscope to the patient table or anesthesia circuit tree, as previously reported, or by developing a custom solution (8,9). Alternatively, there is a commercially available product that can be attached to the patient table or bronchoscopy cart, with an articulating arm that can be positioned as needed (The Arm, Neuwave Medical Inc., WI, USA) (6). An accessory rail holder can be attached to the patient table (outside the scanning field) which is helpful for attaching bronchoscope holders. In addition to keeping the bronchoscope in a fixed position, additional fixation using tape to secure the biopsy tool to the working channel (or to the extended working channel or guide-sheath if applicable) is often required to maintain stability.

Lastly, the location of monitors for the C-arm system (to view fluoroscopy images during navigation or sampling) will depend on the system type and room configuration. However, the most ergonomically advantageous position seems to be across the patient’s body around waist level (distal to the C-arm) or on a side wall monitor.

When utilizing a mobile CBCT, this unit is placed across the bronchoscopy table on the patient’s side (left or right) in a similar fashion as the standard 2D C-arm used for conventional fluoroscopy. Since these units have a similar foot-print as the standard fluoroscopy units, the set-up of the bronchoscopy lab does not necessarily need to change. It is, however, important to bear in mind that this unit will need to rotate 200 degrees around the patient. Hence, tubing, arm-boards, and cables should not be in the way of the rotating arm.

Maximizing image quality

When performing CBCT, the target PPLS should be at isocenter of the CBCT acquisition. This ensures that the anatomy of interest is contained within all acquired projection images, thus avoiding truncation of the lesion in reconstructed images. To this end, the patient should be positioned on the table so the target PPL is as close as possible to the center of the table. Most commercial systems employ a 2-step process for setting up CBCT: first, the lesion is isocentered in frontal and lateral projections; and second, a test spin is performed (collision check), without radiation, to ensure the C-arm can perform a full rotation without hitting the patient or ancillary equipment. Once the lesion has been isocentered in frontal position, it is important to only move the table up/down for lateral isocentering; otherwise, the frontal plane positioning will need to be repeated.

It is imperative to suspend patient respiration during CBCT acquisition to decrease motion artifact and achieve optimal image quality (6-8,20). Some authors advocate the use of higher airway pressures during CBCT to maintain airways open and visualize smaller airways that may lead to the target lung lesion (7,20). In the absence of data, the authors recommend an inspiratory breath-hold during CBCT image acquisition with a tidal volume of 8–10 mL/kg of ideal body weight and a positive end expiratory pressure (PEEP) of at least 10 cm of H₂O (27). It is of critical importance to maintain adequate paralysis to prevent any diaphragmatic motion/breathing effort during apneic breath hold. Other factors such as post-intubation recruitment maneuvers, use of high levels of PEEP, and avoiding hyperoxia, may play a role in reducing atelectasis (28-31).

CBCT of the chest and abdomen in Interventional Radiology departments is typically performed with the patient’s arms raised above the head, to ensure they are outside the imaging field-of-view, which can improve image quality by avoiding X-ray beam hardening from the arms. In particular, raising the arms during CBCT can be helpful when trying to image lesions in the posterior/dependent aspect of the lung. However, only one study to date has reported this approach during CBCT-guided bronchoscopy (6). Apart from image quality concerns, raising the arms can help ensure freedom of movement of C-arm in larger patients. However, raising and lowering the arms during the procedure could affect the accuracy of any fluoroscopic overlay being utilized. If this approach is to be utilized, both arms can be brought up above the head with a 90-degree flexion at the elbows and securely fastened with a strap. To minimize the time in this position and potential musculoskeletal injuries, this can performed after bronchoscopic navigation or deployment of biopsy tool, and just before the CBCT scan. If the initial scan shows unsuccessful navigation or biopsy tool positioning and further scanning is expected, the arms can be kept in this position for a few minutes. Nevertheless, the bronchoscopist should be conscious of this and expedite bronchoscopic maneuver as much as possible. If unable, arms should be brought down and re-positioned again just before the next CBCT scan.

Applications of CBCT in thoracic procedures

Imaging of peripheral pulmonary lesions

A consistent finding in the literature is that PPLS visible on MSCT images are also visible on CBCT, including small PPLS (<1 cm) and ground glass opacity lesions (16,17,32). Hisano et al. demonstrated that CBCT can be used to differentiate 4 lesion types identified on MSCT: solid, pure GGO, mixed solid/GGO and cyst. In 19 patients (25 lesions), they found no significant difference in lesion conspicuity, measured as contrast-to-noise ratio (CNR), between CBCT and MSCT (32). In another study, 23 of 24 PPLS identified on pre-procedural MSCT were also well visualized on intraprocedural CBCT; the lesion not visualized was found to have resolved on follow-up MSCT (16). While CBCT will not be used for the sole purposing of imaging PPLS, it is important to establish that the technique has the ability to detect any potential targets.

CBCT-guided VATS

One of the first published lung applications for CBCT was image-guided video assisted thoracic surgery (iVATS) (16,17). In these procedures, CBCT images are used with dedicated needle guidance software to guide percutaneous placement of markers to localize PPLS prior to single-port laparoscopic resection. A major advantage of this approach is that marker placement and resection occur in the same hybrid operating theater, which reduces patient transfer and procedure times, with excellent outcomes reported.

CBCT-guided diagnostic bronchoscopy

CBCT has been used in many recent studies to visualize PPLS during bronchoscopy for diagnosis, ablation, and pleural dye marking (6-11,25,26). During peripheral bronchoscopy, CBCT can be used for navigation guidance, to confirm tool-in-lesion prior to biopsy or ablation, or a combination of both (6-11,25,26). CBCT has been utilized in combination with different bronchoscopic technique such as ultrathin scopes, RP-EBUS, transbronchial access tool, and EMN (6-11,25,26). CBCT offers full 3D intra-procedural imaging, which differentiates it from virtual navigation and other novel techniques such as digital tomosynthesis. Tomosynthesis is a technology that performs a C-arm sweep and reconstructs the images using a preset algorithm that is not truly 3D. Furthermore, it is limited by interference from other anatomic structures, such as the diaphragm, and lesions typically have to be solid and well defined. In contrast, CBCT offers bronchoscopists full 3D imaging capability not limited to particular types of lung lesions regardless of size or location.

When utilized for planning and navigation, CBCT is acquired early in the procedure, after anesthesia is administered but typically before the bronchoscope is inserted. Images are reviewed and the target PPLS are located, then outlined using dedicated segmentation software (Figure 5) (7,8,11,25). Most systems have either manual and/or semi-automatic segmentation tool that allow the user to outline a lesion on CBCT images (in one or more planes) or perform a volumetric segmentation of a lesion. The segmented lesion can then be overlaid on live fluoroscopic images to provide a target for intraprocedural navigation and sampling.

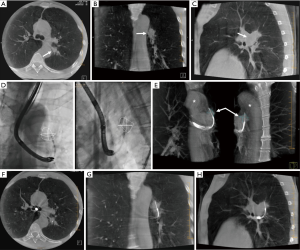

Figure 5 CBCT and tumor segmentation. Top Row (A,B,C) shows baseline CBCT images acquired before bronchoscope insertion. In the middle row (D), CBCT augmented fluoroscopic overlay demonstrates a virtual image of the segmented tumor (D). An AP image (left) and Lateral image (right) are shown. (E) VRT images can enhance the view of bronchoscopic tools, lesions and surrounding structures. On the bottom row, CBCT demonstrate transbronchial needle located within target lesion in three orthogonal planes (F,G,H). Arrows indicate the target tumor, asterisks indicate the Aorta. CBCT, cone beam computed tomography; VRT, volume rendering technique.

All available segmentation tools provide only a static overlay, although the underlying anatomy they represent will move with respiration. Thus, the overlay only matches the true lesion location at a single point in the respiratory cycle, coincident with the location during CBCT acquisition. This can be misleading, especially in cases where the lesion is not visible on fluoroscopy. PPLS motion has been reported to average 1.7 cm over all lung regions, although the range of PPLS motion is more pronounced near the base of the lung, where lesion motion over a breathing cycle averages 2.5 cm (33). Hohenforst-Schmidt and coworkers were the first group to report the use of airways segmentation overlaid on fluoroscopy images during CBCT-guided bronchoscopy in a prospective feasibility study. A larger but retrospective study by Pritchett at al. reported on the use of CBCT and fluoroscopic overlay during navigation with EMN with a diagnostic yield of 84% (11).

Recent studies have shown that CBCT can be used to confirm tool-in-lesion prior to biopsy with high confidence, with the potential to improve diagnostic yield (Figures 1,5) (6-10). For tool-in-lesion confirmation, CBCT is performed after the bronchoscopic biopsy tool is thought to have reached the target lesion, immediately prior to biopsy. The bronchoscope is secured and CBCT is performed; the resulting images are reviewed as MPRs or thick MIPs in multiple planes to determine the location of the tool relative to the lesion. In some clinical scenarios, reviewing the volume rendered images can be useful as well. Park et al. (10) found that tool-in-lesion confirmation by CBCT prior to biopsy was the only factor associated with increased diagnostic yield using a multivariate analysis in a single arm study of patients who underwent CBCT-guided transbronchial lung biopsy. A small prospective study conducted by Casal et al. reported a 25% increase in navigational success and a 20% increase in diagnostic yield attributed to the tool-in-lesion confirmation CBCT (6). In addition, an interesting finding of their study was the detection of atelectasis in CBCT that was not visible on fluoroscopy alone, which were producing false-positive RP-EBUS images and sometimes were completely obscuring the targets. These additional data further supported the utility of intra-procedural CBCT to accurately confirm tool-in-lesion during bronchoscopy for PPLS.

With regards to limitations or disadvantages of using CBCT as an aid in diagnostic bronchoscopy, in addition to the radiation exposure described above, the lack of availability in most bronchoscopy rooms and the added time to procedures are worth mentioning. With the advent of mobile CBCT units with similar footprints as standard 2D c-arms, availability may not be an issue in the near future (34). Bronchoscopy time is indeed prolonged, and the number of scans and need for preparation (i.e., arms up) will determine by how much. Having said so, patients are typically under general anesthesia and an extra few minutes is unlikely to result in any harm.

In summary, CBCT plays an important role during diagnostic bronchoscopy by identifying the relationship between the biopsy tool and the lesion, preventing the operator from missing the target, and recognizing false positive RP-EBUS images given by atelectasis. This has the potential of avoiding non-diagnostic samples, reducing total number of samples needed for diagnosis, and reducing thus complications.

CBCT and bronchoscopic ablation of peripheral lung tumors

MSCT-guided percutaneous thermal ablation is a local ablative therapy reserved for some selected patients with PPLS who are not eligible for surgery. Percutaneous radiofrequency and microwave ablation, in particular, have been shown to be provide adequate local control (35). Nevertheless, percutaneous ablation inevitably violates the visceral pleura and pneumothorax is a very common complication. With a more favorable safety profile and the ability to provide also diagnosis and nodal staging in one setting, bronchoscopic ablation is hence emerging as a potential future therapeutic alternative for these patients (13). Several bronchoscopic ablation modalities are currently under development, with ongoing clinical trials, and CBCT promises to play a prominent role in this growing field. CBCT can detect in real-time the position of the ablating tools with respect to the target, provide a view of nearby anatomic structures (potentially preventing complications), and it could be utilized to assess for treatment changes and to detect complications in real-time (13,36).

Conclusions

CBCT is a relatively newer modality for endobronchial interventions that consists of a compact system mounted on a moving C-arm, thereby allowing the patient to remain stationary during the 3D imaging. In a single orbit around the patient, a complete volumetric dataset covering a large anatomic region of interest is acquired, and from this, a stack of images with submillimeter, isotropic resolution is generated. Given the need to enhance diagnostic yield of peripheral bronchoscopy and the growing interest in bronchoscopic ablation, CBCT has emerged as desirable technology to guide bronchoscopists when they venture into the lung parenchyma. Multiple studies are underway to investigate whether this technology will truly impact the current outcomes of peripheral bronchoscopy.
