Improving diagnostic yield of navigational bronchoscopy for peripheral pulmonary lesions: a review of advancing technology

Introduction

Peripheral pulmonary lesions (PPLs) are defined as focal radiographic opacities that are not detectable beyond the visual segmental bronchi by flexible bronchoscopy (1,2). These lesions are typically located in the outer third of the lung. A solitary pulmonary nodule (SPN) is a well-defined radiographic opacity up to 30 mm in diameter surrounded by unaltered aerated lung that can be found anywhere in the lung parenchyma (3-5). These lesions could be solid, subsolid, or ground glass in quality. A PPL or SPN could be the first indicator of a malignancy. Therefore, accuracy in diagnostic methods is required for further investigation. Over the years, there have been several tests that have been incorporated as part of the evaluation for PPLs and lung nodules. In addition to biopsy techniques, adjunct methods include pre-test calculators, advanced imaging, and more recently developed proteomic and genomic testing. Historically, lung nodules have been found to be particularly challenging to evaluate by chest physicians due to the inability to directly visualize the nodule via bronchoscopy. Conventional bronchoscopy has demonstrated a rather low sensitivity (14–63%) for diagnosing malignant lesions and even lower for those that are less than 20 mm in diameter (6,7). On the other hand, a prior study of CT guided transthoracic needle aspiration for lung cancer demonstrated a sensitivity of 93% though with a complication rate of 25%. Incidence of pneumothorax, however, was 24% with 7% of those patients requiring a chest tube (7).

The results of the National Lung Screening Trial (NLST) that enrolled over 53,000 patients determined that there is a reduction of mortality of 15–20% by the way of utilizing low dose lung CT scanning as compared with standard chest X-ray. During this investigation, lung nodules were found in 39% of the participants of which 72% required further investigation with a high risk of malignancy found in those with a nodule diameter of more than 20 mm (8). This study has since resulted in a United States Preventive Services Task Force (USPSTF) grade B recommendation for the use of CT screening for patients found to be at high risk. This includes patients aged 55–75 who have a smoking history of at least 30 pack-years, including those who have quit within the past 15 years. Additionally, follow up recommendations by the American College of Chest Physicians (ACCP) and the National Comprehensive Cancer Network (NCCN) suggest using the least invasive modality to obtain an adequate amount of tissue to perform molecular and PD-L1 testing in the evaluation of lung cancer (9,10). In this regard, there exists the opportunity to provide this information in one minimally invasive procedure, supporting the continued pursuit of developing technology to improve navigational bronchoscopy diagnostic yield.

There are several technical approaches available to chest physicians that can assist in accessing the periphery of the lung by the way of bronchoscopy. These techniques include the use of thin/ultrathin bronchoscopes, fluoroscopy, radial probe endobronchial ultrasound (r-EBUS), virtual bronchoscopy, and electromagnetic navigation bronchoscopy (ENB). More recently, the advent of newer techniques including augmented fluoroscopy (AF), cone beam CT, and robotic assisted bronchoscopy (RAB) are being utilized to navigate to PPLs. These advancements in navigational bronchoscopy have empowered chest physicians to be able to access the periphery of the lung with more confidence in an effort to better evaluate and diagnose PPLs in a safe manner with increasing accuracy. The purpose of this review article is to describe the more recent advances in navigational bronchoscopy technology. We present the following article in accordance with the Narrative Review reporting checklist (available at http://dx.doi.org/10.21037/jtd-2020-abpd-003).

ENB

ENB utilizes a pre-procedural CT scan of the chest to build a virtual bronchoscopic image and pathway to the peripheral lung lesion. In this regard, this technology does not serve as “real-time” guidance during bronchoscopy. After planning the procedure using proprietary software, the main platform is used to generate an electromagnetic field around the patient’s chest. This enables synchronization of a probe or sensor to the CT by way of the system platform. The physician is then able to track the synchronized probe or sensor while navigating the bronchoscope through the airways. In addition to biopsy to obtain diagnostic material, the system can also be used to place fiducial markers for radiation treatment and dye marking for surgical localization. There are currently two commercially available systems that utilize this technology: superDimension (Medtronic, Plymouth, MN, USA) and the SPiNDrive System (Veran Medical Technologies Inc., St. Louis, MO, USA). The superDimension system uses an inspiratory CT chest scan for pre-procedural planning. After the planning phase, a probe that is linked to the CT image by way of an electromagnetic field is inserted into an extended working channel (EWC) through a therapeutic bronchoscope (Figure 1). The working channel is then able to be navigated to the PPL. The SPiNDrive system pre-procedural planning uses both an inspiratory and expiratory CT chest to account for nodule movement during the respiratory cycle. This system utilizes a sensor at the tip of the biopsy/tissue collection tool that is then tracked within the electromagnetic field during the procedure. This tool is navigated through the working channel of a bronchoscope to the peripheral target.

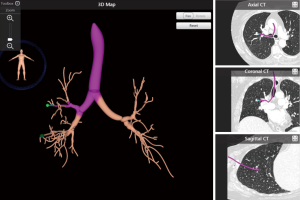

Figure 1 Planning phase of the superDimension™ electromagnetic navigation platform demonstrating a 3D reconstruction of a pathway (purple line) leading to the target peripheral pulmonary nodule (green ball). The axial, coronal, and sagittal views of the peripheral pulmonary lesion and pathways are highlighted on the side.

The diagnostic yield for ENB has been shown to be quite variable based on numerous reported studies with ranges reported from 33–88%. Three recent meta-analyses have pooled diagnostic yields of 65–70% (11-13). A study by Eberhardt and colleagues reported that the combined use of r-EBUS along with ENB improved diagnostic yield of up to 88% as compared with either technology alone (14).

The NAVIGATE study was a prospective, multicenter, cohort study that evaluated the use of the superDimension navigation system from 29 academic and community sites from April 2015 to August 2016. In this study, of 1,157 patients undergoing ENB-guided biopsy with a median lesion size of 20 mm, 94% had navigation completed and tissue obtained. The 12-month diagnostic yield was 73% with samples demonstrating malignancy comprising 44%. This study reported sensitivity of malignancy of 69%, specificity of 100%, positive predictive value of 100%, and negative predictive value of 56% (15).

Virtual bronchoscopy

Another technique, bronchoscopic transparenchymal nodule access (BTPNA), utilizes virtual bronchoscopy to create a pathway from the central airways to a PPL based on pre-procedural CT. The Archimedes System by Broncus Medical (San Jose, CA, USA) allows for biopsy without an airway leading to the peripheral nodule. The system, that accounts for vasculature, allows for the creation of pathway to a PPL by perforating a bronchus (16). A small study of 6 patients using this technology demonstrated a diagnostic yield of 83% with 2 patients developing pneumothorax (only 1 requiring chest tube) (17). Another study by Herth and colleagues reported a diagnostic yield of 100% (in 12 patients) with the BTPNA procedure successfully performed in 83%. There were no significant intraprocedural adverse events (18). The recently completed Evaluation of the Archimedes System for Transparenchymal Nodule Access 2 (EAST-2) study is awaiting publication, and was a prospective evaluation of the system in 106 patients with a total of 125 nodules.

AF

The concept that the true location of a PPL is not consistent with the navigated target is known as “CT-body divergence.” This likely occurs due to differences in lung volume at the time that the planning CT scan is performed compared to when the actual procedure is performed while utilizing general anesthesia, positive pressure ventilation, and probable development of atelectasis. Hence, in order to combat this effect, there has been development of technology that improves real-time fluoroscopic guidance.

Fluoroscopic navigation is one of the first, though recently added feature of the superDimension navigational system. This technology utilizes tomosynthesis in order to offer local registration near the target peripheral lesion. Tomosynthesis refers to a sweep arc performed around a patient’s chest with continuous image acquisition in order to obtain multiple projections by using a conventional C-arm fluoroscopy machine. This improves real-time localization of the navigation probe which may be altered due to CT-body divergence. A retrospective study by Aboudara and colleagues demonstrated a 25% absolute increase in diagnostic yield (79%) compared with using standard navigation alone (54%) (19).

LUNGVISION™ (Body Vision Medical Ltd, Ramat Ha Sharon, Israel) is another augmented fluoroscopic navigation technology that enables enhanced fluoroscopic visualization of airways and target lesions by using pre-procedural CT scanning and fluoroscopic registration. The platform integrates images from CT, fluoroscopy, and radial probe ultrasound during the procedure. This technology overlays a pathway to the lesion on the standard fluoroscopic screen. Additionally, the system combines catheter tracking with image fusion, utilizing artificial intelligence to constantly adjust for CT-body divergence (Figure 2). The system also allows for the use of common endoscopic biopsy tools to biopsy a lesion in real time (20). A multicenter study of 55 patients by Cicenia and colleagues demonstrated nodule localization success rate at 93% with an overall diagnostic yield of 75.4% based on immediate rapid on-site pathology report (21).

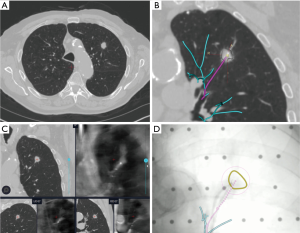

Figure 2 The LUNGVISION™ is an artificial intelligence navigation platform that utilizes augmented fluoroscopy and combines catheter tracking with image fusion in order to adjust for CT-body divergence. (A) Preprocedural CT scan; (B) pathway generated to the target lesion (purple) and adjacent airways (blue); (C) confirmation of target lesion location with C-arm based tomography (CABT) spin; (D) real-time tool-in-lesion confirmation of endoscopic biopsy tools with an overlay of a pathway to the lesion on the standard fluoroscopic screen.

Cone beam computed tomography (CBCT)

Cone beam CT is a technology that utilizes a compact CT system that has a moving C-arm that can be used during bronchoscopy to provide real time feedback of the bronchoscope or tool location. The C-arm is swept in an arc around the patient’s chest and obtains volumetric data during the bronchoscopy procedure. The imaging can then be reviewed during the procedure to assess bronchoscope, tool, and target locations and help the physician determine if adjustments are required to reach the target lesion. A prospective study including combination technologies utilizing a thin bronchoscope, CBCT, and radial probe EBUS by Pritchett and colleagues of 75 patients reported a diagnostic yield increase from 50% to 70% by being able to redirect sampling tools to a lesion (22). In a study of 20 patients, Casal and colleagues demonstrated a 25% absolute increase in diagnostic yield of peripheral lung nodules along with an acceptable radiation dose of 11–29 mSv (23). However, a significant limitation of this technology is the current expensive cost, which may make it difficult to obtain for most pulmonologists at this time.

RAB

Recently released RAB platforms include the Monarch™ Platform by Auris Health^© (Redwood City, CA, USA) as well as the Ion™ endoluminal robotic bronchoscopy platform by Intuitive Surgical^© (Sunnyvale, CA, USA). These technologies remain in the early phase of utilization and exploration but are being rapidly employed by numerous centers across the globe. The robotic systems allow for bronchoscope stabilization as well as the ability to reach deep into the periphery of the lung. Chen and colleagues, in the REACH assessment, determined that the Monarch™ robotic bronchoscope was able to be driven out farther than a thin bronchoscope by an expert bronchoscopist (24). The Monarch™ system utilizes a handheld controller that allows the user to advance a bronchoscope and a sheath into the airway along with offering continuous visualization. The outer sheath wedges into place at the level of the segmental bronchi while the inner bronchoscope is further advanced to the target lesion (Figure 3). In a recent multicenter trial published in 2019, Chaddha and colleagues performed successful navigation in 88.6% of the cases with an initial diagnostic yield of 69.1–77% using the Monarch™ system. The average size of the lesions was 25 mm with 71% of the lesions located in the peripheral third of the lung (25). In a follow-up study, Chen and colleagues recently completed a prospective, multicenter study of robotic bronchoscopy utilizing the Monarch™ system in patients with PPLs. Diagnostic yield was found to be 74.1%. Peripheral lesions with a concentric r-EBUS view was found to be 80.6% as compared with 70% for those that were eccentric (26). Currently, there is an ongoing prospective, multicenter trial [Transbronchial Biopsy Assisted by Robot Guidance in the Evaluation of Tumors of the Lung (TARGET), ClinicalTrials.gov Identifier: NCT04182815] that is evaluating the yield, complication rate, among other outcome measures by the use of the Monarch™ platform.

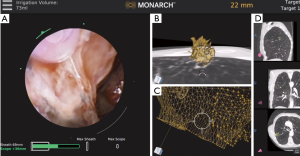

Figure 3 Peripheral pulmonary lesion sampling performed with the Monarch™ robotic platform utilizes both electromagnetic and optical airway recognition. (A) The live bronchoscopic view allows for direct visualization of instruments used at the time of biopsy; (B) local view represents a 3D reconstruction of the target lesion in relation to the distal end of the working channel; (C) the orbit view allows the bronchoscopist to align the working channel in relation to the target lesion; (D) the axial, coronal, and sagittal views of the peripheral pulmonary lesion.

The Ion™ platform utilizes a trackball and wheel controller which advances the bronchoscope into the periphery of the lung. The outer diameter of the bronchoscope is 3.5 mm with a 2.0-mm working channel. This system requires that the optic gets removed once the target is reached so that tools can be advanced through the remaining sheath. Proprietary shape-sensing technology offers real time feedback. A study performed by Fielding and colleagues utilized the system in 30 patients with peripheral nodules that had a mean diameter of 12.5 mm and obtained a diagnostic yield of 83% (27). Currently, a prospective evaluation of the clinical utility of the Ion™ Endoluminal System (PRECIsE) will be completed in December 2020 (ClinicalTrials.gov Identifier: NCT03893539).

Kalchiem-Dekel and colleagues published their use of multiplanar 3D fluoroscopy use along with r-EBUS during RAB using the Ion platform. In this small study of 10 patients, r-EBUS was used to identify whether targets were concentric, eccentric, or no view. Intraoperative 3D fluoroscopy spin was performed using the Cios-Spin mobile 3D C-arm. The robotic catheter was then redirected if needed with biopsies that followed. Tool-lesion relationship was classified. Navigation to target was successful in all cases with r-EBUS concentric view in six cases and eccentric in four. Notably, 3 of 10 tool-lesion relationships were improved with the 3D fluoroscopy imaging. Diagnostic yield was found to be 90% independent of the lesion’s size, location, or r-EBUS image (28).

Conclusions

Prior studies have reported that the diagnostic yield of navigational bronchoscopy is quite variable. However, when technologies are used in combination, studies have demonstrated an improvement in the diagnostic yield of PPLs. It should be noted, however, that such technology is not a replacement for experience and thoughtful review of imaging and airway anatomy. As bronchoscopy advancements continue, the hope remains that the diagnostic yield will continue to incrementally increase. This improved diagnostic value and assurance of accurate localization will be imperative in pursuing locally ablative and therapeutic techniques for future treatments of PPLs. Additionally, the impact of alternative testing alongside the advanced navigational techniques will continue to shape the way physicians approach patients with lung lesions in the future. Cost, lesion accessibility, and operator experience should be considered when selecting the method of lung biopsy. These concerns should be discussed during a multidisciplinary conference in order to identify the best approach to achieve the highest diagnostic yield, quality of pathological data, and malignancy staging (if applicable) utilizing the least invasive methods.
