The value of virtual bronchoscopic navigation and radial endobronchial ultrasound-guided transbronchial lung cryobiopsies for pulmonary lymphangitic carcinomatosis

Introduction

Pulmonary lymphangitic carcinomatosis (PLC) is characterized by malignant infiltration into lung lymphatic channels from a primary site and generally originates from adenocarcinoma of the lung, breast, stomach, prostate, and pancreas (1). Specifically, it is an unusual presentation of diffuse infiltrative lung disease with nonspecific symptoms, which often results in a delayed diagnosis. High resolution computed tomography (HRCT) is a vital method for PLC diagnosis with the characteristic radiologic features including thickened peribronchovascular interstitium and interlobular septa, subpleural edema, pulmonary nodules with accompanying bronchovascular bundles, hilar and mediastinal nodal enlargement, pleural effusion, and slight destruction of the overall lung architecture (2-4). Clinical PLC diagnosis is often difficult given the lack of specific respiratory complaints and radiologic features. Half of the patients with PLC die within 3 months after respiratory symptom onset (5); moreover, poor prognosis requires early histopathologic diagnosis and treatment.

Despite the well-known high diagnostic value of thoracic surgery lung biopsy (6,7), patients may require a few post-operative days of hospitalization and develop numerous complications associated with mortality risk (6-8). TBLB using endoscopic forceps is the most common diagnostic approach. However, the tissue sample size obtained by standard TBLB usually limits the diagnostic yield (9,10). The TBLB diagnostic yield has been reported to be <70% and 29% for peripheral pulmonary lesions (PPL) (11) and interstitial lung disease (12), respectively.

Since the 1970s, cryoprobes have been employed in bronchoscopy. When the probe tip is cooled by releasing the compressed carbon dioxide (CO₂) or nitric oxide (NO), the tissue adjacent to the probe is attached to the frozen probe and isolated. Over the last decade, TBLC has been performed to obtain sufficient specimens for the diagnosis of interstitial lung diseases (ILD), which could explain the higher diagnostic yield compared with that of TBLB (10,12-18). However, there have been few studies on the role of TBLC on PLC.

Guidance techniques, including fluoroscopy, virtual bronchoscopic navigation (VBN), electromagnetic navigation bronchoscopy (ENB), and radial endobronchial ultrasound (R-EBUS), are applied to TBLC to enhance the diagnostic yield of PLC and avoid complications. R-EBUS is a minimally invasive bronchoscopic technique that is routinely used for PPL diagnosis (19). It generates a 360° ultrasound field of view, which allows bronchoscopists to avoid blood vessels and to target the lung biopsy site. In our clinical practice, the “blizzard” pattern is manifested in PLC due to increased echogenicity resulting from interstitial tumor cell infiltration. R-EBUS is often combined with other guidance techniques to improve target localization. VBN is a navigation technique that employs CT images to reconstruct the virtual bronchial tree and provide a route to the target. VBN images are created based on imaging data obtained before bronchoscopy examination. The combination of VBN with R-EBUS has a higher diagnostic yield for PPL (20).

There have been few studies on PLC biopsy. This study aimed to assess the diagnostic yield of TBLC for PLC, as well as to evaluate the procedure-related complications.

We present the following article in accordance with the STARD reporting checklist (available at http://dx.doi.org/10.21037/jtd-2020-abpd-002).

Methods

Patients

This prospective study was conducted in the department of pulmonary and critical care, Yantai Yuhuangding Hospital from January 2017 to November 2018. The study was conducted in accordance with the Declaration of Helsinki (as revised in 2013). The study protocol was reviewed and approved by the Ethics Committee of Qingdao Medical College Affiliated to Yantai Yuhuangding Hospital (No. 2014-111), which waived the requirement for informed consent due to the retrospective nature of the study. All the patients provided written informed consent before treatment. This open-label study enrolled consecutive patients with pulmonary infiltrates on HRCT and suspected of PLC. Typical imaging features of PLC on HCRT include perihilar axial interstitium, thickened interlobular septa, intrapulmonary nodules, subpleural interstitium, and no structural lung lobule deformations. Moreover, we enrolled patients with additional imaging features of hilar and mediastinal nodal enlargement, as well as pleural effusion. Other inclusion criteria were: (I) age >18 years and <80 years; (II) platelet count >80,000/mm³. The main exclusion criteria were: (I) standard contraindications to invasive procedures, including heart failure and unstable cardiovascular disease; (II) forced vital capacity <50% predicted and diffusion capacity of carbon monoxide <35% predicted; (III) abnormal coagulation test results; (VI) having taken oral anticoagulants within 1 week; (V) contraindications to anesthesia; and (VII) pregnant women.

Procedure and Equipment

HRCT images were imported into the VBN system (DirectPath™, Olympus, Tokyo, Japan); subsequently, one to three targets were selected in each patient at a distance of about 1 cm from the chest wall. The lower lung zones and lateral airways were prioritized. After target localization, the virtual airway pathway and distance for approaching the target was calculated using VBN (21). The VBN system was positioned beside the bronchoscopic screen.

TBLC was conducted in patients intubated with a rigid tube (size 8.5# to 14#; Karl Storz, Tuttlingen, Germany). An interventional pulmonologist performed flexible bronchoscopy with the patient under general anesthesia (22).

R-EBUS guided TBLC procedure

A bronchoscope (BF-P290; Olympus, Tokyo, Japan) was introduced through intubation and navigated to the target with guidance by the VBN system. Upon reaching the most distal airway, an ultrasound probe (20 MHz, UM-S20-17S; Olympus, Tokyo, Japan) was inserted through the working channel. This procedure did not involve fluoroscopy. The probe length and angle were based on previously calculated VBN data. The absence of major vessels and the presence of blizzard patterns were indicative of the safe area for biopsy (Figures 1,2). In case the desired pattern was not observed or was too close to the pleura, a biopsy sample was not obtained and another target area was explored. Once the optimal location was confirmed, the EBUS probe was removed followed by the introduction of transbronchial forceps into the area. Five biopsies were suggested during the procedure. The cryoprobe (1.8 mm diameter; Kooland, Beijing, China) was inserted into the same target segmental bronchi as the previous TBLB. The cryoprobe was activated for 5–6 s; subsequently, it was quickly removed together with the bronchoscope. The tissue was thawed from the cryoprobe in normal saline and transferred to formalin. Two biopsies were suggested. Finally, the bronchoscope was re-advanced into the airway for bleeding assessment and management. A balloon catheter had been previously prepared for possible major bleeding. TBLB and TBLC specimens were sent to the department of pathology respectively. A pathologist reviewed all specimens and recorded whether the final pathologic diagnostic results were confirmed using TBLB and/or TBLC specimens. Moreover, whether the specimens were suitable for further genetic analysis was recorded.

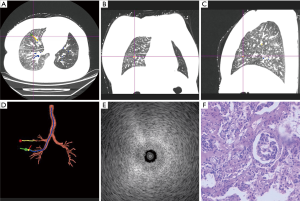

Figure 1 Images of a 54-year-old woman with PLC. HRCT of the axial position, coronal position, and sagittal positions (A,B,C). A 3D-reconstruction of the tracheobronchial tree by VBN (D). R-EBUS image showing a blizzard pattern (E). Cryobiopsy confirmed lung adenocarcinoma (F; HE, ×100).

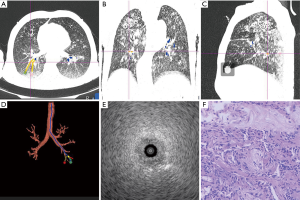

Figure 2 Images of a 70-year-old man suspected with PLC. HRCT of the axial, coronal, and sagittal positions (A,B,C). A 3D-reconstruction of tracheobronchial tree by VBN (D). R-EBUS image showing a blizzard pattern (E). Cryobiopsy confirmed interstitial pulmonary tuberculosis (F; HE, ×100).

Complications

Cryobiopsy-related bleeding was categorized into mild (requiring bronchoscopic suctioning), moderate (requiring intrabronchial administration of epinephrine or ice-cold saline), and severe (requiring procedure termination, blood transfusion, or prolonged intubation requiring intensive care unit monitoring) (23). All the patients underwent chest X-ray within 2 postoperative hours to evaluate procedure-related pneumothorax, as well as other complications.

Statistical analysis

Baseline characteristics of the patients were analyzed using descriptive statistics. Normally and non-normally distributed continuous variables were expressed as medians with standard deviations and median [interquartile range (IQR)], respectively. Categorical data were expressed as percentages and frequencies. The diagnostic yield was calculated using the pathologic diagnostic results. Between-group comparisons of categorical variables were performed using a t-test or Chi-squared test. Statistical significance was set at two-sided P<0.05.

Results

From January 2017 to November 2018, we enrolled 40 patients. The overall median (IQR) age of patients was 62.5 (41.7–78.3) years; further, 65.0% of the patients were male. Most lesions were located in the outer third of the hemithorax in the lower lobe. Table 1 presents the baseline clinical and lesion characteristics.

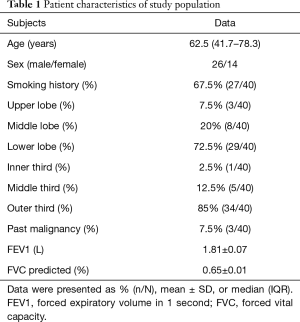

Table 1 Patient characteristics of study population
Full table

The average number of TBLB and TBLC specimens were 4 (3 to 6) and 2 (1 to 3), respectively, (t=10.43, P<0.01), with the corresponding mean diameters per biopsy being 3.7 and 8.7 mm (t=12.37, P<0.01) (Figure 3). In the VBN and R-EBUS guided TBLB group, malignancies were identified in 28 (70%) patients; among them, 20, 3, 3, and 2 patients were diagnosed with adenocarcinoma, squamous cell lung cancer, small cell lung cancer, and other malignancies, respectively. These diagnoses were reached by both TBLB and TBLC. An additional 9 diagnoses were established through TBLC, which increased the overall diagnostic yield to 92.5% (37/40). Among the 9 patients, 4, 2, 2, and 1 were diagnosed with adenocarcinoma, small cell lung cancer, tuberculosis, and organizing pneumonia, respectively. Both TBLB and TBLC failed to achieve a diagnostic yield in 3 patients. Among them, a definitive diagnosis was established using video-assisted thoracoscopic surgery in 2 patients while a final diagnosis could not be reached in 1 patient due to progressive worse respiratory symptoms and arterial oxygen pressure. The final positive predictive value of TBLC and TBLB for malignancies were 94.4% (34/36) and 77.8% (28/36), respectively (χ²=23.94, P<0.01). TBLB and TBLC specimens were sufficient for further genetic analysis in 52.2% (12/23) and 81.5% (22/27) of the patients, respectively, diagnosed with non-small lung cancer (χ²=19.56, P<0.01).

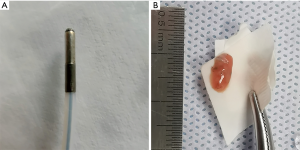

Figure 3 Image of a cryoprobe (A) and lung tissue specimen obtained by TBLC (B).

Only 2 (5%) patients developed postoperative pneumothorax, with one patient requiring pleural drainage. There was no occurrence of severe life-threatening bleeding events; moreover, moderate, and mild bleeding occurred in 3 (7.5%) and 17 (42.5%) patients, respectively. There were no other adverse events or death. Table 2 presents the procedure characteristics and diagnostic yield of TBLB and TBLC for PLC.

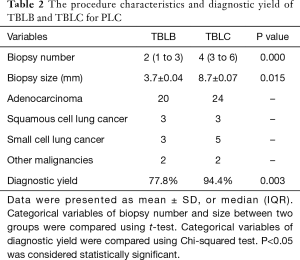

Table 2 The procedure characteristics and diagnostic yield of TBLB and TBLC for PLC
Full table

Discussion

PLC is an unusual presentation of diffuse infiltrative lung disease with nonspecific symptoms, which often results in delayed diagnosis. Although HRCT and PET-CT are crucially involved in identifying PLC (3,4), there is a need to obtain pathology diagnosis to allow prompt treatment. Transbronchial biopsy is the most common and least invasive approach. The reported diagnostic yield for ILD ranges from 75% to 93% (24-26). In the present study, our diagnostic yield and adequate specimen rate for genetic analysis were 92.5% and 81.5%, respectively, which was prior to those previously reported. It was thought that disorders distributed along the lymphatic routes, including OP and sarcoidosis, were easily identifiable (25,26), and there might be the same result in PLC. The optimal cryobiopsy number remains unclear, with 2–5 biopsies being suggested (15). In this study, 2–3 biopsies were sufficient for pathological and molecular evaluation. The mean diameter of the samples we obtained was consistent with that previously reported (24,27,28). The present study suggested that TBLC was quite qualified for diagnosing suspected PLC with 2–3 biopsies.

The main complications of TBLC include pneumothorax and massive hemoptysis. It is thought that the pneumothorax risk increases upon cryoprobe insertion into the subpleural area (21). For safety purposes, there is a need to determine if the freezing tip of the flexible cryoprobe is sufficiently distant from the chest wall during TBLC. In this study, we manually used the VBN system for target localization and to avoid the subpleural area based on lesion location. Subsequently, the VBN system calculated the potential pathway, and the bronchoscope could be guided into the third to eighth generation bronchi. The VBN system has been used to enhance the diagnostic yield of transbronchial biopsy for PPL (29,30). Currently, there has been no study evaluating the diagnostic yield of VBN for PLC; however, VBN did facilitate the selection of the correct bronchus to reach the target and shorten the procedure time. Further, the low pneumothorax incidence rate (5%) in our study could be attributed to the use of VBN. A review literature reported that the pneumothorax incidence of TBLC was approximately 10% without VBN (31).

Since VBN is not a real-time imaging technique, we combined it with R-EBUS to choose the most proper biopsy site. Given that vessels are usually running along the bronchus in the peripheral lung, the risk of severe bleeding increases when the cryoprobe is too close to the pulmonary vessels, which can be avoided using an ultrasound probe. R-EBUS works with a guide sheath (GS), which serves as a path for sampling devices and facilitates post-biopsy bleeding control; consequently, the rate of bleeding complications is lower (32). We observed a high bleeding incidence mainly due to the absence of a GS during cryobiopsies since the cryoprobe could not pass through the GS. However, the use of R-EBUS led to no case of severe bleeding. TBLC was performed immediately after TBLB without chest X-ray examination, and either above-mentioned procedure could have resulted in complications, including pneumothorax. Nonetheless, the complication rate was not higher than that in literature, which is suggestive of the safety of TBLC.

In our study, the average age of the patients was 62.5 years (range, 41.7–78.3 years), which suggests that TBLC is acceptable for elderly patients. For elderly patients with suspected PLC and progressive dyspnea, a diagnosis is difficult to establish since they cannot tolerate surgical lung biopsy or CT-guided transthoracic needle aspiration. Therefore, TBLC may be a promising diagnostic choice, and guidance with VBN and R-EBUS may improve the diagnostic yield and decrease the procedure-related complications.

There are several limitations in this study. First, since PLC is a relatively rare manifestation of metastatic cancer, our sample size was relatively small and this was a single-center study. Second, the use of TBLB and TBLC in the same patient might have increased the procedure-related risk; additionally, it was difficult to identify the operation responsible for the risk. There is a need for a randomized controlled trial to evaluate the diagnostic rate and risk of TBLB and TBLC.

Conclusions

In summary, our findings indicate that TBLC could increase the diagnostic yield of PLC with safety assurance through guidance using VBN and R-EBUS. Randomized controlled trials should evaluate the diagnostic rate and risk of TBLB and TBLC in the future.
