What is the optimal large airway size reduction value to determine malacia: exploratory bronchoscopic analysis in patients in Mounier-Kuhn syndrome
Letter to the Editor

What is the optimal large airway size reduction value to determine malacia: exploratory bronchoscopic analysis in patients in Mounier-Kuhn syndrome

Evelise Lima, Pedro Rodrigues Genta, Rodrigo Abensur Athanazio, Ascedio José Rodrigues, Maria Aparecida Miyuki Nakamura, Samia Zahi Rached, Eduardo Leite Vieira Costa, Rafael Stelmach

Pulmonary Division, Heart Institute (InCor) do Hospital das Clínicas da Faculdade de Medicina da Universidade de São Paulo, São Paulo, Brazil

Correspondence to: Evelise Lima. Pulmonary Division, Heart Institute (InCor) do Hospital das Clínicas da Faculdade de Medicina da Universidade de São Paulo, Av. Dr. Enéas Carvalho de Aguiar, 44 - Cerqueira César, São Paulo, SP, Brazil. Email: eveliselima53@gmail.com.

Submitted Jul 08, 2020. Accepted for publication Oct 22, 2020.

doi: 10.21037/jtd-20-2395

Excessive airway collapse (EAC) has been increasingly identified as a respiratory condition associated with several symptoms and morbidities. However, we observe a huge variability in the way of diagnosing this entity, often using different techniques. We propose a diagnostic method using bronchoscopy (1).

EAC is characterized by trachea and/or bronchi huge collapse, and occurs mainly during expiration (2,3). During expiration occurs an increase in intrathoracic pressure and supporting structures (musculature and cartilage) of central airways, leading to essential balance, which maintains the patency of tracheal and bronchial lumen (4).

Whenever there is pathological involvement of these structures a collapse can be observed (3).

EAC comprises two entities: excessive dynamic airway collapse (EDAC) and tracheomalacia (TM). In EDAC there is an excessive narrowing of the posterior trachea and/or bronchi promoted by membranaceous posterior wall due to weakness of its musculature. TM is characterized by a pathological movement of the entire tracheal structure, involving both muscles and cartilaginous rings. When it extends to the bronchi, it is referred as tracheobronchomalacia (TBM) (5,6).

TM or TBM may affect the airway either diffusely or segmentally (2,3,5). It is classified according to appearance of the trachea in crescent (anteroposterior narrowing), lateral (lateral narrowing) and circumferential (both anteroposterior and lateral narrowing) (2,3,6). Congenital forms manifest predominantly in childhood, and can be related to other respiratory tract conditions, such as Mucopolychondritis or Mounier-Kuhn syndrome (SMK). Acquired forms are related to traumatic or inflammatory injuries and idiopathic when the cause is unknown (3,5,6).

The recognition of these entities is important since it may be responsible for the existing respiratory symptoms, its worsening or the onset of new symptoms. It may be often confounding with other diseases, such as chronic bronchitis, bronchiectasis, asthma, and chronic obstructive pulmonary disease. The predominant signs and symptoms are cough, abundant tracheobronchial secretion, dyspnea and wheezing (7).

Diagnostic tests include bronchoscopy and computerized tomography scan of the chest (CT). Bronchoscopy is capable of assessing both the anatomical and the dynamic changes of the airway (2,3,6). Classically, the diagnosis is established when there is a 50% decrease in the tracheobronchial cross sectional area (8), although the use of this parameter remains controversial. The definition of the pathological collapse ranges from 35% to 80% of the airway area as shown in studies focused on the definition of pathological collapse (Table 1).

Table 1

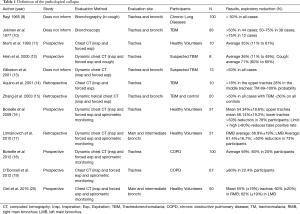

Table 1 Definition of the pathological collapse
Full table

Most studies use chest CT scan for measuring the cross-sectional area of the trachea and/or bronchi at maximal inspiration and forced expiration. Some use spirometric monitoring and measured the forced vital capacity (FVC) to ensure maximum expiration. These studies show variations in the normal the values. However, there were different methods and techniques used for measuring, in addition of sample size discrepancies as well as different regions were analyzed.

It is therefore important to define what is really crucial to define excessive collapse. Considering that not all that patients with EAC have symptoms (3), and the fact that healthy individuals may have collapse of up to 80% on forced expiration (16), the values for the FVC used in chest CT as a diagnostic for pathological collapse remain unanswered.

Another issue is whether the values found during chest CT studies can actually be extrapolated to bronchoscopic analysis, once respiratory cycles are dynamically evaluated. When symptoms are aggravated or triggered by TBM, it has been shown that they may also occur with spontaneous breathing (2,3,5,6). Thus, defining the percentage value of the diagnosis of pathological collapse using findings on forced expiratory chest CT with spirometry monitoring may result in over diagnosis of TBM.

Despite being the gold standard, bronchoscopy (2,3,6) has been underutilized for the analysis of collapse and one of the limiting factors is the lack standardization of the bronchoscopic procedure. Ideally, sedation should be light in a way that the patient can interact with the examiner, but sufficient to avoid discomfort.

Airway size reduction is achieved during spontaneous and forced inspiration and expiration without spirometric monitoring (2,3). Such technical difficulty during the objective analysis yields to results that are dependent on the examiner’s judgement (2,6). For an accurate quantitative measurement of the area to be analysed, the examiner is expected to know the distance between the endoscopic lens and the area of interest, keeping the tip of the bronchoscope in the same position, since any change in this distance may result in an increase (nearness) or decrease (distance) from the assessed area (21). In this context, we believe that the best assessment the diagnosis of TBM is via bronchoscopy using a standardized technique with a method that allows objective analysis of the collapse.

In order to find the best way to objectively analyse the variation between inspiration and expiration using bronchoscopy, we designed an assessment protocol to evaluate patients with MKS and TBM (1).

After sedation, we tested the response to continuous positive airway pressure (CPAP) using non-invasive mechanical ventilation (NIMV). A custom catheter was used containing distance markings in centimeters (we used a Fogarty catheter no 3 and made markings in centimeters) that is inserted into the working channel of the bronchoscope. It is kept at a known distance between its distal end and the bronchoscope, minimizing the variation in the distance from the device to the collapse region (Figure 1). NIMV/CPAP titration was performed from 0 to 18 cmH2O (started in 0 cmH2O and gradually increases in steps by 2 cmH2O every 10 complete cycles) (1).

Figure 1 Bronchoscopic view of the trachea, right bronchus and the catheter (blue). (A) Right bronchus during expiration in pressure 0 cmH2O; (B) right bronchus during inspiration in pressure 0 cmH2O; (C) trachea during expiration in pressure 0 cmH2O; (D) trachea during inspiration in pressure 0 cmH2O.

The procedure was recorded digitally and the images analysed by a software (Image Processing Toolbox, Matlab®, Natick, MA) capable of evaluating and measuring airway pixel variation by means of comparing the collapse area at 0 cmH2O with the different titrated pressures (1). The pixels measured at each titration record are proportional to the airway area when corrected for the known distance. From this analysis it was possible to define the best pressure capable to reduce the collapse.

Despite its experimental character, this methodology can be extrapolated to diagnose TBM, allowing a dynamic analysis of the airway that excludes the bias of using FVC in the diagnosis. Therefore, it allows a more realistic analysis of the dynamic variations in airway diameter, thus avoiding an overdiagnosis of pathological collapse, often made in asymptomatic patients.


Funding: None.


Provenance and Peer Review: This article was a free submission to the journal. The article was sent for external peer review.

Conflicts of Interest: All author have completed the ICMJE uniform disclosure form (available at http://dx.doi.org/10.21037/jtd-20-2395). RA Athanazio reports personal fees and other from Astrazeneca, personal fees and other from Vertex, grants, personal fees and other from GSK, personal fees and other from Pfizer, personal fees from Roche, non-financial support from Sanofi, personal fees from Novartis, outside the submitted work. MA Nakamura reports non-financial support from Timpel SA, during the conduct of the study; personal fees from Timpel SA, outside the submitted work. EL Costa reports personal fees from Timpel SA, outside the submitted work. R Stelmach reports grants from São Paulo Research Foundation, grants and personal fees from Novartis, grants, personal fees and non-financial support from AstraZeneca, grants from MSD, grants, personal fees and non-financial support from Chiesi, personal fees and non-financial support from Boheringer Ingelheim, outside the submitted work. The other authors have no conflicts of interest to declare.

Ethical Statement: The authors are accountable for all aspects of the work in ensuring that questions related to the accuracy or integrity of any part of the work are appropriately investigated and resolved.

Open Access Statement: This is an Open Access article distributed in accordance with the Creative Commons Attribution-NonCommercial-NoDerivs 4.0 International License (CC BY-NC-ND 4.0), which permits the non-commercial replication and distribution of the article with the strict proviso that no changes or edits are made and the original work is properly cited (including links to both the formal publication through the relevant DOI and the license). See: https://creativecommons.org/licenses/by-nc-nd/4.0/.
