Application of extracorporeal cardiopulmonary resuscitation in adult patients with refractory cardiac arrest

Introduction

Cardiac arrest caused by a variety of factors has always been a serious, life-threatening emergency state. Conventional cardiopulmonary resuscitation (CCPR) is the basic method used to treat cardiac arrest; however, the success rate of rescue has not been high (1-3). With the extension of cardiopulmonary resuscitation (CPR) duration, the probability of achieving return of spontaneous circulation (ROSC) is increasingly small. How to improve the rescue success rate of patients with cardiac arrest has been a focus of medical research. In recent years, with the development of extracorporeal life support technology, extracorporeal cardiopulmonary resuscitation (ECPR) derived from extracorporeal membrane oxygenation (ECMO) has been increasingly applied to patients with CCPR failure. It has been reported that ECPR could improve the survival rate and the neurological prognosis of patients with cardiac arrest (4-6).

The aim of this study was to retrospectively analyze the clinical data of patients with cardiac arrest who were treated with ECPR at Sir Run Run Shaw Hospital in recent years to summarize the experience of the treatment of patients with cardiac arrest. We present the following article in accordance with the STROBE checklist (available at http://dx.doi.org/10.21037/jtd-20-1573).

Methods

This study included 12 adult patients with cardiac arrest who underwent ECPR at our hospital between June 2015 and September 2019. There were six males and six females aged 18–69 years (average 47.4±16.3 years) with body mass of 39–71 kg (average 61.7±11.8 kg). The inclusion criteria of ECPR patients in our center were that they did not achieve ROSC with CPR for at least 15 min, and they did not have any advanced malignant tumor, irreversible organ dysfunction, or serious nervous system injuries before the onset of the disease. The family members of the patients were informed and agreed to ECMO rescue. Patients with acute heart failure or failed weaning from cardiopulmonary bypass after cardiac surgery who were treated with ECMO but did not undergo CPR were not included in this study.

The study was conducted in accordance with the Declaration of Helsinki (as revised in 2013). The study was approved by institutional ethics board of Sir Run Run Shaw Hospital (2020-578-01) and individual consent for this retrospective analysis was waived.

All the patients underwent veno-arterial (V-A) ECMO support with the adoption of femoral artery and vein catheterization. Ten patients were treated by using skin incision, and two patients were treated by using the percutaneous technique. The ECMO circuit (BE-PLS 2050, Maquet, Germany) was primed with lactate Ringer’s solution. After initiation of ECMO, the hematocrit was maintained at >24%, platelet >5×10⁹/L, fibrinogen >1.0 g/L. In the early stage of ECMO, echocardiography was fully used to assess the cardiac function and filling extent to avoid left ventricular hyperinflation. According to the recovery of heart rhythm and the state of cardiac function, the perfusion flow rate was adjusted appropriately. Combined with the use of vasoactive drugs, the mean arterial pressure should be maintained above 65 mmHg, and the mixed venous oxygen saturation should be more than 65%. If this was the case, the blood-gas and biochemical index tended to be improved. The mechanical ventilator was set up with a protective lung ventilation strategy: the initial tidal volume was 6–8 mL/kg, positive end-expiratory pressure (PEEP) 5–10 cmH₂O, respiratory rate was 10–12 times/min, FiO₂ was 40–50%, and distal limb perfusion of the intubated side was performed routinely. The anticoagulation strategy adopted heparin titrated to maintain activated clotting time (ACT) for 160–200 s and activated partial thromboplastin time (APTT) for 50–80 s. If the groin incision still had obvious bleeding after complete surgical hemostasis or increased drainage from the chest tube, the requirements of anticoagulation were properly reduced, or could be suspended for a short time. In the early stage of ECPR, the temperature of the patient was controlled at 34–36 °C by the heater-cooler. The function of the nervous system was evaluated when the vital signs were stable. If necessary, a brain computerized tomography (CT) examination should be performed to confirm the diagnosis. If the hemodynamic indexes of the patients were significantly improved after several days of ECMO support with no or a small dose of vasoactive drugs and the echocardiography indicated that the myocardial contraction was satisfactory, the ECMO flow rate could be reduced gradually until ECMO was withdrawn.

ECPR technology has only appeared and been developed in China in recent years. It was used for the first time in our hospital in June 2015, and there were 12 cases in total by September 2019. This study included all the patients who were treated with ECPR in our hospital. Data were obtained from our hospital’s electronic medical records.

Statistical analysis

In the present study, the data were statistically analyzed using SPSS statistical software (version 19.0, IBM, USA). The measurement data were expressed as mean ± standard deviation (SD). Enumeration data were expressed in percentage (%).

Results

Twelve patients treated with ECPR were included in this study (Figure 1). It was indicated that the CPR duration of the 12 patients was 32–125 min (average 71.6±32.7 min), and the ECMO support time was 2–190 hours (average 94.9±63.2 min) (Table 1). Eight patients were successfully weaned from ECMO and four of these patients survived; the survival rate was 33.3% [4/12]. Among the eight deceased patients, four patients who could not be weaned from ECMO died due to hemodynamic collapse during the early stage of the ECMO treatment. Four patients died after weaning from ECMO; among these, three patients died due to severe neurological complications and one patient died due to recurrent cardiac arrest.

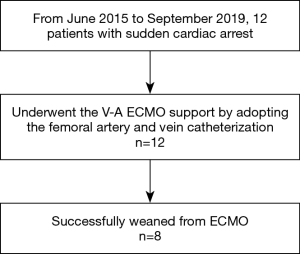

Figure 1 Study flowchart. V-A ECMO, veno-arterial extracorporeal membrane oxygenation.

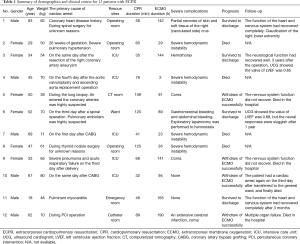

Table 1 Summary of demographics and clinical course for 12 patients with ECPR
Full table

Among the four patients who survived and were discharged from the hospital, one patient suffered from compartment syndrome in the intubated side of the crus, which resulted in partial necrosis of skin and soft tissue. Considering the insufficiency of blood supply at the distal limb (no additional distal perfusion was established), the crus was preserved after multiple debridement, skin grafting, and other remedial treatment. However, it still resulted in the claudication of the right lower extremity. It was strongly suspected that the cardiac arrest of one patient was caused by a pulmonary embolism. Therefore, the patient underwent urgent thrombolysis with Alteplase before receiving ECMO. During ECMO, the patient experienced gastrointestinal bleeding and abdominal bleeding successively, and an exploratory laparotomy was performed to achieve hemostasis. In addition, the CPR duration of this patient was long (120 min), and the recovery of organs, including the nervous system, was slow. This patient recovered cardiac function 1 year after discharge. The echocardiography indicated that the value of left ventricular ejection fraction (LVEF) was 0.68, but the neural responses were sluggish. The follow-up of the other patients ranged from 3 months to 4 years, and the cardiac and nervous system functions of these patients recovered well.

Discussion

According to the American Heart Association’s Get With The Guidelines^®-Resuscitation (GWTG-R), among 84,625 patients with cardiac arrest hospitalized between 2000 and 2009, the survival-to-discharge rate ranged from 13.7% to 22.3% (1). Although there is no large-scale randomized controlled clinical study to confirm the effect of ECPR, according to a large number of retrospective studies and meta-analyses conducted in the past, most scholars believe that ECPR can benefit specific populations (2,6). At present, there are different reports on the efficacy of ECPR in the treatment of in-hospital cardiac arrest; however, the survival rate in most studies is between 30% and 40% (7-11). The survival rate of our group of patients is 33.3% (4/12), which is in line with most of the literature reports. Regarding the outcome of refractory cardiac arrest treated by ECPR, it is generally accepted that the duration of low blood flow is one of the most important factors (11-13). The low blood flow duration refers to the period from the start of CPR to ECMO initiation. The shorter the time, the more favorable the prognosis will be. Generally, 60 min is a watershed, and the recovery probability will decrease if 60 min is exceeded (14,15). Therefore, it is critical that ECMO is quickly established for patients with cardiac arrest, including the assessment of indications and the rapid response of the ECMO team. At our center, the duration from cardiac arrest to ECMO initiation varies widely, from 32 to 125 min. The main reason is that we have not established a 24-hour duty system and sometimes the personnel and equipment cannot arrive in time. We had six patients with CPR duration of more than 60 min (five deaths), which directly affected the prognosis of our patients. We were also learning to improve the ECPR rescue process to control the CPR duration within 60 min.

In addition to reducing the CPR duration as much as possible, the quality of CPR is essential (16). It has been reported that chest compression can provide about 25% of cardiac output (17). High-quality compression means that important organs such as the heart and brain can obtain more blood perfusion. A patient with cardiac arrest in our hospital survived even though the CPR duration was 120 min. The patient might have benefited from high-quality CPR. It is suggested that for some special patients, although the CPR duration has exceeded the recognized range, it has the significance of active rescue, especially for young patients whose blood pressure can be maintained or in whom vital signs appear during CPR, such as wheezing, pupillary reflex, and limb movement.

Femoral artery and vein cannulation were applied to all the patients, and groin area skin incision was used to expose vessels to cannulate by using Seldinger technique in most of the patients. For some patients with better conditions, such as palpable femoral artery pulsation, accessible ultrasound equipment, and experienced percutaneous operators, the percutaneous method (two patients) could be used. It is not clear whether cannulation or the percutaneous method is better for the incision. We believe it is essential that the CPR duration should be reduced as much as possible. Regarding the selection of cannula size, we learned a lesson from our first ECPR patient. Due to the lack of experience, the size of the cannula in the femoral artery was a little large (Edwards 20 Fr), and no additional distal perfusion was established. Consequently, the blood supply of the distal limb on the intubated side was insufficient, and the skin and soft tissue of the calves were partially necrotic. Therefore, it could be concluded that 16 or 18 Fr is more suitable for femoral artery cannulation; however, 22 or 24 Fr was used for femoral vein cannulation in most of the patients. Furthermore, the additional distal perfusion was implemented routinely. The method is to place the vessel sheath of 8 Fr in the distal direction of the superficial femoral artery in the same incision and connect it with the main femoral cannula. Moreover, the skin temperature, color and circumference of the intubated side should be observed regularly, and the blood flow of the lower extremity should be monitored by ultrasound if necessary. After the improvement of the above measures, the problem of insufficient blood supply to the limbs on the intubated side was resolved.

It has been reported that the initial shockable rhythm at the first onset (17,18), the lactate level (11,16,19), and the partial pressure of end-tidal carbon dioxide before ECPR (20) can be regarded as prognostic indicators in patients with cardiac arrest. Some data were not collected completely and could not be further analyzed; however, the lactate level was recorded in detail immediately when running ECPR. The lactate level at the point of initiation of ECPR of the four surviving patients and eight deceased patients was 12.1±2.0 and 15.2±4.1 mmol/L, respectively. It could be seen that the level of blood lactate in the survival group was lower than that in the deceased group, which was consistent with the literature. This indicated that patients in the survival group possessed a relatively mild degree of tissue ischemia and hypoxia during CPR, so the prognosis was better, which had a certain reference significance for whether ECPR treatment needed to be started.

It was found that bleeding was a common and serious complication of ECPR. Various degrees of bleeding at the cannula site occurred in these 12 patients. Two patients experienced pulmonary contusion caused by chest compression, with obvious complications such as endotracheal hemorrhage and hemothorax. One patient experienced gastrointestinal hemorrhaging first, then abdominal hemorrhaging. An emergency operation had to be performed, and a rupture of the diaphragm artery was found. Therefore, the timely judgment and treatment of bleeding during ECMO are very important to stabilize the condition.

The limitation of this study is that it was a retrospective analysis with a small number of patients and the lack of a control group for comparison, and therefore the persuasion of the data is relatively limited. It is expected that more in-depth research in this field will be conducted with the increase in the number of patients in the future.

Conclusions

Single-center data showed that ECPR provided a new rescue alternative for some patients with reversible refractory cardiac arrest. We have demonstrated that the success rate of treatment could be improved by selecting suitable patients and reducing CPR duration as much as possible.

Acknowledgments

Funding: This study was supported by National Key R&D Program of China (No. 2017YFC1308000).

Footnote

Reporting Checklist: The authors have completed the STROBE reporting checklist. Available at http://dx.doi.org/10.21037/jtd-20-1573

Data Sharing Statement: Available at http://dx.doi.org/10.21037/jtd-20-1573

Conflicts of Interest: All authors have completed the ICMJE uniform disclosure form (available at http://dx.doi.org/10.21037/jtd-20-1573). The authors have no conflicts of interest to declare.

Ethical Statement: The authors are accountable for all aspects of the work in ensuring that questions related to the accuracy or integrity of any part of the work are appropriately investigated and resolved. The study was conducted in accordance with the Declaration of Helsinki (as revised in 2013). The study was approved by institutional ethics board of Sir Run Run Shaw Hospital (2020-578-01) and individual consent for this retrospective analysis was waived.

Open Access Statement: This is an Open Access article distributed in accordance with the Creative Commons Attribution-NonCommercial-NoDerivs 4.0 International License (CC BY-NC-ND 4.0), which permits the non-commercial replication and distribution of the article with the strict proviso that no changes or edits are made and the original work is properly cited (including links to both the formal publication through the relevant DOI and the license). See: https://creativecommons.org/licenses/by-nc-nd/4.0/.
