Characterisation of a clinical isolated Aspergillus lentulus strain using a Galleria mellonella infection model

Introduction

At present, Aspergillus fumigatus has become the most common air disseminated pathogenic fungus, which can cause serious fatal invasive infection in patients with immune impairment (1). Aspergillus lentulus (A. lentulus) was isolated and identified by Balajee in the secretions of four patients who underwent hematopoietic stem cell transplantation in 2005, and this became a new record aspergillus as a sister fungus of Aspergillus fumigatus (2). For the first time in 2008, Alhambra et al. (3) reported that this fungus could cause invasive infections in non-neutropenia patients. In 2011, a new species of A. lentulus that belongs to Aspergillus and Aspergillus fumigatus was isolated from sputum samples of an elderly male patient with chronic cor pulmonale complicated with acute pulmonary infection in 2011. The in vitro antifungal susceptibility test revealed the resistance to multiple antifungal agents. The patient died due to aggressive lung fungal infection after active treatment. This was the first case of A. lentulus infection and non-immunodeficiency in China. The clinical history of this patient’s infection suggest that the fungus can cause fatal consequences, not only to patients with impaired immune function, but also to patients with non-immune impairment. In recent years, the number of invasive Aspergillus infection cases caused by this fungus has gradually increased (4-6). However, this fungus is often difficult to distinguish from Aspergillus fumigatus in morphology, and most of these infections are associated with Aspergillus fumigatus in clinic. All of these presents a great challenge to the treatment of invasive fungal infections caused by A. lentulus (7,8). At present, the pathogenesis and host immune response pathway of this fungus remains unclear.

The present study aims to determine the sensitivity of this fungus to commonly used antifungal agents through in vitro drug sensitivity, establish an infection model of A. lentulus infecting Galleria mellonella larvaes, and discuss the antifungal resistance, virulence and inflammatory factors’ changes after the infection of larvae of A. lentulus separated from patients with chronic obstructive pulmonary disease (COPD) to reflect the host immune response.

Methods

Strain source and groups

Strain source

The A. lentulus standard strain: No. FH-5 (IFM54703, the gift from Chiba University, Japan). The clinical strain: Sputum specimens separated from one of COPD patients in our hospital. The study was approved by Medical ethics committee board of the First Affiliated Hospital of Xinjiang Medical University (No.: K201912-01) and informed consent was taken from all individual participants. The study was conducted in accordance with the Declaration of Helsinki (as revised in 2013). Steps for the isolation of strains in sputum specimens: In a biological safety cabinet, smear the sputum specimens on the surface of the PDA culture medium with a cotton swab and place them in a 37 °C incubator. After 3 days, the growth of colonies is observed. KOH direct microscopic examination showed thick, separated, bifurcated hyphae and conidia heads under the microscope. The bacterium was molecularly identified at Chiba University, Japan, and the β-tubulin gene (560 bp) gene was amplified. After blaste, the β-tubulin gene and A. lentulus had a homology of 99%, and the phylogenetic tree also confirmed high homology. And registered in the Japanese gene database (DDBJ, http://www.ddbj.nig.ac.jp/default.htm), the gene registration number is LC187284.

Strain groups and culture

Test grouping: A. lentulus standard strain (standard strain) group, A. lentulus strain isolated from a COPD patient (patient strain) group, and PBS (control) group. Young larvaes (purchased from Tianjin Huiyude Biological Technology Co., Ltd. Tinajin, China) with white color were selected, the selection criteria are 150–200 mg, no blackening and good mobility, then were refrigerated at 3–7 °C for later use and incubated overnight at 37 °C in the dark. The health index of plum blossom bacteria is listed in Table 1. Each group had 10 larvaes inoculated in a MEA 9-cm culture dish. After these were cultured up to the 9^th day at 25 °C, larvaes injection was performed with A. lentulus bacterial suspension at a concentration of 1×10⁶ CFU. A. lentulus reached a steady state about 12 hours after infection with larvaes according to the observation data from the research group on the number of survivals after A. lentulus infection with larvaes, as shown in Figure 1. The culture was continued for 12 hours after the injection (9). Then, the infected larvae were rinsed with liquid nitrogen, and the supernatant collected. Take 10 samples for each group, A kit was used to detect the (1,3)-β-D-glucan (Megazyme, Shanghai, China) and galactomannan (Dana Biological Technology Co., Ltd., Tianjin, China) levels through enzyme-linked immunosorbent assay (ELISA).

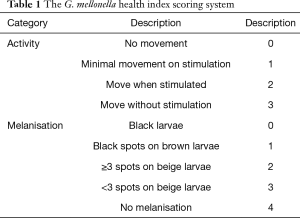

Table 1 The G. mellonella health index scoring system
Full table

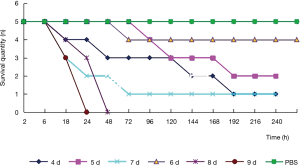

Figure 1 Survival number of A. lentulus patient group at a concentration of 1×10⁶ CFU after being infected with waxworm on different culture days.

In vitro chemosensitivity assay

In vitro chemosensitivity assay was performed according to the CLSI M27-3A standard. The drug susceptibility test based on the micro-liquid-based dilution method, the specific operation is as follows: adjust the spore concentration of the tested strain to 1×10⁶–5×10⁶/mL with a hemocytometer, and then dilute it with 1640 medium by 50 times. The tested drug concentration is diluted by multiples and then loaded in 96 micrometers. Orifice plate so that the final drug concentration of fluconazole in each well is 64, 32, 16, 8, 4, 2, 1, 0.5, 0.25 and 0.125 µg/mL, and the final drug concentration of the other antifungal drugs in each well are respectively. For 16, 8, 4, 2, 1, 0.5, 0.25, 0.125, 0.0625 and 0.0312 µg/mL, each drug is equipped with simple medium and bacterial solution control wells, and each drug sensitive plate is kept at 35 °C Incubate statically for 48 h in a humidified incubator to interpret the results. Interpretation standard: The minimum inhibitory concentration (MIC) value of azole drugs is the minimum drug concentration that compares with the control ≥50% growth inhibition. Amphotericin B uses the minimum drug concentration of 100% growth inhibition compared with the control well as the drug MIC value. The lowest effective concentration MIC of Micafungi is defined as the lowest drug concentration when short and abnormally branched hyphae appear.

Real-time polymerase chain reaction (PCR)

The infected larvae in step 1 was fully ground with liquid nitrogen to extract the lymphoid blood cells. Total RNA was extracted with TRIzol Reagent (Invitrogen Co., USA) as described in its directions. The extracted RNA was reverse transcribed with 5X All-In-One RT MasterMix (with AccuRT Genomic DNA Removal Kit) (Invitrogen Co., USA). The expression of caspase-1 and TNF-α was detected by real-time PCR used QuantiNova SYBR Green PCR Kit (Qiagen Co., Germany) and the first cDNA synthesis system is presented in Table 2, the fluorescence quantitative primers are presented in Table 3, and the reaction system and procedure are presented in Tables 4 and 5.

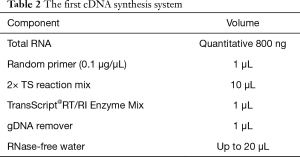

Table 2 The first cDNA synthesis system
Full table

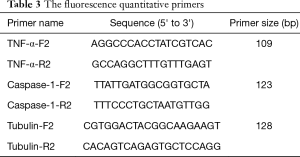

Table 3 The fluorescence quantitative primers
Full table

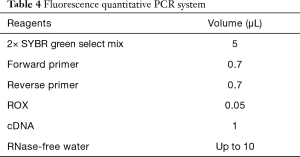

Table 4 Fluorescence quantitative PCR system
Full table

Table 5 Fluorescence quantitative PCR procedure
Full table

Statistical analysis

In the present study, SPSS 19.0 statistical software was used to process the data. The measurement data were expressed as mean ± standard deviation. The enumeration data were expressed in percentage (%). W-test was used for the normality test. F-test was used for the homogeneity test of variances. One-way analysis of variance (ANOVA) was used for comparisons among multiple groups, and least significant difference (LSD) was used for back testing. The nonparametric test was used to compare the mean of multiple samples that did not obey the normal distribution, or obeyed the normal distribution, but the variance was uneven. Counting data were analyzed using chi-square test. P<0.05 was considered statistically significant.

Results

Results of the in vitro drug sensitivity test

The direct microscopic examination revealed that the separated hypanthium could be observed. After the culture, the colony morphology presented with a gray and white villous, and the conidia head could be observed under a microscope (Figure 2). After the molecular biological identification, the amplified β-tubulin gene (560 bp) and BLAST, and the homology between the β-tubulin gene and A. lentulus reached 99%. Results of the in vitro drug sensitivity test: The MIC values of A. lentulus for amphotericin B, 5-fluorouracil, fluconazole, itraconazole, voriconazole, miconazole and micafungin were 2, 64, >64, 0.5, 1, 4 and <0.015 µg/mL, respectively. This suggests that A. lentulus has good sensitivity to itraconazole, voriconazole and micafungin (Table 6).

Figure 2 The morphological identification of Aspergillus lentulus. (A) The hyphal separation of branches in the sputum was observed by KOH direct microscopic examination. (B) The colony was cultured at 25 °C for 14 days, and presented with a gray and white villous shape. (C,D) The Aspergillus lentulus conidial head is shown.

Table 6 In vitro antifungal drug sensitivity of A. lentulus
Full table

The (1,3)-β-D-glucan level

The results revealed that the concentration of galactomannan was 0.883±0.487 µg/L and the concentration of (1,3)-β-D-glucan was 0.037%±0.029% in the control group, the concentration of galactomannan was 2.080±0.758 µg/L and the concentration of (1,3)-β-D-glucan was 0.035%±0.045% in the standard strain group, and the concentration of galactomannan was 1.635±0.193 µg/L and the concentration of (1,3)-β-D- glucan was 0.033%±0.029% in the patient group. There was no difference in (1,3)-β-D-glucan concentration between two groups and the control group, suggesting that this may not be involved in the formation of the virulence of early pathogenic fungi. For these two groups, the concentration of galactomannan was higher, when compared to the control group, and the difference was statistically significant. The lack of difference between these two groups (Figure 3) further confirm that this significantly increased as a fungal virulence factor at the beginning of the infection.

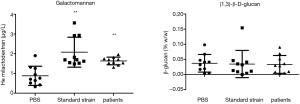

Figure 3 The horizontal mapping of two factors in the infected Galleria mellonella. **, P<0.01.

TNF-α and caspase-1 expression levels

These results revealed that the expression level of TNF-α and caspase-1 in the control group was 1.040±0.303 and 1.083±0.400, respectively, the expression level of TNF-α and caspase-1 in the standard strain group was 1.946±0.845 and 2.696±1.729, respectively, and the expression level of TNF-α and caspase-1 in the patient strain group was 2.486±1.114 and 4.612±1.746, respectively. Furthermore, the levels of TNF-α and caspase-1 in the larvae after infection were higher in these two groups than in the control group (P<0.05). This suggests that the induced host immune response was accompanied by the participation of the caspase-1 pathway, and TNF-α was involved in the host immune response (Figure 4).

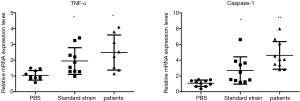

Figure 4 The mRNA expression level of two genes in the infected Galleria mellonella. *, P<0.05; **, P<0.01.

Discussion

The results of the present study revealed that A. lentulus has good sensitivity to itraconazole, voriconazole and micafungin. However, (1,3)-β-D-glucan was negative in the two groups. The level of galactomannan in the two groups was higher than that in the control group, showing that there was statistical significance, but there was no statistical difference between the standard strain group and patient strain group. After the infection of larvae, those in the control group and standard strain group induce the increase in caspase-1 and TNF-α in Galleria mellonella larvae. These elevated levels were statistically significant in both groups, but there was no significant difference between the two groups.

Fungal virulence is influenced by a variety of factors, and some of which directly lead to host disease. Certain key virulence factors directly lead to host disease. Fungal morphology changes and fungal surface antigens (β-glucan, chitin, mannan, etc.) are important components for activating the host innate immune system. The (1,3)-β-D-glucan and galactomannan are not only important virulence factors to induce innate immunity, but also clinical diagnostic indexes for early invasive aspergillus infection. When the body is invaded by fungi, it initiates the surface pattern recognition receptor of the innate immune system or the induction system, in order to activate the inflammatory response, and promote the release of inflammatory factors, such as IL-1β, TNF-α and IL-18. At present, as an important component of the natural immune system, which is highly dependent on the recognition and response of pathogenic microorganisms, NLRP3 inflammasome plays an important role in the pathogenesis of fungal virulence and host immune response. In the present study, the virulence of A. lentulus and the level of host immune inflammatory factors were measured for the first time, and the possible host immune response mechanism was discussed.

The prognosis of fungal infection was correlated to its own virulence and antifungal drug sensitivity. At present, aspergillus fumigatus has resistance to itraconazole, voriconazole and posaconazole at 0.2–2.6%, 0.8–3.1% and 0.2–2.2%, respectively. However, there is no report on the overall drug resistance rate for A. lentulus, which is a sister fungus of aspergillus fumigatus. As reported, the MIC values of A. lentulus for itraconazole, voriconazole and posaconazole were 0.12–16, 0.25–16 and 0.03–2 mg/L, respectively (7,8). More strains of high-MIC value of azole medicine are present, which greatly increases the difficulty of the invasive infection treatment caused by the fungus. The present experimental strain was the first A. lentulus isolated in China, and the MIC values to amphotericin B, 5-fluorouracil, fluconazole, itraconazole, voriconazole, miconazole and micafungin were 2, 64, >64, 0.5, 1, 4 and <0.015 µg/mL, respectively. This suggests that A. lentulus has good sensitivity to itraconazole, voriconazole and micafungin, and that the in vitro drug sensitivity is basically consistent with the control standard strain.

The (1,3)-β-D-glucan is a common structural component of all fungal cell walls, while galactomannan is the main skeleton component of aspergillus cell walls and an important immunogenic factor, which can induce phagocytosis and the release of inflammatory factors through receptors, such as dectin-1, on the surface of host cells. At present, the detection of these above two indexes has been used as an index for the early diagnosis of systemic Aspergillus infection, which has high sensitivity and specificity. In the present study, (1,3)-β-D-glucan did not increase in the two groups of larvaes with A. lentulus infection, while galactomannan increased, and the difference was statistically significant. These results suggest that cell wall galactomannan, as a virulence factor, is involved in the host immune response during the immune response of larvae infected with A. lentulus, and increases at 12 hours after infection. This can be used as a monitoring index for early A. lentulus infection. Some studies have revealed that compared with the dendritic rapid growth of Aspergillus fumigatus in tissue, A. lentulus is wrapped in the form of nodules by immune cells in the early stage of infection. Hence, the immune occurrence of A. lentulus relatively lags behind (10). The nodes in the present study were detected at 12 hours after larvae infection. Therefore, it was speculated that (1,3)-β-D-glucan could not be detected due to this factor. In summary, it was considered that galactomannan has a greater advantage as an indicator for monitoring early invasive A. lentulus infection.

Inflammasome is a kind of polyprotein complex in cells. At present, all known inflammasomes can activate pro-caspase-1 into caspase-1 through their own specific pathways, and induce the secretion of inflammatory cytokines, such as IL-1β, TNF-α and IL-18. The presently known inflammasomes include NLRP inflammasomes, AIM2 inflammasomes, and NLRP6 inflammasomes, which are presently the most complex NLRP3 inflammasomes (11-13). Previous studies have shown that NLRP3 inflammasomes can also be directly or indirectly activated by some fungal or fungal components, and play an important role in immune function (14-17). The study conducted by Saïd-Sadier et al. confirmed that Aspergillus fumigatus can activate the NLRP3 inflammasome, and induce an IL-1β-mediated inflammatory response, when Aspergillus fumigatus is exposed to β-glucan in the hyphal state (18). Based on this, it was speculated that NLRP3 inflammasomes are involved in the host immune response of A. lentulus. This above hypothesis was confirmed by the significant increase in caspase-1 and inflammatory factor TNF-α in the two groups of larvae after infection. However, the NLRP3-mediated immune response is complex (19,20), and the specific mechanism needs to be further investigated.

In the present study, the standard strain and A. lentulus strain isolated for the first time in China exhibited a consistency in drug sensitivity in vitro, the virulence factor monitoring index, and the inflammatory factor level of host immune response, suggesting that there is no significant regional difference in the virulence factor and host immune response induced by A. lentulus.

Conclusions

There was no significant difference in virulence factor and host inflammatory response between the A. lentulus isolated from COPD patients and standard strains. Galactomannan has more advantages in the early detection of A. lentulus invasive infection. The caspase-1-mediated inflammasome pathway may be involved in the host immune response to A. lentulus.

Acknowledgments

Funding: Project supported by the National Natural Science Foundation of China (grant No. 81760360).

Footnote

Data Sharing Statement: Available at http://dx.doi.org/10.21037/jtd-20-961

Conflicts of Interest: All authors have completed the ICMJE uniform disclosure form (available at http://dx.doi.org/10.21037/jtd-20-961). All authors have no conflicts of interest to declare.

Ethical Statement: The authors are accountable for all aspects of the work in ensuring that questions related to the accuracy or integrity of any part of the work are appropriately investigated and resolved. The study was conducted in accordance with the Declaration of Helsinki (as revised in 2013). The study was approved by Medical ethics committee board of the First Affiliated Hospital of Xinjiang Medical University (No.: K201912-01) and informed consent was taken from all individual participants.

Open Access Statement: This is an Open Access article distributed in accordance with the Creative Commons Attribution-NonCommercial-NoDerivs 4.0 International License (CC BY-NC-ND 4.0), which permits the non-commercial replication and distribution of the article with the strict proviso that no changes or edits are made and the original work is properly cited (including links to both the formal publication through the relevant DOI and the license). See: https://creativecommons.org/licenses/by-nc-nd/4.0/.
