Characteristics of unilateral main bronchus obstruction and differentiation from chronic obstructive pulmonary disease by spirometry

Introduction

Spirometry, especially the flow-volume curve (F-V curve), is an important clue to detect airflow limitation, not only in small airway disease, such as chronic obstructive pulmonary disease (COPD), but also in upper airway obstruction.

Unilateral main bronchus obstruction (UMBO), unlike upper airway obstruction, in which typical patterns were widely accepted and proved to be clinically useful (1), was used to be an uncommon event and more variable in the configuration of F-V curve. UMBO may produce a “classic” biphasic F-V curve (2-4), which was speculated that the unaffected lung dominated the early descending limb of forced expiration and inspiration and the partially obstructed lung contributed to the later part of the maneuver.

However, in clinical practice, UMBO can be easily missed or diagnosed as COPD or asthma, even at scrutinization of the flow-volume curve. There is only morphological description of biphasic F-V curve pattern, a lack of comparison with normal subjects and patients with small airway diseases (2,3). Moreover, sample size was relatively small in previous study (4). In this study, we tried to delineate the shape and data of the F-V curve in patients with UMBO, and to find the difference from those of COPD and the normals. We present the following article in accordance with the STROBE reporting checklist (available at http://dx.doi.org/10.21037/jtd-20-2649).

Methods

Study population

Inclusion criteria

We performed a retrospective cross-sectional study and reviewed clinical charts, pulmonary function test (PFT), chest CT, bronchoscopic record, and pathological reports from electronic medical records in the hospital information system for all patients who were diagnosed as UMBO by chest computed tomography (CT) and confirmed by bronchoscopy between October 2006 and December 2019 at Peking University First Hospital. This human study was approved by the Institutional Review Board of the Peking University First Hospital Biomedical Research Ethics Committee (2020-123) with a waiver of informed consent.

The study was conducted in accordance with the Declaration of Helsinki (as revised in 2013).

Exclusion criteria

We excluded patients comorbid with small airway diseases, such as COPD, asthma and bronchiectasis; patients with airway stenoses more than or other than UMBO, including tracheal, lobar, segmental or subsegmental bronchial stenosis; patients with atelectasis or obstructive pneumonia; patients with comorbidities which might impair ventilation, such as interstitial lung disease, pleural diseases, or neuromuscular disorders; post-operative patients after pneumonectomy or lobectomy.

During the same period, patients diagnosed as COPD only with both lung function tests and CT scan available (no history of lung volume reduction surgery) were included. Meanwhile, healthy subjects who had normal PFT and normal or otherwise normal chest CT except for solitary pulmonary nodules were included. Some of them underwent bronchoscopy for incidental pulmonary nodules and mild respiratory symptoms, confirming the patency of accessible airways, and had no history of respiratory infections in recent three months (Figure 1).

Figure 1 Group flowchart. UMBO, unilateral main bronchus obstruction; COPD, chronic obstructive pulmonary disease.

Spirometry and relevant parameters

PFTs were performed with a MasterScreen PFT System (Jaeger, Germany). All the maximal forced flow-volume maneuvers were technically acceptable with repeatability. The absolute and percent predicted parameters were recorded, including the forced vital capacity (FVC), forced expiratory volume in one second (FEV₁), the FEV₁/FVC ratio, the peak expiratory flow (PEF), the expiratory flow with 25%, 50% and 75% of the FVC expired (MEF₇₅, MEF₅₀, MEF₂₅), the peak inspiratory flow (PIF), inspiratory flow when 50% of FVC inhaled (FIF₅₀). Spirometry data was assessed by a qualified pulmonologist who was blinded to subjects.

F-V curve patterns

Figure 2 presented different patterns of F-V curve. Biphasic F-V curve could happen either in expiration or during inspiration only or both. In expiration it is defined as a descending limb with two distinct slopes separated by a breakpoint, and during inspiration it is a curve of two distinct slopes behind PIF. According to the location of breakpoints, the expiratory phase of F-V loop was divided into 3 parts, earlier than MEF₇₅, between MEF₇₅ and MEF₅₀; and later than MEF₅₀, and the vicinity of breakpoint was depicted as abrupt with sharp angle or blunt with smooth curvature (Figure 3). Monophasic F-V curve in expiration is a curve of which descending limb, is relatively straight, or flow decrease linearly as lung volume decreases followed by a smooth inspiratory curve after PIF. The rest is curvilinear, a concave shape to the x axis without breakpoint in expiration and a smooth curve between PIF and the endpoint of inspiration.

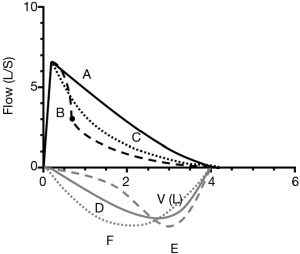

Figure 2 Schematic diagram of representative patterns of concave F-V curves. A, The monophasic expiratory pattern (the black solid line). B, The biphasic expiratory pattern with a breakpoint (the black dashed line). C, The curvilinear expiratory pattern (the black dotted line). D, The monophasic inspiratory pattern (the grey solid line). E, The biphasic inspiratory pattern (the grey dashed line). F, The curvilinear inspiratory pattern (the grey dotted line).

Figure 3 Representative cases of F-V curve in patients with UMBO (A) and COPD (B). The practical curve indicated by a solid line while the predicted curve shown by a dotted line. The arrow indicating the site and the angle of breakpoint. MEF₅₀, maximal expiratory flow with 50% of FVC expired; MEF₇₅, maximal expiratory flow with 25% of FVC expired.

Degree of main bronchus obstruction

The degree of main bronchus obstruction was graded using a proposed central airway obstruction classification system (5-7). Grade I was defined as ≤50% stenosis, grade II was between 51–90%, and grade III was >90% stenosis. The degree of airway obstruction was determined under bronchoscope during expiration when the airway caliber was the narrowest in dynamic stenosis. The data was collected by other professional clinicians who were blinded to this study.

Statistical analysis

Data were presented as median with interquartile range (IQR) for continuous variables and as frequencies with percentages for categorical variables. All analyses were performed using SPSS 22.0 (SPSS, Chicago, IL, USA) and Graphpad Prism (Graphpad Software, Inc., San Diego, CA, USA). Significance tests were two-sided, and P values of 0.05 or less were considered significant. Kruskal-Wallis test and Chi-Square test were used to evaluate the difference in PFTs. Bonferroni’s method, Cramer’s V and Spearman’s correlation were utilized for analysis. Propensity score method (PSM) was conducted to assess bias and efficiency for further analysis characteristics of UMBO and COPD by spirometry even though this was not a cohort or case-control study (Figure 1). PSM was performed using nearest-neighbor matching by sex and age with the closest propensity score in a 1:1 ratio with the caliper as 0.30. Binary logistic of univariate and bivariate regressions was used to find out variables closely associated with the recognition of UMBO and COPD group. The decision tree model was generated by the Quick Unbiased Efficient Statistical Tree (QUEST) approach to differentiate UMBO and COPD groups when the variables reached P≤0.05 with Bonferroni correction. The final model was built as the simplest structure with minimal risk and generalization error.

Results

Among 118 patients diagnosed as UMBO by bronchoscopy, 62 were excluded because of co-existence of other airway diseases/stenoses in aforementioned criteria. Eventually, data from 56 patients with UMBO, 121 with COPD and 68 normal subjects were analyzed (Figure 1).

Patient characteristics

Table 1 showed the demographic and descriptive data in UMBO, COPD and normal group. There were significant differences in gender and smoking history between COPD group and the other two groups (P<0.001).

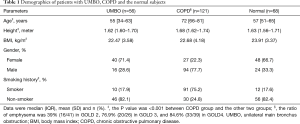

Table 1 Demographics of patients with UMBO, COPD and the normal subjects
Full table

In UMBO group, 49 out of 56 patients had left main bronchus obstruction. The degree of bronchial obstruction was mostly grade II (n=30, 53.6%), and the most common etiology was post-tuberculous bronchial obstruction (n=24, 42.9%) followed by malignant or benign tumor (Table 2). In COPD group, 87.6% of the patient had GOLD 2 or higher degree of airflow limitation. With progression of COPD, the emphysema proportion became higher on CT scan.

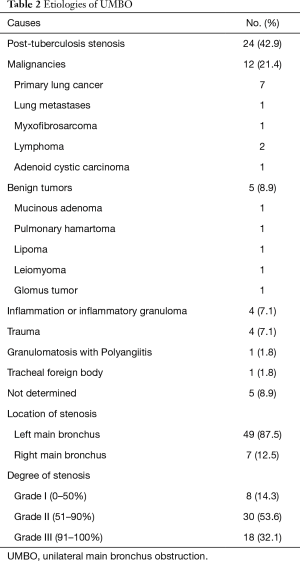

Table 2 Etiologies of UMBO
Full table

Comparison of spirometry parameters

PFT parameters were demonstrated (Table 3). In UMBO group, 33 (58.9%) patients had FEV₁/FVC <0.70, and 46 (82.1%) had FEV₁ <80% predicted. In COPD group, the median of FEV₁/FVC was 0.45 (0.31–0.61) and FEV₁ was 40% predicted (23.8–67.1%). All values of expiratory parameters were significantly different among three groups (P<0.001).

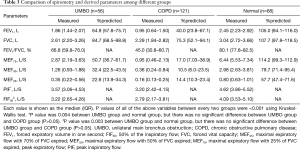

Table 3 Comparison of spirometry and derived parameters among different groups
Full table

Analysis of the F-V curve

During expiration, F-V curve patterns were statistically different among three groups (χ²=83.91, P<0.001) with a moderate correlation. Biphasic F-V curve was observed in 57.1% of UMBO group, and in 46.3% of COPD group; monophasic F-V curve was occurred in 32.1% of UMBO group, and in 9.1% of COPD group. Biphasic pattern was not observed in the normal group, while monophasic expiratory F-V curves appeared in 55.9%. Curvilinear type appeared in 10.7% of patients in UMBO group, compared with 44.6% in COPD and 44.1% in normal group.

During inspiration, there were significant differences in F-V curve patterns between UMBO group and the other two groups, but relationship was marginal. Among them, biphasic inspiratory pattern appeared in only 4 (7.1%) patients in UMBO group (2 with biphasic and 2 with curvilinear expiratory pattern), 1 (1.5%) in normal group and none in COPD group. The results between groups in this study were shown (Table 4).

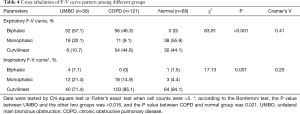

Table 4 Cross tabulation of F-V curve pattern among different groups
Full table

When comes to the breakpoints in biphasic pattern, there were significant differences in location and angle between UMBO and COPD group. Breakpoints was inclined to be located between MEF₇₅ and MEF₅₀ (n=16, 50.0%) with blunt angle (n=31, 96.9%) in UMBO, whereas mostly ahead of MEF₇₅ (n=54, 96.4%) with sharp angle (n=46, 82.1%) in COPD (Table 5 and Figure 3). A significant relationship was shown in location and in angle with different groups.

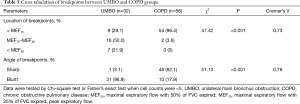

Table 5 Cross tabulation of breakpoints between UMBO and COPD groups
Full table

The decision tree (QUEST) was established for making a properly clinical consideration by several significant factors (P<0.001). The final model was formed by those who met the study recommendation and consisted of 4 factors, 5 levels of depth, and 14 nodes. As shown by the decision tree algorithm (Figure 4), almost all young and middle-aged patients (96%) had the biphasic F-V curve in expiratory with the blunt breakpoint in the UMBO group, and the majority of elderly patients with COPD possessed earlier breakpoint (ahead of MEF₇₅) on the biphasic curve (87.9%). Besides, it is indicated that more than half the normal subjects (75.0%) had monophasic pattern of expiratory F-V curve especially at age between 39–64 years old. The decision tree reached good fit with 80.4% accuracy rate of cases (risk estimate =0.21).

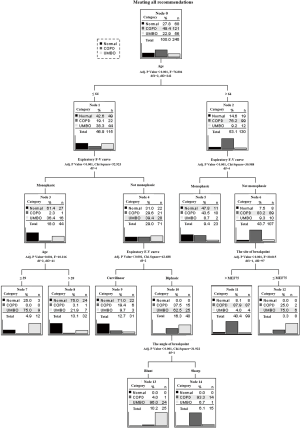

Figure 4 The decision tree of approach to assessing statistically significant variates (year, the pattern of F-V curve, the site and angle of breakpoint; P<0.001) in normal, COPD, and UMBO groups using the Quick Unbiased Efficient Statistical Tree (QUEST) method. COPD, chronic obstructive pulmonary disease; F-V curve, Flow-volume curve; MEF₇₅, maximal expiratory flow with 25% of FVC expired; UMBO, unilateral main bronchus obstruction.

Different variables among different grade of stenosis in UMBO group were showed (Table 6). Biphasic F-V curve of expiration appeared predominantly in grade II obstruction (n=22, 73.3%), while monophasic F-V curve was mainly seen in grade III (n=9, 50%). There were significant differences in location of breakpoints among three grades of stenosis. While the majority of breakpoints in UMBO located between MEF₇₅ to MEF₅₀, breakpoints in grade I or III stenosis were more likely located closer to PEF. All those with breakpoints located after MEF₅₀ turned out to be grade II stenosis (n=7, 31.8%).

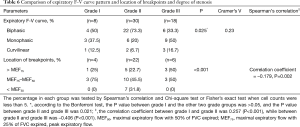

Table 6 Comparison of expiratory F-V curve pattern and location of breakpoints and degree of stenosis
Full table

With the increasing severity of flow limitation in COPD, the percentage of biphasic pattern in expiration increased from 6.7% to 87.2% (Table 7). Among the 56 patients in COPD with a biphasic expiratory patten, 78.6% (44/56) of them had various extent of emphysema on chest CT. Meanwhile, the sharp inflections appeared in over 50% of patients in GOLD 2 and GOLD 3, and reached 91.2% of GOLD 4 (n=31).

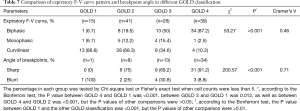

Table 7 Comparison of expiratory F-V curve pattern and breakpoint angle in different GOLD classification
Full table

Differentiation between UMBO and COPD

PSM were used to adjust age and gender in these two groups when expiratory F-V curve patterns were both biphasic, and eventually, there were 24 patients respectively in UMBO and COPD group. Binary logistic regression was used to explore the related factors of identifying UMBO from COPD which turned out with good fit. The logistic model (bivariable model 1) was able to correctly classify 87.7% of the research subjects. The sensitivity of the model was 95.0%, the specificity was 76.0%. The angle and the location of breakpoint were shown to be the optimum factors along with higher accuracy. The location of breakpoints between MEF₇₅ and MEF₅₀ (OR =8.00, P=0.031) and blunt angle (OR =16.63, P=0.004) were more likely to be UMBO, compared with those breakpoints between MEF₇₅ and MEF₅₀ with sharp angle (Table 8).

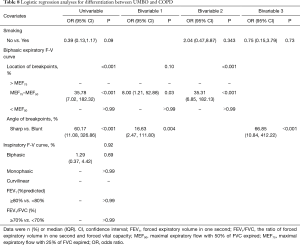

Table 8 Logistic regression analyses for differentiation between UMBO and COPD
Full table

Discussion

UMBO is attracting more attention because confirmation by CT scan is readily available and more therapeutic modalities are offered by interventional bronchoscopy. Gascoigne et al. (3) first reported a biphasic expiratory flow pattern with an end inspiratory “tail” in patients with UMBO, and when bronchial stenosis was relieved by insertion of a stent, the F-V curve returned to normal contours. Then the biphasic pattern in expiration or inspiration was considered to be the possible sign of UMBO (5,8). Additionally, the biphasic expiratory pattern was confirmed and further analyzed in diseases with airflow limitation (9,10). The two-compartment lung model could possibly explain the physiological mechanism of a biphasic F-V curve presented in UMBO (11-14), that is, units from the partially obstructed bronchus will likely empty more slowly than those peripheral to the patent bronchus, resulting in the early phase with the lung away from the unobstructed and the late phase from the abnormal bronchus. Moreover, biphasic expiratory F-V curve was also reported in patients with severe obstructive pulmonary diseases (15,16), such as COPD, because of small airway narrowing and airway collapse, resulting in air trapping. As expected, compared to cases with COPD and normal controls, there is a significantly high probability of biphasic pattern in expiration in the UMBO group. The shape of the F-V curve tended to be monophasic or curvilinear in normal subjects, none presented with biphasic pattern. Therefore, we confirmed that the expiratory biphasic pattern might be crucial in the identification of UMBO.

The sensitivity and specificity of biphasic inspiratory F-V curve was controversial. Some studies (2,3) supported that the biphasic F-V curve of inspiration was seemingly more specific than that of expiration for recognizing UMBO because the tail at the end of inspiratory F-V curve was not a feature of airway obstruction in general. However, biphasic inspiratory curve was not prevalent (7.1%) in our patients consistent with other studies (4,5,11), which might be explained by positive transmural pressure upon inspiration as occurred in intrathoracic stenosis of the trachea (4,17). But when present, it deserved close attention to exclude UMBO.

In essence, the characteristics of breakpoint, the location and angle, was equally important in the differentiation of UMBO with COPD. We speculated that an earlier breakpoint appeared in COPD might be due to a combination of an increase in peripheral airway resistance and a decrease in lung elastic recoil during forced expiration (18), while a later breakpoint observed in UMBO might be explained by the two-compartment lung model in UMBO. It is likely that airway collapsed suddenly during exhalation in COPD, namely downstream compression, resulting in a sharper breakpoint. Stenotic bronchus with relative intact small airways might be one of the reasons of a blunter breakpoint in patients with UMBO. Additionally, this study revealed that the biphasic F-V curve of expiration with abrupt breakpoint is more likely to be in severe COPD. Rather, it did not happen in COPD with mild airway limitation. Theoretically, as COPD progressed, the degree of loss of lung recoil aggravated with the extent of emphysema, accompanied with the increase of peripheral airways resistance, which was reflected in a biphasic contour of F-V curve with a definite inflection point (18).

In matching case of expiratory biphasic F-V curve, it is more likely to be UMBO for a patient with a blunt breakpoint located between MEF₇₅ and MEF₅₀. On the other hand, it is more probable to be COPD for those with sharp breakpoint located ahead of MEF₇₅.

Besides, it has been reported that the degree of tracheal stenosis was associated with a characteristic change in the F-V curve (19). In this study we found that a monophasic F-V curve mostly appeared with either mild (≤50%, grade I) or most severe (>90%, grade III) bronchial stenosis. It was demonstrated that a monophasic F-V curve appeared with near-normal ventilation or near-complete obstruction, resulting in only one phase without slope alteration (4). Previous study suggested breakpoints move in the direction of high volume and low flow with advancing degree of UMBO (4). In terms of this study, an earlier breakpoint, almost sited ahead of MEF₅₀ or even MEF₇₅, although just a minority, was usually depicted in grade I or grade III. However, it was inconsistent with the previous study, and the reason was unknown and remained to be answered.

There are several limitations in this study. Firstly, it was a retrospective study with small sample size, in which data was not Gaussian distributed. In multivariate analysis, the number of variables for analysis were limited with wide 95% confidence intervals. Nevertheless, significant differences of F-V patterns, especially in biphasic F-V curve, still existed. Secondly, lacking of comparison with other airway diseases, or different obstructive types and degrees of obstruction probably increase the risk of bias. On top of those, as clinicians, we are aware that typical patterns of maximum inspiratory and expiratory F-V curves are just hint to the possibility of UMBO, direct observation either by bronchoscope or radiological techniques are a must to confirm its presence and severity. Thus, further study is needed for validation of present findings.

In summary, we found that biphasic expiratory F-V loop was prevalent in UMBO, and the location of breakpoints between MEF₇₅ and MEF₅₀ with blunt angle was more likely to be seen in UMBO, compared with earlier and sharper breakpoints in COPD. In our study, biphasic F-V curve usually appeared in grade II (51–90%) bronchial stenosis. More validations are needed in clinical practice and more specific features of F-V curve in UMBO warranted further investigation.
