Currarino-Silverman syndrome: diagnosis and treatment of rare chest wall deformity, a case series
Introduction
Pectus carinatum (PC) and pectus excavatum (PE) are the most common congenital anterior chest wall deformities which present at an early age and manifest during adolescence. PC is seen less frequently than PE, comprising about 5–15% of patients with pectus abnormalities and occurs in about 1:1,000–1:10,000 of all live births with a male predominance (4:1) (1,2). Some data indicate that milder forms of PC are more frequent, with even greater prevalence than PE and ratio of 2:1 (3,4). The etiology of PC is not fully understood, however, the generally accepted theory is that the deformity is secondary to an excessive growth of costal cartilage secondary to genetic factors, which results in a sternal deformity without pathology in the sternum itself (5).
PC includes variable subtypes with two principal groups: chondrogladiolar (type 1) and chondromanubrial (type 2). Most intriguing is the chondromanubrial type, which was first described by Guido Currarino and Frederic Silverman in 1958, since the etiology and features are different (6). Currarino-Silverman (CS) syndrome is a rare (less than 1% of PC), complex chest wall anomaly caused by premature obliteration of the ossification centers in the sternum resulting in a high PC (type 2) deformity (7). Degenerative changes in hyaline cartilages, atypical fibrils, reduced number of chondrocytes, and thin periosteum are observed microscopically (8). A unique appearance, characterized by a short, z-shaped, solid sternum with prominent outward protrusion and bilateral deformity of the second to fifth costal cartilages that form an acute intercostal angle allow this syndrome to be considered as a distinct entity (5). The xiphoid process is directed forward or is altogether absent (Figure 1).
The theory of a congenital etiology by gene downregulation is predominant (9-11). A family history of chest wall deformity is observed in approximately one-fourth of patients (1). An abnormality of the differentiation of the anterior segment mesenchymal cells at the time of cardiogenesis may result in defects of the endocardial cushion, sternum, and aortic arch derivatives. Abnormal migration of mesenchymal cardiac precursors to the endothelial heart tube is also caused by the abnormal genes (12). CS syndrome is often associated with spinal deformities (kyphosis, scoliosis and kyphoscoliosis), congenital heart defects, and was described as a component of Turner’s and Noonan’s syndromes (8,13).
Frequent confusion of CS syndrome with PE deformity is still an issue since one-third of patients present with concomitant mild to moderate depression of the lower third of the sternum (8,13,14). Uniform classification is a basis for surgical treatment as well as an assessment of its short and long-term results. This article will review the diagnosis and treatment of four consecutive patients with CS syndrome.
We present the following article in accordance with the AME Case Series reporting checklist (available at http://dx.doi.org/10.21037/jtd-20-3472).
Methods
The medical records of four consecutive adult patients with CS syndrome from a single tertiary academic hospital from June 2012 to August 2019 were retrospectively reviewed. Patient demographics and characteristics are provided in Table 1. All four patients were young females with a mean age of 21 years (range, 18–24 years). Echocardiography revealed various cardiac pathology in three patients: mitral and tricuspid regurgitation, mitral valve prolapse, and ventricular septal defect (VSD). In all four patients the sternum length did not exceed 10 cm. Two of the four patients were asymptomatic and refused surgical correction for what they viewed as purely cosmetic purposes (Figure 2). One of the two was misdiagnosed with PE type of deformity and corrected with Nuss procedure three years prior with no significant clinical benefit. In this case, subsequent simple bar removal was performed under general anesthesia with no further intervention planned. In two other cases (Figures 3,4), the procedure of choice was a modified Ravitch-type thoracoplasty with double osteotomy. Follow up periods were from 23 to 34 months without recurrence. As this was a retrospective review, approval from a local ethics committee was not required. All procedures performed in studies involving human participants were in accordance with the ethical standards of the institutional research committee and with the Helsinki Declaration (as revised in 2013). Written informed consent was obtained from all patients.
Full table
Literature review

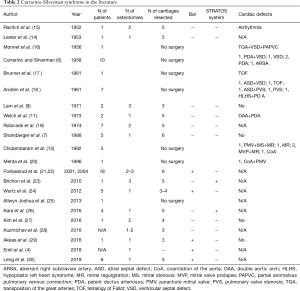

A systematic analysis of electronic databases was performed including the MEDLINE, PubMed, CINAHL, EMBASE and OVID using medical subject headings “Currarino-Silverman syndrome,” “pouter pigeon chest,” “chondromanubrial deformity,” “type 2 pectus carinatum” and “pectus arcuatum.” A total of 22 appropriate full-text case reports and case series in English language were identified through database and reference searches from 1952 to 2019 (Table 2). Articles describing PE deformities were not included in this database search. Much of the identified literature is limited by relatively short term follow up, likely secondary to the younger patient population and the lack of symptoms both pre- and post-operatively.
Full table
Results
Described below are the case presentations and clinical courses of two patients with CS syndrome. The other two patients described in this paper are not included as they refused surgical intervention for cosmesis.
Patient 1
An 18-year-old female with an inborn chest wall deformity progressing from the age of 16 presented with complaints of dyspnea and nagging sternal pain (Figure 3). A chest magnetic resonance imaging scan revealed a chondromanubrial deformity with a dorsal-open angle of 115 degrees and a sternum body length of 9 cm. Surgical correction was performed through a transverse submammary skin incision in respect to the lines of Langer. Musculocutaneous flaps were dissected bilaterally up to the level of the sternal notch with detachment of the pectoralis musculature and retracted laterally. Subperichondrial resections of the 2nd–5th costal cartilages were completed bilaterally with preservation of perichondrium to avoid chest wall weakness postoperatively. Careful attention was also given to the growth centers of the sterno-chondral and costo-chondral junctions to avoid development of a restrictive deformity. In the projection of maximal protrusion of the sternal body, at the level of the third rib and second intercostal space, a two-level wedge-shaped transverse osteotomy was subsequently performed using an oscillating saw preserving the integrity of the posterior lamina. Remodeling of the sternum was performed by applying caudal pressure at the top of the deformity and anterior traction at the sternal body. Osteosynthesis of the lower sternum osteotomy site was then accomplished using two parallel 316L stainless steel surgical monofilament wires (Ethicon, USA) (Figure 5). The edges of the divided pectoralis musculature were approximated with interrupted suture followed by closure of the skin flaps. The postoperative period was unremarkable with satisfactory correction of the deformity. The patient was discharged from the hospital on postoperative day 5. The follow-up period was 23 months, with subjective resolution of her symptoms and no recurrence of the deformity noted.
Patient 2
This patient is a 24-year-old female with a chest wall deformity first noted at age 4 and progression to the age of 13 (Figure 4). Her only complaint was exertional dyspnea. Imaging revealed a fused, broad, 10 cm long sternum and marked anterior protrusion at the obliterated manubriosternal joint with a 110-degree angle. Repair was performed via a submammary skin incision and subperichondrial resection of bilateral 2nd–7th costal cartilages in similar fashion to that as described above under Patient 1. Complete transverse osteotomy at the level of the upper third of the sternum was followed by osteosynthesis with two parallel low profile titanium plates (Matrix Rib Fixation System, 1.5 mm thickness, 2.9 mm diameter of screws; DePuy Synthes CMF, West Chester, PA, USA) bicortically fixed with eight self-locking screws. The postoperative period was unremarkable and the patient was discharged on postoperative day 7. The follow-up period was 34 months, with subjective resolution of her exertional dyspnea and no recurrence of the deformity noted (Figure 6).
Discussion

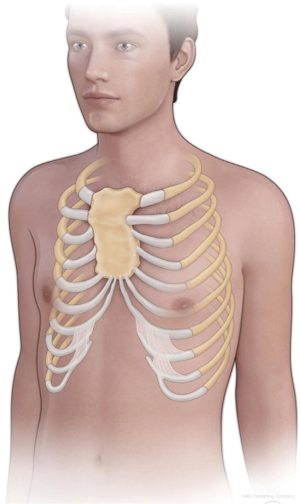

There is no clear definition of CS syndrome in the literature. In 1949, Brodkin recognized two types of PC deformity: lower chondrogladiolar and upper chondromanubrial prominences (31). In 1953, Lester used terms “oblique” and “arcuate” for lower and upper forms respectively (14). The first case of an entirely fused and angulated forward sternum in conjunction with cyanotic congenital heart disease was described in French by Monnet et al. in 1956 (16). According to the original paper of Currarino and Silverman (6), this rare developmental anomaly is characterized by prominent sternal angulation with decrease in length as a result of congenital complete non-segmentation, or premature synostosis of the sternum. Authors noted clinical similarity of this deformity with arcuate pigeon breast, a type of PC of Lester’s classification.
In 2006, Acastello (32) classified chest wall deformities based on the site of the defect’s origin (type 1: cartilaginous, type 2: costal, type 3: chondrocostal, type 4: sternal, type 5: clavicle-scapular) and attributed CS syndrome to the cartilaginous type 2 (superior) PC. Further, Torre et al. (3) distinguished superior PC into two different types: the “true” type 2 (superior or chondromanubrial) PC had normal sternal length without depression in the lower third due to cartilage anomaly. The authors emphasized the presence of a short, thick, S-shaped sternum with inferior PE as CS syndrome resulting in a high symmetric PC chest wall deformity and attributed it to sternal anomalies according to Acastello’s classification. It is worth noting that the authors described combined PC and PE malformation as type 1 (cartilaginous) PE. Wurtz et al. (24) classified chest wall deformities according to the cartilage involvement and related pectus arcuatum (PA) in two different types: “2nd to 4th or 5th” type or “high” forms of PA, and “2nd to 7th” type or PA associated with a lower depression. The latter is the most consistent with Torre’s description of CS syndrome. Fokin et al. (5) and Robicsek et al. (33) considered CS syndrome as a separate “transitional” group under the term “Pouter pigeon breast.” Authors sub-classified this deformity according to the different degrees of the angle of Louis.
On the other hand, some authors consider CS syndrome as a variant of PE. Cartoski et al. (34) classified this deformity as a “steer horn” type of PE based only on clinically observed pectus depression within a diverse cohort of surgical patients. However, the authors pointed that it also may be a variant of the chondromanubrial deformity of PC and should be treated with the Ravitch procedure. Kelly et al. (35) retrospectively reviewed records of 300 PE cases, and described CS as a rare subtype of PE which occurred in 1% of patients, more specifically as a mixed PE and PC type.
Indeed, CS syndrome can be easily mistaken with PE since both deformities appear in almost similar fashion, but surgical approaches are very different. A distinctive feature of a PE deformity is the beginning of the sternal depression at the angle of Louis that becomes progressively deeper toward the xiphoid process with distorted, elongated cartilages (25). The angle of Louis must be less than 110 degrees to be considered a true depression (5). Thus, confusion about classification is still an actual issue. Terms “Currarino-Silverman syndrome,” “pouter pigeon chest,” “chondromanubrial deformity,” “type 2 pectus carinatum” and “pectus arcuatum” are used, at times, interchangeably. Correct and uniform classification plays a crucial role in the surgical treatment of this pathology. Most patients with CS syndrome are asymptomatic, therefore surgical correction is optional and different opinions exist about the ideal age for surgical correction. Late puberty or adulthood was indicated as a preferred age for correction since cartilages resection will be performed when rib growth ends (7,24,28). It is important to keep in mind the potential for thoracic dystrophy should cartilage resection be carried out at too young an age, or too extensively. That being said, other studies reported the preferable age of 5- to 7-year-old, or early adolescence (8,21).
When symptoms occur, they are often confined to shortness of breath, pain or tenderness at the site of protrusion, decreased endurance, or palpitations. Concomitant asthma and frequent respiratory infections are also described (14,21). A strong correlation of inborn cardiac pathology with CS syndrome has been reported, such as VSD, patent ductus arteriosus, atrial septal defect (ASD), VSD, tetralogy of Fallot, transposition of the great arteries, and coarctation of aorta (Table 2). Interestingly, Chidambaram et al. (13) emphasized that 4 out of 5 patients with CS have cardiac defects in their series and all four were female as in our study. Thus, cardiovascular evaluation should by performed in all patients with CS syndrome. Chest CT with 3D reconstruction, or MRI in children given altered tissue density and radiation concern, is the best preoperative imaging for evaluation of CS patients. It allows for a differential diagnosis with other pectus deformities, determination of exact angles of the costal cartilages to the sternum, and enhanced surgical planning.
The first successful surgical correction of CS syndrome described by Ravitch in 1952 (15), consisted of elevation of the pectoralis major muscle followed by removing short segments of the deformed costal cartilage and performing two transverse osteotomies at the area of the maximal protrusion point in the sternal body. Lester in the same year developed a more radical technique of subperiosteal resection of the protruding portion of the sternum (14). In 1960, Ravitch (10) summarized his experience of surgical treatment of PC and highlighted three main steps: subperichondrial cartilage resection, transverse sternotomy preserving the posterior bone plate and periosteum, and osteosynthesis by fixation of the corrected shape of the chest wall. One patient from this monumental paper presented with typical CS syndrome.
Robicsek described his modification, which was first reported in 1963 (19,33), depending on the CS syndrome type: type A (moderate depression of the sternal body dominated by the protrusion of the manubrium and two adjacent cartilages) and type B (significant depression). In type A, subperichondrial resection of the protruding cartilages and transverse osteotomy with resection of the anterior portion of the prominent manubrium was performed. In type B, an additional transverse-wedge sternotomy at the upper level of the depression followed by Marlex mesh placement was completed.
Lam et al. (9) resected 2 cm of sternum at the point of greatest prominence with an additional two transverse osteotomies above and below the resection. A similar technique with three osteotomies and resection of the curved anterior angle of the deformed sternum was described by Brichon et al. (23) in a 24-year-old patient with severe “pouter pigeon chest.” The osteosynthesis with a titanium system (STRATOS – Strasbourg Thoracic Osteosynthesis System) placed in front of the sternum was performed instead of a bar placement for chest wall stabilization. Kara et al. (26) in their report used two STRATOS implants introduced through the retrosternal space.
Shamberger et al. (7) reported their surgical experience of 179 patients with PC, five (2.7%) of which had CS syndrome. In this case series, a broad, high wedge-shaped osteotomy centered at the point of maximum protrusion was performed and the second osteotomy was not required. The same technique was demonstrated by Welch et al. (11) in two (7.6%) patients with CS syndrome.
In 2001, Fonkalsrud et al. (21) published their 30-year experience of surgical treatment of PC. Chondromanubrial type was diagnosed in 12 (13%) of 90 patients. According to the authors, in 50% of cases, multiple (second and third) osteotomies were required. Perichondrial sheaths were preserved during cartilage resection. Each of the costal cartilages was reattached to the sternum and ribs. Authors placed the Adkins strut posterior to the lower tip of the sternum to correct sternal depression, as well as to eliminate postoperative flail chest and paradoxical respiration. The authors emphasized the importance of bar in providing chest stability during costal cartilage regeneration and decreasing the chance of recurrence. Later, Fonkalsrud et al. (22) extended their experience with six new patients with CS syndrome defects that were corrected using the same technique. Bar placement was described by several other surgeons (4,9,24).
Kuzmichev et al. (28) used parallel vertical low profile titanium plates for the sternal osteosynthesis. The authors indicated that their method is completely extrapleural and does not need the second operation for plate removal. Leng et al. (30) reported total surgical experience of 7 patients with CS syndrome. Authors also used vertical titanium plates along with novel computer-aided design and templates for precise osteotomy angle with a reported excellent cosmetic outcome. Additionally, the Nuss procedure was performed in two patients.
In comparison to PE, a number of less invasive techniques have been developed for the correction of PC, including the Abramson procedure and its modifications, along with nonsurgical options such as observation, orthotic bracing, and dynamic compression (2,36). However, due to the extreme rarity of the disease, challenging deformity and variable anatomy of fused sternum, there are no clear guidelines in the treatment approaches. This unique growth pattern contributes to almost universal failure of conservative treatment options like the vacuum bell or a compressive orthosis.
This review was of a single institution with limitations inherent of a retrospective study. This review is without a comparison analysis, since only one surgical technique was performed. Case numbers for comparison are difficult to ascertain given the rarity of the disease process. The asymptomatic nature of the deformity also leads to a degree of hesitancy regarding surgical correction, again limiting data.
In conclusion, our retrospective results suggest that the surgical correction of CS syndrome be pursued at this time only with the goal of cosmetic improvement, and although patients reported subjective improvement in dyspnea related symptoms, significant objective clinical benefit was not appreciated in the patients studied. The best surgical option remains the relatively aggressive Ravitch-type procedure with multi-level wedge osteotomy (3,23,26,36), allowing for the achievement of a satisfactory outcome, including a high satisfaction rate in this group of patients. Given the rarity of the deformity, it’s surgical correction should be completed by a multidisciplinary team, including thoracic reconstructive surgeons with experience in pectus deformities. Future study could include more extensive pre-operative workup and data collection to compare with postoperative values, to ascertain whether a clinical benefit may also accompany the cosmetic result achieved by surgical intervention.
