Clinico-pathological classification of rheumatic mitral valve damage and surgical strategy

Introduction

Rheumatic mitral valve disease is the most common indication for mitral valve surgery, and its prevalence is high in China (1-3). Annually, approximately 20,000 patients in China undergo mitral valve surgery with extracorporeal circulation for rheumatic disease (4,5). An increasing number of surgeons agree that mitral valve repair (MVP) is superior to replacement, even for rheumatic disease (6-8). Although rheumatic MVP is performed in China, the overall ratio of repair to replacement is low (9,10). The lack of established pathological indications for rheumatic valve repair is the main impediment to increasing the number of repairs. Several pathological criteria regarding rheumatic mitral valves include the Wilkins score (11), which is appropriate for percutaneous balloon mitral valvuloplasty but not for surgery, and the pathological grading system for rheumatic mitral valve lesions (12), which was proposed by our centre and has an exhaustive content, can be extremely complicated, but has limited clinical practical applicability. Rheumatic MVP has been performed for 8 years at our centre in more than 600 patients. In this study, we aimed to create a definitive and applicable pathological classification system based on its correlation to selected surgical strategies.

We present the following article in accordance with the STROBE reporting checklist (available at http://dx.doi.org/10.21037/jtd-20-3456).

Methods

The study design was approved by the ethics review board of the Beijing Anzhen Hospital affiliated with the Capital Medical University (approval no. 2020031X) on February 21, 2019. This study was conducted in accordance with the principles of the Declaration of Helsinki (as revised in 2013) and its later amendments. No patient identification details were used in this study, and informed consent was obtained from all individual participants. There was no specific funding for this study, and there are no competing interests to declare.

Patients

A total of 398 patients with rheumatic heart diseases who underwent MVP or valve replacement at the Cardiac Valve Centre at Beijing Anzhen Hospital in Beijing, China, between January 2017 and January 2019 were enrolled in this study. All repair patients underwent MVP according to a ‘four-step’ procedure (Video 1), which included shaving, checking, commissurotomy, and relaxing. We selected one or two letters from each of these words to represent each step (i.e., ‘S’, ‘C’, ‘O’, and ‘RE’). Therefore, we named this surgical technique as the ‘SCORE’ procedure.

Measures and procedures

In this study, the mitral leaflet, mitral commissural, and sub-valvular apparatus were classified into three grades from mild to severe, according to their degree of pathological damage. Based on certain principles and the grade of mitral leaflet, mitral commissural, and sub-valvular apparatus damage, three pathological types were identified from type I to III, based on which all the patients were classified. The features of each pathological type were summarised. The differences between the three pathological types were analysed using chi-square test of tendency. These data were used to propose a clinico-pathological classification of rheumatic mitral valve damage in Chinese patients (Table 1).

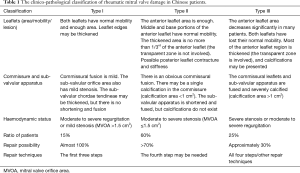

Table 1 The clinico-pathological classification of rheumatic mitral valve damage in Chinese patients.
Full table

Pathological classification scheme

The pathological classification of the leaflet was as follows (Figure 1): class I, wherein the thickened area of the edges is <1/4 of the anterior leaflet; class II, which was between class I and class III; and class III, wherein the thickened area is >1/2 of the anterior leaflet (involvement of the transparent zone), or the anterior leaflet area ring size is <28. The classification of the commissure was as follows (Figure 1): class I, wherein the length of the commissural fusion is <1 cm; class II, which was between class I and class III; and class III, wherein both the commissural fusion and length of one commissural fusion is >1.5 cm, and the calcification area is >1 cm². The classification for the sub-valvular apparatus was as follows (Figure 1): class I, wherein the length of the main chordae tendineae is >1 cm and the sub-valvular chordae tendineae may be thickened, but there is no shortening and fusion; class II, which was between class I and class III; and class III, wherein the sub-valvular apparatus is shortened and severely fused, with a direct fusion of the papillary muscle and commissural leaflets and usually severe calcification over an area >1 cm². For each patient, when all three pathological classes (leaflet, commissure, and sub-valvular) were classified as class I, the pathological type was considered type I. When at least one of the three pathological classes was classified as class II, the pathological type was considered type II. When at least two of the three pathological classes were classified as class III, the pathological type was considered type III.

Figure 1 Detailed pathological classification of the leaflet, commissure, and sub-valvular apparatus.

Statistical analysis

Continuous variables were expressed as mean ± standard deviation. Discrete variables were presented as percentages. The differences between the three pathological types were observed using chi-square test. The significance level was set at P<0.001. SPSS version 22.0 software (IBM Corp., Armonk, NY, USA) was used for the statistical analyses.

Results

Of the 398 patients enrolled, 284 (71%) and 114 (29%) underwent MVP and replacement, respectively. The number of patients classified as types I, II, and III was 58 [all underwent repair (repair ratio, 100%)], 260 [197 underwent repair (repair ratio, 76%)], and 80 [29 underwent repair (repair ratio, 36%)], respectively (Table 2). In the overall cohort, the average mitral valve orifice area (MVOA), mean age, and repair ratio decreased linearly with increase in the severity of the pathological classification, along with linear increase in the preoperative left atrial anteroposterior diameter (LAAPD), E-wave, and proportion of severe stenosis (Table 2). In patients who underwent repair, the mean age and MVOA decreased linearly with increase in the severity of the pathological classification, along with linear increase in the preoperative LAAPD, E-wave, intraoperative aortic occlusion time, proportion of severe stenosis, proportion of mixed lesions, and application of the complete SCORE procedure (Table 3, Figure 2). This included all 58 type I patients (15% of the total patients), with a repair rate of 100%. Preoperative moderate-to-severe regurgitation was observed in 64% of these patients, and the pathological lesions were mild.

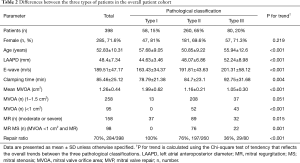

Table 2 Differences between the three types of patients in the overall patient cohort
Full table

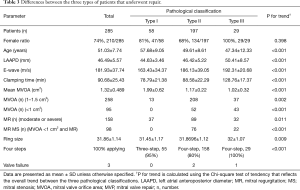

Table 3 Differences between the three types of patients that underwent repair.
Full table

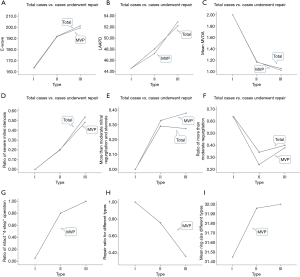

Figure 2 Features of individual pathological types. A strong relationship was observed between the pathological types and surgical strategy. (A) In patients who underwent repair and replacement, the E-wave increased linearly with increase in the severity of the pathological classification; (B) in patients who underwent repair and replacement, the LAAPD increased linearly with increase in the severity of the pathological classification; (C) in patients who underwent repair and replacement, the MVOA decreased linearly with increase in the severity of the pathological classification; (D) in patients who underwent repair and replacement, the proportion of severe stenosis increased linearly with increase in the severity of the pathological classification; (E) in patients who underwent repair and replacement, the proportion of mixed lesions increased linearly with increase in the severity of the pathological classification; (F) in patients who underwent repair and replacement, the proportion of more than moderate regurgitation decreased linearly with increase in the severity of the pathological classification; (G) in patients who underwent repair, the application of the complete SCORE procedure increased linearly with increase in the severity of the pathological classification; (H) in patients who underwent repair, the repair ratio decreased linearly with increase in the severity of the pathological classification; (I) in patients who underwent repair, the mean ring size procedure increased linearly with increase in the severity of the pathological classification.

There were 260 type II patients (65%), with a repair rate of 76% (197/260). Preoperative moderate-to-severe stenosis was observed in 88% of the patients, and the complete SCORE procedure was required in 80% of the patients who underwent MVP. There were 80 type III patients (20%), with a repair rate of 36% (29/80); the preoperative rates of extremely severe stenosis and moderate-to-severe regurgitation were 50% and 40%, respectively. The complete SCORE procedure was required for all patients who underwent MVP. Additionally, the repair ratio was higher in men than in type III women (Table 3). The postoperative MVOA and E-wave improved significantly compared with the preoperative values (Table 4, Figures 3,4). Three patients had valve failure: two were type II and one was type III (Table 3).

Table 4 A comparison between preoperative and postoperative results
Full table

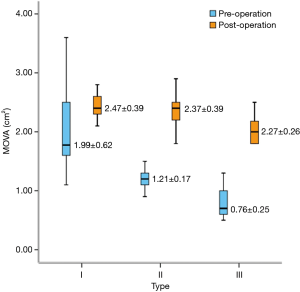

Figure 3 A comparison between preoperative and postoperative mitral valve orifice area (MVOA). The postoperative MVOA improved significantly compared with the preoperative value.

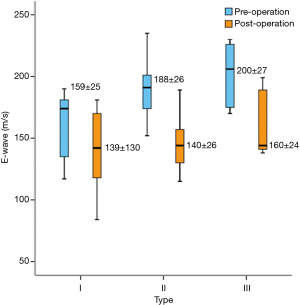

Figure 4 A comparison between preoperative and postoperative E-waves. The postoperative E-wave improved significantly compared with the preoperative value.

Based on these results, our centre has perfected the clinico-pathological classification for rheumatic mitral valve damage in Chinese patients (Table 1). We have also proposed a simplified version of the classification system, with three pathological types, for easier use in the clinic (Table 5).

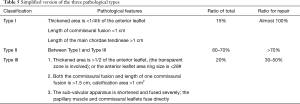

Table 5 Simplified version of the three pathological types
Full table

Conclusions

Our cardiac centre was the first in China to perform rheumatic MVP (13), and it is still regularly performed here. Indeed, more than 150 such surgeries were performed annually at our centre in the last 2 years. Most surgeons at our centre have become proficient in the SCORE procedure for rheumatic MVP, particularly after application of the clinico-pathological classification was initiated. Through the analysis and summary of the clinico-pathological classification, we have deepened our understanding of the pathological characteristics of rheumatic mitral valve disease. Different pathological types present different pathological features. In this work, the number of patients with type II was the highest (65%) among the three pathological types. The repair ratio of this type was 70%. Although the repair ratio of type I was 100%, the number of type I patients accounted for 15% of the total number of patients. The number of patients with type III who underwent repair [29/80 (repair ratio: 36%)] was the lowest among the three pathological types. Therefore, according to these results, type II pathological damage is the most prevalent classification that surgeons face in general. Therefore, the ability of surgeons to proficiently treat type II patients is considered the key to achieving a high repair ratio in a cardiac centre.

Further, with increase in the severity of the pathological classification, the degree of mitral valve structural damage significantly increases, along with the difficulty in mitral repair (Tables 1,2). Additionally, there is a strong relationship between the pathological types and surgical strategies. Furthermore, considering that the average patient age was related to the duration of medical history, a younger patient age, along with a high pathological classification grade, indicated a shorter medical history and, possibly, relatively milder pathological damage. Therefore, type I patients are the primary cases that should be seen initially at cardiac centres newly equipped to perform rheumatic MVP. Surgical experience with specific surgical techniques is important in treating type II and higher patients.

Three problems concern cardiac surgeons regarding this topic (14,15): long-term follow-up results (8,16), repair technique (13,17), and pathological features that can indicate the requirements for repair (18,19). Interestingly, satisfactory follow-up results have been reported at our centre (13) and other cardiac centres (7,12). The majority of patients in these reports underwent successful valve repair at our centre with the SCORE procedure and without the use of other techniques (13,20). However, the performance of other repair techniques has also been reported (21). The lack of established pathological features in this field has been the main impediment to popularising and advancing the rheumatic MVP surgical technique (18,21). Our clinico-pathological classification provides a step-by-step path for rheumatic MVP in China. Type I patients can be easily treated, and almost any cardiac surgeon can perform the surgery using the first three steps. Type II patients are more technically demanding, and the surgery could be complex. After an initial learning curve, most surgeons can perform the four steps of the surgery, allowing most type I and II patients to undergo successful repair with the SCORE procedure. In contrast, treatment of most type III patients is challenging, as more senior and experienced surgeons are preferable. We believe that when the SCORE procedure is effectively implemented, the repair rates can be increased by 50–80% at most cardiac centres in China. Therefore, the SCORE procedure and clinico-pathological classification of rheumatic mitral valve damage form an integrated surgical procedure that can be successfully applied for rheumatic MVP.

This study is limited by its single-centre design and low number of cases. Our findings are susceptible to referral bias and institution-specific practices. Further studies with a longer follow-up period are warranted.

In China, the population of patients that require MVP is large, but the rates of repair are quite low. Therefore, improved strategies for rheumatic MVP are warranted. The clinico-pathological classification of rheumatic mitral valve damage is applicable to MVP as it is simplified and explicit. Since its principles are based on the possibility of mitral repair, this classification system provides a phased and achievable target ratio for MVP and a principle of screening patients who should undergo rheumatic MVP.

Acknowledgments

We thank Jin Zhao for the excellent contribution to the language editing.

Funding: None.

Footnote

Reporting Checklist: The authors have completed the STROBE reporting checklist. Available at http://dx.doi.org/10.21037/jtd-20-3456

Data Sharing Statement: Available at http://dx.doi.org/10.21037/jtd-20-3456

Conflicts of Interest: Both authors have completed the ICMJE uniform disclosure form (available at http://dx.doi.org/10.21037/jtd-20-3456). The authors have no conflicts of interest to declare.

Ethical Statement: The authors are accountable for all aspects of the work in ensuring that questions related to the accuracy or integrity of any part of the work are appropriately investigated and resolved. The study was conducted in accordance with the Declaration of Helsinki (as revised in 2013). The study was approved by the ethics review board of the Beijing Anzhen Hospital affiliated with the Capital Medical University (no. 2020031X), and informed consent was obtained from each participant.

Open Access Statement: This is an Open Access article distributed in accordance with the Creative Commons Attribution-NonCommercial-NoDerivs 4.0 International License (CC BY-NC-ND 4.0), which permits the non-commercial replication and distribution of the article with the strict proviso that no changes or edits are made and the original work is properly cited (including links to both the formal publication through the relevant DOI and the license). See: https://creativecommons.org/licenses/by-nc-nd/4.0/.
