A longitudinal follow-up of COVID-19 patients in the convalescent phase showed recovery in radiological results, the dynamics of lymphocytes, and a decrease in the level of IgG antibody: a single-centre, observational study

Introduction

Coronavirus disease 2019 (COVID-19), a disease caused by Severe Atypical Respiratory Syndrome-Coronavirus-2 (SARS-CoV-2), has now become a pandemic and continues to rage globally (1). As of February 8th, 2021, over 100 million confirmed cases of COVID-19 and over 2 million deaths globally have occurred (2).

Extensive research has been undertaken to characterize patients’ epidemiological and clinical characteristics with COVID-19 (3-6). It has been widely reported that COVID-19 is underlined by complex crosstalk between SARS-CoV-2 and the host immune system (7). Most patients with COVID-19 present with a decrease (either in count or ratio) of lymphocytes, which is one of the criteria for a diagnosis of COVID-19 (8) and which is thought to be correlated with the severity of the disease (3). Immune dysregulation has a destructive effect. However, in most cases, hosts generate cellular and humoral immunity to clear the virus, which finally leads to the convalescent phase. There is a different level of protection against the same pathogen that is at least partly reflected by the level of Immunoglobulin G (IgG) antibody.

With more and more patients discharged, several studies have sought to evaluate the status of COVID-19 patients in the convalescent phase from clinical, virological, and radiological perspectives (9-11). However, to date, very little is known about how the immune system recovers from the disease. Notably, lung injury caused by the virus is one of the main clinical manifestations. It significantly affects prognosis (12), and radiologically it manifests as multiple abnormalities, such as multifocal ground-glass opacity (GGO) and consolidation. The dynamic process [as shown in chest computerized tomography (CT) scans] from the hospitalization phase to the convalescence phase is of great value to understand the recovery process of lung injury caused by SARS-CoV-2, which remains under-reported (11). We performed a longitudinal follow-up investigation of 25 convalescent patients from a tertiary hospital in Henan province, China, 8 weeks after discharge. Of these 25 patients, 15 were followed-up with again 8 weeks after that. We mainly focused on the radiological characteristics, the dynamics of the lymphocytes subpopulation, and the IgG level against SARS-CoV-2 to understand the status of convalescent patients and the long-term effects of SARS-CoV-2 infection.

We present the following article in accordance with the STROBE reporting checklist (available at http://dx.doi.org/10.21037/jtd-20-3011).

Methods

Study design and participants

Patients who had recovered from COVID-19 were enrolled at Henan Provincial People’s Hospital. They were diagnosed and treated according to the Diagnosis and Treatment Plan for Novel Coronavirus Pneumonia Cases (Provisional) (5th Edition) published by the National Health Commission of the People’s Republic of China (8) between the January 15th, 2020 to February 10th, 2020, and discharged between February 1st, 2020 and February 25th, 2020. The first follow-up appointments were conducted between April 1st–27th, 2020, and the second follow-up appointments were conducted between June 1st–26th, 2020.

The follow-up appointments were conducted by trained medical staff via telephone, and scheduled according to the order of discharge date as recorded on the medical records. An appointment 3 days in advance or a delay of 3 days was deemed acceptable. At the first follow-up appointment, a reverse transcription-polymerase chain reaction (RT-PCR) analysis for SARS-CoV-2 was conducted, chest CT images were taken, and lymphocytes’ subpopulation and the level of the IgG antibody were assessed. At the second follow-up appointment, the subpopulation of lymphocytes and the IgG antibody level were assessed. Any patients that could not attend the second follow-up appointment were excluded from the paired variables test. Figure 1 shows the study design.

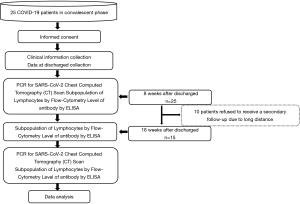

Figure 1 Flow diagram of the study design.

Criteria for severity grading

Using the Diagnosis and Treatment Plan for Novel Coronavirus Pneumonia Cases (Provisional) (5th Edition), severity was graded as follows:

• Mild: the clinical symptoms were mild, and the imaging findings showed no pneumonia;
• Moderate: the clinical symptoms included fever, respiratory tract infection and other symptoms, and imaging manifestations of pneumonia;
• Severe: the clinical symptoms included any of the following: (i) respiratory distress, as demonstrated by a respiratory rate (RR) ≥30 beats/min; (ii) at rest, oxygen saturation was less than or equal to 93%; and/or (iii) partial pressure of oxygen (PaO₂)/Fraction of Inspired Oxygen (FiO₂) ≤300 mmHg (1 mmHg =0.133 kPa); or
• Critical: one of the following conditions was met: (i) respiratory failure and mechanical ventilation required; (ii) shock; or (iii) other organ failure requiring intensive care unit monitoring and treatment.

Data collection and sample measurement

Patients’ epidemiological, demographic information, and chest CT images were retrieved from electronic medical records. A positive RT-PCR result confirmed SARS-CoV-2 infection for SARS-CoV-2. Samples were obtained by swabbing the oropharyngeal mucosa of all individuals. The subpopulation of lymphocytes was evaluated using an ACEA QuadriTEST^® (cat. no. 892009) kit [CD3+ fluorescein isothiocyanate (FITC)/CD16 + CD56 PE/CD45 PerCP/CD19 APC] following the manufacturer’s standard procedure. First, 2 mL of peripheral venous blood was drawn from each patient into an ethylenediaminetetraacetic acid (EDTA) tube. Second, 20 µL antibody reagent from an ACEA QuadriTEST^® kit was added to a 5 mL round-bottom tube. Third, 50 µL blood was then added, and incubated at room temperature (18–25 °C) for 15 min after 5 sec vortex. Fourth, 450 µL 1× dilution hemolysin (Agilent) was added to the tube, which was incubated at room temperature (18–25 °C) for 15 min after 5 sec vortex. Finally, an Agilent NovoCyte flow-cytometry machine and NovoExpressed software were used to analyze the prepared sample’s lymphocytes population.

An ELISA test was used to determine the level of the IgG antibody. Plates were coated by recombinant S-receptor binding domain (S-RBD; Sino Biologic, cat. No. 40592-V08B) and N protein (Sino Biologic, cat.no 40588-V08B) at a dilution of 2 µg/mL, and then incubated at 4 centigrade overnight, and blocked by skimmed milk. The sera of patients and 10 healthy controls were diluted (1:1,000) and added to the prepared plates. Anti-human IgG HRP-labeled antibody was used as the secondary antibody, and 3, 3′, 5, 5′-Tetramethylbenzidine was used for color rendering. The absorbance at 450 nm was determined. To avoid any batch effect between different plates, 12 wells of each plate were used as blank controls. The procedure was the same, except the serum was replaced with 100 µL PBS. The blank controls’ values were compared to different plates to determine if there was a batch effect. Three duplicates for each sample were set, and the mean OD450 nm value was used. The positive cut-off value was 0.60 for the S-RBD antibody and 0.48 for the Nucleocapsid Protein (NP) antibody, which was defined as twice the mean value of healthy controls. The OD450 nm value of each patient minus the cut-off value was defined as OD450 nm (adjusted), and an OD450 nm (adjusted) larger than 0 was considered positive.

CT interpretation

Two experienced radiologists (with 5 and 15 years of experience, respectively) reviewed patients’ chest CT scans blindly and independently. All of the images were viewed with both lung (width, 1,600 HU; level, −600 HU) and mediastinal (width, 350 HU; level, 40 HU) settings. The 2 radiologists discussed any inconsistent results, and a consensus was reached. The COVID-19 Reporting and Data System (CO-RADS) scoring system (13) was used to evaluate the extent of pulmonary involvement. Notably, CO-RADS 6 was excluded, as according to the original definition of CO-RADS, which was not suitable for the current study, all patients who are RT-PCR positive for SARS-CoV-2 should be classified as CO-RADS 6.

Statistical analysis

Patients those whose age was ≤ the median age of all the patients [48 years old (y/o) for the first follow-up and 45 y/o for the second one] were defined as younger patients, and those whose age was > the median age of all the patients were defined as older. The continuous variables were expressed as the median [range, mean ± standard deviation (SD)]. The categorical variables were expressed as n (%). The student’s t-test was used to compare the continuous variables. Fisher’s exact test was used to compare categorical variables. Wilcox’s test was used to compare the paired variables. A 2-tailed P value was used, and a value <0.05 was considered statistically significant. All of the statistics analyses and figure drawings were performed with R software v. 3.6.0 and Prism (GraphPad software) version 8.3.1.

Patient and public involvement

The study was conducted in accordance with the Declaration of Helsinki (as revised in 2013). The Ethics Committee of Henan Provincial People’s Hospital approved this research study (2020 Ethical Approval No. 68), and the informed consent of all patients was obtained.

Results

Demographic characteristics

Twenty-five patients with a median age of 43 (18–58, 41.4±13.15) were followed-up 8 weeks after discharge. Forty-eight percent of the patients were female. Concerning severity level, 14 (53.8%), 10 (38.5%), and 1 (3.8%) were classified as having moderate, severe, and critical COVID-19, respectively. The median duration of viral shedding (defined as the interval of the first and last time of positive RT-PCR for SARS-CoV-2) was 11.0 days (6–27, 12.8±5.21). Six (24.0%), 3 (12.0%), and 2 (8.0%) patients had underlying hypertension, diabetes and cardiovascular diseases, respectively (see Table 1). Symptoms on admission included fever (96.0%), a cough (60.0%), sputum (32.0%), sore throat (16.0%), and fatigue (4.0%) (see Table 2). Of the 25 patients, 15 had a median age of 43 (19–58, 43.9±12.99) and attended a second follow-up appointment 16 weeks after discharge for an antibody evaluation and examined the subpopulation lymphocytes (see Table 1). The remaining 10 patients refused to attend a second follow-up appointment due to the long distance that they would be required to travel.

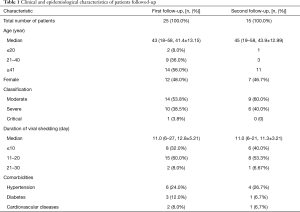

Table 1 Clinical and epidemiological characteristics of patients followed-up
Full table

Table 2 Self-reported symptoms at different time points
Full table

Virological results, self-reported symptoms, and radiological results

8 weeks after discharge, a throat swab sample for the RT-PCR analysis was taken from all patients for open reading frame 1 (ORF1) a, ORF1b, E, and the N gene of SARS-CoV-2, and no positive results were found. Four (16.0%) patients reported the symptom of a cough, and 1 patient (4.0%) reported an ache in a major joint (the right knee) at their first follow-up appointments. These patients complained of the same symptoms at their second follow-up appointments (see Table 2).

All of the patients received chest CT scans 8 weeks after discharge. Forty percent (10/25) of patients, mainly patients classified as moderate (80.0%) and younger patients (80.0%), showed complete radiological resolution. The CO-RADS score variation showed that the percentage of CO-RADS 1 and 2 patients increased, but the percentage of CO-RADS 4 and 5 patients decreased (see Figure 2). The results showed the radiological dynamics from symptom onset to early convalescence. The predominant patterns of abnormalities observed at the first follow-up appointment included an irregular line (12/25, 48.0%) (see Figure 3), GGO (44.0%), and multiple GGOs (28.0%) (see Figure 4). Other abnormalities included air bronchogram (24.0%), local pleural thickening (20.0%), interlobular septal thickening (12.0%), and a subpleural line (12.0%) (see Table 3). Except for a crazy-paving pattern, which disappeared during hospitalization, the positive count of all abnormalities decreased by the time of the first follow-up appointment (see Figure 5).

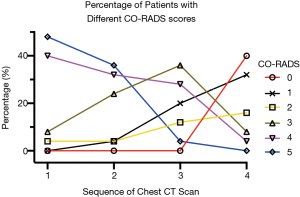

Figure 2 The kinetic of CO-RADS scoring at different time points. CO-RADS, COVID-19 Reporting and Data System.

Figure 3 Serial chest CT scans of a 48-year-old female were graded as severe. (A) The scan obtained at the onset of symptoms showed GGO (thin arrow) with a “crazy-paving” pattern and air bronchogram (black arrow). (B) The scan obtained 7 days after the onset of symptoms showed evolution to consolidation (white arrow), and a mixture of GGO and consolidation (thin arrow) with increased density and decreased extension. (C) The scan obtained at discharge showed a mild decrease in extension than previous scans and minimal absorption; an air bronchogram was also observed (black arrow). (D) The scan at 8 weeks after discharge showed the evident absorption of previous abnormalities and multiple GGOs (white arrows) of decreased density and increased extension. CT, computerized tomography; GGO, ground-glass opacity.

Figure 4 Serial chest CT scans of a 56-year-old male were graded as severe. (A) The scan obtained at the onset of symptoms showed GGO (white arrow) with a mild “crazy-paving” pattern in the right lower lobe (black arrow). (B) The scan obtained 6 days after the onset showed symptoms of increased extension and decreased density of GGO (white arrow) with irregular lines (black arrow). (C) The scan obtained at discharge showed the absorption of previous opacifications and the consolidation of GGO in the left upper lobe (thin arrow). (D) The scan 8 weeks after discharge showed the continuous absorption of previous abnormalities, multiple GGOs (thin arrows) of decreased density, irregular lines (white arrows), and local pleural thickening (black arrows). CT, computerized tomography; GGO, ground-glass opacity.

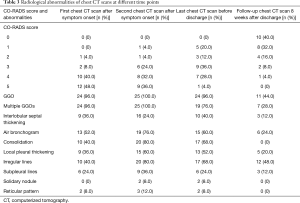

Table 3 Radiological abnormalities of chest CT scans at different time points
Full table

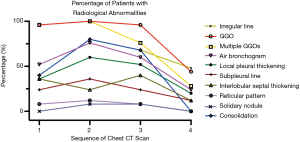

Figure 5 The kinetic of abnormal findings in a chest CT scan at different time points. CT, computerized tomography; GGO, ground-glass opacity.

Eight weeks after discharge, taking age and severity into consideration, the results showed that younger (P=0.015) patients had a higher chance of being completely radiologically recovered than older patients. The same was observed in patients with various grades, but the results were not significant (P=0.099). The CO-RADS score was significantly lower both in younger patients (P=0.001) and patients classified as moderate (P=0.005). With specific patterns of radiological abnormalities at the first follow-up appointment, GGO (P=0.001), air bronchogram (P=0.015), local pleural thickening (P=0.039), and an irregular line (P=0.005) were significantly more common in elder patients than other patients. However, no significant differences were observed between patients classified as moderate and severe/critical (see Table 4).

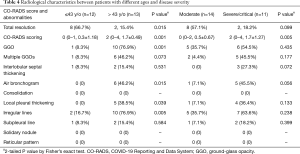

Table 4 Radiological characteristics between patients with different ages and disease severity
Full table

The dynamics of the lymphocyte subpopulation in convalescent patients

At the first follow-up appointment, the lymphocyte subpopulation of the 25 patients were evaluated. A total of 10 patients (10/25, 40.0%) showed a decrease in total lymphocytes compared to the normal lower value, and 6 (24.0%) in CD3+ T lymphocytes, 10 in CD4+ T lymphocytes (10/25, 40.0%), 4 (16.0%) in CD8+ T lymphocytes, 3 (12.0%) in CD19+ B lymphocytes, 5 (20.0%) in CD56+ natural killer (NK) lymphocytes. One patient (35 y/o, male, moderate) showed a CD8+T lymphocyte count higher than the normal upper value (see Figure 6).

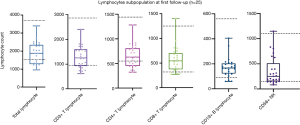

Figure 6 Lymphocyte subpopulations of 25 patients at the first follow-up appointment. The 2 dotted lines indicate the upper and lower values of a normal reference interval.

Fifteen patients attended a second follow-up appointment 16 weeks after discharge. Of these, 7 (46.7%), 6 (40.0%), 7 (46.7%), 1 (6.7%), 0 (0), and 1 (6.7%) continued to show a decreased lymphocyte count compared to the normal lower value for total lymphocyte, CD3+ T lymphocyte, CD4+ T lymphocyte, CD8+ T lymphocyte, CD19+ B lymphocyte, and CD56+ NK lymphocyte, respectively (see Figure 7). The percentage of patients with an abnormal lymphocyte count showed the lymphocyte subpopulation dynamics, and CD4+ showed the minimum degree of lymphopenia recovery (see Figure 8). Also, 3 patients (i.e., Patient No. 1: female, 57 y/o, moderate, Patient No. 5, female, 45 y/o, moderate, and Patient No. 15, male, 22 y/o, moderate) were observed to have progressive lymphopenia at the first follow-up appointment. In 2 of these patients, this was due to a decrease of CD4+, CD8+ T lymphocyte, and CD19+ B lymphocyte, while in 1 patient, this was due to a decrease of CD56+ NK lymphocyte (see Figure S1).

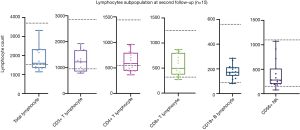

Figure 7 Lymphocyte subpopulations of 15 patients at the second follow-up appointment. The 2 dotted lines indicate the upper and lower values of a normal reference interval.

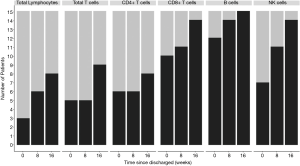

Figure 8 Dynamics of lymphocyte subpopulations in patients who attended 2 follow-up appointments. The grey bar indicates the patients with a decreased absolute number of lymphocytes. The black bar indicates patients with a normal absolute number of lymphocytes.

Next, we investigated the potential effects of age and disease severity on the recovery of the lymphocyte subpopulation. When patients who were younger and classified as moderate were compared to patients who were older and classified as severe/critical, no significant differences were observed in the percentages of patients with abnormalities, regardless of the period following discharge (see Table S1) or the mean value of each subpopulation count (see Figures 9,10).

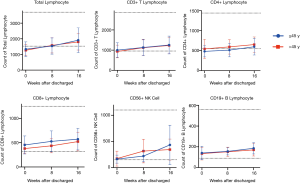

Figure 9 Kinetic analysis of lymphocyte subpopulation in younger and older convalescent patients. Data expressed as mean ± SD.

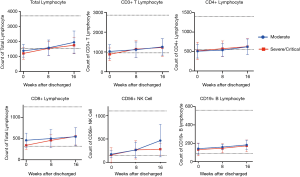

Figure 10 Kinetic analysis of lymphocyte subpopulation in moderate and severe/critical patients. Data expressed as mean ± SD.

Dynamics of S-RBD and NP IgG antibody by ELISA

An ELISA test was conducted to evaluate levels of the IgG antibody. Based on a comparison of the OD450 nm value of different plates, no obvious batch effect was observed between the different ELISA plates (see Figure S2). At the first follow-up appointment, all of the patients were positive for both IgG antibodies. The NP IgG antibody had a median value of 1.46 (0.08 to 4.22, 1.80±1.43), and the S-RBD IgG antibody had a median value of 1.50 (0.18 to 5.06, 1.78±1.14) (see Figure 11A). At the second follow-up appointment, a decreased value of 1.30 (0.01 to 3.39, 1.38±1.13) was observed for the NP IgG antibody, and 0.52 (–0.28 to 2.54, 0.82±0.95) for the S-RBD antibody (see Figure 11B,C).

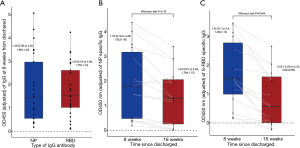

Figure 11 Level of IgG antibodies. (A) Level of the NP- and S-RBD-specific IgG in 25 patients 8 weeks after discharge. (B) Paired analysis of NP antibody level between 8 and 16 weeks after discharge. (C) Paired analysis of S-RBD antibody level between 8 and 16 weeks after discharge. Continuous values were expressed as median (range, mean ± SD). IgG, immunoglobulin G; NP, Nucleocapsid Protein; S-RBD, S-Receptor binding domain.

Of the 15 patients who attended the 2 follow-up appointments, 40% (6/15) and 66.7% (10/15) of patients showed a decrease of over 50.0% in the NP's levels S-RBD IgG antibodies, respectively. Notably, 0 and 26.7% (4/15) of patients turned from NP IgG and S-RBD IgG positive to negative, respectively. One patient (male, 19 y/o, moderate) showed an increased NP antibody level at 16 weeks (see Figure 11B,C). A sample paired analysis with a Wilcoxon test indicated that the S-RBD IgG antibody level declined significantly at 16 weeks compared to that at 8 weeks (44.6%, P=0.044). Conversely, the NP IgG antibody showed no significant decline between the 2 appointments (28.1%, P=0.18) (see Figure 11B,C).

Discussion

Following-up with survivors is essential to the overall management of COVID-19. Due to the relatively long follow-up period and the longitudinal design, the current study results provide insights into the radiological and immunological characteristics of COVID-19 patients in the convalescent phase. Specifically, complete radiological recovery was observed in 40.0% of patients 8 weeks after discharge. Notably, this figure is lower than that of other reports. This may be because other studies had a lower ratio of severe/critical patients (11,12) or a longer follow-up period than the present study (9,13). In the kinetic analysis of the radiological findings, we observed that GGO or multiple GGOs represented the most common abnormalities at symptom onset and that the percentage of consolidation and air bronchogram increased with disease progression, but that most abnormalities gradually resolved before or after discharge. This was also reflected in the trend of CO-RADS scoring and may represent a common disease course for COVID-19 (12). The predominant patterns of abnormalities 8 weeks after discharge included an irregular line and GGO. Based on pathological observations of remarkable fibrotic lung parenchymal remodeling in patients who died from COVID-19 at autopsy (14), it is speculated that lung fibrosis may be long-term sequelae of COVID-19 patients, however, the irregular lines observed in the current study were mostly sporadic, derived from the absorption of consolidation, and thus differ from real fibrotic lung disease, so further research is still need to determine whether lung fibrosis will be a long-term sequelae of COVID-19 patients, and a combined analysis of pulmonary function and chest CT observations would also be helpful.

GGO remains one of the predominant abnormalities in patients’ follow-up chest CT scans; however, the density decreases compared to that observed during hospitalization, which may be due to the absorption of inflammatory exudate. Other researchers have made similar observations (13). Additionally, older patients showed a significantly lower rate of a complete resolution and a higher rate of several radiological abnormalities after discharge than younger patients; however, this discrepancy was not significant between patients classified as moderate and severe/critical, which suggests that more attention should be paid to older convalescent patients regardless of the disease severity.

Lymphopenia is another key feature of COVID-19. It plays an important role in the disease progression of COVID-19 (15), and to a certain extent, distinguishes COVID-19 from other types of pneumonia (16). In terms of SARS-CoV-1, CD8+ T lymphocytes returned to normal within 2–3 months after the onset of symptoms, and CD4+ T lymphocytes were still lower than those of healthy controls 1 year after that (17). In the present study, the total lymphocyte count was still decreased in 46.7% of COVID-19 patients 16 weeks after discharge, and the CD4+ T lymphocyte was the most involved lymphocyte subpopulation, which is also the most involved subpopulation in SARS-CoV-1 infection. It has been reported that while the degree of lymphopenia is associated with disease severity during hospitalization, the count of each lymphocyte in patients classified as severe could increase to a comparable level to that of patients classified as mild at day 16 of symptom onset (before discharge) (18). A comparable level of lymphocyte subpopulations was observed regardless of age or severity at different time points after discharge. In addition to the absolute number, other researchers have also found on-going turbulence of lymphocyte function in the phase of early convalescence through the single-cell transcriptome of peripheral blood mononuclear cells (19). The CD4+ T lymphocyte subpopulation is considered one of the major subpopulations responsible for innate immunity and is a major mediator of adaptive immunity (20). The decline of CD4+ T lymphocyte indicates that the immune system has a repressed status and has a higher susceptibility to opportunistic infections (21,22). Although research showed that patients who have recovered from SARS-CoV-1 infection may suffer from a higher infection incidence after discharge in the long-term follow-up (23), there is still no such data regarding to COVID-19, thus, the long-term immunological status of COVID-19 survivors and their susceptibility to other infections need to be examined further.

We also observed that the lymphocyte count of 3 patients at 8 weeks was decreased compared to their discharge results. This may be because their lymphatic systems were impaired and had not yet recovered when discharged (24).

The levels of antibodies against S-RBD and NP were also analyzed. S-RBD and NP IgG antibodies are usually generated 1 week after symptom onset and reach a plateau about 4 weeks after symptom onset (25). One study of 30,082 patients (26) showed that the titer of the neutralizing antibody against the spike protein was stable 3 months after symptom onset but then declined moderately after 5 months. In the current study, similar to the results of another study (27), the level of the S-RBD IgG antibody decreased by 44.6% from 2 to 4 months after discharge. This raises concerns about whether humoral immunity provides long-lasting protection against SARS-CoV-2. Conversely, the NP IgG antibody only decreased to 28.0% in the same population, and 93.3% of patients remained positive for the NP IgG antibody 4 months after discharge.

Due to the S-RBD antibody’s capacity to interfere with the entrance of the virus into host cells and thus prevent replication, S-RBD is a widely used target in vaccine development (28,29). Conversely, as NP only exists inside the virus and is wrapped around the ribonucleic acid, the NP antibody is barely capable of blocking the virus’s entrance, but could protect the host via the activation of T-cell immunity (30). Further, as the NP's mutation rate is relatively low, NP is another potential target for vaccine development (31). Most vaccines in clinical use provide long-lasting protection, at least in part, through the generation of a pathogen-specific antibody (32). We showed that the NP IgG antibody level was more stable than that of S-RBD 4 months after discharge. This provides more evidence that NP could be used as a potential vaccine target.

This study had several limitations, including a small sample size, a dropout of patients at the second follow-up appointment, and no data on IgG antibody levels during hospitalization. A larger cohort and more comprehensive examinations (e.g., pulmonary functions) would be of great value.

In summary, we performed a longitudinal, observational study of COVID-19 patients in the convalescent phase and assessed their radiological and immunological characteristics. Sixty percent of the patients still showed at least one abnormality on chest CT scans 8 weeks after discharge. The CD4+ T lymphocyte count remained low in about half of the patients 16 weeks after discharge. The level of the S-RBD IgG antibody declined more dramatically than that of NP. These results could help us understand the health consequences of COVID-19 and assist in developing vaccines.

Acknowledgments

We would like to thank Shi Dp and Liu Hm from the Department of Radiology of Henan Provincial People’s Hospital for interpreting the chest CT data.

Funding: This work is funded by the Emergency Research Project of Henan Science and Technology Department (No. 201100310700).

Footnote

Reporting Checklist: The authors have completed the STROBE reporting checklist. Available at http://dx.doi.org/10.21037/jtd-20-3011

Data Sharing Statement: Available at http://dx.doi.org/10.21037/jtd-20-3011

Peer Review File: Available at http://dx.doi.org/10.21037/jtd-20-3011

Conflicts of Interest: All authors have completed the ICMJE uniform disclosure form (available at http://dx.doi.org/10.21037/jtd-20-3011). The authors have no conflicts of interest to declare.

Ethical Statement: The authors are accountable for all aspects of the work in ensuring that questions related to the accuracy or integrity of any part of the work are appropriately investigated and resolved. The study was conducted in accordance with the Declaration of Helsinki (as revised in 2013). The Ethics Committee of Henan Provincial People’s Hospital approved this research study (2020 Ethical Approval No. 68), and the informed consent of all patients was obtained.

Open Access Statement: This is an Open Access article distributed in accordance with the Creative Commons Attribution-NonCommercial-NoDerivs 4.0 International License (CC BY-NC-ND 4.0), which permits the non-commercial replication and distribution of the article with the strict proviso that no changes or edits are made and the original work is properly cited (including links to both the formal publication through the relevant DOI and the license). See: https://creativecommons.org/licenses/by-nc-nd/4.0/.
