BAPN-induced rodent model of aortic dissecting aneurysm and related complications

Introduction

The pathogenesis of dissecting aneurysm remains unclear (1). Nowadays, most of our understanding has focused on the end-stage condition, whilst not much is known about the early stages of the condition due to the lack of applicable animal models (2). To date, the establishment of dissecting aneurysm animal models has mainly relied on mechanical means, drug induction, and gene knockdown. Furthermore, the animal models have been mainly focused on the treatment of dissecting aneurysm using surgical or interventional strategies (3). In small sized animals, the studies were mainly focused on pathogenesis, signaling pathways, and potential treatment targets and drug efficiency. BAPN, as an irreversible lysyl oxidase inhibitor, can bind with elastin or amino and alkyl groups competitively, which then inhibits the cross-linking between elastin and collagen, leading to development of dissection aneurysm.

At present, animal models of aortic dissection have been typically established based on surgical methods or BAPN treatment (4). Such models have contributed to investigations into the pathogenesis of aortic dissection, however, there are indeed some limitations of these models (5,6). Above all, success rates were not high, which might have led to sacrifice of many animals in the experimental setting. In this study, we aimed to investigate the effects of BAPN on the arterial walls of rodents, to analyze the gross or pathological changes of the arterial walls and other tissues of rodents treated with BAPN at different concentrations or doses, and to compare these to the characteristics of human dissecting aneurysms. We present the following article in accordance with the ARRIVE reporting checklist (available at https://dx.doi.org/10.21037/jtd-21-605).

Methods

Animals

Male specific-pathogen free Sprague Dawley (SD) rats (4–5 weeks, 110 g) and male C57BL6 (3 weeks) were purchased from the Institute of Health and Environmental Medicine, Academy of Military Medical Sciences. All animals underwent adaptive feeding for 3 days before further analysis. The study protocols were approved by the Ethical Committee of Tianjin Chest Hospital. Experiments were performed under a project license granted by the ethics committee of Tianjin Chest Hospital, in compliance with national or institutional guidelines for the care and use of animals.

Experimental design and grouping

Eighteen rats were randomly divided into 3 groups and were fed BAPN solution at a concentration of 0.2% (SD-0.2, n=6), 0.4% (SD-0.4, n=6), or 0.6% (SD-0.6, n=6). Forty C57BL6 mice were randomly divided into 4 groups and were fed 0.2% BAPN solution (C57-0.2, n=10), 0.4% BAPN solution (C57-0.4, n=10), 0.6% BAPN solution (C57-0.6, n=10), or distilled water (control, n=10). All animals had free access to food and water. Daily water drinking volume was recorded, together with body weight per week.

Procedures

The animals were sacrificed after anesthesia using barbital sodium via intraperitoneal injection. The large artery was separated from the initiation of the ascending aorta to the crotch of iliac artery. Additionally, aberrant bone tissues, lung, and the ruptured intestinal wall were separated.

Statistical analysis

All normally distributed data were presented as mean ± standard deviation. SPSS 19.0 software was used for the Student’s t-test, and GraphPad 5.0 software was used for plotting data. Image-Pro Plus 6.0 software was utilized for the image analysis and determination of vascular parameters. P<0.05 was considered to be statistically significant.

Results

Effects of BAPN on body weight and water drinking volume

With the increase in BAPN concentration, there was a significant increase in drug intake in both the C57 mice and SD rats, while water drinking volume and body weight showed a decreasing trend, especially in SD rats (Figure 1).

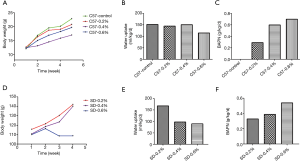

Figure 1 Changes in body weight, water uptake, and BAPN uptake in C57BL/6 mice (A-C) and Sprague Dawley (SD) rats (D-F). BAPN, beta-aminopropionitrile.

Survival analysis

With the increase in BAPN concentration, the survival of SD rats and C57 mice significantly decreased (Figure 2). The 4-week survival rates in the SD-0.2 group, SD-0.4 group, and SD-0.6 group were 83.3%, 50.0%, and 43.3%, respectively. The 7-week survival rates in the SD-0.2 group, SD-0.4 group, and SD-0.6 group were 33.3%, 16.7%, and 0%, respectively. The 4-week survival rates in the C57-0.2 group, C57-0.4 group, and C57-0.6 group were 70.0%, 80.0%, and 50.0%, respectively. The 7-week survival rates in the C57-0.2 group, C57-0.4 group, and C57-0.6 group were 50.0%, 40.0%, and 40.0%, respectively. The survival rates in the 0.6% BAPN group showed the lowest 4-week and 7-week survival rates for both the SD rats and C57 mice.

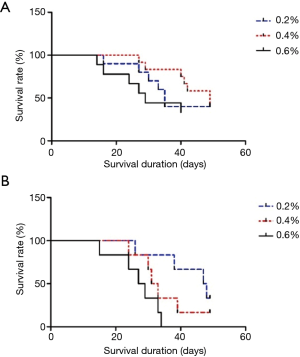

Figure 2 Survival curves of C57BL/6 mice (A) and Sprague Dawley (SD) rats (B).

Large artery lesions

No aneurysm was observed in the SD-0.2 group, SD-0.4 group, and SD-0.6 group 4 weeks after treatment. Approximately 7 weeks after treatment, the number of animals with large artery rupture or aneurysm was 1, 2, and 0 in the SD-0.2 group, SD-0.4 group, and SD-0.6 group, respectively. Among the 2 rats with aneurysms in the SD-0.4 group, 1 died from aortic rupture at week 6. The rupture site was localized at the ascending aorta. The other rat died at week 7 from pathologically confirmed aneurysm (Figure 3). No obvious abnormalities were observed in the large arteries of other rats.

Figure 3 Macroscopic and microscopic observations of dissecting aneurysms in Sprague Dawley (SD) rats (A) and C57BL/6 mice (B). The images were observed under a magnification of 100×.

The prevalence of aneurysms at week 4 in the C57-0.2 group, C57-0.4 group, and C57-0.6 group was 10%, 20%, and 20%, respectively. At week 7, the prevalence of aneurysms in these groups was 50%, 70%, and 60%, respectively (Table 1). After sacrifice, 1 animal in the C57-0.2 group had pathologically confirmed aneurysm in the ascending aorta. One animal in the C57-0.4 group had pathologically confirmed aneurysm in the ascending aorta, while 2 animals had pathologically confirmed aneurysm in the descending aorta. Additionally, 2 animals in the C57-0.6 group had pathologically confirmed aneurysm in the ascending aorta (Figure 4).

Table 1 Incidence of dissecting aneurysm
Full table

Figure 4 Obvious thickening was noticed in the tunica media of the large artery in C57BL/6 mice. The elastic fibers were not normal in structure, and displayed rupture and disarrangement together with massive inflammatory cell infiltration. The images were observed under a magnification of 100×.

The tunica media of the large artery showed thickening under the microscope, together with irregularity in the arrangement of the elastic fibers, as well as infiltration of massive red blood cells and lymphocytes. In C57 mice, the diameter of the ascending aorta and the area of the tunica media showed an increasing trend (Figure 5).

Figure 5 The diameter of the ascending aorta and tunica media area in C57BL/6 mice showed significant increases in the experimental groups compared with the control group.

Other organ changes

In C57BL/6 mice, 1 mouse showed scoliosis in the C57-0.4 group. Another animal had massive pleural effusion, combined with compression and collapse of lung lobe. No other aberrant changes were noticed in the other mice.

In SD rats, 3 rats showed intestinal rupture after treatment with 0.2% BAPN, 2 rats showed intestinal rupture after treatment with 0.4% BAPN, and 4 rats showed intestinal rupture after treatment with 0.6% BAPN (Table 2). These animals showed intestinal obstruction from the intestinal segment. Furthermore, rupture was observed in the descending colon, which resulted in severe peritonitis. Moreover, severe intestinal tympanites was observed in the jejunoileum. After dissection, scoliosis was noticed together with a tumor-like bulge in the peripheral part of the spinal column and ribs near the costovertebral joints, displaying a solid texture and white color (Figures 6 and 7).

Table 2 Animal complications
Full table

Figure 6 Scoliosis (arrow), rib tumour (arrow), and rupture position (arrow) in an animal from the Sprague Dawley (SD)-0.4 group (A) and the SD-0.6 group (B).

Figure 7 Pathological changes of other organs except the aorta. (A) Local myocardial cells beneath the epicardium were arranged in a loosened manner, together with infiltration of lymphocytes. (B) Separation was noticed in the tunica muscularis, together with massive red blood cells and inflammatory cell infiltration. (C) For the rib tumor, calcium salt deposition was noticed, and heterogeneous cancer cells were identified. The images were observed under a magnification of 100×.

Discussion

There are dozens of AD animal models, involving mice, rats, rabbits, dogs, and pigs. Modeling methods mainly include three methods: surgical or interventional instruments, drug induction, and gene knockout. Mechanical methods (e.g., surgery or intervention) including balloon dilation, double-angle suture of internal membranes are mainly used for large animals. Drug induction is mainly used in small animal models. It has been adopted by more and more researchers as it involves simple procedure and cost-effective process. The drugs included Ang II, BAPN, mercaptoethylamine, and semicarbazide, among which Ang II and BAPN are the most widely used. Some studies involved single administration of BAPN alone, the combination of BAPN and AngII, as well as simultaneous administration of BAPN and Ang II (4,7,8).

Inflammation plays a key role in the occurrence and development of aortic dissection. Macrophages presented in inflammatory infiltrates could result in aortic wall damage. The macrophages in the aneurysm wall express matrix metalloproteinase (MMP), which destroys elastic fibers and collagen fibers, and causes the aortic wall to be mechanically weakened. Metalloproteinases, inflammatory factors and other substances, secreted from the stimulated macrophages, can cause matrix destruction, smooth muscle cell apoptosis, all of which destroy the structure of the aortic wall (9,10).

Angiotensin II can stimulate the activity of macrophages. It was reported that high level of circulating angiotensin II promoted the release of norepinephrine (NA) from sympathetic nerve endings, and then up-regulated expression of MMP-2. It is known to degrade extracellular matrix including collagen and elastin. Liu et al. (11) reported that superior cervical sympathectomy could inhibit the formation of BAPN-induced AD by inhibiting the increase of heart rate and the concentration of MMP-9 in the aortic wall.

Lysyl oxidase, with a molecular weight of 32,000, is a monoamine oxidase with copper binding sites (12,13). It can oxidate the lysine residues on collagen and elastin, which contributes to extracellular matrix (ECM) stability by promoting the covalent cross-linking of the fibrous proteins. The lysyl oxidase family consists of 5 members encoding lysyl oxidase (LOX) and lysyl oxidase-like 1-4 (LOXL1-LOXL4) (12,14). They are modulated by specifically expressed genes, which results in structural and functional changes of LOX (14,15). LOX has been shown to play important roles in several processes, including the stability of the ECM, inhibiting the cellular phenotype transmission induced by the Ras gene, as well as inhibiting the pathogenesis of cancer (16). Moreover, it has been shown to play crucial roles in maintaining the stability of ECM structure and function, organ development, trauma recovery, and cancer metastasis (17). In several malignancies including colorectal cancer, bladder cancer, esophageal cancer, and head and neck cancer, LOX family related proteins were reported to be significantly up-regulated, which was linked to promoting cancer metastasis (18).

Elastic lamina is the main component of the aortic media. Changes in its structure and composition cause changes in the mechanical and functional of the aorta. As an irreversible lysyl oxidase inhibitor, BAPN could bind with elastin or amino and alkyl groups competitively, which then inhibited the cross-linking between elastin and collagen (19). BAPN treatment can lead to thickening of the tunica media of the large artery, together with irregularity of elastin and collagen fibers, as well as necrosis. These conditions are consistent with the lesions of the large arteries in aortic dissection (AD) patients. However, the exact molecular signaling mechanisms in this process are still not clear. Studies confirmed that hypoxia, designated as a factor generally considered to be a harmful factor of disease, showed a certain protective role in the TAD model induced by BAPN (20). This mechanism of action may be related to the stimulation of HIF-1a and LOX expression by hypoxia. This may further reverse the inflammatory response and extracellular matrix (ECM) degradation.

The 3-week-old mice used in this study were at a stage of rapid growth, and BAPN might have inhibited the generation of the ECM in the large artery, which then led to the formation of aneurysms or aortic dissection. There were significant differences between the 2 species, which is considered to be closely related to their development (4). In a previous study, Ren et al. reported that the model success rate of aneurysms in FVB mice was significantly lower than that of C57 mice (4).

In this study, we selected 6-week-old C57BL/6 mice for the animal model, and no aberrant changes were observed in the large artery at week 6 after BAPN treatment. In contrast, the model success rate of 4–5-week-old SD rats was lower, with higher mortality. This may be related to the gestational age and mature development. In the C57-0.4 group, 1 mouse was pathologically confirmed to have scoliosis, and 1 animal showed massive pleural effusion. In SD rats, the prevalence of intestinal rupture or costal tumor was greater than the rates of aneurysm.

BAPN can trigger cardiac failure by modulating collagen (19). Furthermore, Kubota et al. reported that BAPN could lead to multiple bone malformations in chick embryos (21). Based on the molecular roles and targets of BAPN, we speculated that it might play negative roles in connective tissues rich in elastin and collagen. BAPN triggered a high success rate in establishing the animal models, leading to some functional impairment or even death. In our future studies, we will focus on the effects of mortality on the modeling process.

The prevalence of dissecting aneurysms in the C57-0.4 group was 70% after treatment with 0.6 g·kg⁻¹·d⁻¹ BAPN. Using similar methods, Gao et al. established an animal model of dissecting aneurysm, which demonstrated dose-dependent effects of BAPN on the pathogenesis of dissecting aneurysm (7). In contrast, Ren et al. reported that it was not possible to establish a positive correlation between modeling success and drug intake (4). Indeed, it is still a challenge to calculate quantities after mixing BAPN with animal feed or water. Therefore, there might be significant errors in the accurate uptake of BAPN, and extensive protocols are needed to verify the stability.

There are some limitations of this study. Most of the animals used were less than 4 weeks old, and the successful establishment of the animal models was extremely low. Furthermore, the sample size was small, and the stability of the model requires multiple experiments with a large sample size. In this study, we could not perform qualitative and quantitative analysis for elastin and collagen. It will be further studied in our subsequent experiments. Statistical analysis was not possible as the data for water drinking, weight, and death were not normally distributed. Moreover, as a study involving animal models, it does not wholly represent human processes.

Conclusions

In conclusion, BAPN at a concentration of 0.4% was feasible to produce an animal model of dissecting aneurysm, with the features of low cost and convenient procedures. The prevalence of intestinal rupture and scoliosis induced lethal complications in SD rats, and these complications were significantly higher than the rates of dissecting aneurysm, which warrants further investigation.

Acknowledgments

Funding: This work was supported by Tianjin Commission of Science and Technology (No. 18ZXDBSY00160) and Tianjin Municipal Bureau of Health (No. ZC20087).

Footnote

Reporting Checklist: The authors have completed the ARRIVE reporting checklist. Available at https://dx.doi.org/10.21037/jtd-21-605

Data Sharing Statement: Available at https://dx.doi.org/10.21037/jtd-21-605

Conflicts of Interest: All authors have completed the ICMJE uniform disclosure form (available at https://dx.doi.org/10.21037/jtd-21-605). Nan Jiang serves as an unpaid editorial board member of Journal of Thoracic Disease from Aug 2020 to Jul 2022. The other authors have no conflicts of interest to declare.

Ethical Statement: The authors are accountable for all aspects of the work in ensuring that questions related to the accuracy or integrity of any part of the work are appropriately investigated and resolved. The study protocols were approved by the Ethical Committee of Tianjin Chest Hospital. Experiments were performed under a project license granted by the ethics committee of Tianjin Chest Hospital, in compliance with national or institutional guidelines for the care and use of animals.

Open Access Statement: This is an Open Access article distributed in accordance with the Creative Commons Attribution-NonCommercial-NoDerivs 4.0 International License (CC BY-NC-ND 4.0), which permits the non-commercial replication and distribution of the article with the strict proviso that no changes or edits are made and the original work is properly cited (including links to both the formal publication through the relevant DOI and the license). See: https://creativecommons.org/licenses/by-nc-nd/4.0/.
