A contrast-enhanced-CT-based classification tree model for classifying malignancy of solid lung tumors in a Chinese clinical population

Introduction

The diagnosis of lung nodules is a common and expensive challenge in medicine. Chest computed tomography (CT) is widely used for lung disease diagnosis (1,2). Lung nodules are divided into solid and sub-solid based on their density on CT, and the consensus of multiple guidelines is that lesions of different densities should be managed differently (3-6). Sub-solid nodules are often considered to be early stage adenocarcinoma (6,7), however, the histologic types of solid nodules or tumors vary widely. The 2015 World Health Organization Classification of Lung Tumors reports there are four major histological types of solid pulmonary malignancies, including adenocarcinoma, squamous cell carcinoma, large cell carcinoma, and small cell carcinoma; and four major types of benign lesions, including pulmonary hamartoma, inflammatory myofibroblastic tumor, sclerosing pneumocytoma and granuloma (8). This brings a challenge to the stratification of solid tumors into malignant or benign based on radiological imaging.

In recent years, research has focused on the work-up of smaller solid lung nodules. The Fleischner Society 2017 guidelines for the management of incidentally detected pulmonary nodules (4), advises that a solid nodule larger than 8 mm with suspicious morphology or upper lobe location should be considered for CT at 3 months, positron emission tomography/computed tomography (PET/CT), or tissue sampling. However, the challenge that radiologists often face is to give a definitive diagnosis of a certain nodule to be malignant or benign, especially in cancer centers where patients usually present with larger nodules or masses. Tissue biopsy is limited by difficulty to access locations and size of the tumor, and has potential complications such as pulmonary hemorrhage, pneumothorax, and risks associated with general anesthesia or sedation (9,10). PET/CT and contrast-enhanced CT scan are both effective noninvasive techniques widely used in clinical practice. However, PET/CT has high requirements for equipment and increases the financial burden for patients. Therefore, a contrast-enhanced CT scan is one of the main examination techniques performed before surgery, especially in underdeveloped countries and regions (11). Prior studies have demonstrated that the level of CT enhancement can differentiate the nature of the lung tumor (12,13). Absence of significant tumor enhancement (≤15 HU) at contrast-enhanced CT is strongly predictive of a benign nature (11). Therefore, the use of difference in CT density between non-contrast and contrast CT may help to establish a classification model to effectively improve the diagnosis of pulmonary nodules, especially for patients with a large solid tumor considered for surgery.

Our purpose was to develop and to validate a classification tree model based on contrast-enhanced CT characteristics of solid lung tumors to differentiate between the malignant or benign nature in clinical preoperative patients.

We present the following article in accordance with the TRIPOD reporting checklist (available at https://dx.doi.org/10.21037/jtd-21-588).

Methods

The institutional ethics committee board of Tianjin Medical University Cancer Institute and Hospital (No. bc2018039) approved this study. All participants signed an informed consent form before participating in this study, and this study conformed to the provisions of the Declaration of Helsinki (as revised in 2013).

Patients

A total of 1,789 consecutive patients from Tianjin Medical University Cancer Institute and Hospital who underwent surgical resection of a lung tumor with postoperative histopathological confirmation from January 2011 to October 2017 were considered. The inclusion criteria were: (I) solitary solid lung tumor on CT (diameter ≥8 mm); (II) preoperative thin-section non-contrast and contrast-enhanced CT images <1 month before surgery in the Picture Archiving and Communication System (PACS); (III) postoperative pathology report; (IV) high-quality images. We excluded 411 tumor cases with sub-solid appearance on CT, all 31 small cell carcinomas based on lymph node biopsy with poorly-defined border or unmeasurable lesions, 258 cases with multiple nodules on CT, 262 patients without available preoperative CT images (mainly because of preoperative imaging at a different hospital).

Computed tomography examination

CT examinations, consisting of an acquisition without and with iodine contrast, were performed on Somatom Sensation 64 (Siemens Medical Solutions, Forchheim, Germany) CT scanner, Lightspeed 16 (GE Medical Systems, Milwaukee, WI), or Discovery CT 750 HD (GE Medical Systems). The scan tube voltage was 120 kVp with automatic tube current modulation. The iodine contrast agent Visipaque (Iodixanol, 270 mg/mL) was administered intravenously through the upper extremity (1.5 mL/kg, injection rate: 2.5 mL/s). The scan range included the pulmonary apex level to below the diaphragm, and scanning was performed 70 seconds after injection of the contrast agent. For the Siemens CT system pitch was 0.95, acquired and reconstructed slice thickness of 1.5 mm, B70f and B30 reconstruction kernels were used. Pitch for the GE CT systems was 0.984, acquired and reconstructed slice thickness of 1.25 mm, and Stnd and Lung reconstruction kernels were used.

Evaluation of contrast-enhanced CT characteristics

All contrast-enhanced CT scans were reviewed by two experienced radiologists (6-year and 9 year reading experience in chest CT) blindly and independently by using the RadiAnt DICOM Viewer (version 2020.2). The two radiologists determined the final radiological characteristics after a mutual consultation. The radiologists evaluated the pulmonary solid tumor on pulmonary window setting (width, 1,450 HU; level, –500 HU), and mediastinal window setting (width, 350 HU; level, 40 HU). Included radiological characteristics were (see detailed description and example images in Appendix 1): (I) location (left/right; upper lobe/middle lobe/lower lobe); (II) centrality (peripheral/central); (III) shape (round/oval/irregular); (IV) margin (smooth/lobulated/spiculated); (V) calcification (yes/no); (VI) fat (yes/no); (VII) necrosis (yes/no); (VIII) cavitation (yes/no); (IX) air bronchogram (yes/no); (X) pleural indentation (yes/no); (XI) vascular invasion (yes/no); (XII) postobstructive pneumonia (yes/no); (XIII) satellite nodules (yes/no); (XIV) pleural effusion (yes/no); (XV) lymph nodes (yes/no); (XVI) size (in mm); (XVII) subjective enhancement [uniform/heterogeneous/no (<15 HU)]; (XVIII) plain CT value (in HU); (XIX) enhanced CT value (in HU); (XX) enhanced difference (in HU).

Decision analysis for the radiologist’s diagnosis

We used the clinical CT report to assess the diagnostic performance of radiologist evaluation. All CT diagnostic reports were double read by two radiologists at the time of CT acquisition and assigned to one of five categories: (I) benign; (II) probably benign; (III) undetermined; (IV) probably malignant; (V) high suspicion of malignancy. These categories represent the radiologist classification of malignancy probability of the evaluated nodule in real clinical setting. In total, 27 radiologists in the radiology department were involved in CT reporting. In this study, we classified into three management groups defined the radiologist diagnosis risk thresholds based on the malignancy probability of the five categories (observe =1, indeterminate =2 or 3 or 4, surgery =5). The “Observe” group was recommended for CT follow-up, the “indeterminate” group was recommended for further work-up (short interval CT follow-up, PET-CT or biopsy), and the “surgery” group was recommended for surgery.

Statistical analysis

We randomly divided the tumors (n=827) into a training group (n=575) and testing group (n=252). Student’s t-test, chi-square test, and Kolmogorov-Smirnov test were used to assess each indicator in the training and testing group. Finally, a classification and regression tree (CART) method was constructed to assess variables that might discriminate between benign and malignant tumors (P value <0.05 in univariate analysis) (14-16). CART model builds a tree through recursive partitioning and splits data into increasingly homogeneous subgroups. At each parent node the CART algorithm picks the distinguishing variable and gives the best discriminatory cutoff value between two child nodes. The depth of the classification tree was set to automatic. The parent node stops splitting when the size is less than 15 nodes, and the child node stops splitting when the size is less than 5 nodes. To show the probability of the classification tree model, ≥80% probability for each node was assumed as the cut-off value. To simplify the classification tree diagram, we made concise tables. Three threshold grades (ST1, ST2, and ST3) were made to describe the malignancy probability in each child node (ST1 = IF Malignant% ≤20%; ST2 = IF 20% < Malignant% <80%; ST3 = IF Malignant% ≥80%). ST1 was classified as ‘observe’ group, ST2 suggested for further work-up (see above), and ST3 advised for surgery, similar to the radiologist’s decision (Appendix 2). Finally, we used the testing group to validate the discriminatory performance of the CART model. P<0.05 indicated statistically significant results. Data were analysed using SPSS software version 20.0 (IBM Corp., NY, USA).

Results

Lung tumor and population characteristics

In total, 827 tumors with a median size of 27.0 mm (IQR 18.0–39.0 mm) in 827 patients were included. Of the patients, 56.3% were men (466/827). Mean age was 57.5 years (SD, 9.4 years). In total, 487 (58.9%) lesions turned out to be malignant. The most common malignant histological type was adenocarcinoma (n=319, 65.5%), then squamous cell carcinoma (n=118, 24.2%) and large cell carcinoma (n=71, 14.6%); 340 (41.1%) turned out to be benign, the most common benign pathological types were hamartoma (n=156, 45.9%), inflammatory pseudotumor (n=80, 23.5%), sclerosing pneumocytoma (n=54, 15.9%) and tuberculosis (n=50, 14.7%) (Table 1). We found no statistically significant differences between the training and testing group in patient and nodule characteristics.

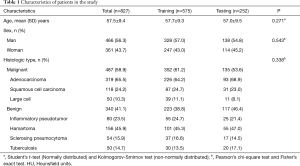

Table 1 Characteristics of patients in the study
Full table

Development of the CART model for predicting malignant and benign in training group

In the training group, nineteen variables (age, gender, nodule type, shape, margin, calcification, fat, cavitation, air bronchogram, pleural indentation, vascular invasion, postobstructive pneumonia, satellite nodules, lymph nodes, subjective enhancement, contrast-enhanced CT attenuation, plain CT attenuation, enhanced difference attenuation, size) were found to be different between the malignant and benign groups in univariate analysis (Table 2).These nineteen variables were entered into the CART model. Three categorical variables [subjective enhancement (no/uniform, heterogeneous); margin (smooth, lobulated/spiculated); shape (round/oval, irregular)] were automatically generated by the CART (Figure 1). The optimized classification diagram was shown in Figure 2. The sensitivity, specificity, PPV (positive predictive value), NPV (negative predictive value), and diagnostic accuracy of the CART model in the training group were 94.9%, 57.0%, 82.9%, 93.4%, and 80.2%, respectively.

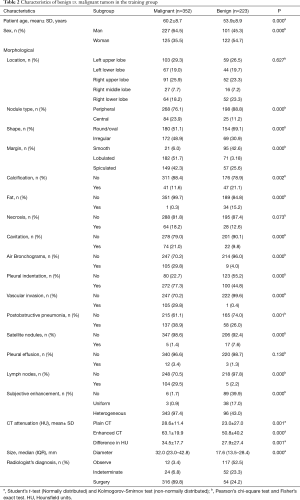

Table 2 Characteristics of benign vs. malignant tumors in the training group
Full table

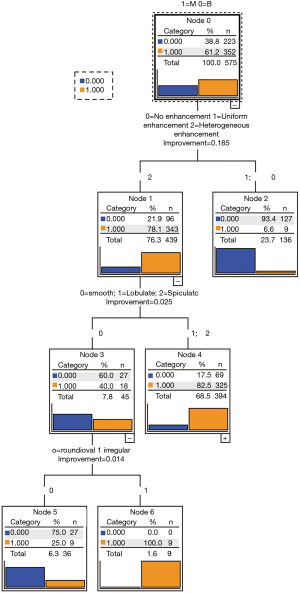

Figure 1 CART model for the classifying the malignancy of pulmonary solid tumor in the training group. CART, classification and regression tree.

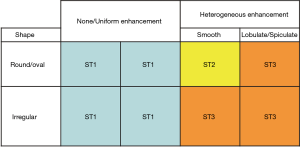

Figure 2 The optimized classification diagram of CART model (ST1 = IF Malignant% ≤ 20%; ST2 = IF 20% < Malignant% < 80%; ST3 = IF Malignant% ≥ 80). CART, classification and regression tree.

Validation of the CART models and radiologist’s diagnosis in the testing group

Both the radiologists and the CART model used three thresholds to determine the solid tumor malignancy risk. The classification performance of the CART models and radiologist’s diagnosis were evaluated using the testing group. The sensitivity specificity, PPV, NPV, and diagnostic accuracy to differentiate malignant from benign tumors were 98.5%, 58.1%, 80.6%, 98.6, and 79.8% for CART model and 90.4%, 54.7%, 82.4% 98.5% and 74.2% for radiologist’s diagnosis, respectively (Table 3).

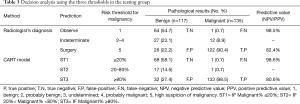

Table 3 Decision analysis using the three thresholds in the testing group
Full table

Discussion

Three radiological CT characteristics of solid lung lesions were shown to have discriminatory ability for malignant and benign lung tumors. These characteristics were: subjective enhancement, margin and shape. The CART model for solid tumors in our clinical population resulted in a higher diagnostic accuracy compared to radiologist’s diagnosis. Our results suggest that our contrast-enhanced CT based CART model can support radiologists in making a diagnosis decision of solid lung tumors (median diameter 27.0 mm, IQR 18.0–39.0 mm) in case only CT is available as a diagnostic tool.

Radiological characteristics (nodule type, size, shape, margin and location) and clinical information (age, gender, cancer history, smoking history) have been used to develop classification models (such as the models developed by Mayo Clinic, Brock University and Veterans Affairs) to predict the probability of malignancy of pulmonary tumors (17-19). However, several previous studies showed that the performance of these models, especially in large tumors, is moderate (20-23). Our previous study (24), comparing classification models (Veterans Affairs, Mayo, and Brock model) to the diagnosis of the radiologist for differentiation of lung nodules (median size: 17.0 mm, IQR 13.0–21.0 mm) into benign and malignant in a Chinese population, showed a lower discriminatory power for the three models compared with the radiologist’s diagnosis. In that study, less than 15.5% out of 207 malignancies were classified at and above the surgical threshold using the three classification models, while the remaining malignant nodules were considered indeterminate (VA model 44.9%, Mayo model 85.5%; Brock model 93.7%). The radiologist’s diagnosis showed higher performance contrast to the three classification models, with 8 (3.9%) under the observe threshold, 42 (20.3%) as indeterminate, and 157 (75.8%) above the surgical threshold. Since the prior study only included non-contrast CT features, we decided to develop a classification model for larger tumors, based on more radiological features (contrast-enhanced CT) and the characteristics of a local population referred to a tertiary cancer center in China. In the current study, based on large lung tumors cohort, we added contrast-enhanced CT features to the traditional radiological characteristics and used a classification model (CART) instead of logistic models. Compared with the logistics regression equation, the CART model can display each step of the diagnosis more intuitively. Finally, a three thresholds ST 1–3 classification system, was used to describe the probability of malignancy of solid tumors which is more consistent with the radiologist’s diagnosis process. Our results showed only 18 (7.1%) tumors predicted as ST2 (indeterminate) in the CART model, compared with 39 (15.5%) based on radiologist’s diagnosis. The sensitivity and specificity were 98.5% and 58.1% for the CART model compared to 90.4% and 54.7% for the radiologist’s diagnosis. Our CART model showed higher discriminatory power than radiologist’s diagnosis. This suggests that contrast-enhanced CT characteristics (subjective enhancement) are useful factors for distinguishing malignant and benign pulmonary lesions.

Several previous studies showed that the lack of lung tumor CT contrast enhancement (≤15 HU) is strongly predictive for benign pathology. This was found to be helpful in the discrimination of malignant and benign pulmonary lesions at contrast-enhanced CT (12,13,25). The sensitivity reached 98%, but the specificity for malignancy was only 50–60% by using 15HU as enhancement cut-off (13).In a study by Yi et al. (26) the sensitivity for malignant nodules was 99% with specificity of 57% by using 30 HU as the enhancement cut-off value. The authors concluded that contrast-enhanced CT is highly sensitive to detect malignant tumors but has low specificity. The latter might be explained by the fact that some benign nodules, such as sclerosing hemangioma (27), can enhance as well. These findings are similar to our study’s training group, 93.7% (89/95) of the lesions with no enhancement (<15 HU), 92.7% (38/41) with uniform enhancement, and 21.9% (96/439) with heterogeneous enhancement being benign. The extent of enhancement may reflect underlying tumor angiogenesis. Therefore, radiologists cannot simply rely on an enhancement cut-off value to discriminate the benign and malignant tumors in clinical practice. In our CART model, we used subjective enhancement [(uniform, heterogeneous, no (<15 HU)] instead of a HU cut-off value. In total, 96.4% (54/56) of the lesions with uniform enhancement patterns were benign. Combined with tumor shape and margin features, our CART model achieved an overall diagnostic accuracy of 79.8%, which was higher than 74.2% by radiologist’s diagnosis. This difference is mainly determined by the larger indeterminate malignant group in the radiologist.

There are limitations in our study. First, selection bias is unavoidable in our study. We only included surgically resected solid tumors with known pathology. This may lead to more malignancy features to be present compare to non-resected benign solid tumors. Furthermore, this is a retrospective single-center study from a dedicated Chinese cancer hospital. The clinical application of the results may require more central data to verify. Finally, the CART model should include more clinical information (smoking history, cancer history, and family history of cancer) to improve the diagnosis performance.

To conclude, a CART model based on contrast-enhanced CT characteristics was more sensitive and accurate in the classification of malignancy of solid lung tumors than radiologist’s diagnosis. This classification model could assist radiologists to make recommendations regarding follow-up or surgery in clinical patients with a solid lung tumor.

Acknowledgments

Funding: This study has received funding by the Ministry of Science and Technology of the People’s Republic of China National Key R&D Program of China (grant number: No. 2018YFC1315600 and No. 2016YFE0103000), the Royal Netherlands Academy of Arts and Sciences (grant number. PSA_SA_BD_01), and the University Medical Center Groningen PhD Scholarship program.

Footnote

Reporting Checklist: The authors have completed the TRIPOD reporting checklist. Available at https://dx.doi.org/10.21037/jtd-21-588

Data Sharing Statement: Available at https://dx.doi.org/10.21037/jtd-21-588

Peer Review File: Available at https://dx.doi.org/10.21037/jtd-21-588

Conflicts of Interest: All authors have completed the ICMJE uniform disclosure form (available at https://dx.doi.org/10.21037/jtd-21-588). The authors have no conflicts of interest to declare.

Ethical Statement: The authors are accountable for all aspects of the work in ensuring that questions related to the accuracy or integrity of any part of the work are appropriately investigated and resolved. The institutional ethics committee board of Tianjin Medical University Cancer Institute and Hospital (No. bc2018039) approved this study. All participants signed an informed consent form before participating in this study. This study conformed to the provisions of the Declaration of Helsinki (as revised in 2013).

Open Access Statement: This is an Open Access article distributed in accordance with the Creative Commons Attribution-NonCommercial-NoDerivs 4.0 International License (CC BY-NC-ND 4.0), which permits the non-commercial replication and distribution of the article with the strict proviso that no changes or edits are made and the original work is properly cited (including links to both the formal publication through the relevant DOI and the license). See: https://creativecommons.org/licenses/by-nc-nd/4.0/.
