Use quantitative parameters in spectral computed tomography for the differential diagnosis of metastatic mediastinal lymph nodes in lung cancer patients

Introduction

Lung cancer is the malignant tumor with the highest morbidity and mortality currently. It is reported that the 5-year survival rate of non-small cell lung cancer (NSCLC) is about 23.6%, while that of small cell lung cancer (SCLC) is only 7% (1). Among the patients with lymph node (LN) metastasis, only 26% to 53% of patients had a survival of more than 5 years (2,3). Accurate staging of LN metastases is very important for the treatment and prognosis of lung cancer patients.

Computed tomography (CT) is commonly used to evaluate the mediastinal LN metastasis in clinical practice. Short diameter of a lesion larger than 1 cm is usually used as the diagnostic criteria for LN metastasis, but the overall accuracy is not high. Almeida et al. (4) studied the diagnostic criteria and found that CT yielded a sensitivity and specificity of 51% and 85%, respectively. Nguyen et al. found that the false positive rate and false negative rate were 40% and 20%, respectively (5). Positron emission tomography (PET)/CT can also be used to diagnose mediastinal LN metastasis of lung cancer, but the main limitations of PET/CT are a high radiation exposure, limited availability and high economic demands (6). Zhao et al. (7) performed a meta-analysis to evaluate the role of F-18 FDG PET/CT in detecting mediastinal nodal metastasis and showed a 72% sensitivity and 89% specificity. But Zhai et al. (8) indicated that, in the diagnosis of metastatic and non-metastatic LNs, the threshold of SUVmax of LN is still controversial. A meta-analysis study in (9) showed that pooled specificity for F-18 FDG PET or PET/CT was 0.65 [95% confidence interval (CI): 0.57–0.72], meaning that false positive rate was 35%. Hence, at present, PET/CT is still not routinely used in every patient in clinic. LN biopsy is the gold standard for diagnosis, but the invasive procedure can increase the discomfort of patients and the risk of complications (10). Thus, new methods, especially non-invasive approaches, for detecting mediastinal nodal metastasis in lung cancer are needed.

Characterized by instantaneous double KVp switching, spectral CT imaging can obtain spectral curve slope and the separation image of substances, so as to identify substances with different chemical composition (11-13). The main difference between spectral and traditional CT is that the latter can only depict the changes of different substances through density. Sun et al. (14) indicated that traditional CT is not able to distinguish two different substances with the same density, but spectral CT can solve this problem. At present, spectral CT has been used to determine LN metastasis in multiple tumors such as rectal cancer, gastric cancer and laryngeal cancer (15-17), and these studies have shown that spectral CT has a certain diagnostic ability in LN characterization. However, there lacks universal guidelines for using spectral CT in the quantitative determination of mediastinal LNs in lung cancer. The purpose of this study was to explore using quantitative parameters in spectral CT for diagnosing mediastinal LN metastases in lung cancer patients.

We present the following article in accordance with the STROBE reporting checklist (available at https://dx.doi.org/10.21037/jtd-21-385).

Methods

Subjects

The study was conducted in accordance with the Declaration of Helsinki (as revised in 2013). The study was approved by the Ethics Committee of First Affiliated Hospital of Guangzhou Medical University (Medical research ethical review 2019, No. K47) and individual consent for this retrospective analysis was waived. Sixty-four lung cancer patients admitted to our hospital from April to December 2019 were selected in this study (Figure 1). All the patients underwent unenhanced chest CT scan and contrast enhanced arterial phase (AP) and venous phase (VP) spectral CT scans. The primary lesion and mediastinal LNs were proven pathologically by operation or puncture, including 55 patients who underwent resection of lung cancer and LN dissection, and nine patients who underwent bronchoscopic LN biopsy. There were 31 cases with LN metastasis and 33 cases without LN metastasis. Our inclusion criterion is that the short diameter of LNs must be larger than 5 mm (18). Because it is technically challenging to position the circular region of interest (ROI) in these small LNs that are less than 5 mm, we chose LNs whose short diameters were larger than 5 mm. Patients who had chemotherapy, radiotherapy, and target therapy were excluded. Patients whose images had artifacts that affects measurement or location of LNs on CT was unclear were also excluded. Among the 64 patients, there were 41 males and 23 females, ranging in age from 33 to 87 years old, with an average age of 61.3±10.3 years. The primary pathological types of 64 lung cancer patients are shown in Table 1. Adenocarcinoma is the most common (37/64), followed by squamous cell carcinoma (10/64).

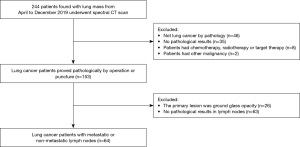

Figure 1 The inclusion and exclusion of patients.

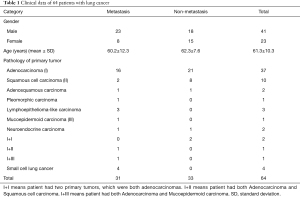

Table 1 Clinical data of 64 patients with lung cancer
Full table

Image acquisition

GE Revolution 256 row energy spectrum CT machine was used. All patients were scanned with Gemstone Spectral Imaging (GSI) mode. The scanning range was from the thoracic entrance to the level of costal diaphragmatic angle. Energy spectrum GSI scanning was performed in unenhanced scan, AP and VP, and the voltage was switched between high and low energy (80 and 140 kVp) (0.25 s). A non-ionic contrast agent, iodixanol (320 mg I/mL), was injected with a double-cylinder high-pressure syringe through the anterior cubital venous group, with a flow rate of 4.5 mL/s and 1.0 mg/kg. AP was scanned 22 s after injection of contrast agent, and VP was scanned 60 s later. The scanning parameters were as follows: spiral scanning mode, frame rotation time 0.5 s rotation, pitch 0.992, tube current: automatic millisecond, layer thickness and interval 0.625 mm, and field of view (FOV) 350 mm × 350 mm.

CT image analysis

All the original images were uploaded to an GE ADW4.7 post-processing and reconstruction workstation with 1.25-mm thickness. The 70-keV single-energy image with the highest signal-to-noise ratio in monoenergetic mode was selected to measure the short diameter of LNs, the CT values of single-energy 70 keV in unenhanced scan, and AP and VP scans. And the iodine concentration (IC, 100 µg/cm³), water concentration (WC) and aortic iodine concentration (ICaorta) were measured. The normalized iodine concentration (NIC) was calculated as the ratio of IC divided by ICaorta, i.e., NIC = IC/ICaorta. After drawing the ROI around each target object, the computer automatically obtained the CT value under different single energy to form the energy spectrum attenuation curve. The CT value of 40 and 140 keV of each spectral image were measured, which was used to calculate the slope of the spectrum curve (λHU). The λHU was calculated, with 40 and 100 keV serving as the reference points, by dividing the difference in CT value by the difference in energy between the two points, that is, λHU = (CT_{40 keV} − CT_{100 keV})/60 (19).

ROI around LN was placed on the slices showing the maximum cross-section of the legions. The placement of ROI was to avoid surrounding fat tissue, necrosis, calcification, and blood vessels. In the meantime, we tried to place the ROIs in a consistent manner in terms of size, shape, location and on the same slices across the unenhanced scan, and AP and VP scans.

Imaging and pathology comparison criteria

Mediastinal LNs were divided according to the map of the 2009 International Association for the Study of Lung Cancer (IASLC map) (20,21), and compared with the postoperative or puncture pathological results of the corresponding regional LNs. The selection of LNs was based on surgical record and pathological result. In this process, we made a one-to-one match between each LN on the CT and the pathological confirmation and discarded the LNs that could not be matched with pathology.

Statistical analysis

We used SPSS 25.0 software for statistical analysis. For the comparison of two independent groups of measurement data, if each group of data obeys normal distribution, then independent sample t-test was used, otherwise the rank sum test (Wilcoxon) was used. Receiver operating characteristics (ROC) curve was created for the measurement data with statistically significant parameters between the two groups to determine the optimal cut-off value. Sensitivity, specificity, and the area under the curve (AUC) were calculated. All the parameters that had significant differences, including spectral and traditional CT parameters, were analyzed in combination. A test level P<0.05 was considered statistically significant.

Results

Data of the subjects

The primary pathological types of 64 lung cancer patients are shown in Table 1. There were 31 cases with LN metastasis and 33 cases without metastasis. A total of 74 metastatic and 152 non-metastatic LNs were obtained, and 22 LNs were excluded due to artifacts. The zones of metastatic and non-metastatic LNs are shown in Table 2.

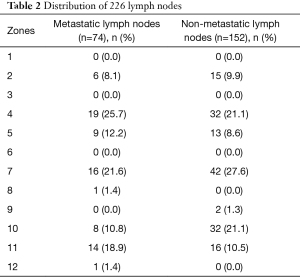

Table 2 Distribution of 226 lymph nodes
Full table

Quantitative parameter analysis of metastatic and non-metastatic LNs

Short diameter and CT value of LNs

The slice which showed the largest cross section of a LN was selected for measurement. The short diameter of metastatic LNs ranges from 7.1 to 44.0 mm, with an average of 14.35±7.73 mm. The short diameter of non-metastatic LNs ranges from 5.0 to 13.9 mm, with an average of 8.18±1.77 mm. Statistically, the short diameter of metastatic LNs is larger than that of non-metastatic LNs (P<0.001) (Table 3). Of the 74 metastatic LNs, 48 (64.9%) had a short diameter ≥10 mm, while 26 (35.1%) had a short diameter <10 mm. Of 152 non-metastatic LNs, 128 (84.2%) had a short diameter <10 mm, but 24 (15.8%) had a short diameter ≥10 mm.

Table 3 Comparison of short diameter and CT value of metastatic and non-metastatic LNs
Full table

In terms of CT value (Table 3), the unenhanced scan of metastatic LN was about 39.00±9.33 HU, and that of non-metastatic LN was 45.20±12.83 HU. There was significant difference in unenhanced scan CT value between metastatic and non-metastatic LNs (P<0.001), but there was no significant difference between AP and VP scans (P=0.07, 0.076, respectively).

Quantitative parameter of spectral CT

There were significant differences in IC, NIC and λHU between metastatic LNs and non-metastatic LNs on unenhanced scan (P<0.001, P=0.007, P<0.001) (Table 4). The IC, NIC and λHU of non-metastatic LNs were higher than those of metastatic LNs (Figures 2,3), but there was no significant difference in WC between metastatic and non-metastatic LNs. In AP, the IC and λHU of non-metastatic LNs were higher than those of metastatic LNs (P<0.001, P<0.001, P<0.001, respectively). The WC in AP of non-metastatic LNs was also significantly higher than that of metastatic LNs (P<0.001), but there was no significant difference in NIC between the two groups (P=0.092). In VP, IC, NIC and λHU of non-metastatic LNs were significantly higher than those of the metastatic LNs (P=0.004, P=0.016, P=0.003, respectively). However, there was no statistical significance in WC (P=0.05).

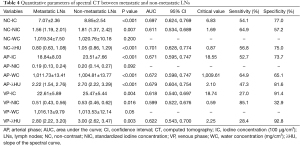

Table 4 Quantitative parameters of spectral CT between metastatic and non-metastatic LNs
Full table

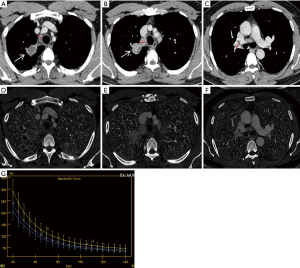

Figure 2 Infiltrative adenocarcinoma of right upper lung with 2R and 4R LN metastases. (A-C) The VP 70-KeV monochromatic images showed the primary tumor (A, red arrow), 2R LN metastasis (B, red arrow), and 4R LN metastasis (C, red arrow), and the CT value of 2R and 4R LN metastases was 63.6 and 61.2 HU. (D) The λHU of 2R and 4R LN metastases in VP were 2.62 and 2.23. (E,F) In iodine-based images, IC and NIC of 2R (E, red arrow), and 4R (F, red arrow) LN metastases were 23.10 (100 µg/cm³), 0.47 and 19.82 (100 µg/cm³), 0.40, respectively. CT, computed tomography; IC, iodine concentration; LN, lymph node; NIC, normalized iodine concentration; VP, venous phase; λHU, slope of the spectral curve.

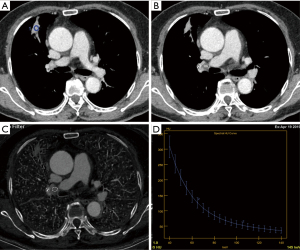

Figure 3 Infiltrative adenocarcinoma of right upper lung without right lung hilum (10R) LN metastasis. (A,B) The VP 70-KeV monochromatic images showed primary tumor (A) and 10R non-metastatic LN (B), and the CT value of 10R LN metastasis was 108.4 HU. (C) In iodine-based images, IC and NIC of 10R LN were 34.39 (100 µg/cm³) and 0.52. (D) In the spectral curve of 10R LN, λHU was 4.25. The blue and white circles represent the ROI we draw in the primary lesion and 10R LN respectively. CT, computed tomography; IC, iodine concentration; LN, lymph node; NIC, normalized iodine concentration; VP, venous phase; λHU, slope of the spectral curve; ROI, region of interest.

ROC curve analysis of metastatic and non-metastatic LNs

The statistically significant parameters were analyzed by ROC curve (Table 4). The largest AUC was the short diameter of LNs, AUC =0.853 (95% CI: 0.803–0.904). When the Jordan index reached its maximum, the cut-off value was 10.75 mm (sensitivity 60.8%, specificity 92.8%), the positive likelihood ratio (LR) (+) was 8.4 and negative LR (−) was 0.42. The diagnosis value of spectral parameters combined with traditional CT parameters improved, with a combined AUC =0.877 (95% CI: 0.829–0.952), sensitivity 82.4%, and specificity 77.6%.

Discussion

LN staging is very important as it affects the treatment and prognosis of patients with lung cancer (22,23). In the case of excluding distant metastasis, it is crucial to determine whether there is mediastinal LN metastasis. However, accurate N staging in TNM staging is more difficult than T staging. It has been reported that the total coincidence rate of preoperative clinical TNM staging and postoperative pathological TNM staging in patients with lung cancer is only 39%, mainly because of the low diagnostic accuracy in determining metastatic mediastinal LNs. At present, the commonly used diagnostic criteria for mediastinal LN metastasis of lung cancer is that the short diameter of LNs is more than 10 mm. However, for metastatic LNs with a short diameter less than 10 mm and non-metastatic LNs larger than 10 mm, the above criterion causes misdiagnosis. In our study, 26 (35.1%) of 74 metastatic LNs had a short diameter <10 mm and 24 (15.8%) of 152 non-metastatic LNs had a short diameter ≥10 mm (Table S1), indicating a certain overlap in size between metastatic and non-metastatic LNs.

Spectral CT can distinguish lesions of different chemical components by energy spectrum attenuation curve (24). In this study, the λHU of non-metastatic LNs was larger than that of metastatic LNs in three phases (P<0.001, P<0.001, and P=0.003), indicating that the spectral curve of non-metastatic LNs was different from that of metastatic LNs. The energy spectrum curve of unenhanced scans has a higher diagnostic value in distinguishing between metastatic and non-metastatic LNs than enhanced scans. We considered that the slope of spectral curve of unenhanced scans accurately reflects the heterogeneity of the tissue composition. Intuitively, for metastatic LNs with tumor cell infiltration and normal LNs, their inner cell compositions are different, which may result in different spectral curves, that is, spectral curve can identify substances with different chemical composition. But in enhanced scans, the enhancement of each LN varies. We postulated that different concentration of iodine will affect how spectral curve identifies the underlying substances, and, as the result indicated, λHU on unenhanced scans was more meaningful than enhanced scans.

Apfaltrer et al. and Chen et al. separately have shown that the quantification of iodine can be used as a marker of tumor vascular distribution (25,26). In this study, the IC of metastatic LNs in AP and VP and NIC in VP were lower than those in non-metastatic LNs, which was consistent with the observation made by other researchers (15,18,27,28), indicating that the vascular density of metastatic LNs was lower than that of non-metastatic LNs. On one hand, pathophysiological changes that affect tissue blood volume and vascular permeability will influence the degree of enhancement on CT. Although tumor cells produce vascular endothelial growth factor (VEGF) to stimulate neovascularization, using enhancement of blood vessels as a biomarker for metastases may not be robust as studies have shown the different types of lung cancer may have various degree of neovascularization and they have difference likelihoods of developing necrosis (29). In addition, the infiltration of tumor cells may cause vascular stenosis or even occlusion, resulting in a low degree of enhancement. On the other hand, non-metastatic LNs have normal and mature vessels, giving them a higher degree of enhancement on CT. Indeed, previous studies have shown that the blood vessel density of non-metastatic LNs is higher than that of metastatic LNs (30), so the IC and NIC of metastatic LNs are lower than those of non-metastatic LNs. Figure 4 showed that IC and NIC of 2R and 4R metastatic LNs are larger than that of 10R non-metastatic LNs. In terms of CT value, density of non-metastatic LNs on unenhanced scans was generally higher than that of metastatic LNs (P<0.001), and the cut-off value was 48.95 HU, but the diagnostic efficacy (AUC =0.637) and specificity (38.8%) were not high, and there was no significant difference in CT values between the two groups measured in AP and VP. Our results show that the iodine quantification in energy spectrum CT can better assess the blood supply and perfusion of tissue than CT value. As solid components of LNs were mainly involved in the measurement, calcification, fat, and blood vessels were not included in traditional CT. If there is no necrosis in some metastatic LNs, it is difficult to identify them as benign or malignant on traditional CT. Therefore, the iodine quantification in energy spectrum CT can better reflect the difference of tissue blood flow and perfusion between metastatic and non-metastatic LNs than CT value.

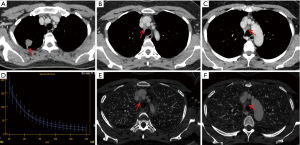

Figure 4 Lymphoepithelioma-like carcinoma of right upper lung with 2R and 4R LN metastases and without right hilum (10R) LN metastasis. (A-C) The VP 70-KeV monochromatic images showed primary tumor (white arrow) and 2R metastatic LNs (red line, A), 4 R metastatic LNs (red line, B), 10R non-metastatic LNs (red line, C). The short diameters and CT values of 2R, 4R and 10R LNs were 8.3, 15.8, 11.5 mm and 68.7, 89, 105.2 HU, respectively. (D-F) In iodine-based images, IC and NIC of 2R, 4R and 10R LNs were 22.33 (100 µg/cm³), 0.46, 24.92 (100 µg/cm³), 0.51 and 30.89 (100 µg/cm³), 0.64, respectively. (G) The spectral curve slope and λHU of 2R (blue line 1), 4R (blue line 2) LN metastases and 10R (yellow line 3) non-metastatic LNs in VP were 2.73, 3.0, and 3.71, respectively. IC, iodine concentration; LN, lymph node; NIC, normalized iodine concentration; VP, venous phase; λHU, slope of the spectral curve.

There was significant difference in NIC of the LNs in VP between the two groups, but there was no significant difference in NIC in AP. The calculation of NIC can exclude the influence of systemic circulation, blood vessels and other factors between different individuals, and can reflect the local blood supply more truly and objectively. However, due to the low degree of enhancement of LNs in the AP, the IC of the aorta varies greatly at different levels, affecting the stability of NIC. The distribution of contrast media in the LNs is more uniform and closer to the peak of enhancement in the VP, which can better reflect the outflow of contrast media.

This study analyzed the characteristics and differential points of spectral CT of metastatic and non-metastatic LNs in lung cancer patients. Different from the previous research, which focus on analyzing enhanced images, we carried out energy spectrum imaging on unenhanced scans and found differences in the IC, NIC and CT value on unenhanced scan. This work has its limitations. One limitation is that we did not analyze whether there is a structural difference between the central area of the LNs and the surrounding area. Also, the sample size of this study was relatively small. We expect to be able to derive more accurate guidelines with an increased sample size.

Conclusions

Quantitative parameters of spectral CT have a certain effectiveness for differential diagnosis between metastatic and non-metastatic LNs in lung cancer patients.

Acknowledgments

Funding: Natural Science Foundation of Guangdong Province, China (2019A1515011382); Science and Technology Planning Project of Guangzhou, Guangdong Province, China (201904010130); 2019 Achievement Transformation and Cultivation Project of the First Affiliated Hospital of Guangzhou Medical University (ZH201906).

Footnote

Reporting Checklist: The authors have completed the STROBE reporting checklist. Available at https://dx.doi.org/10.21037/jtd-21-385

Data Sharing Statement: Available at https://dx.doi.org/10.21037/jtd-21-385

Peer Review File: Available at https://dx.doi.org/10.21037/jtd-21-385

Conflicts of Interest: All authors have completed the ICMJE uniform disclosure form (available at https://dx.doi.org/10.21037/jtd-21-385). The work of HC was supported by the Natural Science Foundation of Guangdong Province, China (2019A1515011382) and the Science and Technology Planning Project of Guangzhou, Guangdong Province, China (201904010130). The work of Suidan Huang was supported by 2019 Achievement Transformation and Cultivation Project of the First Affiliated Hospital of Guangzhou Medical University (ZH201906). The other authors have no conflicts of interest to declare.

Ethical Statement: The authors are accountable for all aspects of the work in ensuring that questions related to the accuracy or integrity of any part of the work are appropriately investigated and resolved. The study was conducted in accordance with the Declaration of Helsinki (as revised in 2013). The study was approved by the Ethics committee of First Affiliated Hospital of Guangzhou Medical University (Medical research ethical review 2019, No. K47) and individual consent for this retrospective analysis was waived.

Open Access Statement: This is an Open Access article distributed in accordance with the Creative Commons Attribution-NonCommercial-NoDerivs 4.0 International License (CC BY-NC-ND 4.0), which permits the non-commercial replication and distribution of the article with the strict proviso that no changes or edits are made and the original work is properly cited (including links to both the formal publication through the relevant DOI and the license). See: https://creativecommons.org/licenses/by-nc-nd/4.0/.
