Efficacy and safety of a new disposable percutaneous positioning device invented to facilitate the precision of percutaneous core needle lung biopsies: a prospective, open and randomized controlled study

Introduction

Precision diagnoses and treatments for patients with suspected lung cancer mostly depend on accurate histopathological subtyping and molecular profiling, after analysis of a biopsy specimen obtained by minimally invasive means (1). CT-guided percutaneous lung biopsy (CT-PLB) is a commonly used method for obtaining small specimens of peripheral pulmonary nodules and is also an important component of non-vascular intervention techniques in the lungs (2-4).

The surgeon must transfer the planned insertion angles from the virtual 3D image space to the patient and insert the needle accordingly. Depending on his/her confidence and the risk of damaging critical tissues, the surgeon may choose to insert the needle in a single stroke or, more typically, employ a stepwise procedure, with intermediary confirmation scans and angular adjustments, which makes the number of iterations highly dependent on the individual surgeon’s skill. The iterative process of manual adjustments to needle placement and subsequent validation has three direct negative consequences: (I) increased tissue damage with each erroneous needle insertion; (II) increased radiation exposure of the patient and surgeon with each image scan, in the case of X-ray-based imaging; and (III) increased costs and equipment occupation due to the increased procedure time. In order to avoid these problems novel CT navigation systems have been introduced ranging from electromagnetic and augmented reality CT navigation systems to an optical tracking system and a multi-slice computed tomography three-dimensional digital navigated puncture technique (5-12).

Here we present a newly developed percutaneous disposable positioning device that can precisely adjust the insertion angle of the coaxial system (coaxial tube) and fix the angle of the insertion tract during the percutaneous intervention process to improve the accuracy of core needle lung biopsies (CNLBs).

We hypothesized that with the novel device, X-ray exposure and operation times as well as the incidence of complications would be markedly reduced.

We present the following article in accordance with the CONSORT reporting checklist (available at https://dx.doi.org/10.21037/jtd-20-3282).

Methods

Patients

This is a prospective, open and randomized controlled study with two parallel groups conducted in the Shanghai Chest Hospital. The experimental group were operated on with the new positioning percutaneous device to assist with CT-guided percutaneous CNLB; the control group underwent standard CT-guided percutaneous CNLB (Figure 1). The trial was conducted in accordance with the Declaration of Helsinki (as revised in 2013). All preoperative patients received relevant laboratory tests, electrocardiograms (ECGs) and chest CT examinations, and were required to sign informed consent before being enrolled. The study was approved by the Ethics Committee of the Shanghai Chest Hospital (KS(Y)1676) and registered with the China Clinical Trial Center (www.chictr.org.cn, No. ChiCTR-INR-17010322).

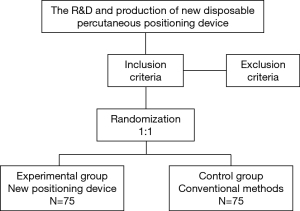

Figure 1 Flow chart of the study. R&D, research and development.

Inclusion criteria

• Patients of any gender aged 18 to 80 years, with a performance status (PS) score of 0 or 1;
• Peripheral pulmonary solid occupation and maximum diameters of lesions on the proposed percutaneous path ≥15 mm;
• Parameters of a routine blood test, coagulation function test and other indicators (ECG, lung function) were normal before CNLB;
• Patient agreed to join in the study and signed written informed consent.

Exclusion criteria

• Coagulation abnormalities or a tendency to bleed;
• Other diseases such as poor pulmonary functions, pulmonary fibrosis, pulmonary hypertension or severe emphysema;
• Cardiac insufficiency, myocardial infarction or uncontrolled severe arrhythmia;
• Maximum diameters of lesions on the proposed percutaneous path were <15 mm;
• Proposed percutaneous angles were parallel or vertical to the horizontal, i.e., 0° or 90°;
• Lung herpes or a pulmonary cyst on the proposed percutaneous path;
• Proposed percutaneous lesions were highly suspected to be intrapulmonary vascular lesions, such as vascular malformation and aneurysms;
• Inability to tolerate the percutaneous process or uncontrolled severe cough;
• Did not provide signed written informed consent.

Stopping guideline

• The investigator deemed it medically necessary to stop the trial;
• Sponsor requested to stop the trial;
• The ethics committee ordered the stop of the trial for some reason.

Equipment

An uCT510 16-layer spiral CT machine (United Health Imaging, UIH, China) was utilized for scans. Its specific parameters were 120 kV, 150 mA, pitch 0.9375, rotation time 0.6 s, thickness of layer 5 mm and layer spacing 5 mm. As for biopsy, this study used core needle biopsy (CNB) that utilized the Bard^® TruGuide^TM disposable coaxial biopsy needle (specification: C1816A, Bard Peripheral, Inc., US). It is comprised of a coated needle on the outside and a coaxial core needle inside. The disposable biopsy needle (specification: MN1816, Bard^®) had two options of a tissue cutting groove length, namely 15 or 22 mm. In the present study, we used only a needle with a 15 mm cutting groove. A fully automatic percutaneous biopsy gun (specification: MG1522, Bard^® Magnum^TM) was also employed.

Design of the new self-developed disposable percutaneous positioning device

The new disposable percutaneous positioning device assists in adjusting and fixing the percutaneous angle of the biopsy needle and avoids the offset of the insertion path. It functions in conjunction with the use of coaxial biopsy needles and external protractors. The device consists of 3 integrated structures namely a positioning plate, a positioning bead and a fixed snap (Figure 2). Before injection, the positioning device is pasted onto the percutaneous point. The coaxial biopsy needle penetrates the chest through the percutaneous hole in the center of the positioning bead and the input horizontal angle is adjusted by the external protractor. Then we fastened the fixed snap around the positioning bead to lock the position of the adjusted coaxial biopsy needle.

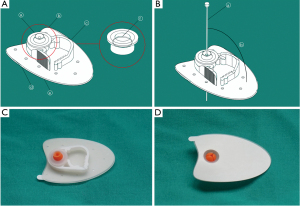

Figure 2 The new disposable percutaneous positioning device. (A) Device model before penetration (a) positioning bead, (b) pinhole, (c) fixed snap, (d) silicone plate, (e) medical adhesive plate (f) lead wire. (B) Device model after penetration (a) percutaneous needle, (b) penetrating angle. (C) Physical product, front. (D) Physical product, back.

The device had the following design characteristics: (I) the penetrating path of needles in the device could be visualized on the CT image; (II) the fixed snap that held the needle and positioning bead could strengthen the fixing function; (III) the positioning plate was made of elastic rubber material, which perfectly fitted the skin; several holes were incorporated in the plate to improve air permeability; (IV) the integrated design of the device reduced the complexity of the positioning system. It is simple and convenient to operate and can be clinically popularized compared with the IG4 electromagnetic navigation (11-14), CT 3D digital navigation or the 3D printing common-sided percutaneous template systems.

A Chinese national invention patent (No. 201811176318.X) and a patent cooperation treaty (No. PCT/CN2019/108869) has been applied for this device. A Chinese utility model patent (No. 201821638194.8) has been granted.

Conventional CT-guided percutaneous CNLB methods and the new percutaneous positioning device

In the present study, the entire puncture process was performed by Y. Xu as the first operator and assisted by the radiology team, including radiologists (J.D. Ye, L. Zhu), and radiology technicians (Y.B. Sun, J. Jiao and Q.M. Ni). Y. Xu is the director of the Department of Oncology and has performed more than 1,000 cases of CT-PLBs. The director, assistant directors and professionally trained technicians in the radiology team have been engaged in CT-PLB sampling for more than 10 years.

Conventional CT-guided percutaneous CNLB method

• The patient was placed in a flat position (supine or prone) and received their first CT scan. The proposed horizontal penetrating angle (sharp angle), the straight distance of the positioning point from the skin to pleura and other parameters were measured on the CT monitor, and then the percutaneous point was marked on the skin.
• After routine preparation for surgery (disinfection, towel placing), local anesthetic was injected into the pleural membrane (lidocaine).
• Next, following previously set parameters, the surgeon penetrated the coaxial biopsy needle through the percutaneous point of the skin into the chest until it reached the nodular lesion with the help of an external digital angle instrument, and then until the tip reached the inside of the lesion, according to previous studies (15-18).
• A second CT scan was performed to determine the tip of the coaxial biopsy needle had reached the inside of the lesion and met the requirements for a subsequent cutting biopsy so that the entire percutaneous positioning process was completed. If the tip of the coaxial biopsy needle did not reach the required position, or if the tip reached the inside of the lesion but did not meet the need for a subsequent cutting biopsy, the former steps were repeated until the requirements were met.
• After pulling out the core coaxial biopsy needle, we kept the biopsy needle in place and inserted it from the coaxial positioning pinhole channel into the target position of the lesion. The biopsy needle was activated to cut tissue and then the biopsy needle was withdrawn with appropriate specimens attached. This operation could be repeated according to the clinical requirements for multiple sampling.
• After sampling sufficient specimens, the core coaxial biopsy needle was inserted inside the coat coaxial biopsy needle, spun and then the coaxial biopsy needle was withdrawn and the positioning device removed from the patient’s skin.

Finally, a third CT scan was conducted to determine whether percutaneous complications had occurred (Figure 3).

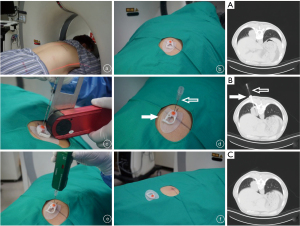

Figure 3 Instructions for the new positioning percutaneous device. Panels (a)-(f) correspond to the text description steps; ABC is the first, second and third CT scan image, respectively. (A) the status of step 1 before the operation; the patient was placed in a flat postion (prone) and received the first CT scan; (B) the status of step 4; now the coaxial biopsy needle has been placed (reaching the inside of a particular lesion), and the new device also can be seen at the same time, so that the biopsy can be performed; (C) the status of step 6 after sampling specimens; the coaxial biopsy needle was withdrawn and the postioning device was removed; finally, the patient received the last CT scan to determine that percutaneous complications had not occurred. Solid arrow, new positioning device; hollow arrow, coaxial biopsy needle.

Instruction for the new percutaneous positioning device

Steps (I), (II), (V) and (VI) were the same as for the conventional CNLB technique (control group). The different steps were: (III) the surgeon pasted the new positioning device to the percutaneous point on the skin, and then penetrated the coaxial biopsy needle into the chest through the percutaneous hole in the center of the positioning bead. A proper horizontal angle was obtained by adjusting the external digital angle instrument so that the needle entered the chest through the percutaneousd skin point to the targeted lesion inside. (IV) After a second CT scan, the surgeon determined whether the tip of the coaxial biopsy needle had reached the inside of a particular lesion and met the requirements for a subsequent cutting biopsy. If the procedure was deemed to be successful, fixed snaps were fastened, the coaxial biopsy needle locked and the percutaneous positioning completed. If the tip of the coaxial biopsy needle did not reach the desired position or if the tip of the needle reached the inside of the lesion but did not meet the requirements for a subsequent cutting biopsy, the steps were repeated until the requirements were met (Figure 3).

Basic demographic information and laboratory indicator measurements

Basic demographic information was obtained from patient hospitalization medical records. All preoperative patients were subjected to laboratory tests, electrocardiogram and chest CT examinations to determine lesion sizes, locations, possible complications and other relevant information.

The primary endpoint was the success rate of reaching the target location on the first percutaneous attempt (the number of cases of reaching the predetermined location on the first percutaneous attempt/total biopsied cases) confirmed by CT scans and verified by the surgeon; the secondary endpoints were the number of CT scans performed for successful percutaneous positioning and the time required to complete percutaneous positioning. Safety assessments were divided into complications related to percutaneous surgery, which included: (I) pneumothorax; (II) bleeding; (III) pneumothorax combined with bleeding; (IV) others (including rare complications such as pleural reactions) and complications related to the new positioning device; (V) skin allergies to medical adhesives; (VI) slips due to looseness or failure to bond the device component during the biopsy process. The severity of complications was categorized into 5 degree levels: I (observation only); II (needs treatment, no prolonged hospitalization); III (treatment, extended hospitalization for at least 48 h), IV (life-threatening), and V (death). Two h after biopsy and during the next day, expiratory posteroanterior chest radiographs were carried out to check for pneumothorax (19). Clinical pactice should be followed according to the severity of the recorded complications thus: (I) continue the biopsy process and subsequent observation and follow-up; (II) stop the biopsy process and conduct corresponding treatments (hemostasis treatment by drug injection or thoracic catheter drainage).

The clinical prognosis of complications was classified into 4 categories: (I) healing; (II) improvement; (III) no improvement; or (IV) unknown. All patients were followed-up by telephone consultations 1 week after their percutaneous operations.

Sample size

Considering previous studies, the success rate of puncture by a one-time attempt was 50% in the control group (20,21) and the superior surgeon in our team had a 60% success rate in clinical practice. We assumed, that the success rate of puncture by a one-time attempt would be 60% in the control and 95% in the experimental group. Group sample sizes of 62 in each group achieved a 90.19% power to detect a difference between the group proportions of 0.35. The control group proportion was 0.60 and the experimental group proportion was assumed to be 0.75 under the null hypothesis and 0.95 under the alternative hypothesis. The test statistic used was a one-sided Z test (unpooled). The significance level of the test was set at 0.05. In the present study, 72 cases were recruited into each of the 2 groups to allow for an expected 15% drop-out rate.

Randomization

The study participants were divided into an experimental group (use of the new positioning device) and a control group without the positioning device by simple randomization with a 1:1 allocation ratio. The authors assigned Yan Pan, who was not involved in the intervention of this study, to be in charge of patient allocation. The sequence was generated using a random number table. The sealed opaque envelope was used to conceal the sequence until interventions were assigned.

Statistical methods

The basic characteristics of the baseline (before percutaneous biopsy) and biopsy efficacy and safety after percutaneous biopsy were compared between the experimental and control groups. Continuous normally distributed variables were compared using a t-test (or K-S test), and categorized variables such as gender and pathological diagnosis were compared using a chi-squared test. Since there was no drop-out of patients in the study, all statistical evaluations were conducted on the per protocol (PP) population. The data were statistically analyzed using SPSS ver. 20.0 software and a P value <0.05 was considered to be a statistically significant finding.

Results

The condition of lesions and percutaneous pathology results

A total of 168 patients with pulmonary nodules were recruited in the Oncology Department of Shanghai Chest Hospital between July 1, 2018 and June 30, 2019. Finally, 150 patients who met the criteria were included in the study, including 101 males and 49 females, who were randomly divided into 2 groups, with 75 patients in each group (Figure 1). There was no statistical difference in age and disease diagnosis between the 2 groups (Table 1).

Table 1 Patient characteristics at baseline and procedure-related characteristics
Full table

The majority of lesions in patients receiving the new positioning device were located in the upper left lung (22, 29%), followed by the lower right lung (20, 27%) or the upper right lung (15, 20%). The lesions in the control group were concentrated in the lower right lung (19, 25%), followed by the upper right lung (18, 24%) and the upper left lung (16, 21%) (Figure 4A). Except for the maximum diameter value of the lesions in the percutaneous path, the straight distance of the positioning point from the skin to the pleura and from the pleura to the outer edge of the lesion, and the total length of the coaxial biopsy needle in the chest and the horizontal angle of the coaxial biopsy needle appeared to be greater than in the control group, but the differences were not statistically significant. In addition, the percutaneous pathology results were compared and the results of pathological tissues acquired from the 2 patient groups were different. Squamous cell carcinoma and lung or necrotic tissue accounted for a larger proportion in the experimental group than in the control group, but the proportion of small-cell carcinomas and pulmonary tuberculosis tissues was much lower in the experimental group than that in the control group (Figure 4B).

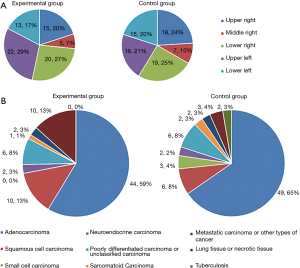

Figure 4 The results of location of lesions and percutaneous pathology were compared between the two groups. (A) Comparison of the location of lesions between the 2 groups; (B) comparison of percutaneous pathology between the 2 groups.

The effectiveness of the new percutaneous device compared to the control routine procedure

We compared the efficacy, including the primary and secondary endpoints, between the 2 groups and found the success rate of reaching the target location on the first percutaneous attempt in the experimental group was 96.0% higher than in the control group (42.7%), and the actual number of puncture operations was less (1.05±0.28) in the experimental group than in the control group (1.95±1.03).

The secondary endpoints were the number of CT scans performed for successful puncture positioning of the coaxial biopsy needle and the whole operation took less time in the experimental group than in the control group (both P<0.05). The times required to finish the entire percutaneous positioning procedure and the total operation times were shorter in the experiment group than in the control group (both P<0.05; Table 2).

Table 2 Device efficacy and related indictors
Full table

Thus, these endpoints reached the goal of our study, because the shorter operation times and fewer actual percutaneous times were beneficial for patients, particularly in reducing the pain and discomfort induced by the operation. In addition, the reduced number of CT scans resulted in a reduced radiation exposure for each patient and the surgeon.

Comparison of complications in the two groups

In terms of safety indicator I (complications related to percutaneous surgery), the results suggested that the incidence of complications in the experimental group was lower than in the control group, but the findings did not reach statistical significance [48.0% (36/75) vs. 61.3% (46/75), P=0.101]. The incidence of bleeding complications in the 2 groups (including bleeding only and bleeding combined with pneumothorax) was 26.7% (20/75) vs. 46.7% (35/75), respectively and significantly different (P=0.032). The incidence of pneumothorax complications (pneumothorax only and pneumothorax combined with bleeding) was 30.7% (23/75) and 21.3% (16/75), respectively (P=0.193) but there was no significant difference in the severity of complications between the 2 groups (P=0.559). In both groups, 2 patients reported III-degree severity complications, and both occurred after the completion of CNLB. After appropriate treatment the patients condition greatly improved. All patients did not experience any new complications during the first week after their biopsies and the original complications disappeared. No case presented with symptoms of safety indicator II (complications related to new positioning devices) in the experimental group (Table 3).

Table 3 Percutaneous lung biopsy for all adverse events
Full table

Discussion

At present, CNLB is a minimally invasive operation widely used for the pathological diagnosis of lung disease and 40–60% of patients would be expected to reach a predetermined position with one percutaneous attempt using the traditional method (22,23).

The effectiveness indicators, including the rate of reaching a target location on the first percutaneous approach, the number of CT scans performed for successful percutaneous positioning, and the time required to complete the percutaneous positioning in this study showed that outcomes in the experimental group were significantly better than in the control group (Table 2). The application of the new positioning device not only reduced the possibility of repeated percutaneous invasions and shortened the operation time but also reduced the occurrence of bleeding complications.

In addition, we evaluated the safety of the new positioning device for the skin. The experimental results showed that none of the patients in the experimental group reported negative conditions, proving the reliability of the new device. In the experimental group, we also encountered the following cases, which are not uncommon in clinical practice and are extremely difficult to solve (24). These cases included: (I) small diameters of lesions on the percutaneous path (15–20 mm); (II) the drill percutaneous angle (<30º penetrating angle); (III) irregular distribution of the apparent necrosis-like substance in the center of a lesion; and (IV) vascular distribution inside the lesion in the percutaneous path (Figure 5). The operators also demonstrated the effectiveness of the new positioning device by successfully conducting a biopsy under these adverse conditions.

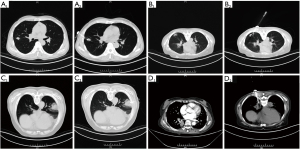

Figure 5 CT images of the new disposable percutaneous positioning device used in uncommon and difficult clinical cases. (A) small diameter of the lesions on the percutaneous path (15–20 mm) (CT scan); (B) the drill percutaneous angle (<30º penetrating angle to ground) (CT scan); (C) irregular distribution of the apparent necrosis-like substance in the center of a lesion (CT scan); (D) vascular distribution inside the lesion in the percutaneous path (contrast-enhanced CT). A1,B1,C1,D1: The first CT scan image shows the location of the lesion. A2,B2,C2,D2: puncture positioning was completed and the coaxial biopsy needle reached the lesion as revealed by the CT image, then a cut biopsy was performed.

CNLB-related complications mainly focus on pneumothorax, bleeding and/or a combination of both (25-29). The results showed that the incidence of complications in the experimental group was apparently lower than in the control group, though the findings did not reach statistical significance. However, a comparison of bleeding complications revealed significant differences.

It should be pointed out that the present study had a number of limitations. Differences in the size and location of lesions can cause difficulties during percutaneous surgery and although patients were randomized further analysis will be required on whether the effectiveness and safety of percutaneous biopsies assisted by the novel positioning device might change according to different lesion characteristics.

Conclusions

The clinical application of the new positioning device improved the accuracy of CT-PLB, shortened operation times and reduced the occurrence of bleeding complications.
