A modified system for classifying the bilateral superior pulmonary veins using three-dimensional computed tomography bronchography and angiography images

Introduction

Segmentectomy is being widely used in the treatment of early lung cancer (1-3). In this surgery, pulmonary arteries or bronchi are often used to identify the regional circulation of the lesion and the excision margin (4,5). With new imaging technologies, such as three-dimensional computed tomography bronchography and angiography (3D-CTBA), the pulmonary veins can be reconstructed with 3D models to determine the target zone and surgical path (6,7). However, even with 3D-CTBA images, pulmonary segmentectomy still challenges surgeons who are not familiar with the bronchial and vascular distribution of the lungs, especially pulmonary veins. Therefore, simple and practical 3D models may help surgeons to recognize variations in veins and identify the circulation reflux in the main venous branches. In this study, the branching patterns and symmetricity of bilateral superior pulmonary veins (SPVs) were analyzed through three-dimensional reconstruction techniques. A simple system was established to classify the major branches of SPVs, thus facilitating the implementation of pulmonary segmentectomy.

We present the following article in accordance with the STROBE reporting checklist (available at https://dx.doi.org/10.21037/jtd-21-985).

Methods

Patient preparation

We retrospectively analyzed the images of 1,520 patients who underwent CT examination from January 2017 to December 2020. The right upper lobes were examined in 715 cases, and the left upper lobes in 805 cases.

Bronchovascular patterns in the upper lobe were analyzed using 3D-CTBA images. The analysis was performed independently by a radiologist and three thoracic surgeons. If there were different opinions, the final decision was made after discussion. This retrospective study was approved by the Ethics Review Committee of Jiangsu Provincial People’s Hospital.

The study was conducted in accordance with the Declaration of Helsinki (as revised in 2013). The study was approved by Jiangsu Province People’s Hospital (NO.: 2019-SR-450) and informed consent was taken from all the patients.

CT Scan and 3D Reconstruction

The patient was scanned with Siemens 64-slice dual-source CT (Somatom Definition), Medrad double-syringe power injector and iopromide 370 (Bayer Healthcare Co., Ltd.). The patient was placed in a supine position with 20–22 G intravenous needles in the anterior cubital vein. Firstly, the time-density curves were obtained by bolus injection. On the CT scout image, the scan layer of the mass injection was set at the level of the aortopulmonary window, which showed the pulmonary trunk, ascending aorta, and descending aorta. Twenty milliliters of contrast was injected at a rate of 5 mL/s, followed by 20 mL of normal saline at the same rate. Six seconds after the injection of contrast agent, the same layer scan was performed on the aforementioned layer. 20 scans were performed, with an interval of 2 seconds. The scan was terminated when the density in the aorta began to decrease. The data were used to plot time-density curves within the pulmonary artery and ascending aorta. The phase of maximum pulmonary arteriovenous density difference was also recorded. Then the start time of the scan and the dose of contrast agent were set and the contrast was injected at a rate of 5 mL/s, followed by 20 mL of normal saline at the same rate. These settings enabled the lesions, the pulmonary arteries and the aorta to be developed, and, more importantly, the CT value in the pulmonary vein was higher than that in the pulmonary artery, and showed a density difference in images. The whole lung field was scanned with a collimator thickness of 0.6 mm, the reconstructed layer of 1 mm, and the interlayer space of 1 mm. The convolution kernel of reconstruction was a relatively low spatial frequency algorithm (e.g., “standard” or “soft-tissue” algorithms B30), which smoothed the image, reduced visible image noise, and improved the contrast resolution to some degree (8,9). During the scan, the patient held his or her breath as instructed. Attention was paid to prevent potential adverse reactions caused by iodine contrast agent. After image acquisition, the volume data in arterial and venous phases were transmitted to a reconstruction software and converted into 3D-CTBA images. More than 80% of the reconstructed images showed the fourth branching bronchus, and the undetected blood vessels were thinner than 1 mm in diameter.

Definition of pulmonary vein type

The latest international nomenclature was adopted to describe pulmonary veins (10). The methods of Shimizu, Yamashita and Boyden were referred to classify the veins into the central vein type, semi-central vein type and non-central vein type (11-13). In the right upper lobe, V¹b, V²a and V²c were identified as intersegmental veins, while V¹a, V²b and V³a as intersubsegmental veins. To make bilateral SPVs more comparable, we only analyzed the veins in the upper division of the left upper lobes, in which V^{1+ 2}a, V^{1+ 2}d and V³b were identified as intersegmental veins, while V^{1+ 2}b, V^{1+ 2}c, V³a and V³c as intersubsegmental veins. The vein distributed between two subsegments of S¹⁺²a subsegment were labeled as Intra. V (S¹⁺²a). Vl represented a special vein located centrally in the right upper lobe among the S¹, S² and S³ segments, or located centrally in the upper division of the left upper lobe between S¹⁺² and S³.

In our classification system, “central” was defined as the distribution of the main trunk of the upper pulmonary vein in the center of the lobe. The main trunk of the right upper lobe was V², while the main trunk of the left upper lobe was V¹⁺². The general SPVs were classified with a two-step method as shown in Figure 1. Specifically, the right SPV was firstly classified as central vein type, semi-central vein type or non-central vein type, according to whether there was a convergence of V²b and V²a. If V²b converged with V²a into a major trunk, it would be the central vein type or the semi-central vein type, otherwise it would be the non-central vein type. Then, if the V²b+V²a trunk was located posterior to B³, it was classified as the central vein type; otherwise, as the semi-central vein type. According to the same rules, the central vein type, semi-central vein type or non-central vein type in the left upper lobe was determined by whether V¹⁺²c and V¹⁺²b converged into a major trunk. If the V¹⁺²b+c trunk was located posterior to B³, it could be defined as the central vein type; otherwise, as semi-central vein type. If there was no convergence of V¹⁺²c and V¹⁺²b, the branches would be the non-central vein type. Based on this classification method, other major vein branches in bilateral upper lobes were analyzed.

Figure 1 General classification of two-step flow chart. (A) The right SPVs were first classified as central vein type, semi-central vein type or non-central vein type according to whether V²b formed a confluence with V²a and constituted a major trunk. If V²b formed a confluence with V²a and constituted a major trunk, it was classified as the central vein type or the semi-central vein type; otherwise as the non-central vein type. Then, if the V²b+V²a trunk was located posterior to B³, it was classified as the central vein type; otherwise as the semi-central vein type. (B) The left SPVs were first classified as central vein type, semi-central vein type or non-central vein type according to whether V¹⁺²c formed a confluence with V¹⁺²b and constituted a major trunk. If V¹⁺²c formed a confluence with V¹⁺²b and constituted a major trunk, it was classified as the central vein type or the semi-central vein type; otherwise as the non-central vein type. Then, if the V¹⁺²b+c trunk was located posterior to B³, it was classified as the central vein type; otherwise as the semi-central vein type. SPV, superior pulmonary veins.

Statistical analysis

Descriptive statistics were shown as frequency and percentage for categorical variables.

Results

Distribution of V²b in the right SPV

There were 648 cases (90.63%) with a single V²b branch in the right upper lobe. The branch formed a confluence with V²a in 581 cases (81.26%), with V²t in 57 cases (7.97%), with V²c in 4 cases (0.56%), and with V²b in 3 cases (0.42%) into the inferior pulmonary vein. Direct drainage into the left atrium was found in 3 cases (0.42%). There were 67 cases (9.37%) with two branches of V²b. Respectively, confluences were formed with V²a and V²t in 51 cases (7.13%), with V²a in 8 cases (1.12%), with V²a and V²c in 7 cases (0.98%); besides, in 1 case (0.14%), one branch formed a confluence with V²a and the other branch drained into the inferior pulmonary vein.

Distribution of the right SPVs in the central vein type

In 596 cases (83.35%), V²b converged with V²a into a major trunk posterior to B³, running through the center of the right upper lobe, and probably receiving drainage from V¹a, V¹b, V²c, and Vl. SPVs in this distribution were defined as the central vein type. Of these cases, 306 cases (42.79%) were assigned to the first subtype in which V² was dissociated with V¹ and V³, and passed between B² and B³; 255 cases (35.66%) to the second subtype in which V¹a formed a confluence with the V²b+V²a trunk posterior to B¹; 35 cases (4.90%) to the third subtype in which V¹a and V¹b formed a confluence with the V²b+V²a trunk posterior to B¹ (Figure 2).

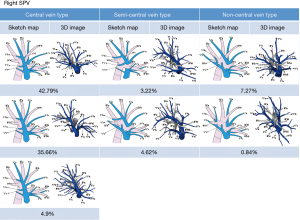

Figure 2 Sketch map and 3D image for general classification of the right SPV. SPV, superior pulmonary veins; 3D, three-dimensional.

In the central vein type, V²c formed a confluence with the V²b+V²a trunk in 590 cases (82.52%), with V²b in 2 cases (0.28%), with V²t in 3 cases (0.42%), and with V³ in 1 case (0.14%). Vl vein was observed in 456 cases (63.78%).

Distribution of the right SPVs in the semi-central vein type

In 56 cases (7.84%), V²b converged with V²a into the V²b+V²a trunk located anterior to B³, running through the center of the right upper lobe, and probably receiving drainage from V¹a, V¹b, V²c, and Vl. SPVs in this distribution were defined as the semi-central vein type. Of these cases, 23 cases (3.22%) were assigned to the first subtype in which V¹a formed a confluence with the V²b+V²a trunk anterior to B¹; 33 cases (4.62%) to the second subtype in which V¹a formed a confluence with the V²b+V²a trunk posterior to B¹ (Figure 2).

In the semi-central vein type, V²c formed a confluence with V²b+V²a trunk in 29 cases (4.06%), with V²b in 2 cases (0.28%), with V²t in 17 cases (2.38%), with V³ in 7 cases (0.98%), and drained directly into the SPV in 1 case (0.14%). Vl vein was observed in 25 cases (3.50%).

Distribution of the right SPVs in the non-central vein type

In 58 cases (8.11%), V²b and V²a did not form a confluence in the center of the right upper lobe. SPVs in this distribution were defined as the non-central vein type. In these cases, 52 cases (7.27%) were assigned to the first subtype in which V²a formed a confluence with V¹, and V²b with V²t; 6 cases (0.84%) to the second subtype in which V²b and V²a formed a confluence with V²t or separately drained into V² posterior to B² (Figure 2).

In the non-central vein type, V²c formed a confluence with V²t in 46 cases (6.43%), with V²b in 6 cases (0.84%), with V³ in 3 cases (0.42%), with V²a in 2 cases (0.28%), and with V¹a+V¹b in 1 case (0.14%). Vl vein was observed in 2 cases (0.28%).

Rare variations in the right SPVs

Five cases (0.70%) with independent V² draining into the inferior pulmonary vein behind the hilum were specified as rare variations, and these cases were excluded from the above classification system.

Distribution of V¹⁺²c in the left SPVs

There were 775 cases (96.27%) with a single V¹⁺²c branch in the left upper lobe. The branch formed a confluence with V¹⁺²b in 612 cases (76.02%), with V¹⁺²a+b in 79 cases (9.81%), with V³ in 84 cases (10.44%). There were 30 cases (3.73%) with two branches of V¹⁺²c in the left upper lobe. In 10 cases (1.24%), one branch converged with V¹⁺²b into V¹⁺²a anterior to B¹⁺²a+b, and the other into V¹⁺²a posterior to B¹⁺²a+b. In 11 cases (1.37%), one branch converged with V¹⁺²b anterior to B¹⁺²a+b, and the other with V¹⁺²a posterior to B¹⁺²a+b. In 5 cases (0.62%), one branch converged with V¹⁺²a+b anterior to B¹⁺²a+b, and the other with V¹⁺²a+b posterior to B¹⁺²a+b. In 3 cases (0.37%), one branch converged with V³ inferior to B³, and the other with V¹⁺²a+b posterior to B¹⁺²a+b. In 1 case (0.12%), one branch converged with V¹⁺²b anterior to B¹⁺²a+b, and the other branch drained into the inferior pulmonary vein behind the hilum.

In the left upper lobe, a single V¹⁺²b branch was observed in 688 cases (85.47%); two V¹⁺²b branches were observed in 117 cases (14.53%), including 10 cases (1.24%) with two V¹⁺²b+c branches converged with V¹⁺²a anterior and posterior to B¹⁺²a+b, 107 cases (13.29%) with two V¹⁺²b branches converged with V¹⁺²a anterior and posterior to B¹⁺²a+b, respectively.

Distribution of the left SPVs in the central vein type

In 207 cases (25.71%), V¹⁺²c converged with V¹⁺²b into the V¹⁺²b+V¹⁺²c trunk located posterior to B³, running through the center of the left upper lobe, and probably receiving the drainage of V¹⁺²a, intrasegmental vein of S¹⁺²a, Vl and V¹⁺²d. SPVs in this distribution were defined as the central vein type. Of them, 175 cases (21.74%) were assigned to the first subtype in which the confluence of V¹⁺²b+ V¹⁺²c was independent of the confluence of V¹⁺²a+V³c, and passed between B³ and B⁴⁺⁵ in the center of the left upper lobe; 32 cases (3.97%) to the second subtype in which V¹⁺²a converged with the V¹⁺²b+V¹⁺²c trunk posterior to B³ (Figure 3).

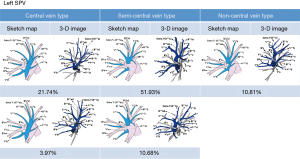

Figure 3 Sketch map and 3D image for general classification of the left SPV. SPV, superior pulmonary veins; 3D, three-dimensional.

In the central vein type, all cases showed the confluence of V¹⁺²d with the V¹⁺²b+V¹⁺²c trunk. Vl vein was observed in 152 cases (18.88%).

Distribution of the left SPVs in the semi-central vein type

In 504 cases (62.61%), V¹⁺²c converged with V¹⁺²b into the V¹⁺²b+V¹⁺²c trunk located anterior to B³, running through the center of the left upper lobe, and probably receiving the drainage of V¹⁺²a, intrasegmental vein of S¹⁺²a, Vl and V¹⁺²d. SPVs in this distribution were defined as the semi-central vein type. Of them, 418 cases (51.93%) were assigned to the first subtype in which V¹⁺²b was located inferior to B¹⁺²a and received the drainage of V¹⁺²c; 86 cases (10.68%) to the second subtype in which V¹⁺²b was located superior to B¹⁺²a and received the drainage of V¹⁺²c (Figure 3).

In the semi-central vein type, 440 cases (54.66%) showed a single V¹⁺²d branch in the left upper lobe, including 300 cases (37.27%) with a confluence with V³, 140 cases (17.39%) with V¹⁺². The left 64 cases (7.95%) showed two branches of V¹⁺²d in the left upper lobe, with confluences formed with V³ and V¹⁺², respectively. Vl vein was observed in 414 cases (51.43%).

Distribution of the left SPVs in the non-central vein type

In 87 cases (10.81%), V¹⁺²c and V¹⁺²b did not converge in the center of the left upper lobe. V¹⁺²c and V¹⁺²d formed a confluence with V³ posterior to B³, while V¹⁺²b and V¹⁺²a formed a confluence with V³ anterior to B³ (Figure 3). SPVs in this distribution were defined as the non-central vein type. Vl vein was observed in 25 cases (3.11%).

Rare variations in the left SPVs

Seven cases (0.87%) with rare variations were excluded from our classification system, including 4 cases (0.50%) for a three segmental bronchus pattern symmetrical to the right upper lobe, 1 case (0.12%) for transposition deformity of the great arteries, 1 case (0.12%) for persistent left superior vena cava and V¹⁺²b+V¹⁺²c posterior to B^{1+ 2} b+B¹⁺²c (with similar location of V²t in the right upper lobe), and another 1 case (0.12%) for V¹⁺²b+V¹⁺²c converged with V³ between A¹⁺² and B¹⁺².

Discussion

Continuous refreshment has been seen in the anatomical knowledge about the pulmonary veins (11-15). In 1936, Herrnheiser and Kurat (16) described the relative positions of SPV branches in the chest cavity and classified them as the subpleuro-mediastinal veins, the pectoral veins, and the combined apical and axillary veins, but the spatial relationships of these veins with the arteries and bronchus were not characterized. In 1944, Appleton (17) first claimed that all the veins, either superficial or deep, run across intersegmental demarcation, and proposed the method of defining the intersegmental planes and veins in pulmonary segmental resection. However, all these studies have not compared the distributional features of the veins in bilateral upper lobes. In traditional anatomy, leaving aside the influence of horizontal fissure, the right upper lobe corresponds to the upper division of the left upper lobe, while the right middle lobe corresponds to the lingula segment of the left upper lobe (18). When taking the pulmonary lobe as one surgical unit, the bilateral SPVs are involved. Therefore, the venous patterns of the bilateral upper lobes are often analyzed independently in both traditional anatomy and surgery.

In 1945, Boyden adopted Jackson and Huber’s method (19) to name the bronchi, and corresponding arteries and veins with numbers (20). This method deepens the research on pulmonary veins. In 1954, Boyden summarized the distributional features of the veins according their relative positions to adjacent bronchi, pointing out that the left SPVs were mainly distributed at shallower depths, which was different from those right SPVs (13). Yamashita was the first finding similarities between the venous distribution patterns in bilateral upper lobes (12). He also pioneered new ideas of using imaging tools to study anatomy. At present, 3D reconstruction technology is being replicated in the implementation of clinical surgeries (21-23). According to the location of the vein trunk, Yamashita first divided the right SPV into the central vein type (V¹, V²⁺³ type), the semi-central vein type (V¹⁺², V³ type), and the non-central vein type (V^1+(2a), V²t type). Excluding the lingula segment, he further symmetrized the S¹⁺²a, S¹⁺²b, S¹⁺²c and S³ in the left upper lobe to the S¹, S²a, S²b and S³ in the right upper lobe, and named the venous branches in both lobes with consistent digital marks. He found that V¹⁺² type accounted for the highest proportion in the left upper lobe (70%), so did the semi-central vein type in the right upper lobe. So, he listed the semi-central vein type of the right upper pulmonary veins as the left upper lobe type, and only defined the V³⁺² as the central vein type, neglecting the semi-central vein type or non-central vein type in the left upper lobe.

In our study, according to the reflux attribution of main venous branches and their positions relative to the adjacent bronchi, a new method was adopted for naming the SPVs in bilateral upper lobes. Our analysis showed that the SPVs in both lobes could be divided into the central vein type, the semi-central vein type and the non-central vein type, making up 83.35%, 7.84%, 8.11% in the right and 25.71%, 62.61%, 10.81% in the left, respectively. In Yamashita’s results, these proportions were 78.3% (central vein type), 10.6% (semi-central vein type) and 11.1% (non-central vein type) in the right, and 17.5% (central vein type), 70% (V¹⁺² type) and 12.5% (V¹⁺²a, V³⁺²bc type) in the left. In general, the proportions of each type were close in both classification systems. Our study modified Yamashita’s system and included some rare cases. It showed that the central vein type was the most common in the right upper lobe, while the semi-central vein type was the most common in the left upper lobe, indicating that the right upper pulmonary veins were mostly distributed in the central part of the lobe, while the left upper pulmonary veins were mostly distributed in the anterosuperior area.

According to the distribution of main branches V¹ and V², Shimizu (11) divided the right SPVs into the anterior with central Iab type (V¹a+V¹b located anterior to B³, and V²a+V²b+V²c located posterior to B³, 54%), anterior with central Ib type (only V¹b located anterior to B³, and V¹a+V²a+V²b+V²c located posterior to B³, 26%), central type (V¹a+V¹b+V²a+V²b+V²c all located posterior to B³, 7%) and anterior type (V¹a+V¹b+VX²a located anterior to B³, V²b+V²c located posterior to B³, 12%). In this system based on 3D reconstruction images, only those with all V¹ and V² branches located posterior to B³ were defined as the central type, accounting for 7%. In the systems of Boyden and Yamashita, this type was not listed. In the collapsed lungs, the spatial relationships between blood vessels and bronchi change with contraction and deformation. On the 3D images of physiological inflated lungs, we found 4.90% of V¹a and V¹b formed confluences with the V²b+V²a trunk posterior to B¹, and classified it as the third subtype of the central vein type. Compared with Shimizu’s study, our classification system focused on the V² vein receiving drainage of lots of intersegmental veins, such as V²a, V²c and Vl, and playing an important role in the right SPV. In addition, Shimizu’s classification system for the right SPVs cannot be applied to the left SPV. However, both Shimizu’s and our systems indicate that some cases lack superficial veins in the anterosuperior area of the right upper lobe. It is necessary to match the intraoperative anatomical structures with 3D CTBA images to avoid misjudgment.

Nowadays, the lung operation can be performed on segmental and even subsegmental levels. In preoperative simulation with 3D CTBA images, pulmonary veins are critical landmarks in determining target segments and surgical paths. We have found certain commonalities in the distributional features of the pulmonary vein trunk and its branches. According to the two-step method (Figure 1), the veins in bilateral upper lobes can be classified into the central vein type, the semi-central vein type and the non-central vein type. It should be noted that this study only summarized the general distributional features, which may also show individual differences. For example, V²b may have two branches, forming confluences with V²a superior to B² and with V²t inferior to B² respectively. It is also possible for V²b to form a confluence with V²t or V²c. But the fundamental basis for general classification is the confluence of different branches and location of the confluent trunk. In the present study, the second subtype of the non-central vein type is a typical example. Though V²b and V²a formed a confluence into V²t, there was no trunk in the center of the lobe. It is worth noting that a statistically higher proportion of lateral veins has been found in bilateral upper lobes. In Yamashita’s work, this branch was marked by V¹l (a lateral branch of V¹). This vein runs among S¹, S² and S³ in the right upper lobe, and usually drains into V²a+V²b or V¹. There is also a similar vein running between S¹⁺² and S³ in the left upper lobe and usually draining into V¹⁺². This lateral vein usually appears in the central vein type and the semi-central vein type. Emitted between several intersegmental veins and located among several adjacent subsegments, it was named as Vl on both sides in our system. In anatomical sublobar resection for deep lesions adjacent to Vl, the target area should involve more segments or subsegments and the surgical difficulty would increase accordingly.

This study still has some limitations. First, due to the morphological difference between the bilateral upper lobes, we only compared the right upper lobe with the upper division of the left upper lobe, thus lacking a comparative analysis of other symmetric regions. When we compared the lingual vein with the right middle lobe pulmonary vein, or compared bilateral inferior pulmonary veins, no general distributional features were found based on the location of the venous trunk, but the confluent venous branches and corresponding proportions are worth further analysis. Second, we only summarized the general distributional features of veins in bilateral upper lobes, and should explore the spatial relationships of veins with arteries and bronchus. In addition, despite strict selection of high quality 3D CTBA images, subtle differences between imaged SPVs and intraoperatively observed SPVs are inevitable.

Conclusions

The distributional features of bilateral SPVs were analyzed with 3D CTBA images for the first time. Our modified system is simpler and highly consistent in classifying bilateral upper lobes, and is expected to be widely used for preoperative planning and intraoperative guidance.

Acknowledgments

We would like to thank Mr. Yongke Cao for his help in polishing our paper.

Funding: This work was supported in part by key medical research project of Jiangsu Provincial Health Commission (K2019002), Ethicon Excellence in Surgery Grant (HZB-20190528-13), and Jiangsu Province Natural Science Foundation (BK20201492).

Footnote

Reporting Checklist: The authors have completed the STROBE reporting checklist. Available at https://dx.doi.org/10.21037/jtd-21-985

Data Sharing Statement: Available at https://dx.doi.org/10.21037/jtd-21-985

Peer Review File: Available at https://dx.doi.org/10.21037/jtd-21-985

Conflicts of Interest: All authors have completed the ICMJE uniform disclosure form (available at https://dx.doi.org/10.21037/jtd-21-985). All authors report funding supports (partly) from key medical research project of Jiangsu Provincial Health Commission (K2019002), Ethicon Excellence in Surgery Grant (HZB-20190528-13), and Jiangsu Province Natural Science Foundation (BK20201492).

Ethical Statement: The authors are accountable for all aspects of the work in ensuring that questions related to the accuracy or integrity of any part of the work are appropriately investigated and resolved. The study was conducted in accordance with the Declaration of Helsinki (as revised in 2013). The study was approved by Jiangsu Province People’s Hospital (NO.: 2019-SR-450) and informed consent was taken from all the patients.

Open Access Statement: This is an Open Access article distributed in accordance with the Creative Commons Attribution-NonCommercial-NoDerivs 4.0 International License (CC BY-NC-ND 4.0), which permits the non-commercial replication and distribution of the article with the strict proviso that no changes or edits are made and the original work is properly cited (including links to both the formal publication through the relevant DOI and the license). See: https://creativecommons.org/licenses/by-nc-nd/4.0/.
