Safety and durability of single-stage type I hybrid total aortic arch repair for extensive aortic arch disease: early- and long-term clinical outcomes from a single center and our 10-year of experience

Introduction

Conventional total aortic arch replacement with vascular prosthesis under hypothermic circulatory arrest (HCA) for extensive aortic arch disease is associated with substantial morbidity and mortality, despite significant advances in surgical technique and perioperative care (1,2). Endovascular technology is a mini-invasive therapeutic method and has been widely used in the lesion of descending aorta (3), but it is hindered to be applied into aortic arch disease due to the presence of supra-arch branches. Recently, hybrid technique that combine surgical supra-arch debranching with concomitant endovascular exclusion of the diseased aortic arch has emerged as a practical treatment for extensive aortic arch disease (4).

There are three types of hybrid total aortic arch repair, called type I, II and III respectively (5). Due to the ascending aorta or the aortic arch replacement in the type II or III hybrid repair, cardiopulmonary bypass (CPB) and even HCA is inevitable, which may cause postoperative complications like conventional surgery, although providing the stable proximal landing zone. Type I hybrid total aortic arch repair is less invasive because CPB or HCA is theoretically avoided, but the clinical outcomes of this surgery reported by different centers were distinguishing (6-9).

The purposes of this study were to share our 10-year of operative experience and provide the full evaluation of early- and long-term clinical outcomes of single-stage type I hybrid total aortic arch repair for extensive aortic arch disease.

We present the following article in accordance with the TREND reporting checklist (available at http://dx.doi.org/10.21037/jtd-20-3479).

Methods

Patients

From January 2010 to June 2020, 637 patients have undergone single-stage hybrid aortic arch repair in the vascular surgery center of Fuwai Hospital. Of these, 36 patients who underwent single-stage type I hybrid total aortic arch repair were included into this cohort. Type I hybrid total aortic arch repair was defined as surgical total supra-arch debranching and zone 0 stent graft deployment to exclude the entire diseased aortic arch.

Four aspects of indications for this surgery were considered. Firstly, extensive arch disease involving the entire aortic arch or involving partial aortic arch but without adequate landing zone between supra-arch branches. Secondly, morphology of ascending aorta is normal, excluding dissection, expansion (diameter >38 mm), and severe aortic calcification, etc. Thirdly, patients were considered to be high risk for CPB or HCA, such as advanced age or severe comorbidities. Finally, operation costs and surgeons’ experience were also important factors to impact the surgical protocol. Hereditary connective tissue disorders, severe malperfusion syndrome, unstable vital signs were listed as contraindications.

Surgical technique

Surgery was performed in the hybrid operating room equipped with a universal floor mounted angiographic C-arm system (Siemens Medical, Forchheim, Germany) for fluoroscopic guidance during stent graft deployment. This surgery was divided into two portions, surgical supra-arch debranching and endovascular aortic arch repair.

After median sternotomy or upper mini-sternotomy incision, the ascending aorta and the supra-aortic vessels were mobilized. Systemic heparinization is initiated and systolic blood pressure was lowered to 100 mmHg. Three patterns of vascular prothesis were used to perform debranching procedure, which was presented in the Figure 1. The ascending aorta is tangentially clamped with a side-biting clamp and the proximal part of the prosthesis is sutured end-to-side to the ascending aorta. The side-biting clamp is removed and the limbs of graft are anastomosed end-to-end to the supra-arch branches one by one. In the early stages of developing this surgery, left subclavian artery (LSCA) was not reconstructed in five patients for shortening operative time and improving operative safety. CPB was always prepared for all patients.

Figure 1 Operative technique of single-stage type I hybrid total aortic arch repair. (A) Patten 1: supra-arch debranching (straight vascular prothesis tailored from branches of “Y” shape vascular prothesis was handsewn end-to-side to the trunk of the “Y” shape Dacron vascular prosthesis (Hemashield Platinum, Maquet Cardiovascular LLC, NJ, USA; 16×8×8 mm in diameter)) and endovascular aortic repair. (B) Patten 2: supra-arch debranching (4-branched vascular prosthesis (Hemashield Platinum, Maquet Cardiovascular LLC, NJ, USA; 28×10×8×8×10 mm in diameter) was tailored to an island) and endovascular aortic repair. (C) Patten 3: supra-arch debranching (“Y” shape vascular prosthesis was used to reconstruct innominate artery and left common carotid artery) and endovascular aortic repair.

After supra-arch debranching and concomitant heart operation, angiography was performed to measure the length and diameter of proximal landing zone and the range of lesion. Retrograde access through femoral artery was routinely used to deploy the stents. If failed, a 10-mm graft was sutured end-to-side to ascending aorta to deploy the stents by antegrade access. Balloon dilatation or another stent deployment will be performed when the endoleaks was noticed. Last angiography was done to check the technical success including the patency of the bypass and the condition of the stents. Six different commercially available devices were implanted: Zenith (Cook Medical Inc., Bloomington, IN, USA), Relay (Bolton Medical, Sunrise, FL, USA), Valiant Captivia and Endurant (Medtronic Inc., Galway, Ireland), Gore stent graft (W.L. Gore & Assoc, Flagstaff, AZ, USA) and Hercules (MicroPort Endovascular MedTech Co., Ltd., Shanghai, China).

Data collection and follow-up study

Demographic data, operative information and postoperative complications were routinely collected. Early primary endpoint was defined as early composite adverse events, which included mortality, multiple organ dysfunction syndrome (MODS), unplanned reoperation, stroke, paraplegia, acute renal failure (ARF) necessitating continuous renal replacement therapy (CRRT), respiratory failure and stents related complications. Postoperative 24 h drainage, delayed awaking, mechanical ventilation times, ICU stays and postoperative hospital stay were defined as early secondary endpoints. Respiratory failure was defined as severe hypoxemia and difficult weaning from the ventilator or tracheal re-intubation. Delayed awaking was defined as regaining consciousness after 48 hours, excluding re-sedation due to tracheal re-intubation or unplanned reoperation.

Follow-up data were obtained from outpatient visits combining with telephoning patients. The first imaging review was performed before hospital discharge. It was recommended that patients undergo aortic computed tomography angiography (CTA) examinations at 3 months after the surgery and annually thereafter. The long-term endpoints included late death, aortic related reintervention and adverse aortic events [aortic rupture, endoleaks, retrograde type A dissection (RTAD), stent migration and fracture and etc.].

The study was conducted in accordance with the Declaration of Helsinki (as revised in 2013). The study was approved by institutional ethics committee of Fuwai Hospital (No. 2018-1069) and informed consent was waived.

Statistical analysis

Statistical analyses were performed using SPSS, version 21.0 (SPSS, Inc., Chicago, IL, USA). Descriptive statistics for categorical variables are reported as the frequency and percentage, whereas continuous variables are reported as the mean ± standard deviation (SD) or median with interquartile range (IQR) depending on a normal distribution. For evaluation of the early- and long-term outcomes, patients were stratified into two subgroups by 65 years. Coincidentally, there were 18 patients in both subgroups. Propensity score matching for the two subgroups was not used because demographic characteristics, such as spectrum of pathology and comorbidities are certainly different for elderly and young patients. Categorical variables were compared with Fisher’s exact test and continuous variables were compared with Student’s t-test or Mann-Whitney U test as appropriate. Long-term survival rates, late aortic related reintervention and adverse aortic events rates were analyzed using a Kaplan-Meier survival curve and log-rank tests.

Results

Baseline characteristics

The mean age of all 36 patients was 63.6±9.3 years and 91.7% (n=33) of them were male. Aortic pathology of these patients is various, including 12 (33.3%) aneurysm, 9 (25.0%) type B aortic dissections (TBAD), 8 (22.2%) penetrating aortic ulcer (PAU), 3 (8.3%) aortic arch pseudoaneurysm, 3 (8.3%) complications after thoracic endovascular aortic repair (TEVAR) for TBAD. One (2.8%) intramural hematoma. Depending on EuroScore system, 30 (83.3%) patients were stratified into high risk level. Other baseline characteristics were shown in the Table 1 with detail.

Operative characteristics

Operative characteristics were described in Table 2 with detail. Retrograde stents deployment was succeeded in 29 (80.6%) patients. The median proximal diameter of stents was 34 (IQR: 32–35.5) mm, and mean oversize rate of proximity was 12.9%. The distal landing zone ranged from T6 to T12. A total of 10 patients underwent other cardiac or vascular surgery during the operation. On-pump operation were performed in 5 (13.9%) patients, all of which were for concomitant operations.

Early clinical outcomes of single-stage type I hybrid total aortic arch repair

All patients acquired technical success and survived from the surgery. Thirty-two (88.9%) patients were discharged from hospital without early complications. As is shown in the Table 3, severe early complications occurred in four patients, which constituted an 11.1% (4/36) of composite adverse events rate. In-hospital mortality was 8.3% (3/36) and 30-day mortality was 5.6% (2/36). Detail of those four patients was described as follows. The first case died of stroke at 50 days after surgery. The second case died of MODS caused by mediastinal and pulmonary infection at 28 days after surgery. During his hospital stay, CRRT was used for ARF and reoperation was performed for mediastinal debridement. RTAD was occurred at the third case at 5 days after operation and this patient died shortly after the emergency reintervention. The fourth case survived from respiratory failure and transferred to nursing home at 21 days after the operation. CTA examination before discharge was performed at 32 patients and CT plain examination was performed at the other four patients with severe operative complications. Besides RTAD was diagnosed in 1 (1/36, 2.8%) patients by clinical feature and operation exploration, other stents and bypass complications were not observed during hospital stay. Significant difference was not observed on early clinical outcomes between two subgroups.

Long-term clinical outcomes of single-stage type I hybrid total aortic arch repair

In the follow-up study, 3 (8.3%) patients died during hospital stay. One (3.0%) patient was loss of follow-up at 10 months. The average follow-up time was 48.0±35.3 months (max: 124 months). During follow-up periods, late death occurred at 6 (18.2%, 6/33) patients, 3 (9.1%, 3/33) of whom were aortic related. Detail of six dead patients were shown in Table 4 with detail. Overall survival rate was 83.3% and 51.9% at 5 and 10 years respectively. The 5-year survival rate were 88.9% and 77.8% (P=0.41) in the elderly and young groups, respectively. Kaplan-Meier long-term survival curves are shown in Figure 2A,2B. One patient underwent late aortic related reintervention (total arch replacement with frozen elephant trunk) for RTAD at 7 years after the first operation and died after reintervention. Kaplan-Meier freedom from aortic related reintervention curves in Figure 2C,2D and significant difference was not observed between two subgroups (P=0.92). Late adverse aortic events were observed at seven (21.2%, 7/33) patients. Sudden aortic rupture was noticed at two patients, RTAD was noticed at one patient, new emerging type A aortic dissection (TAAD) was noticed at one patient, endoleaks (all were type Ia) were noticed at three patients, but hemodynamic significance was not observed. Stents fracture, migration, infection or bypass graft occlusion was not observed during follow-up periods. Detail of late adverse aortic events were described at Table 5. Overall freedom from adverse aortic events rate was 79.2% and 47.5% at 5 and 10 years respectively. The 5-year freedom from adverse aortic events rate were 93.3% and 67.0% (P=0.06) in the elderly and young subgroups, respectively. Kaplan-Meier freedom from adverse aortic events curves are shown in Figure 2E,2F. CTA images of these patients with late adverse aortic events were presented at Figure 3.

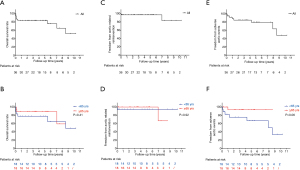

Figure 2 Kaplan-Meier survival analysis and log-rank tests for long-term outcomes of single-stage type I hybrid total aortic arch repair. (A) Kaplan-Meier survival curves for all patients. (B) Kaplan-Meier survival curves for elderly (red line) and young (blue line) patients. (C) Rate of freedom from aortic related reintervention for all patients. (D) Rate of freedom from aortic related reintervention for elderly (red line) and young (blue line) patients. (E) Rate of freedom from adverse aortic events for all patients. (F) Rate of freedom from adverse aortic events for elderly (red line) and young (blue line) patients.

Figure 3 CTA images of late adverse aortic events. (A,B) CTA images noticed RTAD in one patient at 1 year after operation. (C,D) CTA images noticed enlarging false lumen of RTAD in that patient at 7 years after operation, also before reintervention, comparing with (A,B). (E,F) CTA images noticed new emerging TAAD in one patient at 8 years after operation. (G-L) CT images noticed type Ia endoleaks in three patients at 4 years, 6 months and 15 months after operation, respectively. CTA, computed tomography angiography; RTAD, retrograde type A dissection; TAAD, type A aortic dissection.

Discussion

Aortic surgery has acquired great progress since the first aortic operation in 1950s (10), but is still a challenging problem in the cardiovascular surgery. Total arch replacement with frozen elephant trunk, reported by Sun, has become a routine procedure for extensive aortic arch disease in China (11). However, HCA greatly impacts on perioperative safety, as a result, which is unsuitable for elderly or high-risk patients. CPB and HCA were both avoided in the type I hybrid total aortic arch repair, making it mini-invasive.

Although type I hybrid total aortic arch repair has many advantages, strict surgical indications hinder its clinical practice. Aortic dissection is more prevailing in Chinese aortic pathology spectrum, whereas TAAD is a contraindication for this surgery. Except those patients with ascending aortic dissection, many elderly patients diagnosed with aneurysm often have ascending aortic expansion or plaque, which also excluded many candidates for this surgery. Therefore, although this operation is safe, the indications are too strict and the cost is relatively expensive, which explains why there were so less cases underwent this surgery in our hospital during the past 10 more years.

Ten more years ago, Rizvi reported that very low-quality evidence suggests that LSCA coverage increases the risk of neurological complications (12). Cooper reported that preemptive revascularization of LSCA offered no protection against cerebral vessel accident (13). Guidelines from Society for Vascular Surgery (SVS) also recommended revascularization of LSCA should be individualized in high-risk patients (14). Therefore, LSCA was not revascularized in the early stages of developing this surgery to shorten operative time and improve operative safety. Thereafter, increasing number of studies had reported that LSCA revascularization may lower the rate of stroke (15-18). With the improvement of surgical skills and accumulation of experience, LSCA revascularization has become routine since 2013 in our center. Fortunately, neurologic complications were not observed in these five patients without LSCA revascularization.

Although organ protection of cardiovascular surgery has made great progress, CPB and HCA are no doubt risk factors for perioperative morbidity and even mortality. From STS Database, the operative mortality and frequency of the composite endpoint of operative mortality and neurologic complication of 12,521 patients underwent aortic arch repairs with HCA between 2011 to 2014 were 12% and 23%, respectively (1). In China, Wang reported that 30-day mortality of 1,708 patients who underwent aortic arch surgery with HCA between 2009 and 2015 was 6.1%, but the average age and comorbidity of these patients was lower (2). For type II hybrid total aortic arch repair, HCA is avoided, but CPB is still inevitable. Reported by Fuwai Hospital, early mortality of 122 patients underwent type II hybrid repair for TAAD was 9.2% (19). Compared with early clinical outcomes of other types of aortic arch repair under CPB or HCA, single-stage type I hybrid total aortic arch repair in our center is safe at perioperative periods. Previous study reported the early mortality of type I hybrid total arch repair were 11% (6), 8.3% of early mortality for elderly or high-risk patients in our center was also desirable. Significant difference was not observed by subgroup analysis, so we speculate that type I hybrid repair is mini-invasive and does not increase the perioperative risks in the elderly or high-risk patients.

Although endovascular repair improves perioperative safety, the durability of stents concerns the surgeons. Endovascular repair has been widely used in the era of descending aorta disease, and achieved considerable clinical outcomes (3,20). Because descending aorta is straight but aortic arch is curved, so the operative difficulty and durability of endovascular aortic arch repair will be impacted. Due to the short history and strict indications of type I hybrid total aortic arch repair, so there was less clinical study with large samples and long-term follow-up worldwide. Joo reported that for all types of hybrid aortic arch repair, the adverse aortic event-free rates at 6 years were 39.4%±10.3%, and zone 0 hybrid aortic arch repair has higher adverse aortic events rate (6). With average nearly 5-year follow-up period, we consider long-term clinical outcomes in our center are desirable and there are two reasons for these outcomes. Firstly, proximity of the endovascular stent was deployed to the place that just cover the innominate artery ostia rather than particularly close to the proximity of ascending aorta as reported by other studies (5,6,9). In this manner, on the basis of effectively blocking diseases aorta and supra-arch branches, the angle of the stent can be reduced, thus reducing the pressure on the aortic wall from both ends of the stents. Secondly, strict patient selecting is also an important factor to guarantee the long-term clinical outcomes.

Between the two subgroups, late survival rate and freedom from reintervention rate are comparable, meanwhile, freedom from adverse aortic events rate is lower in the young subgroup, but significant difference was not observed. With the extension of follow-up time and the expansion of sample size, we consider that significant difference will be likely observed. Elderly patients with short life expectancy may not suffer from adverse aortic events before they died of other disease. For younger patients, movements are more common, which may influence the pressure between the aorta and the stents. In this background, stent complications will be more prevailing, but no previous study reported. Many elderly patients are unable to come to Fuwai Hospital for CTA examination due to their advanced age or comorbidities, meanwhile, the quality of primary health care in China was not decent (21). Therefore, the diagnostic rate of mild endoleaks may be biased and influence the incidence of adverse aortic events.

Limitation

Retrospective study design at a single center and small sample size may cause to some bias in the results. In the future, prospective research, expanding the sample size and continuously prolonging follow-up time will be necessary.

Conclusions

With the past 10 more years of experience, single-stage type I hybrid total aortic arch repair for extensive aortic arch disease has achieved desirable outcomes in our center. Because of avoiding CPB and even HCA, perioperative safety is improving, which give those elderly or high-risk patients suffering from extensive aortic arch disease an opportunity to undergo surgical treatment. For young patients with longer life expectancy diagnosed with extensive aortic arch disease, long-term outcomes were also acceptable, so we consider this surgery is an option, but not primary option for younger patients. In conclusion, with limited experience, single-stage type I hybrid total aortic arch repair is a practical mini-invasive treatment for extensive aortic arch disease, but surgical indications should be strictly controlled, which will optimize the early- and long-term outcomes of this surgery.

Acknowledgments

We appreciate Liang Xian (Bengbu Medical College, Anhui, China) for drawing those pictures showing operative technique.

Funding: This work was supported by Beijing Municipal Science and Technology Commission (Z181100001718197).

Footnote

Reporting Checklist: The authors have completed the TREND reporting checklist. Available at http://dx.doi.org/10.21037/jtd-20-3479

Data Sharing Statement: Available at http://dx.doi.org/10.21037/jtd-20-3479

Conflicts of Interest: All authors have completed the ICMJE uniform disclosure form (available at http://dx.doi.org/10.21037/jtd-20-3479). All authors report grants from Beijing Municipal Science and Technology Commission, during the conduct of the study.

Ethical Statement: The authors are accountable for all aspects of the work in ensuring that questions related to the accuracy or integrity of any part of the work are appropriately investigated and resolved. The study was conducted in accordance with the Declaration of Helsinki (as revised in 2013). The study was approved by institutional ethics committee of Fuwai Hospital (No. 2018-1069) and informed consent was waived.

Open Access Statement: This is an Open Access article distributed in accordance with the Creative Commons Attribution-NonCommercial-NoDerivs 4.0 International License (CC BY-NC-ND 4.0), which permits the non-commercial replication and distribution of the article with the strict proviso that no changes or edits are made and the original work is properly cited (including links to both the formal publication through the relevant DOI and the license). See: https://creativecommons.org/licenses/by-nc-nd/4.0/.
