CT perfusion imaging can detect residual lung tumor early after radiofrequency ablation: a preliminary animal study on both tumoral and peri-tumoral region assessment

Introduction

Radiofrequency ablation (RFA) has been adopted as a locally minimally invasive therapy for primary and oligometastatic lung tumors (especially, tumors less than 3 cm) and is recognized as a safe and effective procedure (1-6). However, local tumor progression associated with incomplete ablation was reported to be 30–40% and 13–19% for primary and metastatic lung tumor, respectively (7). Hence, early detection of residual tumor after ablation is pivotal to the prognosis. The present method of evaluation after RFA is using conventional imaging (i.e., computed tomography and integrated with positron-emission tomography), which is occasionally imprecise due to complicated pathophysiological changes after ablation (8,9). Functional imaging like CT perfusion (CTP) might have the potential to overcome this limitation.

CTP has been widely applied to the assessment of tumor angiogenesis, prediction of cancer pathologic grading and evaluation of tumor response to treatment (10). CTP evaluation of tumors after RFA has been mainly focused on liver cancer, which usually manifests as low and high blood perfusion within completely versus incompletely treated tumors (11-13). Few investigations of CTP on lung cancer after RFA have been carried out, and the majority utilized the single-input (usually systemic circulation) model of CTP without taking into account pulmonary arterial circulation (14). Lung cancers have been verified to have a good deal of pulmonary blood supply besides bronchial blood supply (15,16). Thus, CTP with dual-input model on assessment of lung tumors after RFA might be more reasonable and accurate. Besides, previous investigations on treatment assessment using conventional imaging are usually based on the routine morphological pathology, which might underestimate the effect of RFA (17). The thermally fixed or apoptotic tumor cells sometimes manifest as normal vital cells on H&E staining, yet the enzymes and proteins used to maintain cell activity have been denatured, and cells have been inactivated (17). Nevertheless, these pathological changes could be detected by specific staining, including nicotinamide adenine dinucleotide hydrogen (NADH) and TdT-mediated dUTP nick-end labeling (TUNEL) (18).

To achieve complete ablation of lung cancer, any peritumoral lung parenchyma within 5 to 10 mm needs to be ablated (7,19,20). This area presents as necrosis, effusion and congestion from the inner zone to the outer zone on histopathology, accordingly (21), and manifests as ground glass opacity (GGO) on CT, which is the crucial area in the early assessment after RFA (8). Previous studies based on the morphological changes of unenhanced CT found that the size of GGO was associated with residual tumor and recurrence (22,23). Hemodynamic changes of this region early after RFA could be assessed by pulmonary parenchymal perfusion based on single-input CTP, which would complement to the structural imaging assessment.

Therefore, we explored whether the use of dual-input together with single-input model of CTP based on NADH and TUNEL staining could accurately detect lung tumor viability both in tumoral and peri-tumoral regions early after RFA.

We present the following article in accordance with the ARRIVE reporting checklist (available at https://jtd.amegroups.com/article/view/10.21037/jtd-21-967/rc).

Methods

Optimization of contrast material injection protocol for the dual-input model of computed tomography perfusion imaging

We tested 4 different contrast material injection protocols (iohexol, 350 mg/mL, injection rate and volume: 1.5 mL/s + 1.0 mL; 1.5 mL/s + 2.0 mL; 2.0 mL/s + 1.0 mL; 2.0 mL/s + 2.0 mL) (Table S1) among 40 New Zealand white rabbits, compared the parameters (Table S2) generated from the time-density curves (TDCs) of the pulmonary and bronchial arteries (Figure S1), and found that CTP with a contrast material injection rate of 1.5 mL/s and volume of 2.0 mL was optimal for visualization of pulmonary and bronchial circulation of rabbit lung.

Rabbit lung VX2 tumor modeling, RFA procedure and grouping

This prospective study was under the approval of our center’s Animal Care and Use Committee. Thirty New Zealand white rabbits (Shanghai Jiagan Biological Technology Co., Ltd.; permit number: SCXK2010-0028; 2.0 to 3.0 kg of weight, 3 to 5 months of age, with half males and half females) were implanted with VX2 tumor pieces (measuring 1 mm³, trimmed from the VX2 tumor-bearing rabbits on their thighs, purchased from Shanghai Institutes for Biological Sciences). The tumor pieces were inoculated into either the right or left side of the lower lobe (distant from the heart, diaphragm, central vessels and main bronchi) percutaneously by a 17-G coaxial needle (6.8 cm, Angiotech, Vancouver, BC, Canada) under CT guidance. The growth of implanted VX2 tumors was followed up by unenhanced CT at an interval of 1 week [according to the double time of lung VX2 tumor (24) and auricle VX2 tumor growth (25)], and the rabbits with VX2 tumors measuring 7 to 10 mm in the maximal diameter (two rabbits were randomly selected to test the blood supply to the implanted tumor by digital subtraction angiography and CT, and the tumoral angiogenesis was verified by H&E and CD31 staining) received a subsequent RFA procedure, which contained the following steps. First, 3% pentobarbital sodium (1 mL/kg, Dingguo Biotechnology Co., Ltd., Shanghai, China) was administered via the marginal ear vein to achieve general anesthesia. Second, a 17-G umbrella electrode (length of 10 cm, 10 sub-needles, diameter of 2.0 cm, Medsphere International Co., Ltd., Shanghai, China) or a 19-G single-needle electrode (length of 8 cm, diameter of needle tip of 1 cm, Medsphere International Co., Ltd., Shanghai, China) collocated with a radiofrequency generator (S-1500; Medsphere International Co., Ltd., Shanghai, China) was percutaneously placed into the implanted VX2 tumor under CT guidance. The sub-needles of the umbrella electrode were opened 1.0 cm in diameter, and the single-needle electrode was inserted 1 cm into the tumor. Third, the ablation procedure either with a fixed power pattern of 25–30 W (umbrella electrode) or an initial power of 5 W with an increment of 5 W until the 25 W pattern (single-needle electrode) was set, and ablation was begun continuously until it ceased automatically due to the increasing impedance. This ablation procedure was carried out in a similar position once again on a 30-second interval until the GGO measuring 5 mm appeared on the lung window of CT, suggesting a complete RFA (26).

The rabbits with implanted VX2 tumors, which served as the VX2 lung cancer models, were finally grouped after RFA into complete and incomplete RFA subgroups based on NADH and TUNEL staining.

Computed tomography perfusion imaging

The rabbits were fasted for 12 hours and anesthetized by administration of pentobarbital sodium (3%, 1 mL/kg) into the marginal ear vein via a 24-gauge indwelling needle before CTP imaging. A supine position, with limbs and incisors fixed to a homemade examination pad and gauze bandages bound to the abdomen for controlling abdominal breathing, was utilized during examination. Additional sodium pentobarbital was administered for a stable respiratory rhythm at a rate under 20 per minute.

First, a positioning scan was carried out to determine the target tumor area. Then, a cine mode scan was performed after a 1-second delay of intravenous injection of 2 mL iohexol, followed by 4 or 5 mL 0.9% saline with the same speed of 1.5 mL/s through a single indwelling needle (marginal ear vein) by a power injector (Stellant, SCT-210, MEDRAD, Pittsburgh, USA). A 64-dector row CT scanner (Hitachi Scenaria 64, Hitachi Medical System, Kashiwa Shi, Chiba, Japan) was utilized to finish the whole scanning roughly from the thoracic inlet to the diaphragm with the tumor area as the center. The scan parameters were as follows: tube voltage, 100 kV; tube current, 80 mA; 0.5 s/rotation; collimation, 64×0.625; matrix, 512×512; field of view (FOV), 90–120 mm; slice thickness/interval, 1.25/1.25 mm; total acquisition time, 19 s (0.5 s/rotation, continuously repeated for 38 rotations); total dose-length product (DLP), 87.9 mGy·cm; window width (WW), 350 HU; and window level (WL), 40 HU.

Inflated fixed lung with VX2 tumor, cross-sectional macro- and microscopic specimens

The rabbits with VX2 tumor after RFA and CTP were sacrificed with an overdose of pentobarbital. The lungs were then immediately isolated, inflated and fixed using the Heitzman method. Those samples for NADH staining were inflated and fixed with optimal cutting temperature (OCT) compound (37 °C) after 10 mL air inflation until they appeared not collapsed.

The inflated and fixed lungs were set at the supine position and scanned with a slice thickness of 2.5 mm to position the central slice of the VX2 tumor after RFA under circumstances of the lung window. The cross-sectional macro-specimens with the same thickness were then sliced under guidance of the laser positioning line from the central slice to both ends and fixed in formalin overnight for paraffin embedding of the histological specimen (5 μm) and staining (H&E, CD34 and TUNEL) or were immediately frozen for NADH staining.

H&E, CD31, NADH and TUNEL staining and evaluation

The sections with 5 μm thickness were first stained with hematoxylin-eosin for routine morphological assessments and were then reacted with a 3% H₂O₂-methanol solution for 12 minutes, incubated in 100 µL serum for 15 minutes and with the CD31 antibody (primary and secondary antibodies, Arigo Biolaboratories Corp., Taiwan, China) within 1 day at room temperature for microvessel density (MVD) evaluation according to the Weidner methods (27), which were detailed as follows. First, one single microvessel was defined as one isolated CD31 positively stained vascular endothelial cell or clusters of CD31 positively stained cells with or without cavity formation and a branching structure with a clear gap. The diameter of the cavity was larger than 8 red blood cells, and those with a muscular layer and CD31 positively stained cells in the necrosis and peri-tumoral areas were not calculated as one single microvessel. Second, the “hot-spot” area was defined as a strong staining area on 40-fold magnified views. Third, five views were randomly selected on the 200-fold magnified of the “hot-spot” area, and the average was defined as the MVD.

Air- and OCT-compound-fixed fresh lung with VX2 after RFA within 10 minutes was frozen at −80 °C for 2 to 3 minutes and cut into slices with a thickness of 10 μm. Then, the sections were incubated in 10 mL Tris-HCL buffer (pH=7.4) containing 8 mg NADH (Beyotime Biotechnology, Shanghai, China) and 10 mg NBT (Beyotime Biotechnology, Shanghai, China) at 37 °C for 30 minutes (28). The positive NADH staining was dark blue, indicating that those cells were viable, while the negative staining was colorless, indicating that those cells died as a result of NADH diaphorase inactivation immediately after cell death (29,30).

The TUNEL staining procedure was performed on the paraffin embedded sections according to the modified Roche protocol (Version 11, April 2006) using the Roche cat. for in situ cell death detection kit (No. 11684795910). Positive staining of massive DNA fragments caused by coagulative necrosis in the center of ablation was classified as a true positive result instead of a false positive in the study. TUNEL-positive staining was defined as nuclei with green light under UV excitation indicating cell apoptosis or death, whereas negative staining was defined as nuclei with blue light without excitation indicating cell viability.

All the above stained histological sections were first scanned by a digital panoramic imaging system (Pannoramic-250, 3D HISTECH Ltd., Budapest, Hungary) with 200-fold magnification and then reviewed and analyzed by a pathologist with more than 30 years of experience in diagnostic pathology and various staining techniques.

Data processing and analysis

All CTP images (DICOM format) were transferred to the Vitrea station (Vitrea FX, version 6.5.3, Minnetonka, MN, USA).

The dual-input perfusion model was utilized in the body perfusion packs for the assessment of the VX2 tumor before and after RFA. First, non-rigid correction was performed for the respiratory movement. Second, the region of interest (ROI) of the pulmonary artery trunk, descending aorta and left atrium was delineated on the transverse image at the mediastinal window. Third, the according TDC was generated automatically and adjusted to show the left atrium enhancement peak point in the intersection of the TDC of the pulmonary artery truck and descending aorta (cut-point of the pulmonary and systemic circulation). Fourth, the dual-input CTP pseudo-color mapping (displaying calculated parameters in rainbow colors) was calculated with the maximum slope method (31,32) at CT values ranging from −80 to 150 HU. Finally, ROIs of the VX2 tumor before and after RFA (referring to the images before RFA) were delineated on the maximal axial images while avoiding the lobar bronchi and vessels to generate the perfusion parameters of bronchial flow (BF, unit: mL/min/100 mL), pulmonary flow (PF, unit: mL/min/100 mL) and lung perfusion index (PI, unit: %).

The single-input perfusion model was utilized in the lung perfusion packs for the assessment of the peritumoral “safe zone”. First, non-rigid correction was performed for the respiratory movement. Second, the ROI of the pulmonary artery truck and lung parenchyma of the right lower lobe (avoiding the area adjacent to the heart and diaphragm) was delineated on the transverse image at the mediastinal and lung window. Third, the TDC was generated automatically and then adjusted by verifying each ROI in a similar region at different time points. Fourth, the single-input CTP pseudo-color mapping was calculated with the maximum slope method at a CT value ranging from −400 to −50 HU. Finally, the ROIs of the GGO after RFA were delineated from the central to peripheral ablation zone based on different contours caused by the decreasing temperature of the lung tissue on the pseudo-color map; accordingly, the PF was generated.

The following steps were used to well register between CTP images and pathological images: firstly, cross-sectional CTP images across the maximal axis of the tumor before RFA were marked by both tumor contour and adjacent anatomic structures (e.g., tracheal carina, ascending aorta, heart atrium and ventricle); secondly, cross-sectional CTP images across the maximal axis of the tumor after RFA were identified by cross checking with the marked CTP images in the prior step; thirdly, large histological section with H&E staining which were well correlated with CTP images were identified by cross-referring to both tumor contour and adjacent lung parenchymal structures (e.g., lobar and segmental bronchus, pulmonary artery and vein). NADH and TUNEL staining histological sections were then made for further subgrouping.

The measurement was blindly performed by two radiologists (ZC and FS, with 10 and 15 years of experience in thoracic diagnostic imaging, respectively), and the mean value was used.

Statistical analysis

The values of PI, BF, PF in the complete and incomplete groups before and after RFA were compared by either a two-tailed unpaired t-test (data in Gaussian distribution tested by the Kolmogorov-Smirnov test) or a two-tailed Mann-Whitney U test (data in non-Gaussian distribution). The receiver operating characteristic (ROC) curve was used to test the differentiating ability of the perfusion parameter in terms of area under the curve (AUC), sensitivity, specificity and positive likelihood ratio (LR+). The correlation between the significant perfusion parameter and MVD was tested by either a one-tailed Pearson correlation (data in Gaussian distribution) or Spearman correlation (data in non-Gaussian distribution). The coefficients of correlation above and below 0 indicated positive and negative correlations, respectively. An absolute value above 0.6 indicated high correlation, a value between 0.4 and 0.6 indicated correlation, and a value below 0.4 indicated no correlation. All the statistics were carried out by STATA (Version 14.1.408, Statacorp, TX, USA), and the statistical charts were created by GraphPad Prism (Version 8.0.0, GraphPad Software, CA, USA). All significant levels were set at 0.05.

Ethical statement

Experiments were performed under a project license (No. 2017-A015-01) granted by the institutional ethics committee board of Shanghai Public Health Clinical Center, in compliance with Shanghai Public Health Clinical Center’s institutional guidelines for the care and use of animals. A protocol was prepared before the study without registration.

Results

Rabbit lung VX2 tumor model with RFA and CTP

There were 28/30 successfully implanted lung VX2 tumor models. Of these 28 models, 2 were sacrificed to test for tumoral angiogenesis, and another 2 died from hemopneumothorax and bronchopleural fistula during the RFA procedure. The remaining 24 models successfully received both dual-input CTP and RFA. Of the 24 finally enrolled models, 11/24 models had no prominent GGO adjacent to the tumor after RFA, which might be caused by subsequent lung parenchymal collapse, congestion, or consolidation. These 11/24 models were not further investigated by single-input CTP on account of avoiding the potential influence on the blood supply of this peri-tumor region. Consequently, 13/24 models with prominent GGO were finally enrolled to investigate the single-input CTP.

Dual-input CTP changes in rabbit lung VX2 tumor early after RFA

The mean value of BF and the median value of PF decreased 14.10±15.09 mL/min/100 mL and 15.60 (6.00–26.00) mL/min/100 mL after RFA (P=0.0001; <0.0001, α=0.05), respectively, and the corresponding value of the complete RFA group decreased more than that of the incomplete RFA group (P=0.01; 0.02, α=0.05). The mean value of PI slightly decreased 0.01±0.15 after RFA; however, there was no significant difference (P=0.7058, α=0.05). The mean value of PI in the complete RFA group slightly increased early after RFA, while the mean value of PI in the incomplete RFA group slightly decreased early after RFA, yet there were no significant differences (P=0.23, α=0.05) (Tables 1,2; Figures 1,2). The ROC curve shows that using a decrease of ∆BF ≥14.85 mL/min/100 mL and ∆PF ≥17.25 mL/min/100 mL as a threshold to determine complete RFA of lung VX2 tumors could produce AUC of 0.80 and 0.78, sensitivity of 75.00% and 75.00%, specificity of 66.67% and 66.67%, and LR+ of 2.25 and 2.25, respectively.

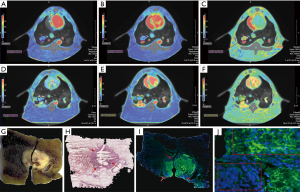

Figure 1 Dual-input CT perfusion changes in the implanted lung VX2 tumor with complete ablation based on H&E and NADH staining within 1 hour after RFA. (A-C) BF, PF, PI map of the VX2 tumor pre-RFA; (D-F) BF, PF, PI map of the VX2 tumor within 1 hour post-RFA; corresponding value of ROI: 51.7 mL/min/100 mL, 51 mL/min/100 mL, 47.6%; 11.4 mL/min/100 mL, 15.5 mL/min/100 mL, 57.1%. (G-I) Macropathology of cross-sectional lung specimens, H&E staining (1×), and NADH staining (1×). ROI with yellow color illustrating the VX2 tumor post-RFA; dense and hematoxylin-stained tumor cells are visible, while negative staining on NADH indicates nonviable tumor cells. NADH, nicotinamide adenine dinucleotide hydrogen; RFA, radiofrequency ablation; BF, bronchial flow; PF, pulmonary flow; PI, perfusion index; ROI, region of interest.

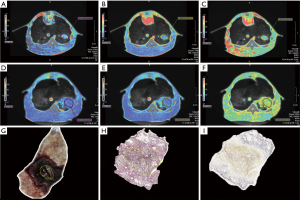

Figure 2 Dual-input CT perfusion changes in the implanted lung VX2 tumor with incomplete ablation based on H&E and TUNEL staining within 1 hour after RFA. (A-C) BF, PF, PI map of the VX2 tumor pre-RFA; (D-F) BF, PF, PI map of the VX2 tumor within 1 hour post-RFA; corresponding value of ROI: 14.3 mL/min/100 mL, 19.6 mL/min/100 mL, 57.7%; 23.2 mL/min/100 mL, 23.2 mL/min/100 mL, 50.4%. (G-J) macropathology of cross-sectional lung specimens, H&E staining (1×), TUNEL staining (1×), and TUNEL staining (200×). Area with red arrows illustrating vital part of the VX2 tumor, blue-stained on TUNEL staining; left lower red rectangle indicates vital tumor cells; right upper red rectangle indicates almost nonviable tumor cells. TUNEL, TdT-mediated dUTP nick-end labeling; RFA, radiofrequency ablation; BF, bronchial flow; PF, pulmonary flow; PI, perfusion index; ROI, region of interest.

Changes in single-input CTP of the peritumoral “safe zone” of rabbit lung VX2 tumor after RFA and its role in early evaluation

There were 13 rabbit lung VX2 tumors with predominant GGO immediately after RFA, and 6 of them were classified as the incomplete RFA group according to H&E and NADH staining according to the vital tumor area shown in the peri-tumor region. The mean PF value in the corresponding GGO was 39.07 mL/min/100 mL. The remaining 7 models were classified as the complete RFA group, and the mean value of PF in the GGO was 18.83 mL/min/100 mL. As a control, the mean PF of GGO of the normal lung after RFA was 20.66 mL/min/100 mL. There were significant differences among these three subgroups (P=0.0009, α=0.05/3). The mean PF of GGO in the incomplete RFA subgroup was larger than that in the complete RFA subgroup (P=0.0012, α=0.05/3) and in the normal lung control subgroup (P=0.0087, α=0.05/3), while there was no significant difference between the latter two subgroups (P=0.8447, α=0.05/3) (Table 3; Figure 3). The ROC test showed that using PF ≥29.4 mL/min/100 mL as a threshold to determine incomplete RFA of GGO could produce an AUC of 0.99, sensitivity of 100%, specificity of 91.67%, and LR+ of 12.00.

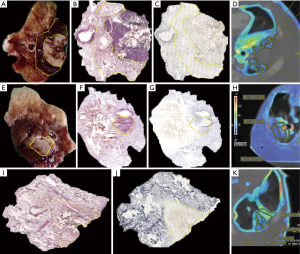

Figure 3 Single-input CT perfusion changes in the “safe zone” around implanted lung VX2 tumor and normal lung within 1 hour after RFA based on H&E and NADH staining. (A-D) Cross-sectional lung specimen (A), H&E staining (B), NADH staining (C) and pulmonary parenchymal CTP (D) of GGO around a complete lung VX2 tumor after RFA. The ROI in yellow indicates devitalized tissues (on NADH staining); mean PF of the corresponding ROI: 12.75 mL/min/100 mL. (E-H) Cross-sectional lung specimen (E), H&E staining (F), NADH staining (G) and pulmonary parenchymal CTP (H) of GGO around an incomplete lung VX2 tumor after RFA. The ROI in yellow indicates vital tissues (blue part on NADH staining-vital); PF of corresponding ROI: 34.9 mL/min/100 mL. (I-K) H&E staining (I), B-NADH staining (J) and pulmonary parenchymal CTP (K) of GGO of normal lung after RFA. The ROI in yellow indicates no vital tissue (on NADH staining); the mean PF of the left lower part of ROI: 12.75 mL/min/100 mL; the right upper part of ROI indicating congestion. RFA, radiofrequency ablation; NADH, nicotinamide adenine dinucleotide hydrogen; CTP, CT perfusion; GGO, ground glass opacity; ROI, region of interest; PF, pulmonary flow.

Correlations between CTP parameters and MVD

∆BF positively correlated with MVD (P=0.0456, r=0.4684, α=0.05, Pearson’s correlation), while there was no significant correlation among ∆PF, ∆PI and MVD (P=0.1437, r=0.3059, α=0.05; P=0.1000, r=−0.3645, α=0.05, Pearson’s correlation).

Discussion

To date, CTP based on a single-input model has been investigated for the evaluation of various treatments of lung cancer, including chemotherapy, targeted therapy, radiotherapy and interventional therapy. The majority of these studies confirmed CTP as a useful method and found that BF and permeability surface (PS) product decreased after treatment (33-37). Few studies have been carried out on thermal ablation, and the results have varied. A study found that BF and PS decreased and correlated well with the results assessed by the response evaluation criteria in solid tumors (RECIST) (38), while another study on microwave ablation did not find a difference (39). The reason might be that the algorithm being chosen is a single-input model, and there could be some pulmonary blood supply to the tumor and transiently increased pulmonary blood perfusion around the ablation at an early stage. DI-CTP might have the potential to solve this problem, as was found by our study that BF and PF decreased at an early stage after RFA. The possible mechanism might be that thermal damage during ablation directly or indirectly destroys the microvessels of lung tumors, triggering a large number of round cells in the interstitium infiltrating the capillary wall and causing degenerative changes, which eventually lead to occlusion and necrosis of tumor blood supply vessels (40) and a prominent decrease in microcirculatory perfusion. In addition, we found that both BF and PF decreased more in the complete ablation groups than in the incomplete group, which provides a basis for the early evaluation of RFA. The PI was reported to be a good perfusion biomarker in differentiation of malignant from benign solitary pulmonary nodules with an AUC of 0.92, and the PI of malignancy was smaller than that of benignity (41). Similar to this investigation, we found a trend in which PI increased in the complete RFA group but decreased in the incomplete RFA group, although there was no statistically significant difference, which could be explained by changes in the dual-input blood supply of the tumor after RFA. BF decreased more than PF in the complete RFA group; however, BF decreased slightly more than PF in the incomplete RFA group. The reason for the non-statistically significant difference might be the miscellaneous effects of the PI, for instance, tumor size and volume: the larger the volume was, the smaller the PI was (42). The variance in volume of the VX2 tumor in the study might be one factor accounting for this observation. In addition, the implanted tumor was mainly peripherally located, which might be another factor, as was reported that the proportion of pulmonary blood supply in peripheral lung cancer is larger than that in centrally located lung cancer (14).

The GGO appearance around the VX2 tumor after RFA is the key area to be carefully assessed, which is pathophysiologically complicated. The GGO could be vasculogenic as a result of reactive increasement in microvascular blood volume after lung tissue damage or non-vasculogenic due to bronchoalveolar destruction, collapse or some tumor cell infiltration in a lepidic pattern through the alveolar pore (43). The non-vasculogenic GGO can be easily assessed by CTP with the decreased PF after RFA; however, the vasculogenic GGO can be discerned by the increased vessel diameter within the GGO (44) or dual-energy CTP when the diameter of the corresponding vessel cannot be verified (43). Previous studies usually uses a size of at least 5 mm and integrity of GGO as the standard for complete ablation (45); however, predicting success based only on the morphology is not precise. In this study, we used the CTP with a calculated threshold of the CT value between −400 and −50 HU to assess the lung pulmonary parenchyma with GGO and found that the PF of the residual tumor area was larger than that of the complete ablation area with either a tumor or normal lung, which is similar to the report on the instant evaluation of normal porcine liver with CTP (46), suggesting that CTP could be a promising method in the early evaluation of GGO around lung tumors after RFA.

Regarding the correlation between perfusion parameters and MVD, we found that only ∆BF positively correlated with MVD, which was consistent with the results from studies based on the single-input model CTP (47-49). The reason for the lack of correlation between the other two parameters and MVD might be due to the inability to differentiate arterioles from venules using this counting method, and there was still some overlap between the bronchial and pulmonary blood supply, even with the maximum slope method of dual-input CTP.

Admittedly, there were several limitations in this study. First, the artifacts caused by respiratory movements might affect the perfusion parameters; however, a non-rigid movement correction was utilized to alleviate this effect. Second, delineation of the VX2 tumor on the maximal cross-section might not fully reflect the perfusion changes of the whole tumor (50) because there was spatial heterogeneity in the tumoral blood supply (51). A delineation of the whole tumor would be warranted to verify the present results. Third, there were no comparisons between different mathematical algorithms on the calculation of perfusion parameters, as there might be differences in the treatment evaluation based on perfusion (52). However, a study on the CTP calculated with different mathematical algorithms of normal porcine liver after RFA found that all perfusion parameters could discriminate vital from necrotic tissues (46). Last, neither inter- nor intra-observer consistency tests were carried out; nevertheless, the intra-observer consistency was stable on volume perfusion CT, and the inter-observer consistency was ameliorated after training (53).

In conclusion, CTP with a dual-input model and a single-input model could evaluate the lung VX2 tumor and the “safe zone” after RFA, respectively, at an early stage. The combined method could be used for comprehensively early evaluation and thus could provide clues in clinical practice.
