Sensitivity and specificity of magnetic resonance imaging in routine diagnosis of pulmonary lesions: a comparison with computed tomography

Introduction

Lung cancer is a leading cause of cancer-related mortality worldwide, accounting for nearly 1.8 million deaths in 2020 (1). Diagnosis and management at early stage is vital to increase survival rate of lung cancer. Low dose computed tomography (LDCT) is a common technique for lung cancer screening, which has reduced lung cancer-related mortality by 20% (2). Results of the Dutch-Belgian Randomized Lung Cancer Screening (NELSON) Trial showed that lung-cancer mortality was significantly decreased among those who underwent volume computed tomography (CT) screening (3). However, repetitive use of CT with ionizing radiation effect has carcinogenic risk, particularly in patients who require reviews over a prolonged period (4,5). Therefore, magnetic resonance imaging (MRI) as the radiation-free lung imaging technique has recently attracted more and more attentions.

Since the clinical introduction of MRI, the chest scan has been one of its most challenging applications mainly due to the low proton density and extremely rapid T2* decay of the lung, susceptibility artifacts at air-tissue interfaces, and physiological motions including respiration and cardiac pulsation of the thorax (6,7). However, MRI retains advantages in terms of soft-tissue contrast and the ability for functional and cine-based imaging (8). With the advancement of MRI techniques, state-of-the-art thoracic MRI plays a complementary role in the management of patients with various chest diseases and especially in the detection and evaluation of pulmonary nodules or masses which potentially indicate to cancer (9).

Two major MRI sequences widely used in pulmonary nodules detection are the turbo spin-echo (SE)-based and the gradient-echo (GRE)-based techniques, with varying results for reduction of cardiac- and respiratory-motion artifacts (9). Currently, a respiratory-navigated sequence by radial k-space acquisition, commonly known as PROPELLER (GE, Milwaukee, WI, USA), fBLADE (Siemens, Erlangen, Germany), or MultiVane (Philips, Best, the Netherlands), provides excellent T2 contrast because of its insensitive to cardiac motion, and becomes a preferred alternative for mitigating respiratory motion (8,10-12). Although the pulmonary lesion detection by 3D T1-weighted gradient echo volumetric interpolated breath-hold examination (VIBE) sequence is less sensitivity than that by TSE imaging (9), the VIBE sequence with radial acquisition trajectory by stack-of star (starVIBE) is insensitive to motion and magnetic susceptibility artifacts, therefore, it can improve the image quality (11,13).

For fat-suppressed T2-weighted imaging, short tau inversion recovery (STIR) sequences provide extreme T2-weighting. In addition, the nodule detection capability of STIR is deemed to be equal to or even better than that of other contrast techniques (9,14,15). A close variant of chemical fat suppression is spectral inversion recovery (known as SPAIR for Siemens or ASPIR for GE), which also satisfies for detection of pulmonary nodules (8,14).

Sampling perfection with application optimized contrasts using different flip angle evolution (SPACE) is another 3T MRI sequence that can achieve thin-slice imaging. We assume that the thin-slice can provide higher detection sensitivity and more pulmonary nodule characteristics, which is rarely used in routine pulmonary MRI. Therefore, the present study aimed to evaluate the sensitivity, specificity, and image quality of 3T MRI sequences in detection of pulmonary nodule and compare them with CT findings, so as to provide an ideal MRI protocol for detection of pulmonary nodules in the routine clinical practice. We present the following article in accordance with the STARD reporting checklist (available at https://jtd.amegroups.com/article/view/10.21037/jtd-22-370/rc).

Methods

Patients

From October 2018 to October 2019, 156 patients with pulmonary nodules or masses detected by CT were advised to undergo dedicated thoracic MRI according to a protocol approved by the Institutional Review Board of Shanghai Public Health Clinical Center (No. 2019-S021-02). Written informed consent was obtained from all patients before MRI scans. The study was conducted in accordance with the Declaration of Helsinki (as revised in 2013). The inclusion criteria were as follows: (I) pulmonary nodules or masses clearly depicted by CT with the slice thickness/interval of 1 mm/1 mm; (II) pulmonary nodules or masses underwent MRI scan by sequences of T1-VIBE, T1-starVIBE, T2-fBLADE TSE and T2-SPACE. The exclusion criteria were as follows: (I) patients with contraindication for MR imaging, including pacemaker, ferromagnetic implants, and claustrophobia; (II) patients with severely impaired pulmonary function, such as acute exacerbated chronic obstructive pulmonary disease and interstitial pneumonia; (III) patients with lower breath-hold capability and compliance, and larger motion artifact. Finally, sixty-eight patients including 47 males and 21 females with median age of 59 years (17–78 years) were enrolled in this study. MRI and CT were performed with a maximum of 12 days interval between the two examinations (median interval 3 days).

CT

For acquisition, the patients lay in the supine position on a 320-detector CT (Aquilion Vision, Canon Medical Systems, Japan) in full inspiration. Scanning range was from the level of the thoracic inlet to the inferior level of the costophrenic angle. The CT protocol included the following parameters: detector width, 80×0.5 mm; pitch, 0.813; tube voltage, 120 kV; automatic tube current with SD 10 (Sure Exp 3D set, maximum: 440 mA, minimum: 60 mA); The radiation dose of the thoracic CT was calculated in terms of the dose-length product (DLP). Average radiation dose was 5.2±0.7 mSv. All CT images with the slice thickness/interval of 1 mm/1 mm were reconstructed by means of adaptive iterative dose-reduction with three-dimensional processing (AIDR 3D, standard) and a high frequency reconstruction algorithm (FC56) for the lung window setting, and with a standard reconstruction algorithm (FC17) for the mediastinum window setting. The width and level of the lung window were adjusted appropriately by the reference standards of 1,600 and −600 Hounsfield unit (Hu).

MRI

All patients underwent 3T MRI (MAGNETOM Skyra, Siemens Healthcare, Erlangen, Germany) with a 32-channel body-phased array coil. The patients were instructed to lie in supine position, with their arms raising above their body, and to breathe freely. The pulmonary lesions were positioned in the positioning map of horizontal, sagittal and coronal position. The lesions were regarded as the center of the map to determine the number of scan layers along the long axis of the body so that the lesions and adjacent pulmonary parenchyma were covered. The parameters of MRI sequences were summarized in Table 1, including breath-hold T1-VIBE (SPAIR), free-breathing T1-star VIBE (SPAIR), respiratory triggered (RT) T2-fBLADE TSE (STIR), and RT-T2-SPACE (SPAIR). The total scan time was nearly 10 minutes due to the respiratory status of patients.

Image analysis

All images were reviewed and analyzed anonymously by picture archiving and communication systems (PACS) and RadiAnt DICOM Viewer 4.6.9 (Medixant, Poznan, Poland, https://www.radiantviewer.com/).

CT image analysis

A radiologist with 30 years of experience (Y.S) evaluated the pulmonary lesions detected by CT in routine clinical practice. The location, size, and type of each pulmonary lesions were recorded. Lesion size was defined as the mean values of the longest and shortest axial diameters. The nodules were classified into ground glass nodules (GGNs), part-solid nodules (PSNs), and solid nodules (SNs) according to the attenuation on CT according to the Fleischner Society Guidelines (16,17). The nodules were categorized into 4 groups based on size according to the lung imaging reporting and data system (Lung-RADS) (16,17): <6, 6–8, 8–15, or >15 mm in diameter. The largest level of each lesion was selected for measurement. As CT was considered as the gold standard for nodule detection, a nodule detected by MRI but not by CT was defined as false positive, a nodule diagnosed by CT but not by MRI was defined as a false negative. Sensitivity was defined by true positive result/true positive result + false negative results, while specificity was defined by true negative result/true negative result + false positive results.

MRI image analysis

The MRI data analysis was blindly performed by two radiologists with 20 years (F.S, observer 1) and 6 years (Shuyi Yang, observer 2) of experience in chest imaging diagnosis, respectively. To eliminate detection bias, both of these observers were unaware of the CT findings. Each MRI sequences were evaluated independently by both readers in a blinded fashion in the interval time of 4 weeks. The size and location of each lesion in MR imaging were recorded.

Mean signal intensity of the pulmonary lesions (SI_lesion) were measured by focusing the regions of interest (ROIs) on lesions larger than 0.8cm in diameter. The ROIs included the entire scope of the lesions and avoided visible necrosis components (liquefaction necrosis signal intensity), large vessels, and other non-signal areas. The same pixel (error is less than 5%) of ROI was also drawn in the dorsal muscle at the same slice to achieve the mean muscles’ signal intensity (SI_muscle). The lesion to muscle ratio (LMR) was then calculated by the equation: LMR = SI_lesion/SI_muscle (low ≤0.75, moderate ﹥0.75 & ≤1.5, high >1.5) (Figure 1A). The picture signal to noise ratio (picture-SNR), lesion-SNR and contrast to noise ratio (CNR) were calculated to compare the image quality and the ability of those 4 MRI sequences in assessing signal intensity of pulmonary lesions. Picture-SNR was calculated by mean SI_muscle/noise. Lesion-SNR by mean SI_lesion/noise, and CNR by (mean SI_lesion − mean SI_lung)/noise (Figure 1B-1D).

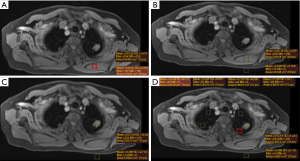

Figure 1 A 41-year-old male with 1.6 cm SN in the left upper lobe. The diagram of lesions’ LMR, picture-SNR, lesion-SNR and lesion-CNR; T1-starVIBE. (A) LMR = SI_lesion/SI_muscle =210.42/190.94≈1.10; (B) picture-SNR = SI_lesion/noise =193.16/2.759≈70.01; (C) lesion-SNR = SI_lesion/noise = 210.19/2.719≈77.30; (D) lesion-CNR = [SI_lesion − mean(SI_lung)]/noise = [210.19−(16.48+14.85+17.24+17.08)/4]/2.719≈71.27. SN, solid nodule; LMR, lesion to muscle ratio; SNR, signal to noise ratio; CNR, contrast to noise ratio; SI, signal intensity.

Two radiologists also independently evaluated T1-VIBE, T1-starVIBE, T2-fBLADE TSE and T2-SPACE images in terms of visualization of normal structures, degree of noise and artifacts, and overall acceptability. The 5-point scale was used as follows (18): 1 point, unacceptable (with heavy noise/artifacts, the lesions can’t be detected, invisible peripheral pulmonary structures, indistinguishable lobar bronchial walls); 2 points, suboptimal (with above-average noise/artifacts, the lesions can be detected with unclear margin, barely visible peripheral pulmonary structure, visible lobar bronchial walls); 3 points, satisfactory (with average/acceptable noise/artifacts, the lesion can be detected with integrate margin, small lesions may be misdiagnosed, visible peripheral pulmonary structure, visible segmental bronchial walls); 4 points, above average (with less than average noise/artifacts, the lesions can be depicted clearly, the small lesions can be detected, visible peripheral pulmonary structure, visible sub-subsegmental bronchial walls); 5 points, excellent (with minimal artifacts/noise, lesions can be depicted clearly, visible peripheral pulmonary structure, visible sub-subsegmental bronchial walls). The final score of each sequence was determined by consensus of the two readers. Acceptability of each set of images was defined as the final score of 3 or more. Four reading sessions were provided with 4-week interval to avoid consecutive reading of four sequences of the same patients.

Statistical analysis

Statistical analysis was conducted using IBM SPSS 26 (IBM Corporation, Armonk, New York, USA, https://www.ibm.com/analytics/spss-statistics-software) and MedCalc 18.11.3 (MedCalc Software Bvba, Ostend, Belgium, https://www.medcalc.org/). All continuous variables were presented as “mean ± standard deviation”, while categorical variables were shown as percentage. The intraclass correlation coefficient (ICC) was used to assess the consistence of lesion diameter measurements between CT and MRI sequences. As the ICC approached 1, the diameter measurement consistency between the tested methods was better (excellent: >0.75, mild: 0.40< ICC ≤0.74, poor: ≤0.40). The picture-SNR, lesion-SNR, and CNR of each sequence were compared by Mann-Whitney U test. All test was two-tailed, P<0.05 was considered statistically significant.

Results

Pulmonary lesions detection rate by MRI

The CT imaging displayed 232 pulmonary lesions in 68 patients, comprising 188 SNs (1.0±0.8 cm, range, 0.3–3.0 cm), 22 PSNs (average 0.8 cm, range, 0.4–2.4 cm), 6 GGNs (average 0.7 cm, range, 0.4–0.9 cm), 1 ground glass mass (GGM), and 15 solid masses. According to the Lung-RADS (16,17), of the 188 SNs, the diameters of 86 nodules were <6 mm, 15 nodules between 6 and 8 mm, 35 nodules between 8 and 15 mm, and 52 nodules between 15 and 30 mm. The T1-VIBE, T1-starVIBE, T2-fBLADE TSE, and T2-SPACE sequences accurately detected 141 SNs, 150 SNs, 166 SNs and 169 SNs, respectively (Figure 2). The detection rate of pulmonary SNs by MRI were showed in Table 2. One GGN (1/6, 16.7%) was detected by T1-starVIBE, 4 GGNs (4/6, 66.7%) by T2-fBLADE TSE, and 2 GGNs (2/6, 33.3%) by T2-SPACE, no GGN was detected by T1-VIBE. Twelve PSNs (12/22, 54.6%) were detected by T1-VIBE, 15 PSNs (15/22, 68.2%) by T1-starVIBE, 18 PSNs (18/22, 81.8%) by T2-fBLADE TSE, and 20 PSNs (20/22, 90.9%) by T2-SPACE (Figure 3). The GGM was detected by T2-fBLADE TSE and T2-SPACE, but not by T1WI (Figure 4).

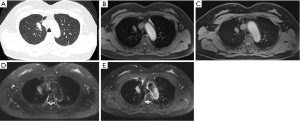

Figure 2 A 53-year-old female with 1.95 cm SN in the right upper lobe. The nodule was well depicted on the CT axial (A), T1-VIBE (B), T1-starVIBE (C), T2-fBLADE (D) and T2-SPACE (E). The nodule showed moderate LMR in T1-VIBE and T1-starVIBE, while high LMR in T2-fBLADE and T2-SPACE. SN, solid nodule; CT, computed tomography; LMR, lesion to muscle ratio.

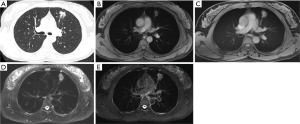

Figure 3 A 46-year-old female with 2.34 cm PSN in the left upper lobe. The nodule was well depicted on the CT (A), T1-VIBE (B), T1-starVIBE (C), T2-fBLADE (D) and T2-SPACE (E). The nodule showed low and moderate LMR in T1-VIBE and T1-starVIBE, while high LMR in T2-fBLADE and T2-SPACE. PSN, part-solid nodule; CT, computed tomography; LMR, lesion to muscle ratio.

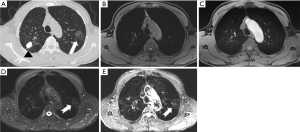

Figure 4 A 67-year-old male with 3.27 cm GGM in the left upper lobe. The GGM was well depicted on the CT (A, “arrow”), T2-fBLADE (D, “swallow tail arrow”) and T2-SPACE (E, “swallow tail arrow”), but cannot be depicted by T1-VIBE (B) and T1-starVIBE (C). The nodule showed low LMR in T2-fBLADE and T2-SPACE. Calcified nodule was well depicted on the CT (A, “triangle”), but cannot be detected by MRI sequences. GGM, ground glass mass; CT, computed tomography; LMR, lesion to muscle ratio; MRI, magnetic resonance imaging.

Pulmonary lesions depiction and image quality evaluation

CT detected 111 pulmonary nodules or mass larger than 0.8 cm in diameter, from which 11 lesions (4 SNs in diameter of 8–10 mm, 5 GGNs, and 2 lesions with calcification) were excluded due to undetectable by all 4 MRI sequences. Finally, a total of 100 lesions (2.2±1.4 cm, 0.8–7.3 cm) were detected by T1-VIBE, T1-starVIBE, T2-fBLADE TSE, and T2-SPACE at the same time. The lesion size measured by MRI sequences was excellently consistent with that by CT with ICC value bigger than 0.96 (Table 3).

LMR was measured to depict signal characteristics of the pulmonary lesions. The LMRs were 1.2±0.3, 1.0±0.2, 2.6±1.4 and 2.2±0.8 in T1-VIBE, T1-starVIBE, T2-fBLADE, and T2-SPACE, respectively. Eighty-one lesions (81%) were with high LMR by T2-weighted imaging (T2WI), while eleven (11%) lesions and none lesion with high LMR by T1-VIBE and T1-starVIBE (Table S1). For T1WI sequences, 80 (80%) lesions and 89 (89%) lesions with moderate LMR by T1-VIBE and T1-starVIBE. The picture-SNR, lesion-SNR and CNR by T1-starVIBE were 245.8±56.2, 248.7±73.4, and 211.3±66.2, respectively, all of which were higher than those by T1-VIBE (157.4±68.0, 192.3±95.0, 183.5±92.5, respectively, P<0.001). The lesion-SNR and CNR by T2-fBLADE were 253.9±130.1 and 235.4±131.9, both of which were higher than those by T2-SPACE (208.5±120.8, P=0.006; 198.0±113.4, P=0.038, respectively). The picture-SNR was 99.4±30.8 by T2-fBLADE and 99.0±54.1 by T2-SPACE; however, the difference was not statistically significant (P=0.613). For images with final score ≥3, 93% of images by T1-VIBE, 86% by T1-starVIBE, 92% by T2-fBLADE, and 90% by T2-SPACE were considered sufficient for clinical diagnosis. No sequences got score of 1 and no sequence of T2WI achieved score 5 (Table 4).

Discussion

Our study investigated the detection capability of pulmonary nodules by clinical routine MRI sequences and achieved acceptable results. Our results confirmed prior reports that the T2WI sequence was more effective in detecting pulmonary nodules than T1WI (9,19-22).

According to Lung-RADS, only nodules ≥6 mm have a slightly elevated risk (≥1%) of malignancy and require short-term follow-up or further investigation (16,17). In our study, for SN <6 mm (Lung-RADS score 2), T1-VIBE had the lowest detection sensitivity (52.3%), while T2WI had higher sensitivity (76.7% by T2-fBLADE, 79.1% by T2-SPACE). Yet, the misdiagnosed nodules were with lower risk of malignancy. For SNs between 6 and 8 mm with malignant risk of 1–2%, (Lung-RADS score 3), T1-VIBE showed the lowest sensitivity of 80% and T2WI achieved higher sensitivity of 93.3%, which was superior to the published studies showing sensitivity of 75% for 6–8 mm nodules by T1WI (23). Recently, ultra short echo time (UTE), which is used in conjunction with the PD-weighted 3D GRE sequence, has been reported more promising and useful in pulmonary diseases assessment (9,18,24). UTE achieved the sensitivity of 83–94.4% for 6–8 mm nodules (15,25), which was comparable to our results. For SNs between 8 and 15 mm with malignant risk of 5–15% (Lung-RADS score 4A), T1WI reached the sensitivity of 91.4%, T2-fBLADE TSE of 97.1%, and T2-SPACE of 100%. For SNs ≥15 mm with malignant risk of ≥15% (Lung-RADS score 4B), all nodules were detected by MRI. Overall, in our study, T1-starVIBE/T2-fBLADE TSE achieved better performance for SN detection with sensitivity and specificity of 79.8%/88.3% and 100%/66.7%, respectively. Nodules with ground glass appearance on CT are named PSN (with solid component) and GGN (without solid component), which can develop into microinvasive adenocarcinoma or invasive adenocarcinoma. In our study, T2WI is more sensitive for the detection of PSN and GGN. For PSN, T2-fBLADE TSE and T2-SPACE showed the detection sensitivity of 81.8% and 90.9%, while T1-VIBE and T1-starVIBE showed 54.6% and 68.2%. T2-fBLADE TSE and T2-SPACE had the GGN detection sensitivity of 66.7% and 33.3%, while T1-VIBE could not detect GGN. The detection sensitivity of PSN and GGN by MRI was lower than that by UTE reported in previous study (25), yet the number of PSNs and GGNs was too small to analyze nodule detection capability in our study.

Nodule size has also been considered as an effective biomarker for nodule management to reduce lung cancer-specific mortality according to Lung-RADS (16,17). Accurate size measurement contributes to assessment of nodule score and follow-up surveillance. In our study, lesion size measured by MRI sequences produced excellent inter-method consistency with CT. The mean size of lesions measured by T1-VIBE, T1-starVIBE, and T2-SPACE were slightly smaller than that by CT, which was consistent with the reported studies (26,27); this could be explained by that the images acquired by CT were in the state of breath-hold after inspiration, while all the images by T1-starVIBE and T2-fBLADE sequences were acquired in the free-breathing state, resulting in a certain degree of deformation of the lesions (26). The difference of slice thickness and interval between MRI and CT may also affect the consistency of lesions size measurement. But the very small difference in size between MRI and LDCT is acceptable in routine clinical practice. To depict the signal intensity of lesions, we calculated their LMR. The results showed that most lesions had moderate signal intensity in T1WI and high signal intensity in T2WI. Previous study showed that the signal intensity of lesions might be an indicator of malignant change; however, it was limited by the significant overlapping of their relaxation time (9,28).

Our results demonstrated that MRI was suitable for detection and evaluation of pulmonary nodules. The latest advances of pulmonary MRI technology, such as radial k-space sampling and UTE, have made MRI a potential radiation-free alternative to CT (8,9,11,15,18,20,25-27). The T2-TSE sequence in our study using fast-BLADE (fBLADE) technology, which is periodically rotating overlapping parallel lines radially filling k-space based on non-Cartesian coordinates, can eliminate distorted data, reduce artifacts, and is insensitive to motion and susceptibility artifacts, thereby significantly improving image quality (12). The T2-SPACE sequence is a fast spin-echo three-dimensional imaging, which is characterized by high resolution and high SNR and can achieve thin-slice reconstruction (29). We firstly applied this sequence to pulmonary lesion detection and showed it can improve the detection sensitivity of small pulmonary nodules. Furthermore, we demonstrated that both lesion-SNR and CNR by T2-fBLADE TSE were statistically higher than those by T2-SPACE. However, the difference of picture-SNR by T2-fBLADE TSE and T2-SPACE was not statistically significant. Free-breathing T1-starVIBE using radial k-space data sampling substantially reduced motion-related artifacts, which improve image quality by compensating artifacts from breathing, heart pulsation, and other motions (27,30,31). Our result showed that picture-SNR, lesion-SNR and lesion-CNR by T1-starVIBE were higher than those by T1-VIBE. The previous study also reported that T1-starVIBE was better than T1-VIBE in displaying the morphological characteristics of peripheral solid pulmonary masses, the T1-VIBE was suitable for patients who couldn’t comply with breath-hold requirements (11,30). However, the percentage of images with the score of 3 or more by T1-starVIBE was the lowest (86%), suggesting that the T1-VIBE (93%) could achieve better images if the patients had excellent coordination ability, similar to previous reported results (11). The T2-SPACE sequence image had more noise artifacts, and the score ≥3 points ratio (90%) was slightly lower than that of T2-fBLADE (92%).

In summary, the current study suggested a fast and simple scan protocol for routine detection of pulmonary nodules. We recommend T1-VIBE for patients who are able to do breath-holding, while T1-starVIBE, which achieve better image quality than T1-VIBE, for patients who are unable to do breath-holding. T2-fBLADE TSE sequence is optimal for pulmonary nodule evaluation due to its better image quality than T2-SPACE, whereas, T2-SPACE for small nodules due to its high sensitivity despite of its lower specificity.

This study had some limitations. Firstly, the studied images were from a single institution, and nodule numbers were not large enough, especially for GGN and PSN. Multiple institutional research needs to be conducted in future, especially focusing on the GGN and PSN detection by MRI sequences. Secondly, the pathological results of pulmonary nodules were not collected, because the main goal of our study was to investigate the nodule detection rather than nodule evaluation by MRI sequences. Thirdly, UTE was not studied, although it was valuable for nodule detection and depiction in previous studies, it is not a common technique in clinical practice due to its special procedure.

Conclusions

We have demonstrated that MRI, especially the T1-starVIBE and T2-fBLADE, was a more effective strategy for pulmonary nodule detection in comparison with CT, in terms of sensitivity and specificity, making it a useful technique in routine clinical practice.

Acknowledgments

We would like to thank Tiefu Liu for his help in polishing our paper.

Funding: This work was supported by the Shanghai Municipal Science and Technology Commission (No. 18411967100), Shanghai Hospital Development Center (No. SHDC2020CR3080B), National Natural Science Foundation of China (No. 82172030), Shanghai Municipal Science and Technology Commission (No. 22YF1443500) and Ningbo Medical Science and Technology Project (No. 2018A14).

Footnote

Reporting Checklist: The authors have completed the STARD reporting checklist. Available at https://jtd.amegroups.com/article/view/10.21037/jtd-22-370/rc

Data Sharing Statement: Available at https://jtd.amegroups.com/article/view/10.21037/jtd-22-370/dss

Peer Review File: Available at https://jtd.amegroups.com/article/view/10.21037/jtd-22-370/prf

Conflicts of Interest: All authors have completed the ICMJE uniform disclosure form (available at https://jtd.amegroups.com/article/view/10.21037/jtd-22-370/coif). The authors have no conflicts of interest to declare.

Ethical Statement: The authors are accountable for all aspects of the work in ensuring that questions related to the accuracy or integrity of any part of the work are appropriately investigated and resolved. The study was conducted in accordance with the Declaration of Helsinki (as revised in 2013). The study was approved by Institutional Review Board of Shanghai Public Health Clinical Center (No. 2019-S021-02) and informed consent was taken from all the patients.

Open Access Statement: This is an Open Access article distributed in accordance with the Creative Commons Attribution-NonCommercial-NoDerivs 4.0 International License (CC BY-NC-ND 4.0), which permits the non-commercial replication and distribution of the article with the strict proviso that no changes or edits are made and the original work is properly cited (including links to both the formal publication through the relevant DOI and the license). See: https://creativecommons.org/licenses/by-nc-nd/4.0/.
