Tricuspid annular plane systolic excursion (TAPSE) can predict the outcome of isolated tricuspid valve surgery in patients with previous cardiac surgery?

Introduction

Advanced tricuspid regurgitation is associated with pulmonary hypertension and right ventricular (RV) dysfunction (1). Therefore, despite the ease of the surgical procedure, patients undergoing tricuspid valve surgery with previous cardiac surgery have higher operative mortality and a worse prognosis (2).

It is difficult to determine the best timing for surgery. It is worth considering whether a simple index, such as left ventricular ejection fraction (EF) may be an indicator for guiding treatment. Of note, it is difficult to assess RV function. Tricuspid annular plane systolic excursion (TAPSE) has been proposed as a simple and reproducible parameter for quantitative assessment of the RV EF (3). The prognostic importance of TAPSE in the evaluation of RV function in patients with severe heart failure has been well-described (4), and the parameter has been recommended in the most recent joint American European guidelines for echocardiographic quantification of RV function (5).

The present study investigated the relation of TAPSE and other echocardiographic and clinical parameters of heart failure patients, with an emphasis on TAPSE being able to predict the outcome of isolated tricuspid valve surgery in selected patients with previous cardiac surgery.

Materials and methods

From September 2013 to September 2015, a consecutive series of 26 patients who had an isolated tricuspid surgery operation for severe tricuspid valve after mitral valve replacement in Zhongshan Hospital were retrospectively enrolled in this study. The patients who had concomitant surgery apart from mitral valve replacement at the first operation or during the second operation for the TR were excluded from the present study. These patients were divided into two groups: TAPSE >14 mm and TAPSE ≤14 mm. TAPSE was measured by M-mode echocardiography at the junction of the tricuspid valve and RV free wall in the apical 4 chamber view.

Patient characteristics

There were 5 males (19.2%) and 21 females (80.8%). The average age at operation was 54.77±9.61 years (range, 27–69 years). All patients were diagnosed with rheumatic heart disease. All of the patients had previous heart surgery.

All patients had right heart failure symptoms (edema of lower extremities, ascites, and hepatic congestion, etc.). The preoperative New York Heart Association (NYHA) functional class was 3 to 4 for all patients. All patients were investigated preoperatively by means of Doppler echocardiography. Echocardiography showed severe TR in all 26 patients. The average TAPSE score were 15.12±2.86 mm (10–21 mm). The right atrial diameter was 77.96±31.86 mm. The systolic pressure of the pulmonary artery was 38.27±11.75 mmHg (x ± SE). The LVEF was 61.37±8.65% (42–78%). Common laboratory findings in those patients were: elevation of transaminase (in 22 patients, 84.6%), hypoalbuminemia and anemia (in 6 patients, 23%). Blood urea nitrogen and creatinine were increased in 3 cases (11.5%).

All patients received milrinone or dobutamine and diuretic therapy to improve cardiac function preoperatively.

All patients underwent the operation with general anesthesia and intubation. Eleven patients underwent a midline sternotomy (42.3%), while 15 patients (57.6%) had a right anterolateral thoracotomy. The sternotomy was performed with a swing saw with the adhesion carefully dissociated and the wires removed. A cardiopulmonary bypass (CPB) was prepared routinely. Peripheral and superior vena cava cannulation was performed for the CPB in patients undergoing right thoracotomy. Myocardial protection was achieved with anterograde or a combined anterograde and retrograde cold blood high potassium cardioplegia.

All patients underwent tricuspid valve replacement. Eleven patients received a mechanical valve while 15 patients received bioprosthetic valves. The type of prosthesis used was based on the surgeon’s preference.

Three patients returned to the operating room for bleeding and two patients needed permanent pacemaker placement. Respiratory complications included postoperative mechanical ventilation ≥24 h, three patients needed a tracheostomy, and one patient needed re-intubation. Pulmonary hemorrhage occurred in two patients. A sternal wound infection occurred in four patients. Renal replacement therapy (RRT) was required for four patients. Five patients died (19.2%) due to pulmonary hemorrhage or multiple organ failure. In addition, postoperative low cardiac output syndrome occurred in 12 patients that were treated successfully.

Statistical analysis

Descriptive data are presented as mean (SD) for normally distributed data and the median (range) was used for skewed data. For the two group comparisons, Fisher’s exact tests were used for categorical variables and non-parametric Wilcoxon rank-sum tests were used for continuous variables, as appropriate. All statistical analyses were carried out using Stata 12.0 software. For all analyses, p values of 0.05 were considered significant.

Results

Table 1 compares the preoperative characteristics of patients with TAPSE >14 mm and TAPSE ≤14 mm. The NYHA class, degree of right and left ventricular dysfunction, degree of renal dysfunction, and nutritional status (albumin and hemoglobin levels) were not different between the two groups.

Table 1 Comparative data for TAPSE >14 mm vs. TAPSE ≤14 mm
Full table

In-hospital outcome early results are shown in Table 2. The median CPB time and red blood cell (RBC) transfusions in TAPSE >14 mm and TAPSE ≤14 mm groups were not different. The need for prolonged ventilatory support (>48 h) in the TAPSE >14 mm group was also not different (TAPSE >14 mm 91.2±12.31 vs. TAPSE ≤14 mm 39.00±36.80, P=0.46). Moreover, hospital stays were similar between the two groups. No differences were found for postoperative renal or respiratory complications as well as individual adverse outcomes such as tracheostomy and the need for postoperative RRT. The overall in-hospital mortality was 5 patients (19.2%), with four deaths in the TAPSE ≤14 mm group and 1 death in the TAPSE >14 mm group (14.8% and 13.8%, respectively; P=0.06).

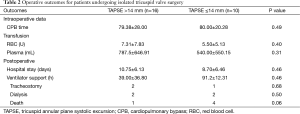

Table 2 Operative outcomes for patients undergoing isolated tricuspid valve surgery
Full table

Discussion

Treatment of isolated TR after mitral valve replacement is a rather complicated issue. There are no clear treatment recommendations from the European Society of Cardiology (ESC), American College of Cardiology and the American Heart Association (ACC/AHA) guidelines, especially for patients with isolated TR after left heart valve replacement surgery, and there are many uncertainties with the surgical indications, methods, timing and long-term results.

When clinical symptoms are mild, patients usually do not consider surgery. When patients have significant symptoms of right heart failure, they often decide to accept the surgery. RV function may have irreversible deterioration at this time and the surgical results are often poor. Most surgeons suggest patients with severe TR should have tricuspid valve repair or replacement before irreversible right heart failure.

Such RV failure patients often have poor kidney and liver function and it is difficult to determine the best timing for surgery. The RV is considered one of the most significant indicators of survival in valvular heart disease patients (6,7). The presence of RV dysfunction is known to increase operative as well as late mortality rates in tricuspid valve surgery (8). We hypothesized that worsening grades of preoperative RV dysfunction would be a risk factor for increased mortality after isolated TV surgery. Moderate and severe forms of dysfunction in our study were not associated with worse outcomes as compared to mild degrees of RV dysfunction.

It is apparent that RV function plays a central role in both preoperative clinical status and postoperative outcomes. However, it is difficult to assess RV function. Whether there is a simple index, such as LVEF, that could be an indicator for guiding treatment remains a question.

Evaluation of RV function is often difficult because of the complex geometry of the right ventricle. Analysis of its size and function is often limited to subjective visual analysis. More sophisticated measures of RV function; i.e., the calculation of RV end systolic areas and the right index of myocardial performance (RIMP) ratios, have been shown to be valid predictors of mortality in TV disease (9,10). These procedures, however, require experienced personnel for image acquisition. This highlights the necessity for simple validated markers to assess and quantify RV dysfunction.

TAPSE is a widely recognized, clinically useful, and feasible marker of RV dysfunction, and it has been proven to be a valuable prognostic marker in various cardiac diseases, including heart failure. TAPSE refers to an apical four-chamber view with an M-mode ultrasound technique to measure the displacement of the tricuspid ring in the longitudinal direction of the RV. It is the most commonly used method to evaluate RV systolic functions, which is one of the most in-depth studies of echocardiographic parameters. The TAPSE measurement method is simple and has low dependence on the ultrasound image quality, requires no specific ultrasound equipment and analysis software, and has high repeatability. There is a good correlation between RV fractional area changes (11) and the biplane Simpson method (12), radionuclide RV (13), and the MRI (14) method for the determination of EFs. Decreased TAPSE values mean RV systolic dysfunction.

We hypothesized that TAPSE, as a simple index similar to LVEF, could be an indicator for guiding treatment. In this group of patients with left heart valve replacement surgery, long-term occurrence of isolated tricuspid regurgitation left ventricular function was normal in all patients. Albumin, bilirubin, and creatinine levels were not different between the two groups. Therefore, theoretically, TAPSE should be related to the postoperative results. However, regarding the occurrence of low cardiac output, there were no differences between the TAPSE >14 mm group (4/34, 11.8%) and the TAPSE ≤14 mm group (1/11, 9.1%, P>0.05). There were no differences between the two groups with regard to the length of the hospital stay, postoperative renal or respiratory complications as well as individual adverse outcomes such as tracheostomy and the need for postoperative RRT. The likely reason is our sample was too small, which is also a limitation of this study. Our group of surgical cases was a select group with various aspects of a good condition. Doctors often reject severe patients whose TAPSE is low for outpatient surgery. Therefore, TAPSE may not be sensitive in this group of patients. Perhaps patients with TAPSE less than 10 mm and more than 10 mm would be more meaningful as study criteria.

RV function is not the only important factor. The nutritional status of patients and creatinine, albumin, bilirubin, and hemoglobin levels are other factors to consider. Therefore, establishing these indicators together with a scoring system may better predict the results of surgery.

Acknowledgements

Funding: Sponsored by Shanghai Pujiang Program, (14PJD008).

Footnote

Conflicts of Interest: The authors have no conflicts of interest to declare.

References

1. McCarthy PM, Bhudia SK, Rajeswaran J, et al. Tricuspid valve repair: durability and risk factors for failure. J Thorac Cardiovasc Surg 2004;127:674-85. [Crossref] [PubMed]
2. Sakata R, Fujii Y, Kuwano H. Thoracic and cardiovascular surgery in Japan during 2008: annual report by The Japanese Association for Thoracic Surgery. Gen Thorac Cardiovasc Surg 2010;58:356-83. [Crossref] [PubMed]
3. Kaul S, Tei C, Hopkins JM, et al. Assessment of right ventricular function using two-dimensional echocardiography. Am Heart J 1984;107:526-31. [Crossref] [PubMed]
4. Ghio S, Recusani F, Klersy C, et al. Prognostic usefulness of the tricuspid annular plane systolic excursion in patients with congestive heart failure secondary to idiopathic or ischemic dilated cardiomyopathy. Am J Cardiol 2000;85:837-42. [Crossref] [PubMed]
5. Lang RM, Bierig M, Devereux RB, et al. Recommendations for chamber quantification: a report from the American Society of Echocardiography's Guidelines and Standards Committee and the Chamber Quantification Writing Group, developed in conjunction with the European Association of Echocardiography, a branch of the European Society of Cardiology. J Am Soc Echocardiogr 2005;18:1440-63. [Crossref] [PubMed]
6. Filsoufi F, Anyanwu AC, Salzberg SP, et al. Long-term outcomes of tricuspid valve replacement in the current era. Ann Thorac Surg 2005;80:845-50. [Crossref] [PubMed]
7. Nagel E, Stuber M, Hess OM. Importance of the right ventricle in valvular heart disease. Eur Heart J 1996;17:829-36. [Crossref] [PubMed]
8. Pinzani A, de Gevigney G, Pinzani V, et al. Pre- and postoperative right cardiac insufficiency in patients with mitral or mitral-aortic valve diseases. Arch Mal Coeur Vaiss 1993;86:27-34. [PubMed]
9. Kim YJ, Kwon DA, Kim HK, et al. Determinants of surgical outcome in patients with isolated tricuspid regurgitation. Circulation 2009;120:1672-8. [Crossref] [PubMed]
10. Topilsky Y, Khanna AD, Oh JK, et al. Preoperative factors associated with adverse outcome after tricuspid valve replacement. Circulation 2011;123:1929-39. [Crossref] [PubMed]
11. López-Candales A, Dohi K, Rajagopalan N, et al. Defining normal variables of right ventricular size and function in pulmonary hypertension: an echocardiographic study. Postgrad Med J 2008;84:40-5. [Crossref] [PubMed]
12. Miller D, Farah MG, Liner A, et al. The relation between quantitative right ventricular ejection fraction and indices of tricuspid annular motion and myocardial performance. J Am Soc Echocardiogr 2004;17:443-7. [Crossref] [PubMed]
13. Ueti OM, Camargo EE, Ueti Ade A, et al. Assessment of right ventricular function with Doppler echocardiographic indices derived from tricuspid annular motion: comparison with radionuclide angiography. Heart 2002;88:244-8. [Crossref] [PubMed]
14. Kjaergaard J, Petersen CL, Kjaer A, et al. Evaluation of right ventricular volume and function by 2D and 3D echocardiography compared to MRI. Eur J Echocardiogr 2006;7:430-8. [Crossref] [PubMed]
