Construction and validation of a tumor mutational burden and immune-related prognostic model for predicting the prognosis of patients with lung squamous cell carcinoma

Introduction

Lung cancer is one of the leading causes of cancer-related death worldwide (1). Based on its biological characteristics, lung cancer can be divided into small cell lung cancer (SCLC) and non-small cell lung cancer (NSCLC), with NSCLC accounting for about 83% of cases (2). NSCLC can be further subdivided into lung adenocarcinoma, lung squamous cell carcinoma (LUSC), and large cell carcinoma, among which LUSC accounts for about 20% of all lung cancers (3). Owing to its occult onset and atypical early symptoms, LUSC is usually at advanced stages when it is clinically diagnosed. The treatment of patients with advanced LUSC mainly includes chemotherapy and targeted therapy (4,5); however, LUSC is less sensitive to radiotherapy, chemotherapy, and targeted therapy than lung adenocarcinoma (6,7), so the overall prognosis is very poor. At present, the progress in targeted therapy for LUSC is abnormally slow, mainly due to the lack of clear targets and effective targeted therapy drugs for LUSC (8). Therefore, there is a pressing need to find and identify the targets related to prognosis and treatment for improving the prognosis of LUSC patients.

In recent years, immunotherapy-related research has made progress in multiple tumors (9,10). The main principle of immune checkpoint inhibitors (ICIs) in the treatment of tumors is to target the immune recognition and immune response-related escape mechanism of tumor cells (11). With the increasing research on ICIs, including programmed death-1 (PD-1) and programmed death-ligand-1 (PD-L1) inhibitors, considerable progress has been made in the treatment of gene-negative advanced NSCLC (12). However, PD-L1, as an important biomarker for predicting the efficacy of anti-PD-1/PD-L1 drugs, has some limitations (13). It is not enough to accurately screen the highest-benefit immunotherapy population by using PD-L1 alone, and it needs to be combined with other indicators (14). Nowadays, in addition to PD-L1, researchers have also explored the value of the tumor mutational burden (TMB) as a biomarker in the field of immunotherapy (15).

The TMB refers to the number of somatic mutations following the deletion of germline mutations from the cancer genome, which is a biomarker of the tumor mutation level (16). At present, several clinical trials have shown that the TMB is positively correlated with the T-lymphocyte recognition antigen and immunotherapy effectiveness (17,18). Patients with higher TMBs are more likely to produce new antigens to stimulate immunity (19,20). Hence, the TMB can be used to predict the efficacy of PD-1/PD-L1 inhibitors in various cancers, including melanoma and lung cancer (21,22). A number of large studies, such as Check Mate-026 (23) and Check Mate-227 (24), have confirmed the predictive effect of TMB on immunotherapy efficacy of NSCLC. National Comprehensive Cancer Network (NCCN) guidelines have included TMB in the molecular pathological detection of advanced lung cancer. In addition, studies also have shown that TMB is predictive factor of improved clinical outcomes in advanced LUSC patients receiving immunotherapy, and the predictive value is more pronounced in patients treated with immunotherapy as a single agent (25). In conclusion, TMB has a certain prospect in predicting the efficacy of immunotherapy.

However, predicting the prognosis of LUSC using TMB-related genes and its in-depth mechanism need to be further explored. In this study, we screened the TMB and immune-related genes based on The Cancer Genome Atlas (TCGA) database and Immunology database analysis portal (Immport), and then constructed a prognostic prediction model of LUSC, aiming to provide effective biomarkers and new therapeutic targets for patients with LUSC. We present the following article in accordance with the TRIPOD reporting checklist (available at https://jtd.amegroups.com/article/view/10.21037/jtd-23-103/rc).

Methods

Study design

We aimed to find effective biomarkers based on TMB and immune response and establish a prognostic model of LUSC using bioinformatics analysis. The TCGA database was acted as a training set and used to establish a risk model. GSE37745 database was downloaded from GEO database and used to validate the predictive value of this model. We designed and processed our study as shown in the flow chart (Figure 1).

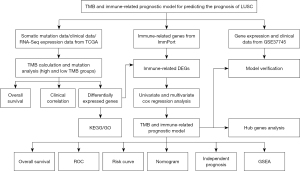

Figure 1 Flow chart of this study. The flow chart shows the strategy for developing and validating a tumor mutational burden and immune-related prognostic model. This model is constructed to predict the prognosis of patients with lung squamous cell carcinoma. TMB, tumor mutational burden; TCGA, The Cancer Genome Atlas; LUSC, lung squamous cell carcinoma; DEGs, differentially expressed genes; GSEA, Gene Set Enrichment Analysis; KEGG, Kyoto Encyclopedia of Genes and Genomes; GO, Gene Ontology; ROC, receiver operating characteristic.

Source and processing of somatic mutation data

The somatic mutation data of LUSC was obtained from TCGA database. From the four subtypes of data files, we selected the “Masked Somatic Mutation” data, and used varscan 2.4.3 software package (Genome Institute, Washington University, Washington, DC, USA. http://www.ncbi.nlm.nih.gov/pubmed/22300766) for subsequent analysis. Loci with a depth of less than 100 were filtered out using the VarScan filter pipeline. We read the Mutation Annotation Format (MAF) of somatic variation and utilized the R maftools package (https://bioconductor.org/packages/release/bioc/html/maftools.html), which provided multiple analysis modules to perform the visualization process and draw the mutation graph.

Prognostic analysis based on the TMB

According to the above MAF files, the TMB of each sample was calculated and compared with the other TCGA cohorts using the tcgaComapare function in maftools package. The clinical data of LUSC were downloaded from TCGA database, including age, gender, tumor stage, T, N, M, survival time, survival state, etc., and samples with deficient clinical information above were excluded from the study. The surv_cutpoint function was used to obtain the optimal cut-off value, and then the LUSC samples were divided into low- and high-TMB groups according to this value. Kaplan-Meier analysis was performed using survival package to compare the relationship between the TMB and survival rate, and the correlation between the TMB level and clinical features was also evaluated.

TMB-related differentially expressed genes (DEGs) and functional pathways analysis

The RNA sequencing (RNA-seq) expression data of LUSC were downloaded from TCGA database, including 501 tumor samples. The samples were divided into high- and low-TMB groups based on the optimal cut-off value. The Limma package was used to screen LUSC-related DEGs with a Fold Change (FC) ≥0.58 and False Discovery Rate (FDR) <0.05. The results are represented by volcano and heat maps. The study was conducted in accordance with the Declaration of Helsinki (as revised in 2013).

Furthermore, we performed Gene Ontology (GO) and Kyoto Encyclopedia of Genes and Genomes (KEGG) analyses in R using the clusterProfiler function to determine the function and related pathways of the DEGs (26). Moreover, we obtained the list of immune-related genes from the Immport, which is one of the largest public repositories of human immunology data, and then screened the immune-related DEGs by Wayne analysis.

Construction and evaluation of an immune and TMB-related prognostic model

The gene expression and clinical data of LUSC were download from GSE37745 database, including 66 LUSC patients. All initial analyses were carried out in TCGA database to construct a signature based on TMB and immune sites, and then verified in GSE37745 database. We used univariate Cox analysis and multivariate Cox analysis to screen the hub genes and then constructed the prognostic model. Next, the model was evaluated by Kaplan-Meier analysis, OS was considered as the primary prognostic outcome. Receiver Operating Characteristic (ROC) curve, risk curve, and nomogram were used to verify the accuracy of the prognostic model. The survivalROC package was used for ROC curve analysis, and the rms package for nomogram analysis.

In addition, we analyzed the expression and prognostic value of the hub genes, as well as their correlation with immune cells.

Statistical analysis

The statistical analyses of this study were performed using R software (version 3.5.2). The t-test was utilized for comparisons between the two groups. P<0.05 was considered statistically significant.

Results

Landscape of mutation profiles in LUSC

The TMBs of different cancers in TCGA were shown in Figure 2A, and the TMB of LUSC ranked the second among all tumor, second only to SKCM. In summary (Figure 2B), these mutations were further classified according to different classification categories, most of which were missense mutations. The frequency of SNP was higher than that of insertion or deletion. C > T and C > A were the common SNVs in LUSC. Moreover, the number of changed bases was counted in each sample, and the mutation types of different colors in the block diagram of LUSC were displayed. Furthermore, the top 10 mutations in LUSC were presented, including TTN (68%), TP53 (77%), MUC16 (36%), CSMD3 (40%), RYR2 (35%), LRP1B (30%), USH2A (30%), SYNE1 (29%), ZFHX4 (26%), and KMT2D (22%). Meanwhile, the waterfall plot displayed the mutation information of the 30 frequently mutated genes in LUSC, and the 10 most frequently mutated genes were consistent with the above results (Figure 2C). Also, a heat map of the correlation between 20 frequently mutated genes is shown in Figure 2D, where green represented the cooccurrence relationship and brown represented the exclusion relationship.

Figure 2 Analyses of the LUSC mutation data based on TCGA database. (A) The TMB of different cancers in TCGA. (B) The mutation summary plot shows the mutation data. (C) Waterfall diagram for the landscape of mutation profiles in LUSC. Different colors with specific notes at the bottom represent the different mutation types and the bar chart at the top of the legend shows the number of mutation burdens. (D) Correlation plot of mutated genes. LUSC, lung squamous cell carcinoma; TCGA, The Cancer Genome Atlas; TMB, tumor mutational burden; SNV, single nucleotide variant.

TMB was related to prognosis and pathological stages

According to the calculated TMB score and LUSC clinical data in TCGA, the optimal cut-off value was determined to be 2.605263. The samples were divided into high- and low-TMB groups according to the optimal cut-off value. Kaplan-Meier analysis revealed that the survival rate of the high TMB group was higher than that of the low TMB group, P<0.001 (Figure 3A). Moreover, higher TMB levels were associated with pathological stage, P=0.012 (Figure 3B). However, there was no significant difference in the correlation between TMB and age, gender, metastasis, lymph node metastasis, and tumor (Figure S1).

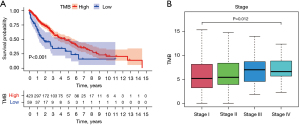

Figure 3 The relationship between TMB and survival rate as well as clinical characteristics. (A) Lower TMB levels are related to the poor prognosis of LUSC patients, P<0.001. (B) The TMB level was related to stages, P=0.012. TMB, tumor mutational burden; LUSC, lung squamous cell carcinoma.

Identification of TMB-related DEGs based on TCGA database

A total of 595 DEGs were obtained in high- and low-TMB groups, including 178 up-regulated genes and 417 down-regulated genes (Figure 4A,4B). To explore the potential biological functions of these genes, we performed GO and KEGG enrichment analyses. GO analysis demonstrated that the DEGs were strongly enriched in B cell/lymphocyte mediated immunity, leukocyte/lymphocyte/B cell/macrophage/T cell activation, lymphocyte/T cell/mononuclear cell/leukocyte proliferation, humoral immune response, immunoglobulin production, external immunoglobulin complex, immune receptor activation for BP, enriched in immunoglobulin complex, external side of plasma membrane, MHC protein complex, cell-cell junction, blood microparticle for CC, and enriched in antigen binding, immunoglobulin receptor binding, MHC class II receptor activity, immune receptor activity for MF (Figure 4C). Also, KEGG analysis indicated that DEGs were markedly enriched in T helper type 1 (Th1) and T helper type 2 (Th2) cell differentiation, T helper type 17 (Th17) cell differentiation, PPAR signaling pathway, cytokine-cytokine receptor interaction, and Cell cycle (Figure 4D).

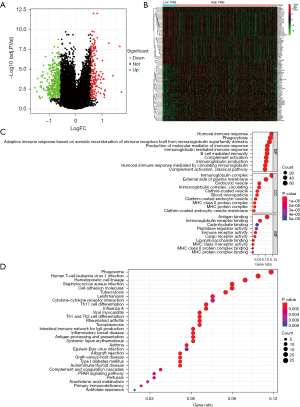

Figure 4 The expression of TMB-related DEGs and enrichment analysis. (A) Volcanic map of TMB-related DEGs. Red dots represent up-regulated DEGs and green dots represent down-regulated DEGs. (B) Heat map of TMB-related DEGs in the low- and high-TMB groups. (C) GO analysis of TMB-related DEGs. (D) KEGG enrichment analysis of TMB-related DEGs. TMB, tumor mutational burden; DEGs, differential expressed genes; GO, Gene Ontology; KEGG, Kyoto Encyclopedia of Genes and Genomes; FC, fold change; BP, biological process; CC, cellular component; MF, molecular function.

Construction and evaluation of the prognostic model

Wayne analysis showed 158 immune-related DEGs were obtained (Figure 5A). After combining 158 genes with survival data, univariate Cox regression showed that 24 genes were significant for the prognosis of LUSC (Figure 5B). Furthermore, multivariate Cox regression analysis showed that five hub genes (TINAGL1, FGFR2, CTSE, SFTPA1, and IGHV7-81) were finally included in the prognostic model (Figure 5C). The risk score formula was as follows: risk score = (TINAGL1 × 0.131846859) + [FGFR2 × (−0.095244735)] + [CTSE × (−0.100214254)] + (SFTPA1 × 0.084305089) + (IGHV7-81 × 0.15661608).

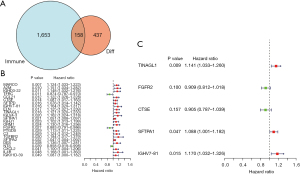

Figure 5 Screening of the immune hub genes. (A) Screening of TMB-related immune genes. (B) Univariate Cox analyses of TMB-related immune genes. (C) Multivariate Cox analyses of the significant TMB-related immune genes. TMB, tumor mutational burden. diff: differentially expressed genes in the low- and high-TMB groups.

The patients with LUSC were divided into high- or low-risk groups according to the median risk score. Kaplan-Meier analysis indicated that the survival time of patients with a low-risk score was significantly longer than that of high-risk patients, P<0.001 (Figure 6A). Meanwhile, the area under the ROC curve (AUC) was calculated, as displayed in Figure S2, the AUC value was 0.658, indicating that the risk score plays an important role in prognostic evaluation. The calibration chart showed that the curve and calibration line were almost combined, indicating that the model fit well (Figure 6B). Additionally, heat maps suggested that TINAGL1, CTSE, SFTPA1, and IGHV7-81 were lowly expressed in the low-risk groups, while FGFR2 was highly expressed in the low-risk groups (Figure 7A). The risk curve showed that mortality increased with the increase of the risk score (Figure 7B,7C). A nomogram was also used to evaluate the effect of gene expression levels on the 1-, 3-, and 5-year survival rates. The results suggested that the total score of the nomogram helped provide a quantitative method for predicting the prognosis of LUSC (Figure 7D).

Figure 6 Prognostic analysis based on the risk score of the prognostic model. (A) Kaplan-Meier analysis of the high- and low-risk groups; (B) calibration curve of model fitting based on the risk score. AUC, the area under curve.

Figure 7 Evaluation based on the risk score of the prognostic model. (A) Heat map of the hub immune genes in the high- and low-risk groups. (B) Risk curve of the prognostic model. (C) Survival state of the prognostic model. (D) Nomograph plot based on the prognostic model. Red stand for high expression, and green stand for low expression.

The GSE37745 dataset as an external validation showed that there was a significant difference in the survival rate between the high and low risk groups (P=0.012), and the AUC value of the area under the ROC curve was 0.644, indicating that the model had certain predictive value (Figure 8, Figure S3A). In addition, ROC analysis was performed on clinical indicators of LUSC, such as age, stage, T, N, M, etc., together with the risk score. Compared with all clinical indicators, the AUC value of risk score was the largest, indicating that the prognostic model had certain predictive value (Figure S3B).

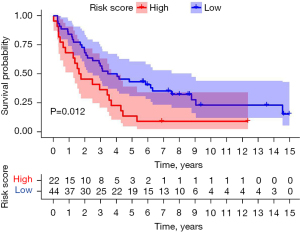

Figure 8 Validation of prognostic model. Kaplan-Meier analysis of the high- and low-risk groups (GSE37745).

To verify whether the risk score can be used as an independent prognostic factor for patients with LUSC, univariate and multivariate Cox analyses were performed on the clinical variables and risk scores. Univariate analysis indicated that tumor, metastasis, lymph node metastasis, and risk score were prognostic factors (Figure 9A). Meanwhile, multivariate analysis indicated that tumor, metastasis, lymph node metastasis, and risk score can be used as independent prognostic factors (Figure 9B).

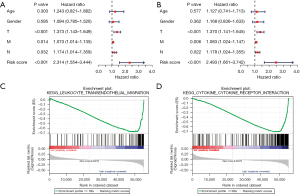

Figure 9 The risk score can be used as an independent prognostic factor. (A) Univariate and (B) multivariate Cox analyses for the risk score and clinical features. (C,D) GSEA of the prognostic model. T, tumor; M, Metastasis; N, node; GSEA, Gene Set Enrichment Analysis; KEGG, Kyoto Encyclopedia of Genes and Genomes.

Finally, to determine the unknown function of the prognostic model, we performed Gene Set Enrichment Analysis (GSEA) to identify the possible biological function of the prognostic model. As displayed in Figure 9C,9D, these genes are closely associated with the leukocyte transendothelial migration, cytokine-cytokine receptor interaction, and other pathways, and these related biological pathways can significantly affect the tumorigenesis of LUSC.

Analysis of prognostic hub genes

To further evaluate the reliability and effectiveness of this prognostic risk model, we performed bioinformatics analyses on the hub prognostic genes (TINAGL1, FGFR2, CTSE, SFTPA1, and IGHV7-81). As presented in Figure 10A, the expression of FGFR2 was markedly decreased in the low TMB group compared to the high TMB group, while the levels of TINAGL1, CTSE, SFTPA1, and IGHV7-81 were significantly increased in the low TMB group. Importantly, patients with high TINAGL1, CTSE, SFTPA1, and IGHV7-81 have a shorter survival time, while patients with high FGFR2 have a longer survival time (Figure 10B-10F).

Figure 10 The expression and prognostic values of the five immune hub genes. (A) The expression of the five immune hub genes in the high- and low-TMB groups based on TCGA database. Kaplan-Meier analyses for survival analysis of (B) TINAGL1 (P<0.001), (C) FGFR2 (P=0.006), (D) CTSE (P=0.015), (E) SFTPA1 (P=0.003), and (F) IGHV7-81 (P=0.011). **P<0.01, ***P<0.001, ****P<0.0001. TMB, tumor mutational burden; TCGA, The Cancer Genome Atlas.

Next, we used the CIBERSORT algorithm to evaluate the relationship between gene mutation and tumor-infiltrating immune cells in the LUSC microenvironment. As a result, there were significant differences in the composition of 22 immune cell types in each sample (Figure 11A). The result obtained from the correlation matrix is shown in Figure 11B. Then, the correlation between hub genes expression and immune cells was verified, and immune cells with a correlation coefficient >0.15 and P<0.05 were shown in Figure S4. Additionally, the somatic copy-number alterations (sCNA) module in timer2.0 was used to compare the distribution of immune infiltration through the sCNA status of genes in TCGA cancer types. Figure 12A-12D shows the relative scale of the sCNA status of CTSE, FGFR2, SFTPA1, and TINAGL1 in all TCGA cancer types.

Figure 11 Immune cell infiltration related to the TMB. (A) The landscape of 22 immune fractions; (B) the correlation of 22 immune fractions. TMB, tumor mutational burden.

Figure 12 The status of sCNA represents the distribution of immune infiltration. Relative scales of the sCNA status of (A) CTSE, (B) FGFR2, (C) SFTPA1, and (D) TINAGL1. Red represents deep deletion, orange represents arm-level deletion, green represents diploid/normal, blue represents arm-level gain, and purple represents high amplification. sCNA, somatic copy number variation.

Discussion

It is well known that LUSC has high heterogeneity and extensive mutations, and the treatment is particularly challenging. Due to limited treatment strategies, the prognosis of LUSC is poor. In recent years, the treatment of LUSC has changed significantly with the introduction of ICIS-based immunotherapy, but only a small number of patients have responded to this therapy. Because of the different therapeutic responses, it is urgent to identify immune biomarkers with higher sensitivity and accuracy to predict the effect of immunotherapy and the prognosis of LUSC patients.

Currently, several studies have constructed immune-related molecular models to predict the prognosis of patients with LUSC. Yan et al. and Fu et al. constructed prognostic models of different immune genes based on the ImmPort database and identified new prognostic markers of LUSC (27,28). Yang et al. divided tumors into hot tumors and cold tumors according to a combination of immunodilation and PD-L1 expression, and developed a prediction model of 13 immune-related genes based on different expression genes between the two, which could be used for prognostic prediction of LUSC and immunotherapy response (29). Yan et al. developed a three gene risk model using TMB-associated genes to predict LUSC patient survival, suggesting that TMB might contribute to the pathogenesis of LUSC (30). All of the above studies have their own characteristics and new findings, however, there is no consensus on biomarkers that can predict the prognosis of LUSC patients. Given the complexity of tumor biology and immune microenvironments, single biomarkers may not predict the clinical outcomes of immunotherapy.

Compared with previous studies, our study combined TMB and immune genes for the first time, and constructed an immune related gene prognosis model based on TMB to predict the prognosis of LUSC patients, which is more comprehensive and convincing, and can better reflect the TMB and immune-related characteristics. Numerous evidences have shown that TMB is related to immunotherapy response. It is a novel biomarker used to predict the benefit of tumor immune checkpoint inhibitor treatment. To our knowledge, cells with a high TMB are easily recognized by the immune system and become targets of tumor immunity (31). Hence, immunotherapy is more effective and the survival rate is higher in patients with a high TMB (32,33).

In the present study, we constructed a prognostic model based on immune and TMB-related genes to predict the prognosis of LUSC patients. A total of 595 TMB-related DEGs were identified based on TCGA database, which were then intersected with immune genes downloaded from Immport, and 156 immune-related DEGs were identified. Through univariate and multivariate cox regression analyses, five hub prognostic genes (TINAGL1, FGFR2, CTSE, SFTPA1, and IGHV7-81) were screened to establish a prognostic model. As expected, the prognostic model is stable and reliable, and the risk score can be used as an independent prognostic factor for LUSC patients.

Our results are consistent with the findings of previous studies; the survival rate of patients with a high TMB is significantly higher than that of patients with a low TMB. KEGG analysis indicated that DEGs were mainly involved in Th1, Th2 and Th17 cell differentiation, and cytokine-cytokine receptor interaction. GO enrichment analysis indicated that they were mainly involved in B cell/lymphocyte mediated immunity, leukocyte/lymphocyte/B cell/macrophage/T cell activation, lymphocyte/T cell/mononuclear cell/leukocyte proliferation. These genes may be closely related to the therapeutic response of ICIs. The proliferation, activation, and differentiation of lymphocytes are essential to the immune system (34). Many studies have shown that TMB is a predictive biomarker for response to ICIs (25). Our study supports the view that TMB is closely related to immunity.

Furthermore, we conducted survival analysis on the five hub prognostic genes related to the TMB, and the results showed that the high expression genes in patients with a low TMB (TINAGL1, CTSE, SFTPA1, and IGHV7-81) are associated with poor prognosis. This indicated that TMB levels are closely related to the prognosis of patients with LUSC, and these five TMB-related genes possess significant prognostic value.

Next, the prognostic model was established using these five hub immune genes. We calculated the risk score based on the hub genes and divided the samples into low- and high-risk groups. A series of bioinformatics analyses were subsequently performed to verify the model. The results showed that high-risk patients had worse survival outcomes compared with low-risk patients, and the risk score is a valuable biomarker for the prognosis of patients with LUSC. Hence, we believe that the use of the TINAGL1, FGFR2, CTSE, SFTPA1, and IGHV7-81 prognostic model to predict the prognosis of LUSC patients is feasible and stable.

FGFR2, a fibroblast growth factor receptor, is overexpressed in breast cancer, gastric cancer, and LUSC (35-37), and the recurrent mutation of FGFR2 has been confirmed in LUSC (38). Tubulointerstitial nephritis antigen-like 1 (TINAGL1), a secretory extracellular protein, promotes cell adhesion and migration by binding to integrins such as ITGA1B1. The abnormal expression of TINAGL1 has been considered a prognostic factor in several cancers, such as triple-negative breast cancer (39) and hepatocellular carcinoma (40). Umeyama et al. found that TINAGL1 is a metastasis-promoting factor in NSCLC. Cathepsin E (CTSE), an intracellular aspartic protease, is expressed in both the immune system and cancer cells (41). CTSE is highly expressed and hypomethylated in LUAD and can be used as the hub gene in the prognostic model of LUAD patients (42,43). SFTPA1 encodes human pulmonary surfactant protein A (SP-A), which plays an important role in lung homeostasis and immunity (44), and is considered a promising molecular marker of NSCLC tumor cells (45). However, its prognostic value in LUSC has not been studied. IGHV7-81 is a kind of mutated gene and PDCD1LG2-IGHV7-81 fusion is involved in reducing T-cell activation (46,47), but its function in LUSC has not been reported. Our data suggested for the first time that ITGA1B1, CTSE, SFTPA1, and IGHV7-81 have prognostic value in LUSC and are associated with the TMB and immune response.

To our knowledge, this is the first TMB-related prognostic model that can predict survival in LUSC. We calculated the risk score and divided the patients into high- and low-risk groups. High-risk patients had worse survival outcomes compared with low-risk patients, and the risk score is a valuable biomarker for the prognosis of patients with LUSC. However, there are some limitations in this study that should be noted and considered. Firstly, our prognostic model needs to be further validated in large-scale and prospective studies. Also, the molecular mechanism and function of the five hub immune genes still need further study.

Conclusions

In summary, we screened five hub immune genes and established a prognostic model related to the TMB and immunity. The prognostic model is reliable and stable and can be used as a prognostic biomarker for LUSC patients, which provides a theoretical basis for the clinical immunotherapy of LUSC.
