Anatomical spatial distribution of the bilateral coronary ostia and aortic valve commissures relative to the aortic arch

Introduction

Transcatheter aortic valve replacement (TAVR) is a recognized, minimally invasive technique for patients with severe aortic stenosis (AS). As TAVR technology has developed over the past decade, the indications for TAVR have been extended, compared to surgical aortic valve replacement (SAVR) (1,2), for use in younger patients, which has increased the life expectancy and prevalence of coronary artery diseases. Unlike SAVR, in which the surgical valve commissures can be completely aligned with the native valve commissures, commissural alignment during TAVR is not easily achieved, as the transcatheter heart valve (THV) is always implanted in a random axial direction (3). Previous studies have shown that the neo-commissural orientation of the THV affects coronary obstruction during TAVR, the long-term durability of the THV, and coronary artery access if re-interventions are required after TAVR (3-5). Commissural alignment also increases the feasibility of bioprosthetic or native aortic scallop intentional laceration to prevent iatrogenic coronary artery obstruction in cases in which TAVR is performed due to failed THV implantation. Tang et al. found that the specific initial orientations of Evolut R/Pro (Medtronic, Minneapolis, Minnesota) and ACURATE Neo (Boston Scientific, MA, USA) aortic valves improve commissural alignment (6-8). Bilateral coronary ostia were observed under fluoroscopy during TAVR, and a certain anatomical relationship between the coronary arteries and the inner curve (IC) of the aortic arch was found. If confirmed, this relationship could help to establish an individualized implantation method that would enable commissural and coronary alignment to be achieved for THVs. We present the following article in accordance with the MDAR reporting checklist (available at https://jtd.amegroups.com/article/view/10.21037/jtd-23-482/rc).

Methods

Study population

Three-dimensional reconstruction was performed based on the pre-procedural computed tomography (CT) for 100 consecutive patients diagnosed with severe AS from July 2018 to August 2022 in The First Hospital of China Medical University. A total of 20 patients were excluded from the study because of the poor visualization of the coronary ostia and commissures or type 0 bicuspid aortic valves (BAVs), resulting in a final study population of 80 patients. Among the patients, 50 had tricuspid aortic valves (TAVs) and 30 had type 1 BAVs. The angles from the coronary ostia and the commissures of the aortic valve to the IC of the aortic arch were measured. Study approval was obtained from the institutional review board of The First Hospital of China Medical University (No. 2022QL103) and the study conformed to the ethical guidelines of the Declaration of Helsinki (as revised in 2013) in terms of the principles for medical research involving human subjects. All the subjects had given written informed consent to participate in the study.

CT image acquisition and analysis

All the patients underwent pre-procedural electrocardiographically gated CT angiography with a second-generation dual-source CT scanner (Somatom Definition Flash; Siemens Healthcare, Germany). The angles between the bilateral coronary ostia or aortic valve commissures and IC were analyzed using FluoroCT software (Circle Cardiovascular Imaging Inc., Calgary, Canada).

Definition of IC

Three center points of the aortic annulus, the aortic arch at the level of the brachiocephalic trunk, and the descending aorta parallel to the aortic annulus were selected. The arch plane was then defined by the three center points. The two intersection points of the annulus with this plane were the IC and outer curve of the annulus relative to the aortic arch, respectively (see Figure 1). The angles from the IC to the left main (LM), from the IC to the right coronary artery (RCA), from the IC to the non-coronary cusp (NCC)/left coronary cusp (LCC) commissure, from the IC to the LCC/right coronary cusp (RCC) commissure, and from the IC to the RCC/NCC commissure were measured for every patient (see Figure 2).

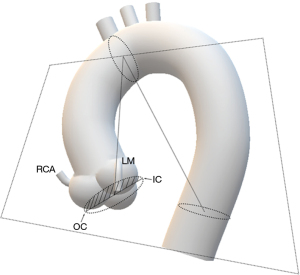

Figure 1 Definition of the IC and OC. RCA, right coronary artery; LM, left main; IC, inner curve; OC, outer curve.

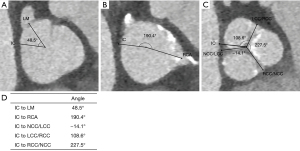

Figure 2 Assessment of spatial distribution of the bilateral coronary ostia and aortic valve commissures. (A) Angle from the IC to the LM. (B) Angle from the IC to the RCA. (C) Angles from the IC to the NCC/LCC commissure, from the IC to the LCC/RCC commissure, and from the IC to the RCC/NCC commissure. (D) The summary of relative angles. LM, left main; IC, inner curve; RCA, right coronary artery; NCC, non-coronary cusp; LCC, left coronary cusp; RCC, right coronary cusp.

Statistical analysis

The continuous variables are presented as the mean ± standard deviation or the median with the interquartile range (IQR) for those with normal or skewed distributions, respectively. The categorical variables are presented as the proportion. All the analyses were performed using SPSS 26.0 software (IBM, Armonk, NY, USA).

Results

Baseline characteristics

The baseline characteristics of the patients are listed in Table 1. The patients had a mean age of 74.9±8.8 years, and 43.8% of the patients were female. Most of the patients (52.5%) were classified in the New York Heart Association class III or IV at admission, with a median Society of Thoracic Surgeons score of 4.5% with an IQR of 2.6–6.7%. The median left ventricular ejection fraction was 50.0% with an IQR of 38.0–63.0%, with a mean gradient of 54.3±16.6 mmHg, and 28 patients (35.0%) had at least moderate aortic regurgitation. In addition, 50 patients (62.5%) had TAVs and 30 patients (37.5%) had type 1 BAVs.

Anatomy of the bilateral coronary ostia and aortic valve commissures relative to the aortic arch

The pre-procedural CT analysis of all the patients showed the special anatomical characteristics of the bilateral coronary ostia and aortic valve commissures relative to the aortic arch (see Figure 3). The angles from the bilateral coronary ostia and aortic valve commissures to the IC of each case are shown in Figure S1. For the bilateral coronary ostia, the mean angle from the IC to the LM was 48.0°±17.5°, the mean angle from the IC to the RCA was 172.6°±15.2°, and the mean angle from the LM to the RCA was 124.6°±19.9° (see Table 2).

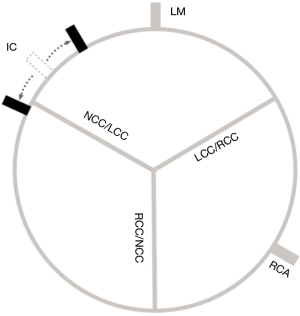

Figure 3 Pattern diagram. Special anatomical characteristics of the IC relative to the LM, RCA, or aortic valve commissures. IC, inner curve; LM, left main; NCC, non-coronary cusp; LCC, left coronary cusp; RCC, right coronary cusp; RCA, right coronary artery.

For the 50 cases with TAVs, the mean angle from the IC to the LM was 42.8°±13.6°, the mean angle from the IC to the RCA was 173.6°±16.0°, and the mean angle from the LM to the RCA was 130.8°±16.9°. For the 30 cases with type 1 BAVs, the mean angle from the IC to the LM was 56.8°±19.8°, the mean angle from the IC to the RCA was 171.0°±13.9°, and the mean angle from the LM to the RCA was 114.2°±20.4°.

For the aortic valve commissures, the median angle from the IC to the NCC/LCC was −12.8° with an IQR of −21.5° to −2.2°, the mean angle from the IC to the LCC/RCC was 102.4°±15.1°, and the mean angle from the IC to the RCC/NCC was 219.9°±13.9°.

For the 50 cases with TAVs, the angle was more accurate. Specifically, the mean angle from the IC to the NCC/LCC was −16.2°±13.2°, the mean angle from the IC to the LCC/RCC was 99.4°±13.0°, and the mean angle from the IC to the RCC/NCC was 219.6°±13.0°.

The main error occurred in the 30 patients with type 1 BAVs, in which the mean angle from the IC to the NCC/LCC was −1.5°±23.5°, the mean angle from the IC to the LCC/RCC was 107.4°±17.2°, and the mean angle from the IC to the RCC/NCC was 220.2°±15.5°.

Discussion

This study found a fixed angular relationship between the LM and IC, with a mean angle of 48.0°±17.5°. Given the cusp asymmetry and coronary ostial eccentricity found by Wang et al. (9), the angle from the IC to the RCA was also measured, and the mean angle was 172.6°±15.2°. The mean angle from the LM to the RCA was 124.6°±19.9°, which was close to 120°. There was no obvious difference between the TAVs and type 1 BAVs. This made more sense for the anatomical relationship between the aortic valve commissure and IC; however, due to the asymmetrical structure of the type 1 BAVs, it would be helpful for commissural alignment during TAVR to analyze patients with TAVs alone.

Given this special anatomy, the neo-commissural orientation of THVs could be adjusted in the descending aorta to the corresponding angle as measured and then passed through the aortic arch to the ascending aorta to achieve better coronary alignment. By using this method to accurately measure the angle from the IC to the coronary artery or aortic valve commissures for every case before the procedure, the implantation method of THVs could be more individualized.

Tang et al. found that the specific initial orientations of the self-expanding aortic valves could improve commissural alignment (6-8). For the Evolut R/Pro aortic valves, commissural alignment was achieved by inserting the delivery catheter with the flush port facing the 3 o’clock position, while for the ACURATE Neo valves, commissural alignment was achieved by inserting the delivery catheter with the flush port facing the 12 o’clock position. The main mechanism underlying this phenomenon is that the anatomical location of the coronary arteries and aortic valve commissures is fixed. The second mechanism may be related to the spine location within the delivery system, which limits any significant rotation, as it tracks from the descending aorta to the annulus (7).

If the manufacturers designed the orientation of THVs in the delivery system with this data as a benchmark, a more precise method for achieving commissural and coronary alignment could be established, and patient prognosis after the procedure could be significantly improved.

Study limitations

This was a single-center retrospective study with a small number of patients. Future studies with larger sample sizes are needed.

Conclusions

There are anatomical relationships between the coronary ostia or aortic valve commissures and the IC of the aortic arch. This relationship could help to establish an individualized implantation method suitable for THVs to achieve commissural and coronary alignment.
