Modification of the Abramson procedure for minimally invasive repair of pectus carinatum: introduction of a pectus carinatum compression system

Introduction

Background

Pectus carinatum, commonly referred to as pigeon chest, is characterized by prominence of the anterior chest wall caused by protrusion of the sternum (1,2). Its prevalence is estimated at 1 per 1,500 live births in North America, but occurs mostly during adolescence. Twenty-five percent of patients have a positive family history of anterior chest wall deformities (1,3).

Treatment of pectus carinatum consists of both non-surgical (e.g., orthotic braces, physical therapy) and surgical options (4-7). The latter include the classic open Ravitch procedure (5) and the more recently introduced minimally invasive Abramson procedure (6-8).

Minimally invasive repair of pectus carinatum (MIRPC) by the Abramson procedure, sometimes also referred to as the ‘reversed Nuss technique’, was first described in 2005 by Abramson et al. (7). During this procedure, a presternal, subpectoral metal correctional bar, secured to rib-attached stabilizers, is implanted to bring the sternum back to a more natural position (6,7). This minimally invasive technique has several advantages over the open Ravitch procedure as it preserves the present rib cartilages whilst only remodeling the sternum, as such avoiding fibrothorax during regrowth of the resected cartilage, as well as minimizing blood loss in contrast to wide dissection area and the large operative field during the Ravitch procedure. Consequently, the MIRPC is associated with less postoperative pain, a shorter hospitalization period, and better cosmetic results (6,8-12) as scars are situated laterally rather than in the frontal aspect of the chest.

Rationale

Numerous steps of this procedure, such as modeling of the bar to the targeted patient’s chest contour, and insertion and definitive positioning of the bar, involve the application of manual compression over the sternum to reduce the deformity in view of the estimation of the intended position of the sternum. In order to ease the procedure and reduce variability we identified the need for the introduction of a temporary reduction device of the sternum. After thoughtful consideration, we introduced the PectusAssist™ System (Thompson Surgical Instruments, Traverse City, Michigan, USA) (13). This instrument is installed on a table-mounted system and generates a constant mechanical compression over the protruding sternum to maintain its intended neutral position during surgery.

Objective

This device was first introduced in Europe at the University Hospitals Leuven, Belgium. Given the easiness of use of this system, we also introduced it in another large chest wall unit which also embarked on the Abramson procedure, where until then sternal reposition was only achieved by manual compression. In this manuscript, we describe the implementation of this novel aid during the Abramson procedure in these two high-volume chest wall centers. We present this article in accordance with the SUPER reporting checklist (available at https://jtd.amegroups.com/article/view/10.21037/jtd-23-642/rc).

Preoperative preparations and requirements

The procedure starts as described in detail by Abramson et al. (6-8). Prior to surgery, an epidural catheter is inserted at T4-T5 level. The procedure is performed under general anesthesia with double lung ventilation. Antibiotic prophylaxis is achieved by administration of cefazoline. After induction, the patient is positioned in the supine position with both arms abducted on armrests. Perioperative photographs and a video are published with the patient’s written informed consent.

Step-by-step description

Skin markings are made as follows (Figure 1): (I) point of greatest sternal protrusion; (II) transverse line through the point of greatest protrusion, indicating the future bar position whilst applying manual compression; (III) selected ribs for placement of pericostal attached stabilizers.

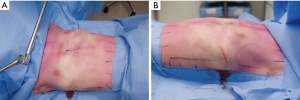

Figure 1 Surgical markings. Also, markings on the edges of the surgical field are drawn to aid 3D imaging. (A) Anterior view; (B) lateral view.

After prepping and draping of the surgical field, the PectusAssist™ System is installed on a table-mounted Thompson system consisting of two table-mounted posts and a transverse rod (Thompson Surgical Instruments, Traverse City, Michigan, USA) and positioned 2–3 cm cranially to the point of greatest sternal protrusion (Figure 2); placement of the PectusAssist™ System directly over the point of greatest protrusion would otherwise hinder the creation of the presternal tunnel later during the procedure. A sterile gauze or soft sterile cloth is placed between the PectusAssist™ System and the skin to avoid direct contact with the metal compression plate as to prevent pressure ulcers. The PectusAssist™ System is equipped with a ratcheting pulley, for the purpose of this intervention pointed towards the patient as to deliver compression. By advancing the PectusAssist™ System downwards, the pressure on the chest wall is gradually increased until a neutral position of the sternum is obtained. The surgery is then continued as originally described by Abramson et al. (6-8), using the Universal Pectus System (MedXpert, Eschbach, Germany). Appropriate bar size and curvature are determined using a template, taking into account the length between both midaxillary lines. Actual bending of the bar into its desired configuration is performed using a hand bender as to provide a contour that adheres as best as possible to the newly obtained external form of the entire anterior chest wall (Figure 3).

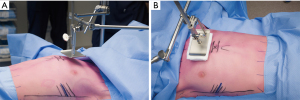

Figure 2 PectusAssist™ System is installed on a table-mounted Thompson retractor system. (A) Lateral view before PectusAssist™ System is advanced downwards; (B) anterior view after advancing PectusAssist™ System downwards. A gauze was placed between the PectusAssist™ System and the skin to prevent skin damage.

Figure 3 Bar shape and length were determined using a template. After molding the bar into its desired configuration by use of a hand bender, definitive bar shape and length are evaluated once again.

Bilateral transverse skin incisions of about 3 cm in length are made over the intercostal spaces between the selected ribs from the midaxillary line towards the anterior aspect of the chest. In female patients, the skin incisions are preferably made in the inframammary fold, admittedly making the reach of the target ribs a bit more difficult as they are for these aesthetical reasons to be approached from a more medial aspect than intended initially. After diathermic dissection of the subcutaneous tissue, the underlying serratus anterior muscle is split, revealing the anterolateral chest wall. Now the definitive alignment and position of the bar and stabilizers are reassessed in vivo, determining the definitive cranial and caudal rib fixation points for the stabilizers. The periosteum of the selected ribs is consecutively opened by diathermia perpendicular to the course of the rib. A raspatory is used to create a narrow circumferential subperiosteal tunnel around the selected ribs (Figure 4). The inferior-posterior part of the subperiosteal tunnel is created with great caution to avoid damage to the underlying parietal pleura and intercostal neurovascular bundle. We prefer to create the subperiosteal and subpleural pericostal tunnels during apnea combined with ventilator disconnection, to minimize the risk of injury to eventual expanding lung parenchyma during this maneuver. Then the rib is encircled with a blunt-tipped bone hook (Figure 5A) via which a small caliber silicon catheter is drawn through the subperiosteal tunnel. Subsequently, the catheter is used as a guide for the safe placement of pericostal steel wires of 1.1 mm diameter (Pioneer Surgical Technology Inc., Marquette, MI, USA). These sutures seem to be rigid enough for temporary semi-rigid fixation onto the lateral chest wall. These will partly lose their function once natural fixation between the chest wall and the stabilizers has taken place after healing and inflammation reactions in the pocket have subsided (Figure 5B).

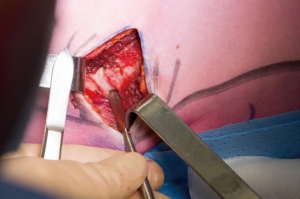

Figure 4 After skin incision and creation of a submuscular pocket, traction points on different ribs are determined at the level of the midaxillary line. The periosteum of the selected ribs is opened in transverse direction. A respiratorium is used to create a subperiosteal tunnel encircling the ribs.

Figure 5 Placement of pericostal steel wires. (A) The rib is encircled with a small bore catheter which is inserted in the subperiosteal tunnel. (B) A pericostal steel wire is placed using the catheter as a guide for safe placement. This process is repeated for the other selected ribs. (C) Pericostal steel wires are inserted in the stabilizer and parachuted into the submuscular pocket.

Following steel wire placement, the stabilizers are parachuted into the submuscular pocket (Figure 5C). None of the stabilizers is tied down to the lateral chest wall at this stage, as this would impede the insertion of the bar into the stabilizers as well as orientation of the stabilizers towards the bar.

First blunt finger dissection and subsequent long atraumatic soft tissue clamps like an aortic vascular clamp are used to create a bilateral retromuscular tunnel behind the serratus anterior and pectoralis major from each side of the thorax connecting the two lateral submuscular pockets. The tunnel passes medially close to the sternal attachments of the pectoralis major. This is a technically difficult part of the procedure as the two tunnels need to be connected at the level of the sternum where the amount of subcutaneous tissue is limited, for which also the lateral fascia of the pectoralis muscle needs to be perforated. Care must be taken to avoid skin perforation in the presternal area, as well as not to enter the chest with the bent tip of the blunt soft tissue clamps. The use of the continuous, temporary but rigid reduction device at the level of the anterior chest wall helps in this other essential step as to prevent these deleterious technical complications, opposed to the otherwise varying compression levels in force as in time of repetitive manual compression performed by the assistant surgeons.

A trapezium-like bent introducer is then inserted in the retromuscular tunnel under guidance of the soft tissue clamps and advanced from the right to the left submuscular pocket. Once the tip of the pectus introducer is visualized, a 28Fr chest tube is placed over the tip. Next, the introducer is pulled back in the tunnel from left to right (Figure 6A) as to provide a guide for later bar insertion. Then the introducer is removed from the chest tube and subsequently, the tip of the metal correctional bar is pushed into to the left open end of the tube and transfixated with a thread. The Abramson bar is now advanced in the tunnel by use of the chest tube as a guide, with the convexity of the bar initially caudally, with automatic orientation of the bar when gliding into the tunnel position, facing posteriorly in the end (Figure 6B).

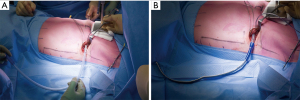

Figure 6 Abramson bar placement. (A) After blunt tunnel creation and insertion of an introducer from R>L, a 28F chest tube is placed over the tip of the introducer and pulled back in the tunnel from L>R; (B) the Abramson bar is advanced in the retromuscular tunnel by use of the chest tube as guidance, with the convexity of the bar initially facing caudally. R, right; L, left.

Both ends of the bar are placed into the stabilizers and temporarily locked with the screw (Figure 7A). The steel wires can now be manually tightened down as not to overpower the cable threads, securing the stabilizer-bar complex onto the lateral chest wall (Figure 7B,7C) and thus providing fixation of the system onto the ribs.

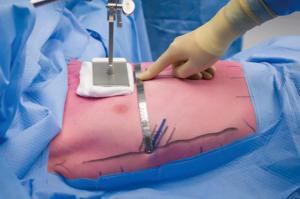

Figure 7 Bar fixation. (A) Bar is placed inside the stabilizer and temporarily locked with a screw. (B) The stabilizer is fixed by manual tightening of the two steel wires; (C) The stabilizer is secured to the rib by means of a provided shrink block after which this process is repeated for the other selected ribs. Hereafter, final manual correction of the bar is performed and secured with the locking screw.

Now the pectus compression device can be released, showing an already large reduction of the initial present pectus carinatum. The final correction can now be carried out by bilateral adjustment of the definitive position of both bar ends in their respective stabilizers, this time by final manual compression of the chest, as to achieve an as good as possible adherence of the bar contours to the chest wall favoring a symmetric reduction and minimize postoperative visualization of the subcutaneously positioned bar. Hereafter, the bar is locked into the stabilizers by tightening the screws for permanent fixation. At this point, final correction of the deformity and stable fixation of the implant has been reached. In principle, the minimally invasive Abramson procedure is performed with the use of one bar. Finally, the PectusAssist™ System is dismantled, and the wounds are closed in layers (Figure 8).

Figure 8 PectusAssist™ System is dismantled and wounds are closed in layers (A) anterior view; (B) lateral view.

Postoperative considerations and tasks

A plain chest radiograph is routinely acquired just before anesthetic lead-out or at the post-anesthesia recovery unit. Thoracic epidural analgesia is ceased and transitioned to oral pain medication per protocol on the second or third postoperative day. Postoperative physical therapy is started on the first postoperative day. Patients are discharged from the hospital after achievement of adequate pain control and sufficient mobilization. Standard length of hospital stay in our centers is 4 days. All patients enter a two-year follow-up program with outpatient clinic follow-up appointments every three months. Conventional photographs and three-dimensional images are obtained during follow-up for evaluation of the aesthetic outcome. The Abramson bar is removed after a mean in-situ period of two years.

As an example, Figure 9 displays the preoperative and postoperative photographs of a patient treated at our institutions with the use of the PectusAssist™ System, demonstrating an adequate correction.

Figure 9 Representative pre- and postoperative photographs of a patient treated at our institution with the use of the PectusAssist™ System, demonstrating an adequate correction. (A-C) Preoperative status. (D-F) Postoperative status.

Tips and pearls

Video 1 demonstrates the step of the procedure in which the PectusAssist™ System is advanced downwards until the sternum is redressed to its neutral position. Given the innate large anteroposterior distance of the chest, we have up to now never seen any cardiac impact whilst performing this maneuver as the chest wall remodels towards the lateral parts of the chest wall.

Discussion

Surgical highlights

Surgical correction of pectus carinatum is considered the next step in the treatment algorithm for patients who are not suitable for conservative treatment or when bracing therapy fails. Adequate patient selection is therefore crucial, as incorrect usage of orthotic treatment can delay the need for surgery and increase the overall costs of treatment. Factors such as asymmetric deformations, increased age which is associated with increased chest wall rigidity, as well as poor treatment compliance are linked to high failure rates of orthotic treatment. Furthermore, recurrence is more commonly reported in younger patients before the end of their growth spurt.

The deformity can be surgically corrected by the open, modified Ravitch procedure, or the minimally invasive Abramson procedure. Nowadays, the Abramson procedure has gained worldwide acceptance as it is superior to the open Ravitch procedure for surgical correction of pectus carinatum in terms of postoperative pain, hospitalization period, and cosmetic results (9). Therefore, the Ravitch procedure is primarily reserved for the correction of rigid or extremely severe and asymmetric deformities. The ideal age range for surgical repair by the Abramson method is during puberty, between 12 and 18 years of age, corresponding to a phase of rapid growth when the chest wall has relatively high flexibility, reducing the forces encountered during the procedure.

In the present manuscript, we describe a safe and easy-to-use modification of the original Abramson procedure for minimally invasive correction of pectus carinatum by implementing a temporary rigid compression of the anterior chest wall, facilitating optimal bending as well as safe placement of the bar.

Strengths and limitations

The introduction of the table-mounted PectusAssist™ System most importantly eliminates the necessity of applying manual repetitive, usually incoherent, and thus varying pressure on the deformity and maintains a more stable sternal position whilst creating the submuscular tunnel.

This will ensure accuracy of the template used to determine the desired bar length and curvature. Also, use of the PectusAssist™ System makes the procedure less labor intensive, especially for the assistant-surgeons. In our experience, the PectusAssist™ System does not cause skin damage related to the temporarily applied pressure.

Comparison with other surgical techniques and researches

Creation of the presternal tunnel during the Abramson procedure is considered to be the technically most challenging part (6-8) with still some chance to penetrate the thoracic cavity when trying to follow the protruded contour of the chest wall. Özkaya et al. (14) proposed a minor modification in which they use Doyen bowel clamps for its creation. Moreover, they use the Doyen bowel clamp to grasp the metal bar and move the bar along the tunnel, eliminating the necessity to use the introducer and attached chest tube drain to guide the metal bar. In our experience, the position of the hinge close to the handle and the narrowness of the submuscular tunnel might limit sufficient opening of the jaws and as such make grasping of the bar at the opposite end of the tunnel difficult. Therefore, we use the aortic clamps for tunnel creation, followed by the insertion of a specifically designed tunnel device.

The modification we propose also simplifies this part of the procedure as the two retromuscular tunnels, that need to be connected presternally, are better aligned throughout the procedure due to a more stable position of the sternum with the PectusAssist™ System.

Park’s Flare Compressor device (Primemed, Seoul, South Korea), as inspired by Park, is a comparable, double-post table-mounted instrument that can be used to apply external mechanical compression to the anterior chest wall (15). Instead of a decentralized table-mounted position as with our proposed system, PectusAssist™ System, these posts are centered at the level of the sternal zone to be compressed and can as such be in the way during dissection and tunnel creation. Use of Park’s Flare Compressor has been described for the sandwich technique to correct pectus carinatum with an accompanying pectus excavatum, a so-called pectus concavo-convexus combining intrathoracic and extrathoracic bar placement (15).

The Rultract retractor (Rultract Inc., Cleveland, Ohio, USA), often used in the USA during cardiothoracic surgical procedures, is only intended for lifting of the sternum, and as such cannot provide a consistent compression of the protruded anterior chest wall.

Implications and actions recommended

Many hospitals already have the basic compounds of the Thompson Retractor system available for use within open heart surgery, various types of visceral surgery, open thoracic surgery, orthopedic and neurosurgery, with at least one or two table posts and an interconnecting rod on shelf. Unlike most other non-European designed devices, the Thompson retractor is certified for use within the EU which makes the transition for use within chest wall surgery only a small step, legally and financially. Application of the PectusAssist™ System in the Abramson procedure requires a one-time investment in the purchase of the PectusAssist™ System. Larger tertiary pectus referral centers already use the Thompson retractor add-on in the crane technique during MIRPC (16,17), thus eliminating the additional costs as the compressor plate is oppositely mounted to the crane hook (13).

Unlike for the Nuss procedure (18), there is currently no literature available on the learning curve of the Abramson procedure. Furthermore, a threshold for an optimal caseload based on complication rates has also not been established yet and requires further research in order to determine whether the Abramson procedure should be centralized.

Conclusions

The use of the PectusAssist™ System enables an easy and more predictable placement of the presternal metal bar during the Abramson procedure for pectus carinatum, as variation due to manual compression is reduced thanks to this table-mounted compression system. Moreover, labor intensity is minimized, without interfering with the safety of the procedure. We, therefore, suggest standard use of the PectusAssist™ System during MIRPC by the Abramson procedure.
