Pure ground-glass opacity on chest computed tomography: predictive factors for invasive adenocarcinoma

Introduction

Lung cancer is the leading cause of cancer death among men and the second leading cause among women worldwide (1). Recently, the use of chest computed tomography (CT) for lung-cancer screening and early-stage adenocarcinoma detection has increased (2), with a subsequent increase in the detection of pure ground-glass opacity (GGO) and part-solid GGO lesions. Several studies have shown that persistent GGO confers a high risk of malignancy (3,4), with most representing preinvasive adenocarcinoma. Many studies report a difference in prognosis for adenocarcinoma patients, depending on the extent of GGO (5-7).

In 2011, the International Association for the Study of Lung Cancer (IASLC), the American Thoracic Society (ATS), and the European Respiratory Society (ERS) proposed a new classification of adenocarcinoma (8), which has been adopted in the recently published fourth edition of the World Health Organization (WHO) Classification of Tumours of the Lung, Pleura, Thymus and Heart (9). According to this classification, adenocarcinoma can be divided into 3 broad groups: adenocarcinoma in situ (AIS); minimally invasive adenocarcinoma (MIA); and invasive adenocarcinoma (IA); the latter can be further divided by the predominant histologic pattern into acinar adenocarcinoma, papillary adenocarcinoma, micropapillary adenocarcinoma, solid adenocarcinoma, and lepidic adenocarcinoma. AIS is defined as an adenocarcinoma lesion less than 3 cm in diameter, consisting of a 100% lepidic pattern; MIA has a predominant lepidic pattern with an invasive component of less than 5 mm. Both AIS and MIA are considered non-IA with lepidic growth and often present as GGO on CT (10). When pure GGO is seen, the diagnosis is presumed to be AIS or MIA and tissue-sparing surgery (limited resection) is preferred.

In actual fact, not all pure GGO lesions are AIS or MIA (11). There have been many instances of pure GGO identified as IA on postoperative pathology (11-14). It stands to reason that patients with pure GGO who are at high risk for having IA should not undergo a planned limited resection. It would be very helpful in deciding on the optimal treatment plan if the likelihood of IA could be predicted among patients exhibiting pure GGO lesions.

The aim of this study was to identify how often lung cancers with pure GGO lesions are confirmed as IA and to determine the predictive factors. In addition, we planned to determine which histomorphologic patterns, in addition to lepidic, appear as pure GGO on CT imaging.

Methods

Patients

A retrospective chart review identified 1,023 patients at Seoul St. Mary’s Hospital in Korea who were diagnosed with non-small cell lung cancer and underwent surgical resection between January 2010 and October 2015. Of these, 83 patients had pure GGO lesions. The histology in all 83 patients was adenocarcinoma, classified according to the 2011 IASLC/ATS/ERS and the 2015 WHO classification systems (8,9). AIS and MIA were combined into a single non-IA group (AIS/MIA) and compared with the IA group. TNM staging was based on the seventh edition of the American Joint Committee on Cancer (AJCC) guidelines (15). When GGO was observed continuously for more than 3 months, the decision to proceed with surgery was made when the size of the GGO lesion was more than 1 cm, the size of the GGO lesion was less than 1 cm but was increasing, or when malignancy was confirmed by needle biopsy.

This study was approved by the institutional review board of Seoul St. Mary’s Hospital, The Catholic University of Korea.

Radiologic evaluation

CT scans were obtained at full inspiration. GGO was defined as a hazy increased opacity in the lung parenchyma with preservation of bronchial structures and vascular margins (16). GGO nodules were labeled “pure” or “part-solid” depending on the presence of a solid component: pure GGO did not have any solid component on either the lung-window setting or mediastinal setting. The GGO diameter was defined as the largest axial diameter of the lesion on the lung-window setting. When multiple pure GGO lesions were present, the largest was used for study purposes. Pleural retraction was defined as a retraction of adjacent pleura toward the nodule (17). The initial radiologic reports were rendered by certificated thoracic radiologists, with retrospective review of the radiologic records of all patients who were determined to have pure GGO by our study radiologists. All preoperative chest CT imaging was rechecked by 2 thoracic surgeons who were blinded to the surgical outcome.

Histologic evaluation

All pathology reports were rendered by certified pathologists and included tumor size, location, differentiation, pleural invasion, lymphatic invasion, vascular invasion, and mutation status. To describe the histomorphologic tumor patterns, the occupancy ratio of each growth pattern (lepidic, acinar, papillary, micropapillary, and solid) of the total tumor area was measured and recorded semiquantitatively, in 5% increments, according to the 2011 IASLC/ATS/ERS classification system and the 2015 WHO classification system (8,9).

Statistical analysis

Clinicopathological factors of AIS/MIA and IA were compared using either Student’s t-test or the Wilcoxon rank-sum test for continuous variables, and using the χ² test or Fisher’s exact test for categorical variables. The optimal cutoff value for lesion size between AIS/MIA and IA was calculated by using a receiver operating characteristic (ROC) curve. Multivariate logistic regression was used to analyze predictive factors for IA with pure GGO. A P value of less than 0.05 was considered statistically significant.

Results

Of the 83 patients with adenocarcinoma and pure GGO, 66 patients (79.5%) were diagnosed with AIS/MIA and 17 patients (20.5%) were diagnosed with IA. The clinical characteristics of these 2 groups are listed in Table 1. The groups were similar in age, male-to-female ratio, and smoking history (P=0.790, P=0.844, P=0.221, respectively). There was no difference in the time elapsed between chest CT and surgery (P=0.280). There was no difference in the presence of underlying lung conditions, pulmonary function, serum carcinoembryonic antigen (CEA) levels (P=0.607), or maximum standardized uptake value (SUV_max) (P=0.087). Comparison of CT features revealed that most tumors were peripherally located. There was no difference in the involved lobes between groups (P=0.654), but there was a difference in mean GGO size (AIS/MIA, 1.2±0.5 cm; IA, 1.9±0.6 cm; P<0.001). The mean GGO lesion size in patients with MIA was larger than that in patients with AIS (1.4 vs. 1.1 cm; P=0.007), and the mean GGO size in patients with IA was larger than that in patients with MIA (1.9 vs. 1.4 cm; P=0.001). Pleural retraction was observed in patients with AIS, MIA, and IA (Figure 1), with a statistically significant difference between the AIS/MIA group [10 patients (15.2%)] and the AI group [13 patients (76.5%); P<0.001]. Even though there was no statistically significant difference between MIA and AIS patients, there was a tendency toward more pleural retraction in MIA (21.6% vs. 6.9%; P=0.098). Multiple GGO lesions were seen in 21.2% of AIS/MIA patients and 11.1% of AI patients; there was no statistical difference (P=0.379).

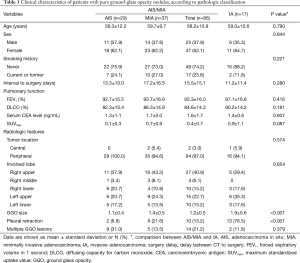

Table 1 Clinical characteristics of patients with pure ground-glass opacity nodules, according to pathologic classification
Full table

Figure 1 Pure ground-glass opacity, with or without pleural retraction, on chest computed tomography. (A) Adenocarcinoma in situ (AIS) without pleural retraction; (B) AIS with pleural retraction; (C) minimally invasive adenocarcinoma (MIA) without pleural retraction; (D) MIA with pleural retraction; (E) invasive adenocarcinoma (IA) without pleural retraction; (F) IA with pleural retraction.

The surgical and pathological characteristics of AIS/MIA and IA are shown in Table 2. The rate of limited resection was 57.6% in AIS/MIA patients and 41.2% in IA patients; there was no statistical difference (P=0.463). However, there was a statistically significant difference between AIS and MIA patients in the rate of limited resection: 75.9% vs. 43.2%, respectively (P=0.01). Video-assisted thoracoscopic surgery was performed for most patients (AIS/MIA, 89.4%; IA, 88.2%) and there was no difference between groups in the rate of observed pleural adhesions (P=0.745). When pleural retraction was observed on chest CT, it was confirmed intraoperatively in all patients (Figure 2). There was no significant difference between pathological tumor size and GGO lesion size, with lesion size tending to increase as pathology progressed from AIS to MI to IA. The tumor grade was well differentiated in most AIS/MIA patients (98.5%) but significantly lower in IA patients (76.5%; P<0.001). There was no visceral pleural invasion seen in any group. Lymphatic invasion [2 patients (11.8%)] and vascular invasion [1 patient (5.9%)] was observed only in IA. There was no difference in the incidence of EGFR mutation and ALK mutation between groups.

Table 2 Surgical and pathological characteristics of patients with pure ground-glass opacity nodules, according to pathologic classification
Full table

Figure 2 Chest computed tomography, thoracoscopic view. (A) AIS with pleural retraction; (B) MIA with pleural retraction; (C) IA with pleural retraction. AIS, adenocarcinoma in situ; MIA, minimally invasive adenocarcinoma; IA, invasive adenocarcinoma.

Logistic regression analysis was used to determine the predictive factors for IA that could be confirmed either before or during surgery (Table 3). The preoperative factors were patient age, sex, smoking history, interval to surgery, forced expiratory volume in 1 second (FEV₁), diffusing capacity for carbon monoxide (DLCO), tumor location, GGO lesion size, the presence of pleural retraction, multiple GGO lesions, CEA value, and SUVmax. The intraoperative factors were the presence of pleural adhesion or pleural retraction. GGO size and pleural retraction had P values of less than 0.1 by univariate analysis. Both factors were confirmed to be significant predictive factors for IA by multivariate analysis [hazard ratio (HR) =9.016, P=0.007; HR =12.977, P<0.001, respectively).

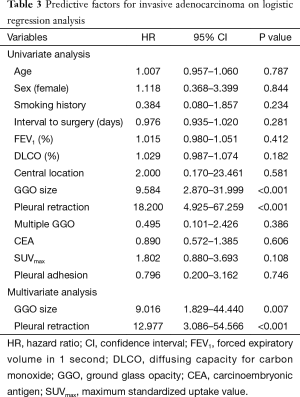

Table 3 Predictive factors for invasive adenocarcinoma on logistic regression analysis
Full table

A scatter plot was used to analyze the distribution of GGO lesion size in patients with IA (Figure 3): IA was not found with a GGO size of less than 1.0 cm. ROC analysis revealed that the area under the curve (AUC) for GGO size was 0.811 (95% CI, 0.703–0.919) (Figure 4). The optimal cutoff value for lesion size in differentiating AIS/MIA from IA was 1.5 cm, with a sensitivity of 76.5% and a specificity of 78.8%. GGO size larger than 1.5 cm accounted for 76.5% of IA patients (Table 4). Multivariate analysis confirmed that a GGO size ≥1.5 cm was a statistically significant predictive factor (HR =9.353; P=0.003) (Table 5). There were 13 patients with both GGO size ≥1.5 cm and pleural retraction: 11 were diagnosed with IA, with a sensitivity of 64.7%, a specificity of 97.0%, a positive predictive value of 84.6%, and a negative predictive value of 91.4%.

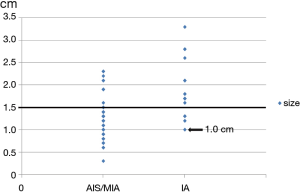

Figure 3 Scatter plot of tumor size and the presence of invasive adenocarcinoma. AIS, adenocarcinoma in situ; MIA, minimally invasive adenocarcinoma; IA, invasive adenocarcinoma.

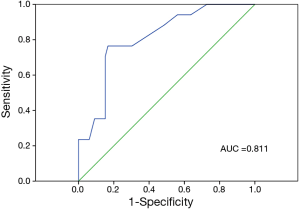

Figure 4 Receiver operating characteristic curve of ground-glass opacity lesion size.

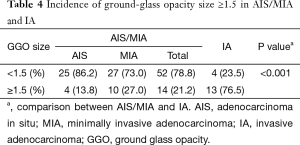

Table 4 Incidence of ground-glass opacity size ≥1.5 in AIS/MIA and IA
Full table

Table 5 Multivariate analysis on logistic regression analysis with GGO size ≥1.5 and pleural retraction
Full table

The histomorphological growth patterns of AIS, MIA, and IA are shown in Table 6. Comparison of the mean occupancy rate of the tumor growth patterns revealed that all AIS, MIA, and IA lesions contained a great deal of the lepidic pattern (100%, 86.9%, and 40.3%, respectively). In MIA and IA, the acinar pattern and papillary pattern were observed primarily and the micropapillary pattern and solid pattern were not observed at all. When IA was classified by subtype, there were 8 patients with acinar adenocarcinoma, 3 with papillary adenocarcinoma, and 6 with lepidic adenocarcinoma.

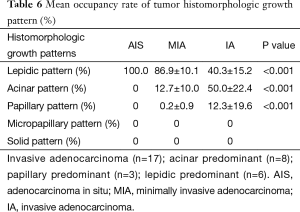

Table 6 Mean occupancy rate of tumor histomorphologic growth pattern (%)
Full table

Discussion

Lung adenocarcinoma has a variable prognosis due to its heterogeneity; therefore, it is important to differentiate a tumor with a favorable prognosis from a lesion with a gloomy prognosis. AIS and MIA are known to have 100% 5-year survival after surgical resection and are therefore known as favorable-prognosis tumors (18,19) and are often considered to be indications for limited resection (5,20,21). Lesions that demonstrate GGO on preoperative CT tend to represent a lepidic pattern without invasion, with a good possibility of being AIS or MIA in the case of pure GGO. However, all pure GGO lesions are not shown to be AIS or MIA on pathologic examination. In the present study, 20.5% of patients with pure GGO lesions were confirmed to have IA. Another study showed that 42.8% of patients with pure GGO had IA (11). Unfortunately, there is a good possibility of an invasive component to lesions that appear as part-solid GGO on CT (5,6,11), and anatomical resection has been recommended over lobectomy for treating these tumors. However, since a solid component to pure GGO is not visible on CT, it is important to determine other predictive factors for invasiveness.

We were not able to identify a predictive preoperative clinical characteristic for IA, but we did determine that GGO lesion size and the presence of pleural retraction were significant radiologic factors. GGO size was found to be similar to the pathological tumor size, and there was a significant difference in the mean GGO size between AIS/MIA and IA tumors, with a cutoff value of 1.5 cm conferring good sensitivity and specificity. In other studies, the size of pure GGO lesions proved to be a significant predictive factor for IA (12,13). While pleural retraction represents a pulling of the visceral pleura towards a pulmonary nodule, it may or may not be accompanied by a pleural tag. In all of our patients, pleural retraction observed on chest CT was also observed intraoperatively. Therefore, pleural retraction was both a preoperative and intraoperative predictive factor. Generally, pleural retraction has not been seen as a significant finding for discrimination between benign and malignant pulmonary nodules (22,23). However, a recent study reported that patients with IA and GGO lesions have a higher incidence of pleural retraction than those with AIS/MIA (17). In the present study, while pleural retraction could be observed in all patients with AIS, MIA, and IA, the incidence of pleural retraction was highest in IA. Especially since the incidence of pleural retraction tends to increase as disease progresses from AIS to MIA to IA, we theorize that as that the more invasive component of a GGO lesion increases, the incidence of pleural retraction is likely to increase. IA can be predicted more accurately if more than 2 categorical variables are used together. In this study, both positive and negative predictive values were high when both GGO size ≥1.5 cm and pleural retraction were positive. Since specificity was very high even though sensitivity was relatively low, it can be said that the possibility of AIS/MIA is very high in patients with pure GGO less than 1.5 cm and no pleural retraction.

According to the National Comprehensive Cancer Network (NCCN) guideline for lung-cancer screening (Version 1. 2016), chest CT is to be repeated if pure GGO is detected. When GGO persists, surgical excision can be performed if the lesion size is over 1 cm, the lesion is increasing in size, or excision is considered clinically necessary. At our institution, surgery is performed according to these guidelines. Lobectomy is performed when limited resection is not possible, but most patients are treated with limited resection and frozen section, with lobectomy performed if an invasive component is observed on frozen section. In this study, the rate of limited resection in both AIS/MIA and IA was about the same, around 50%. However, limited resection for AIS was significantly higher, at 75.9%, as invasive components were not detected on frozen section. Unfortunately, the accuracy of frozen section is not satisfactory (5,24). In addition, differentiation between MIA and IA is still vague, even if an invasive component is observed. Considering that the limited-resection rate is high in patients with AIS, frozen section may be helpful in determining the appropriate operation. But since the accuracy of intraoperative frozen section is still unclear, determining the appropriate treatment method will be easier if IA can be predicted more accurately. Even though limited resection is preferred for the treatment of pure GGO, it may not be able to be performed for all lesions. As observed in the present study, 20.5% of pure GGO lesions are ultimately diagnosed as IA, so the presence of pure GGO cannot be an indication for limited resection.

Generally, GGO is observed in lesions that demonstrate a lepidic growth pattern, although the acinar and papillary patterns can also be observed (11,25-28). In the present study, when we examined which patterns composed the invasive components of MIA and IA, all were acinar and papillary. Curiously, micropapillary and solid patterns were not observed at all. When classification was made according to IA subtype, acinar adenocarcinoma was the most predominant. Since the malignant potential of micropapillary and solid patterns is known to be the highest of the histologic types (18,29,30), IA presenting as pure GGO may have a better prognosis than other types of IA (11). Accordingly, since pure GGO has a good possibility of being IA with less malignant potential compared with solid- or part-solid GGO, a better prognosis may be anticipated even after limited resection if predictive factors are properly applied.

This study has several limitations. First, we used a retrospective study design. Second, we obtained the data from a single institution and the number of cases was relatively small. However, all data in this study are recent, since 2010, and since management was performed according to the same protocol, bias should be relatively low. Future studies with more patients may provide more accurate results. Third, our study was restricted to surgical patients. More accurate results might be obtained if pathologic analysis of pure-GGO patients who did not undergo surgery was made—a consideration which was not practically possible in this study; we still consider our results to be significant.

In conclusion, preoperative GGO size and the radiologic or intraoperative presence of pleural retraction are predictive factors for IA. In patients with these findings, lobectomy is preferable to limited resection. Using frozen section may help to identify IA intraoperatively. Future studies that collect data from larger sample sizes are needed to confirm these findings.

Acknowledgements

The manuscript has been edited by native English-speaking experts at BioMed Proofreading, LLC.

Footnote

Conflicts of Interest: The authors have no conflicts of interest to declare.

Ethical Statement: This study was approved by the institutional review board of Seoul St. Mary’s Hospital, The Catholic University of Korea.
