Research progress of mitochondria in chronic obstructive pulmonary disease: a bibliometric analysis based on the Web of Science Core Collection
Original Article

Research progress of mitochondria in chronic obstructive pulmonary disease: a bibliometric analysis based on the Web of Science Core Collection

Naer An#, Jing An#, Tingting Zeng, Shuyan Wang, Ping Li, Xueru Hu, Yongchun Shen, Lian Liu, Fuqiang Wen

Department of Respiratory and Critical Care Medicine, West China Hospital of Sichuan University and Division of Pulmonary Diseases, State Key Laboratory of Biotherapy, Chengdu, China

Contributions: (I) Conception and design: N An, J An; (II) Administrative support: Y Shen, L Liu, F Wen; (III) Provision of study materials or patients: T Zeng, S Wang; (IV) Collection and assembly of data: N An, J An; (V) Data analysis and interpretation: N An, J An, P Li, X Hu; (VI) Manuscript writing: All authors; (VII) Final approval of manuscript: All authors.

#These authors contributed equally to this work as co-first authors.

Correspondence to: Yongchun Shen, MD; Lian Liu, PhD. Department of Respiratory and Critical Care Medicine, West China Hospital of Sichuan University and Division of Pulmonary Diseases, State Key Laboratory of Biotherapy, No. 37, Guoxue Road, Chengdu 610041, China. Email: shen_yongchun@126.com; desertfoxliu@hotmail.com.

Background: Due to its high morbidity and mortality, chronic obstructive pulmonary disease (COPD) has become a major global healthcare issue. Although there is abundant research regarding COPD, a bibliometric analysis of the literature related to mitochondria and COPD is lacking. Thus this study aimed to summarize the research status, research direction, and research hotspots of the published articles concerning COPD and mitochondria.

Methods: A literature search for included publications related to COPD and mitochondria was carried out on the Web of Science Core Collection from the date of database establishment to December 15, 2022. A subsequent bibliometric and visual analysis of the included publications was conducted via Microsoft Excel, R software, CiteSpace, and VOSviewer.

Results: A total of 227 published articles on COPD and mitochondria from 139 journals were included. Over the study period, the annual publication number and citation frequency in this field both showed a trend of continuous growth. The United States had the highest centrality and was the most productive country. The frequently occurring keywords were “oxidative stress”, “obstructive pulmonary disease”, “dysfunction”, “mitochondria”, “inflammation”, and “cigarette smoke”, among others. Recent research hotspots included autophagy, model, mitochondria, health, and extracellular vesicles (EVs). Despite an abundance and variety of research, there is still relatively little academic communications between scholars and institutions.

Conclusions: This bibliometric study can help researchers gain a quick overview of the research into mitochondria and COPD and thus inform novel ideas and directions for future research in this field.

Keywords: Mitochondria; chronic obstructive pulmonary disease (COPD); bibliometric analysis; CiteSpace; VOSviewer


Submitted May 13, 2023. Accepted for publication Nov 10, 2023. Published online Jan 09, 2024.

doi: 10.21037/jtd-23-777


Highlight box

Key findings

• This study systematically summarized the research status, direction, and hotspots of published articles on mitochondria in chronic obstructive pulmonary disease (COPD) and identify several key problems in the field.

What is known and what is new?

• Mitochondria are highly involved in the process of COPD through a variety of pathways. However, the distribution of literature related to mitochondria in COPD is scattered.

• This bibliometric analysis was conducted to provide a visual, empirical, and clear overview of the current research situation and characteristics concerning COPD and mitochondria, with the ultimate aim of providing new ideas and directions for future research.

What is the implication, and what should change now?

• This study’s findings offer a reference for researchers interested in the field to easily apprehend the research trends and hotspots and to accurately formulate future research directions and strategies. Academic communication and collaboration should be improved to explore the connection between COPD and mitochondria.


Introduction

Chronic obstructive pulmonary disease (COPD) is a heterogeneous lung condition characterized by persistent and progressive airflow obstruction and respiratory symptoms due to damage and remodeling of the airways, lung parenchyma, and pulmonary vasculature (1), resulting in increased dyspnea, disability, and death. In 2017, the number of people with chronic respiratory disease was about 544 million, with COPD accounting for approximately 55% of these cases (2). According to the mortality statistics published by the World Health Organization (WHO), there are about 3 million deaths per year due to COPD (3), making it second only to ischemic heart disease and cerebrovascular disease in the global ranking of age-standardized mortality for both sexes (4). Because of its high global morbidity and mortality, COPD is considered a major health burden, which seriously endangers the health of individuals worldwide (5). The pathogenesis of COPD is complex, as it involves a combination of dynamic and cumulative gene-environment interactions (6), such as smoking, inhalation of other pollutants, respiratory infections, and malnutrition. These interactions regulate the development, maintenance, and function of the lungs through a variety of complicated biological mechanisms, including oxidative stress, inflammation, aberrant cell proliferation, cell apoptosis, and senescence, and may also impact other important organs to induce systemic and multimorbid syndromes (7). The complexity of the pathogenesis presents a considerable challenge to the clinical management of COPD. Current clinical treatments of COPD mainly focus on the control of symptoms, and there are no effective preventive or curative measures. Therefore, it is necessary to acquire an in-depth understanding of the pathophysiological processes and pathogenesis of COPD to develop new strategies for improving the health and prognosis of patients.

Mitochondria is an essential organelle involved in cellular energy supply, cell metabolism adjustment, calcium homeostasis maintenance, substances synthesis, gene expression, signal transduction, and cell death program regulation (8), all of which critically influence COPD through a variety of pathways. As the most fundamental and essential function of mitochondria, energy supply is involved in all physiological processes. Mitochondrial bioenergetic dysfunctions, such as mitochondrial respiratory chain inhibition, mitochondrial leakage, and uncoupling contribute to pulmonary dysfunction (9). Excessive production of mitochondrial reactive oxygen species (ROS) leads to an oxidant-antioxidant imbalance that induces and promotes chronic airway inflammation (10). Mitochondrial calcium homeostasis and redox regulation contribute to cellular signaling, gene expression, regulation of the contraction, and proliferation of airway smooth muscle, which are crucial determinants in the pathophysiology of chronic lung disease (11). Mitochondria maintain normal morphology and function through a dynamic balance of cleavage, fusion, and mitosis, resulting in quality control and stress adaptations known as “mitochondrial dynamics”, the disruption of which may exacerbate inflammatory response and airway injury in patients with COPD (12). These facts suggest that studies on mitochondria can generate novel ideas concerning the pathogenesis of COPD and provide ideas for its rational and effective treatment. Therefore, this bibliometric study, which summarized and visualized the research status and trends on COPD and mitochondria, was conducted to clarify the relationship between these elements and provide new research directions for improving the prevention and treatment of COPD.

Bibliometrics is a means quantitative statistical analysis that can be used to describe the status in a given research field by summarizing the collected literature data (13). As the number of research results and academic papers increases dramatically and as researchers communicate more frequently through reading and citing published research results, bibliometrics is playing an increasingly important role in academic research and has been applied in many research areas to evaluate countries, institutions, authors, journals, keywords, and cited references (14). It can not only extract valuable information and display it in different dimensions through data mining techniques, but it can also construct knowledge graphs to visualize the research data (15), which is difficult to achieve via traditional methods. Bibliometrics is also capable of predicting the hotspots, directions, and trends in scholarly research activity and of providing a macroscopic perspective on aspects of the research output in a field (16). Citation is a crucial aspect that reflects the scientific impact of literature (17). As a unique component of bibliometric analysis, citation analysis makes it possible to assess the comparative importance of articles or journals and to establish links between researchers, institutions, and specific fields (18). Although bibliometric analysis is deficient in terms of detailed analysis compared to the traditional literature review method, it has advantages in terms of comprehensiveness (19). In this study, CiteSpace software and VOSviewer were used to conducted a bibliometric analysis on articles about COPD and mitochondria published on the Web of Science Core Collection. So that researchers can quickly identify the literature characteristics, understand the research developments, discover research hotspots, and offer clues and directions for future studies and clinical treatment.


Methods

Data sources

This bibliometric analysis was based on the Web of Science Core Collection [indexes: Science Citation Index Expanded (SCI-Expanded), Social Sciences Citation Index (SSCI), Arts & Humanities Citation Index (A&HCI), Conference Proceedings Citation Index-Science (CPCI-S), Conference Proceedings Citation Index-Social Science & Humanities (CPCI-SSH), Emerging Sources Citation Index (ESCI), Current Chemical Reactions-Expanded (CCR-Expanded), and Index Chemicus (IC)]. As one of the world’s most comprehensive and authoritative academic resource databases, Web of Science Core Collection is the most commonly used database for bibliometric analysis at present (20), contains high-quality and constantly updated literature collections (21), and provides comprehensive citation indexing records.

Search strategy

All published articles related to COPD and mitochondria were searched from the time of database establishment to December 15, 2022. The search terms under the Medical Subject Headings (MeSH) were set as follows: TS = (“chronic obstructive pulmonary disease” OR “COPD” OR “chronic airflow obstruction” OR “chronic obstructive lung disease”) AND TS = (mitochondria OR mitochondrion OR mitochondrial). In order to reduce selection bias, two researchers (N.A. and J.A.) conducted the literature search independently at the same time (December 15, 2022). The concordance of screening results exceeded 0.9, thus indicating relative confidence. Researchers further excluded the retrieved articles based on the following criteria: (I) a literature type other than an article; (II) non-English language literature; and (III) duplicate articles. Every downloaded article included fully documented and cited references. Figure 1 shows the literature screening process.

Figure 1 Flowchart of literature screening.

Analysis methods

After completing the search, we exported all included records of the results in text format as the original dataset and retrospectively analyzed the collected literature using R software v.3.1.4 (The Foundation for Statistical Computing), VOSviewer, and CiteSpace v.6.2.2. The analysis included the annual number of publications and citations; the distribution of published literature including journals, countries, institutions, and authors; reference citations; keywords; and collaboration between countries, institutions, and authors. Microsoft Excel 2016 was used to describe line and bar charts, while the R package “bibliometrix”, VOSviewer, and CiteSpace were used to perform bibliometric and visual analyses.


Results

Time analysis

From 1995 to 2022, a total of 231 original articles (four articles were duplicated) related to COPD and mitochondria were obtained, and 8,013 citations were reported with an h-index of 48. Each article was cited with average of 34.69 times. From 1995—the year the first article was published—to 2005, 12 articles were published with a total citation frequency of 152. From 2006 to 2022, 219 articles were published with a total citation frequency of 7,861. Since 2006, the number of publications on COPD and mitochondria has shown a trend of continuous growth, and the number of citations each year has increased significantly (Figure 2). In the last 2 years of the study period, especially, there has been a surge in the number of publications and citations, demonstrating that an increasing number of researchers are focusing on this field, indicating the great potential for future research.

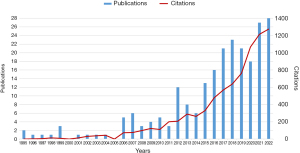

Figure 2 Publications and citations on COPD and mitochondria between 1995 and 2022. COPD, chronic obstructive pulmonary disease.

Journal analysis

There were 227 articles published in 139 journals in the field of mitochondrial and COPD. The majority of the published journals and cocited journals were respiratory and biology journals from the United States and Europe. American Journal of Respiratory Cell and Molecular Biology published the highest number of articles with 12. American Journal of Respiratory and Critical Care Medicine had the highest number of cocitations at 170. Table 1 lists the top 10 journals in terms of number of published articles and frequency of cocitations. The impact factors of these journals ranged from 3.65 to 33.801.

Table 1

Top 10 most productive journals and cocited journals in the field of COPD and mitochondria

Rank Most productive journals Most cocited journals
Content Publication IF [2021] Content Publication IF [2021]
1 American Journal of Respiratory Cell and Molecular Biology 12 7.748 American Journal of Respiratory and Critical Care Medicine 170 30.528
2 American Journal of Physiology Lung Cellular and Molecular Physiology 10 6.011 European Respiratory Journal 146 33.801
3 European Respiratory Journal 8 33.801 American Journal of Physiology Lung Cellular and Molecular Physiology 122 6.011
4 American Journal of Respiratory and Critical Care Medicine 7 30.528 PLOS ONE 114 3.752
5 Respiratory Research 6 7.162 Journal of Biological Chemistry 114 5.485
6 Free Radical Biology and Medicine 5 8.101 American Journal of Respiratory Cell and Molecular 113 7.748
7 Advances in Experimental Medicine and Biology 4 3.65 Journal of Clinical Investigation 106 19.477
8 Cells 4 7.666 Chest 100 11.393
9 Chest 4 11.393 Respiratory Research 96 7.162
10 Journal of Applied Physiology 4 3.881 Proceedings of the National Academy of Sciences of the United States of America 90 12.779

COPD, chronic obstructive pulmonary disease; IF, impact factor.

Country and institution analysis

The literature search identified 227 articles from 452 institutions in 31 countries (Figure 3A). Table 2 lists the information of the 10 countries and institutions with the highest article output. The United States was the country that produced the most articles and had the highest centrality (0.68). China’s intermediary centrality (0.02) was much lower than that of other productive countries. In Figure 3, nodes with purple outer circles indicate a centrality greater than or equal to 0.10 (22) and suggests that these countries assume a key role in the research cooperation network. Both the University of Groningen and Imperial College London had nine publications, and four institutions had an intermediate centrality greater than 0.10, with the National Institute of Health and Medical Research (INSERM) having the highest centrality of 0.14. There were significantly more collaborative links between countries than between institutions (Figure 3B), indicating academic communication has been more common between institutions from different countries than between research institutions in the same country.

Figure 3 Distribution of publications related to COPD and mitochondria. (A) The visual map of the countries. (B) The visual map of the institutions. (C) The visual map of the authors. The size of nodes is positively correlated with the frequency of occurrence or co-occurrence of analyzed objects. Lines between nodes represent cooperative relationships, and the thickness of lines represent the strength of the relationship. The color of nodes indicates the year in which the object occurs as shown in the color bar of figure. COPD, chronic obstructive pulmonary disease.

Table 2

Top 10 most productive countries/regions and institutions in field of COPD and mitochondria

Rank Country/region Institution
Content Publication Centrality Year Content Publication Centrality
1 USA 82 0.68 1995 University of Groningen 9 0.05
2 China 55 0.02 2012 Imperial College London 9 0.02
3 UK 24 0.17 2006 Maastricht University 6 0.03
4 The Netherlands 21 0.14 2006 Fudan University 6 0.00
5 Spain 15 0.03 1996 Imperial College 5 0.03
6 Germany 13 0.12 2004 Harbor-UCLA Medical Center 5 0.01
7 Italy 13 0.10 2010 Jikei University 5 0.00
8 Australia 11 0.02 2003 INSERM 4 0.14
9 France 10 0.02 1999 Harvard University 4 0.08
10 Japan 10 0.00 2013 Brigham Women’s Hospital 4 0.04

COPD, chronic obstructive pulmonary disease; UCLA, University of California, Los Angeles; INSERM, National Institute of Health and Medical Research.

Author analysis

As can be seen in Table 3, only five authors published five or more articles among all 514 authors. All authors had very low centrality, with a maximum of only 0.01. Barnes PJ was cited frequently (about 54 times) and had the highest centrality, indicating that his articles were widely accepted by researchers in this field. The relatively sparse and scattered contact between authors (Figure 3C) indicates a lack of collaboration among most researchers, and thus the intensity of academic communication should be increased in the future.

Table 3

Top 10 most productive and cocited authors in field of COPD and mitochondria

Rank Author Cocited author
Content Publication Centrality Content Publication Centrality
1 Choi AM 7 0.01 Barnes PJ 54 0.36
2 Barnes PJ 6 0.01 Mizumura K 45 0.03
3 Araya J 6 0.00 Hoffmann RF 39 0.04
4 Chung KF 5 0.00 Hara H 33 0.08
5 Adcock IM 5 0.00 van der Toorn M 30 0.05
6 Bhavsar PK 4 0.00 Aravamudan B 29 0.03
7 Adami A 4 0.00 Ahmad T 29 0.07
8 Gea J 4 0.00 Wiegman CH 28 0.03
9 Asano H 3 0.00 Gosker HR 28 0.15
10 Agusti A 3 0.00 Cloonan SM 27 0.04

COPD, chronic obstructive pulmonary disease.

Discipline analysis

The 227 retrieved articles covered 44 subdisciplines, including those related to the respiratory system (69, 29.870%), cell biology (44, 19.048%), biochemistry molecular biology (44, 19.048%), physiology (31, 13.420%), experimental medicine research (25, 10.823%), pharmacology (20, 8.658%), and general internal medicine (18, 7.792%) among others. Table 4 shows the top 10 disciplines in terms of total articles.

Table 4

Top 10 disciplines in field of COPD and mitochondria

Rank Disciplines Publication Percent (%)
1 Respiratory system 69 29.870
2 Cell biology 44 19.048
3 Biochemistry molecular biology 44 19.048
4 Physiology 31 13.420
5 Experimental medicine research 25 10.823
6 Pharmacology 20 8.658
7 General internal medicine 18 7.792
8 Immunology 12 5.195
9 Science technology and other topics 12 5.195
10 Endocrinology metabolism 10 4.329

COPD, chronic obstructive pulmonary disease.

Cocitation analysis

Table 5 shows the top 10 articles in terms of cocitation frequency (23-32), 50% of which were from the United States, indicating that this country has contributed significantly to the field of mitochondria and COPD. The publication dates of the highly cocited articles were concentrated in the period of 2013–2016, which can be considered an essential phase of research progression in this field. Most of the highly cocited articles focused on the pathogenesis of COPD in terms of autophagy, cigarette smoke (CS), oxidative stress, and mitochondrial dysfunction.

Table 5

Top 10 cocited references in field of COPD and mitochondria

Rank Title (reference) Year Author Journal Country Cocitations
1 Mitophagy-dependent necroptosis contributes to the pathogenesis of COPD (23) 2014 Mizumura et al. Journal of Clinical Investigation USA 25
2 Oxidative stress–induced mitochondrial dysfunction drives inflammation and airway smooth muscle remodeling in patients with chronic obstructive pulmonary disease (24) 2015 Wiegman et al. Journal Allergy Clinical Immunology UK 20
3 Prolonged cigarette smoke exposure alters mitochondrial structure and function in airway epithelial cells (25) 2013 Hoffmann et al. Respiratory Research The Netherlands 16
4 Impaired mitophagy leads to cigarette smoke stress-induced cellular senescence: implications for chronic obstructive pulmonary disease (26) 2015 Ahmad et al. FASEB Journal USA 15
5 Mitochondria in lung disease (27) 2016 Cloonan et al. Journal of Clinical Investigation USA 13
6 Cigarette smoke-induced mitochondrial fragmentation and dysfunction in human airway smooth muscle (28) 2014 Aravamudan et al. American Journal Physiology Lung Cellular and Molecular Physiology USA 12
7 PARK2-mediated mitophagy is involved in regulation of HBEC senescence in COPD pathogenesis (29) 2015 Ito et al. Autophagy Japan 12
8 Mitochondrial fragmentation in cigarette smoke-induced bronchial epithelial cell senescence (30) 2013 Hara et al. American Journal Physiology Lung Cellular and Molecular Physiology Japan 11
9 Mitochondria in lung diseases (31) 2013 Aravamudan et al. Expert Review Respiratory Medicine USA 10
10 Skeletal muscle mitochondrial dysfunction during chronic obstructive pulmonary disease: central actor and therapeutic target (32) 2013 Meyer et al. Experimental Physiology France 9

COPD, chronic obstructive pulmonary disease.

Keyword analysis

Keywords can reflect the hotspots and frontiers of the area to be studied and is thus one of the most valuable aspects of bibliometric analysis (33). Table 6 shows the top 18 keywords with the highest frequency of occurrence and the high centrality. In addition to “oxidative stress” and “obstructive pulmonary disease”, the terms “dysfunction”, “mitochondria”, “inflammation”, and “cigarette smoke” also occurred frequently in the articles. A keyword visualization map (Figure 4A) was also drawn to show the direct connection between keywords. A trend analysis of keywords (Figure 4B) indicated that the high-frequency terms most commonly appeared between 2013 and 2021. Keyword co-occurrence refers to the simultaneous occurrence of more than two keywords in the same article (34). A co-occurrence cluster atlas (Figure 4C) was created to show the top 10 most highly related co-occurrence keyword clusters. Table 7 shows the characteristics of the 10 largest keyword clusters, whose silhouette values were all greater than 0.85, indicating the clustering was reliable (35). The keyword timeline diagram (Figure 4D) shows the longest research cycles (#4, #6) and the most recent research hotspots (#7). For high-frequency keywords, we performed citation burst detection, which is visualized in Figure 5, where the red segments on the blue timeline represent the outbreak period. We found that the most recent hotspots were autophagy, model, mitochondria, health, and extracellular vesicles (EVs). The keyword that had the first burst and longest burst duration [1996–2009] was “respiratory muscle”. The keyword with the largest strength was “exercise”, which first appeared in 1999. In 2 recent years [2021–2022], the keywords that emerged were “mitochondria”, “health” and “extracellular vesicles”.

Table 6

Top 18 most frequent keywords related to COPD and mitochondria

Rank Keywords Frequency Year Centrality
1 Oxidative stress 79 1997 0.18
2 Obstructive pulmonary disease 71 1997 0.27
3 COPD 47 2008 0.17
4 Chronic obstructive pulmonary disease 37 1995 0.31
5 Dysfunction 35 2006 0.15
6 Mitochondria 32 1997 0.14
7 Inflammation 32 2007 0.08
8 Cigarette smoke 30 1995 0.15
9 Skeletal muscle 28 2007 0.13
10 Apoptosis 26 2004 0.17
11 Autophagy 22 2015 0.05
12 Expression 21 2007 0.12
13 Pathogenesis 21 2016 0.05
14 Exercise 19 1995 0.12
15 Mitochondrial dysfunction 16 2004 0.03
16 Activation 16 2015 0.07
17 Emphysema 14 2007 0.03
18 Cell 13 1998 0.08

COPD, chronic obstructive pulmonary disease.

Figure 4 Analysis of keywords in the literature related to COPD and mitochondria. (A) The visualization map of keywords. (B) The time trend of keywords. (C) Co-occurrence cluster atlas of keywords. (D) Keyword timeline diagram based on the clustering results. #0–9: 10 co-occurrence clusters (# indicates keyword cluster number). COPD, chronic obstructive pulmonary disease.

Table 7

Characteristics of the 10 main clusters in the cluster atlas of keywords

Cluster ID Size Silhouette Mean (year) Cluster (LLR) Main keywords
#0 45 0.908 2007 Muscle dysfunction Muscle dysfunction; oxidative phosphorylation; glutathione; endurance training; skeletal muscle
#1 40 0.936 2014 Airway smooth muscle Airway smooth muscle; airway hyperresponsiveness; proliferation; metabolic reprogramming; PHB1
#2 40 0.891 2007 Oxidative stress Oxidative stress; ACOS; mitochondrial DNA; chronic obstructive pulmonary disease (COPD); pulmonary artery
#3 39 0.92 2013 Cell Cell; dexamethasone; airway epithelial cells; airway epithelial cell; phosphodiesterase 4
#4 37 0.878 2005 Chronic obstructive pulmonary disease Chronic obstructive pulmonary disease; skeletal muscle; fibroblasts; acetaldehyde; interstitial cells
#5 32 0.899 2010 mTORC1/2 mTORC1/2; DNA deletion; nucleotide primer extension; Kearns-Sayre syndrome; progressive external ophthalmoplegia
#6 30 0.879 2008 Cigarette smoking Cigarette smoking; cigarette smoke; quadriceps muscle; fiber type; adaptation
#7 30 0.933 2013 Airway smooth muscle cells Airway smooth muscle cells; asthma; alveolar epithelial cell; oxygen consumption; skeletal muscle
#8 29 0.863 2014 Reactive oxygen species Reactive oxygen species; tiotropium; acute exacerbation; NLRP3 inflammasome; lipopolysaccharide
#9 26 0.908 2007 Mitochondrial dysfunction Mitochondrial function; respiratory muscle; normal human bronchial epithelial BEAS-2b cells; mitochondrial inclusions; magnetic resonance imaging

# indicates keyword cluster number. LLR, log-likelihood rate; ACOS, asthma-COPD overlap syndrome; COPD, chronic obstructive pulmonary disease.

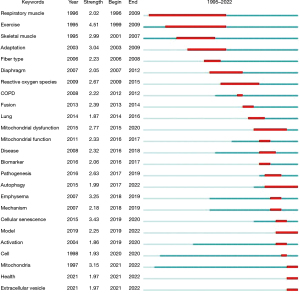

Figure 5 Top 25 keywords with the strongest citation burst. Blue lines represent the timeline, and red segments represent the burst period.

Discussion

As a common respiratory disease, COPD has become major threat to human health due to its substantial and increasing morbidity and mortality (36). Therefore, exploring new and cognitive research avenues is necessary to gain insight into the pathogenesis and better management of COPD. A series of mitochondrial-based studies on the pathogenesis of COPD has discussed new possibilities for the prevention and treatment of the disease, but there is no systematic evaluation of the abundant research in this subfield. In this study, a bibliometric analysis on COPD and mitochondria was conducted using R software, VOSviewer, and CiteSpace to visualize the various aspects of the included publications, showing their characteristics, distribution, research direction, and hotspots. The overarching aim of this study was to provide researchers with a reference to systematically understand the current research status and the ongoing trends in COPD and mitochondria research, gain new ideas concerning the pathogenesis and prevention of COPD, and thus better benefit patients with this disease.

A total of 227 publications on the relationship between COPD and mitochondria from 139 journals in the Web of Science Core Collection published from 1995 to 2022 were included. The first relevant article was published in the Journal of Applied Physiology in 1995 (37). In this article, the authors reported that oxygen availability in patients with COPD significantly limits intramuscular oxygen metabolism. Since 2006, both the number of publications and the frequency of citations annually have increased each year. In the past 2 years especially, there has been a surge in research, indicating that an increasing number of researchers believe mitochondria to be critical to the understanding of COPD.

According to our analysis, the United States was the most productive country with the highest centrality. It is worth mentioning that the number of articles published from China ranked second in the world. The reason for this may be related to the epidemiological characteristics of COPD in the United States and China, and the high priority given to the management of the disease by the governments of these two countries. The United Kingdom, the Netherlands, Germany, and Ireland had high intermediary centralities, indicating their strong potential in this field. The United States and European countries maintained a degree of academic communication and cooperation. In contrast to its high production, China’s centrality was only 0.02, and we assume this may be due to the fact that the global academic influence of Chinese researchers was not yet as high as that of their European and American colleagues. Among institutions, universities in the United States and Europe contributed to the majority of the articles. There were frequent academic information exchanges between institutions in different countries, but a relatively low level of collaboration between research institutions within each country. From the author collaboration network (Figure 3C), it was clear that although many researchers had published articles on COPD and mitochondria, there was little collaboration among them in this area. Academic communication and collaboration should be improved to further explore the connection between COPD and mitochondria.

Most of the highly cocited articles were from the academically active European and American regions, which made significant contributions to the field. It is worth noting that two articles from Japanese researchers were also cited several times. Highly cocited articles were concentrated in the period of 2013–2016, which can be considered a critical phase of growth in this field. The most frequently cocited article emphasized that mitophagy-dependent necroptosis induced by CS exposure is related to the pathogenesis of COPD (23). The second most frequently cocited article proposed that mitochondrial ROS overproduction in patients with COPD leads to an increased inflammatory response and excessive cell proliferation that results in mitochondrial dysfunction. Therefore, this mechanism may be a source for developing novel therapeutic approaches targeting mitochondrial ROS in patients with COPD (24). The third-ranked article in terms of cocitation found a marked increase in the expression of mitochondrial fission/fusion markers, oxidative phosphorylation proteins, and oxidative stress markers in the airway epithelial cells of patients with COPD due to long-term CS exposure from smoking (25). The abovementioned highly cocited articles all arrived at a similar conclusion concerning the effects of CS and ROS on COPD: CS-induced oxidative stress overload and mitochondrial ROS overproduction disrupt the balance of the oxidative-antioxidant system, resulting in structural and functional changes of mitochondria that induce and promote chronic airway inflammation diseases. Mitochondria-targeted antioxidant therapies, such as mitochondria-targeted peptide SS-31 (38) and mitochondrial quinone (MitoQ) (39), are important for ameliorating the CS-induced chronic airway inflammation. The relevant highlights mentioned in these articles are consistent with the findings of other studies conducted by our team (38,39) and the keyword analysis in this article.

As the most valuable part of bibliometric analysis, keyword analysis can relate the basic content of articles and identify the concerns of researchers over different periods to reveal the key themes of clinical research (40). In our study, CiteSpace and VOSviewer were used to analyze the co-occurrence, clustering, and bursting of keywords to characterize the research hotspots, frontiers, and trends in this field (41). In these articles, high-frequency keywords changed significantly over time according to the burst detection. During the 1996–2007 period, frequent keywords mainly focused on respiratory muscle, exercise, skeletal muscle, adaptation, fiber type, and the diaphragm. Researchers mainly considered respiratory muscle dysfunction to be associated with the progression of COPD during this period. The keyword emergence analysis also showed that the keyword that had the first and longest burst duration was “respiratory muscle”. Orozco-Levi et al. (42) reported that pulmonary dysfunction of patients with COPD is related to the subcellular changes in the diaphragm, namely the shortening of sarcomere length and the increase of mitochondrial concentration. During the 2009–2018 period, most common keywords then shifted to “reactive oxygen species”, “COPD”, “fusion”, “lung”, “mitochondrial dysfunction”, “mitochondrial function”, and “disease”. Puente-Maestu et al. (43) reported that the skeletal muscle mitochondria in patients with COPD showed blocked electron transmission chain and overproduction of ROS. Hara et al. (30) demonstrated that CS causes the overproduction of mitochondrial ROS, which induces mitochondrial rupture and contributes to cellular senescence, so they speculated that destruction of mitochondrial dynamics might be a part of the pathogenic mechanism of COPD. It should be noted that at this point in time, researchers’ attention was increasingly focusing on the internal link between mitochondria and COPD.

From 2016 to 2022, the keyword emphasis changed to “biomarker”, “pathogenesis”, “autophagy”, “emphysema”, “mechanism”, “cellular senescence”, “model”, “activation”, “cell”, “mitochondria”, “health”, and “extracellular vesicles”. Autophagy is an important biological reaction that counters ROS and oxidative stress to maintain redox homeostasis (44). Ornatowski et al. (45) found that CS can result in mitochondrial dysfunction and a lack of autophagy, inducing cellular senescence and COPD progression. In investigating how mitochondrial dysfunction leads to COPD and the mechanism of its aggravation, Summer et al. (46) found that the critical factors are an increase of ROS, inflammatory reaction, and the possible induction of cell senescence through mitochondrial damage-associated molecular patterns (DAMPS). In one of our previous studies, we also identified the importance of mitochondrial DAMPs in the pathogenesis of COPD and discussed the therapeutic potential of targeting DAMPS and their associated signaling pathways and receptors (47). EVs, a general term for the nanoscale lipid bilayer vesicles released by virtually all cells upon activation, injury, or apoptosis, are key mediators of intercellular communication and alter the activity of peripheral or distant lung structural cells and associated immune cells to perform a variety of functions (48). Exposure of endothelial cells, epithelial cells, macrophages, neutrophils, and T lymphocytes to CS increase the release of EVs, which promote inflammation, injury, and apoptosis and are involved in the early development of COPD (49-52). It was found that cell-free mitochondrial DNA (mtDNA) levels were both elevated in the plasma of patients with COPD and in the serum of CS-induced emphysema mice. Cell culture revealed that exposure to sublethal doses of CS decreased mitochondrial membrane potential, increased oxidative stress, triggered mtDNA release from EVs, and dysregulated mitochondrial dynamics (53). Studies are continuing to delve into the molecular biology of mitochondria and its connection to COPD.

The co-occurrence and cluster analysis of keywords revealed that COPD and mitochondrial-related research over the last 27 years can be divided into the four main categories: (I) respiratory muscle factors, including skeletal muscle, muscle dysfunction, sarcopenia, exercise, endurance training, etc.; (II) airway factors, including airway epithelial cells, airway endothelial cells, airway smooth muscle, and airway hyperresponsiveness, etc.; (III) mitochondrial factors, including mitochondrial dysfunction, dynamics, and mtDNA, etc.; and (IV) biological mechanism studies, including CS, oxidative phosphorylation, oxidative stress, ROS, inflammation, autophagy, apoptosis, senescence, and EVs, etc. Studies in the 2 most recent years tended to focus on autophagy, EVs, and mitochondrial dysfunction mediated by ROS and inflammation, indicating that research into COPD is gradually moving toward unraveling the biological mechanisms underlying the apparent phenomena.

Bibliometric analysis is a novel scientific approach that combines mathematical and statistical methods (54) and which can be used to overview the various aspects of articles and provide valuable references and recommendations. There were several strengths to present analysis. First, this study provided a visual, empirical, and clear characterization of the current research on COPD and mitochondria. Second, the study objectively revealed some of the relevant problems in this field, such as the lack of cooperation among most of researchers and institutions and uneven geographical distribution of academic research. Finally, our findings enable researchers interested in this field to easily apprehend the current research trends and hotspots to accurately formulate future research directions and strategies. The conclusions of this study will assist researchers interested in this field and help them to make further progress and engage more collaboratively in this field.

However, there are limitations in this study that should be mentioned. First, we only used the Web of Science Core Collection to carry out this bibliometric analysis, and non-SCI journals were excluded, within which there may be many publications related to COPD and mitochondria. The lack of inclusion of other database resources might have yielded incomplete results. In addition, we only included English-language articles from the Web of Science Core Collection database. Literature published in other language or databases were not included, which might have introduced a certain degree of bias in the results of this study.


Conclusions

Overall, we found an upward trend in both the annual publication number and the annual citations for articles on COPD and mitochondria. The United States, the United Kingdom, the Netherlands, Germany, Ireland, and Italy were active and influential in this research field. China had a high output but relatively low impact. There was more academic communication between countries than between institutions. A growing number of researchers are becoming engaged in the research in this field, but collaboration remains relatively fragmented. The most recent research has generally centered on autophagy, EVs, and mitochondrial dysfunction. More convincing studies, as well as exploration of mechanisms, are needed to promote the development of future research into mitochondria and COPD. We look forward to elucidating more novel and effective interventions for COPD.


Acknowledgments

Funding: This work was supported by the National Natural Science Foundation of China (Nos. 82170046, 81830001, 82000077, and 31871157), the Sichuan Key Research and Development Program (No. 2022YFQ0069), and the 1·3·5 Project for Disciplines of Excellence, West China Hospital of Sichuan University (Nos. ZYGD18006 and ZYJC18012).


Footnote

Peer Review File: Available at https://jtd.amegroups.com/article/view/10.21037/jtd-23-777/prf

Conflicts of Interest: All authors have completed the ICMJE uniform disclosure form (available at https://jtd.amegroups.com/article/view/10.21037/jtd-23-777/coif). The authors have no conflicts of interest to declare.

Ethical Statement: The authors are accountable for all aspects of the work in ensuring that questions related to the accuracy or integrity of any part of the work are appropriately investigated and resolved.

Open Access Statement: This is an Open Access article distributed in accordance with the Creative Commons Attribution-NonCommercial-NoDerivs 4.0 International License (CC BY-NC-ND 4.0), which permits the non-commercial replication and distribution of the article with the strict proviso that no changes or edits are made and the original work is properly cited (including links to both the formal publication through the relevant DOI and the license). See: https://creativecommons.org/licenses/by-nc-nd/4.0/.


References

  1. Stolz D, Mkorombindo T, Schumann DM, et al. Towards the elimination of chronic obstructive pulmonary disease: a Lancet Commission. Lancet 2022;400:921-72. [Crossref] [PubMed]
  2. Prevalence and attributable health burden of chronic respiratory diseases, 1990-2017: a systematic analysis for the Global Burden of Disease Study 2017. Lancet Respir Med 2020;8:585-96. [Crossref] [PubMed]
  3. Global, regional, and national age-sex specific all-cause and cause-specific mortality for 240 causes of death, 1990-2013: a systematic analysis for the Global Burden of Disease Study 2013. Lancet 2015;385:117-71. [Crossref] [PubMed]
  4. Global, regional, and national life expectancy, all-cause mortality, and cause-specific mortality for 249 causes of death, 1980-2015: a systematic analysis for the Global Burden of Disease Study 2015. Lancet 2016;388:1459-544. [Crossref] [PubMed]
  5. Rabe KF, Watz H. Chronic obstructive pulmonary disease. Lancet 2017;389:1931-40. [Crossref] [PubMed]
  6. Agustí A, Melén E, DeMeo DL, et al. Pathogenesis of chronic obstructive pulmonary disease: understanding the contributions of gene-environment interactions across the lifespan. Lancet Respir Med 2022;10:512-24. [Crossref] [PubMed]
  7. Agustí A, Hogg JC. Update on the Pathogenesis of Chronic Obstructive Pulmonary Disease. N Engl J Med 2019;381:1248-56. [Crossref] [PubMed]
  8. Monzel AS, Enríquez JA, Picard M. Multifaceted mitochondria: moving mitochondrial science beyond function and dysfunction. Nat Metab 2023;5:546-62. [Crossref] [PubMed]
  9. Ten VS, Ratner V. Mitochondrial bioenergetics and pulmonary dysfunction: Current progress and future directions. Paediatr Respir Rev 2020;34:37-45. [Crossref] [PubMed]
  10. Jiang Y, Wang X, Hu D. Mitochondrial alterations during oxidative stress in chronic obstructive pulmonary disease. Int J Chron Obstruct Pulmon Dis 2017;12:1153-62. [Crossref] [PubMed]
  11. Pan S, Conaway S Jr, Deshpande DA. Mitochondrial regulation of airway smooth muscle functions in health and pulmonary diseases. Arch Biochem Biophys 2019;663:109-19. [Crossref] [PubMed]
  12. Fang T, Wang M, Xiao H, et al. Mitochondrial dysfunction and chronic lung disease. Cell Biol Toxicol 2019;35:493-502. [Crossref] [PubMed]
  13. Ma D, Yang B, Guan B, et al. A Bibliometric Analysis of Pyroptosis From 2001 to 2021. Front Immunol 2021;12:731933. [Crossref] [PubMed]
  14. Chen D, Zeng Q, Liu L, et al. Global Research Trends on the Link Between the Microbiome and COPD: A Bibliometric Analysis. Int J Chron Obstruct Pulmon Dis 2023;18:765-83. [Crossref] [PubMed]
  15. Ying H, Zhang X, He T, et al. A bibliometric analysis of research on heart failure comorbid with depression from 2002 to 2021. Heliyon 2023;9:e13054. [Crossref] [PubMed]
  16. Flaherty GT, Lim Yap K. Bibliometric analysis and curriculum mapping of travel medicine research. J Travel Med 2017;
  17. Cui J, Xiong Y, Sun M, et al. Trends in immune-related adverse events for colorectal cancer: A bibliometric analysis. Front Oncol 2022;12:1024321. [Crossref] [PubMed]
  18. Shah SM, Ahmad T, Chen S, et al. A Bibliometric Analysis of the One Hundred Most Cited Studies in Psychosomatic Research. Psychother Psychosom 2021;90:425-30. [Crossref] [PubMed]
  19. Binh Nguyen PM, Pham XL, To Truong GN. A bibliometric analysis of research on tourism content marketing: Background knowledge and thematic evolution. Heliyon 2023;9:e13487. [Crossref] [PubMed]
  20. Igwaran A, Edoamodu CE. Bibliometric Analysis on Tuberculosis and Tuberculosis-Related Research Trends in Africa: A Decade-Long Study. Antibiotics (Basel) 2021;10:423. [Crossref] [PubMed]
  21. Qi X, Zhu Z, Wang Y, et al. Research progress on the relationship between mitochondrial function and heart failure: A bibliometric study from 2002 to 2021. Front Mol Biosci 2022;9:1036364. [Crossref] [PubMed]
  22. Zhou Y, Liu X, Wu W. Mapping the global research landscape and hotspot of exercise therapy and chronic obstructive pulmonary disease: A bibliometric study based on the web of science database from 2011 to 2020. Front Physiol 2022;13:947637. [Crossref] [PubMed]
  23. Mizumura K, Cloonan SM, Nakahira K, et al. Mitophagy-dependent necroptosis contributes to the pathogenesis of COPD. J Clin Invest 2014;124:3987-4003. [Crossref] [PubMed]
  24. Wiegman CH, Michaeloudes C, Haji G, et al. Oxidative stress-induced mitochondrial dysfunction drives inflammation and airway smooth muscle remodeling in patients with chronic obstructive pulmonary disease. J Allergy Clin Immunol 2015;136:769-80. [Crossref] [PubMed]
  25. Hoffmann RF, Zarrintan S, Brandenburg SM, et al. Prolonged cigarette smoke exposure alters mitochondrial structure and function in airway epithelial cells. Respir Res 2013;14:97. [Crossref] [PubMed]
  26. Ahmad T, Sundar IK, Lerner CA, et al. Impaired mitophagy leads to cigarette smoke stress-induced cellular senescence: implications for chronic obstructive pulmonary disease. FASEB J 2015;29:2912-29. [Crossref] [PubMed]
  27. Cloonan SM, Choi AM. Mitochondria in lung disease. J Clin Invest 2016;126:809-20. [Crossref] [PubMed]
  28. Aravamudan B, Kiel A, Freeman M, et al. Cigarette smoke-induced mitochondrial fragmentation and dysfunction in human airway smooth muscle. Am J Physiol Lung Cell Mol Physiol 2014;306:L840-54. [Crossref] [PubMed]
  29. Ito S, Araya J, Kurita Y, et al. PARK2-mediated mitophagy is involved in regulation of HBEC senescence in COPD pathogenesis. Autophagy 2015;11:547-59. [Crossref] [PubMed]
  30. Hara H, Araya J, Ito S, et al. Mitochondrial fragmentation in cigarette smoke-induced bronchial epithelial cell senescence. Am J Physiol Lung Cell Mol Physiol 2013;305:L737-46. [Crossref] [PubMed]
  31. Aravamudan B, Thompson MA, Pabelick CM, et al. Mitochondria in lung diseases. Expert Rev Respir Med 2013;7:631-46. [Crossref] [PubMed]
  32. Meyer A, Zoll J, Charles AL, et al. Skeletal muscle mitochondrial dysfunction during chronic obstructive pulmonary disease: central actor and therapeutic target. Exp Physiol 2013;98:1063-78. [Crossref] [PubMed]
  33. Zou M, Zhang W, Xu Y, et al. Relationship Between COPD and GERD: A Bibliometrics Analysis. Int J Chron Obstruct Pulmon Dis 2022;17:3045-59. [Crossref] [PubMed]
  34. Cheng K, Guo Q, Yang W, et al. Mapping Knowledge Landscapes and Emerging Trends of the Links Between Bone Metabolism and Diabetes Mellitus: A Bibliometric Analysis From 2000 to 2021. Front Public Health 2022;10:918483. [Crossref] [PubMed]
  35. Xu L, Wang P, Zhang Y, et al. Study on Chronic Obstructive Pulmonary Disease and Lung Cancer: Web of Science-Based Bibliometric and Visual Analysis. Int J Gen Med 2022;15:7523-34. [Crossref] [PubMed]
  36. Global Initiative for Chronic Obstructive Lung Disease (GOLD). Global Strategy for Prevention, Diagnosis and Management of COPD: 2023 Report. Available online: https://goldcopd.org/2023-gold-report-2/
  37. Mannix ET, Boska MD, Galassetti P, et al. Modulation of ATP production by oxygen in obstructive lung disease as assessed by 31P-MRS. J Appl Physiol (1985) 1995;78:2218-27. [Crossref] [PubMed]
  38. Yang DQ, Zuo QN, Wang T, et al. Mitochondrial-Targeting Antioxidant SS-31 Suppresses Airway Inflammation and Oxidative Stress Induced by Cigarette Smoke. Oxid Med Cell Longev 2021;2021:6644238. [Crossref] [PubMed]
  39. Yang D, Xu D, Wang T, et al. Mitoquinone ameliorates cigarette smoke-induced airway inflammation and mucus hypersecretion in mice. Int Immunopharmacol 2021;90:107149. [Crossref] [PubMed]
  40. Yang W, Liu Y, Zeng T, et al. Research focus and thematic trends in magnet hospital research: A bibliometric analysis of the global publications. J Adv Nurs 2021;77:2012-25. [Crossref] [PubMed]
  41. Ge Y, Chao T, Sun J, et al. Frontiers and Hotspots Evolution in Psycho-cardiology: A Bibliometric Analysis From 2004 to 2022. Curr Probl Cardiol 2022;47:101361. [Crossref] [PubMed]
  42. Orozco-Levi M, Gea J, Lloreta JL, et al. Subcellular adaptation of the human diaphragm in chronic obstructive pulmonary disease. Eur Respir J 1999;13:371-8. [Crossref] [PubMed]
  43. Puente-Maestu L, Pérez-Parra J, Godoy R, et al. Abnormal mitochondrial function in locomotor and respiratory muscles of COPD patients. Eur Respir J 2009;33:1045-52. [Crossref] [PubMed]
  44. Mizushima N. A brief history of autophagy from cell biology to physiology and disease. Nat Cell Biol 2018;20:521-7. [Crossref] [PubMed]
  45. Ornatowski W, Lu Q, Yegambaram M, et al. Complex interplay between autophagy and oxidative stress in the development of pulmonary disease. Redox Biol 2020;36:101679. [Crossref] [PubMed]
  46. Summer R, Shaghaghi H, Schriner D, et al. Activation of the mTORC1/PGC-1 axis promotes mitochondrial biogenesis and induces cellular senescence in the lung epithelium. Am J Physiol Lung Cell Mol Physiol 2019;316:L1049-60. [Crossref] [PubMed]
  47. Shen Y, Chen L, Chen J, et al. Mitochondrial damage-associated molecular patterns in chronic obstructive pulmonary disease: Pathogenetic mechanism and therapeutic target. J Transl Int Med 2023;11:330-40. [Crossref] [PubMed]
  48. Wu J, Ma Y, Chen Y. Extracellular vesicles and COPD: foe or friend? J Nanobiotechnology 2023;21:147. [Crossref] [PubMed]
  49. Khodayari N, Oshins R, Mehrad B, et al. Cigarette smoke exposed airway epithelial cell-derived EVs promote pro-inflammatory macrophage activation in alpha-1 antitrypsin deficiency. Respir Res 2022;23:232. [Crossref] [PubMed]
  50. Nieri D, Daniele M, Lombardi S, et al. Circulating Extracellular Vesicles Are Associated with Disease Severity and Interleukin-6 Levels in COPD: A Pilot Study. J Clin Med 2021;10:5014. [Crossref] [PubMed]
  51. Margaroli C, Madison MC, Viera L, et al. An in vivo model for extracellular vesicle-induced emphysema. JCI Insight 2022;7:e153560. [Crossref] [PubMed]
  52. Halper-Stromberg E, Yun JH, Parker MM, et al. Systemic Markers of Adaptive and Innate Immunity Are Associated with Chronic Obstructive Pulmonary Disease Severity and Spirometric Disease Progression. Am J Respir Cell Mol Biol 2018;58:500-9. [Crossref] [PubMed]
  53. Giordano L, Gregory AD, Pérez Verdaguer M, et al. Extracellular Release of Mitochondrial DNA: Triggered by Cigarette Smoke and Detected in COPD. Cells 2022;11:369. [Crossref] [PubMed]
  54. Cheng K, Zhou Y, Wu H. Bibliometric analysis of global research trends on monkeypox: Are we ready to face this challenge? J Med Virol 2023;95:e27892. [Crossref] [PubMed]

(English Language Editor: J. Gray)

Cite this article as: An N, An J, Zeng T, Wang S, Li P, Hu X, Shen Y, Liu L, Wen F. Research progress of mitochondria in chronic obstructive pulmonary disease: a bibliometric analysis based on the Web of Science Core Collection. J Thorac Dis 2024;16(1):215-230. doi: 10.21037/jtd-23-777

Download Citation
