Comparison of safety and effectiveness of different sheaths in ablation of focal atrial tachycardia: a retrospective study

Introduction

Focal atrial tachycardia (FAT) is a kind of cardiac arrhythmia that accounts for up to 10% of supraventricular tachycardias (1). A female preponderance has been described, with a twofold higher risk in women than men (2). FAT may also trigger other atrial arrhythmias, such as atrial flutter and atrial fibrillation (AF) (3,4). Catheter ablation (CA) has emerged as a first-line treatment option in patients with recurrent or incessant FAT (2). Nevertheless, recurrences remain common with one study reporting 58% freedom from arrhythmia without antiarrhythmic drugs (AADs) at 12 months of follow-up (5). Refining ablation procedures and techniques, therefore, carries the potential to improve outcomes. Steerable sheaths have been demonstrated to improve the clinical effectiveness of ablation in AF (6,7).

A novel bidirectional steerable sheath was recently developed that allows for three-dimensional visualization without fluoroscopy (Carto Vizigo; Biosense Webster, Irvine, CA, USA; Figure 1). While using the CARTO navigation system, the sheath is accurately displayed by the combination of a magnetic sensor on the catheter and an electrode on the sheath; allowing the direction of the sheath and its relationship with the catheter to be precisely visualized. In addition to the potential to improve ablation efficacy due to superior lesion formation (8,9), such a tool also carries the potential to decrease radiofrequency time and radiation exposure (8-11). Direct visualization on Electroanatomic Mapping systems, combined with a seamless transition from the tip to the dilator, enables smooth entry into the left atrium (LA) during transseptal access, eliminating the necessity for additional fluoroscopy. Considering the above advantages of the Vizigo sheath, there are few studies on its use in FAT ablation.

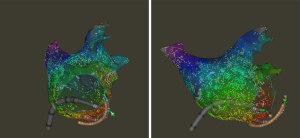

Figure 1 The Vizigo sheath is visualized on the Cardiac Ablation Catheter Guidance System.

We, therefore, sought to compare the efficacy and safety of a visualized bidirectional Vizigo sheath to a non-visualized steerable sheath (Agilis NxT sheath; Abbott Laboratories, Abbott Park, IL, USA) and other conventional sheaths in the ablation of FAT. We present this article in accordance with the STROBE reporting checklist (available at https://jtd.amegroups.com/article/view/10.21037/jtd-24-52/rc).

Methods

Study population

In this retrospective cohort study, 164 consecutive patients undergoing a first CA procedure for FAT at West China Hospital, Sichuan University from March 2019 to February 2022 were enrolled as participants. All patients were offered ablation with the Vizigo sheath. However, a total of 122 patients refused Vizigo sheaths due to financial reasons. Because we studied FAT patients, non-FAT patients were excluded. Patients whose baseline data could not be collected or who were lost to follow-up were excluded. None of the patients enrolled had concomitant ablation for AF. The study was carried out in compliance with the Declaration of Helsinki (as revised in 2013), and evaluated and approved by the Ethics Committee of West China Hospital, Sichuan University [No. 2022(257)]. The requirement for informed consent was waived because the retrospective nature of this study and patient information was de-identified and anonymized before the analysis.

Baseline characteristics

Patients were categorized into three groups according to whether a Vizigo sheath, non-visualized steerable sheath, or other conventional sheath was used. Other conventional sheath is mainly composed of fixed sheath (Swartz sheath; St. Jude Inc., St. Paul, MN, USA). Baseline characteristics recorded at the time of ablation included age, sex, electrocardiographic (ECG) parameters, cardiovascular history, body mass index (BMI), left atrial diameter (LAD), left ventricular diameter (LVD), and left ventricular ejection fraction (LVEF). Transthoracic echocardiography and standard blood tests were systematically performed prior to the procedure. Antiarrhythmic medications other than amiodarone were discontinued for at least 5 half-lives prior to the procedure.

Electrophysiology study and CA

All procedures were performed in the fasting awake state, with minimal conscious sedation. The vascular sheath was placed via femoral venous access. A quadripolar catheter was positioned in the right ventricle and a 10-pole catheter was placed in the coronary sinus as a reference and for pacing. When a left atrial origin was suspected, the LA was accessed by means of a single transseptal puncture, and an activated clotting time of greater than 300 s was maintained throughout the intervention. The ablation catheter (THERMOCOOL SMARTTOUCH SF, Biosense Webster Inc., Irvine, CA, USA) was inserted through the Vizigo sheath, non-visualized steerable sheath, or standard sheath and guided using a 3D electroanatomic mapping system [CARTO 3, Johnson & Johnson (J&J) MedTech, New Brunswick, NJ, USA]. Upon confirmation of the diagnosis of FAT, 3D reconstruction of the chamber of interest [right atrium (RA) or LA] was performed.

Irrigated radiofrequency ablation of the FAT was performed with a power limit of 40 W, maximum temperature of 50 ℃, and flow limit of 20 mL/min. Try ablation was attempted in the RA with a power of 10–30 W. The power level depends on the patient’s tolerance. The catheter was repositioned and ablation was reattempted if the lesion was ineffective or the FAT recurred. Acute success was defined as tachycardia termination with no FAT recurrence within 30 min of ablation, along with the inability to induce FAT despite an intravenous infusion of isoproterenol with programmed electrical stimulation. The overall procedural duration, ablation time, fluoroscopy time, contact force (CF; average, minimum, and maximum), and acute ablation success were recorded. Procedural duration was defined as the time from the start of mapping to the end of ablation. All procedures were performed by 4 experienced cardiac electrophysiologists who had a CA volume of >500 procedures per year at West China Hospital. The primary safety outcomes refer to complications related to surgery, including puncture, cardiac tamponade, bradycardia, atrioesophageal fistula, and stroke, which we have added in the original manuscript.

Patient follow-up

After being monitored for 24 hours following the procedure, patients were discharged barring a procedure-related complication. Patients were systematically followed-up at our arrhythmia clinic every 3–6 months for the first year after hospital discharge, and then yearly thereafter. All patients received 100 mg aspirin tablet daily for 3 months after the procedure. The presence/absence of atrial tachycardia (AT) during follow-up was evaluated by symptoms, ECG recordings, and 24-hour Holter monitoring. Long-term success was defined as complete remission of the patient’s symptoms without the use of AADs and with no AT recorded on ECGs or 24-hour Holter monitors.

Statistical analysis

Statistical analysis was performed using the software SPSS 26.0 (IBM Corp., Armonk, NY, USA). Normally-distributed continuous variables were expressed as mean ± standard deviation (SD). When the distribution was not normal, median and interquartile ranges (IQRs) were provided. Frequencies and percentages were used to summarize categorical data. Three-group comparisons of continuous variables were performed using one-way ANOVA or Kruskal-Wallis tests depending on whether the data were normally distributed or skewed. Two-group comparisons were performed using independent t-tests (normal distribution) or Mann-Whitney U tests (nonnormal distribution). Categorical variables were compared using chi-square or Fisher’s exact tests where appropriate. Two-tailed P values <0.05 were considered to indicate statistical significance.

Results

Participant characteristics

A total of 164 patients, mean age 50±15 years, 97 (59.1%) women, were included in this study. In all, 42 (25.6%) patients were allocated to the Vizigo sheath, 36 (22.0%) to a non-visualized steerable sheath, and 86 (52.4%) to other conventional sheaths. Baseline characteristics are summarized in Table 1. In 49 (29.9%) individuals, AT originated from the LA and in the remainder, it originated from the RA. The site of origin of AT was as follows: tricuspid valve 26, pulmonary veins 28, bundle of His region 12, RA septum 10, LA septum 11, LA roof 10, superior vena cava 8, coronary sinus 25, crista terminalis 21, and mitral valve 13. Age, sex, BMI, presence of hypertension, history of heart failure, and prevalence of diabetes mellitus were not significantly different among the three groups. By echocardiography, there were no significant differences in LVD, LAD, and LVEF.

Acute and long-term success

Acute ablation success was achieved in 154 (94.0%) patients, with no difference between groups. Over an average follow-up of 14±2 months after ablation, 124 (75.6%) patients remained arrhythmia-free. The long-term success rate was 88.1% in patients with the Vizigo sheath, which was significantly higher than in those with a non-visualized steerable sheath (69.4%, P=0.04) and other standard sheaths (72.1%, P=0.046).

Procedural data

Procedural durations were not significantly different among the three groups: 32 (IQR, 21–47), 37 (IQR, 24–53), and 34 (IQR, 26–55) min for patients with the Vizigo sheath, non-visualized steerable sheath, and other conventional sheaths, respectively. As shown in Table 2, there were likewise no significant differences in the number of ablation lesions and ablation time among these groups. However, the fluoroscopy time was shorter with the Vizigo sheath [145 (IQR, 40–380) s] compared to non-visualized steerable sheaths [250 (IQR, 141–414); P=0.03] and other conventional sheaths [302 (IQR, 151–439); P=0.009; Figure 2].

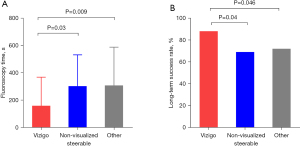

Figure 2 Fluoroscopy time (A) and long-term ablation success rate (B) according to the type of sheath used.

Compared with the non-visualized steerable sheaths, the Vizigo sheath was associated with a higher average CF [12.0 (IQR, 9.0–12.7) vs. 8.2 (IQR, 6.8–10.2) g; P=0.003; Figure 3A]. Similar results were obtained with regard to minimum [10.0 (IQR, 6.0–12.5) vs. 5.0 (IQR, 4.0–7.8); P<0.001; Figure 3B] and maximum CF [15.0 (IQR, 11.5–19.5) vs. 11.0 (IQR, 10.0–13.0); P=0.007; Figure 3C]. The proportion of patients with a minimum CF >10 g was higher in those with Vizigo compared to non-steerable sheaths (85.7% vs. 63.9%; P=0.025).

Figure 3 Comparisons of (A) the average, (B) minimum, and (C) maximum CF. CF, contact force.

Complications

Overall, 3 (1.8%) patients experienced complications, all of whom had non-steerable conventional sheaths. Complications consisted of 2 hematomas and 1 third degree atrioventricular block. There was no death, atrioesophageal fistula, pericardial effusion, or stroke.

Discussion

To our knowledge, this is the first study to systematically assess the impact of the Vizigo sheath on CA outcomes in patients with FAT. Main findings include the superiority of the Vizigo sheath over non-visualized steerable or other conventional sheaths with regard to the following outcomes: (I) arrhythmia-free survival; (II) average, minimum, and maximum CF, and (III) shorter fluoroscopy time.

Prior multicenter studies have shown that ablation of FAT is effective in improving symptoms, with 81% of patients reporting no or fewer symptoms at the 12-month mark following CA. However, recurrences are common with freedom from arrhythmia without AAD noted in 58% (56% for left AT vs. 62% for right AT), with lower rates in patients with biatrial arrhythmias (5). In our more contemporary study, a success rate of 71.3% at 12 months was achieved without the Vizigo sheath (3,12,13), which was further improved to 88.1% with the Vizigo sheath.

We speculate that the increased success rate can be explained by the following reasons. In contrast to Busch et al.’s study in which 3D mapping systems were seldom used, this tool was systematically used in our cohort (5). Moreover, emerging technologies such as multipoint high-density mapping and panoramic mapping were employed when needed in difficult cases. Above and beyond these technological advances, the Vizigo sheath provided an incremental benefit. When assessing the efficacy of CA, CF is a key consideration. The multi-center EFFICAS I study demonstrated that the minimum CF achieved for ablation significantly predicted ablation gaps and ineffective lesions (14). In current practice, a CF >10 g can help reduce recovery of pulmonary vein electrical conduction (15). The proportion of patients that achieved a minimum CF >10 g in the Vizigo sheath group in our study was significantly higher than the proportion of patients with this endpoint in the non-steerable sheath group. Minimum, average, and maximum CFs were higher with the Vizigo sheath. These results are consistent with our earlier study in patients with AF that demonstrated that the Vizigo sheath dramatically increased the average CF and the proportion of patients with a CF within a reasonable range when compared to the fixed sheath (8). Concordantly, Rajendra et al. reported that the Vizigo sheath was linked to a 10% improvement in catheter stability (P=0.0005) (11). All of these findings provide a biologically plausible mechanism to support the increased rate of arrhythmia-free survival. Whereas a small reduction in CF could be compensated by an increase in ablation time, no statistically significant differences in ablation times were observed among the patients enrolled in the 3 groups in our study.

At present, the visible steerable sheath has been applied on a large scale in AF ablation, and several studies have reported an increase in catheter stability, reduction in radiation exposure, and shortened post-procedural hospital length of stay in a Chinese real-world hospital setting, without compromising safety (6,7,16,17). Additionally, precise manipulation is possible because of real-time deflection and visual monitoring of the Vizigo sheath’s motion. Catheter and sheath positioning might also facilitate and accelerate mapping and ablation, for example, by ensuring a close alignment between the sheath and catheter tip, resulting in improved control and catheter tip-to-tissue CF during ablation. This capability may enhance catheter stability in problematic locations.

Since employing non-visualized steerable or other conventional sheaths typically demands periodic fluoroscopy imaging to determine the position of the sheath and catheter, the need for fluoroscopy can be reduced by a sheath that can be viewed by a 3D mapping system. According to several studies, 3D mapping and intracardiac echocardiography (ICE) can successfully treat AF without fluoroscopy (18,19). According to Tahin et al., ICE-guided zero-fluoroscopic AF ablation could be successfully implemented in routine practice in the electrophysiology laboratories (19). During FAT ablation, the mean fluoroscopy time was reduced by 40% in patients with the Vizigo sheath, which is similar to the performance of Vizigo sheath in AF ablation (8,9,11). Visualizing a sheath in a 3D mapping system provides superior 3D appreciation for the anatomical location of the sheath and catheter in comparison to standard monoplane or orthogonal biplane fluoroscopic views. This may be particularly helpful in the ablation of FAT in which precise localization of the focal source is critical to its successful elimination. A reduction in fluoroscopy exposure is compatible with the ALARA (“as low as reasonably achievable”) principle in order to minimize risks to the patient, operator, and assisting staff to the well-known harmful stochastic effects of radiation (20-22).

Limitations

The study is single-center and retrospective. It merits confirmation by larger prospective multicenter studies, preferably with random allocation of the CA sheath. Ascertainment of arrhythmia-free survival was performed according to standard clinical, ECG, and ambulatory arrhythmia monitoring. Asymptomatic AT events occurring between two visits may have escaped detection. It is, therefore, possible that a more aggressive follow-up regimen would have yielded a higher recurrence rate. Further studies are required to assess longer-term outcomes. Our study included only single-source FAT such that it should not be generalized to patients with multiple arrhythmias.

Conclusions

The visible steerable sheath (Vizigo) has distinct advantages for FAT CA. The application of Vizigo sheath can improve the long-term success rate of FAT and reduce the radiation exposure of patients and medical staff in our single-center limited sample study.
