Original Article

A comparison of machine learning methods for radiomics modeling in prediction of occult lymph node metastasis in clinical stage IA lung adenocarcinoma patients

Meng-Wen Liu1#, Xue Zhang1#, Yan-Mei Wang2, Xu Jiang1, Jiu-Ming Jiang1, Meng Li1*, Li Zhang1*

1Department of Radiology, National Cancer Center/National Clinical Research Center for Cancer/Cancer Hospital, Chinese Academy of Medical Sciences and Peking Union Medical College, Beijing, China; 2GE HealthCare China, Shanghai, China

Contributions: (I) Conception and design: M Li, L Zhang; (II) Administrative support: M Li, L Zhang; (III) Provision of study materials or patients: MW Liu, X Zhang, X Jiang, JM Jiang; (IV) Collection and assembly of data: MW Liu, X Zhang, X Jiang, JM Jiang; (V) Data analysis and interpretation: MW Liu, X Zhang, YM Wang; (VI) Manuscript writing: All authors; (VII) Final approval of manuscript: All authors.

#These authors contributed equally to this work as co-first authors.

*These authors contributed equally to this work as co-corresponding authors.

Correspondence to: Li Zhang, MD; Meng Li, MD. Department of Radiology, National Cancer Center/National Clinical Research Center for Cancer/Cancer Hospital, Chinese Academy of Medical Sciences and Peking Union Medical College, No. 17 Panjiayuan Nanli, Chaoyang District, Beijing 100021, China. Email: zhangli_cicams@163.com; lmcams@163.com.

Background: Accurate prediction of occult lymph node metastasis (ONM) is an important basis for determining whether lymph node (LN) dissection is necessary in clinical stage IA lung adenocarcinoma patients. The aim of this study is to determine the best machine learning algorithm for radiomics modeling and to compare the performances of the radiomics model, the clinical-radilogical model and the combined model incorporate both radiomics features and clinical-radilogical features in preoperatively predicting ONM in clinical stage IA lung adenocarcinoma patients.

Methods: Patients with clinical stage IA lung adenocarcinoma undergoing curative surgery from one institution were retrospectively recruited and assigned to training and test cohorts. Radiomics features were extracted from the preoperative computed tomography (CT) images of the primary tumor. Seven machine learning algorithms were used to construct radiomics models, and the model with the best performance, evaluated using the area under the curve (AUC), was selected. Univariate and multivariate logistic regression analyses were performed on the clinical-radiological features to identify statistically significant features and to develop a clinical model. The optimal radiomics and clinical models were integrated to build a combined model, and its predictive performance was assessed using receiver operating characteristic curves, Brier score, and decision curve analysis (DCA).

Results: This study included 258 patients who underwent resection (training cohort, n=182; test cohort, n=76). Six radiomics features were identified. Among the seven machine learning algorithms, extreme gradient boosting (XGB) demonstrated the highest performance for radiomics modeling, with an AUC of 0.917. The combined model improved the AUC to 0.933 and achieved a Brier score of 0.092. DCA revealed that the combined model had optimal clinical efficacy.

Conclusions: The superior performance of the combined model, based on XGB algorithm in predicting ONM in patients with clinical stage IA lung adenocarcinoma, might aid surgeons in deciding whether to conduct mediastinal LN dissection and contribute to improve patients’ prognosis.

Keywords: Radiomics; machine learning; occult lymph node metastasis (ONM); lung adenocarcinoma

Submitted Oct 21, 2023. Accepted for publication Jan 18, 2024. Published online Mar 27, 2024.

doi: 10.21037/jtd-23-1578

Highlight box

Key findings

• Extreme gradient boosting (XGB) is the best algorithm to build radiomics model for predicting occult lymph node metastasis (ONM) in patients with clinical stage IA lung adenocarcinoma, yielding an area under the curve (AUC) of 0.917, and the combined model incorporating radiomics features and clinical-radiological features can better predict ONM with a superior AUC of 0.933.

What is known and what is new?

• Radiomics extracts quantitative features from images, and ONM is a common and prognostic factor in stage IA lung adenocarcinoma.

• A comparison of seven algorithms for radiomics modeling was carried out, and a novel combined model with improved performance was constructed.

What is the implication, and what should change now?

• Radiomics modeling can be enhanced by XGB and by combining features. Further validation and accessibility considerations are warranted.


High-resolution computed tomography (HRCT) and lung cancer screening have become more widespread, and an increasing number of peripheral small lung adenocarcinomas have been detected (1,2). It is reported that about 17% clinical IA patients has been proven to have pathological lymph node metastasis (LNM) after surgical resection (3). Notably, these clinical IA cases differ from pathological IA lung adenocarcinomas, which typically lack LNM. The condition that preoperative evaluation did not detect LNM but postoperative pathology confirmed LNM is called occult lymph node metastasis (ONM) (4). To ensure sufficient resection of lymph node (LN) lesions, systematic LN dissection is still recommended as standard method for early-stage lung adenocarcinoma patients. Which means that more than 80% of clinical stage IA lung cancer patients have undergone unnecessary LN dissection. Invalid LN dissection may lead to prolonged postoperative recovery and increased the possibility of postoperative complications (5-7). Therefore, if ONM can be accurately diagnosed before surgery, targeted LN dissection can be performed on clinical stage IA lung adenocarcinoma patients to reduce unnecessary surgical damage.

Nevertheless, the accurate diagnosis of LN status in early lung adenocarcinoma patients remains a significant challenge. Studies have investigated the correlation between radiological features of the primary tumor and LNM in lung adenocarcinoma (8-10). Certain visual signs observed on computed tomography (CT) images, such as the solid component size, bronchial cutoff sign, and spiculation sign, have been identified as predictive factors for LNM. However, these features are inherently subjective and cannot be quantified. In addition, a vast amount of invisible information underlying radiographic images cannot be visually inspected or utilized. Radiomics, an approach that quantifies tumor phenotypic characteristics and heterogeneity by analyzing features extracted from medical images, holds promise as a potential biomarker for personalized cancer treatment and prognosis assessment (11-16). Researches focus on ONM diagnosis have achieve as high as 0.972 of area under the curve (AUC) by using radiomics-based diagnostic model (17). However, Zhang et al.’s research reported that the AUC of radiomics model in diagnosing ONM was only 0.813 (18). The inconsistence in diagnostic efficacy hinders the clinical application of radiomics models.

Machine learning algorithms, including Bayes, decision tree (DT), least absolute shrinkage and selection operator (LASSO), logistic regression (LR), random forest (RF), support vector machine (SVM), and extreme gradient boosting (XGB), have been employed for radiomics modeling and are crucial for establishing radiomics models (19-22). Machine learning algorithms can be broadly classified into linear and non-linear models, depending on how they handle different types of data. Linear models, such as LR, are better suited for data that is linearly separable or has a linear trend, while non-linear models like RF, SVM are better suited for data that has non-linear or irregular patterns. Choosing the right type of model for the data can improve the accuracy and performance of machine learning tasks. Zheng et al. (23) applied CT radiomics models based on different machine learning algorithms and compared the differential efficacy of different models, and found that the fusion model constructed by SVM algorithm showed superior differential ability in distinguishing benign and malignant parotid tumors. However, currently no research has studied which machine learning algorithm is more suitable for establishing ONM diagnostic models.

Therefore, the objective of this study was to identify the optimal machine learning algorithm for radiomics modeling and to compare the performances of the radiomics model, the clinical-radiological model and the combined model incorporate both radiomics features and clinical-radiological features in preoperatively predicting ONM in clinical stage IA lung adenocarcinoma patients. Evaluation metrics, including AUC, accuracy, precision, sensitivity, specificity, and F1 score, were specifically employed to measure and compare the performance of these models. The insights gained will provide valuable strategies for preoperative ONM prediction in patients with clinical stage IA lung adenocarcinoma, contributing to improved clinical decision-making and patient prognosis. We present this article in accordance with the TRIPOD reporting checklist (available at https://jtd.amegroups.com/article/view/10.21037/jtd-23-1578/rc).


The study was conducted in accordance with the Declaration of Helsinki (as revised in 2013). This retrospective study was approved by the Institutional Review Board of the Cancer Hospital, Chinese Academy of Medical Sciences (Approval No. NCC2022C-693), which waived the requirement for informed consent.


We reviewed data from patients with surgically resected clinical stage IA lung adenocarcinomas that were treated between October 2005 and January 2017 in our center. The inclusion criteria were as follows: (I) patients who underwent surgery for lung adenocarcinoma; (II) LN dissection; and (III) contrast-enhanced HRCT performed <2 weeks before surgical resection. The exclusion criteria were (I) multiple lesions or evidence of metastasis; (II) tumor diameter >3 cm; (III) LN diameter in the hila or mediastina >1 cm on HRCT; and (IV) malignancy history in the last 5 years. In total, 732 patients met the criteria, of whom 129 were pathologically LN-positive and 603 were pathologically LN-negative. Propensity score-matching (PSM) was performed between the LN-positive and LN-negative groups and included age, sex, and smoking status. Patients were matched based on PSM using the nearest-neighbor method with a matching ratio of 1:1. Ultimately, this study included a total of 258 patients, with 182 patients (91 LN-positive and 91 LN-negative) assigned to the training set and the remaining 76 patients (38 LN-positive and 38 LN-negative) forming the test set. The random division followed a 7:3 ratio, ensuring a representative distribution across both sets.

Clinicopathological characteristics

For our analysis, clinical characteristics, including age, sex, and smoking status (non-smoker, smoker), were evaluated. Tumors were classified according to the International Association for the Study of Lung Cancer Grading System, which divides lung adenocarcinoma into three grades: grade 1, mainly lepidic components with <20% high-grade patterns (solid, micropapillary, and complex glandular components); grade 2, acinar or papillary components with <20% high-grade components; and grade 3, high-grade components with >20% high-grade patterns (Table S1) (24). Epidermal growth factor receptor (EGFR) mutations were detected in tumor tissue and plasma deoxyribonucleic acid (DNA) samples from 151 patients using an amplification-refractory mutation system or direct DNA sequencing.

CT image acquisition, interpretation, and feature extraction

We acquired HRCT images with 8-, 16-, or 64-spiral CT scanners (LightSpeed Ultra, ProSpeed, Discovery ST, or LightSpeed VCT; GE Medical Systems, Chicago, IL, USA). All patients underwent enhanced HRCT examination, in which 60–80 mL of intravenous contrast was administered at 2.0–2.5 mL/s and enhanced images were obtained 25–30 s after contrast infusion. HRCT images were obtained at 120 kVp and 250–350 mA with reconstruction using a standard algorithm. The reconstruction thickness was 0.625 or 1.25 mm, and the interval was 0.8–1.0 mm.

The radiological features of the primary tumor were assessed by two experienced thoracic radiologists (L.Z. and M.L.) both with over 10 years of experience in chest CT interpretation. These radiologists were blinded to all clinical and outcome information to ensure an unbiased evaluation. The evaluated features included tumor diameter, nodule consistency [pure ground glass nodule (pGGN), part solid nodule (PSN), solid nodule (SN)], bubble-like lucency, bronchiectasis, deep lobulation, emphysema, necrosis, pleural indentation, sharpness, lobar location, and tumor location [central (the inner third) or peripheral (the outer two-thirds of the lung fields)]. For the quantitative characteristics, the average values measured by two radiologists were used. Discrepancies in the interpretation of morphological features were resolved by a final consensus through group discussion. All measurements followed the recommendations of the Fleischer Society for CT-based measurement of pulmonary nodules (25).

Manual segmentation of the primary tumor was performed independently by a thoracic radiologist (L.Z.) and confirmed by another thoracic radiologist (M.L.). Discrepancies in tumor borders were resolved by a final consensus through group discussion. Tumor regions of interest were defined using open-source software (ITK-SNAP; http://www.itksnap.org) with lung window settings across all two-dimensional sections in the axial view. The window and level settings were varied to properly annotate nodule borders for nodules near the mediastinum or chest wall.

Radiomics features were extracted using Artificial Intelligence Kit software (A.K. V3.0.0. R, GE), which conformed to the image biomarker standardization initiative (26). First, we used linear interpolation to resample all images to a uniform voxel size of 1 mm × 1 mm × 1 mm to minimize the effects of different layer thicknesses. Second, based on the grayscale discretization process (bin width =25 for CT), we converted continuous images into discrete values. Finally, we used Gaussian Laplacian and wavelet image filters to eliminate mixed noise during image digitization to obtain low- or high-frequency features. The formula for calculating the radiomics signatures is available on the official documentation website (https://pyradiomics.readthedocs.io/en/latest/features.html). The minimum redundancy maximum relevance algorithm was initially applied to eliminate redundant and irrelevant features, resulting in a preliminary selection of 20 features. Subsequently, the LASSO method was used to further refine the subset of radiomics features, thus optimizing the selection process.

Model building and validation

Seven machine learning algorithms commonly used in radiomics (Bayes, LASSO, LR, DT, RF, SVM, and XGB) were used for radiomics feature selection and classification in the training cohort. Univariate LR analysis was conducted on the clinical and radiological features to identify significant features, with a significance level of P<0.1. These significant features were then used in multivariate LR analysis to obtain the ultimate predictor variables for the development of the clinical model. Odds ratios (ORs) and 95% confidence intervals (CIs) were calculated. A combined model was built by integrating the optimal radiomics and clinical models. The development and validation of the model were performed by a biomedical engineering expert (Y.M.W.), who had no access to any clinical or outcome data to guarantee a fair assessment.

Statistical analyses

Frequency distribution and descriptive statistics were determined for all variables. Data were expressed as means ± standard deviations when normally distributed or as medians [interquartile ranges (IQRs)] when normality assumptions were not met. The Kolmogorov-Smirnov test was used to test the normality assumptions. The equivalence of patient attributes between the training and test cohorts was analyzed using the t-test or Wilcoxon rank-sum test for continuous variables and Chi-squared test or Fisher’s exact test for categorical variables. The diagnostic performance of the models was assessed using various metrics, including the AUC of the receiver operating characteristic (ROC) curve, accuracy, precision, sensitivity, specificity, and F1 score. Calibration plots were used to assess the alignment between predicted and observed values. The Brier score was used to evaluate the overall accuracy and calibration performance of the models. Decision curve analysis (DCA) was performed to evaluate the robustness and clinical applicability of the models. Statistical analyses were performed by Y.M.W. using IBM SPSS Statistics for Windows, version 25.0 (IBM Corp., Armonk, NY, USA) and R software (version 4.1.1; The R Foundation for Statistical Computing, Vienna, Austria). P<0.05 was considered statistically significant.


Patient characteristics

This study included a total of 258 patients (Figure 1). The training cohort comprised 182 patients, whereas the test cohort included 76. The clinical and radiological features did not differ significantly between the training and test cohorts (all P>0.05) (Table S2). The median age of the patients was 59 (IQR, 51–66) years, 116 (45.0%) patients were male individuals, and 142 (55.0%) were female individuals. Most patients were non-smokers (n=173, 67.1%). The median tumor size was 1.9 (IQR, 1.5–2.5) cm. Most lesions on CT images were SNs (n=144, 55.8%), followed by PSNs (n=102, 39.5%), and pGGNs (n=12, 4.7%). Most tumors were classified as grade 2 (n=147, 57.0%), followed by grade 3 (n=74, 28.7%) and grade 1 (n=37, 14.3%). A median of 15 (IQR, 10–21) LNs was resected. Pathological stage N0 was observed in half (n=129, 50.0%) of the patients; 77 (29.8%) had N1 disease and 52 (20.2%) had N2 disease. The baseline characteristics are shown in Table 1 and Table S2.

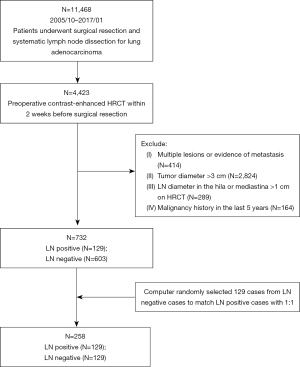

Figure 1 Flowchart for selecting the study population. HRCT, high-resolution computed tomography; LN, lymph node.

Table 1

Baseline patient characteristics

Characteristic Values
   Male 116 (45.0)
   Female 142 (55.0)
Age (years) 59 [51–66]
Smoking status
   Non-smoker 173 (67.1)
   Smoker 85 (32.9)
Diameter (cm) 1.9 [1.5–2.5]
Nodule consistency
   pGGN 12 (4.7)
   PSN 102 (39.5)
   SN 144 (55.8)
   Clear 232 (89.9)
   Fuzzy 26 (10.1)
   Absent 251 (97.3)
   Present 7 (2.7)
Bubble-like lucency
   Absent 163 (63.2)
   Present 95 (36.8)
   Absent 217 (84.1)
   Present 41 (15.9)
Deep lobulation
   Absent 218 (84.5)
   Present 40 (15.5)
   Absent 199 (77.1)
   Present 59 (22.9)
Pleural retraction
   Absent 131 (50.8)
   Present 127 (49.2)
   Round 187 (72.5)
   Irregular 71 (27.5)
Invasive lobe
   Right upper 89 (34.5)
   Right middle 20 (7.8)
   Right lower 46 (17.8)
   Left upper 67 (26.0)
   Left lower 36 (14.0)
   Central 70 (27.1)
   Peripheral 188 (72.9)
Surgical procedure
   Sublobectomy 12 (4.7)
   Lobectomy 246 (95.3)
Adjuvant therapy
   Surgery alone 164 (63.6)
   Surgery plus adjuvant therapy 94 (36.4)
Pathological T stage
   T1is 10 (3.9)
   T1a 31 (12.0)
   T1b 83 (32.2)
   T1c 58 (22.5)
   T2a 76 (29.5)
Pathological N stage
   N0 129 (50.0)
   N1 77 (29.8)
   N2 52 (20.2)
Pathological stage
   0 (Tis) 10 (3.9)
   IA1 29 (11.2)
   IA2 39 (15.1)
   IA3 16 (6.2)
   IB 35 (13.6)
   IIB 77 (29.8)
   IIIA 52 (20.2)
Grading system of lung adenocarcinoma
   Grade 1 37 (14.3)
   Grade 2 147 (57.0)
   Grade 3 74 (28.7)
No. of resected lymph nodes 15 [10–21]
EGFR mutation
   Negative 47 (31.1)
   Positive 104 (68.9)

Unless otherwise indicated, data in parentheses are presented as percentages. , data in brackets denote interquartile ranges; , 8th staging classification. Overall, 151 patients underwent genetic testing. pGGN, pure ground glass nodule; PSN, part solid nodule; SN, solid nodule; EGFR, epidermal growth factor receptor.

Radiomics feature extraction and model construction

The study extracted 107 quantitative features from the imaging data, encompassing 18 first-order features, 16 gray-level run-length matrix features, 16 gray-level size zone matrix features, 24 gray-level co-occurrence matrix features, 14 shape (three-dimensional) features, 5 neighboring gray-tone difference matrix features, and 14 gray-level dependence matrix features. To determine their importance, the minimum redundancy maximum relevance algorithm was employed, resulting in the selection of the top 20 features for further analysis. Using the LASSO method, the features were further reduced to six (Table S3, Figure S1). Among the seven radiomics models evaluated, the XGB model exhibited the best performance, with an AUC of 0.926 (95% CI: 0.891–0.961) in the training cohort and 0.917 (95% CI: 0.846–0.988) in the test cohort (Figure 2A,2B).

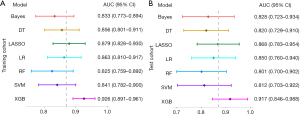

Figure 2 AUC for the seven radiomics models in the training (A) and test (B) cohorts. AUC, area under the curve; CI, confidence interval; DT, decision tree; LASSO, least absolute shrinkage and selection operator; LR, logistic regression; RF, random forest; SVM, support vector machine; XGB, extreme gradient boosting.

Clinical-radiological factors associated with ONM

Univariate analysis of the training cohort revealed that diameter, nodule type, boundaries, bronchiectasis, bubble-like lucency, emphysema, deep lobulation, necrosis, pleural retraction, sharpness, and location were significantly associated with ONM (all P<0.1). In the multivariable LR analysis, nodule type [OR =0.390; 95% CI: (0.301, 0.478); P<0.001], boundaries [OR =0.202; 95% CI: (0.040, 0.363); P=0.015], necrosis [OR =0.234; 95% CI: (0.111, 0.356); P<0.001], sharpness [OR =0.156; 95% CI: (0.047, 0.264); P<0.001], and location [OR =−0.112; 95% CI: (−0.222, 0.001); P=0.048] were independent risk factors for ONM (Table 2). Based on these independent risk factors, a clinical model was developed that yielded an AUC of 0.855 (95% CI: 0.801–0.909) and 0.814 (95% CI: 0.718–0.911) in the training and test cohorts, respectively (Figure 3A,3B, Table 3).

Table 2

Univariate and multivariable logistic regression analyses of clinical and radiological characteristics associated with lymph node metastasis in patients

Variables Univariate analysis Multivariate analysis
OR (95% CI) P value OR (95% CI) P value
Sex 1.000 (0.612, 1.633) >0.999
Age 1.005 (0.980, 1.030) 0.719
Smoking status 1.192 (0.709, 2.005) 0.508
Diameter 3.023 (1.948, 4.692) <0.001
Nodule type 12.030 (6.628, 21.836) <0.001 0.390 (0.301, 0.478) <0.001
Boundaries 3.010 (1.219, 7.435) 0.017 0.202 (0.040, 0.363) 0.015
Bronchiectasis 6.244 (0.741, 52.616) 0.092
Bubble-like lucency 1.770 (1.061, 2.955) 0.029
Calcification 3.048 (0.313, 29.691) 0.337
Emphysema 5.199 (2.296, 11.776) <0.001
Deep lobulation 4.218 (1.917, 9.281) <0.001
Necrosis 8.439 (3.929, 18.124) <0.001 0.234 (0.111, 0.356) <0.001
Pleural retraction 1.929 (1.176, 3.164) 0.009
Sharpness 2.731 (1.537, 4.854) 0.001 0.156 (0.047, 0.264) <0.001
Location 0.412 (0.233, 0.730) 0.002 −0.112 (−0.222, 0.001) 0.048

OR, odds ratio; CI, confidence interval.

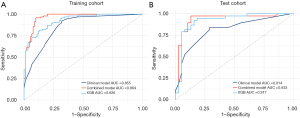

Figure 3 Receiver operating characteristic curves among the extreme gradient boosting, clinical, and combined models in the training (A) and test (B) cohorts. AUC, area under the curve; XGB, extreme gradient boosting.

Table 3

Diagnostic performances of the hybrid and radiomics models

Model AUC Brier score Accuracy Precision Sensitivity Specificity F1 score
   Training 0.926 (0.891–0.961) 0.115 (0.066–0.164) 0.841 0.860 0.813 0.868 0.836
   Test 0.917 (0.846–0.988) 0.116 (0.040–0.193) 0.842 0.933 0.737 0.947 0.824
   Training 0.855 (0.801–0.909) 0.150 (0.094–0.206) 0.802 0.743 0.923 0.681 0.824
   Test 0.814 (0.718–0.911) 0.168 (0.076–0.260) 0.776 0.744 0.842 0.711 0.790
   Training 0.964 (0.938–0.989) 0.078 (0.037–0.118) 0.929 0.906 0.956 0.901 0.930
   Test 0.933 (0.867–1.000) 0.092 (0.024–0.160) 0.868 0.889 0.842 0.895 0.865

Data in parentheses are confidence intervals. AUC, area under the curve; XGB, extreme gradient boosting.

Performance and robustness of the combined model

In the training cohort, the combined model showed exceptional performance, with an AUC of 0.964 (95% CI: 0.938–0.989) (Figure 3A, Table 3). Its robustness was further confirmed in the test cohort, which achieved a strong AUC of 0.933 (95% CI: 0.867–1.000) (Figure 3B, Table 3). The confusion matrix results highlighted the predictive accuracy of both the XGB and combined models for ONM, with the combined model demonstrating improved accuracy, sensitivity, and F1 scores in the test cohort (Table 3). Calibration curves showed the reliable performance of the three models, demonstrating a close match between the predicted ONM and actual ONM probabilities, as indicated by Brier scores of <0.25 (Figure 4A,4B, Table 3). The DCA revealed that the combined model provided a greater net benefit across a range of threshold probabilities, surpassing the performance of the XGB model (Figure 5A,5B).

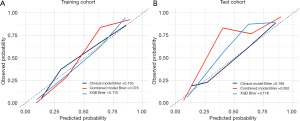

Figure 4 Calibration curves among the extreme gradient boosting, clinical, and combined models in the training (A) and test (B) cohorts. XGB, extreme gradient boosting.

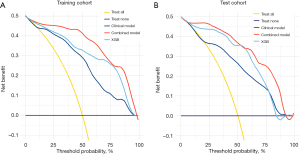

Figure 5 Decision curve analyses for the extreme gradient boosting, clinical, and combined models in the training (A) and test (B) cohorts. XGB, extreme gradient boosting.


In this study, we compared seven machine learning algorithms for radiomics modeling and evaluated the performance of the optimal radiomics model and a combined model in predicting ONM in clinical stage IA lung adenocarcinoma. We found that XGB was the best algorithm for radiomics modeling and that the combined model had higher accuracy and robustness than the radiomics-only model.

In the 1990s, mediastinal LN dissection emerged as a potential strategy to improve the survival rates of patients with lung cancer, particularly when most patients had LNM (27). However, as the detection rates for early-stage lung cancer have significantly improved owing to advances in imaging technology, the necessity for LN dissection in patients with clinical stage IA lung adenocarcinoma is debated. This procedure carries risks such as damage to the blood and neurolymphatic vessels, leading to complications, including bleeding, nerve damage, and lymphedema. Allen et al. (28) found that up to 20% of patients with lung cancer undergoing LN dissection experience these complications, which considerably affect their quality of life and recovery time. Moreover, the presence of LNM is a crucial factor in determining the appropriate treatment approach for patients with lung cancer. Therefore, the accurate prediction of ONM in clinical stage IA lung adenocarcinoma is of significant importance.

Previous studies investigated the predictive capabilities of various machine learning algorithms, such as LR and RF, using radiomics features or a combination of clinical and radiological features to predict LNM (17,29). Our results align with these previous findings, as we also observed that the radiomics model could be used to predict LNM and that the combined model incorporating radiomics and clinical-radiological features outperformed the single-radiomics model. The combined model exhibited higher AUC, accuracy, sensitivity, and F1 score than the XGB model. Furthermore, DCA highlighted the clinical benefits of the combined model. These findings underscore the potential advantages of integrating multiple data sources into ONM predictive models, thereby offering improved accuracy and clinical utility.

What distinguishes our research is the extensive comparison of seven distinct machine-learning algorithms: Bayes, DT, LASSO, LR, SVM, RF, and XGB. Our results demonstrated the highest performance for XGB among these models, with an AUC of 0.917 in the test cohort. XGB is a scalable and efficient tree-boosting system that has been widely used in various domains, including web searches, recommendation systems, and bioinformatics (30). The XGB model has several advantages over other machine learning models, such as its ability to handle missing values, to prevent overfitting, to support parallel computing, and to provide feature importance scores. In contrast to commonly used models in radiomics modeling, such as LR and RF, the XGB model excels in capturing intricate and nonlinear relationships between features and outcomes through its utilization of gradient-boosting algorithms and regularization techniques. However, it is important to consider the outstanding performance of XGB within the specific context of our dataset and study population, as the results may vary when applied to different datasets and clinical scenarios. Nevertheless, our findings underscore the immense potential of the integrated XGB algorithm for accurately predicting ONM in clinical stage IA lung adenocarcinomas.

The study limitations included the relatively small sample size due to the low ONM rate in clinical stage IA lung adenocarcinoma. Multicenter studies may be adopted for validation in clinical applications. Another limitation was that we did not demonstrate the associations between biological processes and radiomics in the ONM process, which requires further research.


Our study results showed that XGB was superior to other machine learning algorithms in predicting ONM in clinical stage lung adenocarcinoma in radiomics modeling and that incorporating radiomics and clinical-radiological features helped improve the model’s performance.


Funding: This work was supported by the CAMS Innovation Fund for Medical Sciences (No. 2021-I2M-C&T-B-061), and the Beijing Hope Run Special Fund of Cancer Foundation of China (No. LC2022A22).


Reporting Checklist: The authors have completed the TRIPOD reporting checklist. Available at https://jtd.amegroups.com/article/view/10.21037/jtd-23-1578/rc

Data Sharing Statement: Available at https://jtd.amegroups.com/article/view/10.21037/jtd-23-1578/dss

Peer Review File: Available at https://jtd.amegroups.com/article/view/10.21037/jtd-23-1578/prf

Conflicts of Interest: All authors have completed the ICMJE uniform disclosure form (available at https://jtd.amegroups.com/article/view/10.21037/jtd-23-1578/coif). Y.M.W. is an employee of GE HealthCare China, Pudong New Town, Shanghai, China. The other authors have no conflicts of interest to declare.

Ethical Statement: The authors are accountable for all aspects of the work in ensuring that questions related to the accuracy or integrity of any part of the work are appropriately investigated and resolved. The study was conducted in accordance with the Declaration of Helsinki (as revised in 2013). The study was approved by the Institutional Review Board of board of the Cancer Hospital, Chinese Academy of Medical Sciences (No. NCC2022C-693) and individual consent for this retrospective analysis was waived.

Open Access Statement: This is an Open Access article distributed in accordance with the Creative Commons Attribution-NonCommercial-NoDerivs 4.0 International License (CC BY-NC-ND 4.0), which permits the non-commercial replication and distribution of the article with the strict proviso that no changes or edits are made and the original work is properly cited (including links to both the formal publication through the relevant DOI and the license). See: https://creativecommons.org/licenses/by-nc-nd/4.0/.
