Meta-analysis and systematic review of mediastinal cryobiopsy versus endobronchial ultrasound-transbronchial needle aspiration (EBUS-TBNA) in the diagnosis of intrathoracic adenopathy
Original Article

Meta-analysis and systematic review of mediastinal cryobiopsy versus endobronchial ultrasound-transbronchial needle aspiration (EBUS-TBNA) in the diagnosis of intrathoracic adenopathy

Roshen Mathew1, Winnie Elma Roy1, Elizabel Susan Thomas1, Nikhil Meena2, Olesya Danilevskaya3

1Department of Pulmonary and Critical Care Medicine, West Virginia University Camden Clark Medical Center, Parkersburg, WV, USA; 2Department of Pulmonary and Critical Care Medicine, University of Arkansas for Medical Sciences, Little Rock, AR, USA; 3Department of Endoscopy, Pulmonology Scientific Institute under Federal Medical and Biologic Agency, Moscow, Russia

Contributions: (I) Conception and design: R Mathew, WE Roy, ES Thomas; (II) Administrative support: WE Roy, ES Thomas; (III) Provision of study materials or patients: R Mathew, WE Roy, N Meena, O Danilevskaya; (IV) Collection and assembly of data: R Mathew, WE Roy, O Danilevskaya; (V) Data analysis and interpretation: R Mathew, WE Roy, ES Thomas, O Danilevskaya; (VI) Manuscript writing: All authors; (VII) Final approval of manuscript: All authors.

Correspondence to: Roshen Mathew, MD, DAABIP. Director, Interventional Pulmonary Services, Department of Pulmonary and Critical Care Medicine, West Virginia University Camden Clark Medical Center, 800 Garfield Ave, Parkersburg, WV 26101, USA. Email: mathew.roshen@gmail.com.

Background: Endobronchial ultrasound (EBUS)-guided mediastinal/hilar cryobiopsy (MedCryoBx) is a relatively new modality, being combined with EBUS-transbronchial needle aspiration (TBNA) to improve yield in the diagnosis of intrathoracic adenopathy. This meta-analysis aims to investigate the diagnostic yield of MedCryoBx versus EBUS-TBNA for intrathoracic adenopathy.

Methods: We conducted a systematic search using Google Scholar, Embase, and PubMed/MEDLINE for studies about a diagnosis of intrathoracic adenopathy using MedCryoBx and EBUS-TBNA. Two authors separately reviewed studies for inherent bias using the Quality Assessment Data Abstraction and Synthesis-2 (QUADAS-2) tool. Inverse Variance weighting for random effects methodology was used for meta-analysis. Pooled diagnostic yields overall and for subgroups were estimated. Complications of MedCryoBx were reviewed.

Results: Ten studies with 844 patients undergoing either biopsy procedure were in the final analysis. A total of 554 patients underwent MedCryoBx and 704 patients EBUS-TBNA. Meta-analysis showed a pooled diagnostic yield of 91% (504 of 554) for MedCryoBx and 81% (567 of 704) for EBUS-TBNA, with odds ratio (OR) of 2.5 [95% confidence interval (CI): 1.6 to 3.91; P<0.001], with I2 of 20%. Subgroup analysis for benign conditions showed increased diagnostic yield with OR of 7.95 (91% MedCryoBx versus 58% EBUS-TBNA, P<0.001) with an I2 of 25%. Subgroup analysis for lymphoma showed a statistically significant increase in pooled diagnostic yield with OR of 11.48 (87% MedCryoBx versus 29% EBUS-TBNA, P=0.001). Mild bleeding (36.5%) without any intervention was the most common complication. Bleeding requiring intervention (0.7%) was noted in patients. Pneumothorax (0.4%) and pneumomediastinum (0.4%) were less common in this analysis.

Conclusions: MedCryoBx is a very promising tool for the diagnosis of intrathoracic adenopathy. It has improved diagnostic yield over EBUS-TBNA in benign and possibly lymphoproliferative diseases, but less so in lung cancer. The complication rates with MedCryoBx are comparable to EBUS-TBNA.

Keywords: Cryobiopsy; endobronchial ultrasound-transbronchial needle aspiration (EBUS-TBNA); interventional pulmonary; mediastinal adenopathy; meta-analysis


Submitted Mar 03, 2024. Accepted for publication May 24, 2024. Published online Jul 18, 2024.

doi: 10.21037/jtd-24-348


Highlight box

Key findings

• Endobronchial ultrasound (EBUS)-guided mediastinal or hilar lesion cryobiopsy (MedCryoBx) improves diagnosis yield over EBUS-transbronchial needle aspiration (TBNA) for intrathoracic adenopathy. It has significant diagnostic yield improvements in benign diseases and lymphoproliferative disorders, but not so much in lung cancer diagnosis.

• MedCryoBx has a very low complication profile that is comparable to EBUS-TBNA.

What is known and what is new?

• EBUS-TBNA is an accepted less invasive modality for the diagnosis of intrathoracic adenopathy. It has some diagnostic limitations in benign diseases and lymphoproliferative conditions. Various adjunct tools like intranodal forceps and increasing gauge size of EBUS-TBNA needle have made some improvements in this domain.

• MedCryoBx performed under endobronchial ultrasound guidance in various studies included in this meta-analysis denotes an overall improvement in diagnostic yield.

What is the implication, and what should change now?

• MedCryoBx is a novel tool with an improvement in diagnostic yield for intrathoracic adenopathy. However larger studies are required for standardization of the procedure itself, and to examine its cost-effectiveness in relation to other adjunct tools that augment the procedure of EBUS-TBNA.


Introduction

Endobronchial ultrasound (EBUS)-guided mediastinal/hilar cryobiopsy (MedCryoBx) is a novel modality gaining traction as a diagnostic method for intrathoracic adenopathy. EBUS-transbronchial needle aspiration (TBNA) has long been accepted as the first approach for a minimally invasive diagnostic method in a sampling of mediastinal and hilar lymph nodes. We have been constantly challenged to obtain sufficient tissue for the diagnosis and testing of various conditions with EBUS-TBNA. This has led to various types and needle gauge sizes for EBUS-TBNA and a plethora of tools such as the intranodal forceps. All these tools have led to some inconsistent specimen yield improvements in this domain.

Flexible cryoprobe transbronchial biopsies were first done by Babiak et al. (1) in 2009. In 2013, Franke et al. (2) did the first EBUS-guided cryobiopsy in a porcine model using an extended guide sheath. It was technically sound in the study and feasible, however, EBUS-guided MedCryoBx did not take off until again in 2020 when Zhang et al. (3) used it for the diagnosis of a mediastinal seminoma. Furthermore, a few good studies and multiple case reports have been done using MedCryoBx for the diagnosis of intrathoracic tumors and adenopathy.

Different variations of technique in performing MedCryoBx have been described. A few small studies and case reports mention using a 19 gauge EBUS TBNA needle and subsequently using the ERBE (Erbe 20402-401, Tübingen, Germany) 1.1 or 1.7 mm disposable cryoprobe through the needle track (4-6). In large, randomized controlled trials (RCTs) by two groups Zhang et al. and Fan et al. (7,8) describe using a high-frequency hybrid needle knife (HFNK) to make a passage into the lymph node site after EBUS-TBNA. Subsequently, they used an ERBE 1.1 mm disposable cryoprobe to perform MedCryoBx. Another variation of the technique described for MedCryoBx was by using a Nd:YAG (neodymium-doped yttrium aluminum garnet) laser to create a track for the ERBE 1.1 mm disposable cryoprobe (9). The cryofreeze cycle duration in seconds for the cryoprobe use, and the cryoprobe size also varies in studies. The simplest workflow for MedCryoBx in our opinion is using the EBUS-TBNA needle track created by an EBUS-TBNA needle, and then subsequently performing the cryo biopsy with an ERBE 1.1 mm cryoprobe set for a 4–6 second duration freeze cycle (4,6,10).

Most of the studies described in the literature mention the use of MedCryoBx as a complementary tool to the EBUS-TBNA procedure. One study by Soo et al. (11) uses MedCryoBx as the only procedure for the diagnosis of intrathoracic adenopathy with good results. Most of these studies also show MedCryoBx to be a feasible procedure with very low complication rates. Our goal from this systematic review and meta-analysis is to investigate the pooled diagnostic yield of MedCryoBx versus EBUS-TBNA and shed some light on its overall safety profile in the biopsy of intrathoracic adenopathy. We present this article in accordance with the PRISMA reporting checklist (12) (available at https://jtd.amegroups.com/article/view/10.21037/jtd-24-348/rc).


Methods

We did a systematic review of available literature from online literature databases as described below. A meta-analysis helps us understand a general trend and test the consistency of combined results from multiple studies.

Literature search and methodology

We performed an extensive search of medical literature from Google Scholar, Embase, and PubMed/MEDLINE for articles published until December 1st, 2023. We used the keywords “EBUS-TBNA or endobronchial ultrasound”, “transbronchial mediastinal cryobiopsy” and “mediastinal cryobiopsy” mainly to search and identify relevant studies. Multiple studies and abstracts were identified and shortlisted. Conference abstracts presented, and not published were also included if pertinent to the meta-analysis. We also scanned references of included studies to identify any other relevant articles. We also included case series and case reports with 4 or more patients. We excluded studies undergoing MedCryoBx or EBUS-TBNA only. We also excluded studies performing MedCryoBx without EBUS guidance.

A PICO format (Population, Intervention, Comparison, Outcome) to select studies was defined. Population was human patients undergoing EBUS TBNA related bronchoscopy. Intervention included EBUS-TBNA performed followed by MedCryoBx or vice versa for intrathoracic adenopathy in Comparison to EBUS-TBNA procedure alone. Outcome focused on the diagnostic yield of MedCryoBx versus EBUS-TBNA and looked at complications related to MedCryoBx.

We aimed to examine as a primary outcome of interest the overall pooled diagnostic yield of MedCryoBx in comparison to EBUS-TBNA alone for intrathoracic lymphadenopathy. Our secondary outcome was focused on ascertaining the pooled diagnostic yield of MedCryoBx in comparison to EBUS-TBNA in the diagnosis of certain subgroup conditions such as lung cancer, benign disease conditions, and lymphoma. Another secondary outcome also evaluated was the safety profile of the MedCryoBx procedure itself.

Complications from bleeding during the procedure were classified as mild bleeding (not requiring any intervention) versus significant bleeding (requiring some endobronchial intervention to stop the bleeding or resulting in escalation of care). This classification was agreed upon by the authors as the studies used different definitions for complications from bleeding during the procedures.

Two authors (R.M. and W.E.R.) used the Quality Assessment Data Abstraction and Synthesis-2 (QUADAS-2) tool to assess the quality and risk of bias from included studies. Two authors scored each study separately based on the components of QUADAS-2 (13). This included patient selection, index test, reference standard, timing, and flow. The authors then rated the risk of bias and applicability concerns in each category as low, high, or unclear. A third reviewer (N.M.) resolved any disagreement between authors R.M. and W.E.R. and made the final classification of data as per the QUADAS-2 tool.

Institutional Review Board approval from our institutions was not required for this meta-analysis since it was conducting a secondary analysis for already published data.

Statistical analysis

The meta-analysis of chosen studies was performed using RevMan Web (The Cochrane Collaboration, London, UK). We examined the overall diagnostic yield from chosen studies using inverse variance weighting to aggregate diagnostic yield across studies, thus enabling us to calculate a pooled odds ratio (OR). Heterogeneity across studies was measured using I2 index using a random effects model since there was noted to be variance in study characteristics and methodology of selected studies. We also conducted secondary subgroup analyses for various common diagnostic conditions looking at pooled diagnostic yield and OR for lung cancer, benign conditions, other tumors, and lymphoma. The same methodology was also utilized for the subgroup analysis of the categories mentioned above. A funnel plot was also generated for each of the primary and secondary outcome analyses to visualize any publication biases.


Results

The study selection flow diagram is demonstrated in Figure 1. After screening 122 titles from the medical search databases mentioned above, 42 abstracts were screened. Twenty-six were excluded as they were isolated case reports or case series with 1–3 cases only. Sixteen articles were chosen for a detailed evaluation. Of those articles, 6 were excluded. One had overlapping data published by the same author and this was excluded to prevent data duplication. Incomplete data was noted significantly in three of the articles mostly conference abstracts. Two observational studies were excluded as they included only MedCryoBx data. Finally, 10 articles (9 journal articles, 1 conference abstract) of which 2 were RCTs and 8 were observational studies (4-10,14-16) were included in the meta-analysis. All of the supplemental data provided with the articles were evaluated for data breakdown individually for the meta-analysis. One study was in Spanish (14) but had an English translation available to be analyzed. One other study in Russian (16) was partially translated, and the corresponding author was contacted to obtain all the details of the study, including final results and procedure characteristics.

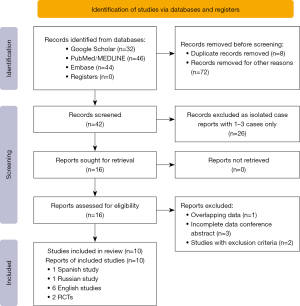

Figure 1 Flow chart illustrating the study selection process per PRISMA guidelines. RCT, randomized controlled trial.

Our quality assessment of study quality as per the QUADAS-2 tool is summarized in Table 1. In most studies especially the retrospective studies risk of bias was assessed to be high. This was because of the heterogeneity noted in patient inclusion, varied procedural characteristics of EBUS-TBNA and MedCryoBx, the timing of follow-up for definitive procedures, and the lack of standardization between techniques. The RCTs (7,8) however had a lower risk of bias and applicability concerns overall. The Cohen kappa statistic for interrater agreement for study quality assessment was 0.85.

Table 1

Assessment for risk of bias using the QUADAS-2 tool

Study QUADAS-2: risk of bias QUADAS-2: applicability concerns
Patient selection Index test Reference standard Flow & timing Patient selection Index test Reference standard
Zhang 2021, (7) Low Low Low Low Low Low Low
Fan 2023, (8) Low Low Low Low Low Low Low
Ariza-Prota 2023, (10) High Low High Low High Low Low
Maturu 2024, (6) Low Low Low High Low Low Low
Gershman 2022, (9) High Low Low Low High Low Low
Genova 2022, (5) High High High Low High Low Low
Gonuguntla 2021, (4) High High High Low High Low Low
Ueoka 2022, (15) High High Low Low High Low Low
Salcedo Lobera 2023, (14) Low Low High High High Low Low
Danilevskaya 2023, (16) High High Low Low High Low Low

QUADAS-2, Quality Assessment Data Abstraction and Synthesis-2.

Table 2 summarizes data from included studies on the median age of the patients included in the studies, the study design, details on the type of anesthesia or sedation given, access used into the airway, and the type of procedural technique used for MedCryoBx.

Table 2

Summary of basic characteristics of the included studies

Study Country Design N Age, years Sex (male) Sedation: airway MedCryoBx method
Zhang 2021, (7) China, Germany M-RCT 197 57 117 (59%) MS: TO HFNK
Fan 2023, (8) China, Germany M-RCT 271 56 165 (60%) CS: TO HFNK
Ariza-Prota 2023, (10) Spain M-Pros 50 63 32 (64%) CS: TO TBNA trk
Maturu 2024, (6) India Pros 196 57 36 (78%) GA: LMA TBNA trk
Gershman 2022, (9) Israel Pros 27 60 17 (70%) CS, DS: LMA TBNA trk, Nd:YAG
Genova 2022, (5) Italy CaS 5 64 5 (100%) MS, DS TBNA trk
Gonuguntla 2021, (4) India CaS 4 GA: LMA TBNA trk
Ueoka 2022, (15) USA CaS 9 GA: ETT TBNA trk
Salcedo Lobera 2023, (14) Spain Pros 50 62 37 (74%) MS: TO TBNA trk
Danilevskaya 2023, (16) Russia M-Pros 35 50 13 (37%) LMA ETT TBNA trk, HFNK

–, data not available. M-RCT, multicenter-randomized controlled trials; MS, moderate sedation; TO, transoral route; HFNK, high-frequency needle knife; CS, conscious sedation; Pros, prospective observational study; M-Pros, multicenter-prospective observational study; TBNA trk, EBUS-TBNA needle track; EBUS-TBNA, endobronchial ultrasound-transbronchial needle aspiration; GA, general anesthesia; LMA, laryngeal mask airway; DS, deep sedation; Nd:YAG, neodymium-doped yttrium aluminum garnet; CaS, case series; ETT, endotracheal tube.

Table 3 gives more specific details on procedural characteristics for EBUS-TBNA and MedCryoBx across the included studies. This table provides insight into the interventions done, the lesion sites involved, the gauge of needle used for EBUS-TBNA, the number of passes done per lesion, and if assessment with Rapid Onsite Evaluation (ROSE) was present. Different brand types and needle gauges of EBUS-TBNA were used in the included studies. This table also offers details on the MedCryoBx procedure with insight into the size of the ERBE cryoprobe used, the cryofreeze time, the number of MedCryoBx taken from sites, and the size of the median specimen size obtained when mentioned in the study. In this meta-analysis, all MedCryoBx was done under direct visualization and guidance with the EBUS scope after passing the cryoprobe through the working channel of the EBUS bronchoscope. Most of the included studies used the disposable ERBE 1.1 mm probe mostly, with few using the 1.7 mm size probe (6,9). One of the studies (16) used a reusable 1.9 mm cryoprobe for MedCryoBx through the track created by an EBUS-TBNA needle or a HFNK.

Table 3

Procedural techniques and methods across included studies for EBUS-TBNA and MedCryoBx

Study Sampling design ROSE Lesions MedCryoBx specimen size, mm TBNA needle TBNA passes Cryo probe size, mm MedCryoBx passes Cryo freeze time, s
Zhang 2021, (7) MedCryoBx or TBNA first No 2 R/2 L–12 R/L 4.6 22/21G 4 1.1 3 7
Fan 2023, (8) TBNA versus TBNA + MedCryoBx No 2 R/2 L–12 R/L 3.8 4 1.1 1 7
Ariza-Prota 2023, (10) TBNA + MedCryoBx No 2 R, 4 R/L, 7, 10 R, 11 R/L 4.6 22 G 3 1.1 3 4
Maturu 2024, (6) TBNA - ROSE/MedCryoBx Yes 4 R, 7, 11 L/R 19 G 6 1.1 4–7 5–6
Gershman 2022, (9) TBNA + MedCryoBx No 7, 4 L 22 G 2–4 1.1, 1.7 2–4 3–4
Genova 2022, (5) TBNA + MedCryoBx No 10 R, 7 3.5 19 G 3 1.1 2 4
Gonuguntla 2021, (4) TBNA + MedCryoBx Yes 11 L, 7 19/21/22 G 1.1 2 3
Ueoka 2022, (15) TBNA + MedCryoBx Yes LN 19 G 3–4 1.1 2 6
Salcedo Lobera 2023, (14) TBNA + MedCryoBx No 7, 10 R, 11 R,
4 R, 11 L, 10 L
4.7 22 G 2 1.1 4 4
Danilevskaya 2023, (16) TBNA + MedCryoBx No 7, 11 L, 11 R,
4 L, 4 R, 10 R
19 G 22 G 5–7 Reusable 1.9 3–7 3–5

–, data not available. EBUS-TBNA, endobronchial ultrasound-transbronchial needle aspiration; ROSE, rapid on-site exam; MedCryoBx, mediastinal cryobiopsy; L, left; R, right; TBNA + MedCryoBx, EBUS-TBNA followed by MedCryoBx; LN, lymph node.

Table 4 gives a summary of the complications mentioned in the included studies. The most common complication noted was the incidence of mild bleeding 36.5% (202 patients) which was self-limited, without any need for escalation of care or any bronchoscopic intervention. The overall rate of any significant bleeding requiring some bronchoscopic intervention to stop bleeding was reported in 0.7% (4 patients). Overall the rate of pneumothorax was 0.4% (2 patients), and 0.4% (2 patients) for pneumomediastinum respectively. No mention of any patient mortality was noted from the MedCryoBx procedure in the studies.

Table 4

Complications in patients who underwent EBUS-guided MedCryoBx

Study MedCryoBx Pneumothorax Pneumomediastinum Mild bleeding Significant bleeding
Zhang 2021, (7) 194 2 1 169 0
Fan 2023, (8) 134 0 0 0 3
Ariza-Prota 2023, (10) 50 0 0 1 0
Maturu 2024, (6) 46 0 0 13 1
Gershman 2022, (9) 27 0 0 0 0
Genova 2022, (5) 5 0 0 0 0
Gonuguntla 2021, (4) 4 0 0 1 0
Ueoka 2022, (15) 9 0 0 0 0
Salcedo Lobera 2023, (14) 50 0 0 6 0
Danilevskaya 2023, (16) 35 0 1 12 0
Total 554 2 (0.4%) 2 (0.4%) 202 (36.5%) 4 (0.7%)

EBUS, endobronchial ultrasound; MedCryoBx, mediastinal cryobiopsy.

Our meta-analysis showed an overall pooled diagnostic yield of 91% (504 of 554) for MedCryoBx and 81% (567 of 704) for EBUS-TBNA, with an inverse variance weighted pooled OR of 2.50 [95% confidence interval (CI): 1.60 to 3.91; P<0.001], with I2 (heterogeneity index) of 20%. A forest plot for this is denoted in Figure 2A. The funnel plot analysis shown in Figure 2B denoted no major asymmetry or publication bias.

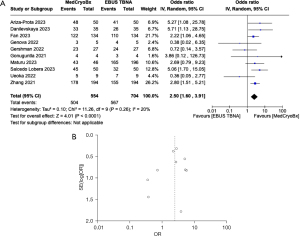

Figure 2 Overall diagnostic yield of MedCryoBx was better than EBUS-TBNA denoted in (A) forest plot and (B) funnel plot without significant publication bias. CI, confidence interval; IV, inverse variance, OR, odds ratio; SE, standard error; EBUS-TBNA, endobronchial ultrasound-transbronchial needle aspiration.

We also did further subgroup analysis for various conditions. In the subgroup analysis for diagnosis of lung cancer from seven studies (4,5,7-10,16) with MedCryoBx versus EBUS-TBNA, it showed no statistically significant increase in pooled diagnostic yield 96% (241 of 252) for MedCryoBx versus 92.5% (233 of 252) for EBUS-TBNA, with an inverse variance weighted pooled OR of 1.72 (95% CI: 0.80 to 3.70; P=0.16) with I2=0%. The funnel plot analysis denoted no major publication bias (Figures S1,S2).

We also did a subgroup analysis in the diagnosis of benign disorders. Benign disorders were defined as any granulomatous inflammation from sarcoidosis or other conditions, infections, or any reactive lymph node in the studies. The data from eight studies included (4,5,7-10,14,16) showed an increase in pooled diagnostic yield of 91% (145 of 160) for MedCryoBx versus 58% (93 of 160) for EBUS-TBNA with an inverse variance weighted pooled OR of 7.95 (95% CI: 3.54 to 17.85; P<0.001) with some heterogeneity I2 of 25%. A funnel plot for this showed asymmetry suggesting possible publication bias (Figures S3,S4), or maybe from wide precision of CI of studies from limited available data.

Subgroup analysis in the diagnosis of lymphoma from five studies (5,7,8,10,16), showed a statistically significant increase in pooled diagnostic yield of 87.5% (21 of 24) for MedCryoBx versus 29% (7 of 24) for EBUS-TBNA, with an inverse variance weighted pooled OR of 11.48 (95% CI: 2.69 to 48.98; P=0.001) with I2=0%. A funnel plot for this showed some asymmetry possibly suggesting some publication bias (Figures S5,S6).

For subgroup analysis in diagnosing other malignant tumors or metastasis, data was available only from 5 studies (7-10,16). This did not show any significant increase in pooled diagnostic yield, 88.5% (23 of 26) for MedCryoBx versus 81% (21 of 26) for EBUS-TBNA, with an inverse variance weighted pooled OR of 2.05 (95% CI: 0.13 to 32.23; P=0.61) with moderate heterogeneity I2=55% in the studies. A funnel plot for this showed some asymmetry suggesting publication bias (Figures S7,S8).


Discussion

Our systematic review and meta-analysis of studies show that the overall pooled diagnostic yield of MedCryoBx is higher compared to the EBUS-TBNA procedure for intrathoracic adenopathy, especially for benign conditions and lymphoma. The breakdown of diagnostic yield for lung cancer, benign conditions, other tumors, and lymphoma in the included studies when data was available is shown in Table S1.

There was noted to be a great degree of variability between the studies about the number of EBUS-TBNA passes done and, a gauge of the EBUS needles used. Most of the studies used 21 or 22-gauge needles. Few studies (5,6) used a 19 gauge needle for creating a track before the MedCryoBx procedure. Prior EBUS-TBNA literature studies (17-19) have not shown a difference in diagnostic yield with the needle size for EBUS-TBNA procedures. EBUS-Core needles may have some weak benefits for benign diseases (18,20) such as sarcoidosis. It has been shown in different studies (21-23) that the optimal number of EBUS-TBNA passes for a diagnosis of malignancy or benign granulomatous conditions, and to obtain adequate tissue for molecular cytogenetic profiling is between 3 to 6 passes. The number of EBUS-TBNA passes with most studies included in this metanalysis varied between 2 to 6, with most doing between 4–6 passes. We could not ascertain if any differences in the EBUS-TBNA needle, technique used, or a certain number of needle passes contributed to a mediocre pooled diagnostic yield noted from our meta-analysis. Thus, the technique of EBUS-TBNA used in various studies cannot be statistically evaluated from this meta-analysis.

The technique of performing the MedCryoBx procedure also varies significantly between the studies. Some use an HFNK, some use an Nd:YAG laser to create a track for the cryo-biopsy, and some others use the same needle track created by the EBUS-TBNA for doing the cryo-biopsy. The number of cryo biopsies done also varies between 2–7 biopsies in the studies. Most of the studies used a disposable 1.1 mm size ERBE cryoprobe for the procedure. In one study (9), it used a disposable 1.7 mm size cryoprobe occasionally for cryo-biopsy procedures. Another study (16) used a reusable ERBE 1.9 mm probe with HFNK or needle track for performing the procedure of MedCryoBx. There was also a significant variation in the cryofreeze time between 4–7 seconds for the cryobiopsies done in studies. Do these variations in the technique of the cryo-biopsy play a role in its definitive diagnosis? This is an area again with no specific data available to extrapolate from these included observational and few RCT studies. This will be an area that would require more robust studies in the future with MedCryoBx.

Is there a role for MedCryoBx in the diagnosis of lung cancer and other tumor or metastatic lesions?

For lung cancer diagnosis there was not much of a difference in pooled diagnostic yield or statistical significance noted from the studies (96% MedCryoBx versus 92.5% EBUS-TBNA). This possibly reiterates the fact that EBUS-TBNA when done with at least 3–4 passes was very adequate for sampling and diagnosis of lung cancer. One of the studies by Salcedo Lobera et al. (14) did only 2 EBUS TBNA passes. This could explain the lower 60% EBUS-TBNA diagnostic yield in that study. In the diagnosis for other malignant tumors and metastasis MedCryoBx did not show a benefit in this meta-analysis. The studies providing data had lower numbers for other tumor metastasis and malignancy (N=24), thus any meaningful conclusion may not be extrapolated with such small data for MedCryoBx.

Is there an improved diagnosis yield with MedCryoBx over EBUS-TBNA for benign conditions and lymphoma?

MedCryoBx could be a very propitious tool for a diagnosis of benign conditions including granulomatous disease. It showed a statistically significant diagnostic yield of 91% MedCryoBx versus 58% for EBUS-TBNA in our meta-analysis. Similarly, MedCryoBx also showed some favorable benefits in the diagnosis of lymphoma. However, only 24 cases of lymphoma were noted in the included studies. This is again a very small number, and though promising would need further studies proving its results consistently in the future. When MedCryoBx is compared to other tools that are being used alongside EBUS-TBNA, like the intranodal forceps biopsy (IFB), MedCryoBx seems to have improved diagnostic yield (95% for MedCryoBx from this meta-analysis) versus 75–80% with IFB alone in few other studies (19,24,25). A meta-analysis by Agrawal et al. (26) using IFB in addition to EBUS-TBNA improved pooled diagnostic yields by up to 92% when compared to EBUS-TBNA alone. A recently published RCT study by Cheng et al. (27) also shows an improved diagnosis for MedCryoBx over IFB only for benign conditions and uncommon tumors.

Does MedCryoBx provide larger tissue for additional testing and have a definite role in next-generation sequencing (NGS)?

Measuring this was not a secondary objective of this study, however, when data was mentioned in the included studies it has been summarized in Table S1. The RCTs (7,8) do mention superior tissue availability for NGS and molecular marker testing with MedCryoBx (95–97%) versus EBUS-TBNA (74–79%). A meta-analysis with 21 studies by Zhao et al. (28) mentions a diagnosis yield of 86.5% from EBUS-TBNA for NGS and molecular marker tissue analysis. A recent study from Spain by Velasco-Albendea et al. (29) mentions having a tumor percentage of 97% for MedCryoBx versus 26% for EBUS-TBNA specimens, and larger size of cellblocks obtained for non-small cell lung cancer (NSCLC) from 9 patients with a specimen size of 3–4 mm for MedCryoBx. The size of MedCryoBx in millimeters (mm) per sample is comparable to other studies included in this meta-analysis Table 3. A study by Oikonomidou et al. (30) with 311 patients is so far the largest study with MedCryoBx in our systematic review of the literature. Their study could not be included in this meta-analysis as there was no data relating to specific diagnoses from EBUS-TBNA versus MedCryoBx. Their study focused on cytological analysis and compared specimens obtained from MedCryoBx versus 19-G and 22-G needles. Cellblock slices obtained with the 19-G needle group were superior in their study over MedCryoBx samples for additional tissue (19-G > MedCryoBx > 22-G EBUS TBNA). Another interesting perspective this study provides (30) is a peek at disposable instrument cost for the procedures involved. In Greece, where the study was done the cost of a 19-G EBUS-TBNA needle was 520 euros in place of 1040 euros for the ERBE 1.1 mm disposable cryoprobe. MedCryoBx may have a potential role in providing adequate tissue for molecular markers analysis and NGS as denoted in some studies. However, this needs more potentially blinded randomized studies to be done to reiterate this fact and prove its superiority over existing larger gauge EBUS-TBNA needles which may provide a less costly approach.

Does MedCryoBx have a comparable or favorable complication rate over EBUS-TBNA?

It must be noted that the definition of bleeding after MedCryoBx is not uniform in the included studies. All of the studies mention if bleeding was present and if interventions or escalation of care were needed. Fan et al. (8) defined bleeding from a grade 0–4 with mild bleeding being defined as (grade 0–2) and significant bleeding (grades 3 and 4) requiring some intervention to be done for it. A meta-analysis (31) mentions only a small incidence of complications overall for the EBUS-TBNA procedure. Table 4 shows the incidence of complications from MedCryoBx in the included studies. Overall, 38% (210 of 554) patients had some complications mentioned with MedCryoBx. Most of this 36% (N=202) was mild self-limited bleeding during the procedure not requiring any intervention. When this was compared to complications occurring from EBUS-TBNA from the American College of Chest Physicians Quality Improvement Registry, Evaluation, and Education (AQuIRE) database (32), MedCryoBx has an acceptable, safe comparable profile. There was only a 0.4% rate of pneumothorax for MedCryoBx compared to 0.5% for EBUS-TBNA from the AQuIRE registry. The rate of significant bleeding needing intervention was 0.2% for EBUS-TBNA from the AQuIRE registry compared to 0.7% for MedCryoBx from this meta-analysis. The occurrence of any major complications needing any post-procedure intervention, or escalation of care with MedCryoBx is likely very minimal. However, considering nonuniform definitions for bleeding were used in the included studies this must be interpreted with some caution.

Besides the two RCTs included in this meta-analysis, the other observational studies have a high intrinsic risk of operator and selection bias, even though some have a multicenter study design. None of the included studies in our meta-analysis addresses any interobserver variability. We know from EBUS-TBNA literature there is at least moderate interobserver variability about 70% in the diagnosis of benign conditions and granulomas (32-34), and also in the diagnosis of lung cancer. This is an area that needs to be addressed in future MedCryoBx studies. Since MedCryoBx is a relatively new procedure, the processing of specimens for cytology and histopathology analysis may be again subject to variability, is unaccounted for in these studies, and may affect its diagnostic yield.

There are some limitations to this meta-analysis. Most of the data is from observational studies and retrospective data. The addition of one conference abstract may add some selection bias to the meta-analysis. There is marked variability in the technique of performing MedCryoBx. Thus, any meaningful recommendations on how to perform EBUS-guided mediastinal cryobiopsy, or the processing of its specimens cannot be determined.


Conclusions

In conclusion from this meta-analysis and systematic review of the literature, MedCryoBx does have a promising potential role in improving the overall diagnostic yield of intrathoracic adenopathy. This overall yield improvement is mostly limited to benign conditions and may present also for lymphoma, but this needs to be further ascertained with robust studies. It confers no additional benefit, especially in lung cancer diagnosis. There is so much inherent variability and the need for more larger prospective RCT to standardize the technique of MedCryoBx itself. The safety profile of MedCryoBx is comparable to EBUS-TBNA and lower than for surgical mediastinoscopy (35). MedCryoBx need not be used as a first-line diagnostic procedure, or as the only procedure for a diagnosis of intrathoracic adenopathy. A very prudent approach for the use of MedCryoBx in our opinion would be as outlined by Maturu et al. (6) as an adjunct tool for nondiagnostic ROSE, and or for cases with a high index of suspicion for lymphoproliferative disorders. A deeper insight into future studies to ascertain its cost-benefit ratio as an adjunct procedure to EBUS-TBNA is also warranted.


Acknowledgments

Funding: None.


Footnote

Reporting Checklist: The authors have completed the PRISMA reporting checklist. Available at https://jtd.amegroups.com/article/view/10.21037/jtd-24-348/rc

Peer Review File: Available at https://jtd.amegroups.com/article/view/10.21037/jtd-24-348/prf

Conflicts of Interest: All authors have completed the ICMJE uniform disclosure form (available at https://jtd.amegroups.com/article/view/10.21037/jtd-24-348/coif). The authors have no conflicts of interest to declare.

Ethical Statement: The authors are accountable for all aspects of the work in ensuring that questions related to the accuracy or integrity of any part of the work are appropriately investigated and resolved.

Open Access Statement: This is an Open Access article distributed in accordance with the Creative Commons Attribution-NonCommercial-NoDerivs 4.0 International License (CC BY-NC-ND 4.0), which permits the non-commercial replication and distribution of the article with the strict proviso that no changes or edits are made and the original work is properly cited (including links to both the formal publication through the relevant DOI and the license). See: https://creativecommons.org/licenses/by-nc-nd/4.0/.
